GB/T 44851.3-2024: Road vehicles - Liquefied natural gas(LNG)fuel system components - Part 3: Check valve

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 44851.3-2024 (Self-service in 1-minute)
Newer / historical versions: GB/T 44851.3-2024

Preview True-PDF

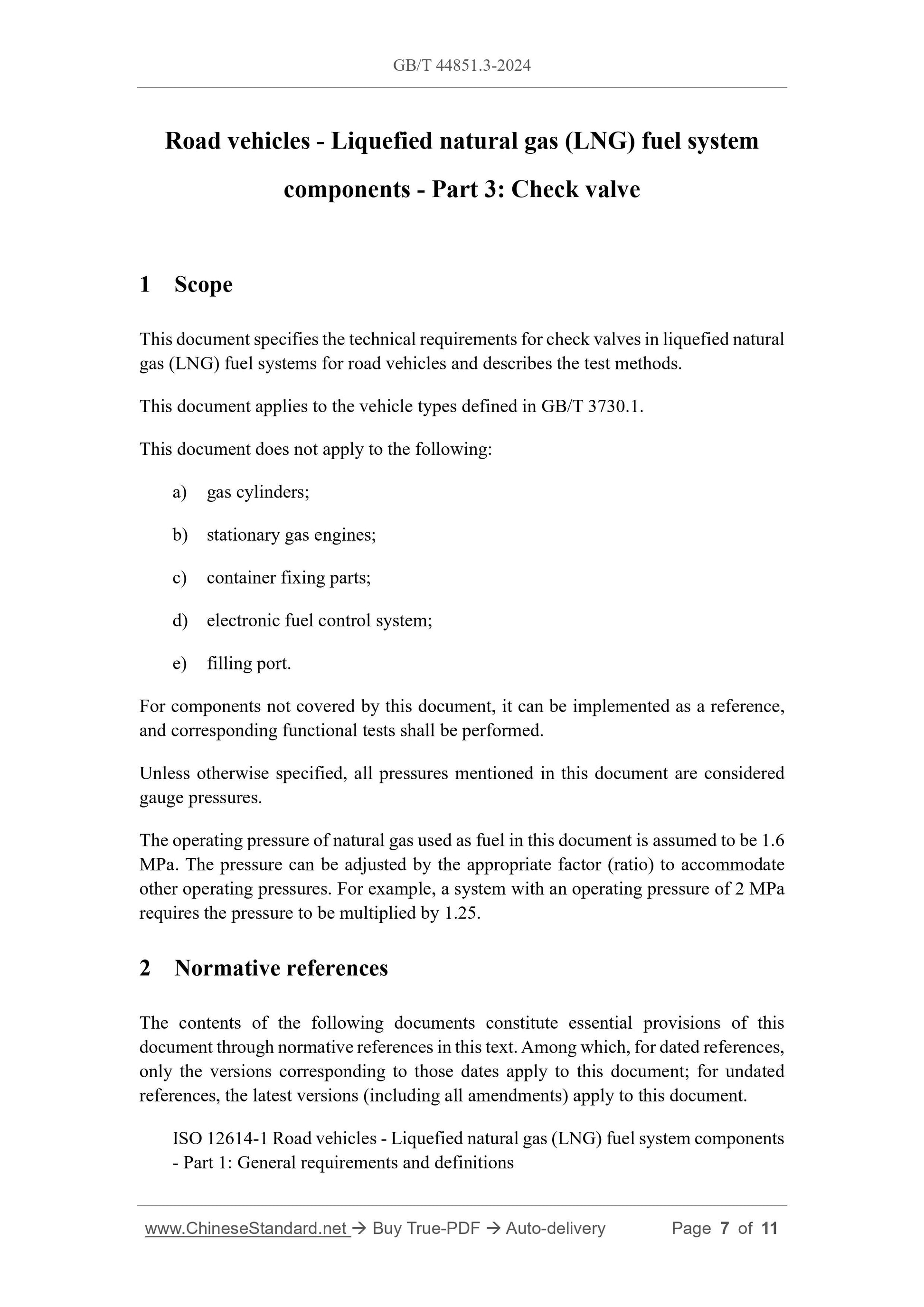

Scope

This document specifies the technical requirements for check valves in liquefied natural
gas (LNG) fuel systems for road vehicles and describes the test methods.
This document applies to the vehicle types defined in GB/T 3730.1.
This document does not apply to the following.
a) gas cylinders;
b) stationary gas engines;
c) container fixing parts;
d) electronic fuel control system;
e) filling port.
For components not covered by this document, it can be implemented as a reference,
and corresponding functional tests shall be performed.
Unless otherwise specified, all pressures mentioned in this document are considered
gauge pressures.
The operating pressure of natural gas used as fuel in this document is assumed to be 1.6
MPa. The pressure can be adjusted by the appropriate factor (ratio) to accommodate
other operating pressures. For example, a system with an operating pressure of 2 MPa
requires the pressure to be multiplied by 1.25.

Basic Data

Standard ID	GB/T 44851.3-2024 (GB/T44851.3-2024)
Description (Translated English)	Road vehicles - Liquefied natural gas(LNG)fuel system components - Part 3: Check valve
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	T40
Classification of International Standard	43.020
Word Count Estimation	10,182
Date of Issue	2024-10-26
Date of Implementation	2025-05-01
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
