GB/T 44719-2024: Intelligent and connected vehicle - Methods and requirements of road test for automated driving functions

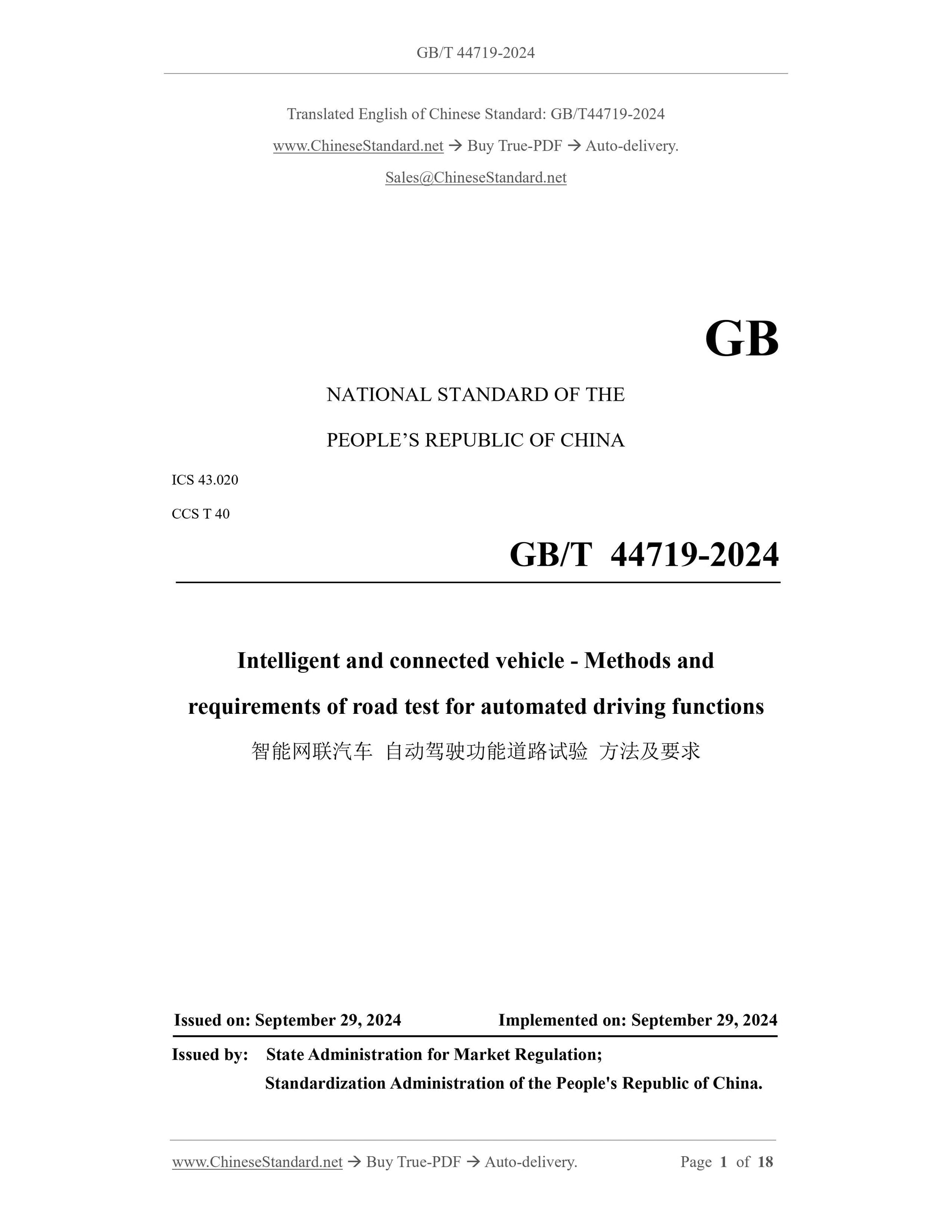

GB/T 44719-2024
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 43.020
CCS T 40
Intelligent and connected vehicle - Methods and
requirements of road test for automated driving functions
ISSUED ON: SEPTEMBER 29, 2024
IMPLEMENTED ON: SEPTEMBER 29, 2024
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of China.

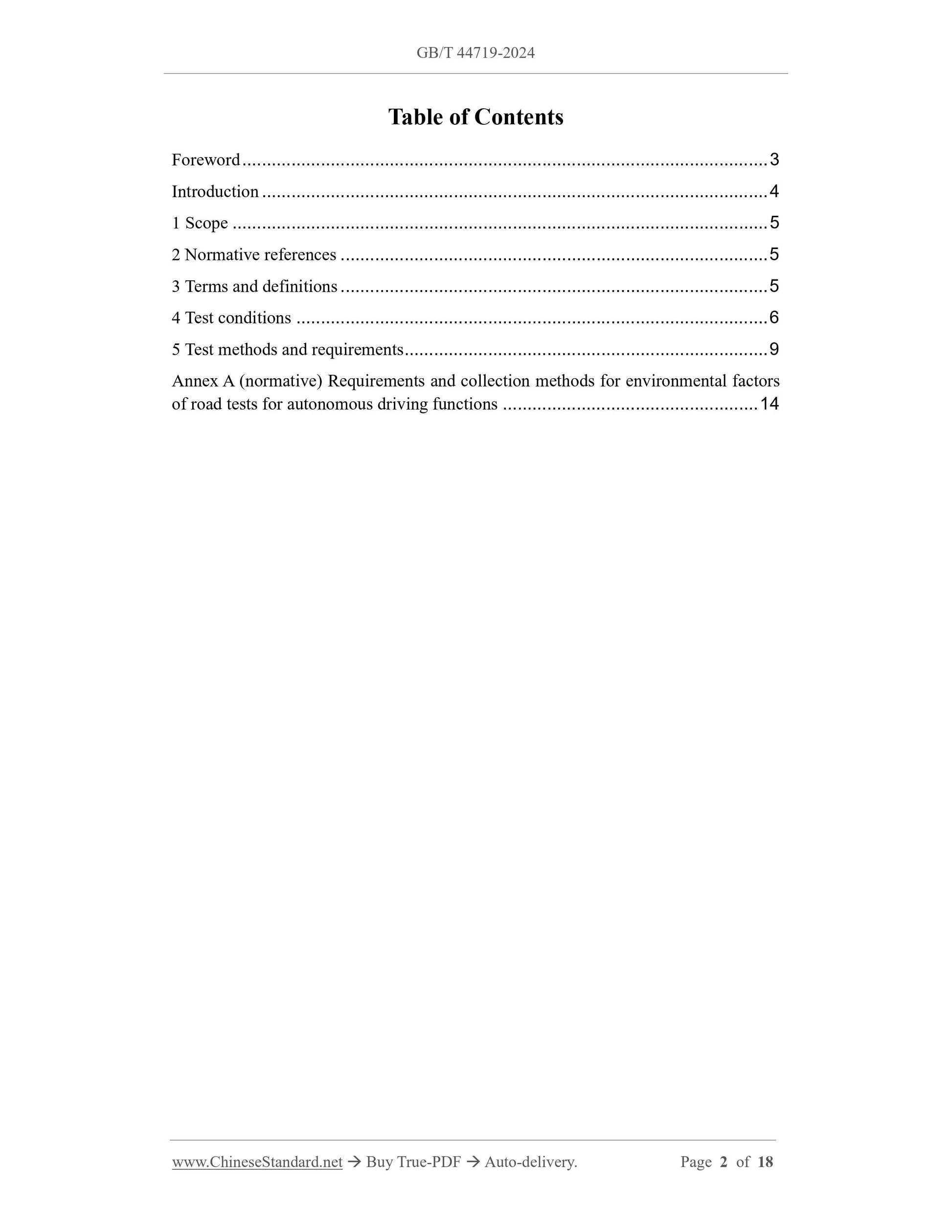

Table of Contents
Foreword ... 3
Introduction ... 4
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Test conditions ... 6
5 Test methods and requirements ... 9
Annex A (normative) Requirements and collection methods for environmental factors
of road tests for autonomous driving functions ... 14

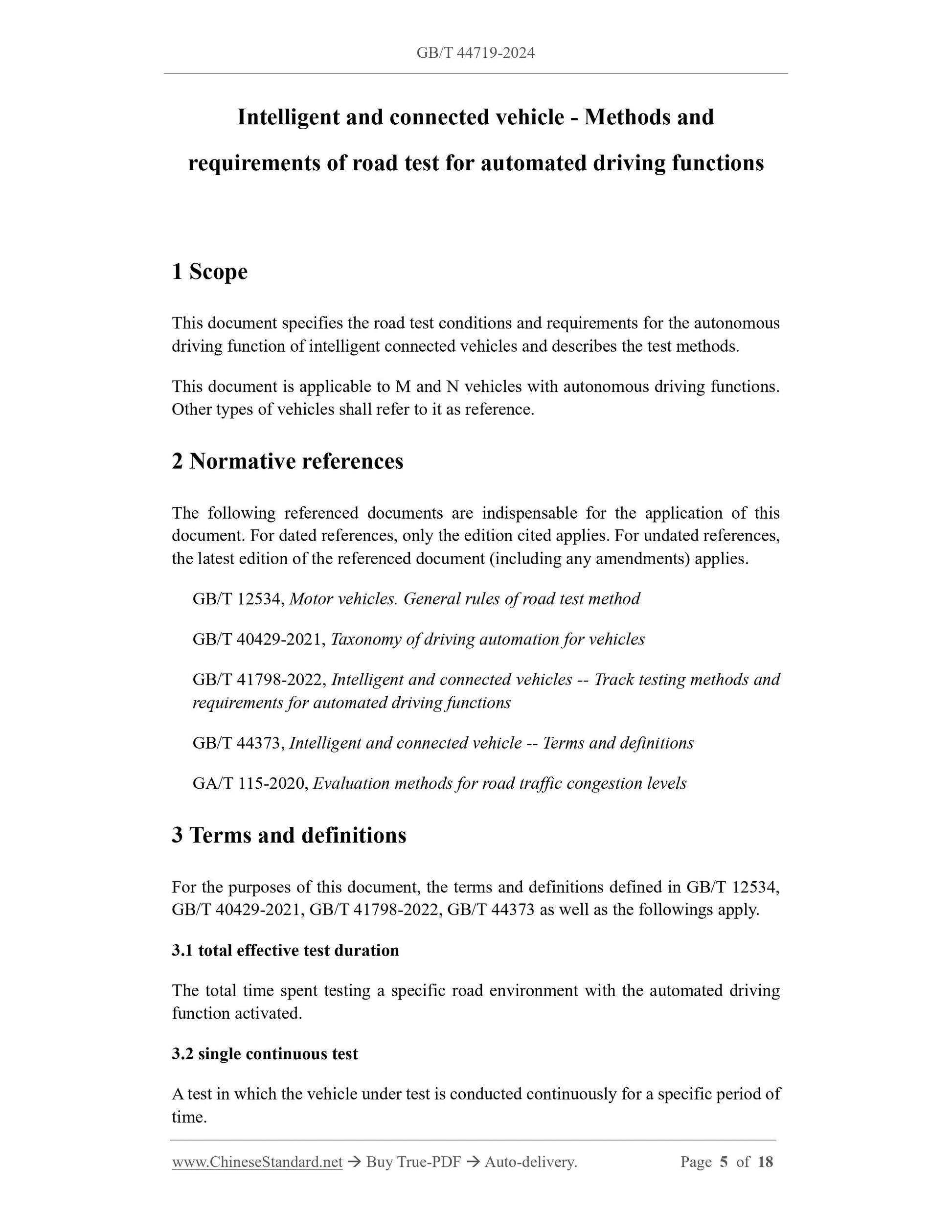

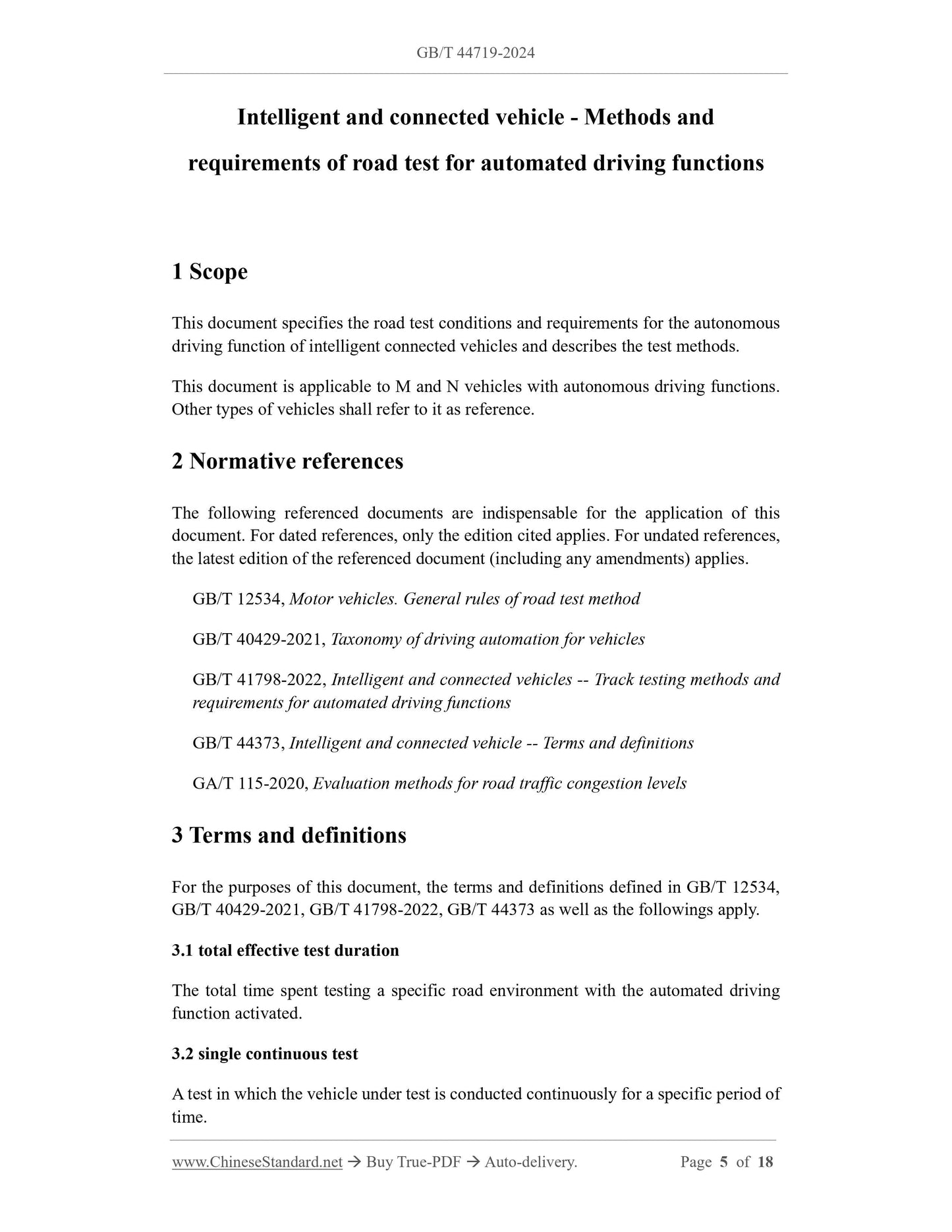

Intelligent and connected vehicle - Methods and
requirements of road test for automated driving functions
1 Scope
This document specifies the road test conditions and requirements for the autonomous
driving function of intelligent connected vehicles and describes the test methods.
This document is applicable to M and N vehicles with autonomous driving functions.
Other types of vehicles shall refer to it as reference.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 12534, Motor vehicles. General rules of road test method
GB/T 40429-2021, Taxonomy of driving automation for vehicles
GB/T 41798-2022, Intelligent and connected vehicles -- Track testing methods and
requirements for automated driving functions
GB/T 44373, Intelligent and connected vehicle -- Terms and definitions
GA/T 115-2020, Evaluation methods for road traffic congestion levels
3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T 12534,
GB/T 40429-2021, GB/T 41798-2022, GB/T 44373 as well as the followings apply.
3.1 total effective test duration
The total time spent testing a specific road environment with the automated driving
function activated.
3.2 single continuous test
A test in which the vehicle under test is conducted continuously for a specific period of
time.

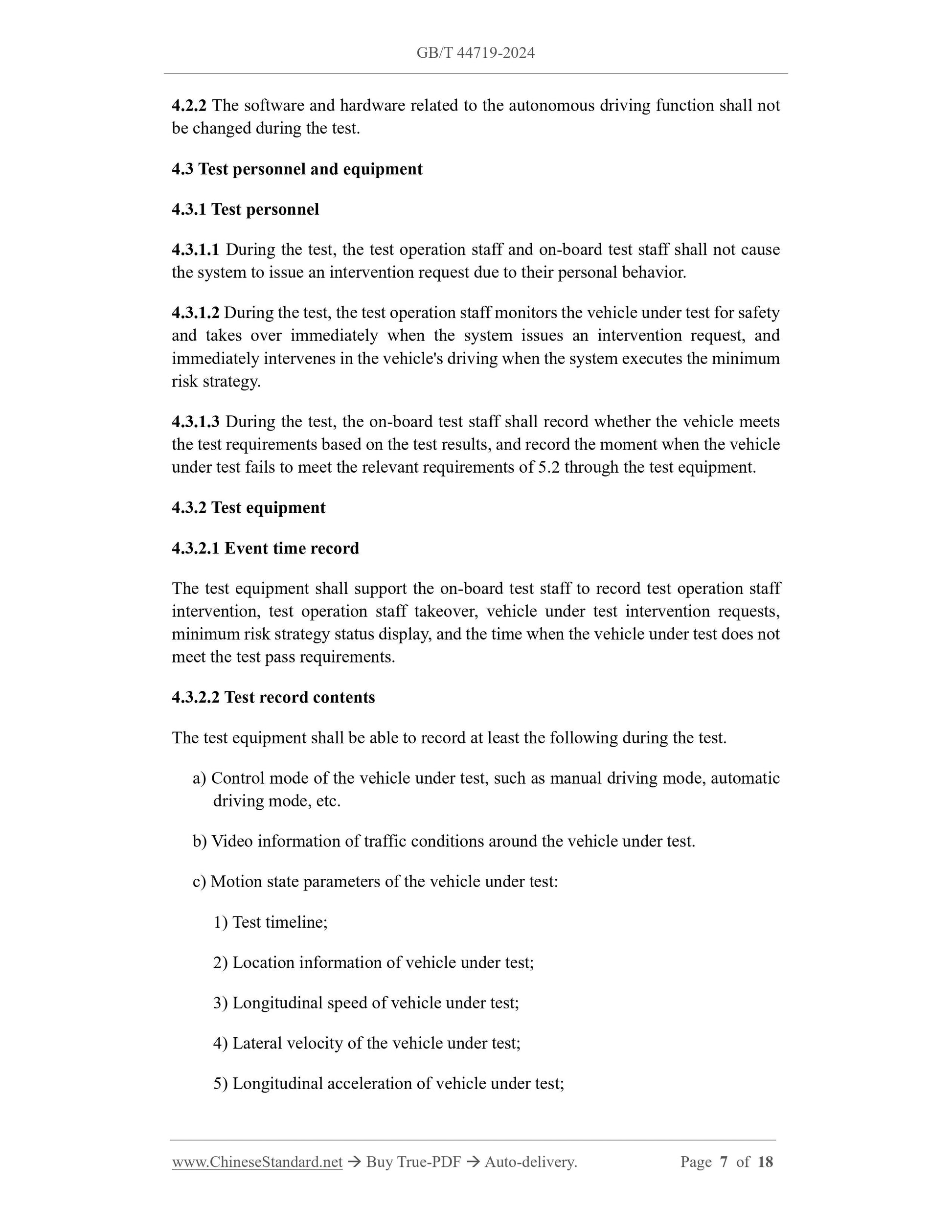

4.2.2 The software and hardware related to the autonomous driving function shall not
be changed during the test.
4.3 Test personnel and equipment
4.3.1 Test personnel
4.3.1.1 During the test, the test operation staff and on-board test staff shall not cause
the system to issue an intervention request due to their personal behavior.
4.3.1.2 During the test, the test operation staff monitors the vehicle under test for safety
and takes over immediately when the system issues an intervention request, and
immediately intervenes in the vehicle's driving when the system executes the minimum
risk strategy.
4.3.1.3 During the test, the on-board test staff shall record whether the vehicle meets
the test requirements based on the test results, and record the moment when the vehicle
under test fails to meet the relevant requirements of 5.2 through the test equipment.
4.3.2 Test equipment
4.3.2.1 Event time record
The test equipment shall support the on-board test staff to record test operation staff
intervention, test operation staff takeover, vehicle under test intervention requests,
minimum risk strategy status display, and the time when the vehicle under test does not
meet the test pass requirements.
4.3.2.2 Test record contents
The test equipment shall be able to record at least the following during the test.
a) Control mode of the vehicle under test, such as manual driving mode, automatic
driving mode, etc.
b) Video information of traffic conditions around the vehicle under test.
c) Motion state parameters of the vehicle under test:
1) Test timeline;
2) Location information of vehicle under test;
3) Longitudinal speed of vehicle under test;
4) Lateral velocity of the vehicle under test;
5) Longitudinal acceleration of vehicle under test;

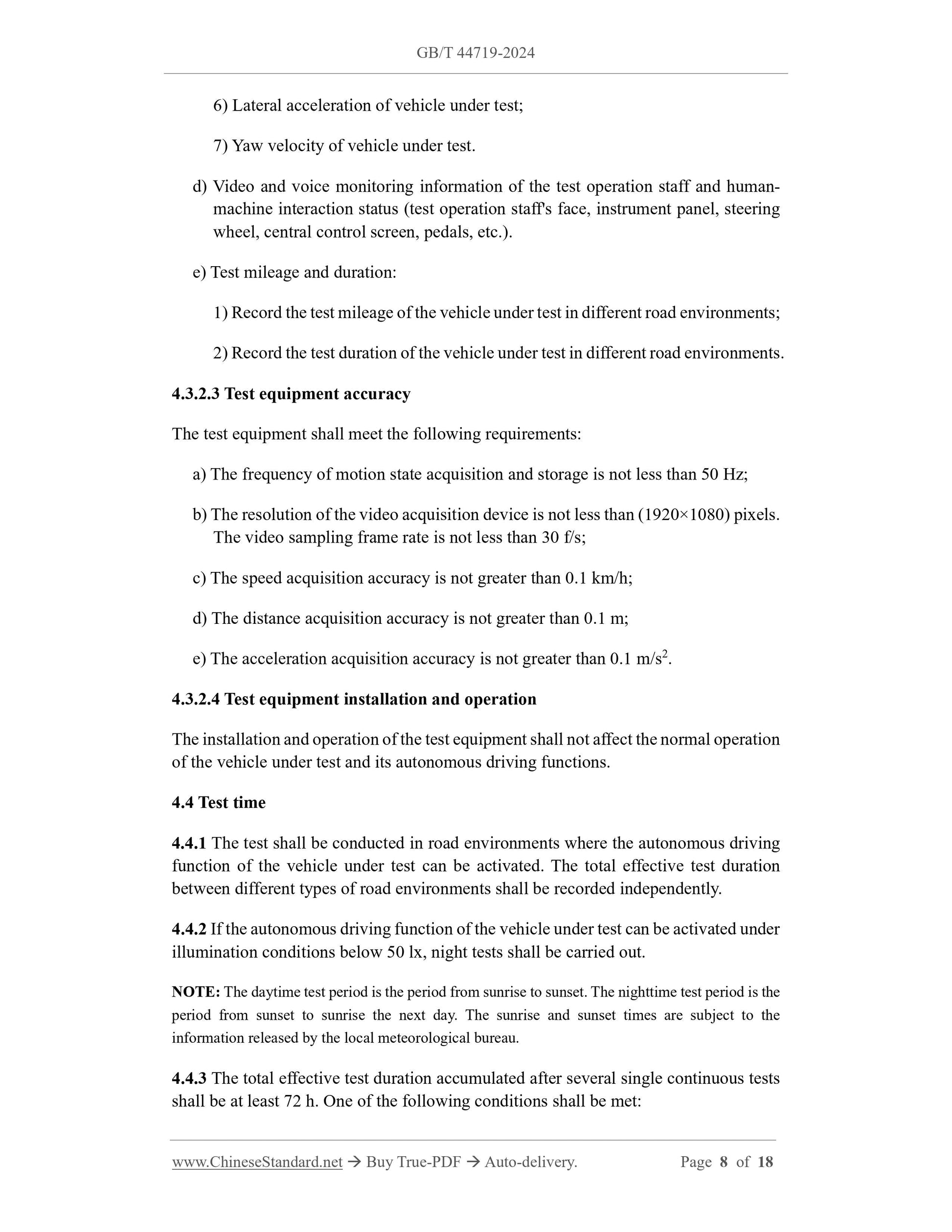

6) Lateral acceleration of vehicle under test;
7) Yaw velocity of vehicle under test.
d) Video and voice monitoring information of the test operation staff and human-
machine interaction status (test operation staff's face, instrument panel, steering
wheel, central control screen, pedals, etc.).
e) Test mileage and duration:
1) Record the test mileage of the vehicle under test in different road environments;
2) Record the test duration of the vehicle under test in different road environments.
4.3.2.3 Test equipment accuracy
The test equipment shall meet the following requirements:
a) The frequency of motion state acquisition and storage is not less than 50 Hz;
b) The resolution of the video acquisition device is not less than (1920×1080) pixels.
The video sampling frame rate is not less than 30 f/s;
c) The speed acquisition accuracy is not greater than 0.1 km/h;
d) The distance acquisition accuracy is not greater than 0.1 m;
e) The acceleration acquisition accuracy is not greater than 0.1 m/s2.
4.3.2.4 Test equipment installation and operation
The installation and operation of the test equipment shall not affect the normal operation
of the vehicle under test and its autonomous driving functions.
4.4 Test time
4.4.1 The test shall be conducted in road environments where the autonomous driving
function of the vehicle under test can be activated. The total effective test duration
between different types of road environments shall be recorded independently.
4.4.2 If the autonomous driving function of the vehicle under test can be activated under
illumination conditions below 50 lx, night tests shall be carried out.
NOTE: The daytime test period is the period from sunrise to sunset. The nighttime test period is the
period from sunset to sunrise the next day. The sunrise and sunset times are subject to the
information released by the local meteorological bureau.
4.4.3 The total effective test duration accumulated after several single continuous tests
shall be at least 72 h. One of the following conditions shall be met:

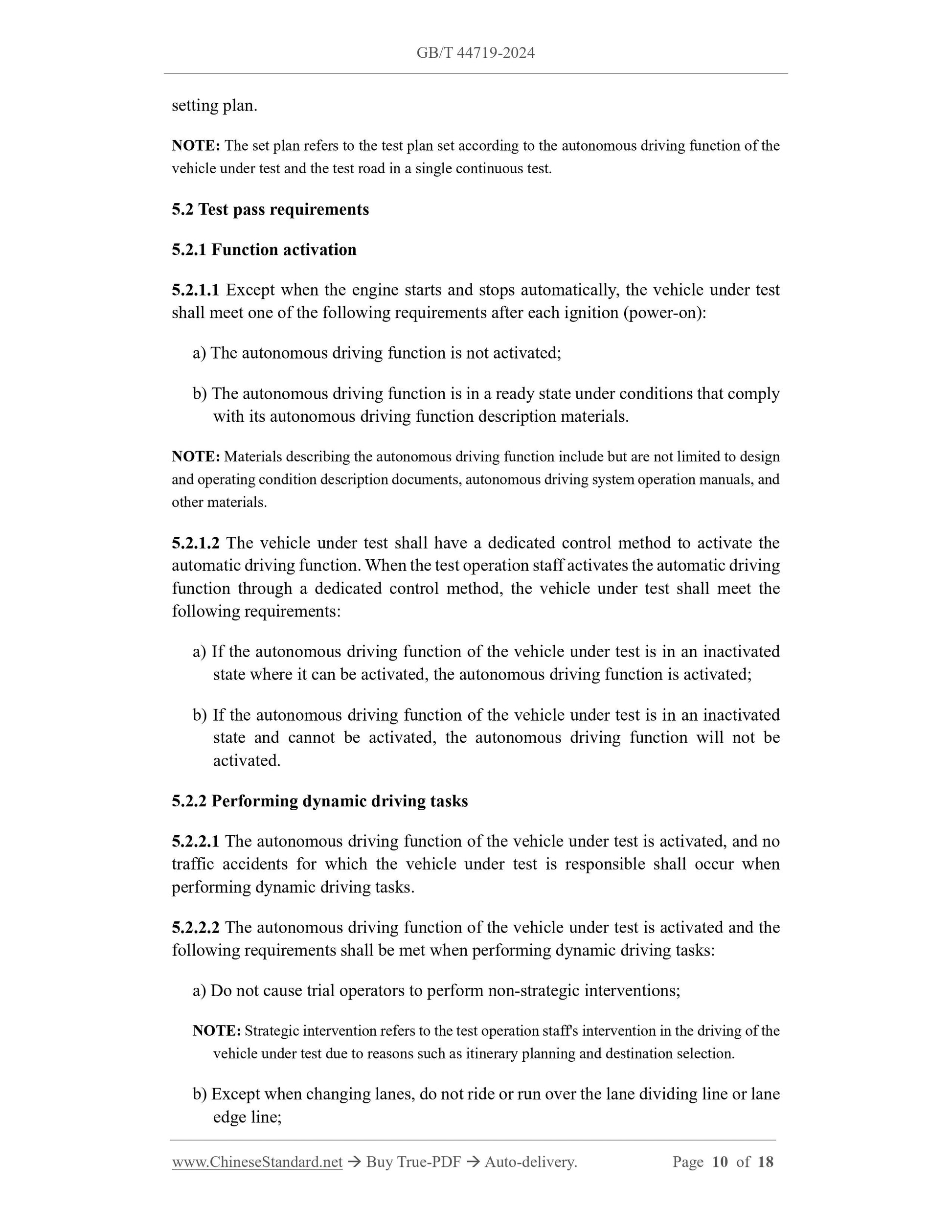

setting plan.
NOTE: The set plan refers to the test plan set according to the autonomous driving function of the
vehicle under test and the test road in a single continuous test.
5.2 Test pass requirements
5.2.1 Function activation
5.2.1.1 Except when the engine starts and stops automatically, the vehicle under test
shall meet one of the following requirements after each ignition (power-on):
a) The autonomous driving function is not activated;
b) The autonomous driving function is in a ready state under conditions that comply
with its autonomous driving function description materials.
NOTE: Materials describing the autonomous driving function include but are not limited to design
and operating condition description documents, autonomous driving system operation manuals, and
other materials.
5.2.1.2 The vehicle under test shall have a dedicated control method to activate the
automatic driving function. When the test operation staff activates the automatic driving
function through a dedicated control method, the vehicle under test shall meet the
following requirements:
a) If the autonomous driving function of the vehicle under test is in an inactivated
state where it can be activated, the autonomous driving function is activated;
b) If the autonomous driving function of the vehicle under test is in a...
