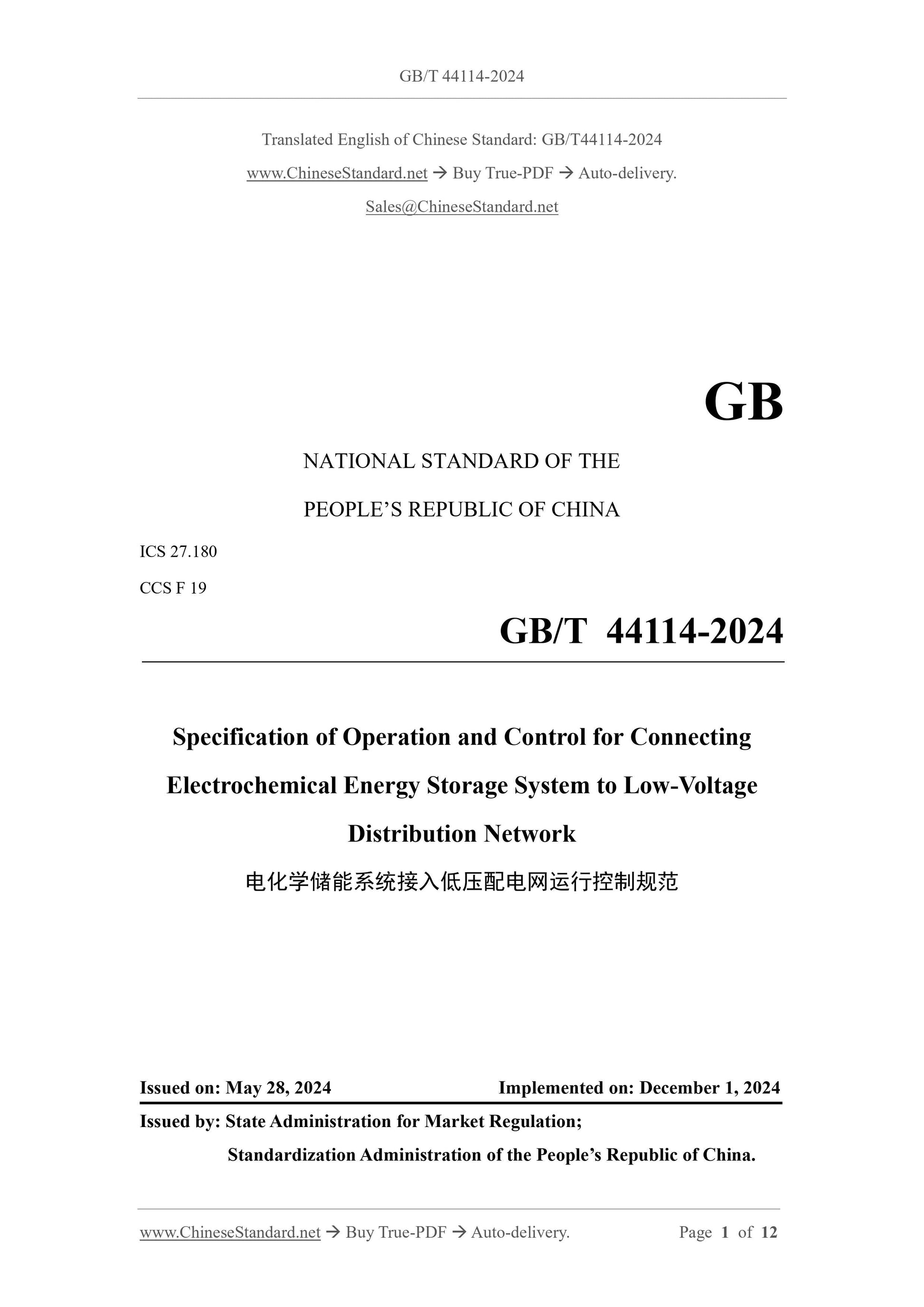

GB/T 44114-2024
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.180
CCS F 19
Specification of Operation and Control for Connecting
Electrochemical Energy Storage System to Low-Voltage
Distribution Network
ISSUED ON. MAY 28, 2024
IMPLEMENTED ON. DECEMBER 1, 2024
Issued by. State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

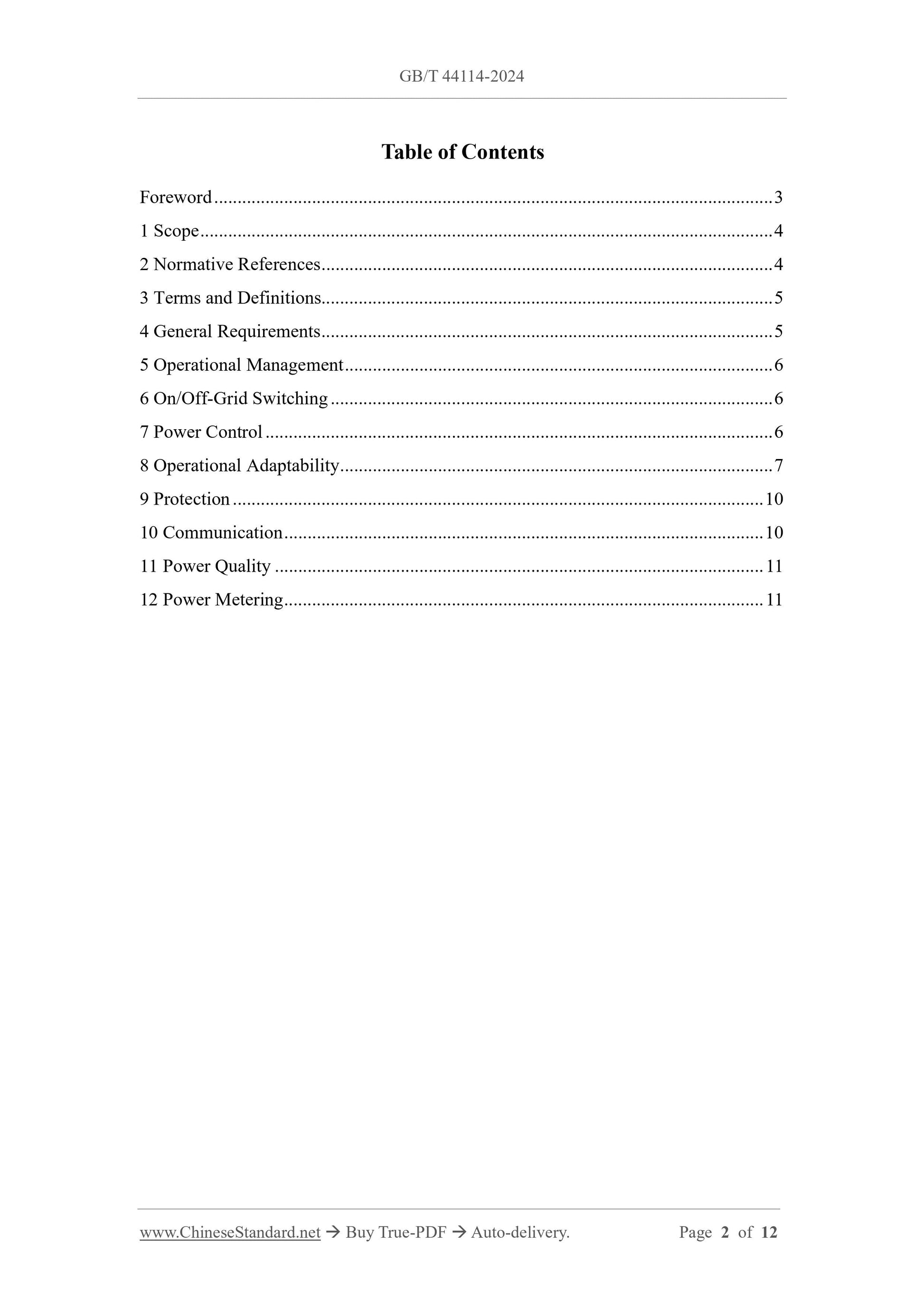

Table of Contents
Foreword... 3
1 Scope... 4
2 Normative References... 4
3 Terms and Definitions... 5
4 General Requirements... 5
5 Operational Management... 6
6 On/Off-Grid Switching... 6
7 Power Control... 6
8 Operational Adaptability... 7
9 Protection... 10
10 Communication... 10
11 Power Quality... 11
12 Power Metering... 11

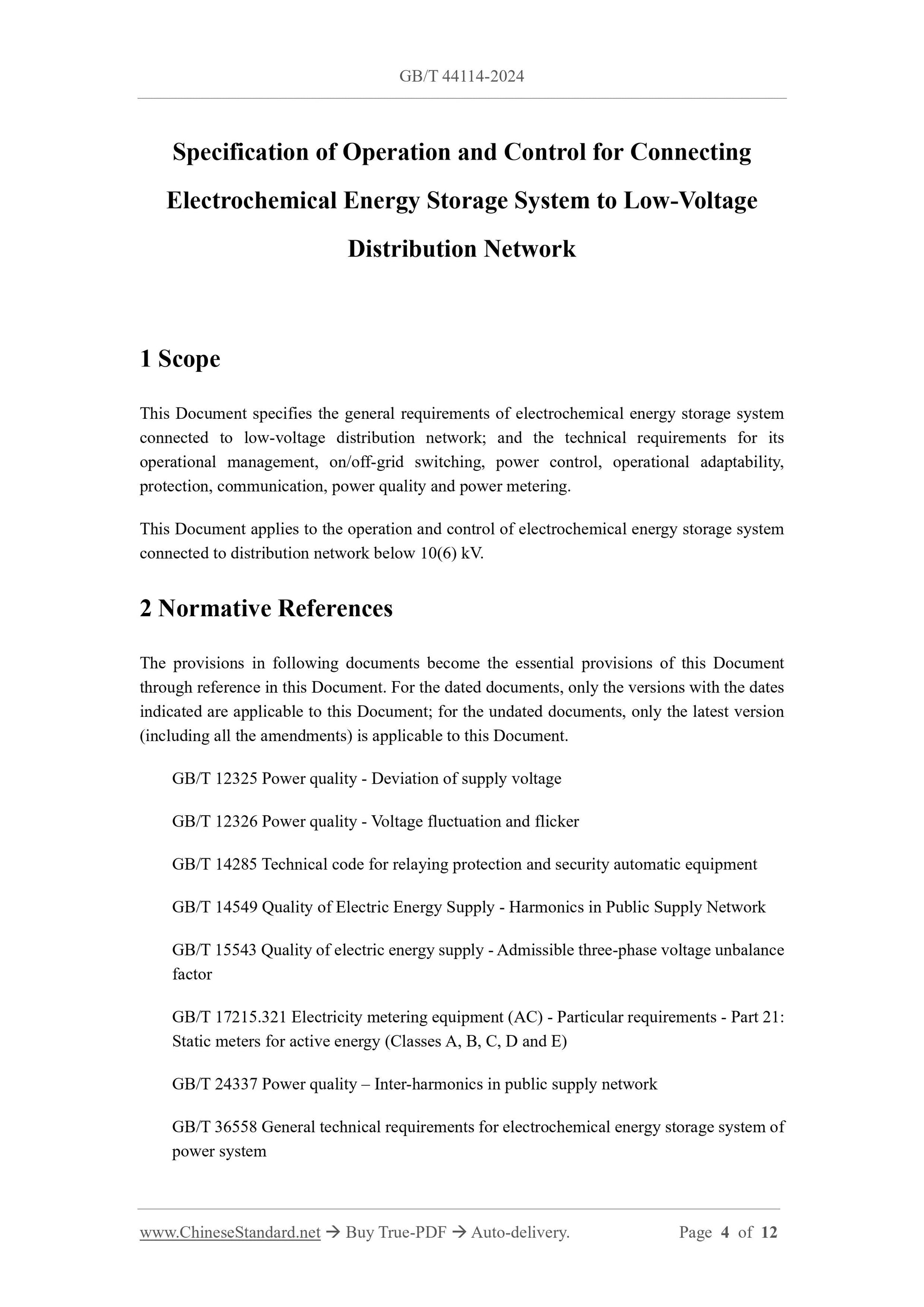

Specification of Operation and Control for Connecting
Electrochemical Energy Storage System to Low-Voltage
Distribution Network
1 Scope
This Document specifies the general requirements of electrochemical energy storage system
connected to low-voltage distribution network; and the technical requirements for its
operational management, on/off-grid switching, power control, operational adaptability,
protection, communication, power quality and power metering.
This Document applies to the operation and control of electrochemical energy storage system
connected to distribution network below 10(6) kV.
2 Normative References
The provisions in following documents become the essential provisions of this Document
through reference in this Document. For the dated documents, only the versions with the dates
indicated are applicable to this Document; for the undated documents, only the latest version
(including all the amendments) is applicable to this Document.
GB/T 12325 Power quality - Deviation of supply voltage
GB/T 12326 Power quality - Voltage fluctuation and flicker
GB/T 14285 Technical code for relaying protection and security automatic equipment
GB/T 14549 Quality of Electric Energy Supply - Harmonics in Public Supply Network
GB/T 15543 Quality of electric energy supply - Admissible three-phase voltage unbalance
factor
GB/T 17215.321 Electricity metering equipment (AC) - Particular requirements - Part 21.
Static meters for active energy (Classes A, B, C, D and E)
GB/T 24337 Power quality – Inter-harmonics in public supply network
GB/T 36558 General technical requirements for electrochemical energy storage system of
power system
GB/T 36572 Guidelines of cyber security protection for electric power system supervision
and control
GB/T 40427 Technical guidelines for power system voltage and reactive power
GB/T 43526 Technical requirements for connecting user-side electrochemical energy
storage system to distribution network
GB/T 50063 Code for design of electrical measuring device of power system
DL/T 645 Multi-function watt-hour meter communication protocol
DL/T 2528 Basic terminology of electrical energy storage

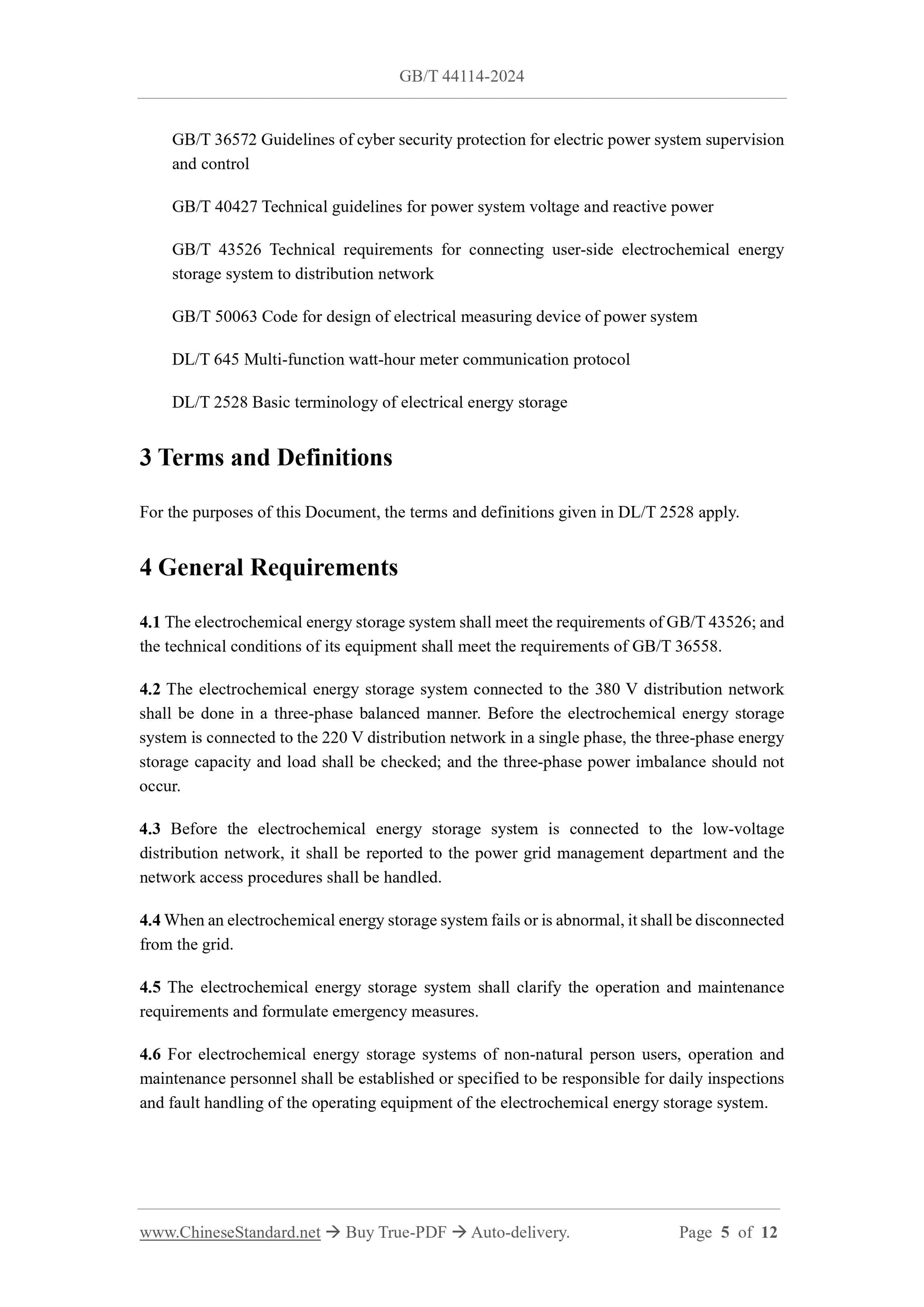

3 Terms and Definitions
For the purposes of this Document, the terms and definitions given in DL/T 2528 apply.
4 General Requirements
4.1 The electrochemical energy storage system shall meet the requirements of GB/T 43526; and
the technical conditions of its equipment shall meet the requirements of GB/T 36558.
4.2 The electrochemical energy storage system connected to the 380 V distribution network
shall be done in a three-phase balanced manner. Before the electrochemical energy storage
system is connected to the 220 V distribution network in a single phase, the three-phase energy
storage capacity and load shall be checked; and the three-phase power imbalance should not
occur.
4.3 Before the electrochemical energy storage system is connected to the low-voltage
distribution network, it shall be reported to the power grid management department and the
network access procedures shall be handled.
4.4 When an electrochemical energy storage system fails or is abnormal, it shall be disconnected
from the grid.
4.5 The electrochemical energy storage system shall clarify the operation and maintenance
requirements and formulate emergency measures.
4.6 For electrochemical energy storage systems of non-natural person users, operation and
maintenance personnel shall be established or specified to be responsible for daily inspections
and fault handling of the operating equipment of the electrochemical energy storage system.

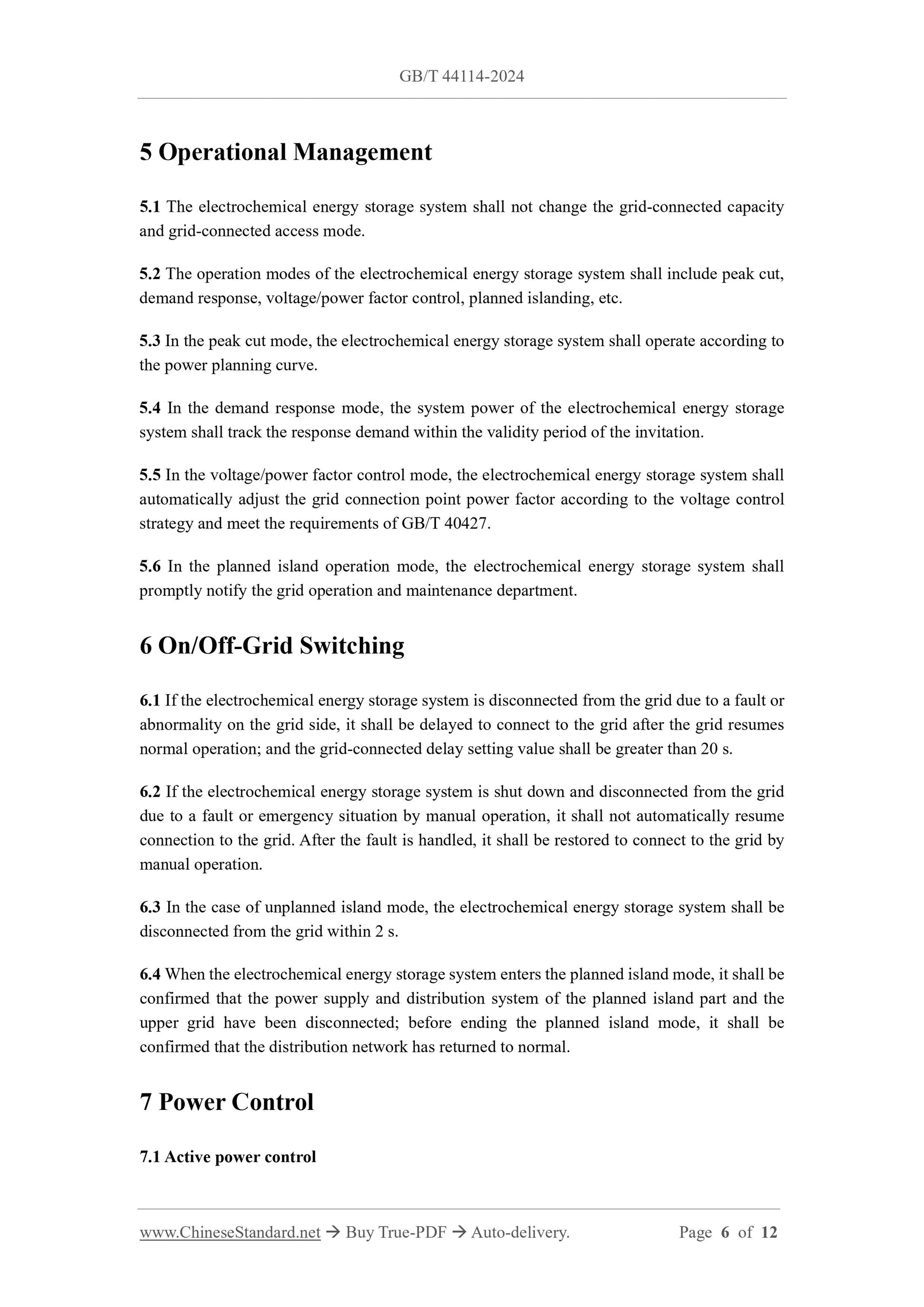

5 Operational Management
5.1 The electrochemical energy storage system shall not change the grid-connected capacity
and grid-connected access mode.
5.2 The operation modes of the electrochemical energy storage system shall include peak cut,
demand response, voltage/power factor control, planned islanding, etc.
5.3 In the peak cut mode, the electrochemical energy storage system shall operate according to
the power planning curve.
5.4 In the demand response mode, the system power of the electrochemical energy storage
system shall track the response demand within the validity period of the invitation.
5.5 In the voltage/power factor control mode, the electrochemical energy storage system shall
automatically adjust the grid connection point power factor according to the voltage control
strategy and meet the requirements of GB/T 40427.
5.6 In the planned island operation mode, the electrochemical energy storage system shall
promptly notify the grid operation and maintenance department.
6 On/Off-Grid Switching
6.1 If the electrochemical energy storage system is disconnected from the grid due to a fault or
abnormality on the grid side, it shall be delayed to connect to the grid after the grid resumes
normal operation; and the grid-connected delay setting value shall be greater than 20 s.
6.2 If the electrochemical energy storage system is shut down and disconnected from the grid
due to a fault or emergency situation by manual operation, it shall not automatically resume
connection to the grid. After the fault is handled, it shall be restored to connect to the grid by
manual operation.
6.3 In the case of unplanned island mode, the electrochemical energy storage system shall be
disconnected from the grid within 2 s.
6.4 When the electrochemical energy storage system enters the planned island mode, it shall be
confirmed that the power supply and distribution system of the planned island part and the
upper grid have been disconnected; before ending the planned island mode, it shall be
confirmed that the distribution network has returned to normal.
7 Power Control
7.1 Active power control

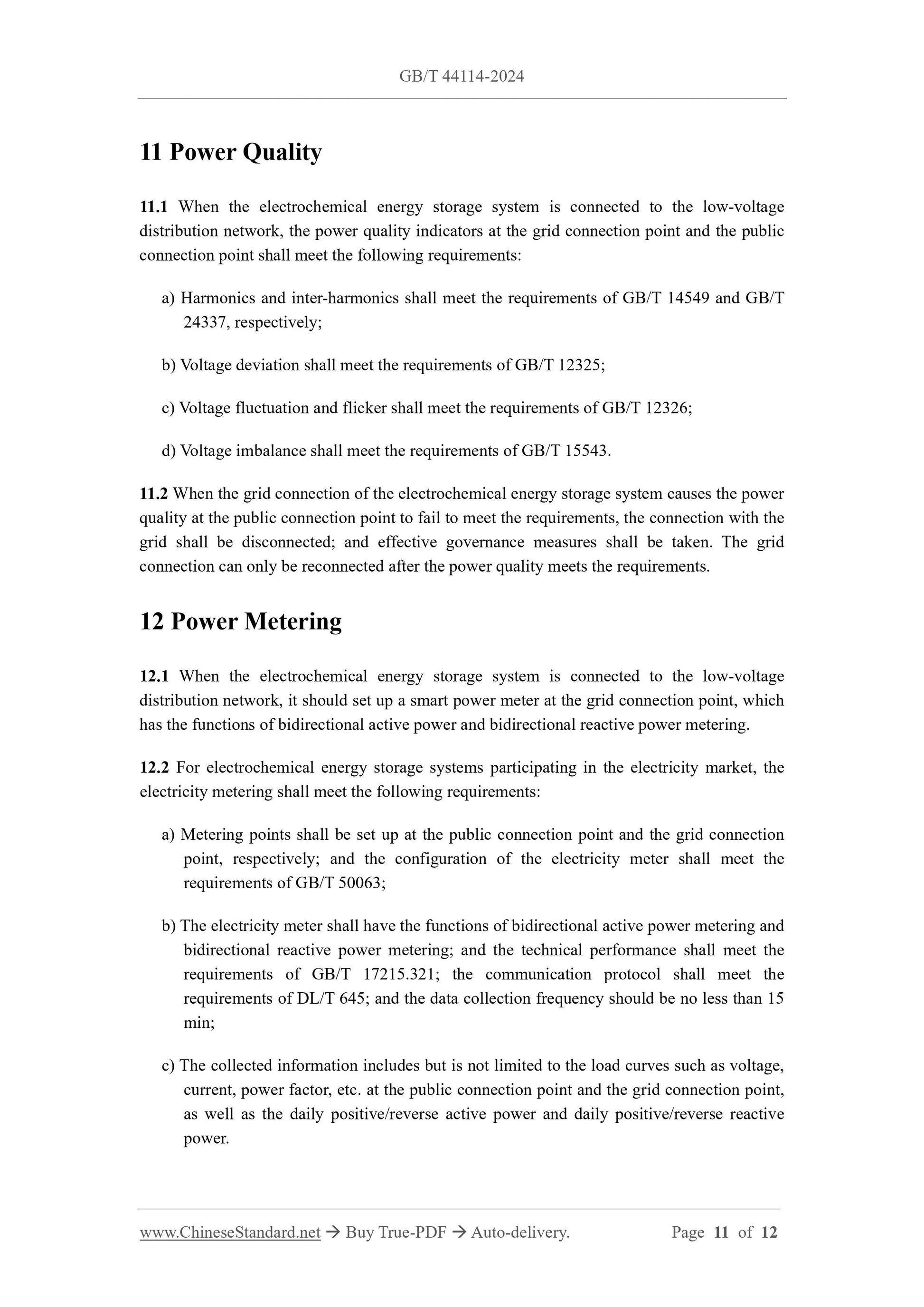

11 Power Quality
11.1 When the electrochemical energy storage system is connected to the low-voltage
distribution network, the power quality indicators at the grid connection point and the public
connection point shall meet the following requirements.
a) Harmonics and inter-harmonics shall meet the requirements of GB/T 14549 and GB/T
24337, respectively;
b) Voltage deviation shall meet the requirements of GB/T 12325;
c) Voltage fluctuation and flicker shall meet the requirements of GB/T 12326;
d) Voltage imbalance shall meet the requirements of GB/T 15543.
11.2 When the grid connection of the electrochemical energy storage system causes the power
quality at the public connection point to fail to meet the requirements, the connection with the
grid shall be disconnected; and effective governance measures shall be taken. The grid
connection can only be reconnected after the power quality meets the requirements.
12 Power Metering
12.1 When the electrochemical energy storage system is connected to the low-voltage
distribution network, it should set up a smart power meter at the grid connection point, which
has the functions of bidirectional active power and bidirectional reactive power metering.
12.2 For electrochemical energy storage systems participating in the electricity market, the
electricity metering shall meet the following requirements.
a) Metering points shall be set up at the public connection point and the grid connection
point, respectively; and the configuration of the electricity meter shall meet the
requirements of GB/T 50063;
b) The electricity meter shall have the functions of bidirectional active power metering and
bidirectional reactive power metering; and the technical performance shall meet the
requirements of GB/T 17215.321; the communication protocol shall meet the
requirements of DL/T 645; and the data collection frequency should be no less than 15
min;
c) The collected information includes but is not limited to the load curves such as voltage,
current, power factor, etc. at the public connection point and the grid connection point,
as well as the daily positive/reverse active power and daily positive/reverse reactive
power.
