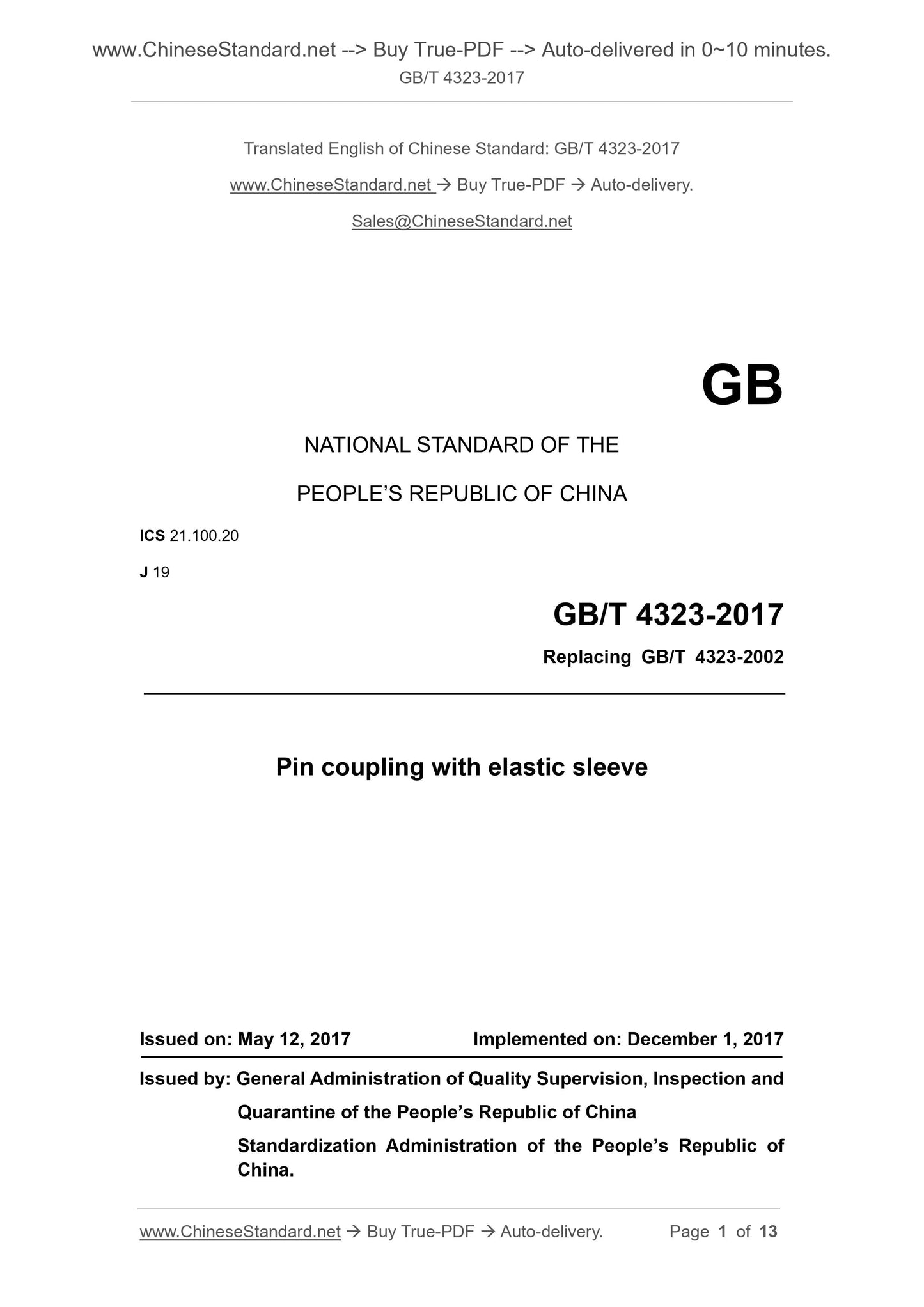

GB/T 4323-2017: Pin coupling with elastic sleeve

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 4323-2017 (Self-service in 1-minute)
Newer / historical versions: GB/T 4323-2017

Preview True-PDF

Scope

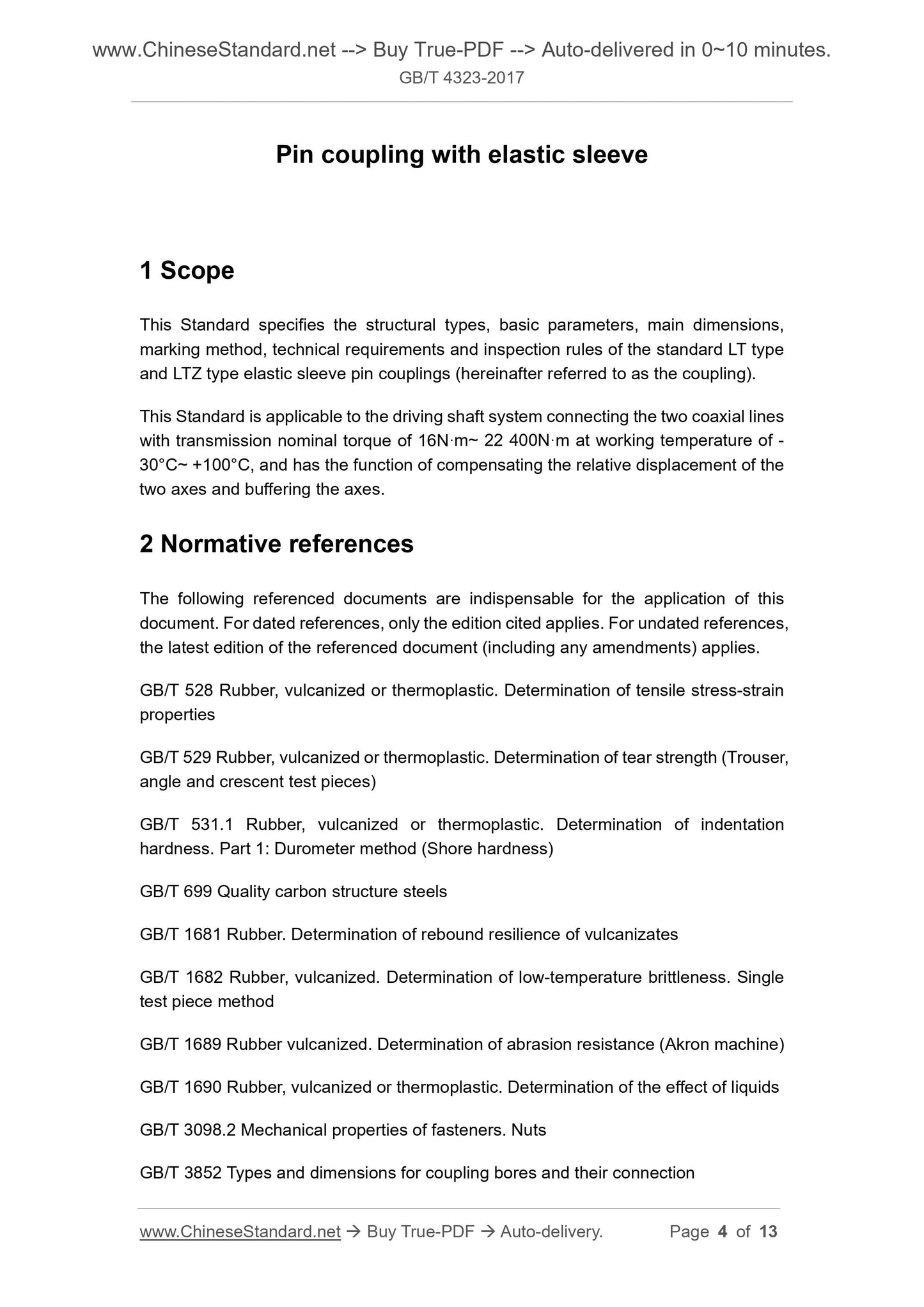

This Standard specifies the structural types, basic parameters, main dimensions, marking method, technical requirements and inspection rules of the standard LT type and LTZ type elastic sleeve pin couplings (hereinafter referred to as the coupling).
This Standard is applicable to the driving shaft system connecting the two coaxial lines with transmission nominal torque of 16N·m~ 22 400N·m at working temperature of 30°C~ +100°C, and has the function of compensating the relative displacement of the two axes and buffering the axes.

Basic Data

Standard ID	GB/T 4323-2017 (GB/T4323-2017)
Description (Translated English)	Pin coupling with elastic sleeve
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J19
Classification of International Standard	21.100.20
Word Count Estimation	11,162
Date of Issue	2017-05-12
Date of Implementation	2017-12-01
Older Standard (superseded by this standard)	GB/T 4323-2002
Quoted Standard	GB/T 528; GB/T 529; GB/T 531.1; GB/T 699; GB/T 1681; GB/T 1682; GB/T 1689; GB/T 1690; GB/T 3098.2; GB/T 3852; GB/T 7759.1; GB/T 11352
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the structural type, basic parameters, main dimensions, marking methods, technical requirements and inspection rules of the standard LT and LTZ type flexible sleeve pins (hereinafter referred to as couplings). This standard applies to the operating temperature of -30 �� ~ +100 ��, the transmission of nominal torque of 16 N �� m ~ 22 400 N �� m, and has to compensate for the relative displacement of two axes and vibration, buffer performance of the two coaxial Drive shaft.
