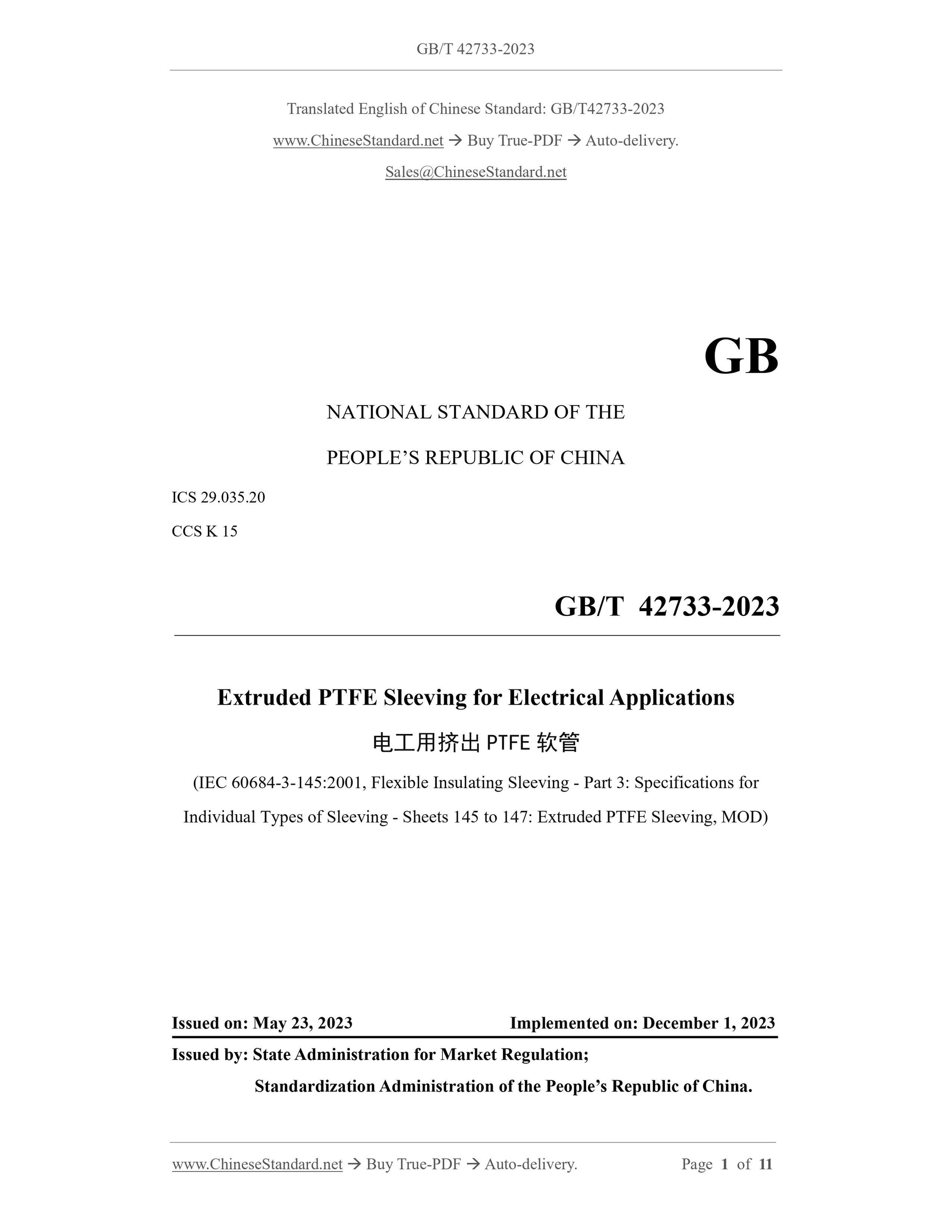

GB/T 42733-2023
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.035.20
CCS K 15
Extruded PTFE Sleeving for Electrical Applications
(IEC 60684-3-145:2001, Flexible Insulating Sleeving - Part 3: Specifications for
Individual Types of Sleeving - Sheets 145 to 147: Extruded PTFE Sleeving, MOD)
ISSUED ON: MAY 23, 2023
IMPLEMENTED ON: DECEMBER 1, 2023
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

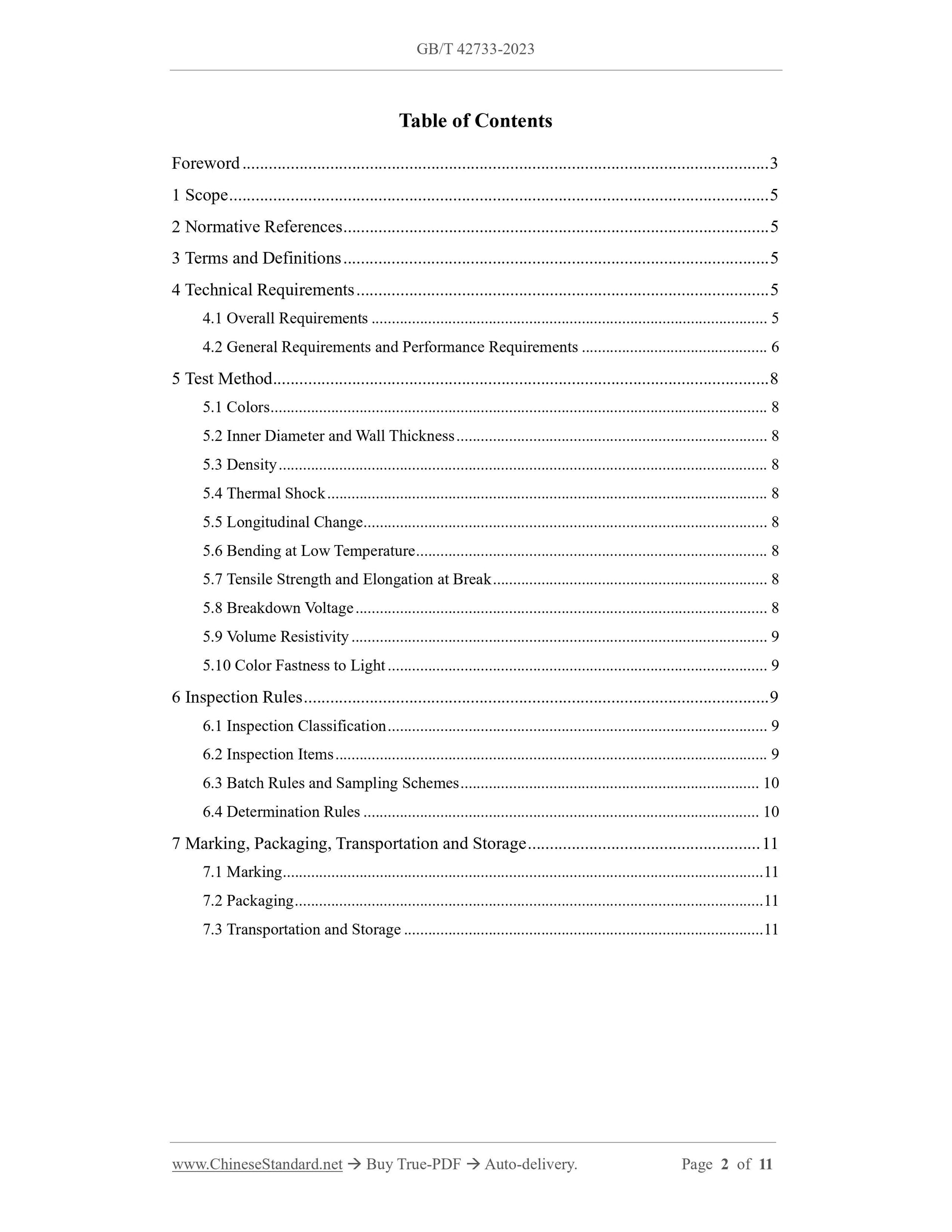

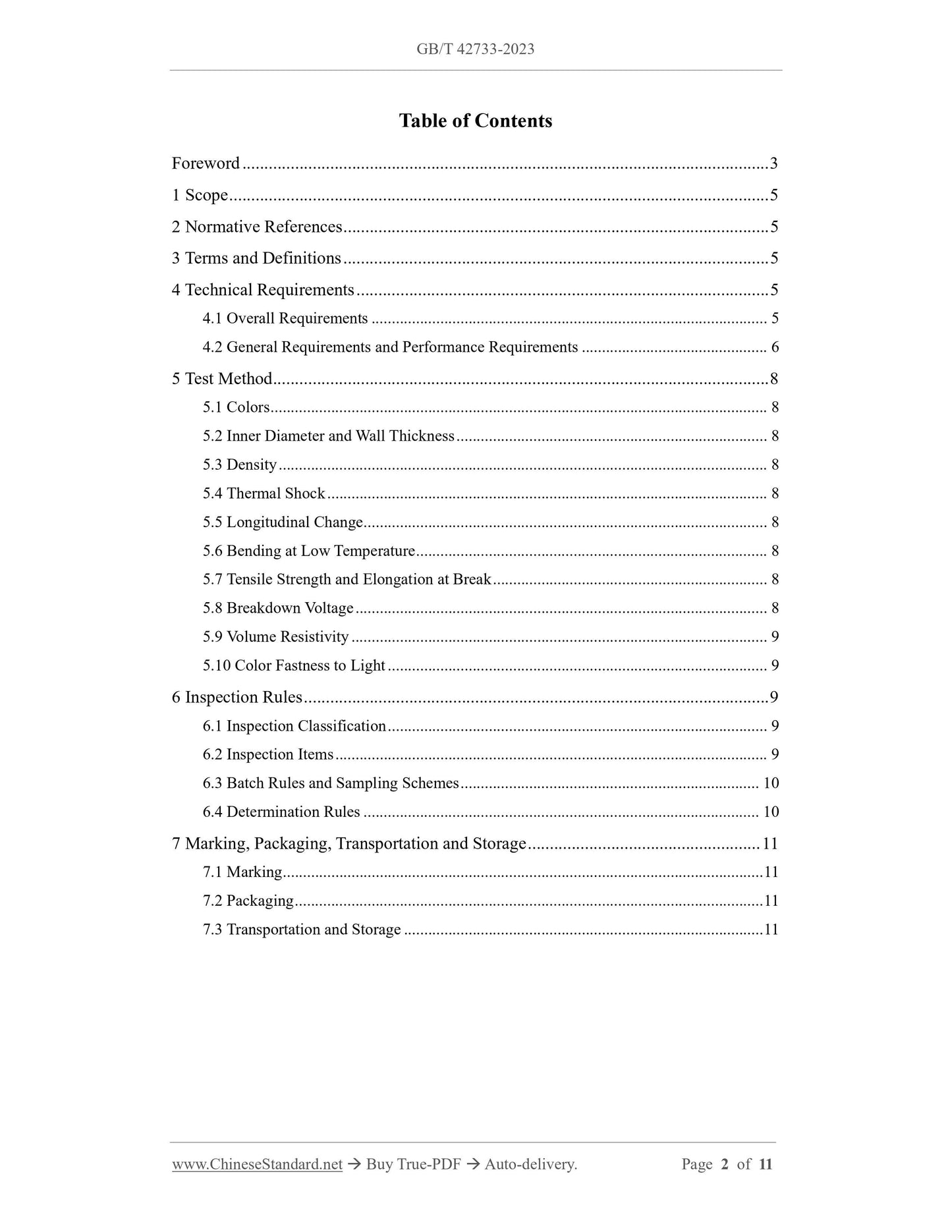

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Terms and Definitions ... 5
4 Technical Requirements ... 5
4.1 Overall Requirements ... 5
4.2 General Requirements and Performance Requirements ... 6
5 Test Method ... 8
5.1 Colors ... 8
5.2 Inner Diameter and Wall Thickness ... 8
5.3 Density ... 8
5.4 Thermal Shock ... 8
5.5 Longitudinal Change ... 8
5.6 Bending at Low Temperature ... 8
5.7 Tensile Strength and Elongation at Break ... 8
5.8 Breakdown Voltage ... 8
5.9 Volume Resistivity ... 9
5.10 Color Fastness to Light ... 9
6 Inspection Rules ... 9
6.1 Inspection Classification ... 9
6.2 Inspection Items ... 9
6.3 Batch Rules and Sampling Schemes ... 10
6.4 Determination Rules ... 10
7 Marking, Packaging, Transportation and Storage ... 11
7.1 Marking ... 11
7.2 Packaging ... 11
7.3 Transportation and Storage ... 11

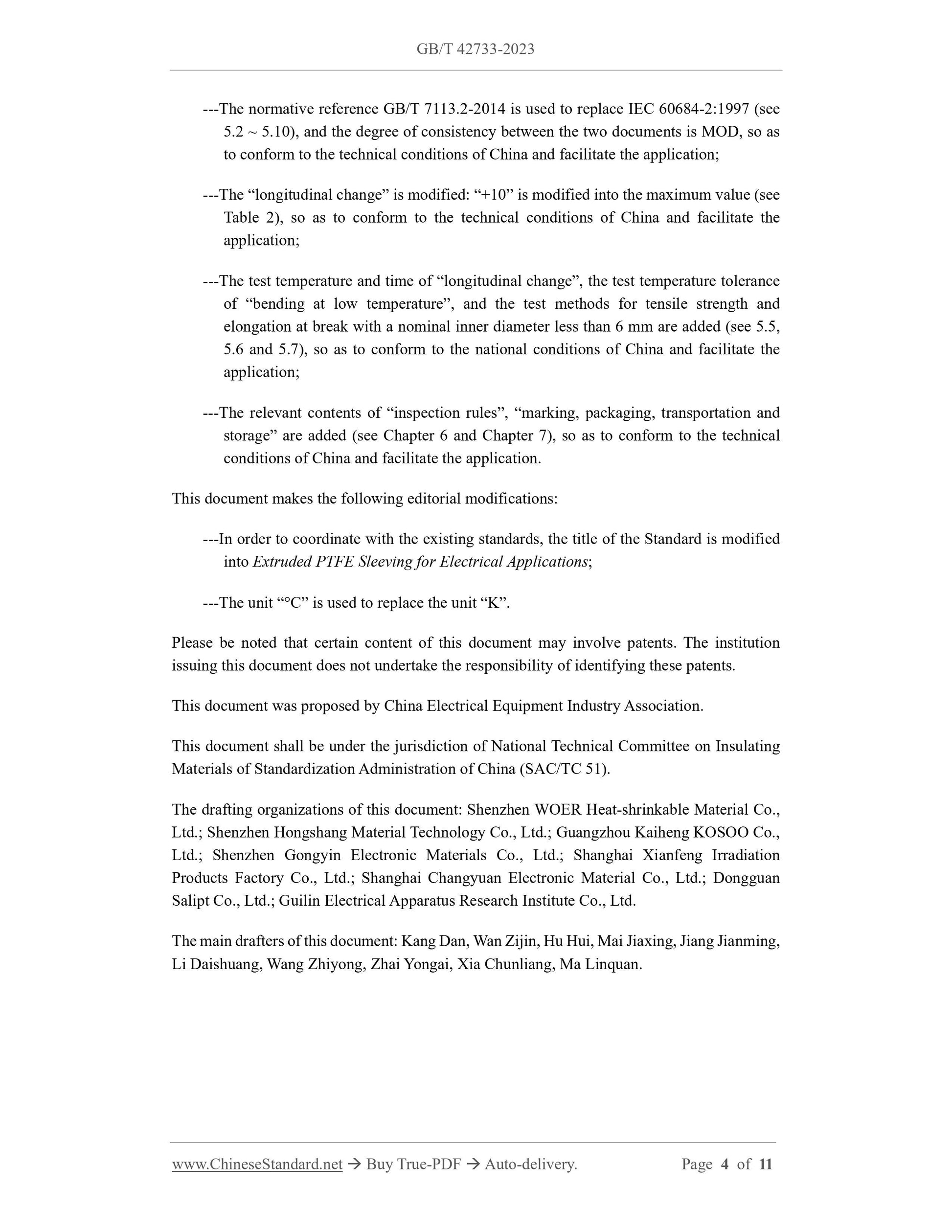

---The normative reference GB/T 7113.2-2014 is used to replace IEC 60684-2:1997 (see
5.2 ~ 5.10), and the degree of consistency between the two documents is MOD, so as
to conform to the technical conditions of China and facilitate the application;
---The “longitudinal change” is modified: “+10” is modified into the maximum value (see
Table 2), so as to conform to the technical conditions of China and facilitate the
application;
---The test temperature and time of “longitudinal change”, the test temperature tolerance
of “bending at low temperature”, and the test methods for tensile strength and
elongation at break with a nominal inner diameter less than 6 mm are added (see 5.5,
5.6 and 5.7), so as to conform to the national conditions of China and facilitate the
application;
---The relevant contents of “inspection rules”, “marking, packaging, transportation and
storage” are added (see Chapter 6 and Chapter 7), so as to conform to the technical
conditions of China and facilitate the application.
This document makes the following editorial modifications:
---In order to coordinate with the existing standards, the title of the Standard is modified
into Extruded PTFE Sleeving for Electrical Applications;
---The unit “C” is used to replace the unit “K”.
Please be noted that certain content of this document may involve patents. The institution
issuing this document does not undertake the responsibility of identifying these patents.
This document was proposed by China Electrical Equipment Industry Association.
This document shall be under the jurisdiction of National Technical Committee on Insulating
Materials of Standardization Administration of China (SAC/TC 51).
The drafting organizations of this document: Shenzhen WOER Heat-shrinkable Material Co.,
Ltd.; Shenzhen Hongshang Material Technology Co., Ltd.; Guangzhou Kaiheng KOSOO Co.,
Ltd.; Shenzhen Gongyin Electronic Materials Co., Ltd.; Shanghai Xianfeng Irradiation
Products Factory Co., Ltd.; Shanghai Changyuan Electronic Material Co., Ltd.; Dongguan
Salipt Co., Ltd.; Guilin Electrical Apparatus Research Institute Co., Ltd.
The main drafters of this document: Kang Dan, Wan Zijin, Hu Hui, Mai Jiaxing, Jiang Jianming,
Li Daishuang, Wang Zhiyong, Zhai Yongai, Xia Chunliang, Ma Linquan.

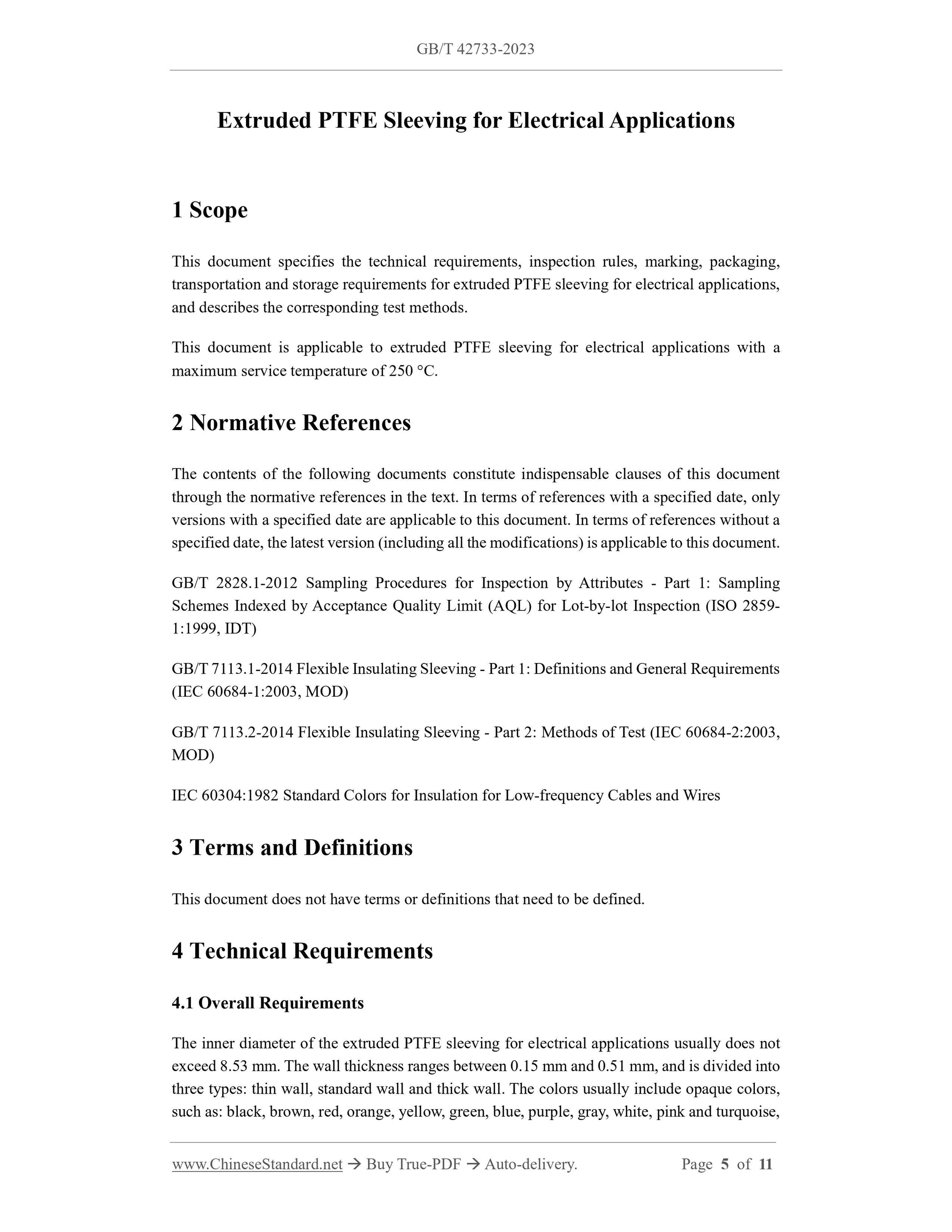

Extruded PTFE Sleeving for Electrical Applications
1 Scope
This document specifies the technical requirements, inspection rules, marking, packaging,
transportation and storage requirements for extruded PTFE sleeving for electrical applications,
and describes the corresponding test methods.
This document is applicable to extruded PTFE sleeving for electrical applications with a
maximum service temperature of 250 C.
2 Normative References
The contents of the following documents constitute indispensable clauses of this document
through the normative references in the text. In terms of references with a specified date, only
versions with a specified date are applicable to this document. In terms of references without a
specified date, the latest version (including all the modifications) is applicable to this document.
GB/T 2828.1-2012 Sampling Procedures for Inspection by Attributes - Part 1: Sampling
Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-by-lot Inspection (ISO 2859-
1:1999, IDT)
GB/T 7113.1-2014 Flexible Insulating Sleeving - Part 1: Definitions and General Requirements
(IEC 60684-1:2003, MOD)
GB/T 7113.2-2014 Flexible Insulating Sleeving - Part 2: Methods of Test (IEC 60684-2:2003,
MOD)
IEC 60304:1982 Standard Colors for Insulation for Low-frequency Cables and Wires
3 Terms and Definitions
This document does not have terms or definitions that need to be defined.
4 Technical Requirements
4.1 Overall Requirements
The inner diameter of the extruded PTFE sleeving for electrical applications usually does not
exceed 8.53 mm. The wall thickness ranges between 0.15 mm and 0.51 mm, and is divided into
three types: thin wall, standard wall and thick wall. The colors usually include opaque colors,
such as: black, brown, red, orange, yellow, green, blue, purple, gray, white, pink and turquoise,

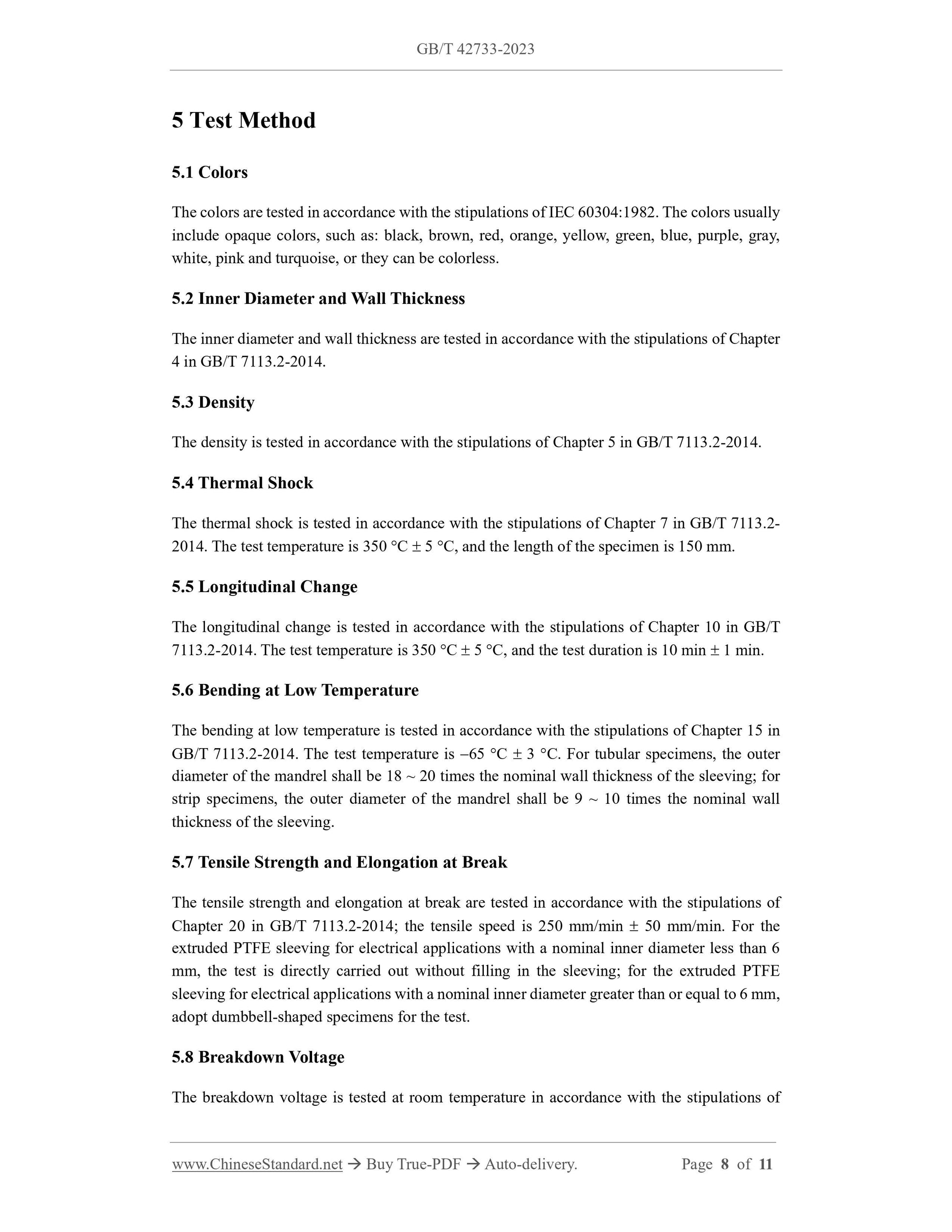

5 Test Method
5.1 Colors
The colors are tested in accordance with the stipulations of IEC 60304:1982. The colors usually
include opaque colors, such as: black, brown, red, orange, yellow, green, blue, purple, gray,
white, pink and turquoise, or they can be colorless.
5.2 Inner Diameter and Wall Thickness
The inner diameter and wall thickness are tested in accordance with the stipulations of Chapter
4 in GB/T 7113.2-2014.
5.3 Density
The density is tested in accordance with the stipulations of Chapter 5 in GB/T 7113.2-2014.
5.4 Thermal Shock
The thermal shock is tested in accordance with the stipulations of Chapter 7 in GB/T 7113.2-
2014. The test temperature is 350 C  5 C, and the length of the specimen is 150 mm.
5.5 Longitudinal Change
The longitudinal change is tested in accordance with the stipulations of Chapter 10 in GB/T
7113.2-2014. The test temperature is 350 C  5 C, and the test duration is 10 min  1 min.
5.6 Bending at Low Temperature
The bending at low temperature is tested in accordance with the stipulations of Chapter 15 in
GB/T 7113.2-2014. The test temperature is 65 C  3 C. For tubular specimens, the outer
diameter of the mandrel shall be 18 ~ 20 times the nominal wall thickness of the sleeving; for
strip specimens, the outer diameter of the mandrel shall be 9 ~ 10 times the nominal wall
thickness of the sleeving.
5.7 Tensile Strength and Elongation at Break
The tensile strength and elongation at break are tested in accordance with the stipulations of
Chapter 20 in GB/T 7113.2-2014; the tensile speed is 250 mm/min  50 mm/min. For the
extruded PTFE sleeving for electrical applications with a nominal inner diameter less than 6
mm, the test is directly carried out without filling in the sleeving; for the extruded PTFE
sleeving for electrical applications with a nominal inner diameter greater than or equal to 6 mm,
adopt dumbbell-shaped specimens for the test.
5.8 Breakdown Voltage
The breakdown voltage is tested at room temperature in accordance with the stipulations of
