GB/T 42177-2022: Technical requirements and test methods for gaseous hydrogen valves used in hydrogen fuelling stations

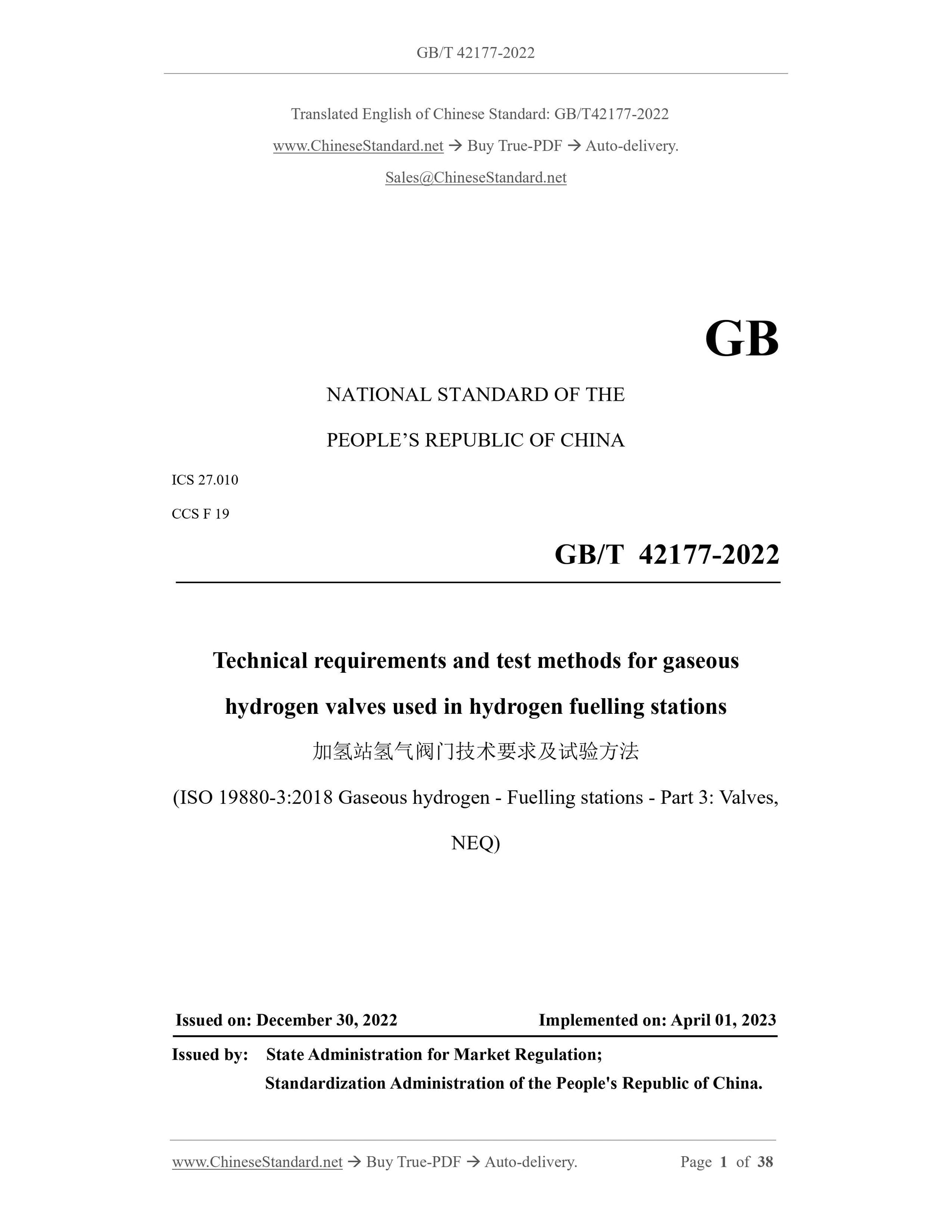

GB/T 42177-2022
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 27.010
CCS F 19
Technical requirements and test methods for gaseous
hydrogen valves used in hydrogen fuelling stations
(ISO 19880-3:2018 Gaseous hydrogen - Fuelling stations - Part 3: Valves,
NEQ)
ISSUED ON: DECEMBER 30, 2022
IMPLEMENTED ON: APRIL 01, 2023
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of China.

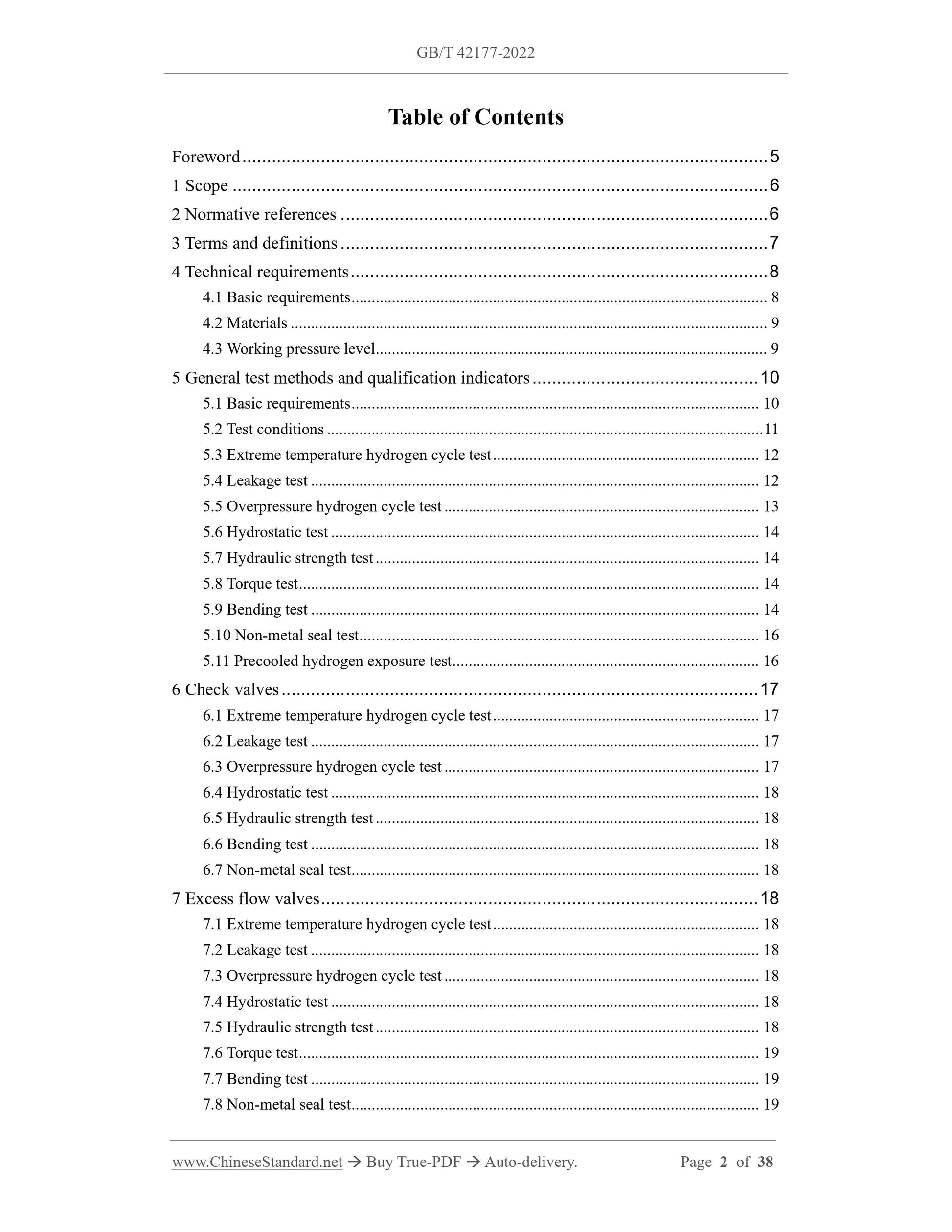

Table of Contents
Foreword ... 5
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 7
4 Technical requirements ... 8

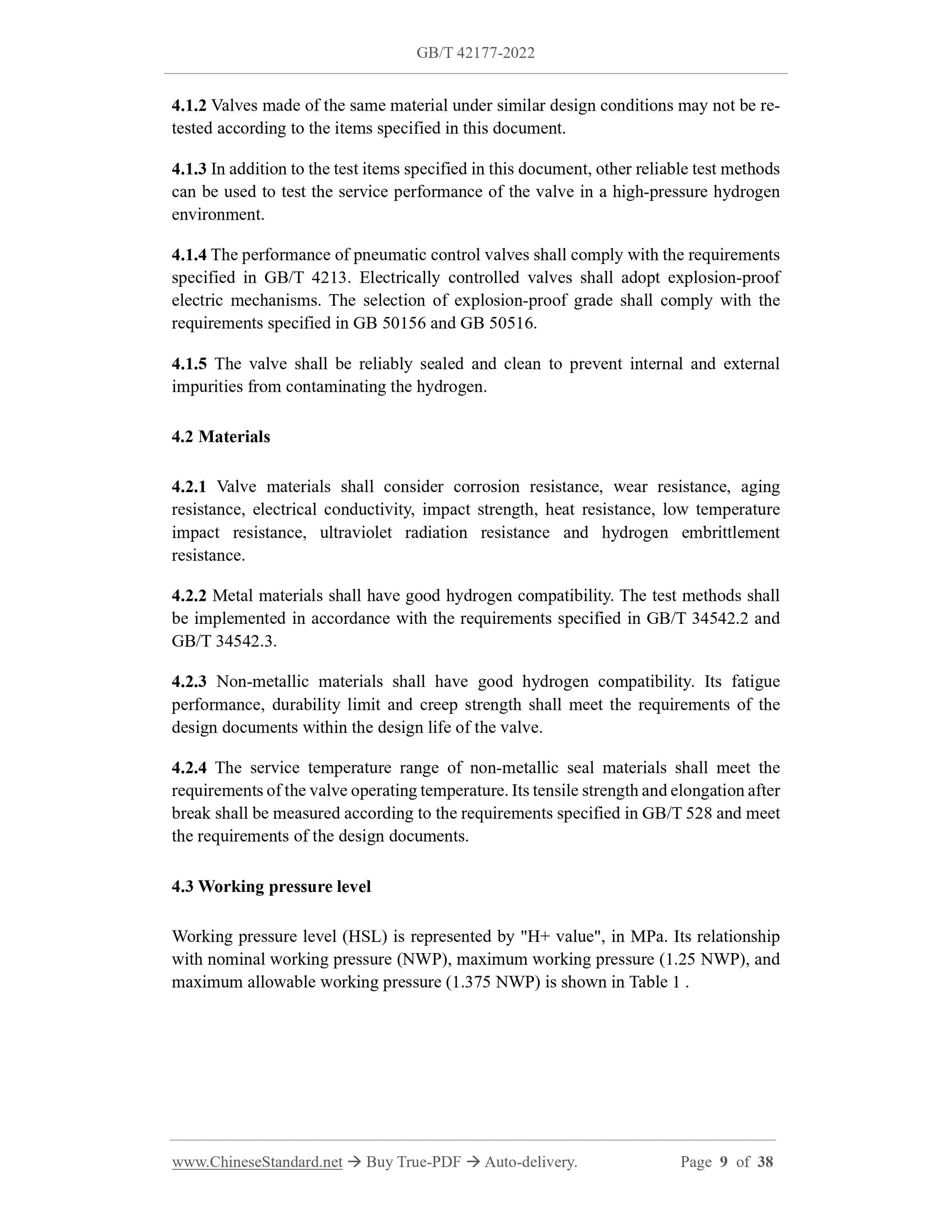

4.1 Basic requirements ... 8
4.2 Materials ... 9
4.3 Working pressure level ... 9
5 General test methods and qualification indicators ... 10
5.1 Basic requirements ... 10

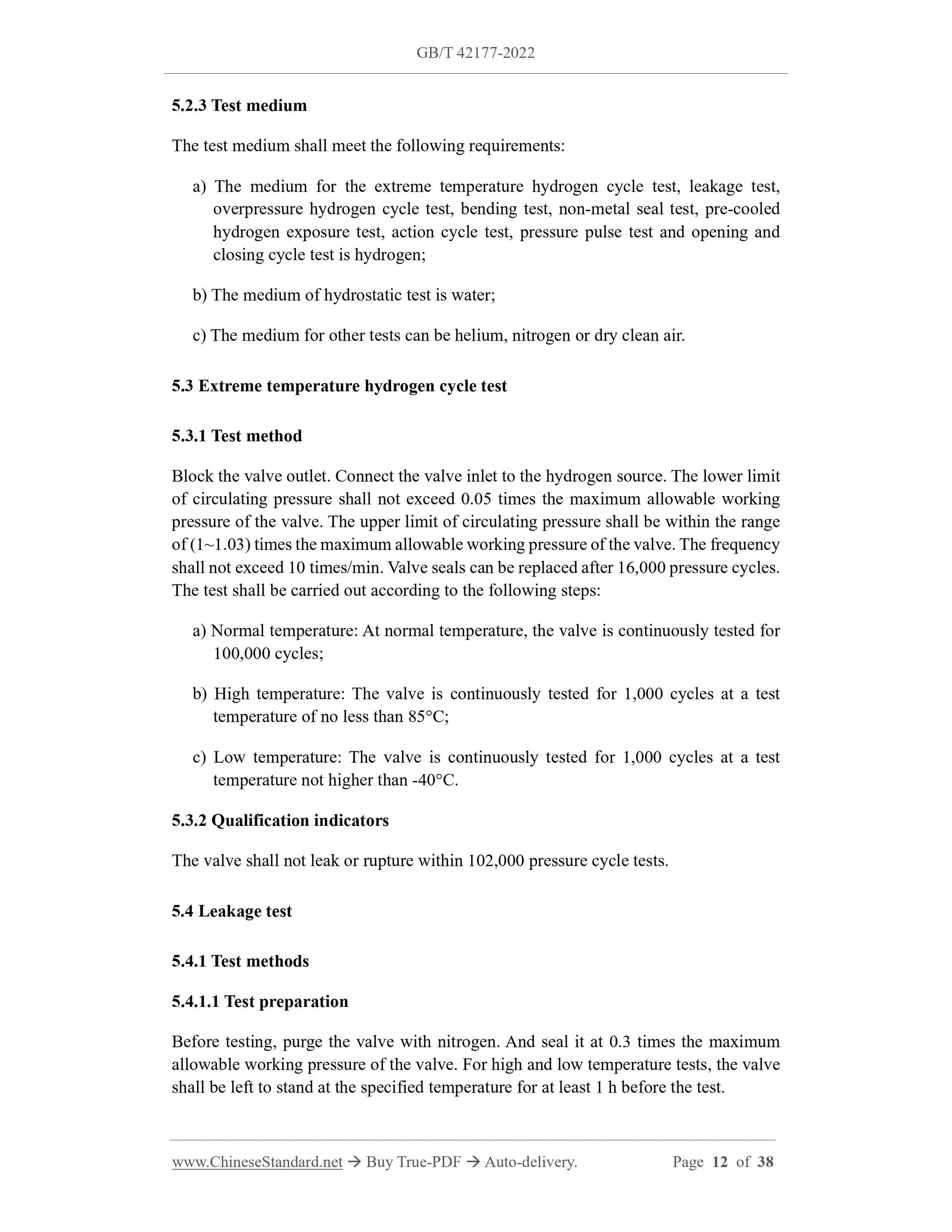

5.2 Test conditions ... 11
5.3 Extreme temperature hydrogen cycle test ... 12
5.4 Leakage test ... 12
5.5 Overpressure hydrogen cycle test ... 13
5.6 Hydrostatic test ... 14
5.7 Hydraulic strength test ... 14
5.8 Torque test ... 14
5.9 Bending test ... 14

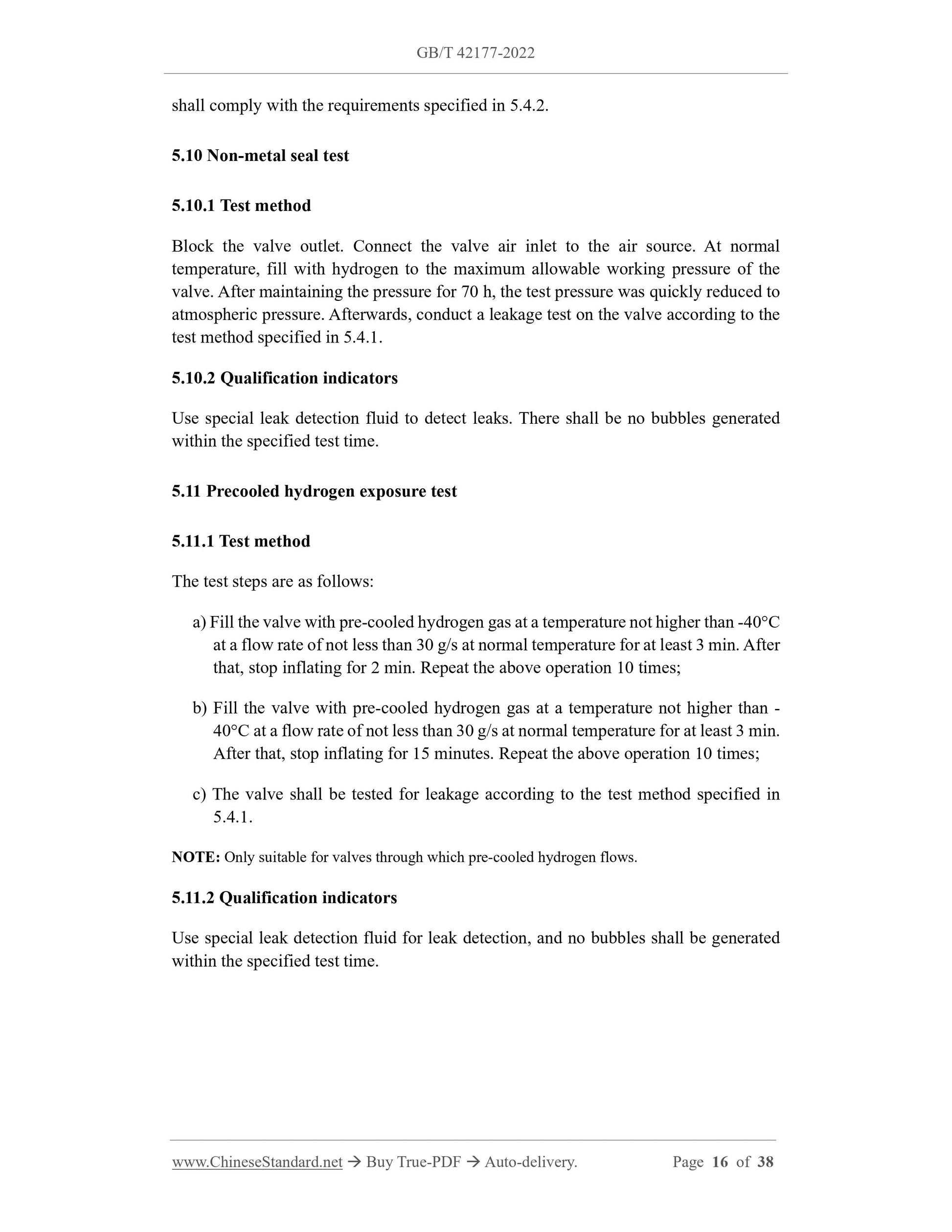

5.10 Non-metal seal test ... 16
5.11 Precooled hydrogen exposure test ... 16
6 Check valves ... 17
6.1 Extreme temperature hydrogen cycle test ... 17
6.2 Leakage test ... 17
6.3 Overpressure hydrogen cycle test ... 17
6.4 Hydrostatic test ... 18
6.5 Hydraulic strength test ... 18
6.6 Bending test ... 18
6.7 Non-metal seal test ... 18
7 Excess flow valves ... 18
7.1 Extreme temperature hydrogen cycle test ... 18
7.2 Leakage test ... 18
7.3 Overpressure hydrogen cycle test ... 18
7.4 Hydrostatic test ... 18
7.5 Hydraulic strength test ... 18
7.6 Torque test ... 19
7.7 Bending test ... 19
7.8 Non-metal seal test ... 19
7.9 Action test ... 19
7.10 Action cycle test ... 19

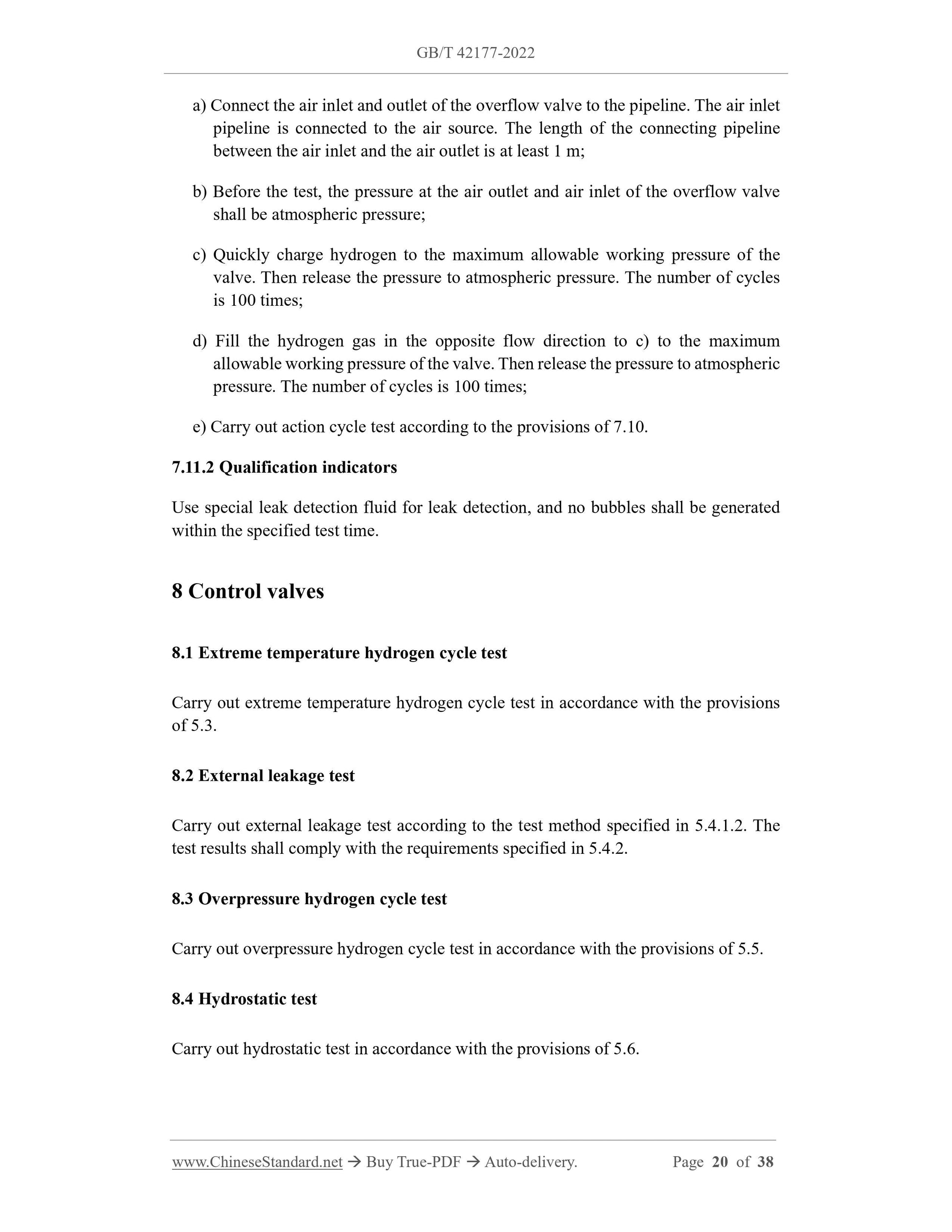

7.11 Pressure pulse test ... 19
8 Control valves ... 20
8.1 Extreme temperature hydrogen cycle test ... 20
8.2 External leakage test ... 20
8.3 Overpressure hydrogen cycle test ... 20
8.4 Hydrostatic test ... 20
8.5 Hydraulic strength test ... 21
8.6 Torque test ... 21
8.7 Bending test ... 21
8.8 Non-metal seal test ... 21
8.9 Action test ... 21
8.10 Action cycle test ... 21
9 Break away coupling ... 22
9.1 Extreme temperature hydrogen cycle test ... 22

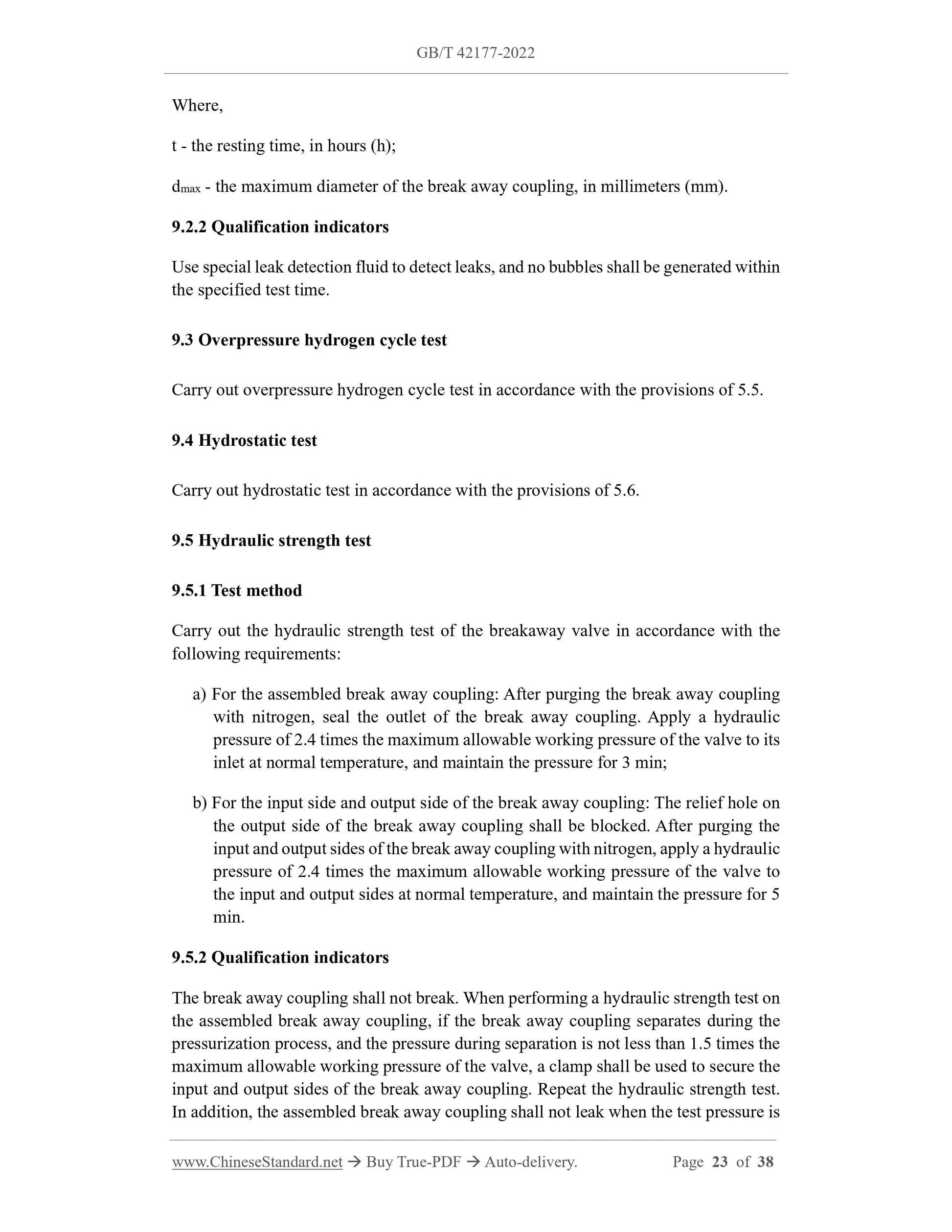

9.2 External leakage test ... 22
9.3 Overpressure hydrogen cycle test ... 23
9.4 Hydrostatic test ... 23
9.5 Hydraulic strength test ... 23
9.6 Torque test ... 24
9.7 Bending test ... 24
9.8 Non-metal seal test ... 24
9.9 Axial separation pull test ... 24
9.10 Impact test ... 25
9.11 Drop test ... 26
9.12 Torsion cycle test ... 27
9.13 Precooled hydrogen exposure test ... 27
10 Manual valves ... 28
10.1 Extreme temperature hydrogen cycle test ... 28
10.2 Leakage test ... 28
10.3 Overpressure hydrogen cycle test ... 28
10.4 Hydrostatic test ... 28
10.5 Hydraulic strength test ... 28
10.6 Torque test ... 28
10.7 Bending test ... 28
10.8 Non-metal seal test ... 28

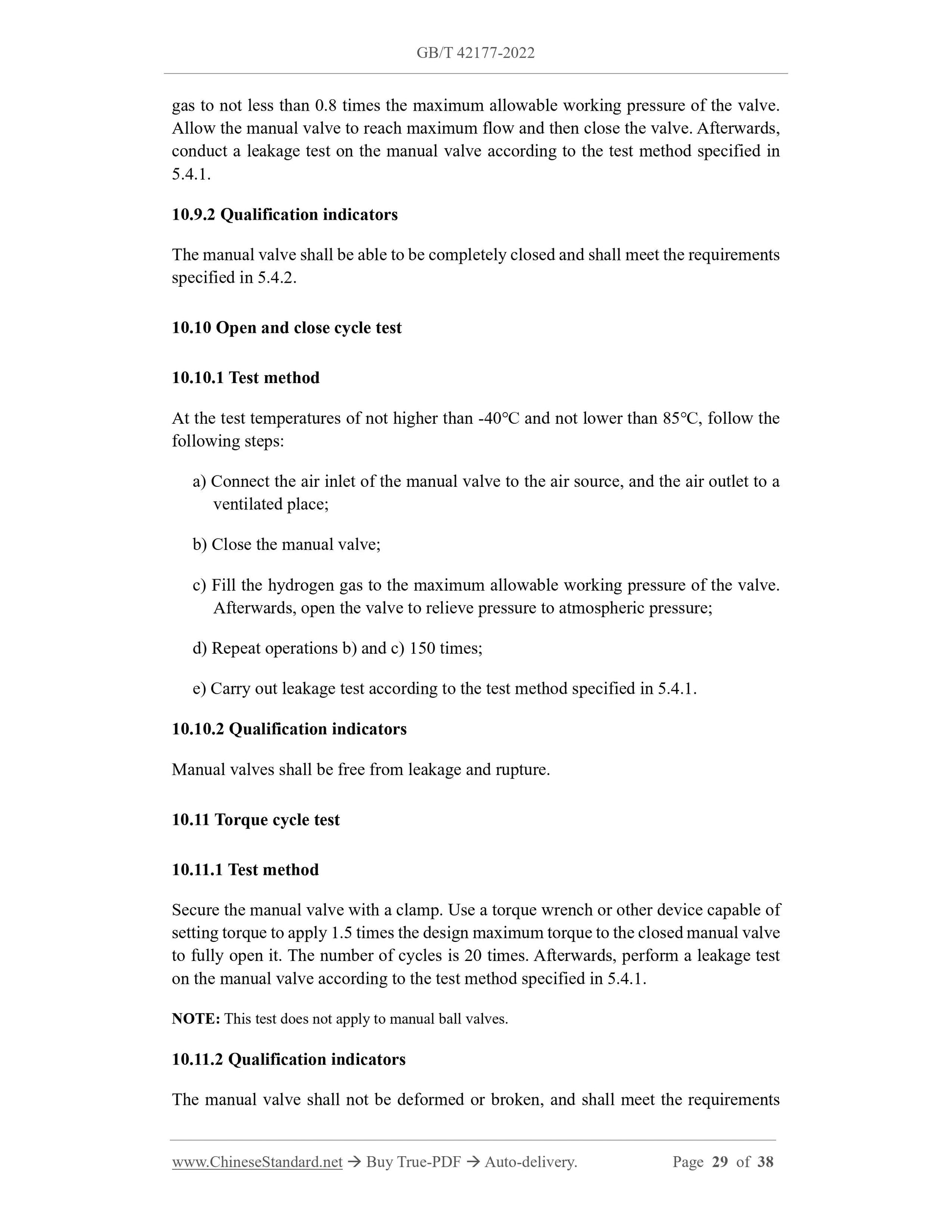

10.9 Maximum flow shutdown test ... 28
10.10 Open and close cycle test ... 29
10.11 Torque cycle test ... 29

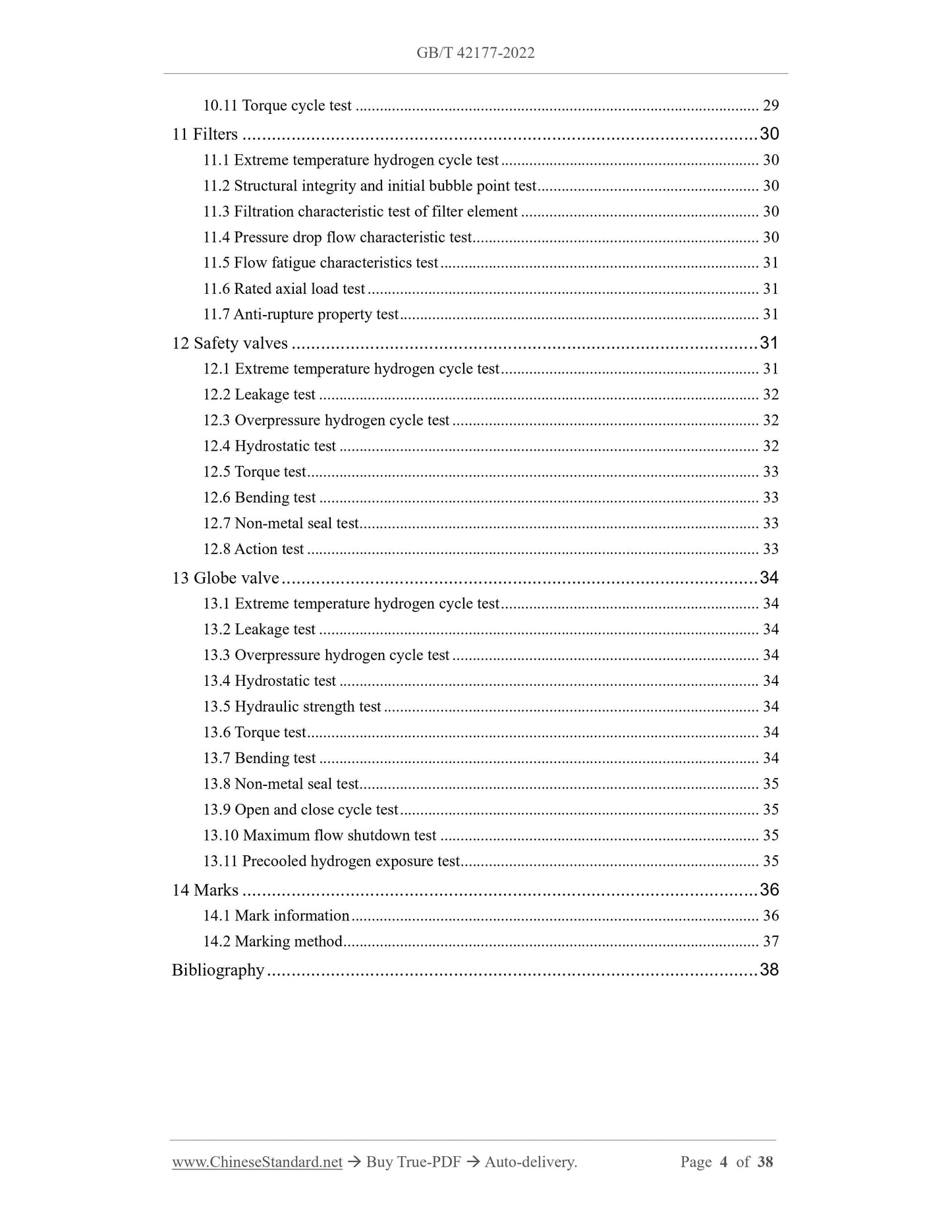

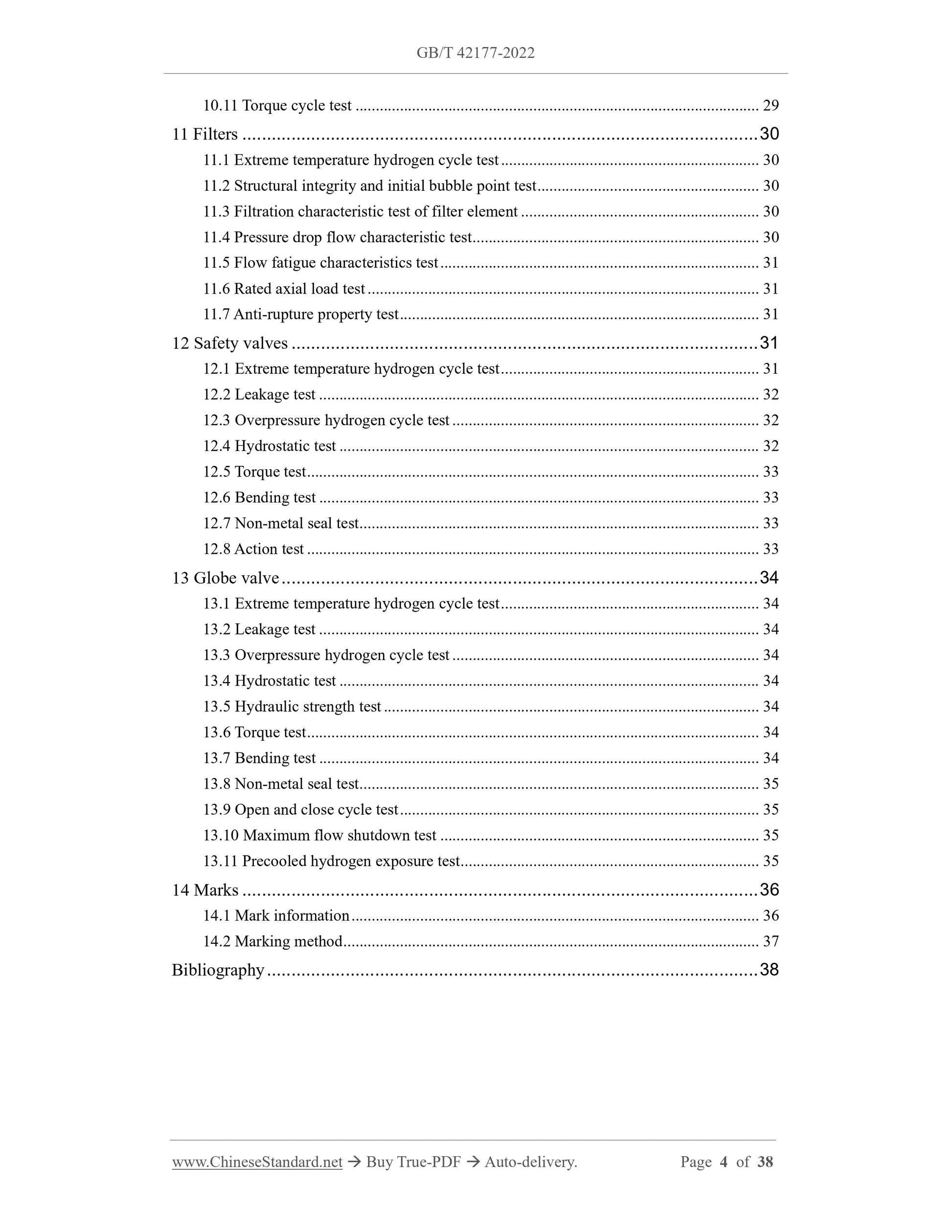

11 Filters ... 30
11.1 Extreme temperature hydrogen cycle test ... 30
11.2 Structural integrity and initial bubble point test ... 30
11.3 Filtration characteristic test of filter element ... 30
11.4 Pressure drop flow characteristic test ... 30
11.5 Flow fatigue characteristics test ... 31
11.6 Rated axial load test ... 31
11.7 Anti-rupture property test ... 31
12 Safety valves ... 31
12.1 Extreme temperature hydrogen cycle test ... 31
12.2 Leakage test ... 32
12.3 Overpressure hydrogen cycle test ... 32
12.4 Hydrostatic test ... 32
12.5 Torque test ... 33
12.6 Bending test ... 33
12.7 Non-metal seal test ... 33
12.8 Action test ... 33
13 Globe valve ... 34
13.1 Extreme temperature hydrogen cycle test ... 34
13.2 Leakage test ... 34
13.3 Overpressure hydrogen cycle test ... 34
13.4 Hydrostatic test ... 34
13.5 Hydraulic strength test ... 34
13.6 Torque test ... 34
13.7 Bending test ... 34
13.8 Non-metal seal test ... 35
13.9 Open and close cycle test ... 35
13.10 Maximum flow shutdown test ... 35
13.11 Precooled hydrogen exposure test ... 35
14 Marks ... 36
14.1 Mark information ... 36
14.2 Marking method ... 37
Bibliography ... 38

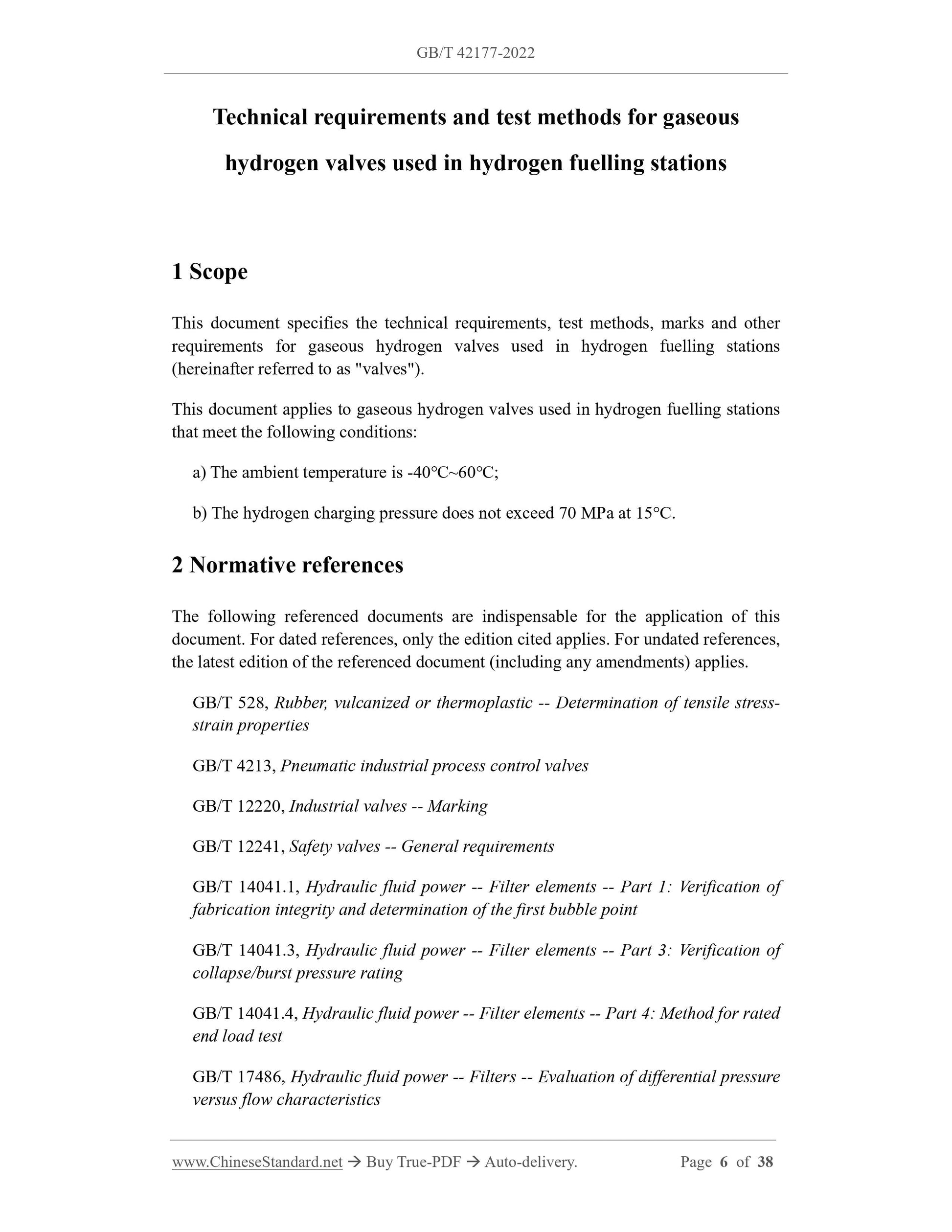

Technical requirements and test methods for gaseous
hydrogen valves used in hydrogen fuelling stations
1 Scope
This document specifies the technical requirements, test methods, marks and other
requirements for gaseous hydrogen valves used in hydrogen fuelling stations
(hereinafter referred to as "valves").
This document applies to gaseous hydrogen valves used in hydrogen fuelling stations
that meet the following conditions:
a) The ambient temperature is -40℃~60℃;
b) The hydrogen charging pressure does not exceed 70 MPa at 15°C.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 528, Rubber, vulcanized or thermoplastic -- Determination of tensile stress-
strain properties
GB/T 4213, Pneumatic industrial process control valves
GB/T 12220, Industrial valves -- Marking
GB/T 12241, Safety valves -- General requirements
GB/T 14041.1, Hydraulic fluid power -- Filter elements -- Part 1: Verification of
fabrication integrity and determination of the first bubble point
GB/T 14041.3, Hydraulic fluid power -- Filter elements -- Part 3: Verification of
collapse/burst pressure rating
GB/T 14041.4, Hydraulic fluid power -- Filter elements -- Part 4: Method for rated
end load test
GB/T 17486, Hydraulic fluid power -- Filters -- Evaluation of differential pressure
versus flow characteristics
GB/T 17488, Hydraulic fluid power -- Filter elements -- Determination of resistance
to flow fatigue using particulate contaminant
GB/T 18853, Hydraulic fluid power filters -- Multi-pass method for evaluating
filtration performance of a filter element
GB/T 21465, Terminology for valves
GB/T 24499, Technology glossary for gaseous hydrogen, hydrogen energy and
hydrogen energy system
GB/T 32808, Valves -- Model designation method
GB/T 34542.2, Storage and transportation systems for gaseous hydrogen -- Part 2:
Test methods for evaluating metallic material compatibility in hydrogen atmosphere
GB/T 34542.3, Storage and transportation systems for gaseous hydrogen -- Part 3:
Test method for determination of the susceptibility of metallic materials to hydrogen
gas embrittlement (HGE)
GB 50156, Code for design and construction of filling station
GB 50516, Technical code for hydrogen fuelling station

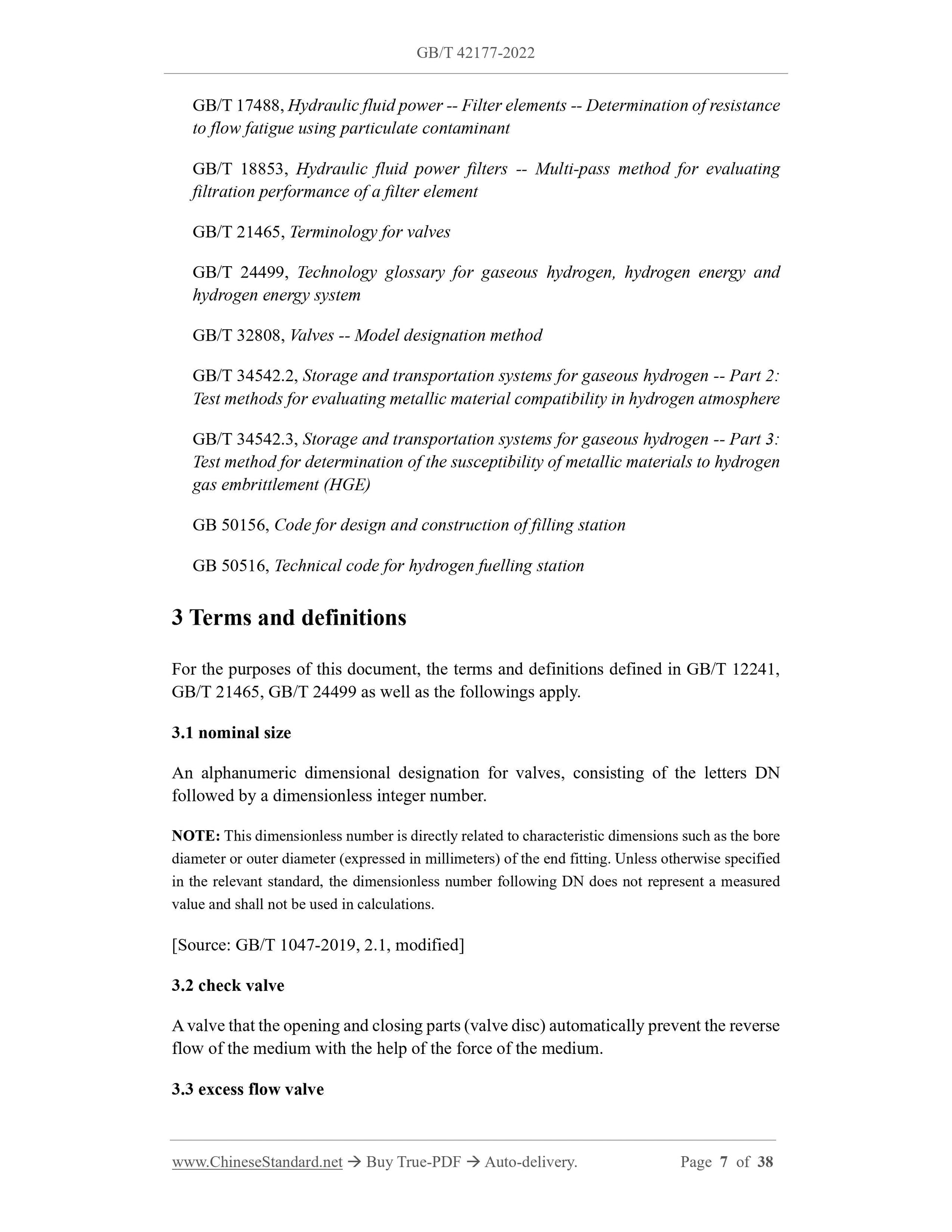

3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T 12241,
GB/T 21465, GB/T 24499 as well as the followings apply.
3.1 nominal size
An alphanumeric dimensional designation for valves, consisting of the letters DN
followed by a dimensionless integer number.
NOTE: This dimensionless number is directly related to characteristic dimensions such as the bore
diameter or outer diameter (expressed in millimeters) of the end fitting. Unless otherwise specified
in the relevant standard, the dimensionless number following DN does not represent a measured
value and shal...
