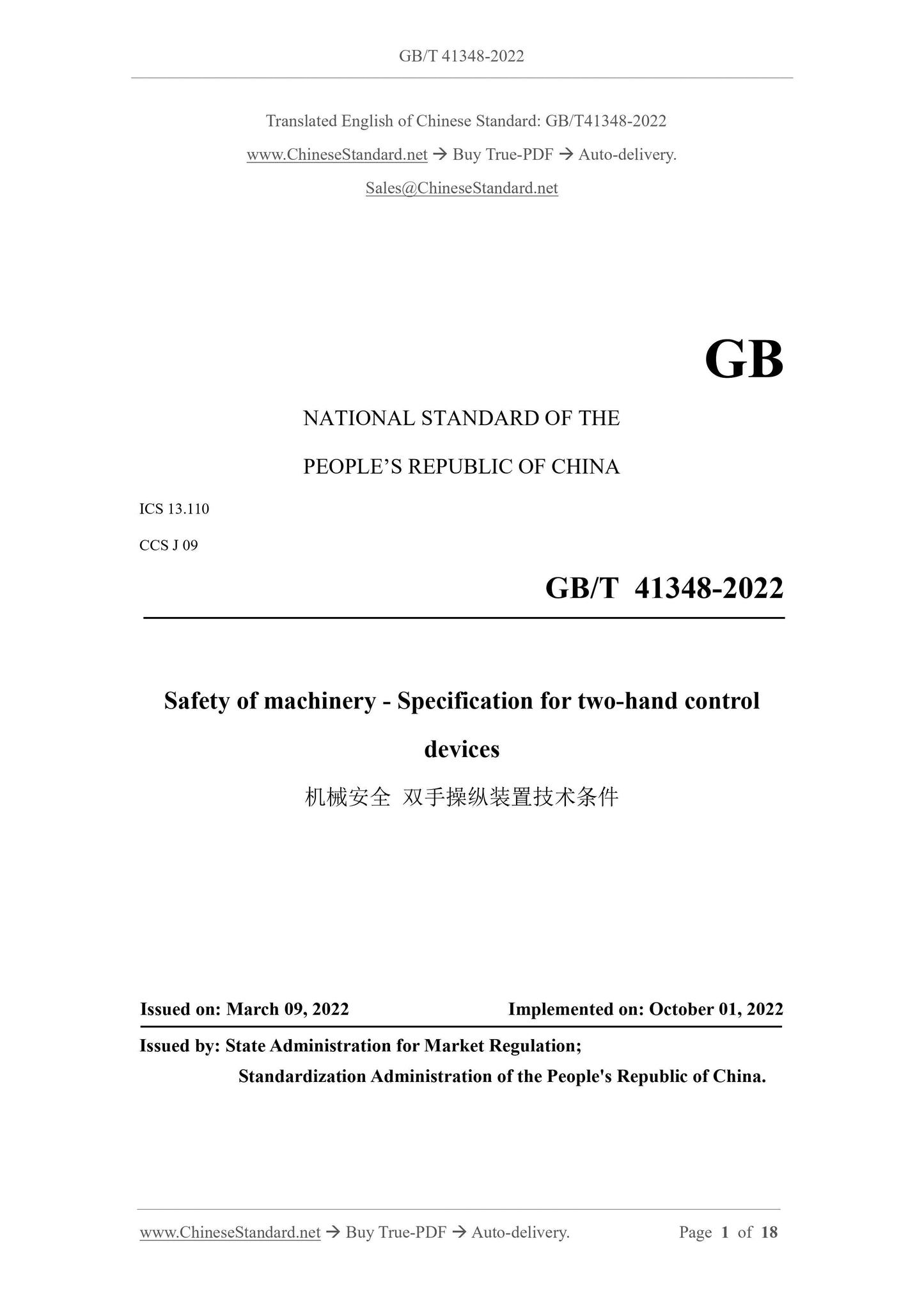

GB/T 41348-2022
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 13.110
CCS J 09
Safety of machinery - Specification for two-hand control
devices
ISSUED ON: MARCH 09, 2022
IMPLEMENTED ON: OCTOBER 01, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of China.

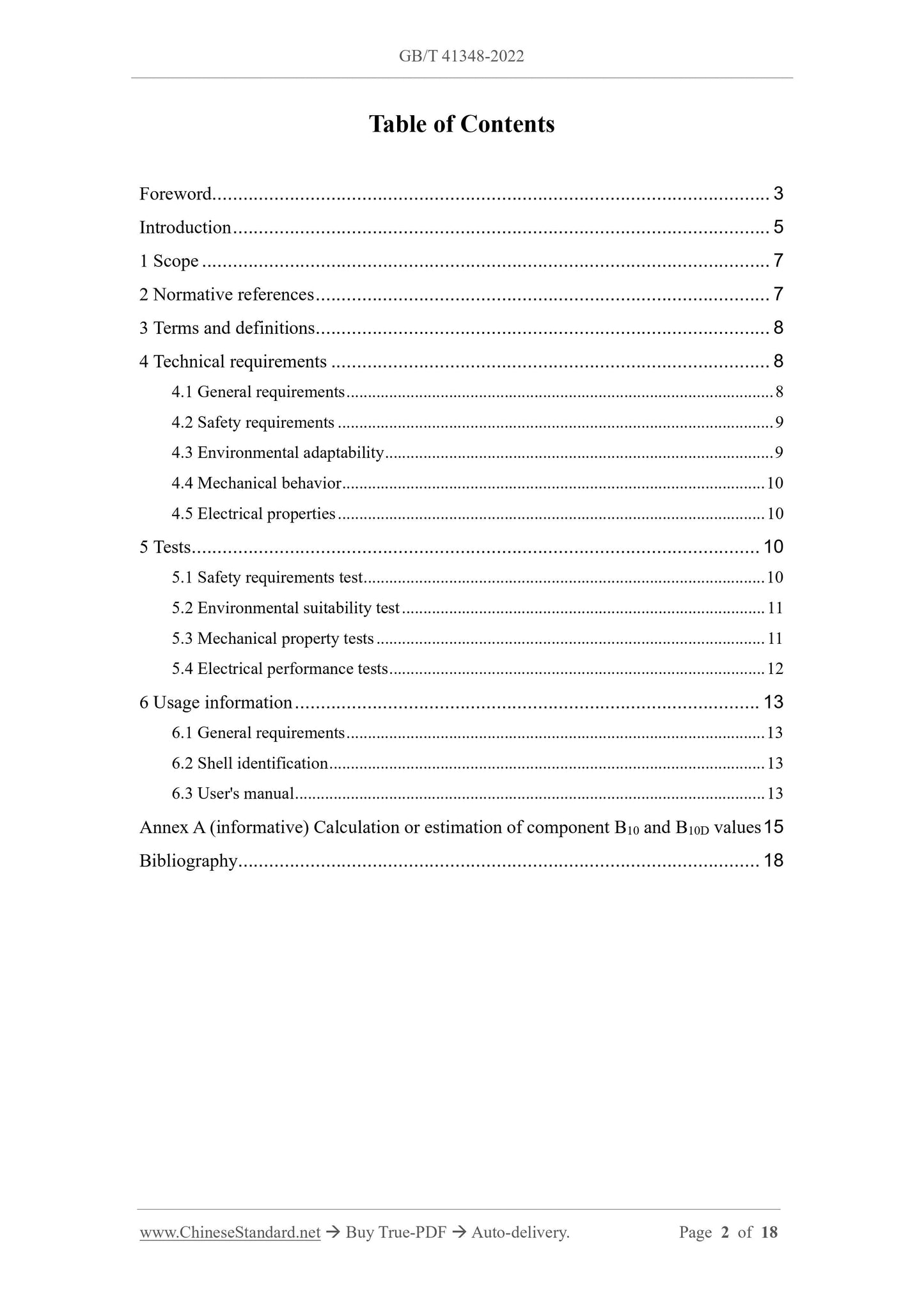

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 7
2 Normative references ... 7
3 Terms and definitions... 8
4 Technical requirements ... 8
4.1 General requirements ... 8
4.2 Safety requirements ... 9
4.3 Environmental adaptability ... 9
4.4 Mechanical behavior ... 10
4.5 Electrical properties ... 10
5 Tests ... 10
5.1 Safety requirements test ... 10
5.2 Environmental suitability test ... 11
5.3 Mechanical property tests ... 11
5.4 Electrical performance tests ... 12
6 Usage information ... 13
6.1 General requirements ... 13
6.2 Shell identification ... 13
6.3 User's manual ... 13
Annex A (informative) Calculation or estimation of component B10 and B10D values 15
Bibliography... 18

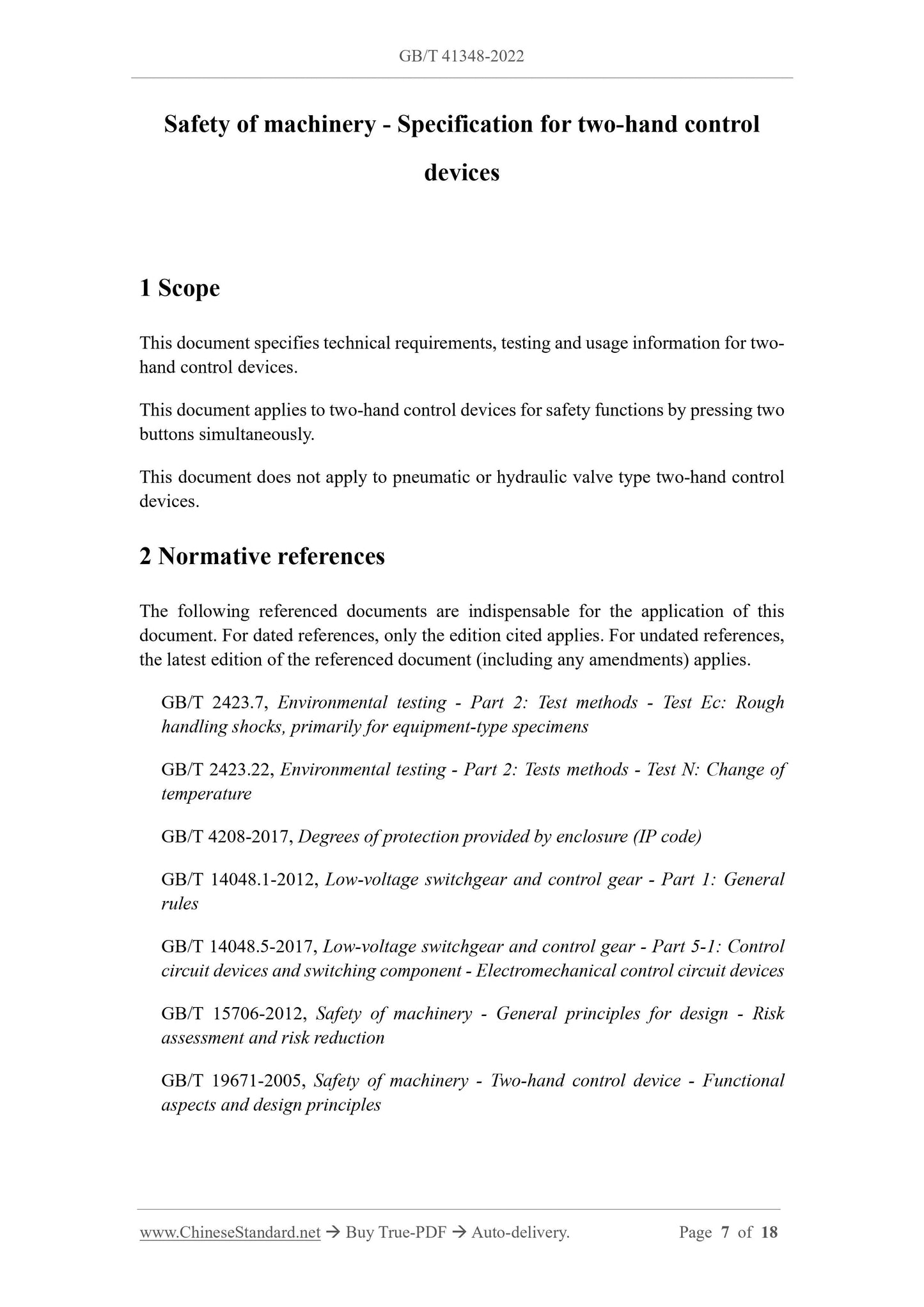

Safety of machinery - Specification for two-hand control
devices
1 Scope
This document specifies technical requirements, testing and usage information for two-
hand control devices.
This document applies to two-hand control devices for safety functions by pressing two
buttons simultaneously.
This document does not apply to pneumatic or hydraulic valve type two-hand control
devices.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 2423.7, Environmental testing - Part 2: Test methods - Test Ec: Rough
handling shocks, primarily for equipment-type specimens
GB/T 2423.22, Environmental testing - Part 2: Tests methods - Test N: Change of
temperature
GB/T 4208-2017, Degrees of protection provided by enclosure (IP code)
GB/T 14048.1-2012, Low-voltage switchgear and control gear - Part 1: General
rules
GB/T 14048.5-2017, Low-voltage switchgear and control gear - Part 5-1: Control
circuit devices and switching component - Electromechanical control circuit devices
GB/T 15706-2012, Safety of machinery - General principles for design - Risk
assessment and risk reduction
GB/T 19671-2005, Safety of machinery - Two-hand control device - Functional
aspects and design principles

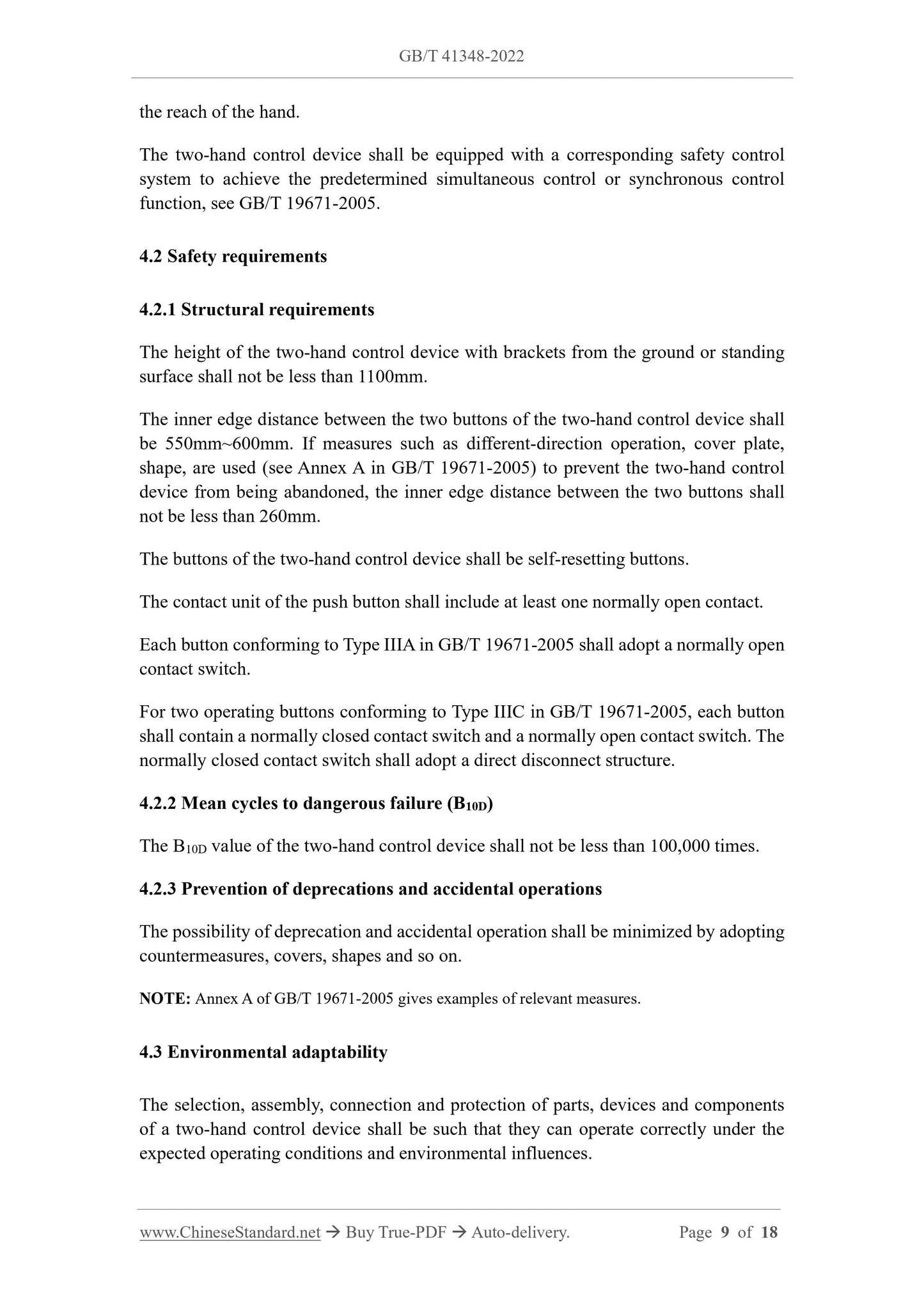

the reach of the hand.
The two-hand control device shall be equipped with a corresponding safety control
system to achieve the predetermined simultaneous control or synchronous control
function, see GB/T 19671-2005.
4.2 Safety requirements
4.2.1 Structural requirements
The height of the two-hand control device with brackets from the ground or standing
surface shall not be less than 1100mm.
The inner edge distance between the two buttons of the two-hand control device shall
be 550mm~600mm. If measures such as different-direction operation, cover plate,
shape, are used (see Annex A in GB/T 19671-2005) to prevent the two-hand control
device from being abandoned, the inner edge distance between the two buttons shall
not be less than 260mm.
The buttons of the two-hand control device shall be self-resetting buttons.
The contact unit of the push button shall include at least one normally open contact.
Each button conforming to Type IIIA in GB/T 19671-2005 shall adopt a normally open
contact switch.
For two operating buttons conforming to Type IIIC in GB/T 19671-2005, each button
shall contain a normally closed contact switch and a normally open contact switch. The
normally closed contact switch shall adopt a direct disconnect structure.
4.2.2 Mean cycles to dangerous failure (B10D)
The B10D value of the two-hand control device shall not be less than 100,000 times.
4.2.3 Prevention of deprecations and accidental operations
The possibility of deprecation and accidental operation shall be minimized by adopting
countermeasures, covers, shapes and so on.
NOTE: Annex A of GB/T 19671-2005 gives examples of relevant measures.
4.3 Environmental adaptability
The selection, assembly, connection and protection of parts, devices and components
of a two-hand control device shall be such that they can operate correctly under the
expected operating conditions and environmental influences.

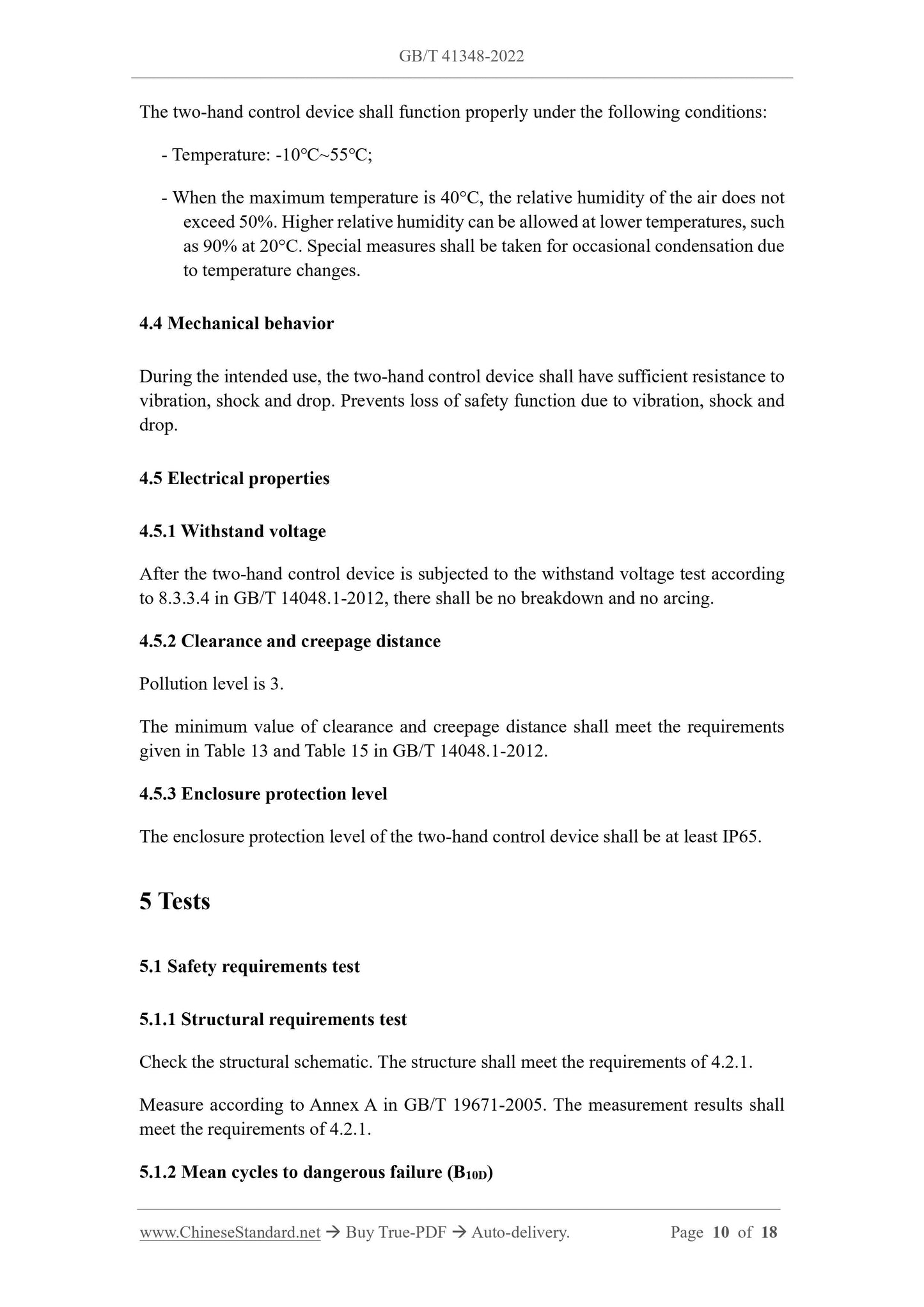

The two-hand control device shall function properly under the following conditions:
- Temperature: -10℃~55℃;
- When the maximum temperature is 40°C, the relative humidity of the air does not
exceed 50%. Higher relative humidity can be allowed at lower temperatures, such
as 90% at 20°C. Special measures shall be taken for occasional condensation due
to temperature changes.
4.4 Mechanical behavior
During the intended use, the two-hand control device shall have sufficient resistance to
vibration, shock and drop. Prevents loss of safety function due to vibration, shock and
drop.
4.5 Electrical properties
4.5.1 Withstand voltage
After the two-hand control device is subjected to the withstand voltage test according
to 8.3.3.4 in GB/T 14048.1-2012, there shall be no breakdown and no arcing.
4.5.2 Clearance and creepage distance
Pollution level is 3.
The minimum value of clearance and creepage distance shall meet the requirements
given in Table 13 and Table 15 in GB/T 14048.1-2012.
4.5.3 Enclosure protection level
The enclosure protection level of the two-hand control device shall be at least IP65.
5 Tests
5.1 Safety requirements test
5.1.1 Structural requirements test
Check the structural schematic. The structure shall meet the requirements of 4.2.1.
Measure according to Annex A in GB/T 19671-2005. The measurement results shall
meet the requirements of 4.2.1.
5.1.2 Mean cycles to dangerous failure (B10D)

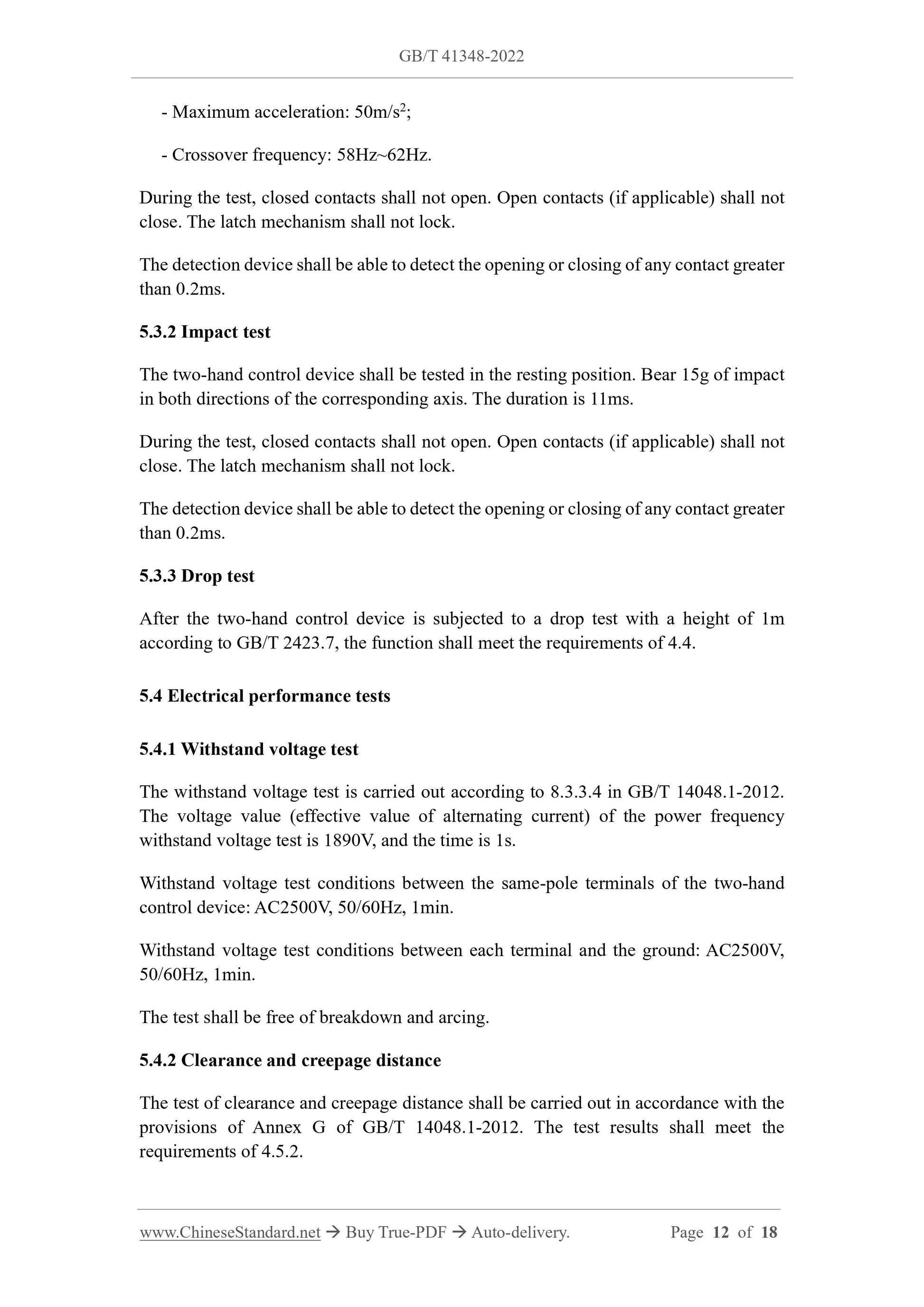

- Maximum acceleration: 50m/s2;
- Crossover frequency: 58Hz~62Hz.
During the test, closed contacts shall not open. Open contacts (if applicable) shall not
close. The latch mechanism shall not lock.
The detection device shall be able to detect the opening or closing of any contact greater
than 0.2ms.
5.3.2 Impact test
The two-hand control device shall be tested in the resting position. Bear 15g of impact
in both directions of the corresponding axis. The duration is 11ms.
During the test, closed contacts shall not open. Open contacts (if applicable) shall not
close. The latch mechanism shall not lock.
The detection device shall be able to detect the opening or closing of any contact greater
than 0.2ms.
5.3.3 Drop test
After the two-hand control device is subjected to a drop test with a height of 1m
according to GB/T 2423.7, the function shall meet the requirements of 4.4.
5.4 Electrical performance tests
5.4.1 Withstand voltage test
The withstand voltage test is carried out according to 8.3.3.4 in GB/T 14048.1-2012.
The voltage value (effective value of alternating current) of the power frequency
withstand voltage test is 1890V, and the time is 1s.
Withstand voltage test conditions between the same-pole terminals of the two-hand
control device: AC2500V, 50/60Hz, 1min.
Withstand voltage test conditions between each terminal and the ground: AC2500V,
50/60Hz, 1min.
The test shall be free of breakdown and arcing.
5.4.2 Clearance and creepage distance
The test of clearance and creepage distance shall be carried out in accordance with the
provisions of Annex G of GB/T 14048.1-2012. The test results shall meet the
requirements of 4.5.2.

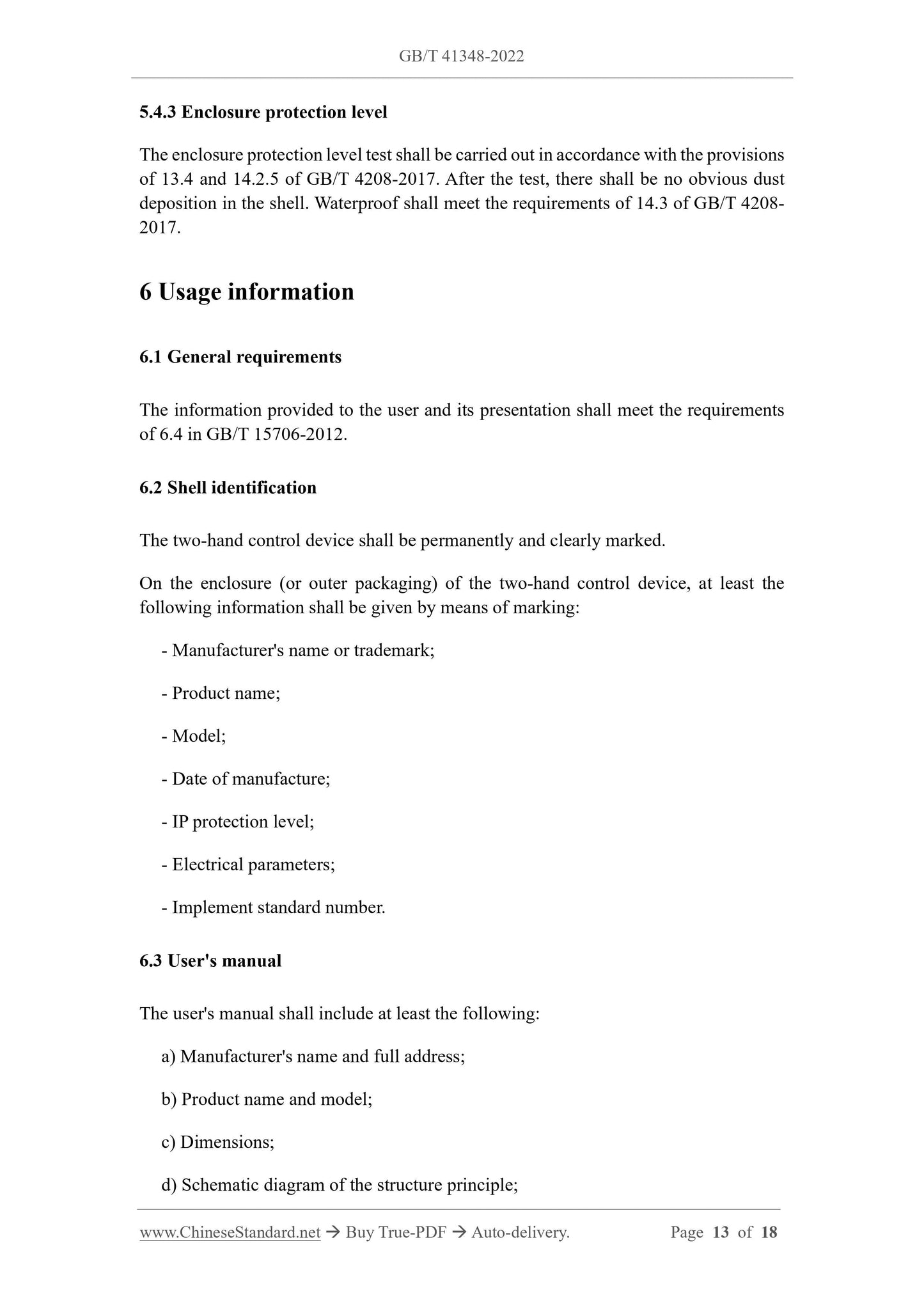

5.4.3 Enclosure protection level
The enclosure protection level test shall be carried out in accordance with the provisions
of 13.4 and 14.2.5 of GB/T 4208-2017. After the test, there shall be no obvious dust
deposition in the shell. Waterproof shall meet the requirements of 14.3 of GB/T 4208-
2017.
6 Usage information
6.1 General requirements
The information provided to the user and its presentation shall meet the requirements
of 6.4 in GB/T 15706-2012.
6.2 Shell identification
The two-hand control device shall be permanently and clearly marked.
On the enclosure (or outer packaging) of the two-hand control device, at least the
following information shall be given by means of marking:
- Manufacturer's name or trademark;
- Product name;
- Model;
- Date of manufacture;
- IP protection level;
- Electrical parameters;
- Implement standard number.
6.3 User's manual
The user's manual shall include at least the following:
a) Manufacturer's name and full address;
b) Product name and model;
c) Dimensions;
d) Schematic diagram of the structure principle;

GB/T 41348-2022
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 13.110
CCS J 09
Safety of machinery - Specification for two-hand control
devices
ISSUED ON: MARCH 09, 2022
IMPLEMENTED ON: OCTOBER 01, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of China.
Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 7
2 Normative references ... 7
3 Terms and definitions... 8
4 Technical requirements ... 8
4.1 General requirements ... 8
4.2 Safety requirements ... 9
4.3 Environmental adaptability ... 9
4.4 Mechanical behavior ... 10
4.5 Electrical properties ... 10
5 Tests ... 10
5.1 Safety requirements test ... 10
5.2 Environmental suitability test ... 11
5.3 Mechanical property tests ... 11
5.4 Electrical performance tests ... 12
6 Usage information ... 13
6.1 General requirements ... 13
6.2 Shell identification ... 13
6.3 User's manual ... 13
Annex A (informative) Calculation or estimation of component B10 and B10D values 15
Bibliography... 18
Safety of machinery - Specification for two-hand control
devices
1 Scope
This document specifies technical requirements, testing and usage information for two-
hand control devices.
This document applies to two-hand control devices for safety functions by pressing two
buttons simultaneously.
This document does not apply to pneumatic or hydraulic valve type two-hand control
devices.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 2423.7, Environmental testing - Part 2: Test methods - Test Ec: Rough
handling shocks, primarily for equipment-type specimens
GB/T 2423.22, Environmental testing - Part 2: Tests methods - Test N: Change of
temperature
GB/T 4208-2017, Degrees of protection provided by enclosure (IP code)
GB/T 14048.1-2012, Low-voltage switchgear and control gear - Part 1: General
rules
GB/T 14048.5-2017, Low-voltage switchgear and control gear - Part 5-1: Control
circuit devices and switching component - Electromechanical control circuit devices
GB/T 15706-2012, Safety of machinery - General principles for design - Risk
assessment and risk reduction
GB/T 19671-2005, Safety of machinery - Two-hand control device - Functional
aspects and design principles
the reach of the hand.
The two-hand control device shall be equipped with a corresponding safety control
system to achieve the predetermined simultaneous control or synchronous control
function, see GB/T 19671-2005.
4.2 Safety requirements
4.2.1 Structural requirements
The height of the two-hand control device with brackets from the ground or standing
surface shall not be less than 1100mm.
The inner edge distance between the two buttons of the two-hand control device shall
be 550mm~600mm. If measures such as different-direction operation, cover plate,
shape, are used (see Annex A in GB/T 19671-2005) to prevent the two-hand control
device from being abandoned, the inner edge distance between the two buttons shall
not be less than 260mm.
The buttons of the two-hand control device shall be self-resetting buttons.
The contact unit of the push button shall include at least one normally open contact.
Each button conforming to Type IIIA in GB/T 19671-2005 shall adopt a normally open
contact switch.
For two operating buttons conforming to Type IIIC in GB/T 19671-2005, each button
shall contain a normally closed contact switch and a normally open contact switch. The
normally closed contact switch shall adopt a direct disconnect structure.
4.2.2 Mean cycles to dangerous failure (B10D)
The B10D value of the two-hand control device shall not be less than 100,000 times.
4.2.3 Prevention of deprecations and accidental operations
The possibility of deprecation and accidental operation shall be minimized by adopting
countermeasures, covers, shapes and so on.
NOTE: Annex A of GB/T 19671-2005 gives examples of relevant measures.
4.3 Environmental adaptability
The selection, assembly, connection and protection of parts, devices and components
of a two-hand control device shall be such that they can operate correctly under the
expected operating conditions and environmental influences.
The two-hand control device shall function properly under the following conditions:
- Temperature: -10℃~55℃;
- When the maximum temperature is 40°C, the relative humidity of the air does not
exceed 50%. Higher relative humidity can be allowed at lower temperatures, such
as 90% at 20°C. Special measures shall be taken for occasional condensation due
to temperature changes.
4.4 Mechanical behavior
During the intended use, the two-hand control device shall have sufficient resistance to
vibration, shock and drop. Prevents loss of safety function due to vibration, shock and
drop.
4.5 Electrical properties
4.5.1 Withstand voltage
After the two-hand control device is subjected to the withstand voltage test according
to 8.3.3.4 in GB/T 1404...
