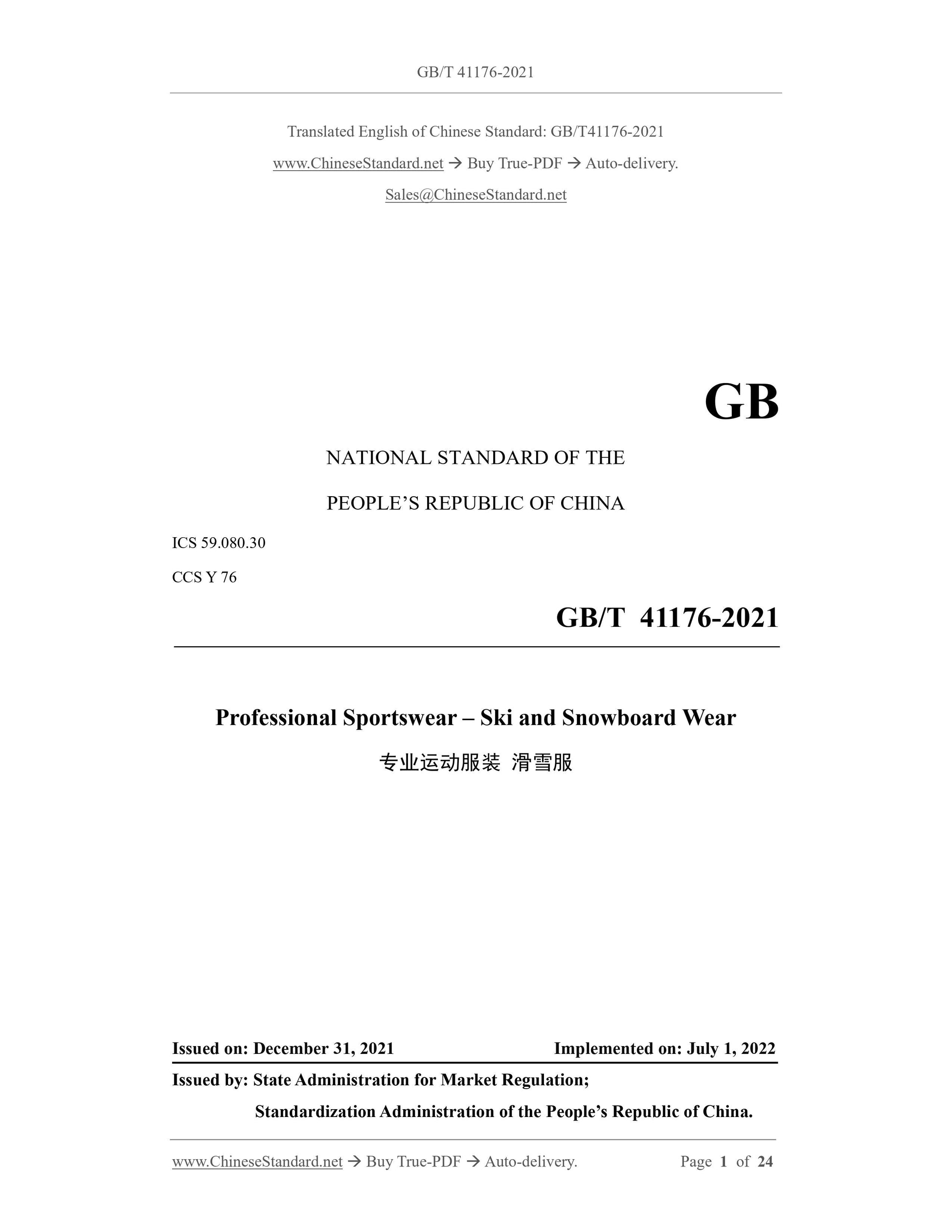

GB/T 41176-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 59.080.30
CCS Y 76
Professional Sportswear – Ski and Snowboard Wear
专业运动服装 滑雪服
ISSUED ON: DECEMBER 31, 2021
IMPLEMENTED ON: JULY 1, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

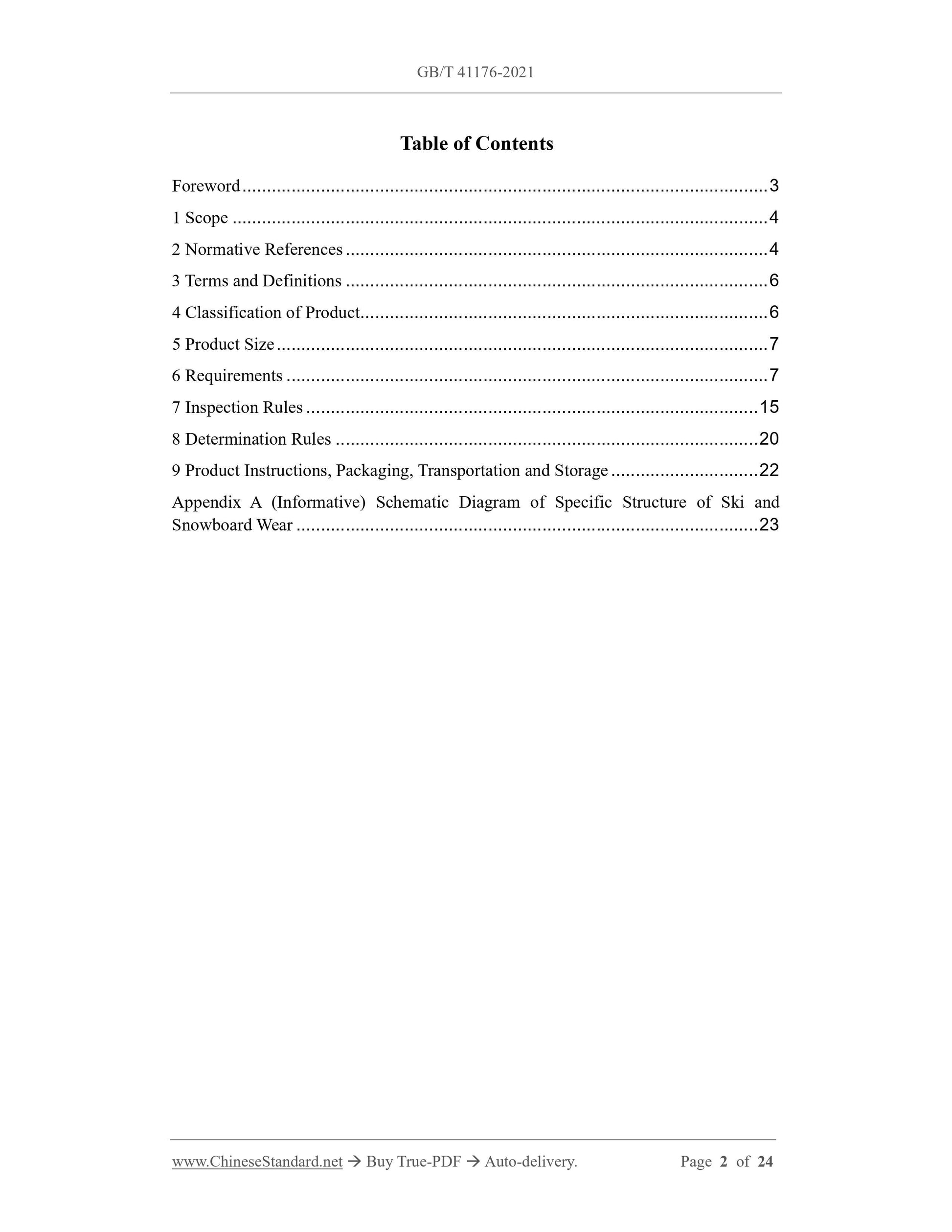

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 6
4 Classification of Product ... 6
5 Product Size ... 7
6 Requirements ... 7
7 Inspection Rules ... 15
8 Determination Rules ... 20
9 Product Instructions, Packaging, Transportation and Storage ... 22
Appendix A (Informative) Schematic Diagram of Specific Structure of Ski and
Snowboard Wear ... 23

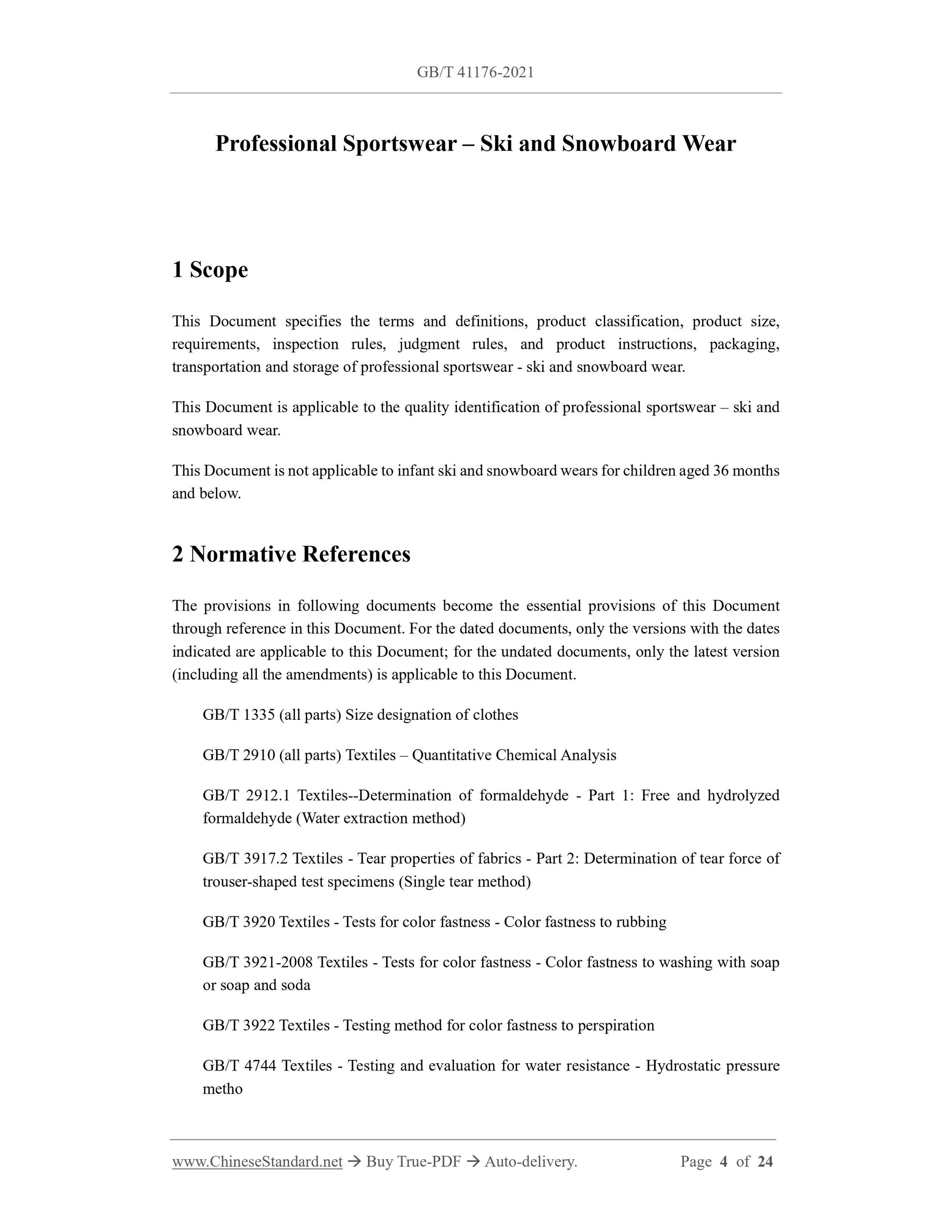

Professional Sportswear – Ski and Snowboard Wear
1 Scope
This Document specifies the terms and definitions, product classification, product size,
requirements, inspection rules, judgment rules, and product instructions, packaging,
transportation and storage of professional sportswear - ski and snowboard wear.
This Document is applicable to the quality identification of professional sportswear – ski and
snowboard wear.
This Document is not applicable to infant ski and snowboard wears for children aged 36 months
and below.
2 Normative References
The provisions in following documents become the essential provisions of this Document
through reference in this Document. For the dated documents, only the versions with the dates
indicated are applicable to this Document; for the undated documents, only the latest version
(including all the amendments) is applicable to this Document.
GB/T 1335 (all parts) Size designation of clothes
GB/T 2910 (all parts) Textiles – Quantitative Chemical Analysis
GB/T 2912.1 Textiles--Determination of formaldehyde - Part 1: Free and hydrolyzed
formaldehyde (Water extraction method)
GB/T 3917.2 Textiles - Tear properties of fabrics - Part 2: Determination of tear force of
trouser-shaped test specimens (Single tear method)
GB/T 3920 Textiles - Tests for color fastness - Color fastness to rubbing
GB/T 3921-2008 Textiles - Tests for color fastness - Color fastness to washing with soap
or soap and soda
GB/T 3922 Textiles - Testing method for color fastness to perspiration
GB/T 4744 Textiles - Testing and evaluation for water resistance - Hydrostatic pressure
metho

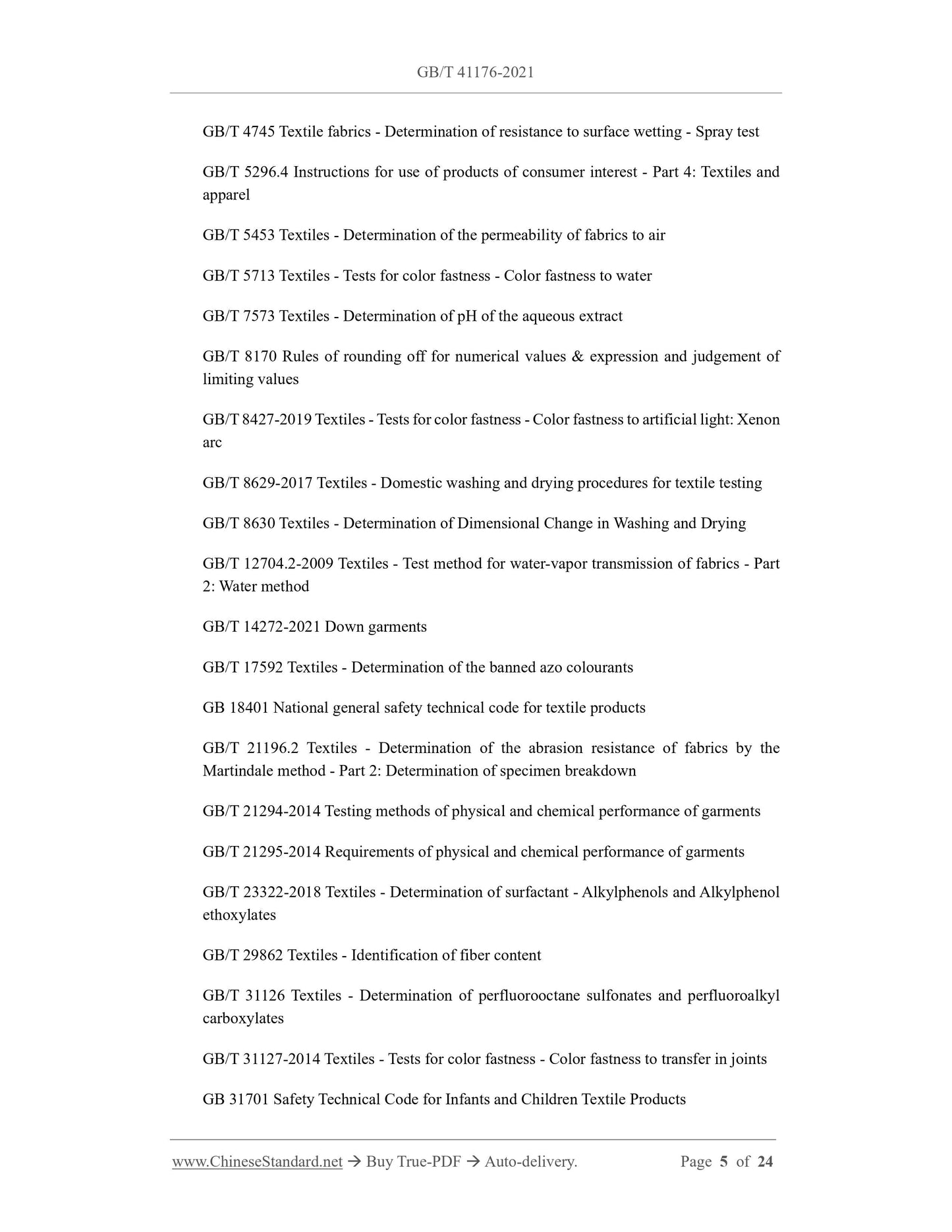

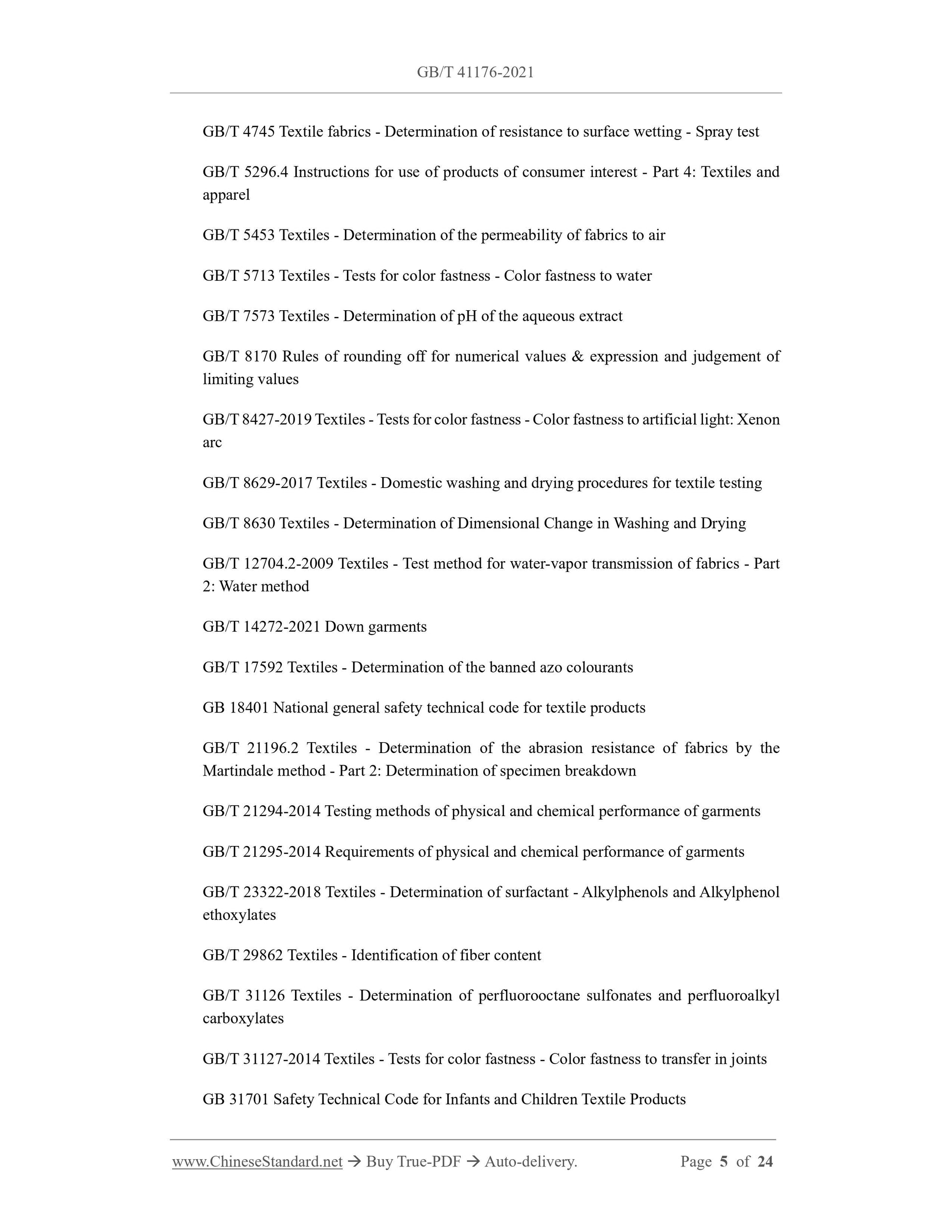

GB/T 4745 Textile fabrics - Determination of resistance to surface wetting - Spray test
GB/T 5296.4 Instructions for use of products of consumer interest - Part 4: Textiles and
apparel
GB/T 5453 Textiles - Determination of the permeability of fabrics to air
GB/T 5713 Textiles - Tests for color fastness - Color fastness to water
GB/T 7573 Textiles - Determination of pH of the aqueous extract
GB/T 8170 Rules of rounding off for numerical values and expression and judgement of
limiting values
GB/T 8427-2019 Textiles - Tests for color fastness - Color fastness to artificial light: Xenon
arc
GB/T 8629-2017 Textiles - Domestic washing and drying procedures for textile testing
GB/T 8630 Textiles - Determination of Dimensional Change in Washing and Drying
GB/T 12704.2-2009 Textiles - Test method for water-vapor transmission of fabrics - Part
2: Water method
GB/T 14272-2021 Down garments
GB/T 17592 Textiles - Determination of the banned azo colourants
GB 18401 National general safety technical code for textile products
GB/T 21196.2 Textiles - Determination of the abrasion resistance of fabrics by the
Martindale method - Part 2: Determination of specimen breakdown
GB/T 21294-2014 Testing methods of physical and chemical performance of garments
GB/T 21295-2014 Requirements of physical and chemical performance of garments
GB/T 23322-2018 Textiles - Determination of surfactant - Alkylphenols and Alkylphenol
ethoxylates
GB/T 29862 Textiles - Identification of fiber content
GB/T 31126 Textiles - Determination of perfluorooctane sulfonates and perfluoroalkyl
carboxylates
GB/T 31127-2014 Textiles - Tests for color fastness - Color fastness to transfer in joints
GB 31701 Safety Technical Code for Infants and Children Textile Products

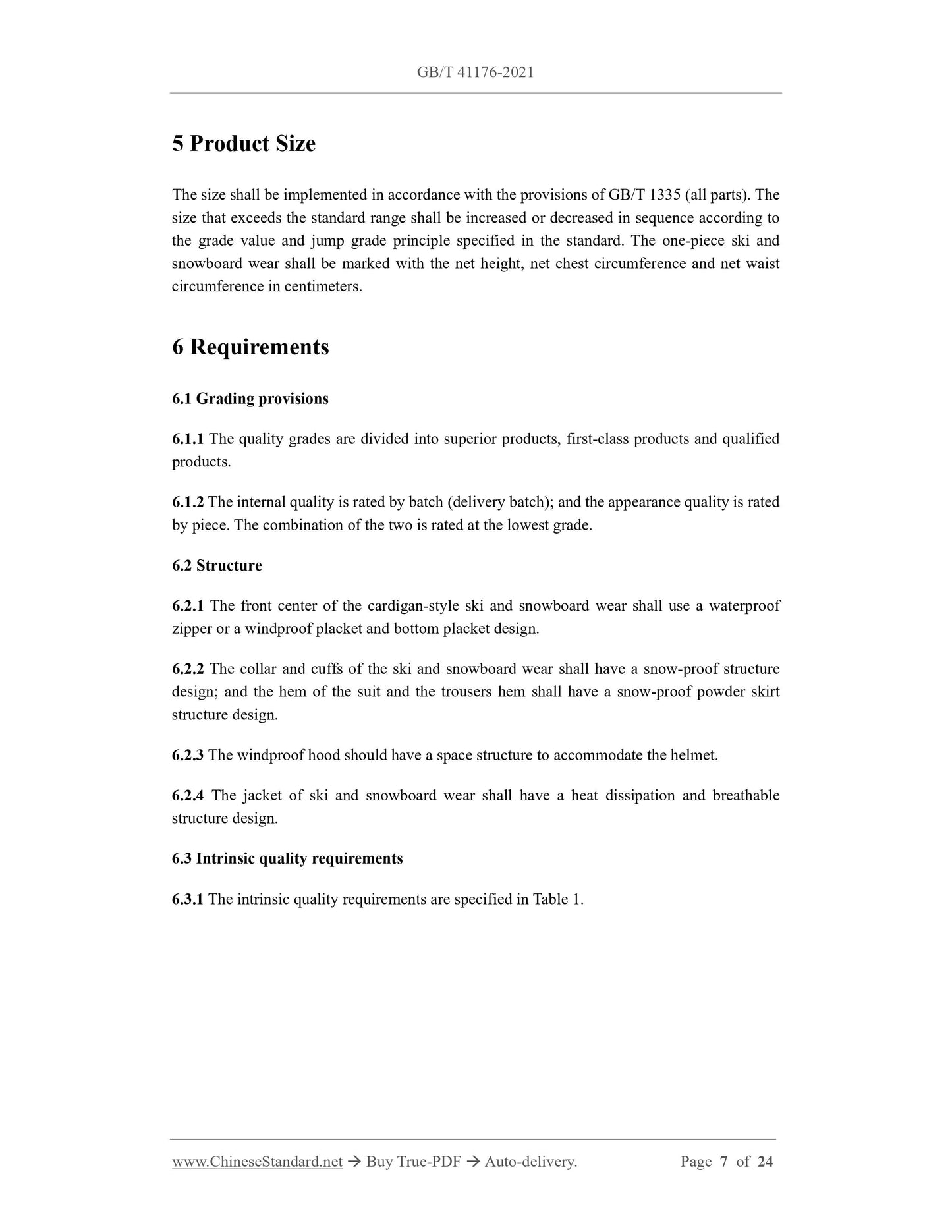

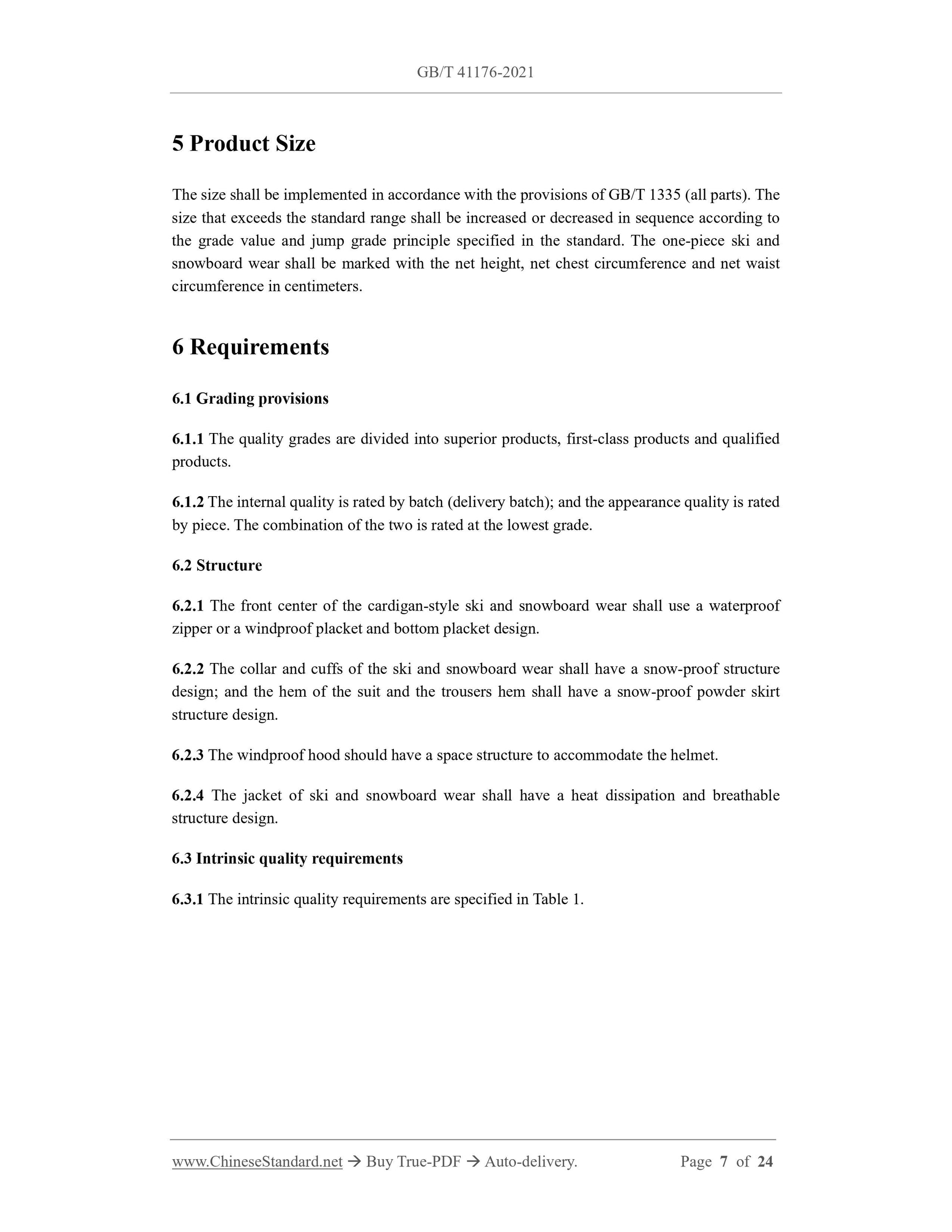

5 Product Size
The size shall be implemented in accordance with the provisions of GB/T 1335 (all parts). The
size that exceeds the standard range shall be increased or decreased in sequence according to
the grade value and jump grade principle specified in the standard. The one-piece ski and
snowboard wear shall be marked with the net height, net chest circumference and net waist
circumference in centimeters.
6 Requirements
6.1 Grading provisions
6.1.1 The quality grades are divided into superior products, first-class products and qualified
products.
6.1.2 The internal quality is rated by batch (delivery batch); and the appearance quality is rated
by piece. The combination of the two is rated at the lowest grade.
6.2 Structure
6.2.1 The front center of the cardigan-style ski and snowboard wear shall use a waterproof
zipper or a windproof placket and bottom placket design.
6.2.2 The collar and cuffs of the ski and snowboard wear shall have a snow-proof structure
design; and the hem of the suit and the trousers hem shall have a snow-proof powder skirt
structure design.
6.2.3 The windproof hood should have a space structure to accommodate the helmet.
6.2.4 The jacket of ski and snowboard wear shall have a heat dissipation and breathable
structure design.
6.3 Intrinsic quality requirements
6.3.1 The intrinsic quality requirements are specified in Table 1.

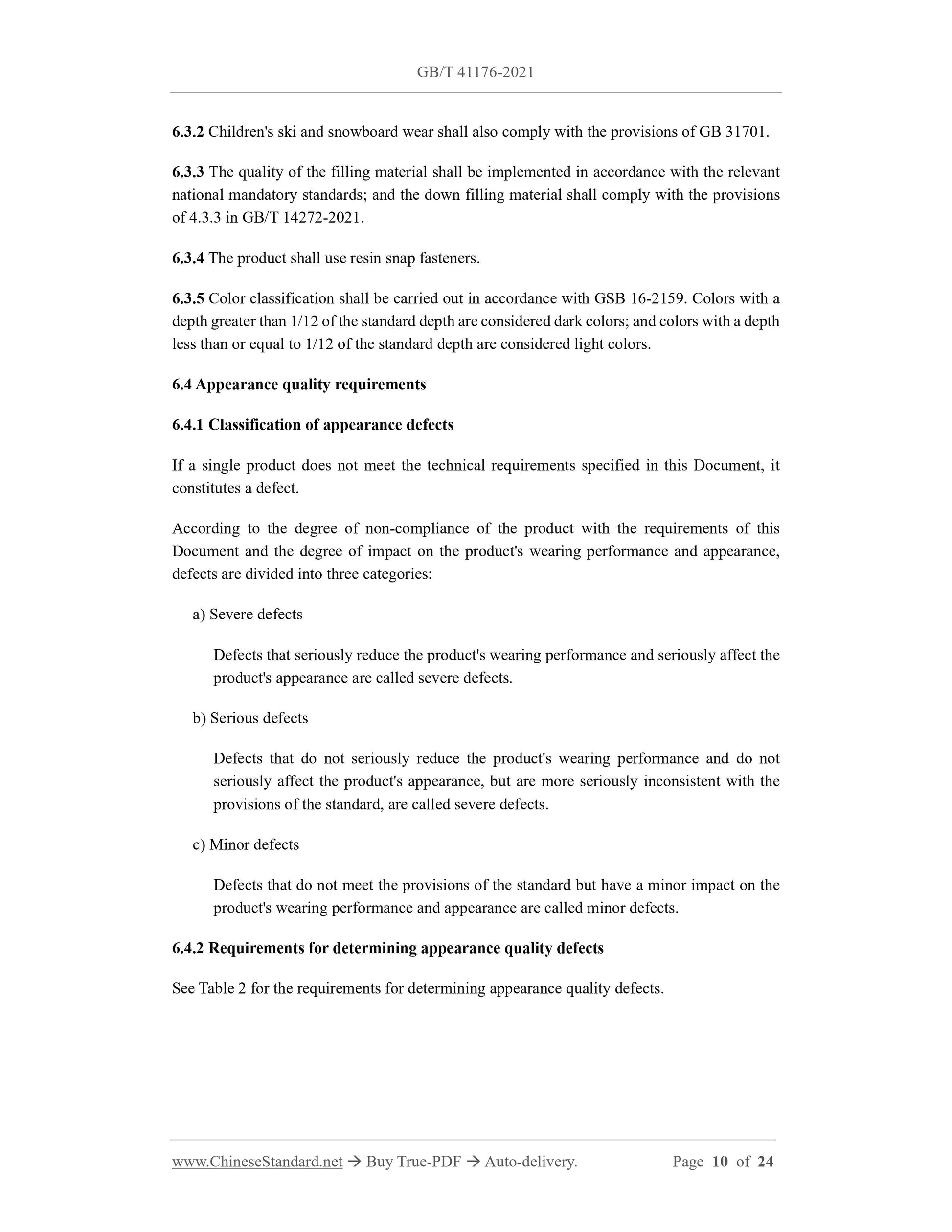

6.3.2 Children's ski and snowboard wear shall also comply with the provisions of GB 31701.
6.3.3 The quality of the filling material shall be implemented in accordance with the relevant
national mandatory standards; and the down filling material shall comply with the provisions
of 4.3.3 in GB/T 14272-2021.
6.3.4 The product shall use resin snap fasteners.
6.3.5 Color classification shall be carried out in accordance with GSB 16-2159. Colors with a
depth greater than 1/12 of the standard depth are considered dark colors; and colors with a depth
less than or equal to 1/12 of the standard depth are considered light colors.
6.4 Appearance quality requirements
6.4.1 Classification of appearance defects
If a single product does not meet the technical requirements specified in this Document, it
constitutes a defect.
According to the degree of non-compliance of the product with the requirements of this
Document and the degree of impact on the product's wearing performance and appearance,
defects are divided into three categories:
a) Severe defects
Defects that seriously reduce the product's wearing performance and seriously affect the
product's appearance are called severe defects.
b) Serious defects
Defects that do not seriously reduce the product's wearing performance and do not
seriously affect the product's appearance, but are more seriously inconsistent with the
provisions of the standard, are called severe defects.
c) Minor defects
Defects that do not meet the provisions of the standard but have a minor impact on the
product's wearing performance and appearance are called minor defects.
6.4.2 Requirements for determining appearance quality defects
See Table 2 for the requirements for determining appearance quality defects.

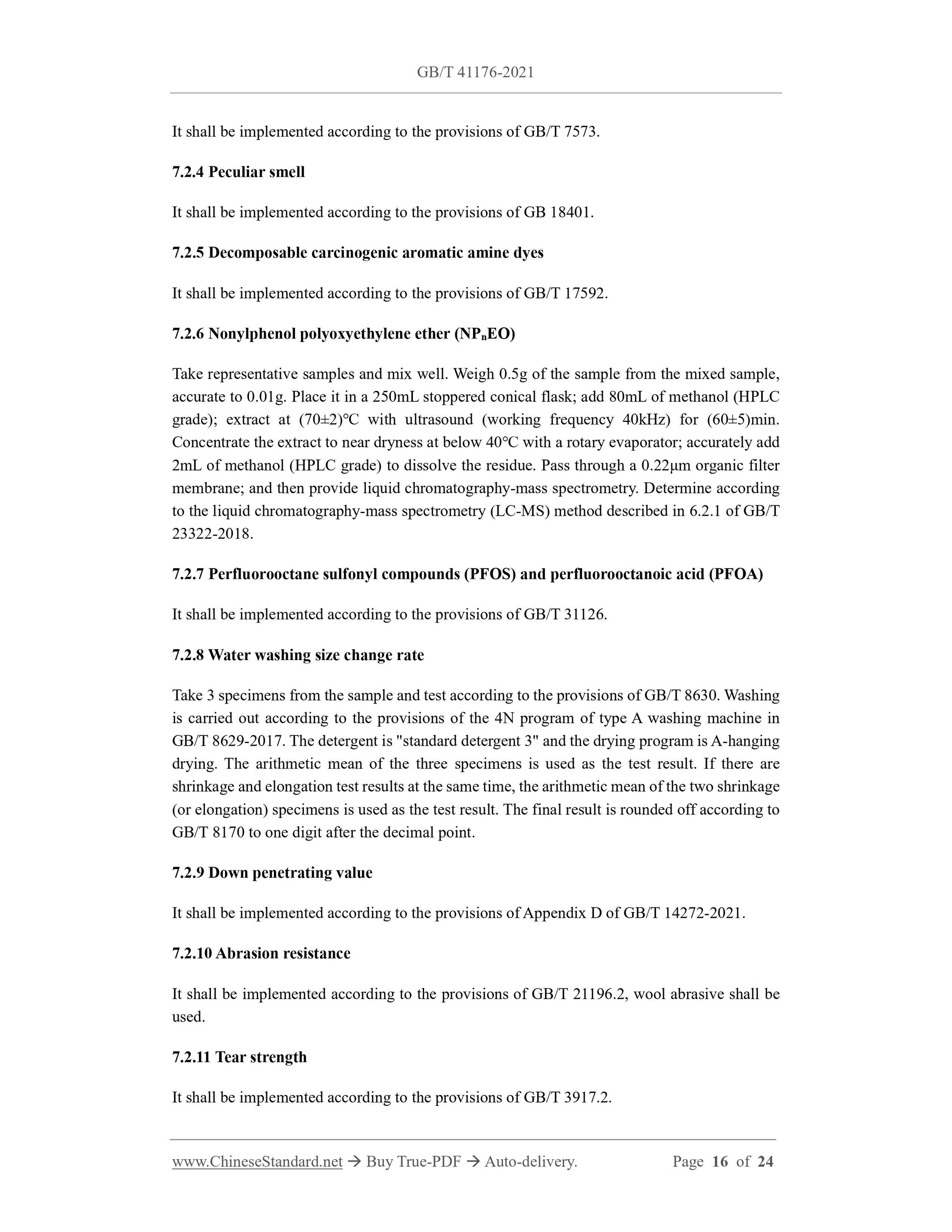

It shall be implemented according to the provisions of GB/T 7573.
7.2.4 Peculiar smell
It shall be implemented according to the provisions of GB 18401.
7.2.5 Decomposable carcinogenic aromatic amine dyes
It shall be implemented according to the provisions of GB/T 17592.
7.2.6 Nonylphenol polyoxyethylene ether (NPnEO)
Take representative samples and mix well. Weigh 0.5g of the sample from the mixed sample,
accurate to 0.01g. Place it in a 250mL stoppered conical flask; add 80mL of methanol (HPLC
grade); extract at (70±2)℃ with ultrasound (working frequency 40kHz) for (60±5)min.
Concentrate the extract to near dryness at below 40℃ with a rotary evaporator; accurately add
2mL of methanol (HPLC grade) to dissolve the residue. Pass through a 0.22μm organic filter
membrane; and then provide liquid chromatography-mass spectrometry. Determine according
to the liquid chromatography-mass spectrometry (LC-MS) method described in 6.2.1 of GB/T
23322-2018.
7.2.7 Perfluorooctane sulfonyl compounds (PFOS) and perfluorooctanoic acid (PFOA)
It shall be implemented according to the provisions of GB/T 31126.
7.2.8 Water washing size change rate
Take 3 specimens from the sample and test according to the provisions of GB/T 8630. Washing
is carried out according to the provisions of the 4N program of type A washing machine in
GB/T 8629-2017. The detergent is "standard detergent 3" and the drying program is A-hanging
drying. The arithmetic mean of the three specimens is used as the test result. If there are
shrinkage and elongation test results at the same time, the arithmetic mean of the two shrinkage
(or elongation) specimens is used as the test result. The final result is rounded off according to
GB/T 8170 to one digit after the decimal point.
7.2.9 Down penetrating value
It shall be implemented according to the provisions of Appendix D of GB/T 14272-2021.
7.2.10 Abrasion resistance
It shall be implemented according to the provisions of GB/T 21196.2, wool abrasive shall be
used.
7.2.11 Tear strength
It shall be implemented according to the provisions of GB/T 3917.2.

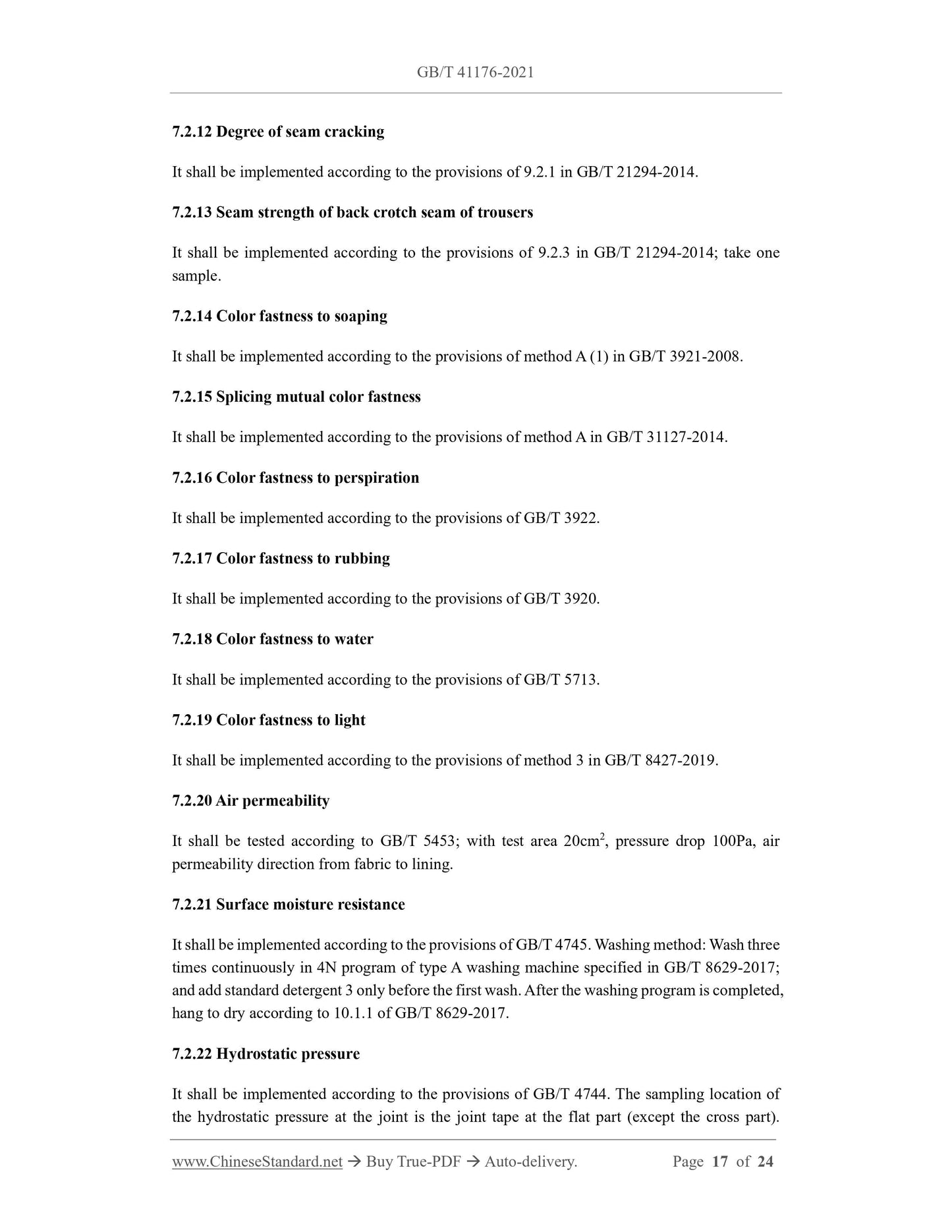

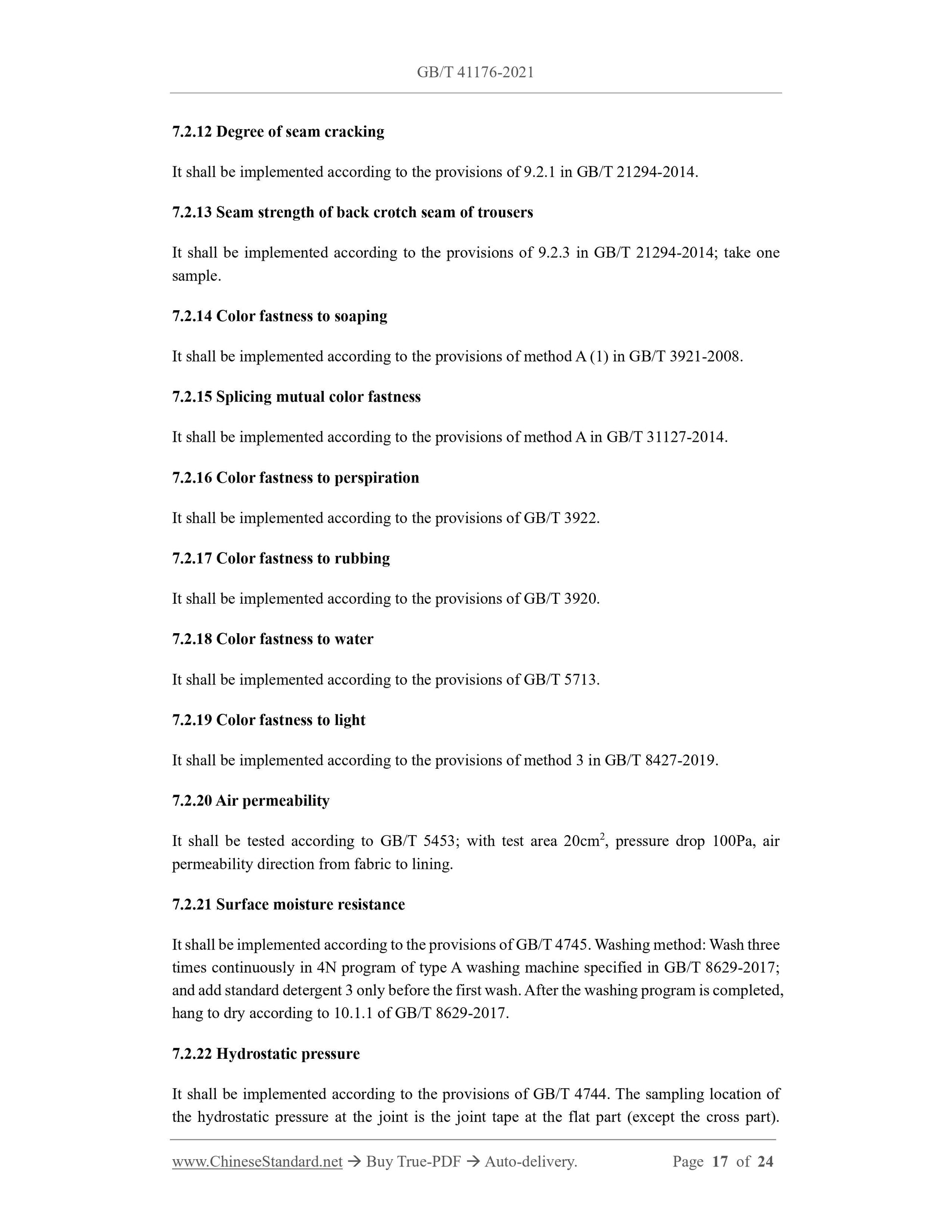

7.2.12 Degree of seam cracking
It shall be implemented according to the provisions of 9.2.1 in GB/T 21294-2014.
7.2.13 Seam strength of back crotch seam of trousers
It shall be implemented according to the provisions of 9.2.3 in GB/T 21294-2014; take one
sample.
7.2.14 Color fastness to soaping
It shall be implemented according to the provisions of method A (1) in GB/T 3921-2008.
7.2.15 Splicing mutual color fastness
It shall be implemented according to the provisions of method A in GB/T 31127-2014.
7.2.16 Color fastness to perspiration
It shall be implemented according to the provisions of GB/T 3922.
7.2.17 Color fastness to rubbing
It shall be implemented according to the provisions of GB/T 3920.
7.2.18 Color fastness to water
It shall be implemented according to the provisions of GB/T 5713.
7.2.19 Color fastness to light
It shall be implemented according to the provisions of method 3 in GB/T 8427-2019.
7.2.20 Air permeability
It shall be tested according to GB/T 5453; with test area 20cm2, pressure drop 100Pa, air
permeability direction from fabric to lining.
7.2.21 Surface moisture resistance
It shall be implemented according to the provisions of GB/T 4745. Washing method: Wash three
times continuously in 4N program of type A washing machine specified in GB/T 8629-2017;
and add standard detergent 3 only before the first wash. After the washing program is completed,
hang to dry according to 10.1.1 of GB/T 8629-2017.
7.2.22 Hydrostatic pressure
It shall be implemented according to the provisions of GB/T 4744. The sampling location of
the hydrostatic pressure at the joint is the joint tape at the flat part (except the cross part).

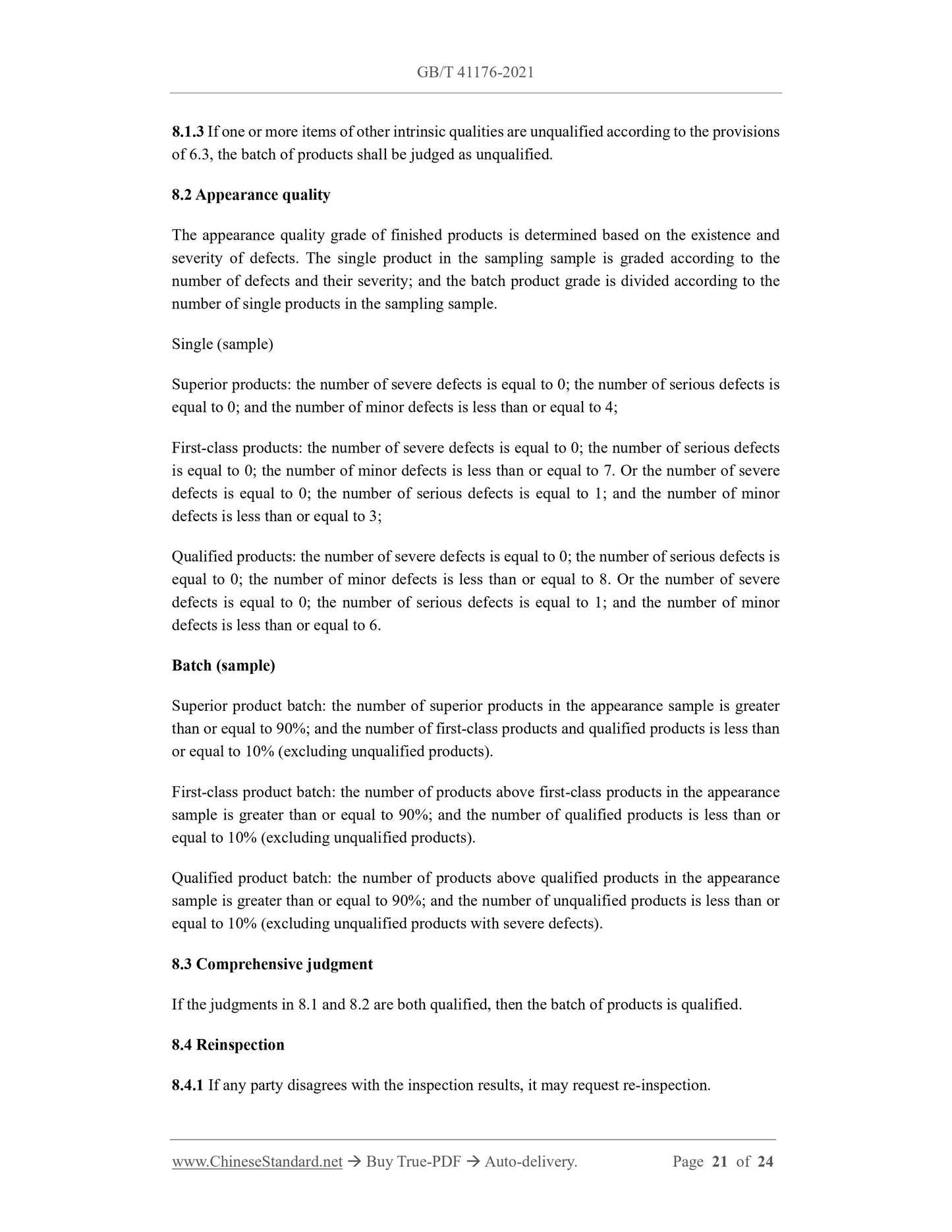

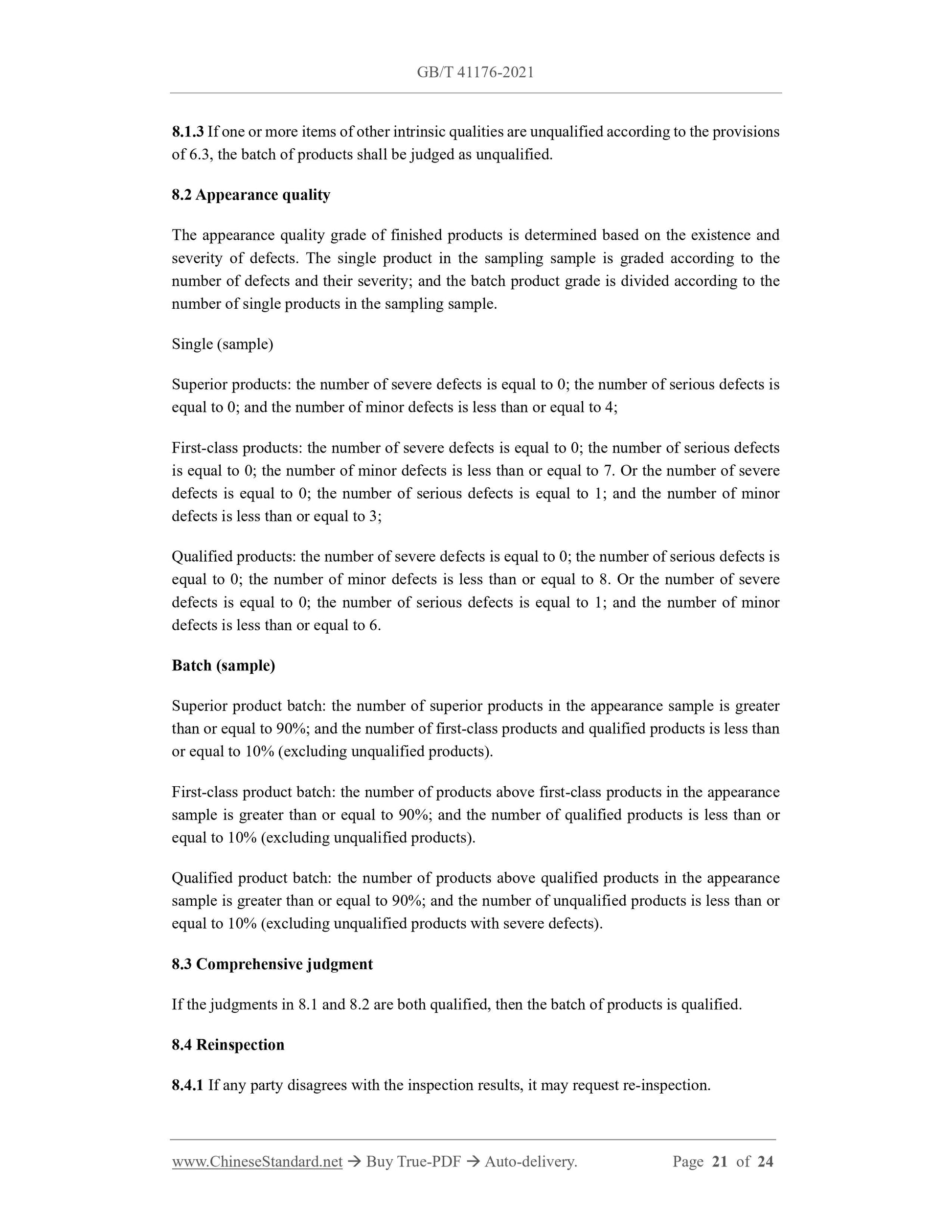

8.1.3 If one or more items of other intrinsic qualities are unqualified according to the provisions
of 6.3, the batch of products shall be judged as unqualified.
8.2 Appearance quality
The appearance quality grade of finished products is determined based on the existence and
severity of defects. The single product in the sampling sample is graded according to the
number of defects and their severity; and the batch product grade is divided according to the
number of single products in the sampling sample.
Single (sample)
Superior products: the number of severe defects is equal to 0; the number of serious defects is
equal to 0; and the number of minor defects is less than or equal to 4;
First-class products: the number of severe defects is equal to 0; the number of serious defects
is equal to 0; the number of minor defects is less than or equal to 7. Or the number of severe
defects is equal to 0; the number of serious defects is equal to 1; and the number of minor
defects is less than or equal to 3;
Qualified products: the number of severe defects is equal to 0; the number of serious defects is
equal to 0; the number of minor defects is less than or equal to 8. Or the number of severe
defects is equal to 0; the number of serious defects is equal to 1; and the number of minor
defects is less than or equal to 6.
Batch (sample)
Superior product batch: the number of superior products in the appearance sample is greater
than or equal to 90%; and the number of first-class products and qualified products is less than
or equal to 10% (excluding unqualified products).
First-class product batch: the number of products above first-class products in the appearance
sample is greater than or equal to 90%; and the number of qualified products is less than or
equal to 10% (excluding unqualified products).
Qualified product batch: the number of products above qualified products in the appearance
sample is greater than or equal to 90%; and the number of unqualified products is less than or
equal to 10% (excluding unqualified products with severe defects).
8.3 Comprehensive judgment
If the judgments in 8.1 and 8.2 are both qualified, then the batch of products is qualified.
8.4 Reinspection
8.4.1 If any party disagrees with the inspection results, it may request re-inspection.
GB/T 41176-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 59.080.30
CCS Y 76
Professional Sportswear – Ski and Snowboard Wear
专业运动服装 滑雪服
ISSUED ON: DECEMBER 31, 2021
IMPLEMENTED ON: JULY 1, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.
Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 6
4 Classification of Product ... 6
5 Product Size ... 7
6 Requirements ... 7
7 Inspection Rules ... 15
