GB/T 41106.6-2021: Large-scale amusement devices -- Inspection, maintenance and repair -- Part 6: Sort of virtual experience rides
GB/T 41106.6-2021
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 97.200.40
CCS Y 57
Large-scale Amusement Devices - Inspection, Maintenance
and Repair - Part 6: Sort of Virtual Experience Rides
ISSUED ON: DECEMBER 31, 2021
IMPLEMENTED ON: JULY 1, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.
Table of Contents
Foreword ... 3
Introduction ... 4
1 Scope ... 6
2 Normative References ... 6
3 Terms and Definitions ... 6
4 General Requirements ... 6
5 Inspection Items and Requirements ... 6
6 Maintenance ... 9
7 Repair ... 9
Appendix A (informative) Inspection Items, Contents, Requirements and Inspection
Modes of Typical Virtual Experience Rides-type Amusement Devices ... 11
Appendix B (informative) Maintenance Items, Contents and Requirements of Typical
Virtual Experience Rides-type Amusement Devices ... 24
Appendix C (informative) Commonly Seen Repair Methods and Requirements for
Virtual Experience Rides-type Amusement Devices ... 28
Bibliography ... 31
Large-scale Amusement Devices - Inspection, Maintenance
and Repair - Part 6: Sort of Virtual Experience Rides

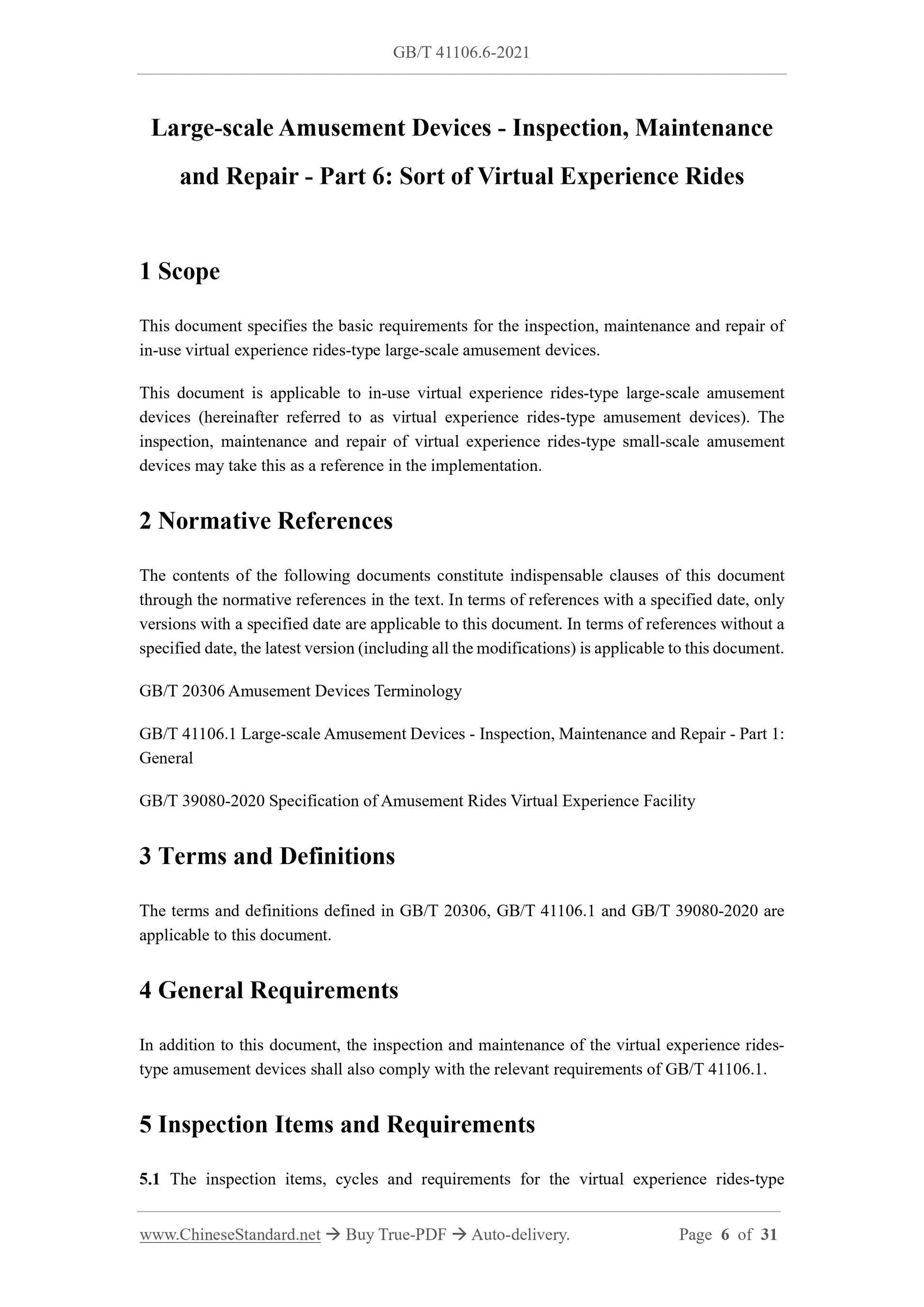

1 Scope
This document specifies the basic requirements for the inspection, maintenance and repair of
in-use virtual experience rides-type large-scale amusement devices.
This document is applicable to in-use virtual experience rides-type large-scale amusement
devices (hereinafter referred to as virtual experience rides-type amusement devices). The
inspection, maintenance and repair of virtual experience rides-type small-scale amusement
devices may take this as a reference in the implementation.
2 Normative References
The contents of the following documents constitute indispensable clauses of this document
through the normative references in the text. In terms of references with a specified date, only
versions with a specified date are applicable to this document. In terms of references without a
specified date, the latest version (including all the modifications) is applicable to this document.
GB/T 20306 Amusement Devices Terminology
GB/T 41106.1 Large-scale Amusement Devices - Inspection, Maintenance and Repair - Part 1:
General
GB/T 39080-2020 Specification of Amusement Rides Virtual Experience Facility
3 Terms and Definitions
The terms and definitions defined in GB/T 20306, GB/T 41106.1 and GB/T 39080-2020 are
applicable to this document.
4 General Requirements
In addition to this document, the inspection and maintenance of the virtual experience rides-
type amusement devices shall also comply with the relevant requirements of GB/T 41106.1.
5 Inspection Items and Requirements
5.1 The inspection items, cycles and requirements for the virtual experience rides-type
components, the fastening, wear and weld seam conditions of the frame, the front and
rear axles, and the underframe, as well as the fastening and material damage of the
vehicle connectors;

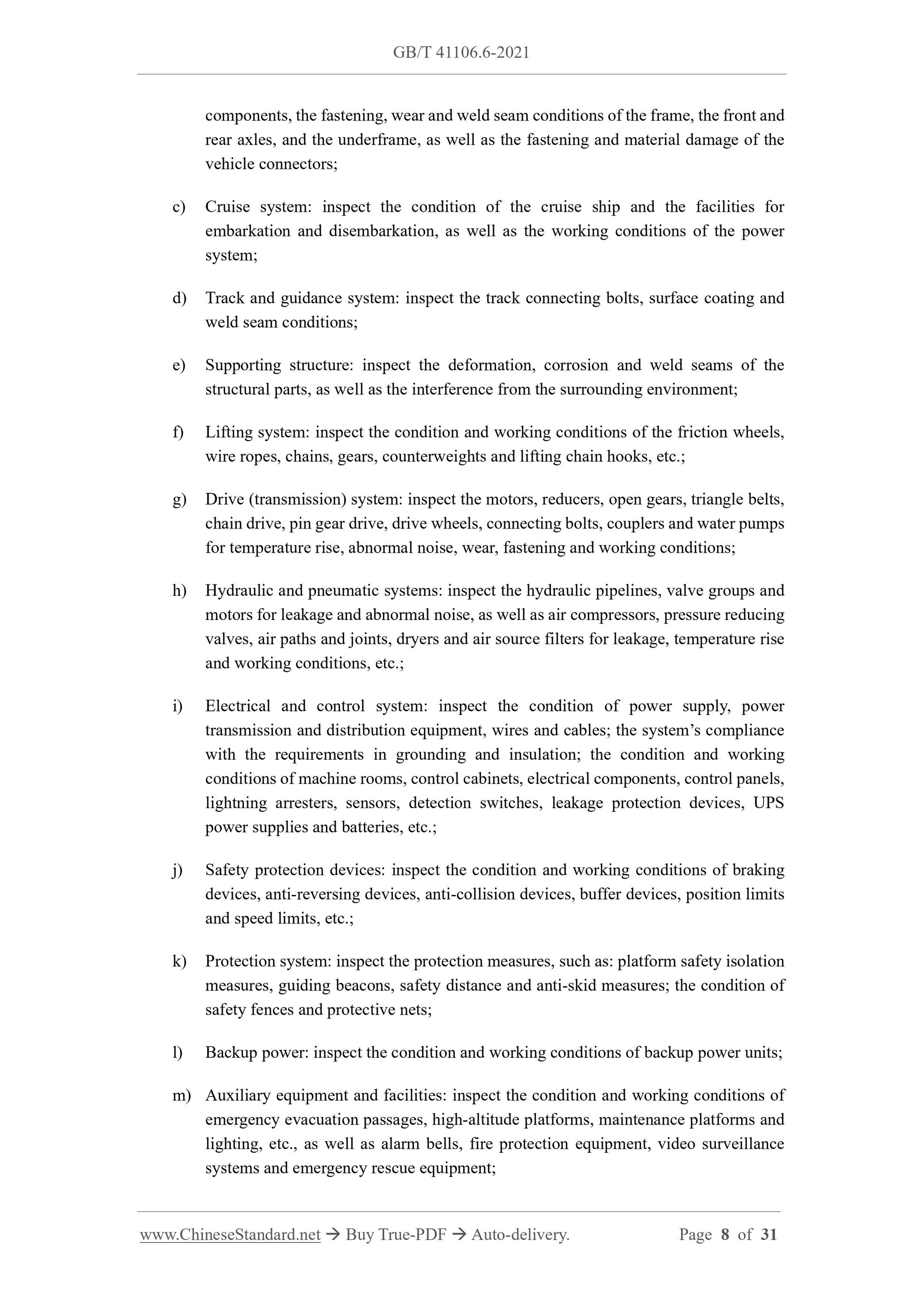

c) Cruise system: inspect the condition of the cruise ship and the facilities for
embarkation and disembarkation, as well as the working conditions of the power
system;
d) Track and guidance system: inspect the track connecting bolts, surface coating and
weld seam conditions;
e) Supporting structure: inspect the deformation, corrosion and weld seams of the
structural parts, as well as the interference from the surrounding environment;
f) Lifting system: inspect the condition and working conditions of the friction wheels,
wire ropes, chains, gears, counterweights and lifting chain hooks, etc.;
g) Drive (transmission) system: inspect the motors, reducers, open gears, triangle belts,
chain drive, pin gear drive, drive wheels, connecting bolts, couplers and water pumps
for temperature rise, abnormal noise, wear, fastening and working conditions;
h) Hydraulic and pneumatic systems: inspect the hydraulic pipelines, valve groups and
motors for leakage and abnormal noise, as well as air compressors, pressure reducing
valves, air paths and joints, dryers and air source filters for leakage, temperature rise
and working conditions, etc.;
i) Electrical and control system: inspect the condition of power supply, power
transmission and distribution equipment, wires and cables; the system’s compliance
with the requirements in grounding and insulation; the condition and working
conditions of machine rooms, control cabinets, electrical components, control panels,
lightning arresters, sensors, detection switches, leakage protection devices, UPS
power supplies and batteries, etc.;
j) Safety protection devices: inspect the condition and working conditions of braking
devices, anti-reversing devices, anti-collision devices, buffer devices, position limits
and speed limits, etc.;
k) Protection system: inspect the protection measures, such as: platform safety isolation
measures, guiding beacons, safety distance and anti-skid measures; the condition of
safety fences and protective nets;
l) Backup power: inspect the condition and working conditions of backup power units;
m) Auxiliary equipment and facilities: inspect the condition and working conditions of
emergency evacuation passages, high-altitude platforms, maintenance platforms and
lighting, etc., as well as alarm bells, fire protection equipment, video surveillance
systems and emergency rescue equipment;
n) Associated equipment and facilities: inspect the condition and working conditions of
other associated equipment and facilities, such as: special effects, stunts, packaging
and performances, as well as audio systems, projectors, lighting, screens and
industrial personal computers, etc.;
o) Other related special equipment: inspect the compliance of other special equipment,
such as: pressure containers, gas cylinders, hoisting machinery and elevators, with the
national regulatory requirements;

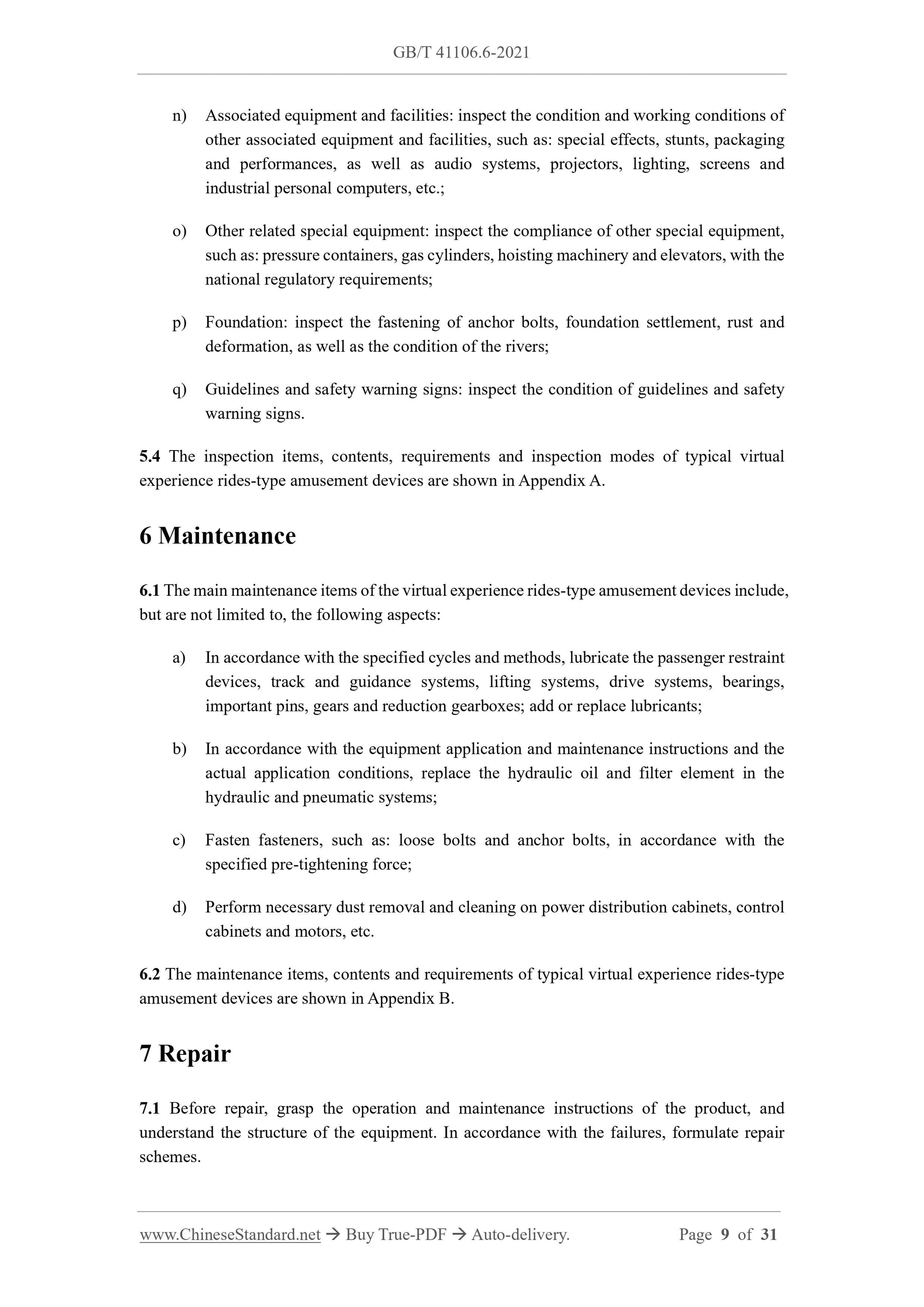

p) Foundation: inspect the fastening of anchor bolts, foundation settlement, rust and
deformation, as well as the condition of the rivers;
q) Guidelines and safety warning signs: inspect the condition of guidelines and safety
warning signs.
5.4 The inspection items, contents, requirements and inspection modes of typical virtual
experience rides-type amusement devices are shown in Appendix A.
6 Maintenance
6.1 The main maintenance items of the virtual experience rides-type amusement devices include,
but are not limited to, the following aspects:
a) In accordance with the specified cycles and methods, lubricate the passenger restraint
devices, track and guidance systems, lifting systems, drive systems, bearings,
important pins, gears and reduction gearboxes; add or replace lubricants;
b) In accordance with the equipment application and maintenance instructions and the
actual application conditions, replace the hydraulic oil and filter element in the
hydraulic and pneumatic systems;
c) Fasten fasteners, such as: loose bolts and anchor bolts, in accordance with the
specified pre-tightening force;
d) Perform necessary dust removal and cleaning on power distribution cabinets, control
cabinets and motors, etc.
6.2 The maintenance items, contents and requirements of typical virtual experience rides-type
amusement devices are shown in Appendix B.

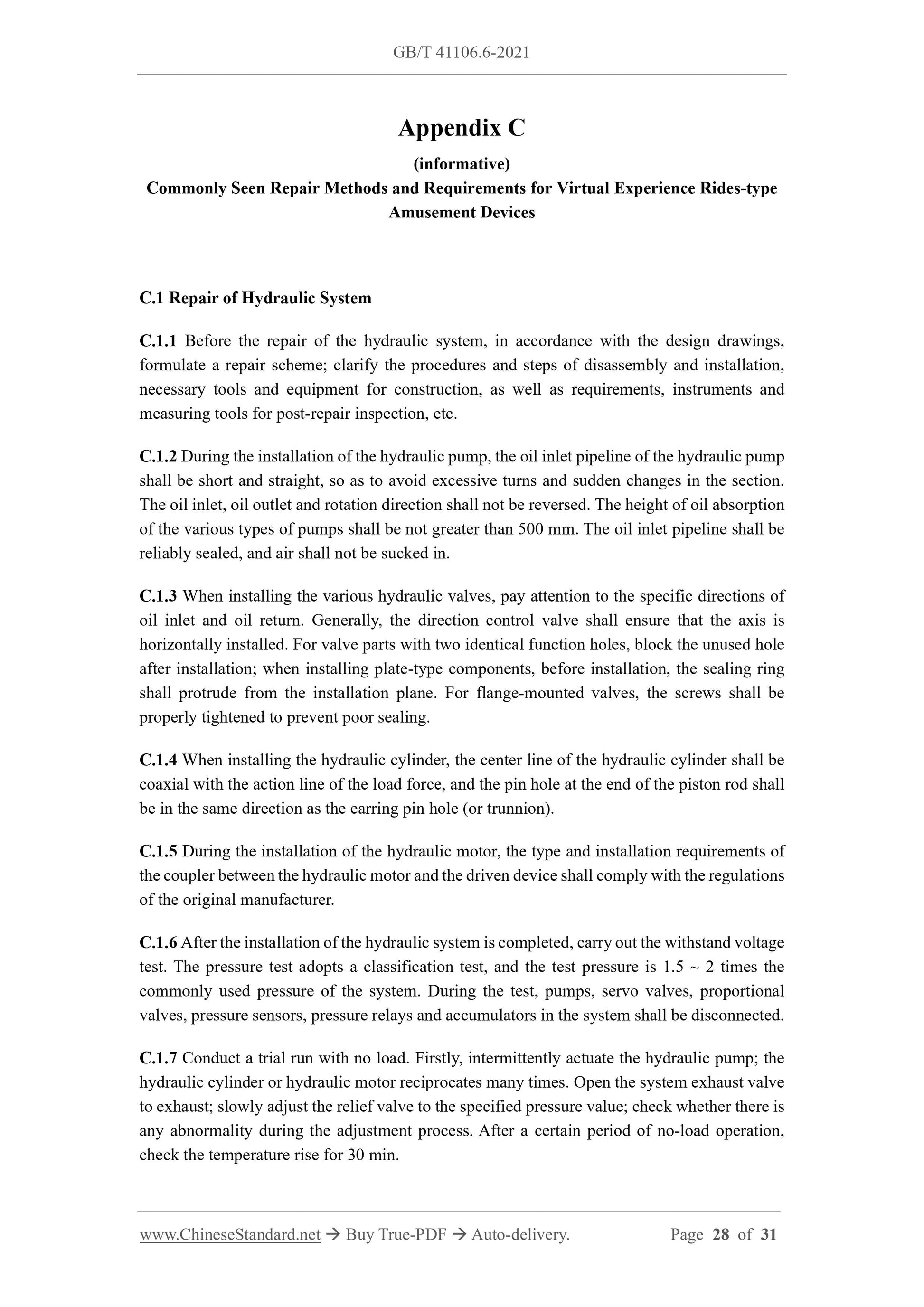

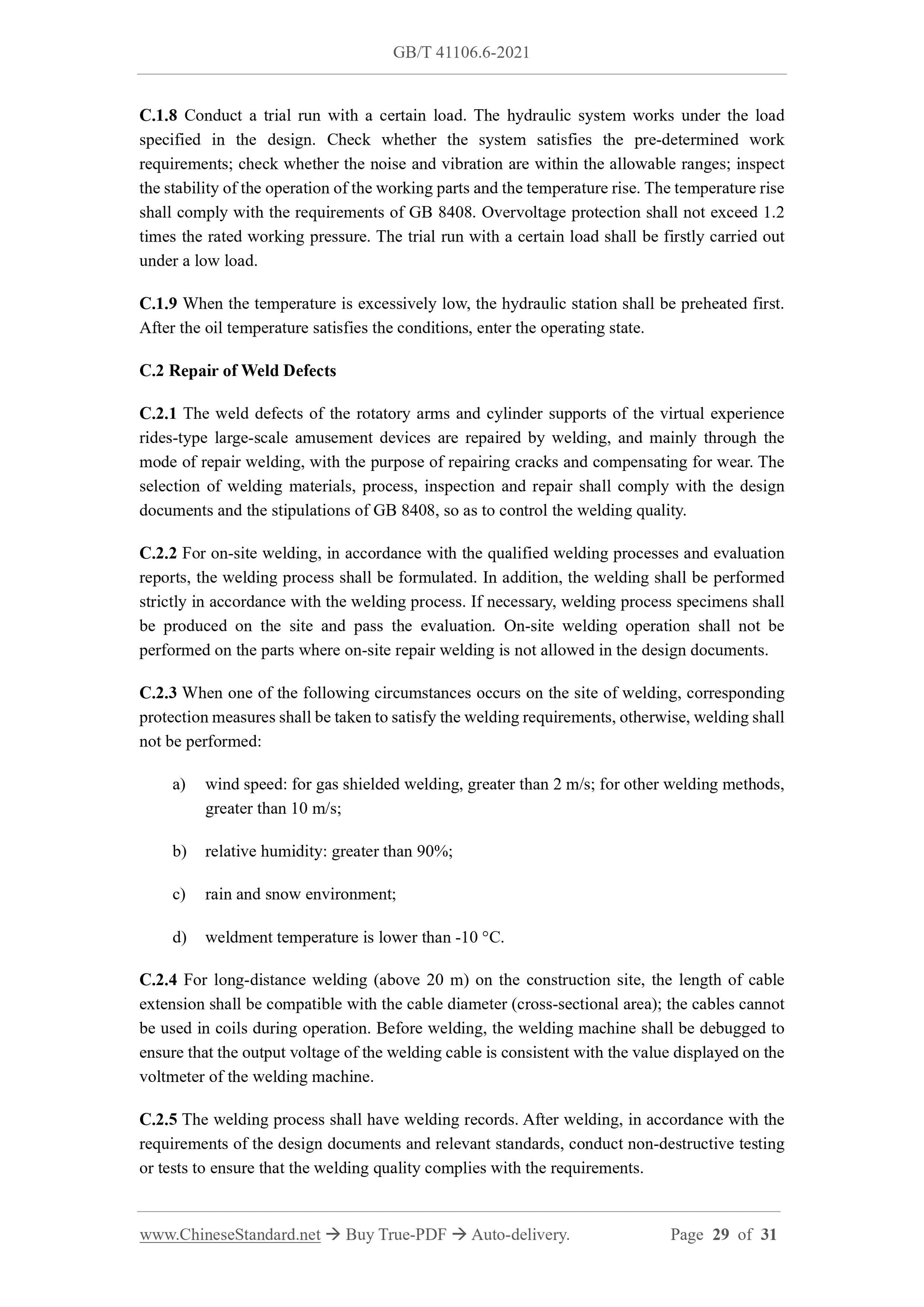

7 Repair
7.1 Before repair, grasp the operation and maintenance instructions of the product, and
understand the structure of the equipment. In accordance with the failures, formulate repair
schemes.
...
