GB/T 41106.3-2021: Large-scale amusement devices -- Inspection, maintenance and repair -- Part 3: Sort of rotary rides

This document specifies the basic requirements for the inspection, maintenance and repair of in-use rotary rides-type large-scale amusement devices. This document is applicable to in-use rotary rides-type large-scale amusement devices, such as: sightseeing trolleys, gyroscopes, carousels and self-controlled aircrafts, etc. The inspection, maintenance and repair of rotary rides-type small-scale amusement devices may take this as a reference in the implementation.

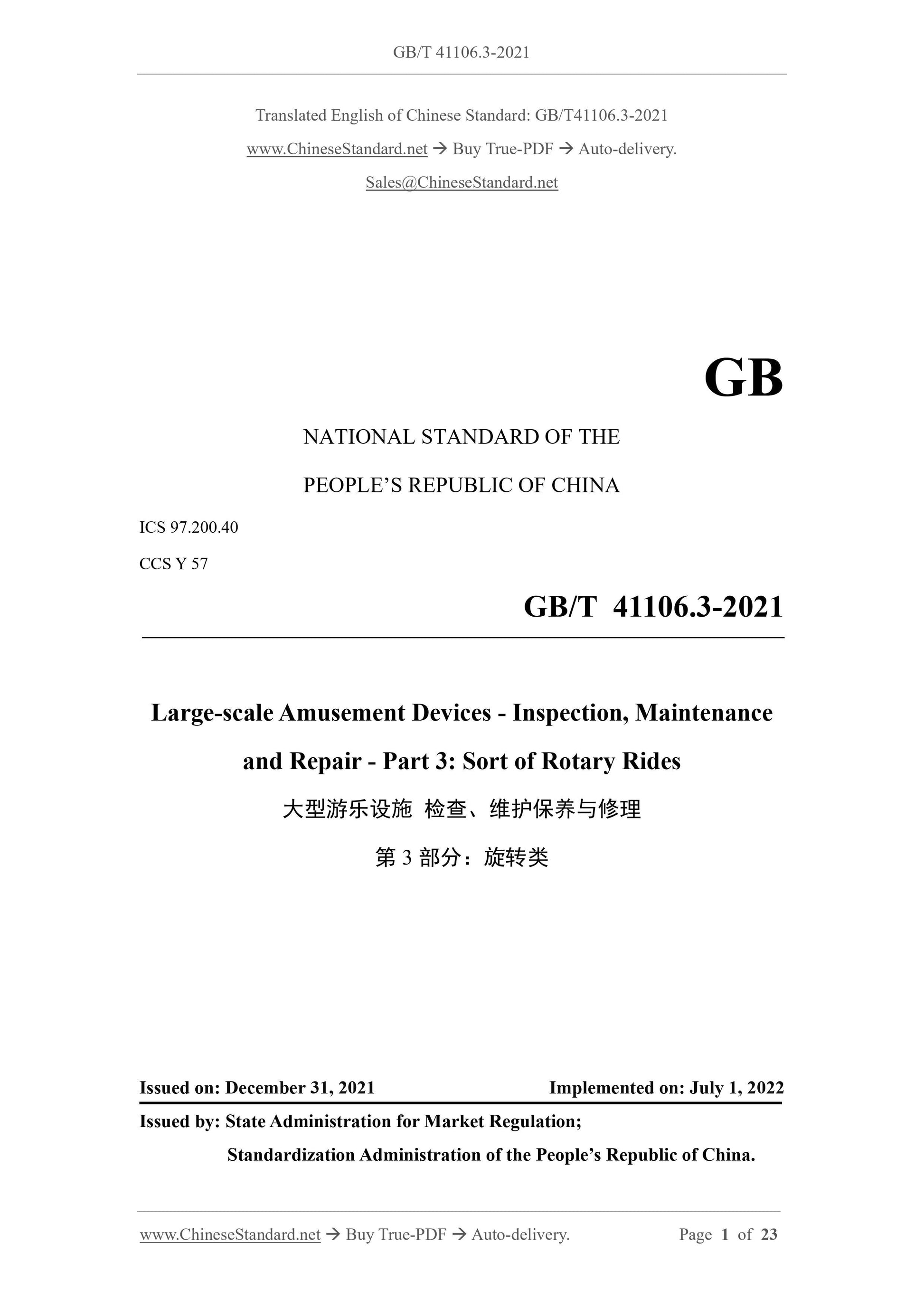

GB/T 41106.3-2021
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 97.200.40
CCS Y 57
Large-scale Amusement Devices - Inspection, Maintenance
and Repair - Part 3: Sort of Rotary Rides
ISSUED ON: DECEMBER 31, 2021
IMPLEMENTED ON: JULY 1, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of China.

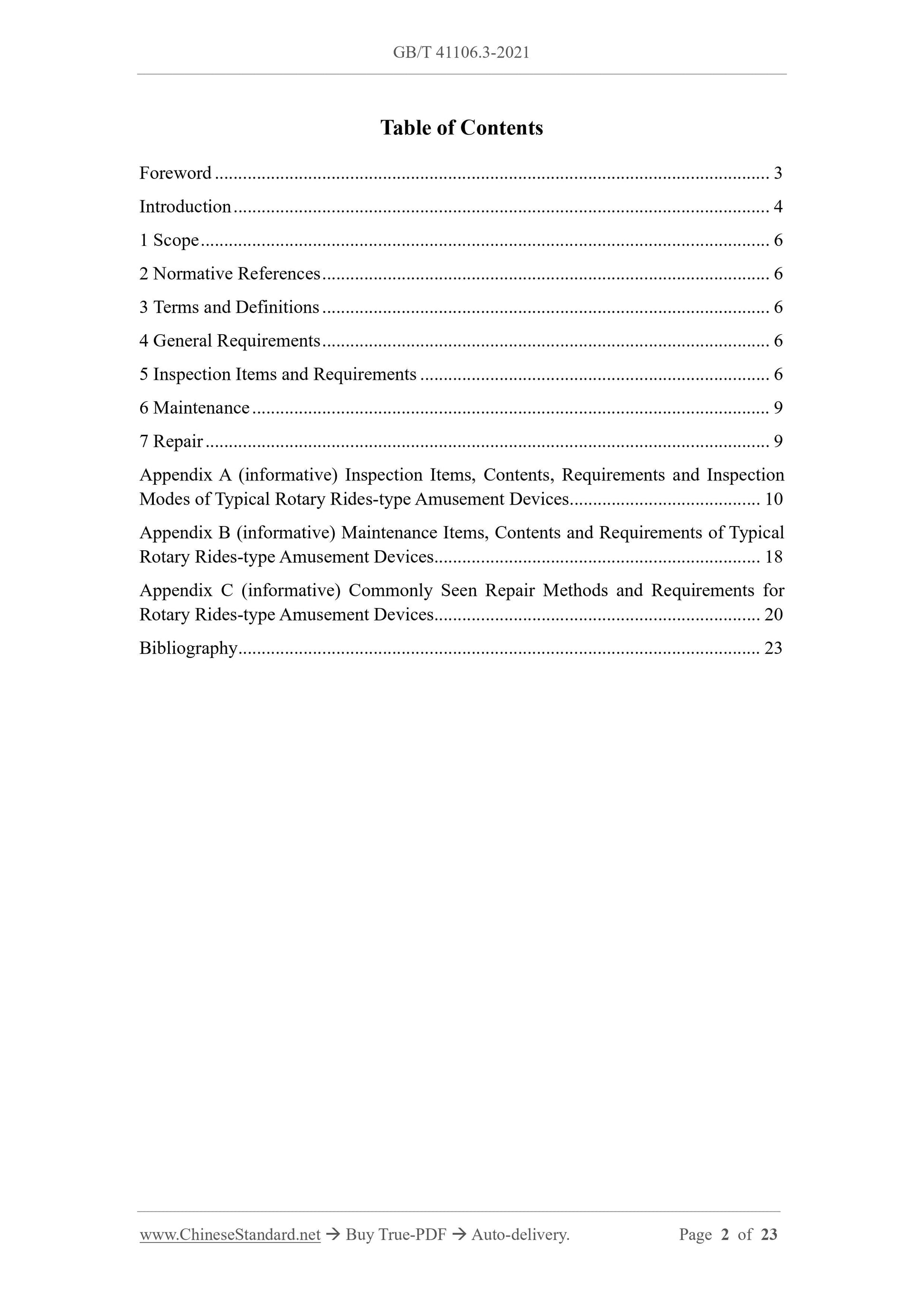

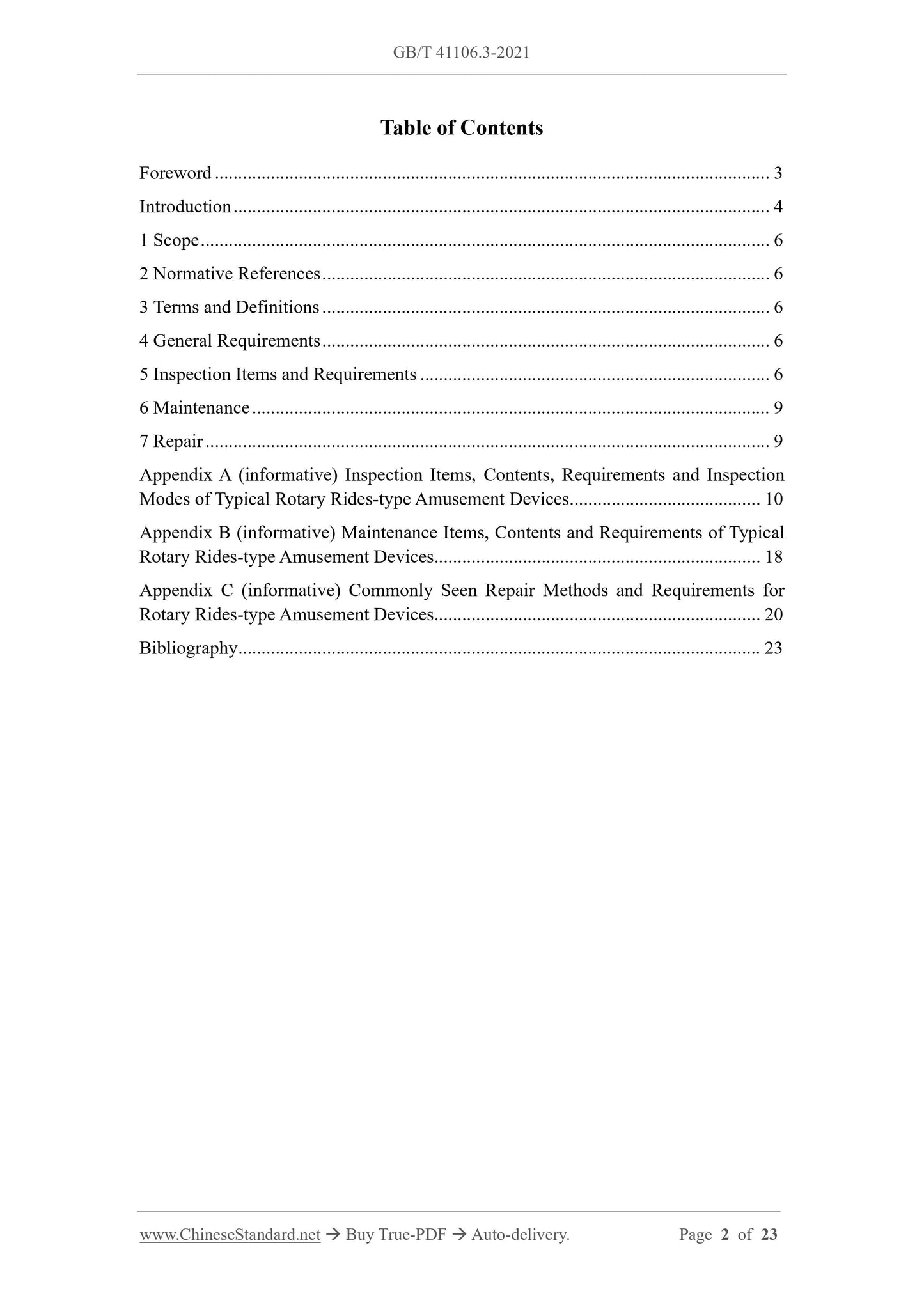

Table of Contents
Foreword ... 3
Introduction ... 4
1 Scope ... 6
2 Normative References ... 6
3 Terms and Definitions ... 6
4 General Requirements ... 6
5 Inspection Items and Requirements ... 6
6 Maintenance ... 9
7 Repair ... 9
Appendix A (informative) Inspection Items, Contents, Requirements and Inspection Modes of Typical Rotary Rides-type Amusement Devices ... 10
Appendix B (informative) Maintenance Items, Contents and Requirements of Typical Rotary Rides-type Amusement Devices ... 18
Appendix C (informative) Commonly Seen Repair Methods and Requirements for Rotary Rides-type Amusement Devices ... 20
Bibliography ... 23
Large-scale Amusement Devices - Inspection, Maintenance
and Repair - Part 3: Sort of Rotary Rides

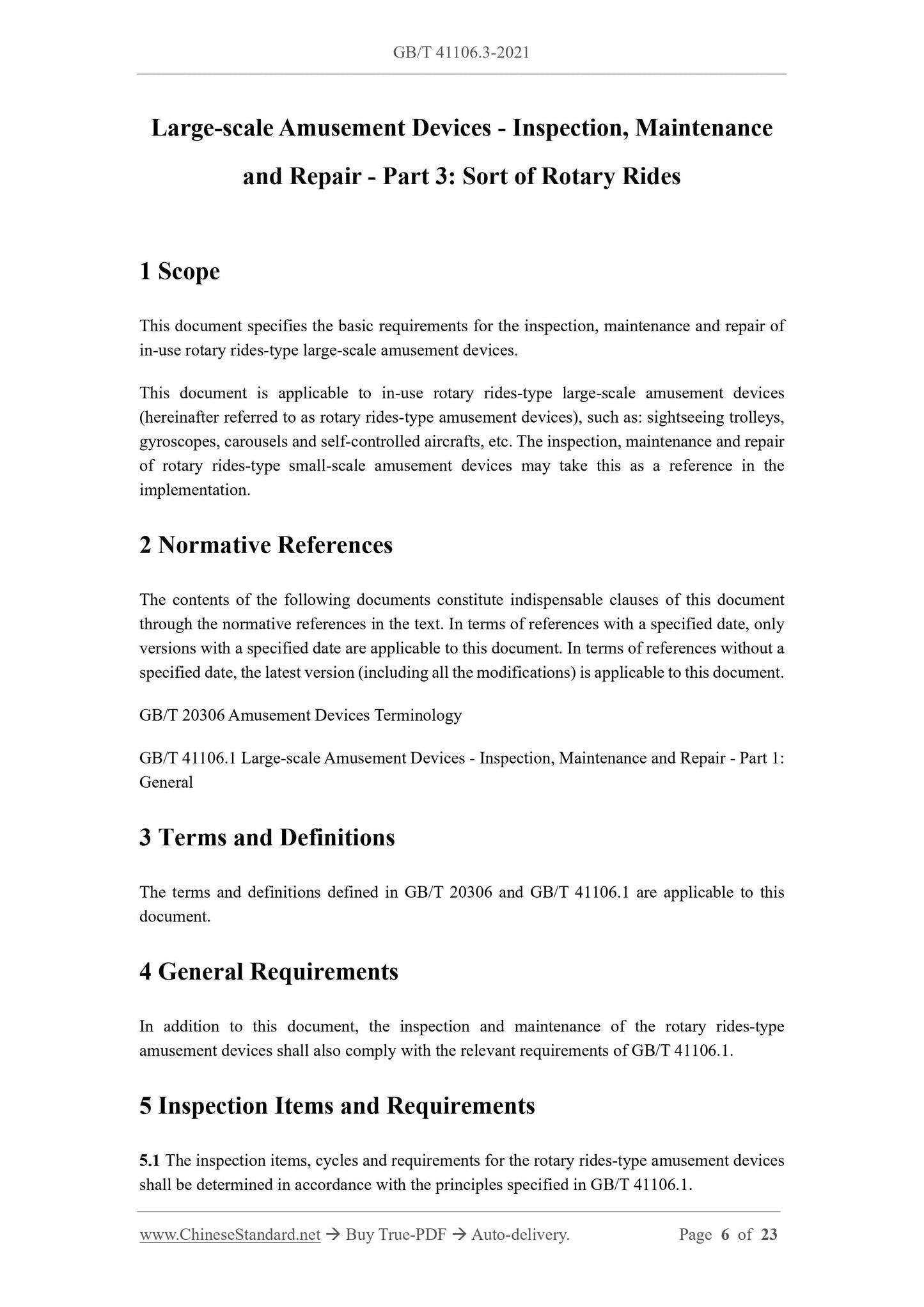

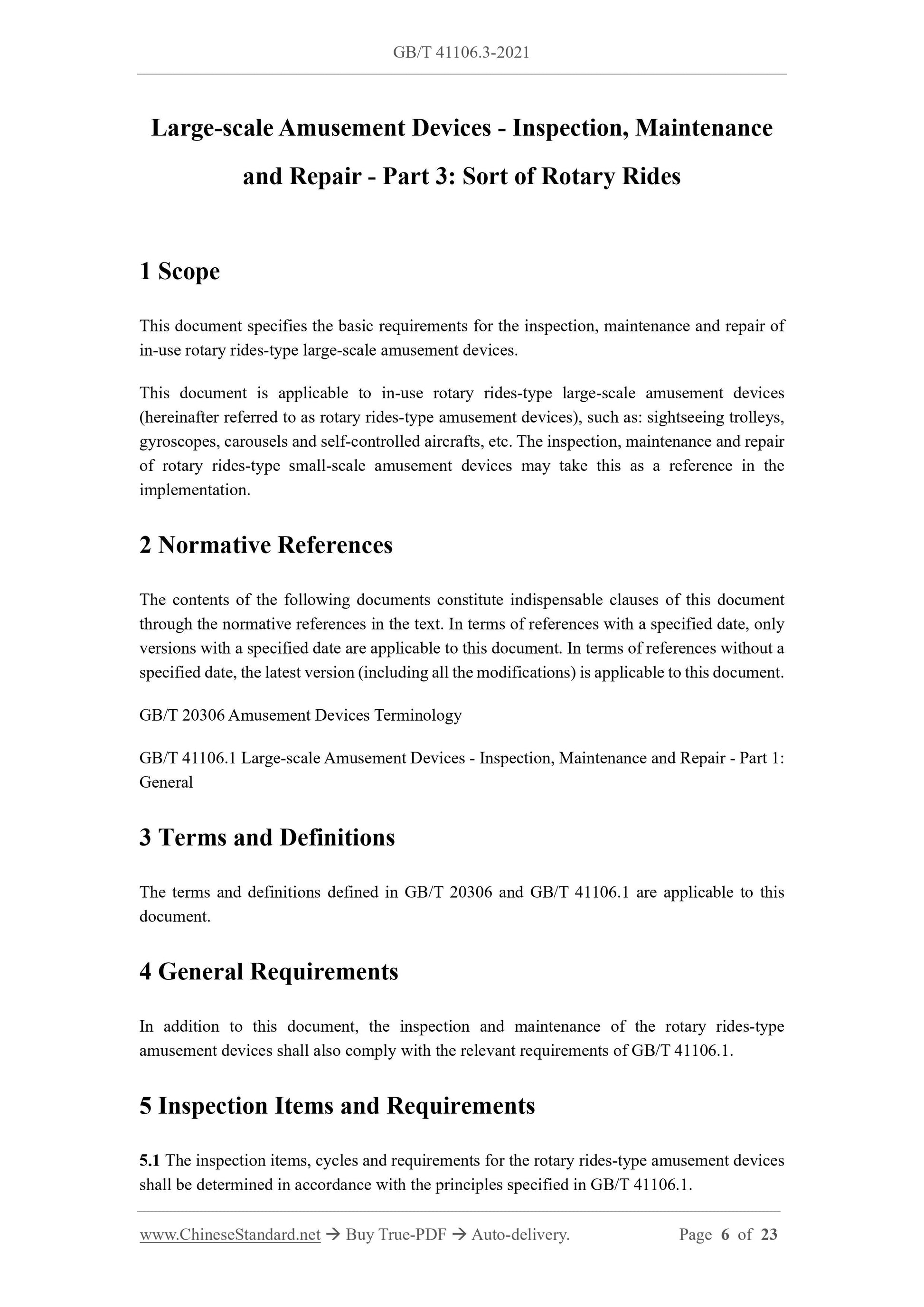

1 Scope
This document specifies the basic requirements for the inspection, maintenance and repair of in-use rotary rides-type large-scale amusement devices.
This document is applicable to in-use rotary rides-type large-scale amusement devices (hereinafter referred to as rotary rides-type amusement devices), such as: sightseeing trolleys, gyroscopes, carousels and self-controlled aircrafts, etc. The inspection, maintenance and repair of rotary rides-type small-scale amusement devices may take this as a reference in the implementation.
2 Normative References
The contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 20306 Amusement Devices Terminology
GB/T 41106.1 Large-scale Amusement Devices - Inspection, Maintenance and Repair - Part 1: General
3 Terms and Definitions
The terms and definitions defined in GB/T 20306 and GB/T 41106.1 are applicable to this document.
4 General Requirements
In addition to this document, the inspection and maintenance of the rotary rides-type amusement devices shall also comply with the relevant requirements of GB/T 41106.1. 5 Inspection Items and Requirements

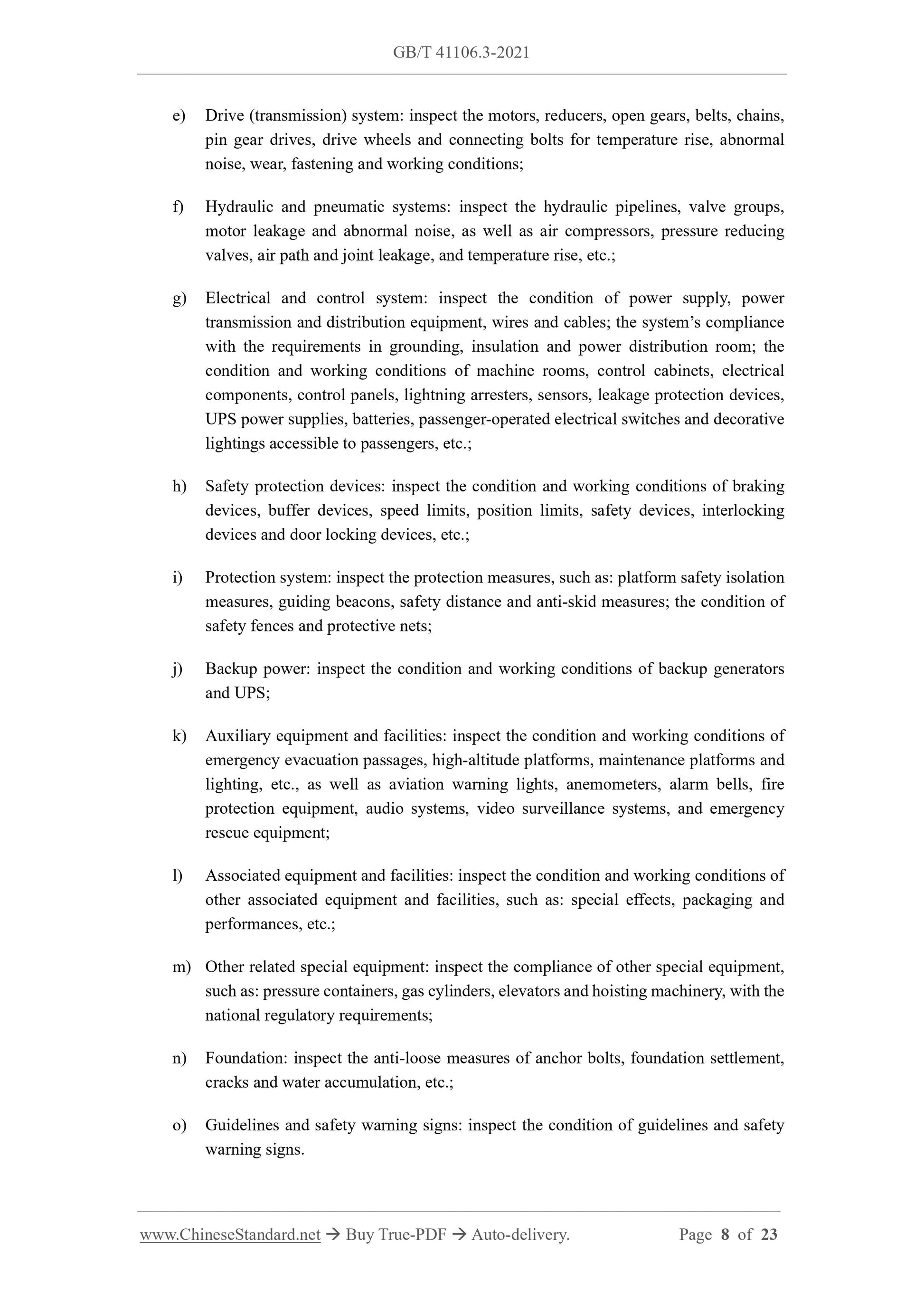

5.1 The inspection items, cycles and requirements for the rotary rides-type amusement devices shall be determined in accordance with the principles specified in GB/T 41106.1. e) Drive (transmission) system: inspect the motors, reducers, open gears, belts, chains, pin gear drives, drive wheels and connecting bolts for temperature rise, abnormal noise, wear, fastening and working conditions;
f) Hydraulic and pneumatic systems: inspect the hydraulic pipelines, valve groups, motor leakage and abnormal noise, as well as air compressors, pressure reducing valves, air path and joint leakage, and temperature rise, etc.;
g) Electrical and control system: inspect the condition of power supply, power transmission and distribution equipment, wires and cables; the system?€?s compliance with the requirements in grounding, insulation and power distribution room; the condition and working conditions of machine rooms, control cabinets, electrical components, control panels, lightning arresters, sensors, leakage protection devices, UPS power supplies, batteries, passenger-operated electrical switches and decorative lightings accessible to passengers, etc.;
h) Safety protection devices: inspect the condition and working conditions of braking devices, buffer devices, speed limits, position limits, safety devices, interlocking devices and door locking devices, etc.;
i) Protection system: inspect the protection measures, such as: platform safety isolation measures, guiding beacons, safety distance and anti-skid measures; the condition of safety fences and protective nets;
j) Backup power: inspect the condition and working conditions of backup generators and UPS;
k) Auxiliary equipment and facilities: inspect the condition and working conditions of emergency evacuation passages, high-altitude platforms, maintenance platforms and lighting, etc., as well as aviation warning lights, anemometers, alarm bells, fire protection equipment, audio systems, video surveillance systems, and emergency rescue equipment;
l) Associated equipment and facilities: inspect the condition and working conditions of other associated equipment and facilities, such as: special effects, packaging and performances, etc.;
m) Other related special equipment: inspect the compliance of other special equipment, such as: pressure containers, gas cylinders, elevators and hoisting machinery, with the national regulatory requirements;
n) Foundation: inspect the anti-loose measures of anchor bolts, foundation settlement, cracks and water accumulation, etc.;
o) Guidelines and safety warning signs: inspect the condition of guidelines and safety warning signs.
5.4 The inspection items, contents, requirements and inspection modes of typical rotary rides- type amusement devices are shown in Appendix A.

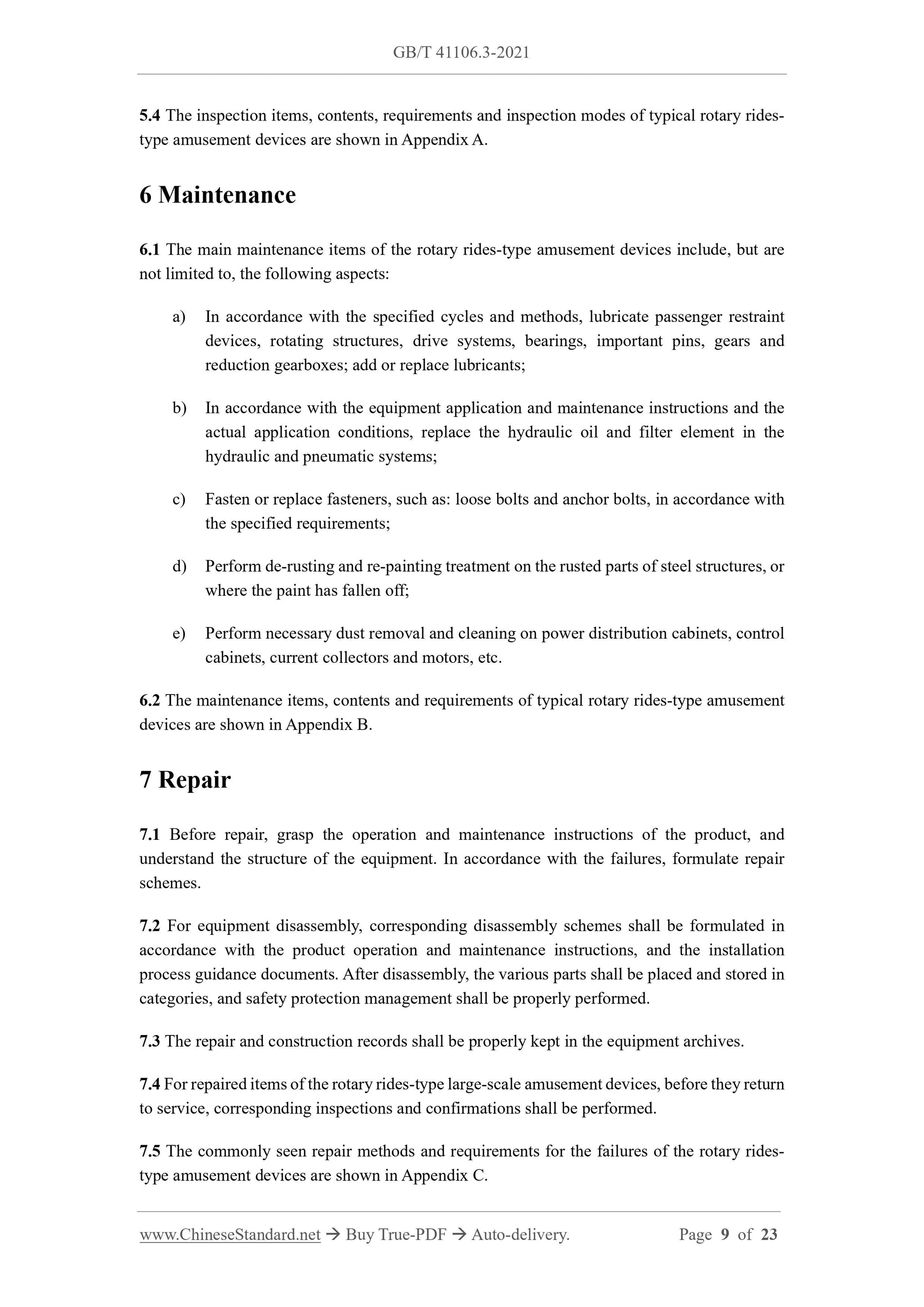

6 Maintenance
6.1 The main maintenance items of the rotary rides-type amusement devices include, but are not limited to, the following aspects:
a) In accordance with the specified cycles and methods, lubricate passenger restraint devices, rotating structures, drive systems, bearings, important pins, gears and reduction gearboxes; add or replace lubricants;
b) In accordance with the equipment application and maintenance instructions and the actual application conditions, replace the hydraulic oil and filter element in the hydraulic and pneumatic systems;
c) Fasten or replace fasteners, such as: loose bolts and anchor bolts, in accordance with the specified requirements;
d) Perform de-rusting and re-painting treatment on the rusted parts of steel structures, or where the paint has fallen off;
e) Perform necessary dust removal and cleaning on power distribution cabinets, control cabinets, current collectors and motors, etc.
6.2 The maintenance items, contents and requirements of typical rotary rides-type amusement devices are shown in Appendix B.
7 Repair
7.1 Before repair, grasp the operation and maintenance instructions of the product, and understand the structure of the equipment. In accordance with the failures, formulate repair schemes.
7.2 For equipment disassembly, corresponding disassembly schemes shall be formulated in accordance with the product operation and maintenance instructions, and the installation process guidance documents. After disassembly, the various parts shall be placed and stored in categories, and safety protection management shall be properly performed. 7.3 The repair and construction records shall be properly kept in the equipment archives. 7.4 For repaired items of the rotary rides-type large-scale amusement devices, before they return to service, corresponding inspections and confirmations shall be performed. 7.5 The commonly seen repair methods and requirements for the failures of the rotary rides- type amusement devices are shown in Appendix C.

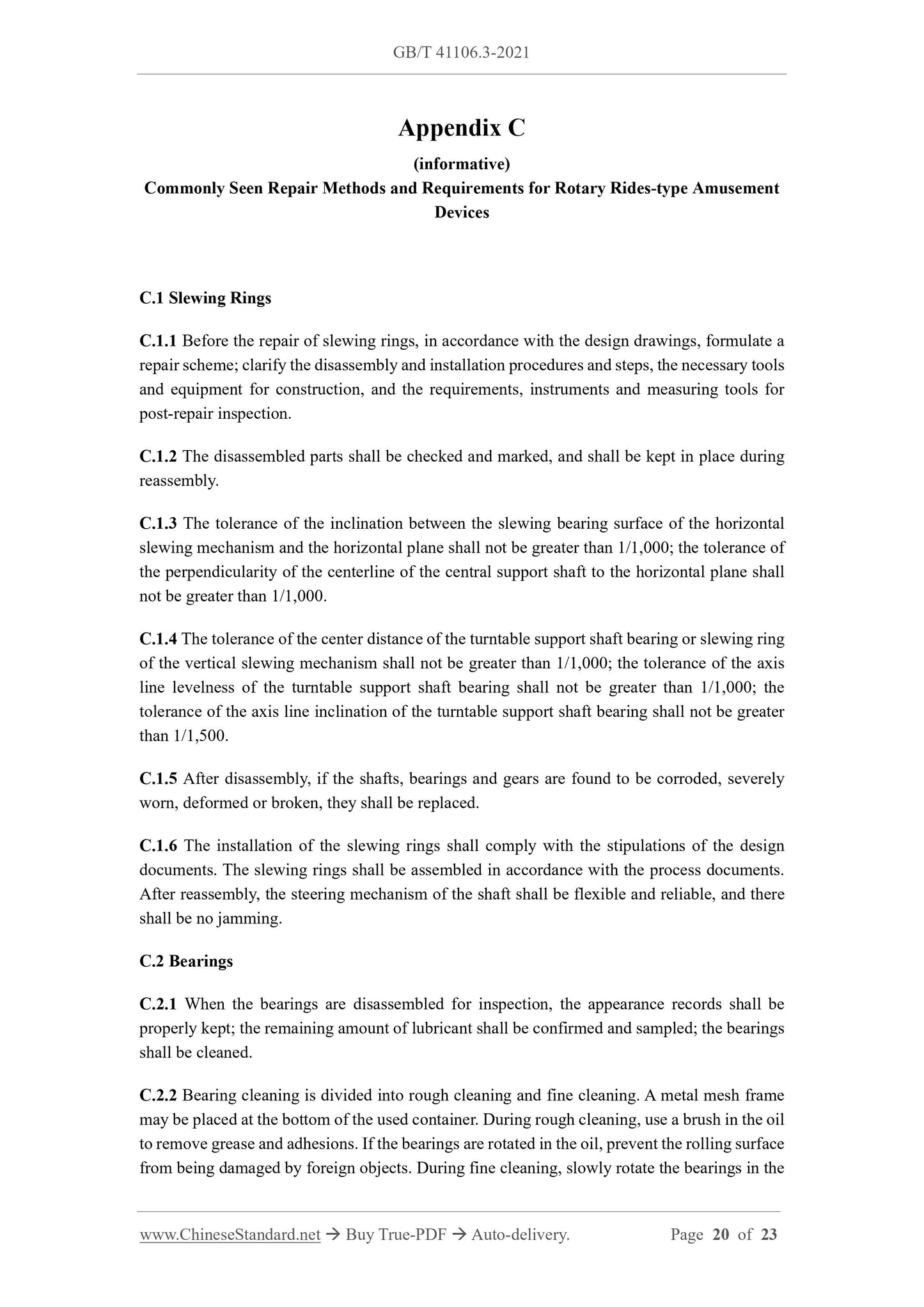

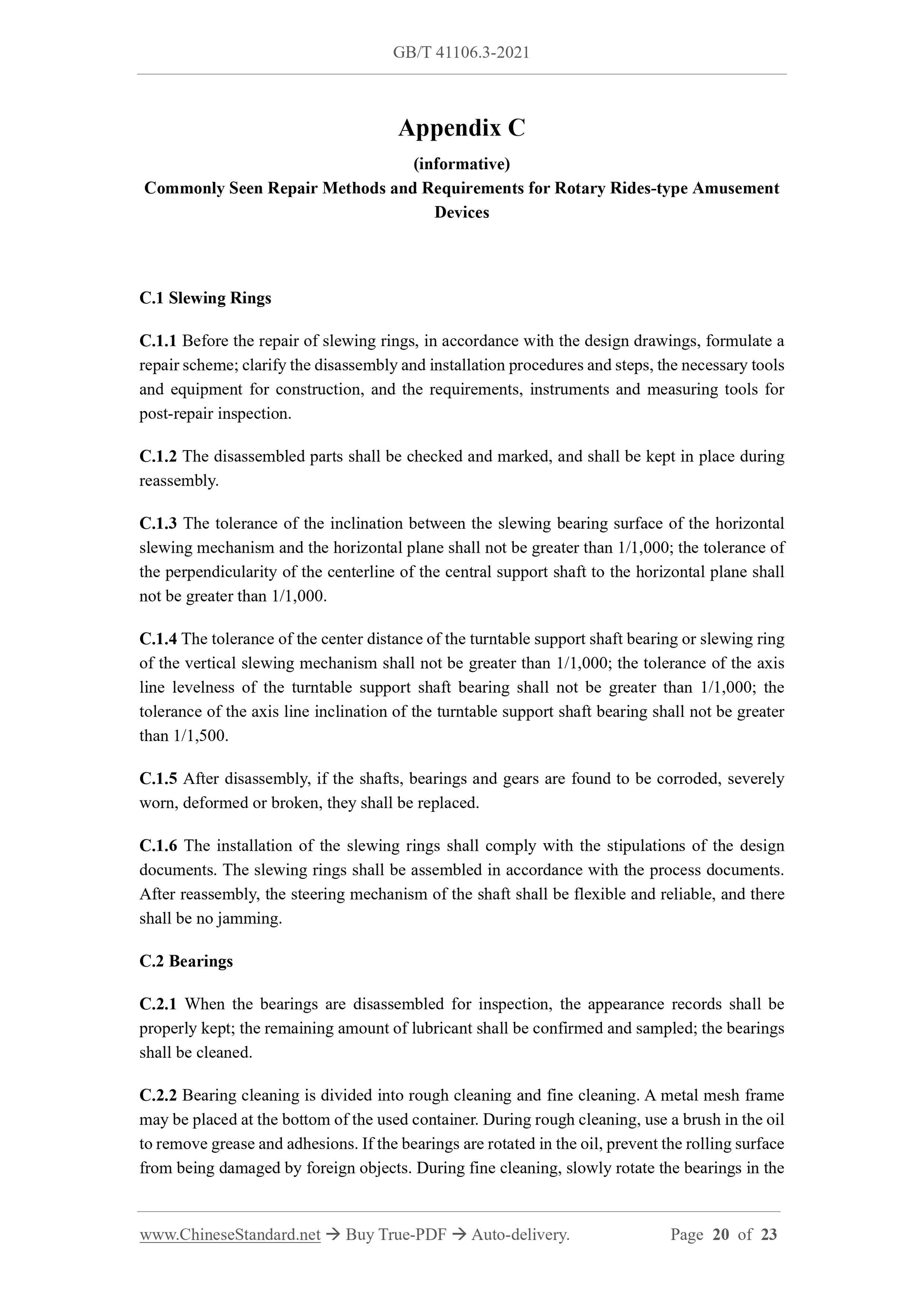

Appendix C
(informative)
Commonly Seen Repair Methods and Requirements for Rotary Rides-type Amusement Devices
C.1 Slewing Rings
C.1.1 Before the repair of slewing rings, in accordance with the design drawings, formulate a repair scheme; clarify the disassembly and installation procedures and steps, the necessary tools and equipment for construction, and the requirements, instruments and measuring tools for post-repair inspection.
C.1.2 The disassembled parts shall be checked and marked, and shall be kept in place during reassembly.
C.1.3 The tolerance of the inclination between the slewing bearing surface of the horizontal slewing mechanism and the horizontal plane shall not be greater than 1/1,000; the tolerance of the perpendicularity of the centerline of the central support shaft to the horizontal plane shall not be greater than 1/1,000.
C.1.4 The tolerance of the center distance of the turntable support shaft bearing or slewing ring of the vertical slewing mechanism shall not be greater than 1/1,000; the tolerance of the axis line levelness of the turntable support shaft bearing shall not be greater than 1/1,000; the tolerance of the axis line inclination of the turntable support shaft bearing shall not be greater than 1/1,500.
C.1.5 After disassembly, if the shafts, bearings and gears are found to be corroded, severely worn, deformed or broken, they shall be replaced.
C.1.6 The installation of the slewing rings shall comply with the stipulations of the design documents. The slewing rings shall be assembled in accordance with the process documents. After reassembly, the steering mechanism of the shaft shall be flexible and reliable, and there shall be no jamming.
C.2 Bearings
C.2.1 When the bearings are disassembled for inspection, the appearance records shall be properly kept; the remaining amount of lubricant shall be confirmed and sampled; the bearings shall be cleaned.
C.2.2 Bearing cleaning is divided into rough cleaning and fine cleaning. A metal mesh frame may be placed at the bottom of the used container. During rough cleaning, use a brush in the oil to remove grease and adhesions. If the bearings are rotated in the oil, prevent the rolling surface from being damaged by foreign objects. During fine cleaning, slowly rotate the bearings in the oil; the cleaning agent usually used is neutral diesel or kerosene that does not contain water, or warm lye as needed. After cleaning, immediately apply anti-rust oil or grease to the bearings. C.2.3 In order to judge whether the removed bearings can be re-used, it is necessary to focus on checking the dimensional accuracy, rotational accuracy, internal clearance, as well as the mating surfaces, raceway surfaces, cages and sealing rings, etc. For large bearings, pay attention to check the appearance of rolling elements, raceway surfaces, cages and rib surfaces, etc. C.3 Weld Defects

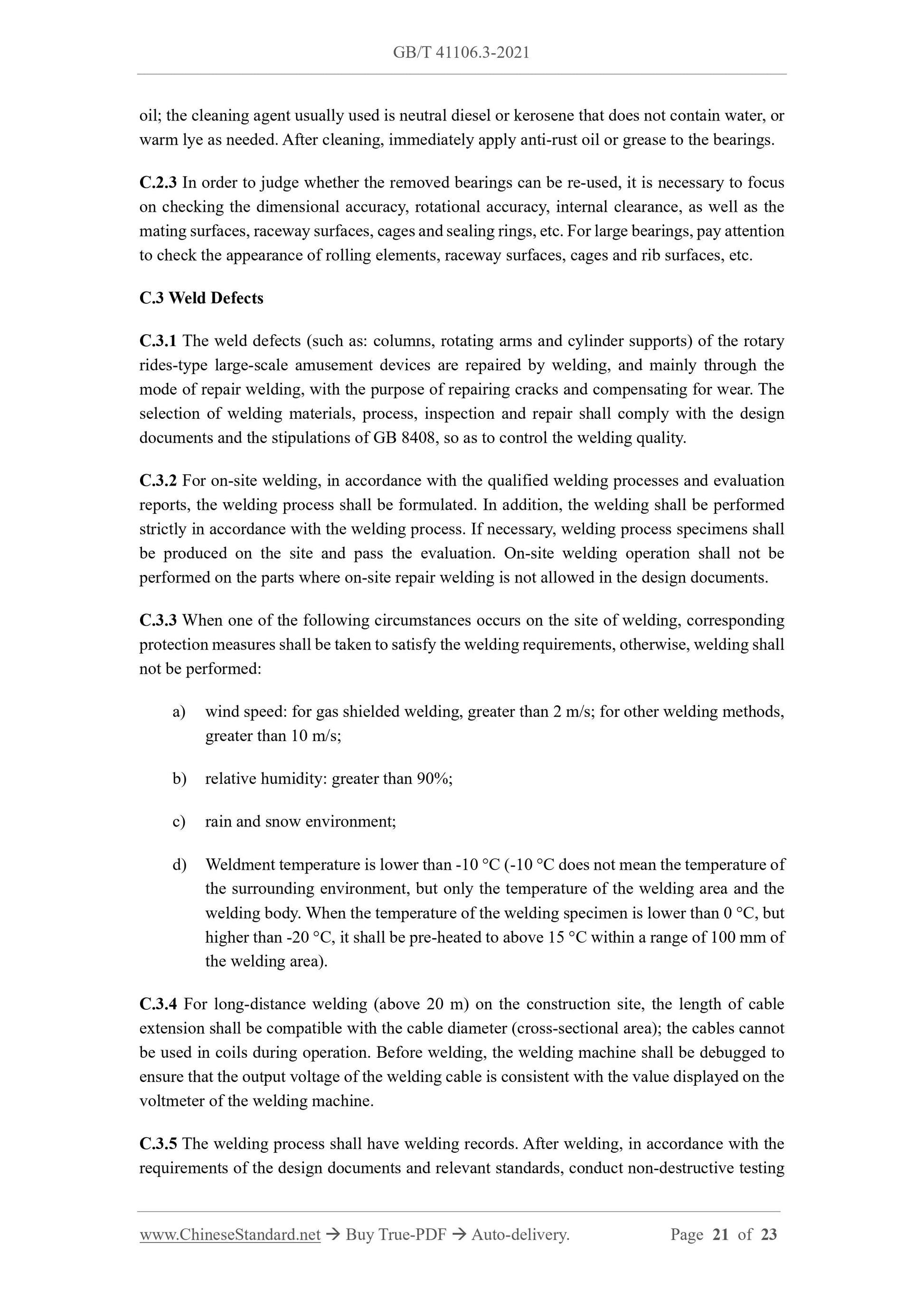

C.3.1 The weld defects (such as: columns, rotating arms and cylinder supports) of the rotary rides-type large-scale amusement devices are repaired by welding, and mainly through the mode of repair welding, with the purpose of repairing cracks and compensating for wear. The selection of welding materials, process, inspection and repair shall comply with the design documents and the stipulations of GB 8408, so as to control the welding quality. C.3.2 For on-site welding, in accordance with the qualified welding processes and evaluation reports, the welding process shall be formulated. In addition, the welding shall be performed strictly in accordance with the welding process. If necessary, welding process specimens shall be produced on the site and pass the evaluation. On-site welding operation shall not be performed on the parts where on-site repair welding is not allowed in the design documents. C.3.3 When one of the following circumstances occurs on the site of welding, corresponding protection measures shall be taken to satisfy the welding requirements, otherwise, welding shall not be performed:
a) wind speed: for gas shielded welding, greater than 2 m/s; for other welding methods, greater than 10 m/s;
b) relative humidity: greater than 90%;
c) rain and snow environment;
d) Weldment temperature is lower than -10 ???C (-10 ???C does not mean the temperature of the surrounding environment, but only the temperature of the welding area and the welding body. When the temperature of the welding specimen is lower than 0 ???C, but higher than -20 ???C, it shall be pre-heated to above 15 ???C within a range of 100 mm of the welding area).
C.3.4 For long-distance welding (above 20 m) on the construction site, the length of cable extension shall be compatible with the cable diameter (cross-sectional area); the cables cannot be used in coils during operation. Before welding, the welding machine shall be debugged to ensure that the output voltage of the welding cable is consistent with the value displayed on the voltmeter of the welding machine.
C.3.5 The welding process shall have welding records. After welding, in accordance with the requirements of the design documents and relevant standards, conduct non-destructive testing
