GB/T 4094.2-2017: Electric vehicles -- Symbols for controls, indicators and tell-tales

This part of GB/T 4094 specifies the unique symbols for controls, indicators and tell-tales of electric vehicles and the basic requirements of tell-tales displaying color. This part applies to electric vehicles.

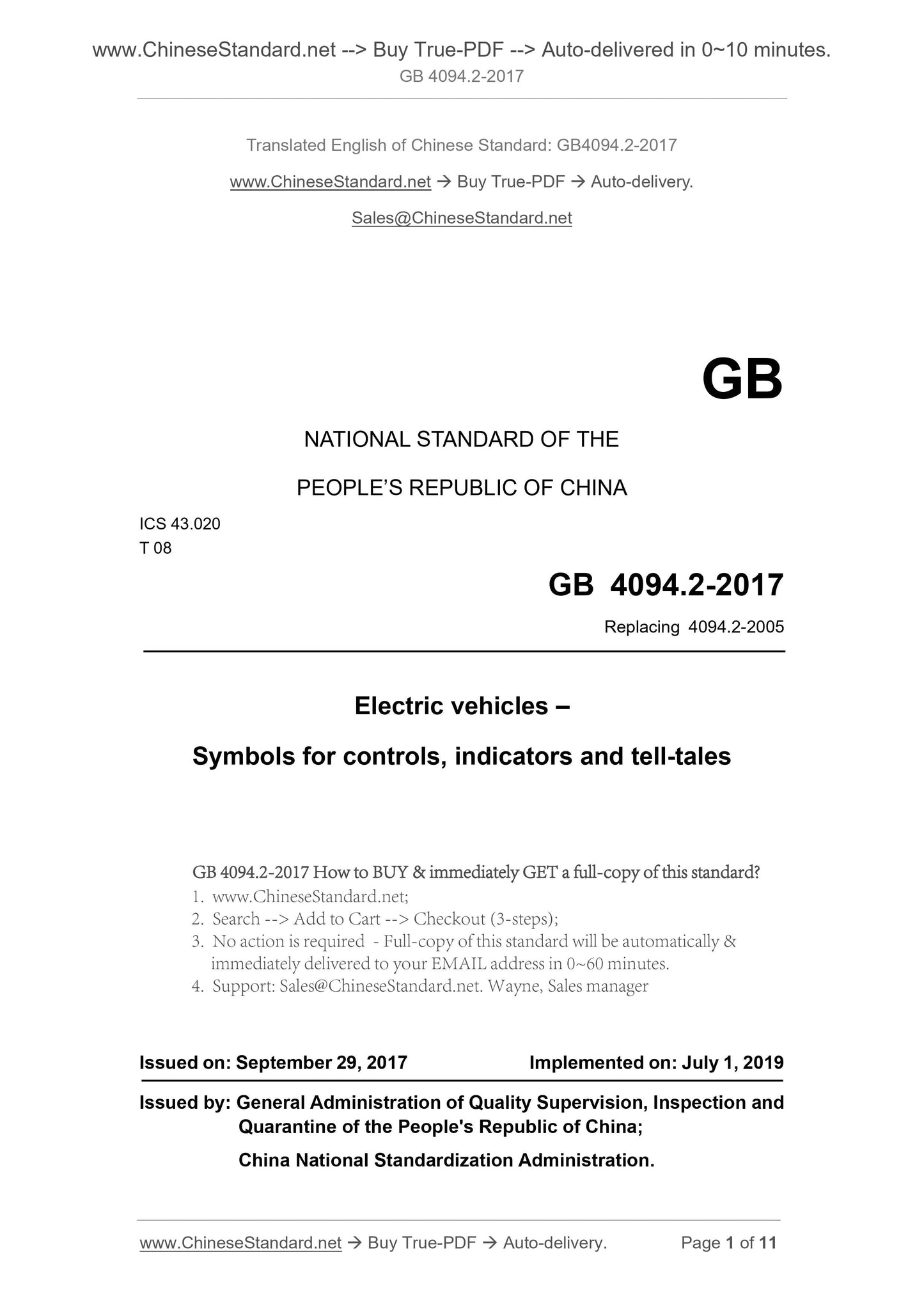

GB 4094.2-2017
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.020
T 08
Replacing 4094.2-2005
Electric vehicles ?€?
Symbols for controls, indicators and tell-tales
ISSUED ON. SEPTEMBER 29, 2017
IMPLEMENTED ON. JULY 1, 2019
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
China National Standardization Administration.
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

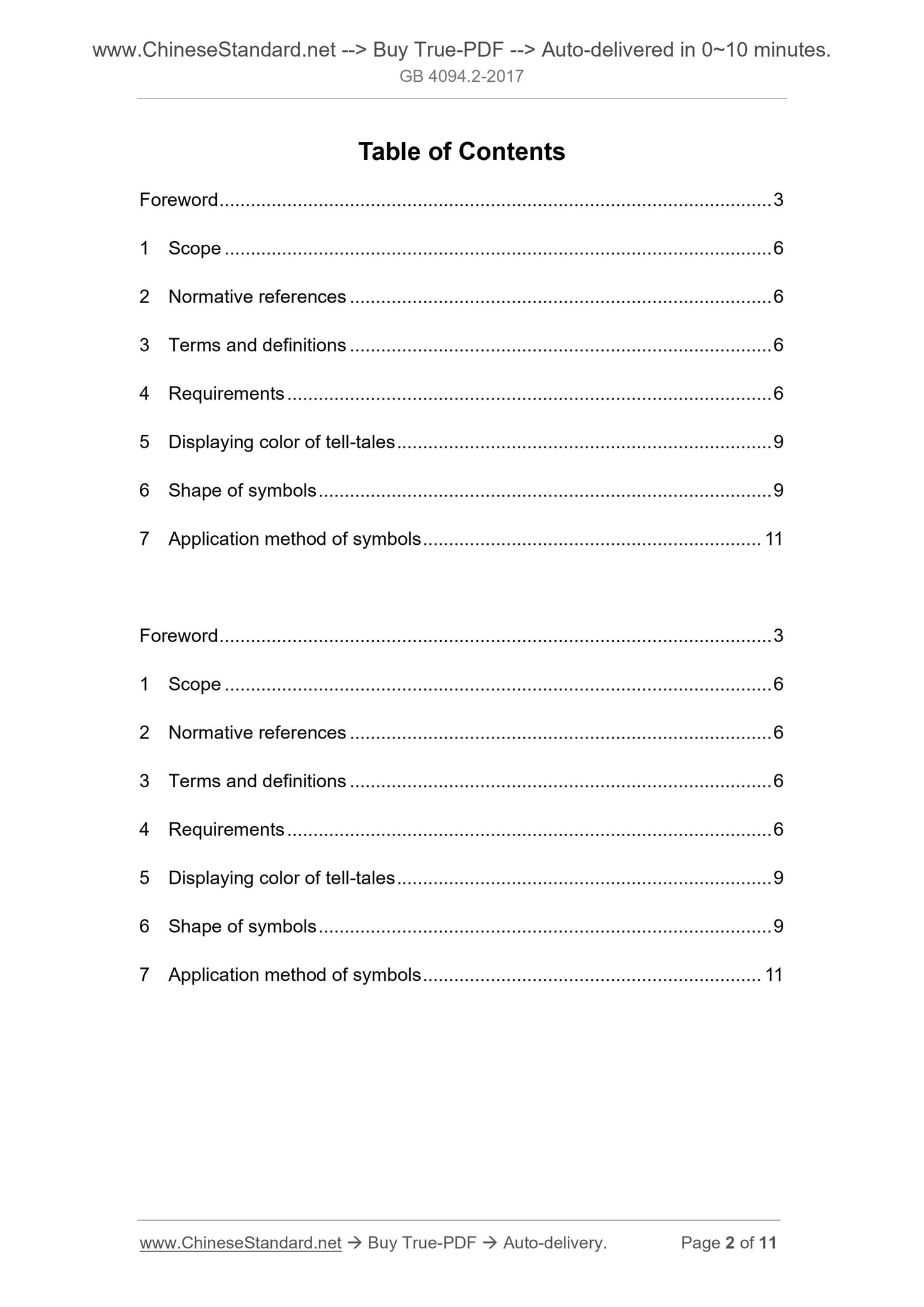

Table of Contents
Foreword ... 3
1 Scope .. 6
2 Normative references ... 6
3 Terms and definitions ... 6
4 Requirements ... 6
5 Displaying color of tell-tales ... 9
6 Shape of symbols ... 9
7 Application method of symbols .. 11
Foreword ... 3
1 Scope .. 6
2 Normative references ... 6
3 Terms and definitions ... 6
4 Requirements ... 6
5 Displaying color of tell-tales ... 9
6 Shape of symbols ... 9
7 Application method of symbols .. 11

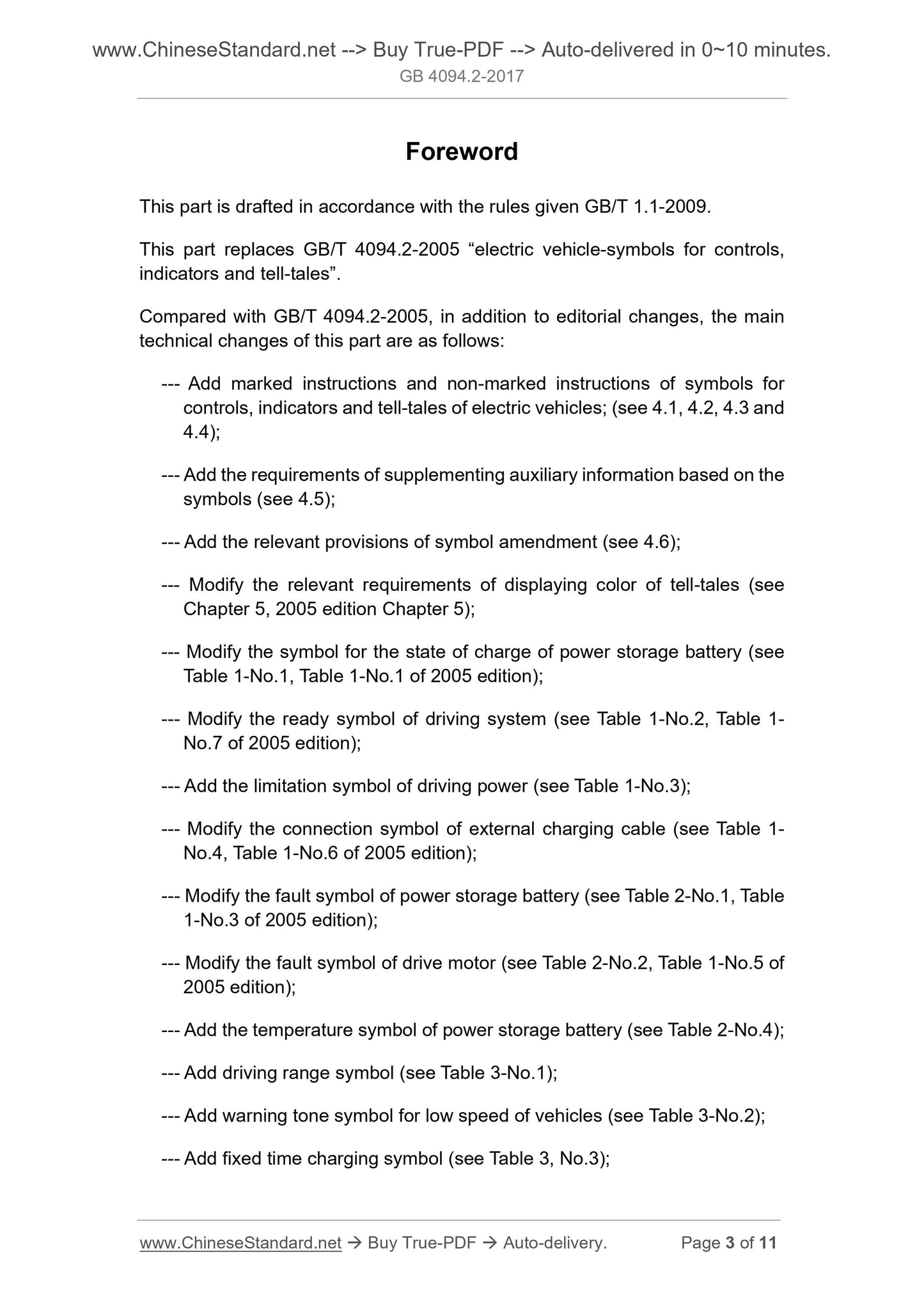

Foreword
This part is drafted in accordance with the rules given GB/T 1.1-2009.
This part replaces GB/T 4094.2-2005 ?€?electric vehicle-symbols for controls, indicators and tell-tales?€?.
Compared with GB/T 4094.2-2005, in addition to editorial changes, the main technical changes of this part are as follows.
--- Add marked instructions and non-marked instructions of symbols for
controls, indicators and tell-tales of electric vehicles; (see 4.1, 4.2, 4.3 and 4.4);
--- Add the requirements of supplementing auxiliary information based on the symbols (see 4.5);
--- Add the relevant provisions of symbol amendment (see 4.6);
--- Modify the relevant requirements of displaying color of tell-tales (see Chapter 5, 2005 edition Chapter 5);
--- Modify the symbol for the state of charge of power storage battery (see Table 1-No.1, Table 1-No.1 of 2005 edition);
--- Modify the ready symbol of driving system (see Table 1-No.2, Table 1- No.7 of 2005 edition);
--- Add the limitation symbol of driving power (see Table 1-No.3);
--- Modify the connection symbol of external charging cable (see Table 1- No.4, Table 1-No.6 of 2005 edition);
--- Modify the fault symbol of power storage battery (see Table 2-No.1, Table 1-No.3 of 2005 edition);
--- Modify the fault symbol of drive motor (see Table 2-No.2, Table 1-No.5 of 2005 edition);
--- Add the temperature symbol of power storage battery (see Table 2-No.4); --- Add driving range symbol (see Table 3-No.1);
--- Add warning tone symbol for low speed of vehicles (see Table 3-No.2); --- Add fixed time charging symbol (see Table 3, No.3);

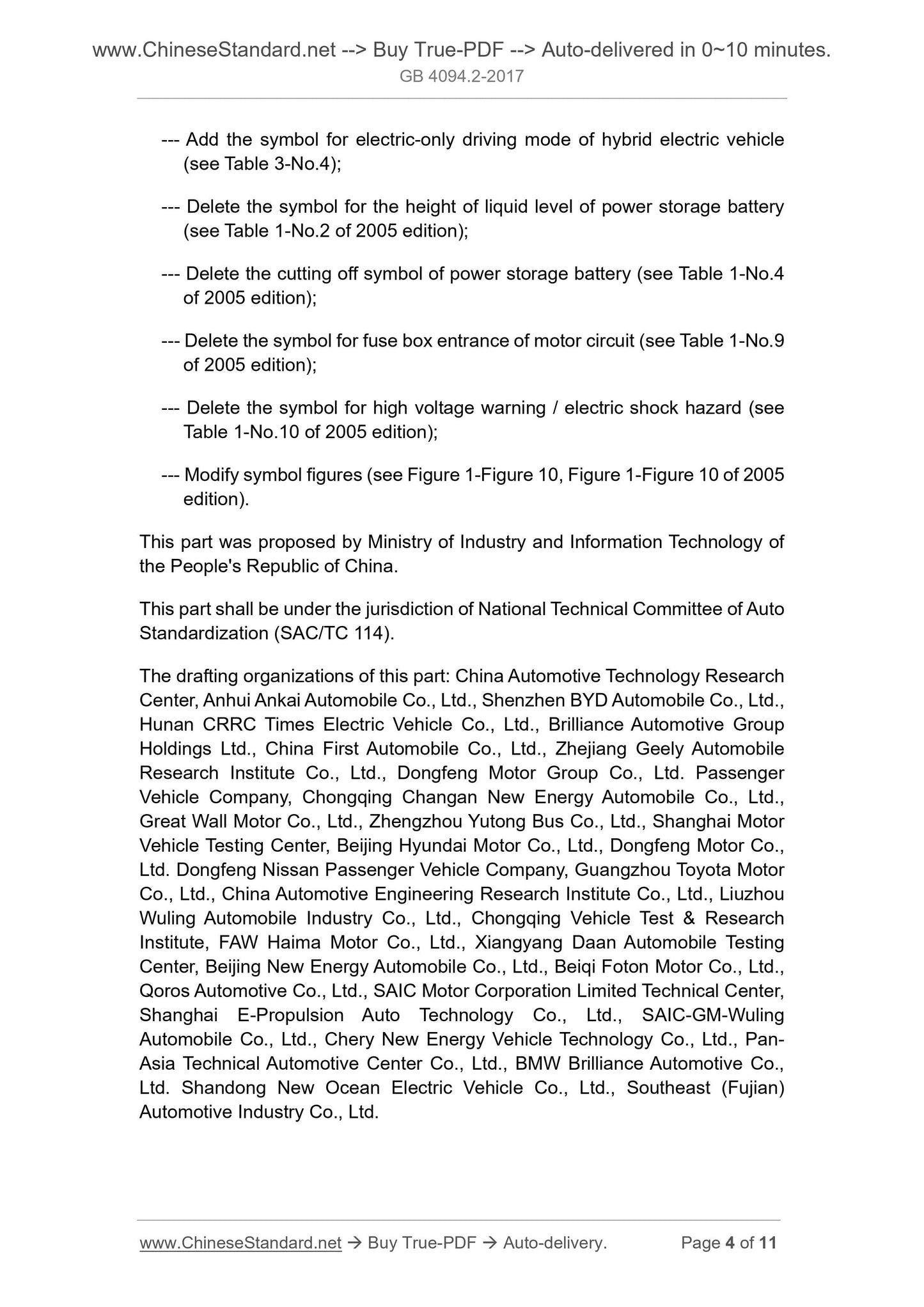

--- Add the symbol for electric-only driving mode of hybrid electric vehicle (see Table 3-No.4);
--- Delete the symbol for the height of liquid level of power storage battery (see Table 1-No.2 of 2005 edition);
--- Delete the cutting off symbol of power storage battery (see Table 1-No.4 of 2005 edition);
--- Delete the symbol for fuse box entrance of motor circuit (see Table 1-No.9 of 2005 edition);
--- Delete the symbol for high voltage warning / electric shock hazard (see Table 1-No.10 of 2005 edition);
--- Modify symbol figures (see Figure 1-Figure 10, Figure 1-Figure 10 of 2005 edition).
This part was proposed by Ministry of Industry and Information Technology of the People's Republic of China.
This part shall be under the jurisdiction of National Technical Committee of Auto Standardization (SAC/TC 114).
The drafting organizations of this part. China Automotive Technology Research Center, Anhui Ankai Automobile Co., Ltd., Shenzhen BYD Automobile Co., Ltd., Hunan CRRC Times Electric Vehicle Co., Ltd., Brilliance Automotive Group Holdings Ltd., China First Automobile Co., Ltd., Zhejiang Geely Automobile Research Institute Co., Ltd., Dongfeng Motor Group Co., Ltd. Passenger
Vehicle Company, Chongqing Changan New Energy Automobile Co., Ltd.,
Great Wall Motor Co., Ltd., Zhengzhou Yutong Bus Co., Ltd., Shanghai Motor Vehicle Testing Center, Beijing Hyundai Motor Co., Ltd., Dongfeng Motor Co., Ltd. Dongfeng Nissan Passenger Vehicle Company, Guangzhou Toyota Motor
Co., Ltd., China Automotive Engineering Research Institute Co., Ltd., Liuzhou Wuling Automobile Industry Co., Ltd., Chongqing Vehicle Test and Research Institute, FAW Haima Motor Co., Ltd., Xiangyang Daan Automobile Testing Center, Beijing New Energy Automobile Co., Ltd., Beiqi Foton Motor Co., Ltd., Qoros Automotive Co., Ltd., SAIC Motor Corporation Limited Technical Center, Shanghai E-Propulsion Auto Technology Co., Ltd., SAIC-GM-Wuling
Automobile Co., Ltd., Chery New Energy Vehicle Technology Co., Ltd., Pan- Asia Technical Automotive Center Co., Ltd., BMW Brilliance Automotive Co., Ltd. Shandong New Ocean Electric Vehicle Co., Ltd., Southeast (Fujian)
Automotive Industry Co., Ltd.

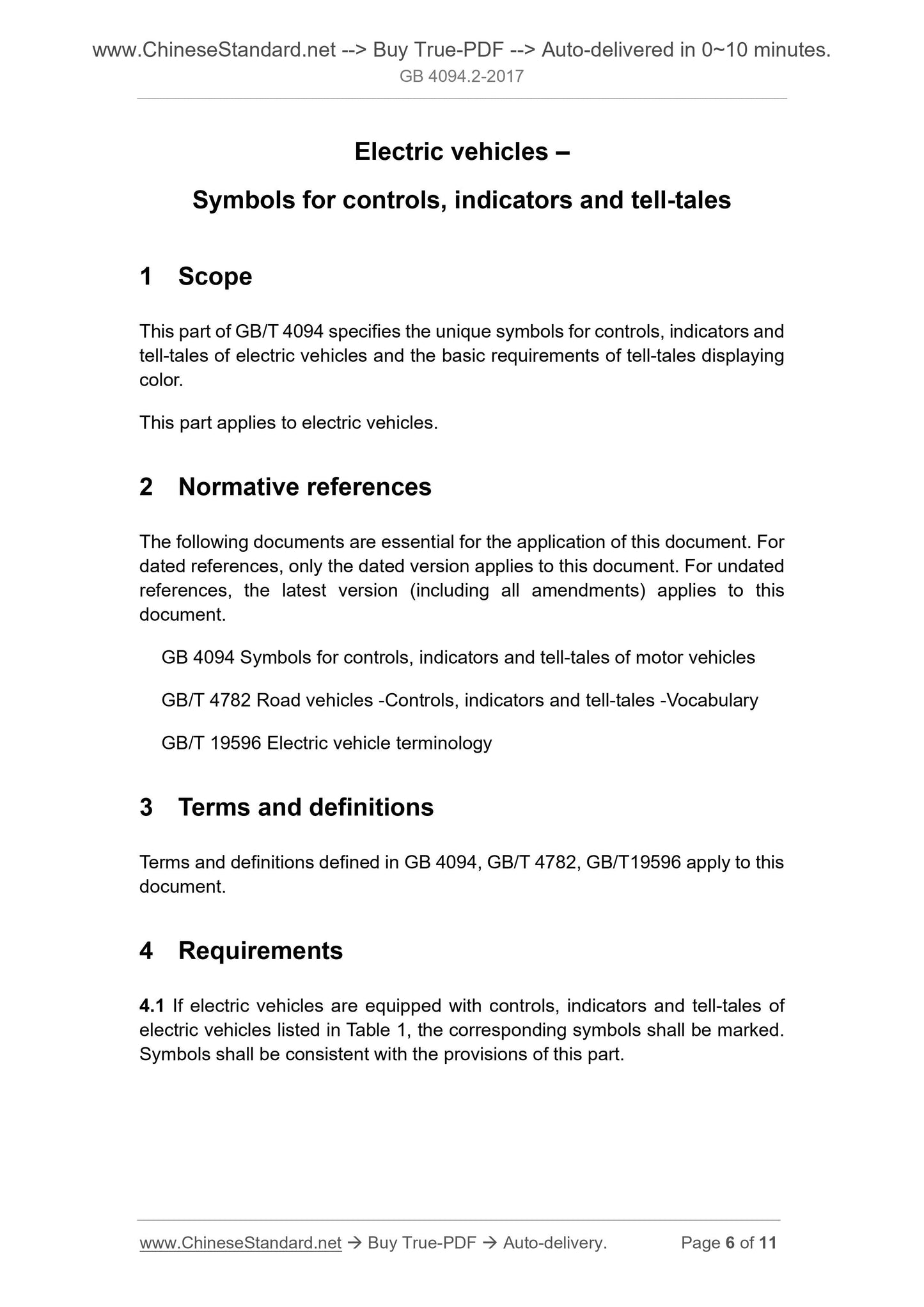

Electric vehicles ?€?
Symbols for controls, indicators and tell-tales
1 Scope
This part of GB/T 4094 specifies the unique symbols for controls, indicators and tell-tales of electric vehicles and the basic requirements of tell-tales displaying color.
This part applies to electric vehicles.
2 Normative references
The following documents are essential for the application of this document. For dated references, only the dated version applies to this document. For undated references, the latest version (including all amendments) applies to this document.
GB 4094 Symbols for controls, indicators and tell-tales of motor vehicles GB/T 4782 Road vehicles -Controls, indicators and tell-tales -Vocabulary GB/T 19596 Electric vehicle terminology
3 Terms and definitions
Terms and definitions defined in GB 4094, GB/T 4782, GB/T19596 apply to this document.
4 Requirements
4.1 If electric vehicles are equipped with controls, indicators and tell-tales of electric vehicles listed in Table 1, the corresponding symbols shall be marked. Symbols shall be consistent with the provisions of this part.

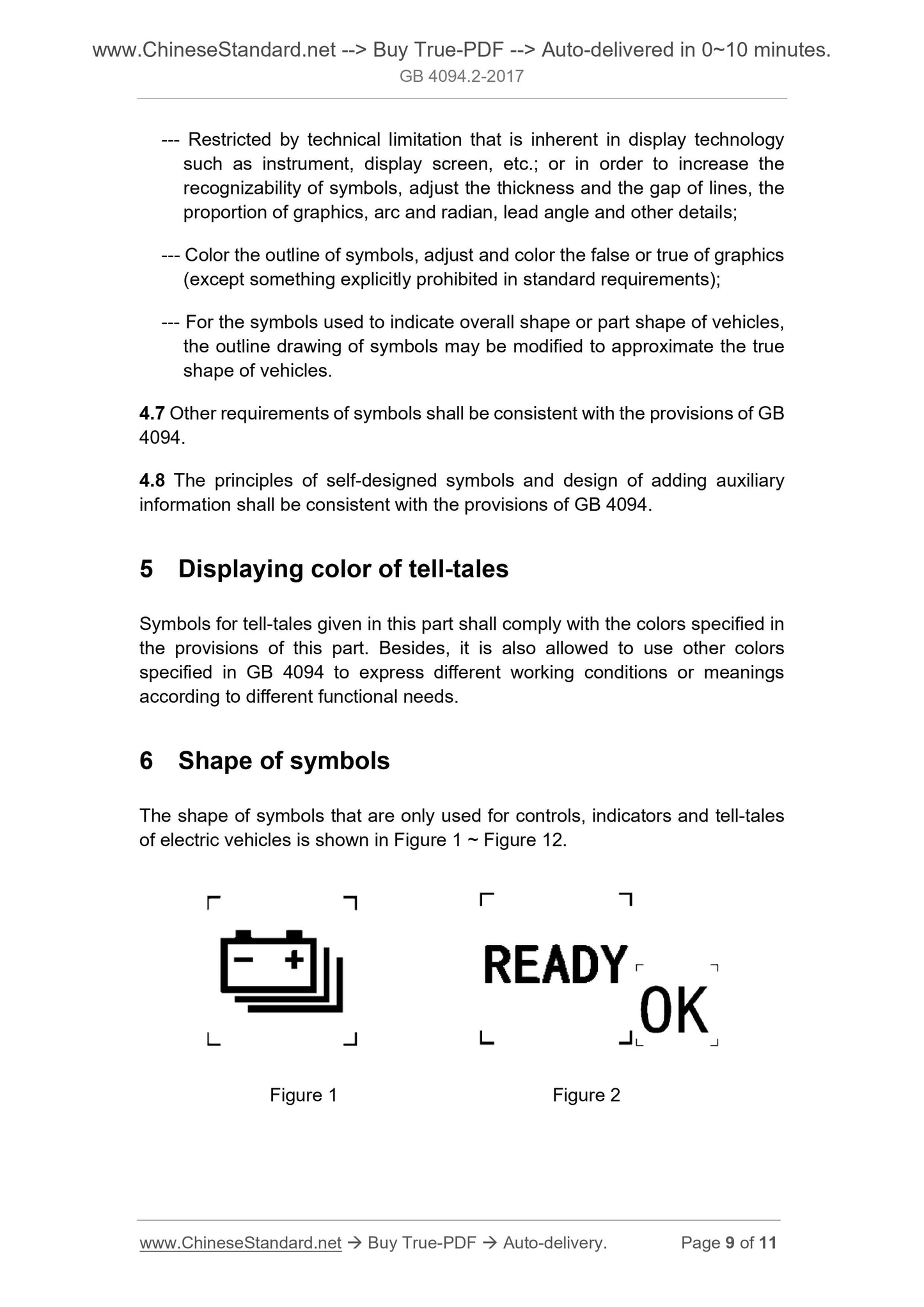

--- Restricted by technical limitation that is inherent in display technology such as instrument, display screen, etc.; or in order to increase the
recognizability of symbols, adjust the thickness and the gap of lines, the proportion of graphics, arc and radian, lead angle and other details;
--- Color the outline of symbols, adjust and color the false or true of graphics (except something explicitly prohibited in standard requirements);
--- For the symbols used to indicate overall shape or part shape of vehicles, the outline drawing of symbols may be modified to approximate the true
shape of vehicles.
4.7 Other requirements of symbols shall be consistent with the provisions of GB 4094.
4.8 The principles of self-designed symbols and design of adding auxiliary information shall be consistent with the provisions of GB 4094.
5 Displaying color of tell-tales
Symbols for tell-tales given in this part shall comply with the colors specified in the provisions of this part. Besides, it is also allowed to use other colors specified in GB 4094 to express different working conditions or meanings according to different functional needs.
6 Shape of symbols
The shape of symbols that are only used for controls, indicators and tell-tales of electric vehicles is shown in Figure 1 ~ Figure 12.
Figure 1 Figure 2
