GB/T 4094.2-2005: Electric vehicles -- Symbols for controls, indicators and tell-tales

This standard specifies the basic requirements, which are unique for electric vehicles (the definition is shown in GB/T 19596-2004), about the symbols for controls, indicators and tell-tales, and colors for tell-tales. This Standard is applicable to electric vehicles.

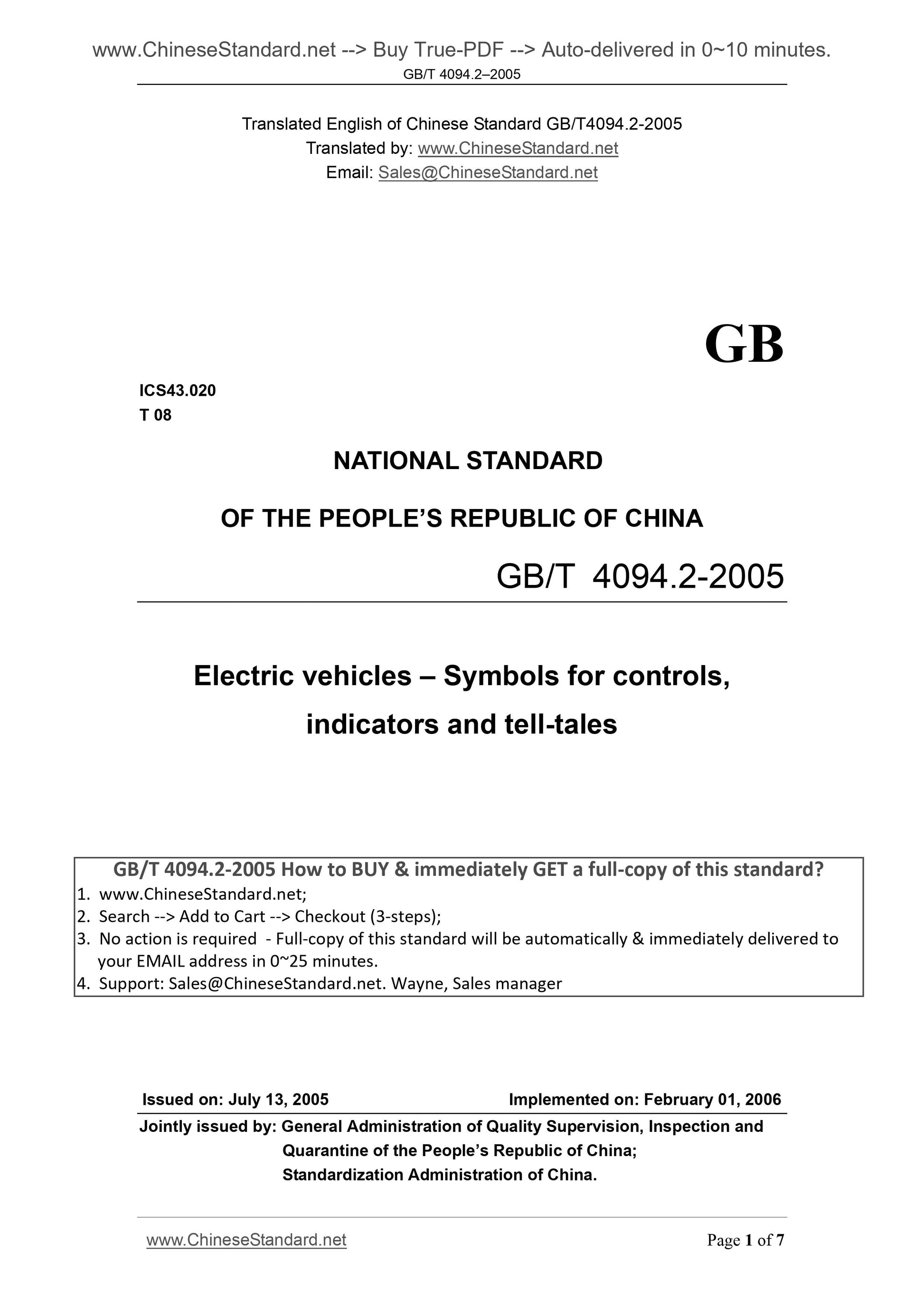

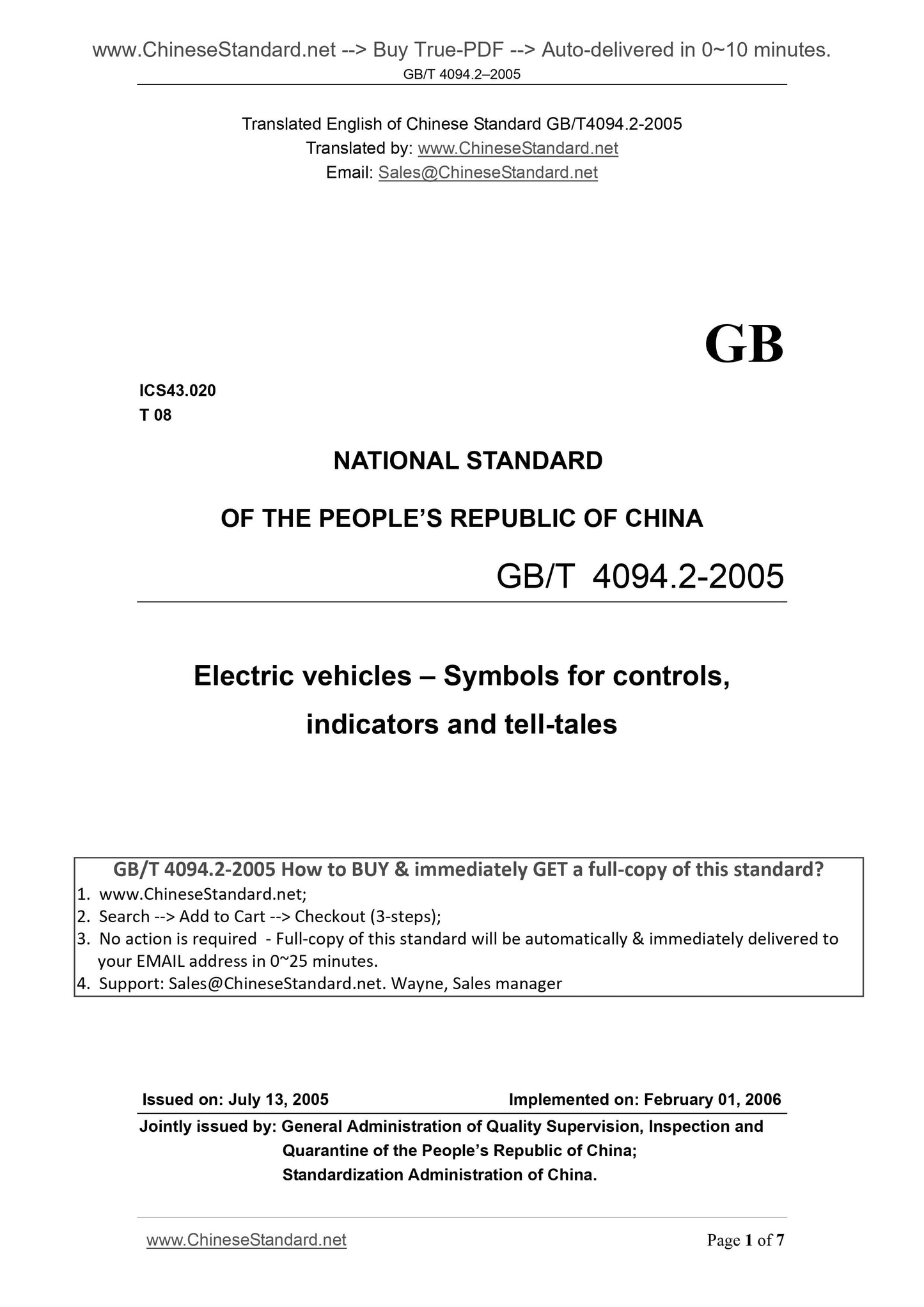

GB/T 4094.2?€?2005
GB/T4094.2-2005
GB
ICS43.020
T 08
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
Electric vehicles ?€? Symbols for controls,
indicators and tell-tales
ISSUED ON. JULY 13, 2005
IMPLEMENTED ON. FEBRUARY 01, 2006
Jointly issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PEOPLE Republic of China;
Standardization Administration of China.

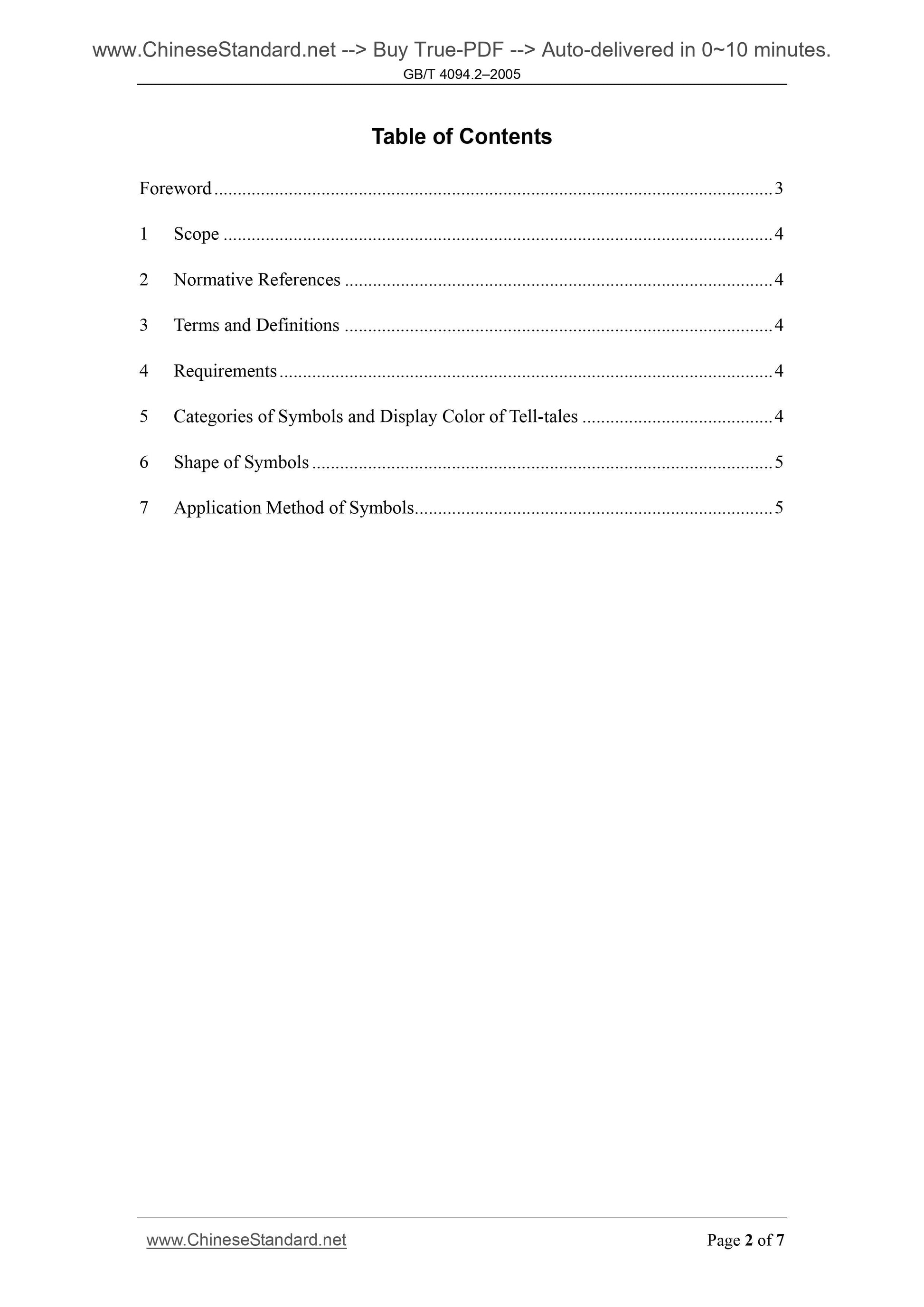

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Requirements ... 4
5 Categories of Symbols and Display Color of Tell-tales ... 4
6 Shape of Symbols ... 5
7 Application Method of Symbols ... 5

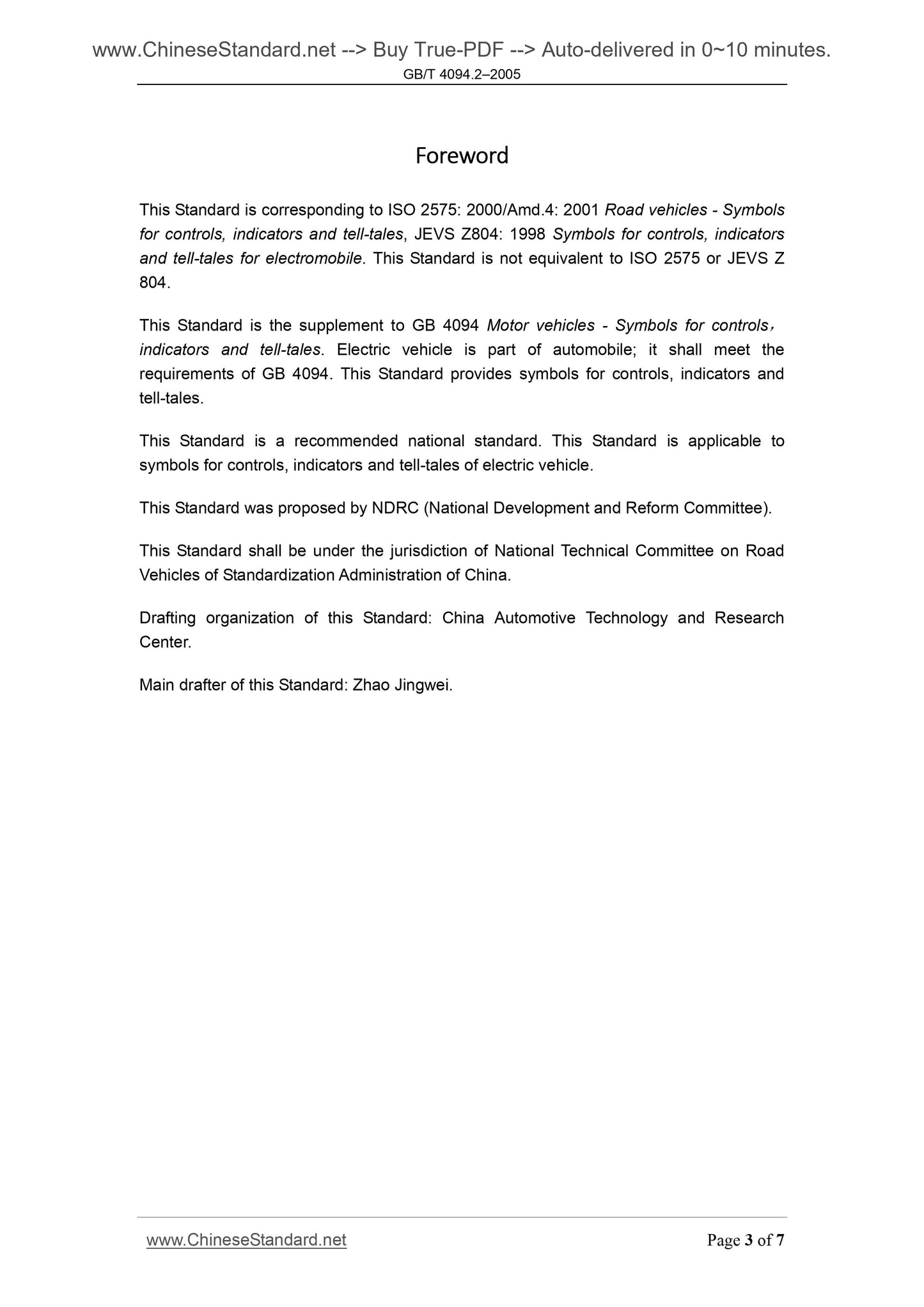

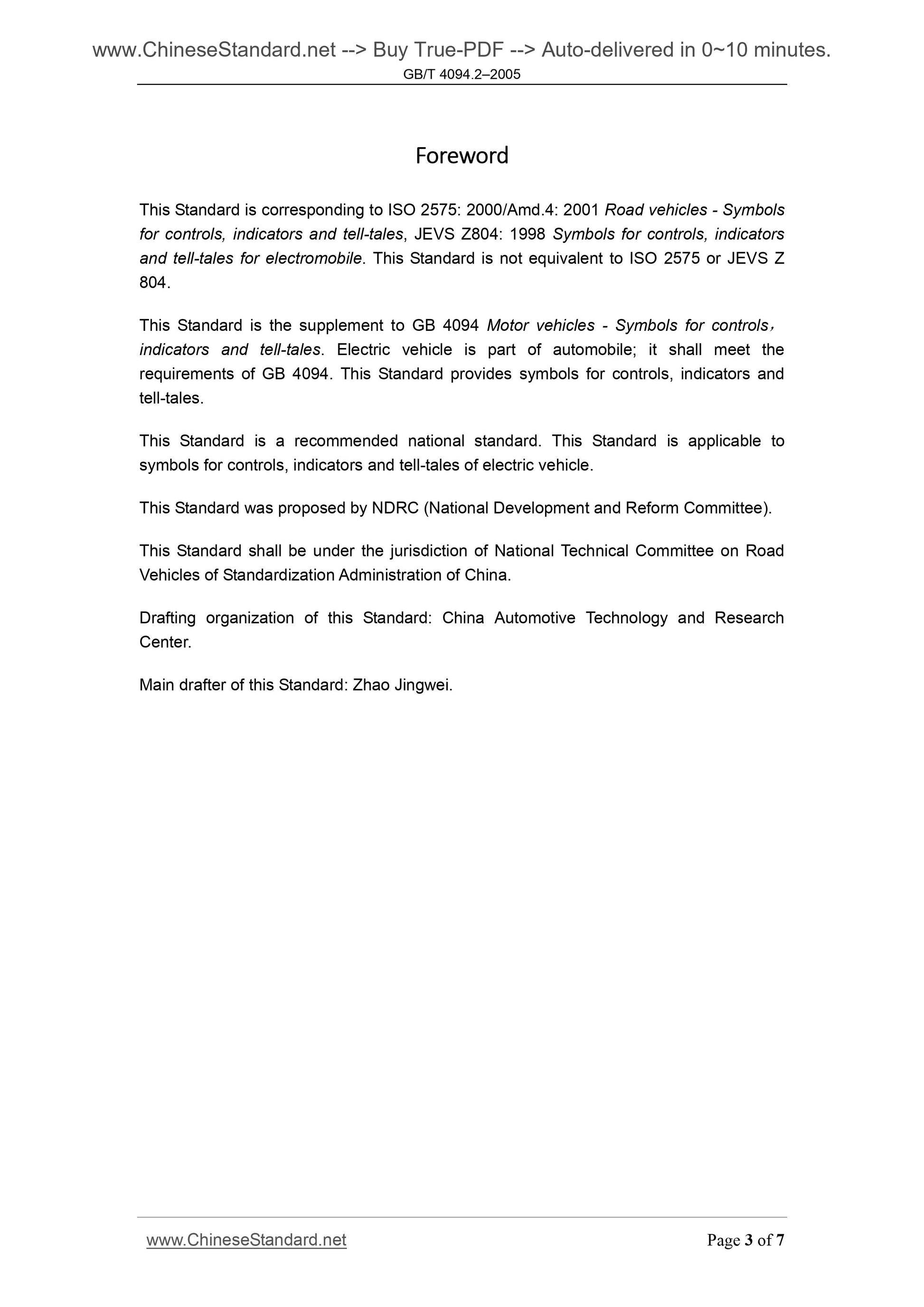

Foreword
This Standard is corresponding to ISO 2575. 2000/Amd.4. 2001 Road vehicles - Symbols for controls, indicators and tell-tales, JEVS Z804. 1998 Symbols for controls, indicators and tell-tales for electromobile. This Standard is not equivalent to ISO 2575 or JEVS Z 804.
This Standard is the supplement to GB 4094 Motor vehicles - Symbols for controls, indicators and tell-tales. Electric vehicle is part of automobile; it shall meet the requirements of GB 4094. This Standard provides symbols for controls, indicators and tell-tales.
This Standard is a recommended national standard. This Standard is applicable to symbols for controls, indicators and tell-tales of electric vehicle.
This Standard was proposed by NDRC (National Development and Reform Committee). This Standard shall be under the jurisdiction of National Technical Committee on Road Vehicles of Standardization Administration of China.
Drafting organization of this Standard. China Automotive Technology and Research Center.
Main drafter of this Standard. Zhao Jingwei.
Electric vehicles ?€? Symbols for controls, indicators and
tell-tales

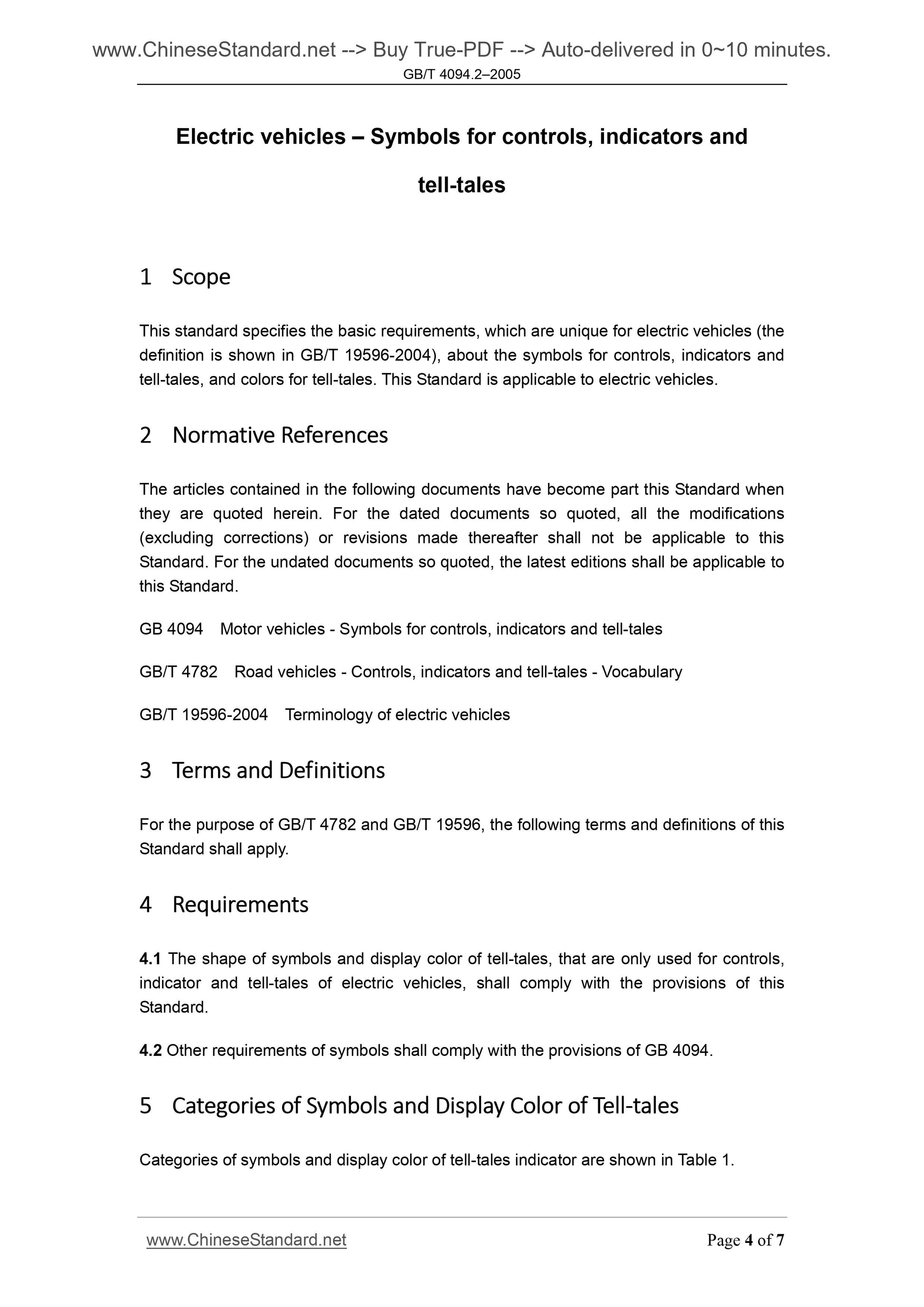

1 Scope
This standard specifies the basic requirements, which are unique for electric vehicles (the definition is shown in GB/T 19596-2004), about the symbols for controls, indicators and tell-tales, and colors for tell-tales. This Standard is applicable to electric vehicles. 2 Normative??References
The articles contained in the following documents have become part this Standard when they are quoted herein. For the dated documents so quoted, all the modifications (excluding corrections) or revisions made thereafter shall not be applicable to this Standard. For the undated documents so quoted, the latest editions shall be applicable to this Standard.
GB 4094 Motor vehicles - Symbols for controls, indicators and tell-tales GB/T 4782 Road vehicles - Controls, indicators and tell-tales - Vocabulary GB/T 19596-2004 Terminology of electric vehicles
3 Terms??and??Definitions
For the purpose of GB/T 4782 and GB/T 19596, the following terms and definitions of this Standard shall apply.
4 Requirements
4.1 The shape of symbols and display color of tell-tales, that are only used for controls, indicator and tell-tales of electric vehicles, shall comply with the provisions of this Standard.
4.2 Other requirements of symbols shall comply with the provisions of GB 4094. 5 Categories??of??Symbols??and??Display??Color??of??Tell?€?tales
Categories of symbols and display color of tell-tales indicator are shown in Table 1.
