GB/T 40814-2021: Intelligent manufacturing -- Customization -- Capability maturity model

This document specifies the capability maturity model for customization. This document is applicable to evaluate the maturity of the manufacturing enterprise????s customization capability.
GB/T 40814-2021

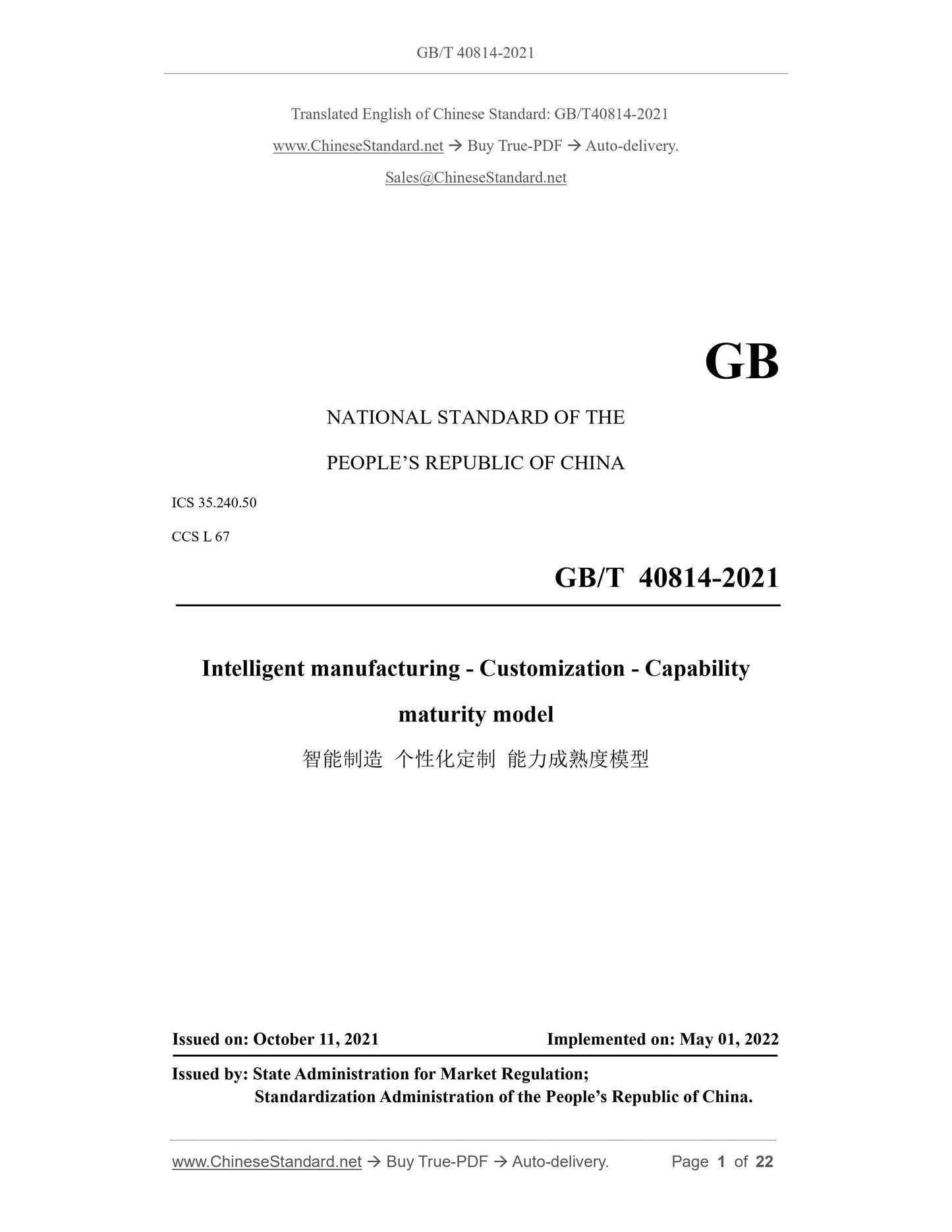

GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 35.240.50
CCS L 67
Intelligent manufacturing - Customization - Capability
maturity model
ISSUED ON: OCTOBER 11, 2021
IMPLEMENTED ON: MAY 01, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of China.

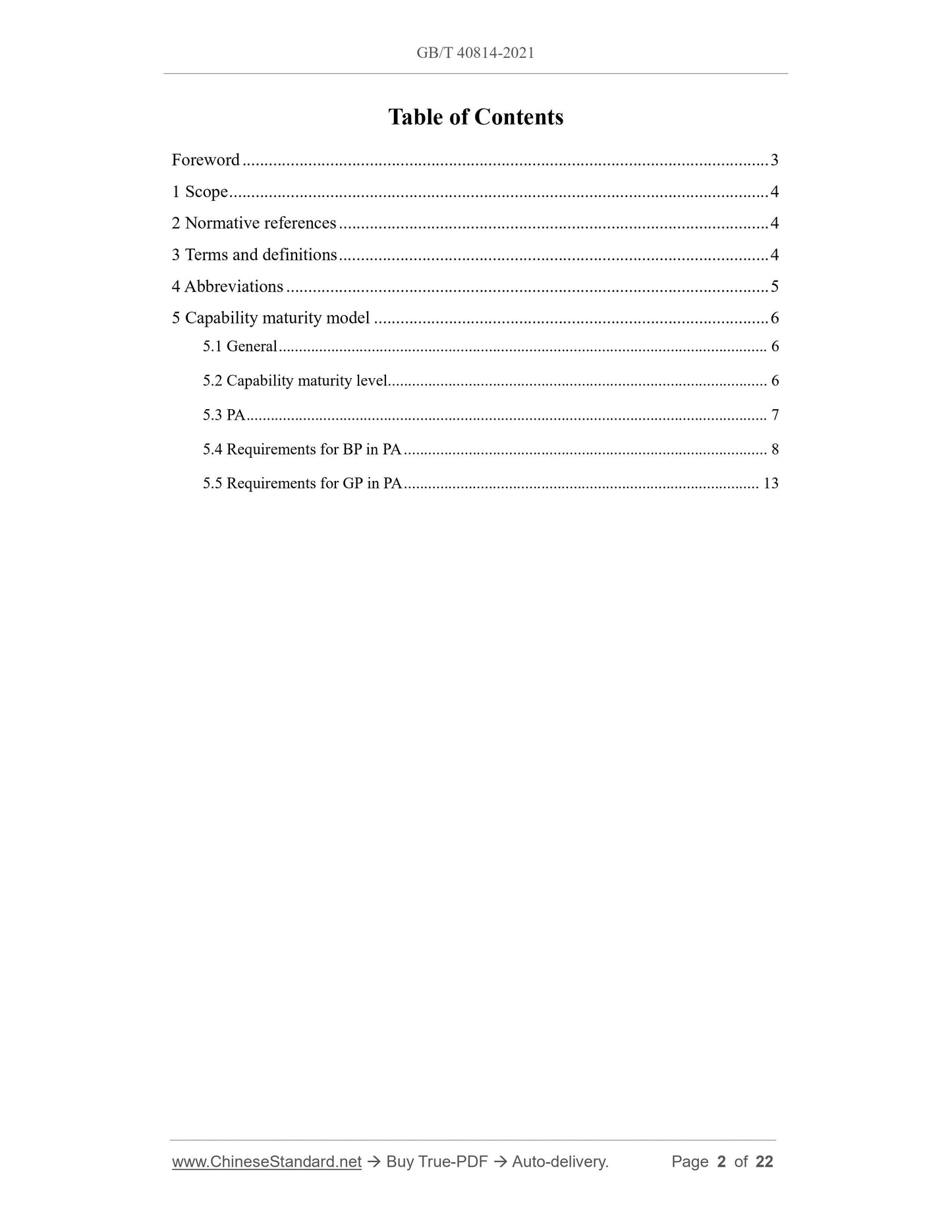

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Abbreviations ... 5
5 Capability maturity model ... 6
5.1 General ... 6
5.2 Capability maturity level... 6
5.3 PA ... 7
5.4 Requirements for BP in PA ... 8
5.5 Requirements for GP in PA ... 13
Intelligent manufacturing - Customization - Capability
maturity model

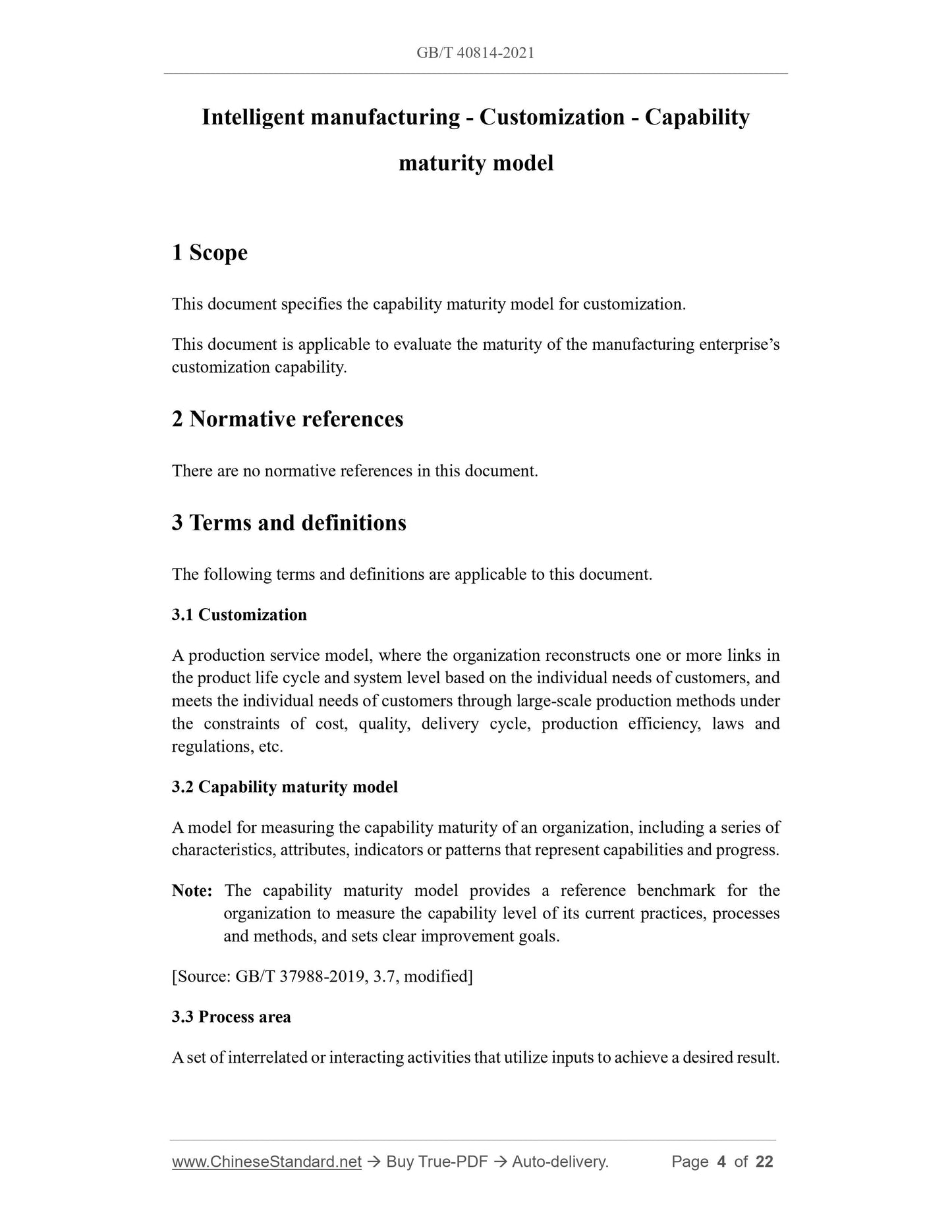

1 Scope
This document specifies the capability maturity model for customization. This document is applicable to evaluate the maturity of the manufacturing enterprise?€?s customization capability.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
The following terms and definitions are applicable to this document.
3.1 Customization
A production service model, where the organization reconstructs one or more links in the product life cycle and system level based on the individual needs of customers, and meets the individual needs of customers through large-scale production methods under the constraints of cost, quality, delivery cycle, production efficiency, laws and regulations, etc.
3.2 Capability maturity model
A model for measuring the capability maturity of an organization, including a series of characteristics, attributes, indicators or patterns that represent capabilities and progress. Note: The capability maturity model provides a reference benchmark for the organization to measure the capability level of its current practices, processes and methods, and sets clear improvement goals.
[Source: GB/T 37988-2019, 3.7, modified]
3.3 Process area
A set of interrelated or interacting activities that utilize inputs to achieve a desired result. The organization has implemented customization according to the development plan, and has invested capital. The development strategy of customization is promoting organizational changes, and the organizational structure has been optimized; d) Optimization level

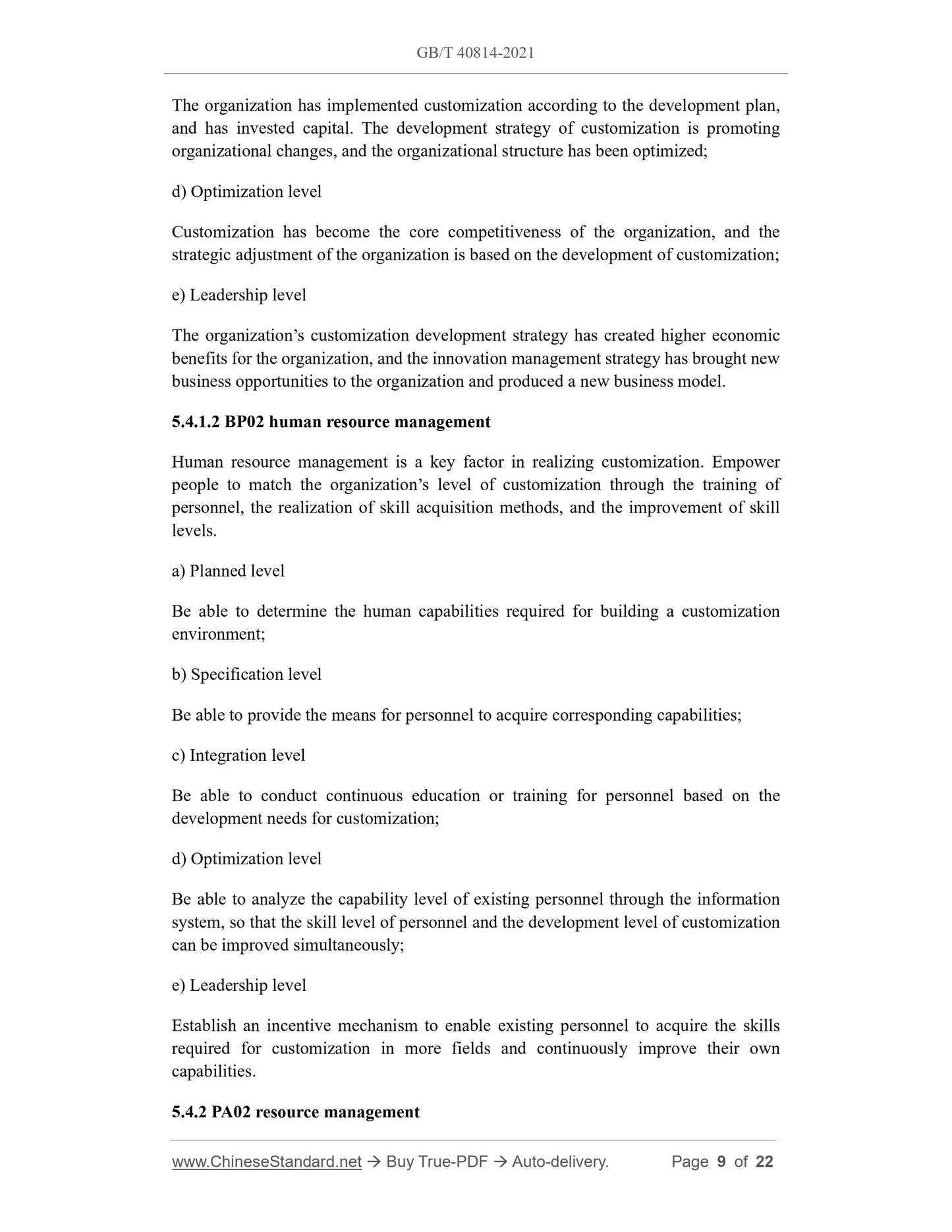

Customization has become the core competitiveness of the organization, and the strategic adjustment of the organization is based on the development of customization; e) Leadership level
The organization?€?s customization development strategy has created higher economic benefits for the organization, and the innovation management strategy has brought new business opportunities to the organization and produced a new business model. 5.4.1.2 BP02 human resource management
Human resource management is a key factor in realizing customization. Empower people to match the organization?€?s level of customization through the training of personnel, the realization of skill acquisition methods, and the improvement of skill levels.
a) Planned level
Be able to determine the human capabilities required for building a customization environment;
b) Specification level
Be able to provide the means for personnel to acquire corresponding capabilities; c) Integration level
Be able to conduct continuous education or training for personnel based on the development needs for customization;
d) Optimization level
Be able to analyze the capability level of existing personnel through the information system, so that the skill level of personnel and the development level of customization can be improved simultaneously;
e) Leadership level
Establish an incentive mechanism to enable existing personnel to acquire the skills required for customization in more fields and continuously improve their own capabilities.
5.4.2 PA02 resource management
5.4.2.1 BP03 equipment management
Equipment digitization is the basis of customization; equipment management means achieving remote online management and early warning of equipment through the digital transformation of equipment and full life cycle management.
a) Planned level
Be able to use information technology to realize the daily management of some equipment, and start to consider the digital transformation of equipment; b) Specification level
Continue to carry out digital transformation of equipment, and be able to use information technology to realize equipment status management;
c) Integration level
Be able to use the equipment management system to realize the full life cycle management of equipment, and be able to remotely monitor key equipment in real time; d) Optimization level
The digital transformation of equipment has been basically completed; be able to enable experts to remotely diagnose equipment online; has established the operating model of key equipment;
e) Leadership level
Be able to carry out predictive maintenance on equipment based on knowledge base and big data analysis.
5.4.2.2 BP04 energy management
Energy management refers to utilizing information technology to standardize the organization?€?s energy management and optimizing the use of energy and resources through energy management factors such as energy planning, energy operation scheduling, energy statistics, and carbon asset management, to reduce energy consumption and improve energy efficiency of the organization.
a) Planned level
Start the informatization of energy management and realize the collection and monitoring of some energy data;
b) Specification level
Be able to collect and count the main energy data through the information management system;

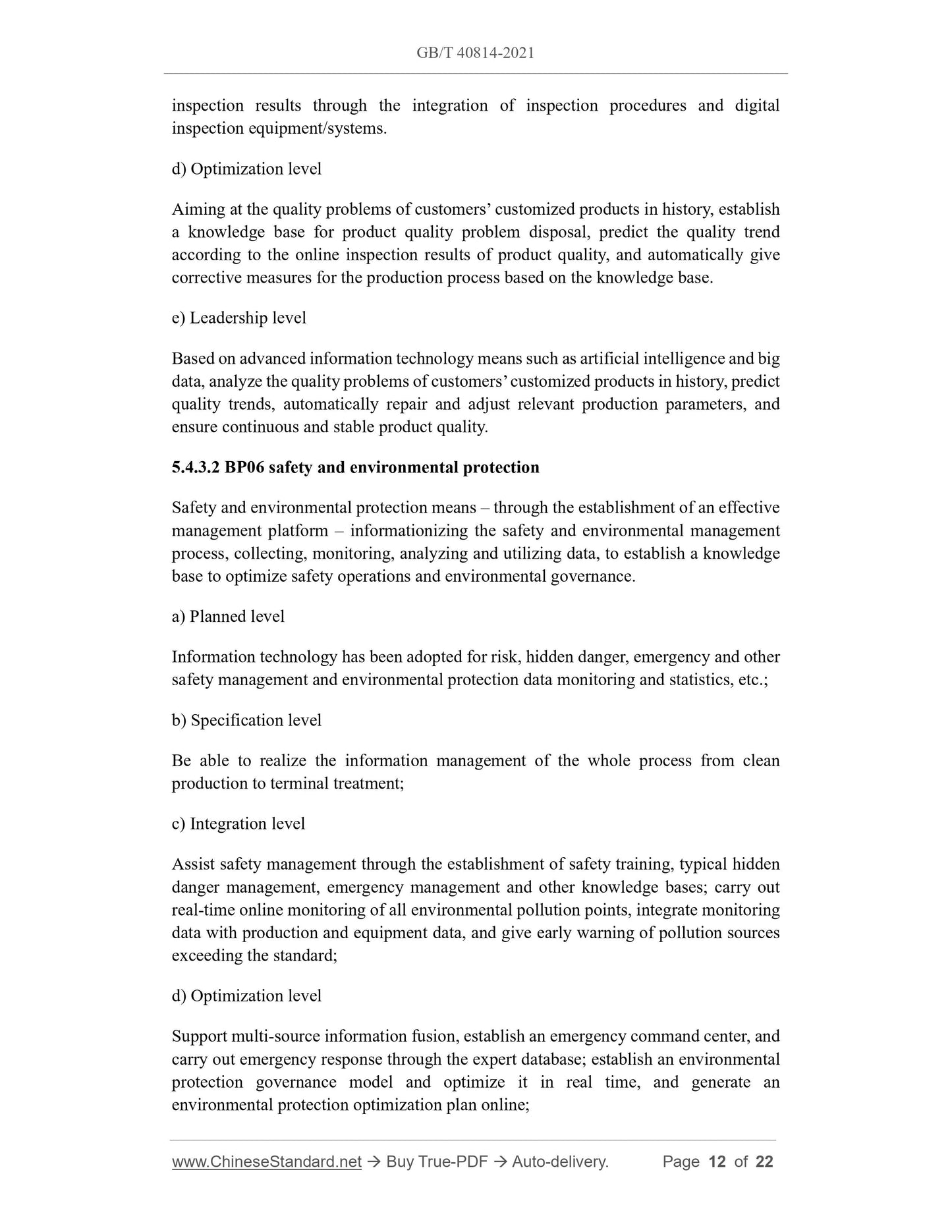

inspection results through the integration of inspection procedures and digital inspection equipment/systems.
d) Optimization level
Aiming at the quality problems of customers?€? customized products in history, establish a knowledge base for product quality problem disposal, predict the quality trend according to the online inspection results of product quality, and automatically give corrective measures for the production process based on the knowledge base. e) Leadership level
Based on advanced information technology means such as artificial intelligence and big data, analyze the quality problems of customers?€? customized products in history, predict quality trends, automatically repair and adjust relevant production parameters, and ensure continuous and stable product quality.
5.4.3.2 BP06 safety and environmental protection
Safety and environmental protection means ?€? through the establishment of an effective management platform ?€? informationizing the safety and environmental management process, collecting, monitoring, analyzing and utilizing data, to establish a knowledge base to optimize safety operations and environmental governance.
a) Planned level
Information technology has been adopted for risk, hidden danger, emergency and other safety management and environmental protection data monitoring and statistics, etc.; b) Specification level
Be able to realize the information management of the whole process from clean production to terminal treatment;
c) Integration level
Assist safety management through the establishment of safety training, typical hidden danger management, emergency management and other knowledge bases; carry out real-time online monitoring of all environmental pollution points, integrate monitoring data with production and equipment data, and give early warning of pollution sources exceeding the standard;
d) Optimization level
Support multi-source information fusion, establish an emergency command center, and carry out emergency response through the expert database; establish an environmental protection governance model and optimize it in real time, and generate an environmental protection optimization plan online;
e) Leadership level
Based on the knowledge base, support safe operation analysis and decision-making, and realize integrated management of safe operation and risk control; use big data to automatically predict the overall environmental conditions of all pollution sources, and automatically formulate and implement treatment plans based on real-time production equipment, pollution prevention and control equipment and other data.
5.5 Requirements for GP in PA
5.5.1 PA04 demand interaction
Sales management is to establish a platform for the interaction between supply and demand through information technology, so that manufacturing companies can understand customer needs in a timely and accurate manner, provide a basis for customization, and finally realize accurate demand forecasting through big data analysis and other technologies, to guide enterprises to realize customized production according to different needs of users.
a) Planned level
Sales operations shall be managed through an information system.
b) Specification level
Realize the whole sales process management through the information system, and strengthen the customer relationship management.
c) Integration level
Integrate sales and production, warehousing and other businesses, to realize the individual needs of customers to drive production, procurement and logistics planning. d) Optimization level
Apply the knowledge model to optimize customer demand forecasting and formulate more accurate sales plans. Integrate all sales methods through the e-commerce platform to realize automatic adjustment of procurement, production and logistics plans according to the individual needs of customers. The whole life cycle management of products shall be provided through the mobile client, to realize full traceability of products.
e) Leadership level
Big data and machine learning technologies shall be used to analyze the sales data and consumer behavior data of e-commerce platforms, and continuously optimize the sales forecasting model. Apply the e-commerce platform to realize the whole process management from personalized sales to payment collection. Intelligent customer of the product to meet the application requirements of design, manufacturing, inspection, operation and maintenance, sales, and service. Realize product individualized design and collaborative design based on product design service of big data and artificial intelligence technology.

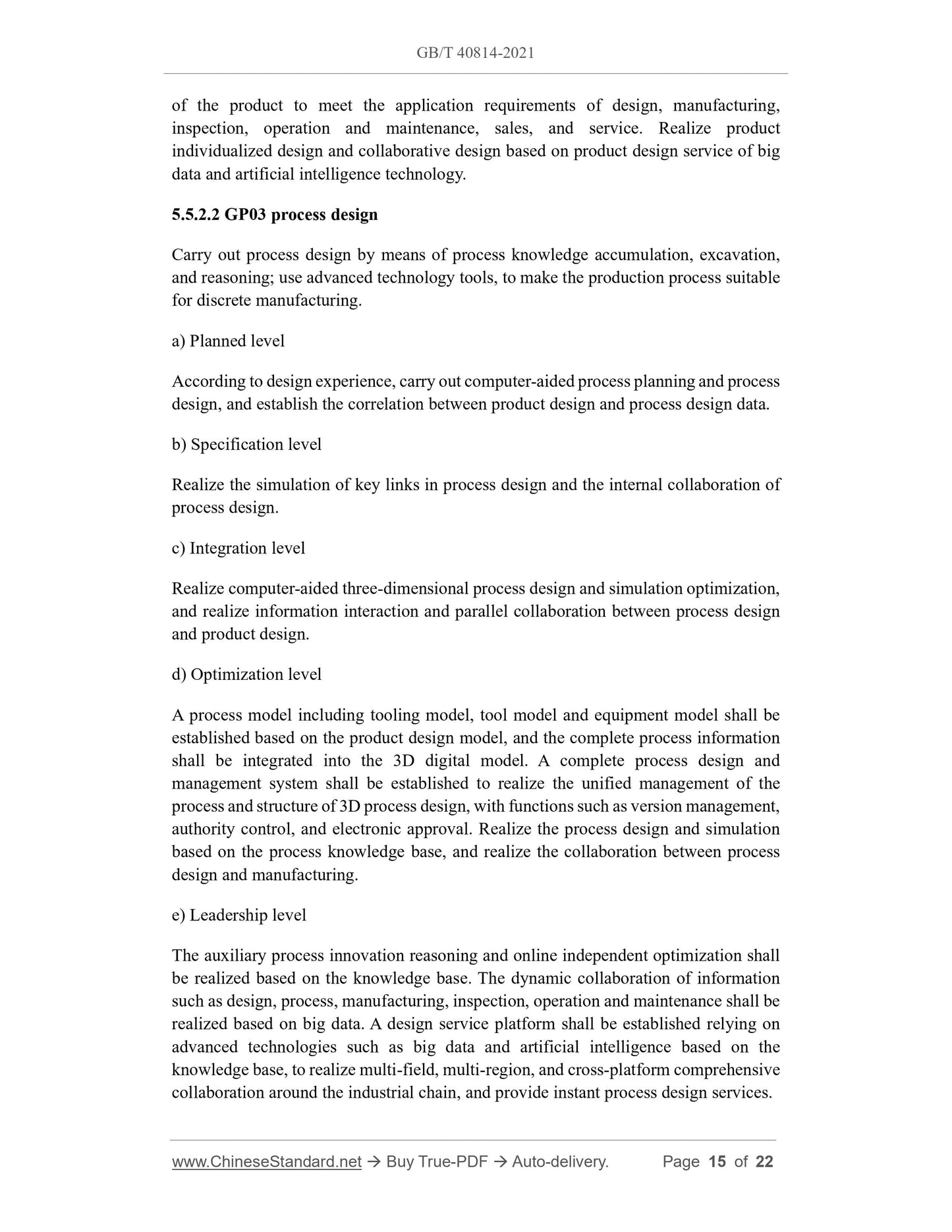

5.5.2.2 GP03 process design
Carry out process design by means of process knowledge accumulation, excavation, and reasoning; use advanced technology tools, to make the production process suitable for discrete manufacturing.
a) Planned level
According to design experience, carry out computer-aided process planning and process design, and establish the correlation between product design and process design data. b) Specification level
Realize the simulation of key links in process design and the internal collaboration of process design.
c) Integration level
Realize computer-aided three-dimensional process design and simulation optimization, and realize information interaction and parallel collaboration between process design and product design.
d) Optimization level
A process model including tooling model, tool model and equipment model shall be established based on the product design model, and the complete process information shall be integrated into the 3D digital model. A complete process design and management system shall be established to realize the unified management of the process and structure of 3D process design, with functions such as version management, authority control, and electronic approval. Realize the process design and simulation based on the process knowledge base, and realize the collaboration between process design and manufacturing.
e) Leadership level
The auxiliary process innovation reasoning and online independent optimization shall be realized based on the knowledge base. The dynamic collaboration of information such as design, process, manufacturing, inspection, operation and maintenance shall be realized based on big data. A design service platform shall be established relying on advanced technologies such as big data and artificial intelligence based on the knowledge base, to realize multi-field, multi-region, and cross-platform comprehensive collaboration around the industrial chain, and provide instant process design services. 5.5.2.3 GP04 process optimization

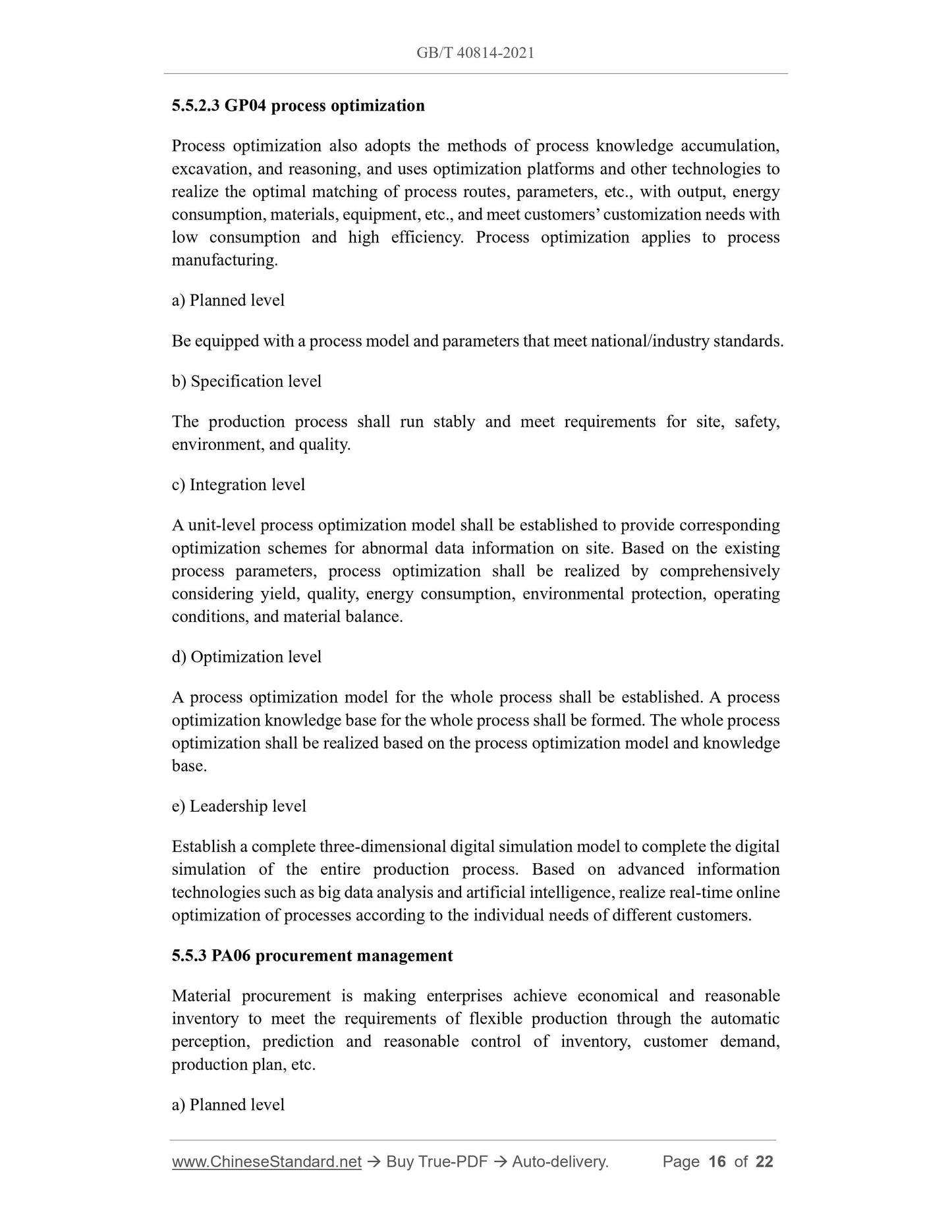

Process optimization also adopts the methods of process knowledge accumulation, excavation, and reasoning, and uses optimization platforms and other technologies to realize the optimal matching of process routes, parameters, etc., with output, energy consumption, materials, equipment, etc., and meet customers?€? customization needs with low consumption and high efficiency. Process optimization applies to process manufacturing.
a) Planned level
Be equipped with a process model and parameters that meet national/industry standards. b) Specification level
The production process shall run stably and meet requirements for site, safety, environment, and quality.
c) Integration level
A unit-level process optimization model shall be established to provide corresponding optimization schemes for abnormal data information on site. Based on the existing process parameters, process optimization shall be realized by comprehensively considering yield, quality, energy consumption, environmental protection, operating conditions, and material balance.
d) Optimization level
A process optimization model for the whole process shall be established. A process optimization knowledge base for the whole process shall be formed. The whole process optimization shall be realized based on the process optimization model and knowledge base.
e) Leadership level
Establish a complete three-dimensional digital simulation model to complete the digital simulation of the entire production process. Based on advanced information technologies such as big data analysis and artificial intelligence, realize real-time online optimization of processes according to the individual needs of different customers. 5.5.3 PA06 procurement management
Material procurement is making enterprises achieve economical and reasonable inventory to meet the requirements of flexible production through the automatic perception, prediction and reasonable control of inventory, customer demand, production plan, etc.
a) Planned level

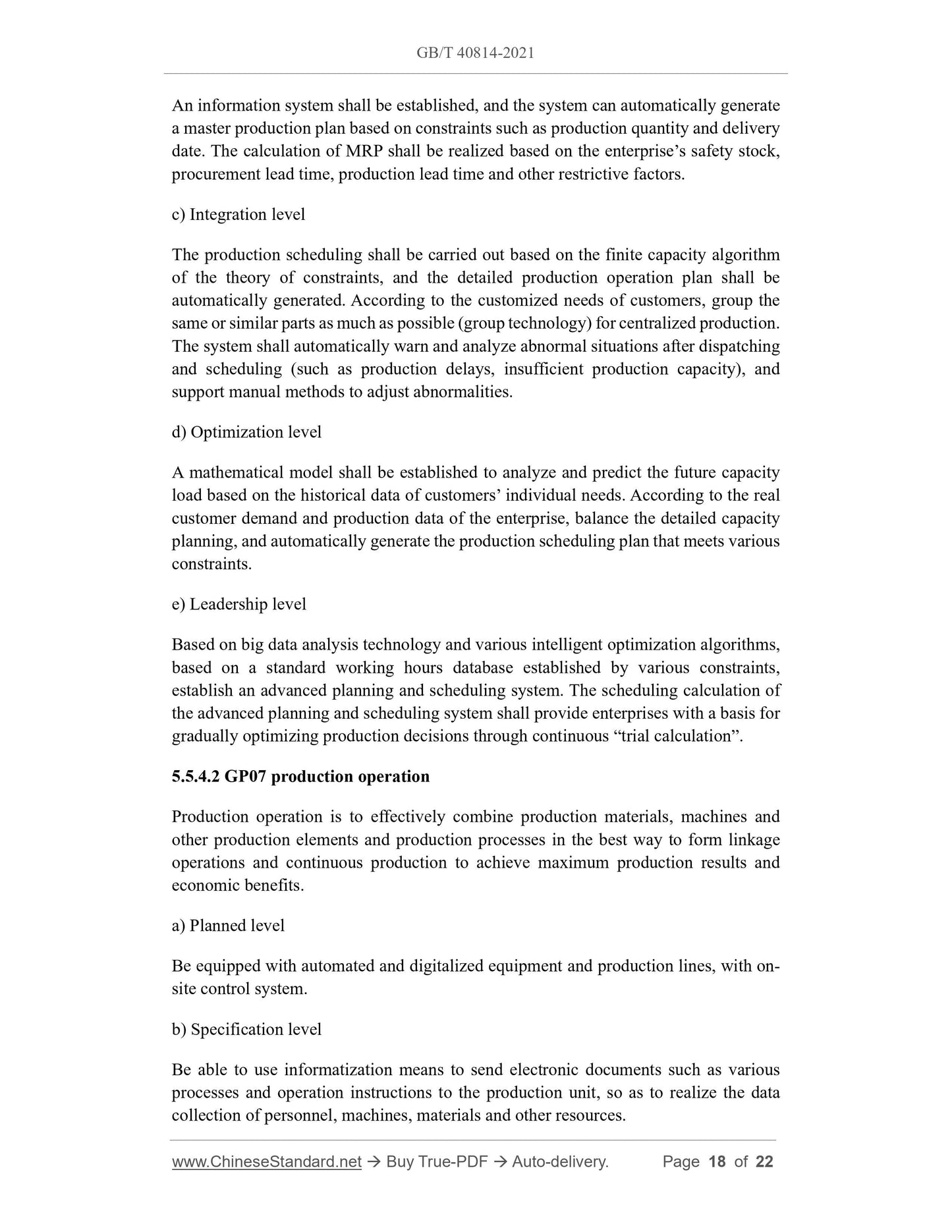

An information system shall be established, and the system can automatically generate a master production plan based on constraints such as production quantity and delivery date. The calculation of MRP shall be realized based on the enterprise?€?s safety stock, procurement lead time, production lead time and other restrictive factors. c) Integration level
The production scheduling shall be carried out based on the finite capacity algorithm of the theory of constraints, and the detailed production operation plan shall be automatically generated. According to the customized needs of customers, group the same or similar parts as much as possible (group technology) for centralized production. The system shall automatically warn and analyze abnormal situations after dispatching and scheduling (such as production delays, insufficient production capacity), and support manual methods to adjust abnormalities.
d) Optimization level
A mathematical model shall be established to analyze and predict the future capacity load based on the historical data of customers?€? individual needs. According to the real customer demand and production data of the enterprise, balance the detailed capacity planning, and automatically generate the production scheduling plan that meets various constraints.
e) Leadership level
Based on big data analysis technology and various intelligent optimization algorithms, based on a standard working hours database established by various constraints, establish an advanced planning and scheduling system. The scheduling calculation of the advanced planning and scheduling system shall provide enterprises with a basis for gradually optimizing production decisions through continuous ?€?trial calculation?€?. 5.5.4.2 GP07 production operation
Production operation is to effectively combine production materials, machines and other production elements and production processes in the best way to form linkage operations and continuous production to achieve maximum production results and economic benefits.
a) Planned level
Be equipped with automated and digitalized equipment and production lines, with on- site control system.
b) Specification level
Be able to use informatization means to send electronic documents such as various processes and operation instructions to the production unit, so as to realize the data collection of personnel, machines, materials and other resources.
c) Integration level

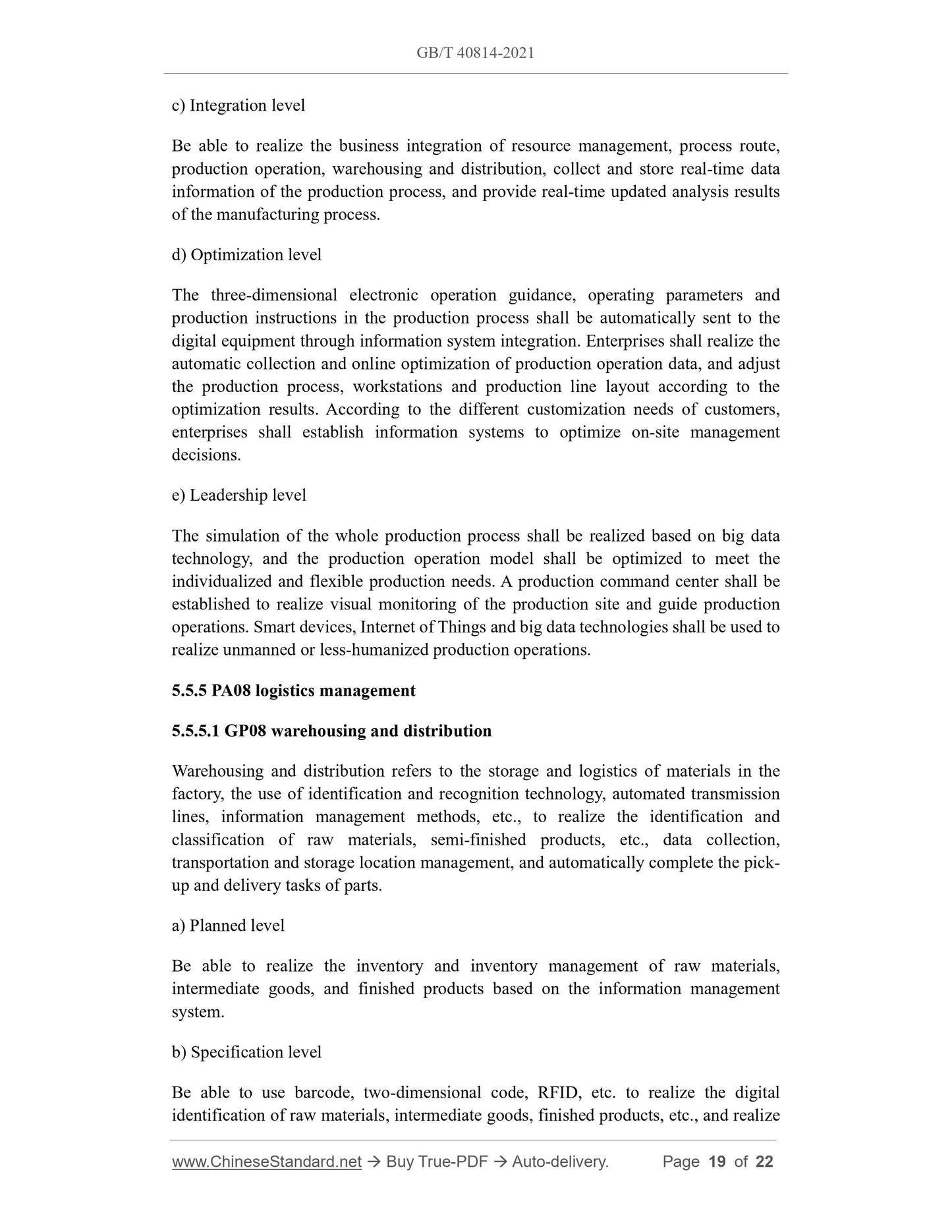

Be able to realize the business integration of resource management, process route, production operation, warehousing and distribution, collect and store real-time data information of the production process, and provide real-time updated analysis results of the manufacturing process.
d) Optimization level
The three-dimensional electronic operation guidance, operating parameters and production instructions in the production process shall be automatically sent to the digital equipment through information system integration. Enterprises shall realize the automatic collection and online optimization of production operation data, and adjust the production process, workstations and production line layout according to the optimization results. According to the different customization needs of customers, enterprises shall establish information systems to optimize on-site management decisions.
e) Leadership level
The simulation of the whole production process shall be realized based on big data technology, and the production operation model shall be optimized to meet the individualized and flexible production needs. A production command center shall be established to realize visual monitoring of the production site and guide production operations. Smart devices, Internet of Things and big data technologies shall be used to realize unmanned or less-humanized production operations.
5.5.5 PA08 logistics management
5.5.5.1 GP08 warehousing and distribution
Warehousing and distribution refers to the storage and logistics of materials in the factory, the use of identification and recognition technology, automated transmission lines, information management methods, etc., to realize the identification and classification of raw materials, semi-finished products, etc., data collection, transportation and storage location management, and automatically complete the pick- up and delivery tasks of parts.
a) Planned level
Be able to realize the inventory and inventory management of raw materials, intermediate goods, and finished products based on the information management system.
b) Specification level
Be able to use barcode, two-dimensional code, RFID, etc. to realize the digital identification of raw materials, intermediate goods, finished products, etc., and realize b) Specification level

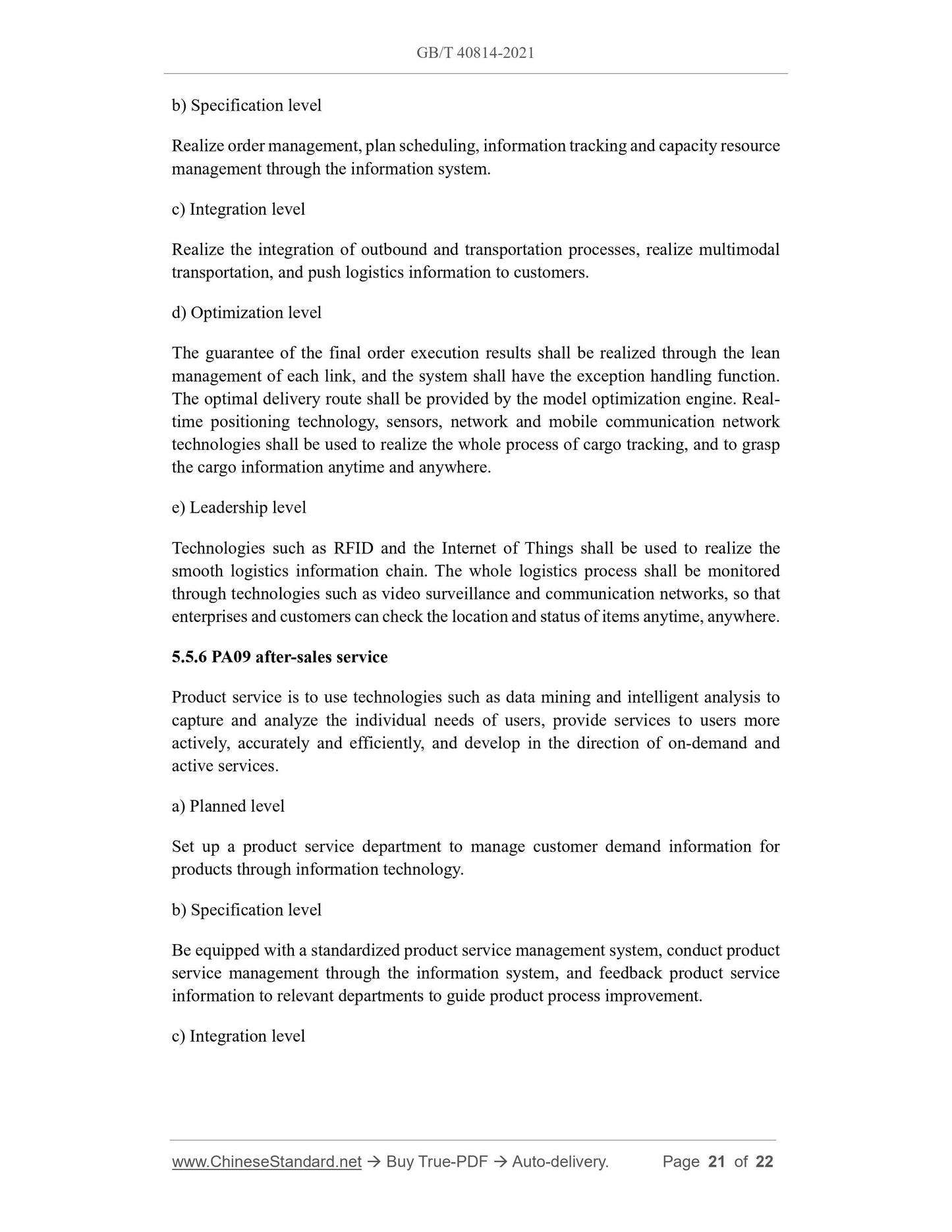

Realize order management, plan scheduling, information tracking and capacity resource management through the information system.
c) Integration level
Realize the integration of outbound and transportation processes, realize multimodal transportation, and push logistics information to customers.
d) Optimization level
The g...
