GB/T 40559-2021: Lithium ion cells and batteries used in self-balancing vehicle -- Safety requirements

This Standard specifies the safety requirements for lithium ion cells and batteries used in self-balancing vehicle, and describes the corresponding test methods. This Standard applies to lithium ion cells and batteries used in self-balancing vehicle, as well as lithium ion cells and batteries for similar products such as electric scooters without self-balancing function.

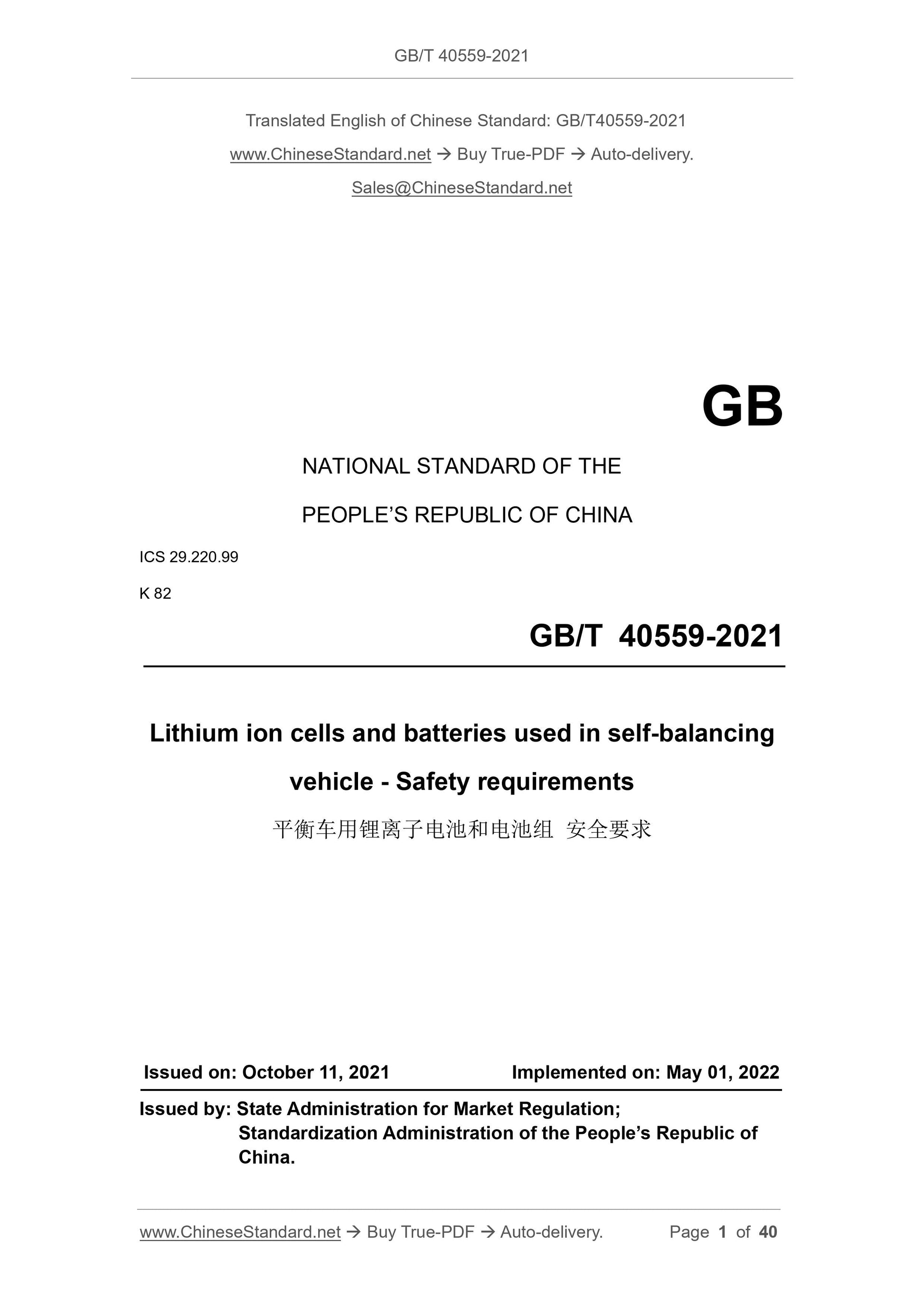

GB/T 40559-2021
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 29.220.99
K 82
Lithium ion cells and batteries used in self-balancing
vehicle - Safety requirements
ISSUED ON: OCTOBER 11, 2021
IMPLEMENTED ON: MAY 01, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of
China.

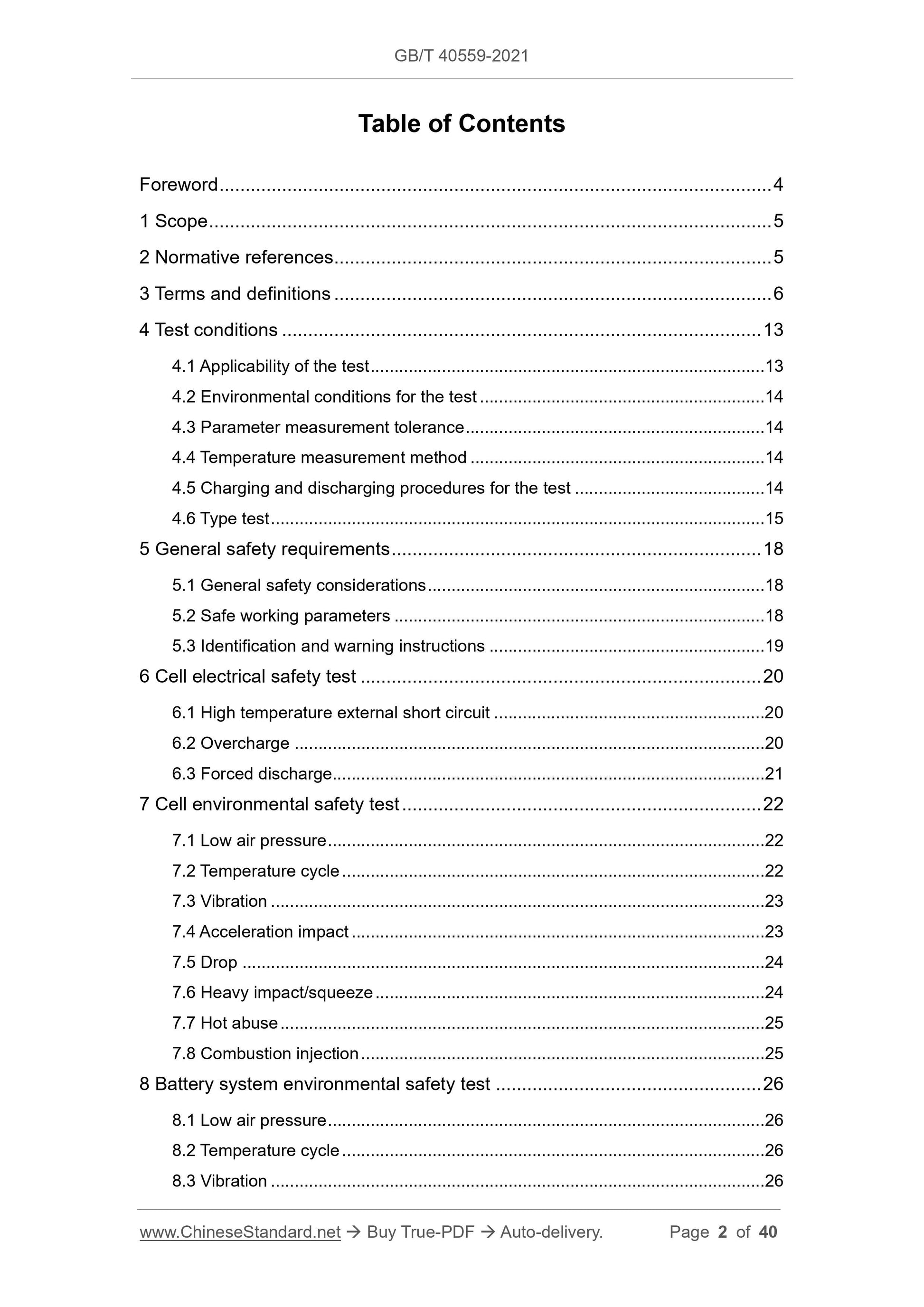

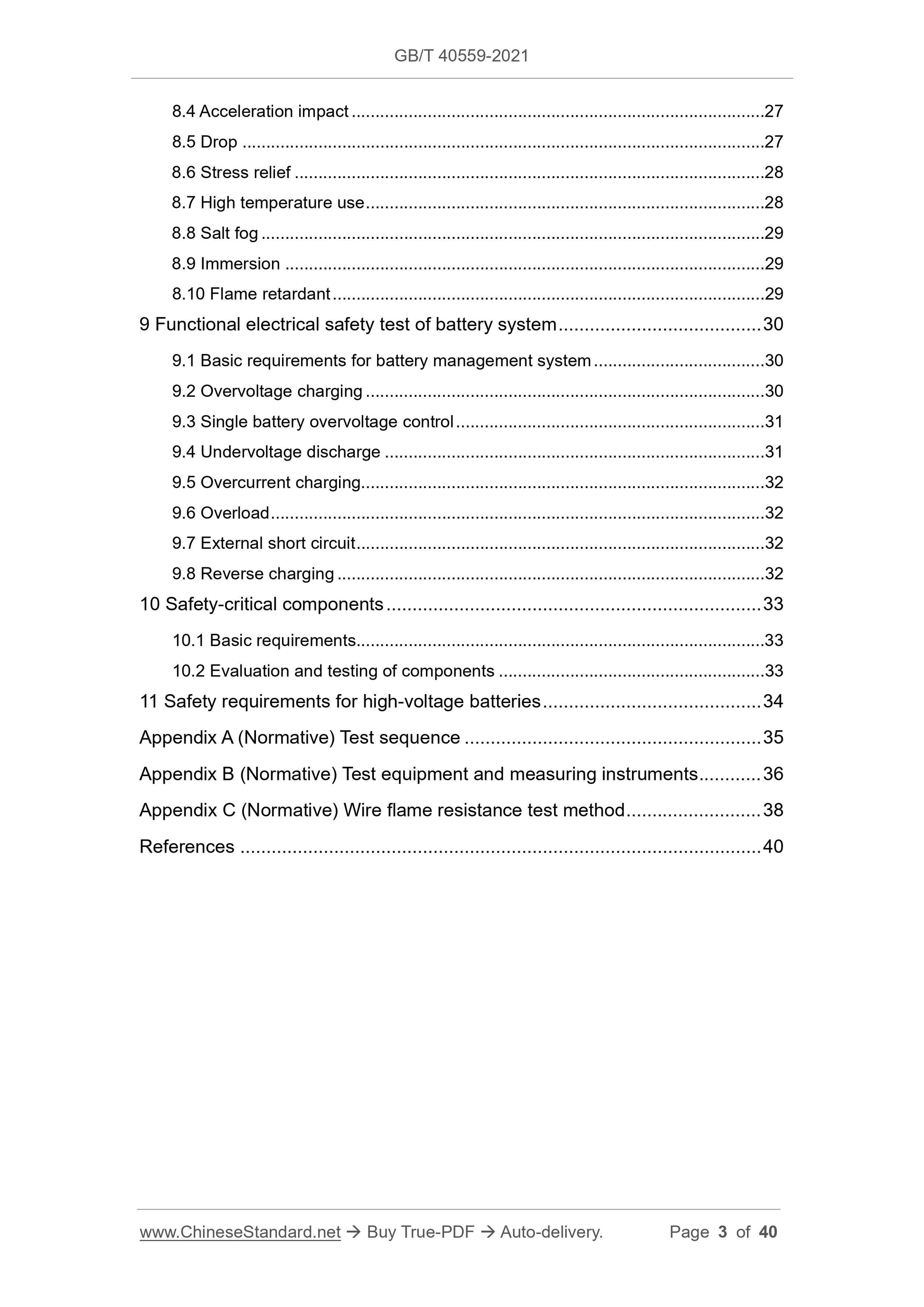

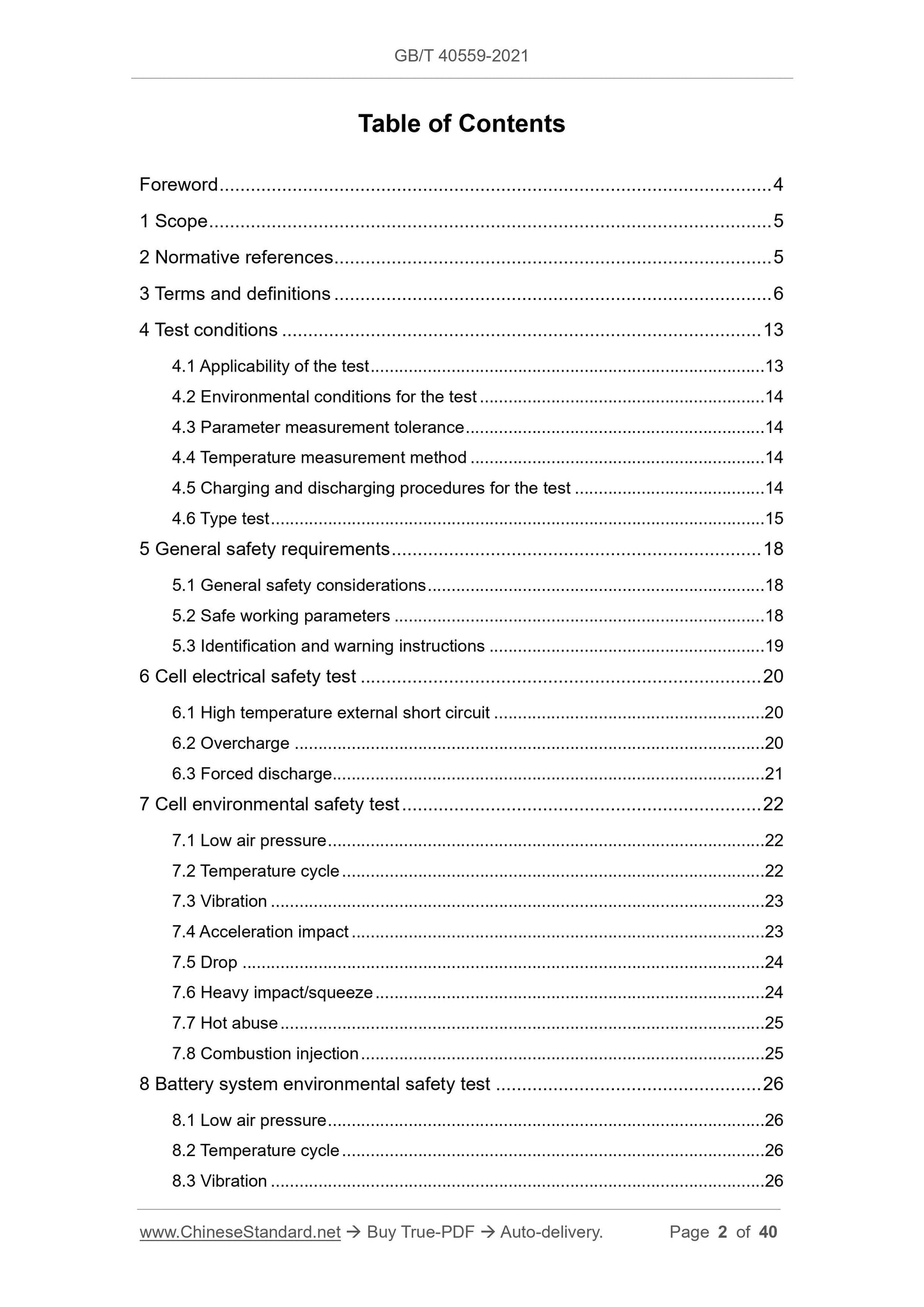

Table of Contents
Foreword ... 4
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Test conditions ... 13
4.1 Applicability of the test ... 13
4.2 Environmental conditions for the test ... 14
4.3 Parameter measurement tolerance ... 14
4.4 Temperature measurement method ... 14
4.5 Charging and discharging procedures for the test ... 14
4.6 Type test ... 15
5 General safety requirements ... 18
5.1 General safety considerations ... 18
5.2 Safe working parameters ... 18
5.3 Identification and warning instructions ... 19
6 Cell electrical safety test ... 20
6.1 High temperature external short circuit ... 20
6.2 Overcharge ... 20
6.3 Forced discharge... 21
7 Cell environmental safety test ... 22
7.1 Low air pressure ... 22
7.2 Temperature cycle ... 22
7.3 Vibration ... 23
7.4 Acceleration impact ... 23
7.5 Drop ... 24
7.6 Heavy impact/squeeze ... 24
7.7 Hot abuse ... 25
7.8 Combustion injection ... 25
8 Battery system environmental safety test ... 26
8.1 Low air pressure ... 26
8.2 Temperature cycle ... 26
8.3 Vibration ... 26
8.4 Acceleration impact ... 27
8.5 Drop ... 27
8.6 Stress relief ... 28
8.7 High temperature use ... 28
8.8 Salt fog ... 29
8.9 Immersion ... 29
8.10 Flame retardant ... 29
9 Functional electrical safety test of battery system ... 30
9.1 Basic requirements for battery management system ... 30
9.2 Overvoltage charging ... 30
9.3 Single battery overvoltage control ... 31
9.4 Undervoltage discharge ... 31
9.5 Overcurrent charging... 32
9.6 Overload ... 32
9.7 External short circuit ... 32
9.8 Reverse charging ... 32
10 Safety-critical components ... 33
10.1 Basic requirements... 33
10.2 Evaluation and testing of components ... 33
11 Safety requirements for high-voltage batteries ... 34
Appendix A (Normative) Test sequence ... 35
Appendix B (Normative) Test equipment and measuring instruments ... 36 Appendix C (Normative) Wire flame resistance test method ... 38
References ... 40
Lithium ion cells and batteries used in self-balancing
vehicle - Safety requirements

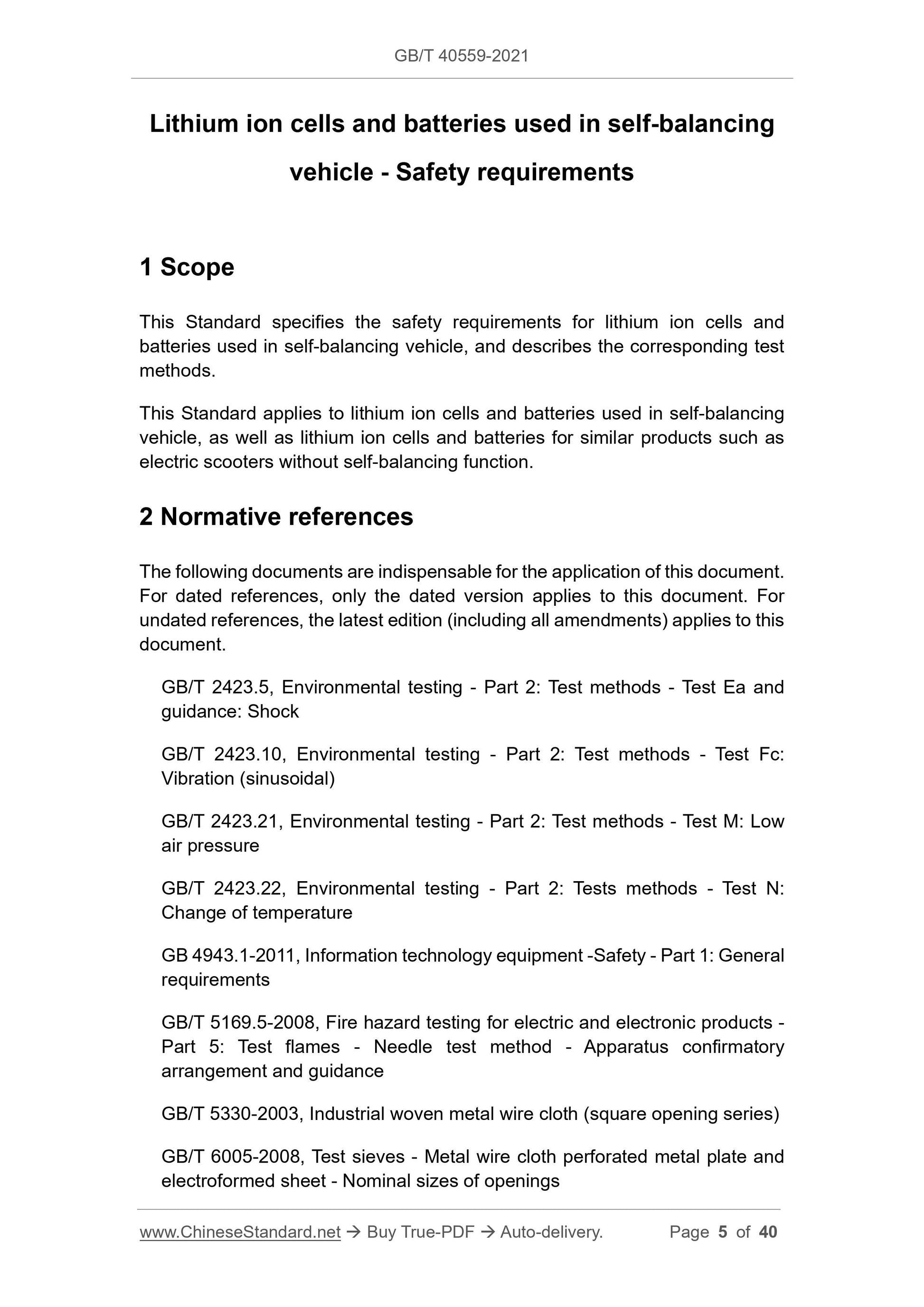

1 Scope
This Standard specifies the safety requirements for lithium ion cells and batteries used in self-balancing vehicle, and describes the corresponding test methods.
This Standard applies to lithium ion cells and batteries used in self-balancing vehicle, as well as lithium ion cells and batteries for similar products such as electric scooters without self-balancing function.
2 Normative references
The following documents are indispensable for the application of this document. For dated references, only the dated version applies to this document. For undated references, the latest edition (including all amendments) applies to this document.
GB/T 2423.5, Environmental testing - Part 2: Test methods - Test Ea and guidance: Shock
GB/T 2423.10, Environmental testing - Part 2: Test methods - Test Fc:
Vibration (sinusoidal)
GB/T 2423.21, Environmental testing - Part 2: Test methods - Test M: Low air pressure
GB/T 2423.22, Environmental testing - Part 2: Tests methods - Test N:
Change of temperature
GB 4943.1-2011, Information technology equipment -Safety - Part 1: General requirements
GB/T 5169.5-2008, Fire hazard testing for electric and electronic products - Part 5: Test flames - Needle test method - Apparatus confirmatory
arrangement and guidance
GB/T 5330-2003, Industrial woven metal wire cloth (square opening series) GB/T 6005-2008, Test sieves - Metal wire cloth perforated metal plate and electroformed sheet - Nominal sizes of openings
to constant voltage charging until the charging current is less than or equal to 0.02It; then, stop charging. The longest charging time shall not exceed 8 hours.
b) Charge at 1It at an ambient temperature of 20 ??C ?? 5 ??C. When the cell or battery terminal voltage reaches the limited charging voltage, change to constant voltage charging until the charging current is less than or equal to 0.02It. The longest charging time shall not exceed 4 hours.
When there is disagreement with the capacity test result, the test can be re- performed at the ambient temperature of 23 ??C ?? 2 ??C, which is used as the arbitration condition.

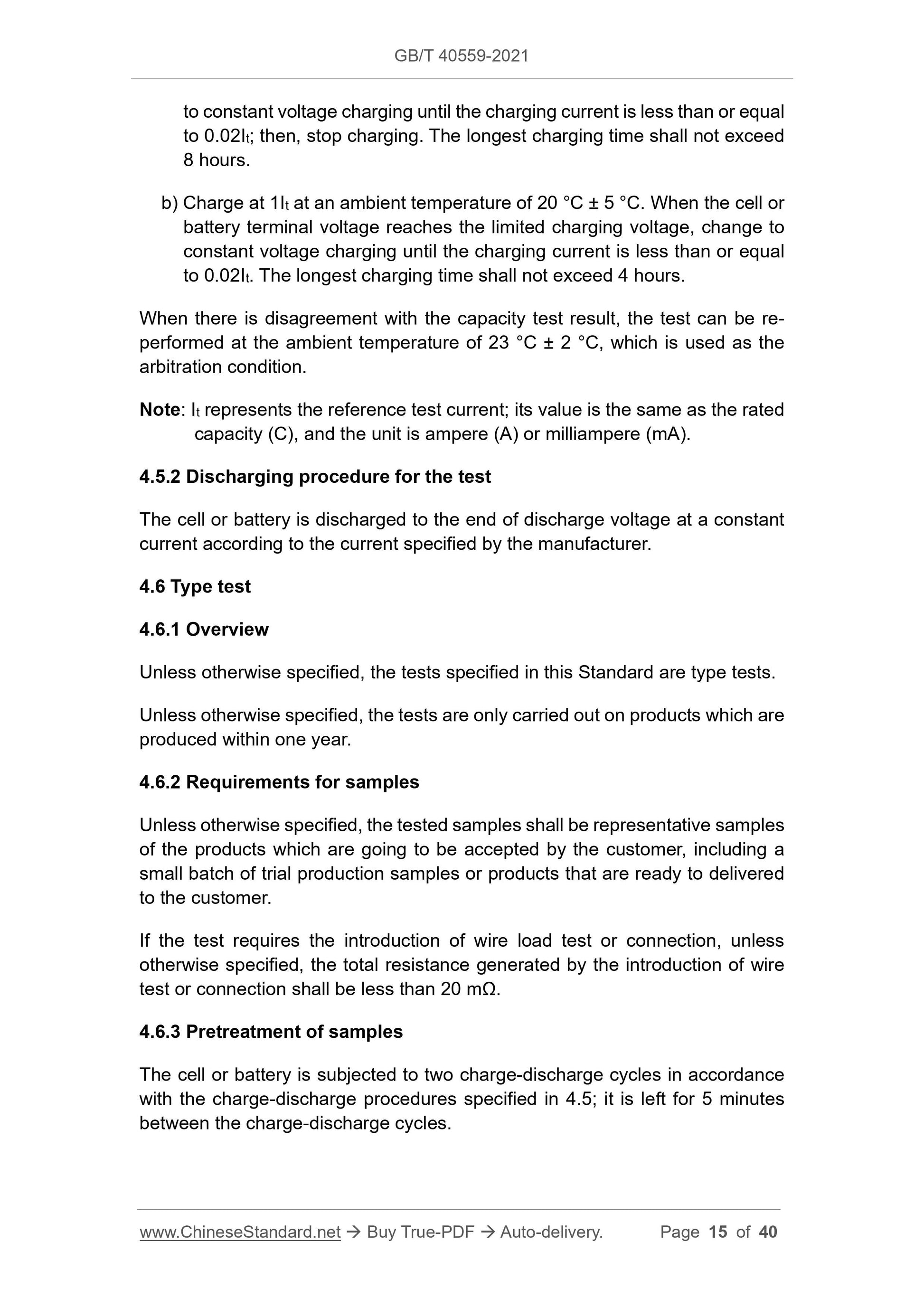

Note: It represents the reference test current; its value is the same as the rated capacity (C), and the unit is ampere (A) or milliampere (mA).
4.5.2 Discharging procedure for the test
The cell or battery is discharged to the end of discharge voltage at a constant current according to the current specified by the manufacturer.
4.6 Type test
4.6.1 Overview
Unless otherwise specified, the tests specified in this Standard are type tests. Unless otherwise specified, the tests are only carried out on products which are produced within one year.
4.6.2 Requirements for samples
Unless otherwise specified, the tested samples shall be representative samples of the products which are going to be accepted by the customer, including a small batch of trial production samples or products that are ready to delivered to the customer.
If the test requires the introduction of wire load test or connection, unless otherwise specified, the total resistance generated by the introduction of wire test or connection shall be less than 20 m??.
4.6.3 Pretreatment of samples
The cell or battery is subjected to two charge-discharge cycles in accordance with the charge-discharge procedures specified in 4.5; it is left for 5 minutes between the charge-discharge cycles.
The identification and warning instructions on the battery body shall be clear and legible.
Any identifications and warning instructions on the battery body, which are required by this Standard, shall be durable and eye-catching. When considering its durability, the effect of normal use shall be taken into consideration. Check and wipe the identification and warning instruction, to verify whether it is qualified. When wiping the identifications and warning instructions, use a cotton cloth that is dipped in water to wipe it by hand for 15 seconds; then, use a cotton cloth that is dipped in 75% medical alcohol to wipe it by hand for 15 seconds. After the test, the identifications and warning instructions shall still be clear; the nameplate shall not be easily removed, and there shall be no curling.

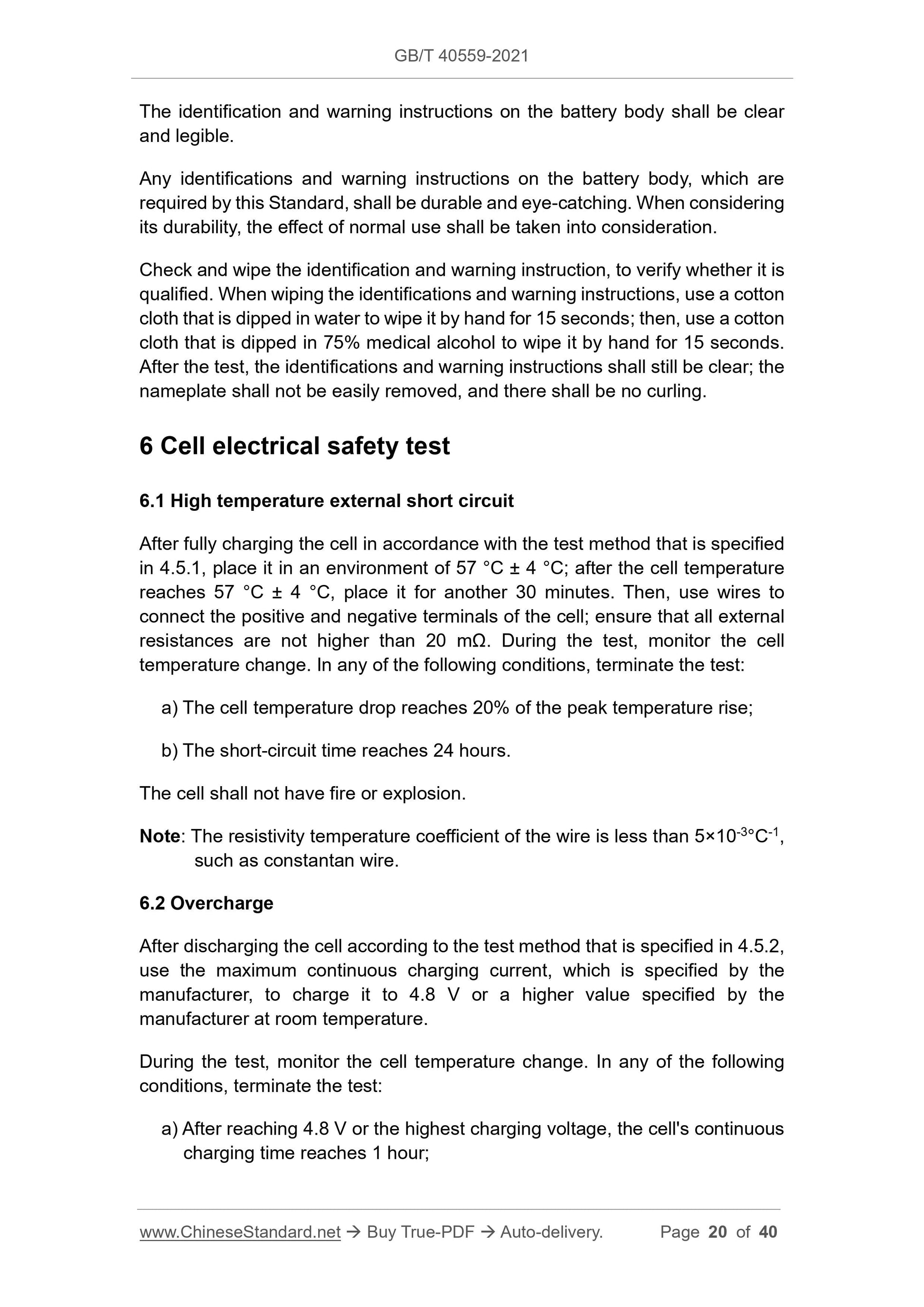

6 Cell electrical safety test
6.1 High temperature external short circuit
After fully charging the cell in accordance with the test method that is specified in 4.5.1, place it in an environment of 57 ??C ?? 4 ??C; after the cell temperature reaches 57 ??C ?? 4 ??C, place it for another 30 minutes. Then, use wires to connect the positive and negative terminals of the cell; ensure that all external resistances are not higher than 20 m??. During the test, monitor the cell temperature change. In any of the following conditions, terminate the test: a) The cell temperature drop reaches 20% of the peak temperature rise;
b) The short-circuit time reaches 24 hours.
The cell shall not have fire or explosion.
Note: The resistivity temperature coefficient of the wire is less than 5??10-3??C-1, such as constantan wire.
6.2 Overcharge
After discharging the cell according to the test method that is specified in 4.5.2, use the maximum continuous charging current, which is specified by the
manufacturer, to charge it to 4.8 V or a higher value specified by the
manufacturer at room temperature.
During the test, monitor the cell temperature change. In any of the following conditions, terminate the test:
a) After reaching 4.8 V or the highest charging voltage, the cell's continuous charging time reaches 1 hour;

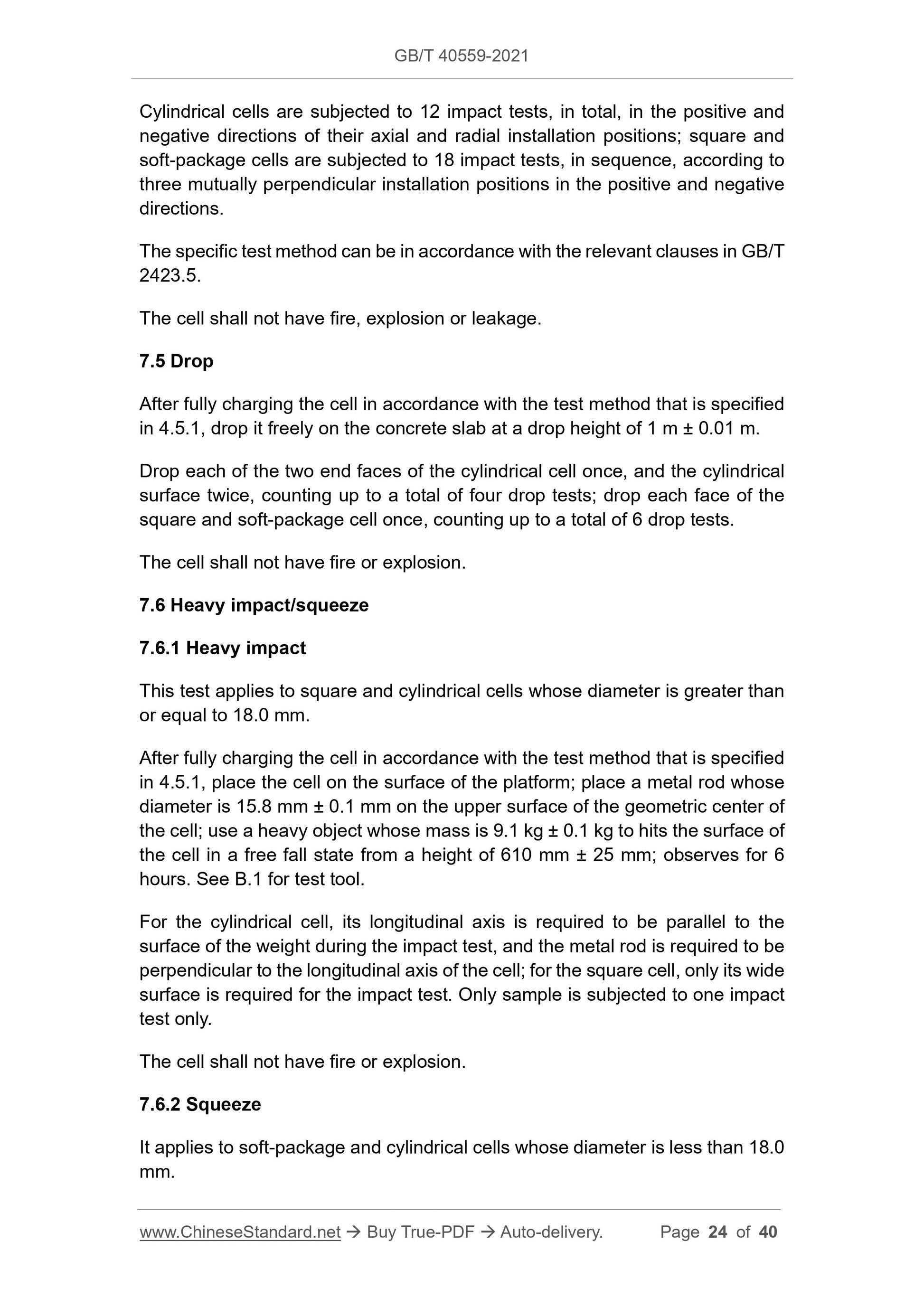

Cylindrical cells are subjected to 12 impact tests, in total, in the positive and negative directions of their axial and radial installation positions; square and soft-package cells are subjected to 18 impact tests, in sequence, according to three mutually perpendicular installation positions in the positive and negative directions.
The specific test method can be in accordance with the relevant clauses in GB/T 2423.5.
The cell shall not have fire, explosion or leakage.
7.5 Drop
After fully charging the cell in accordance with the test method that is specified in 4.5.1, drop it freely on the concrete slab at a drop height of 1 m ?? 0.01 m. Drop each of the two end faces of the cylindrical cell once, and the cylindrical surface twice, counting up to a total of four drop tests; drop each face of the square and soft-package cell once, counting up to a total of 6 drop tests. The cell shall not have fire or explosion.
7.6 Heavy impact/squeeze
7.6.1 Heavy impact
This test applies to square and cylindrical cells whose diameter is greater than or equal to 18.0 mm.
After fully charging the cell in accordance with the test method that is specified in 4.5.1, place the cell on the surface of the platform; place a metal rod whose diameter is 15.8 mm ?? 0.1 mm on the upper surface of the geometric center of the cell; use a heavy object whose mass is 9.1 kg ?? 0.1 kg to hits the surface of the cell in a free fall state from a height of 610 mm ?? 25 mm; observes for 6 hours. See B.1 for test tool.
For the cylindrical cell, its longitudinal axis is required to be parallel to the surface of the weight during the impact test, and the metal rod is required to be perpendicular to the longitudinal axis of the cell; for the square cell, only its wide surface is required for the impact test. Only sample is subjected to one impact test only.
The cell shall not have fire or explosion.

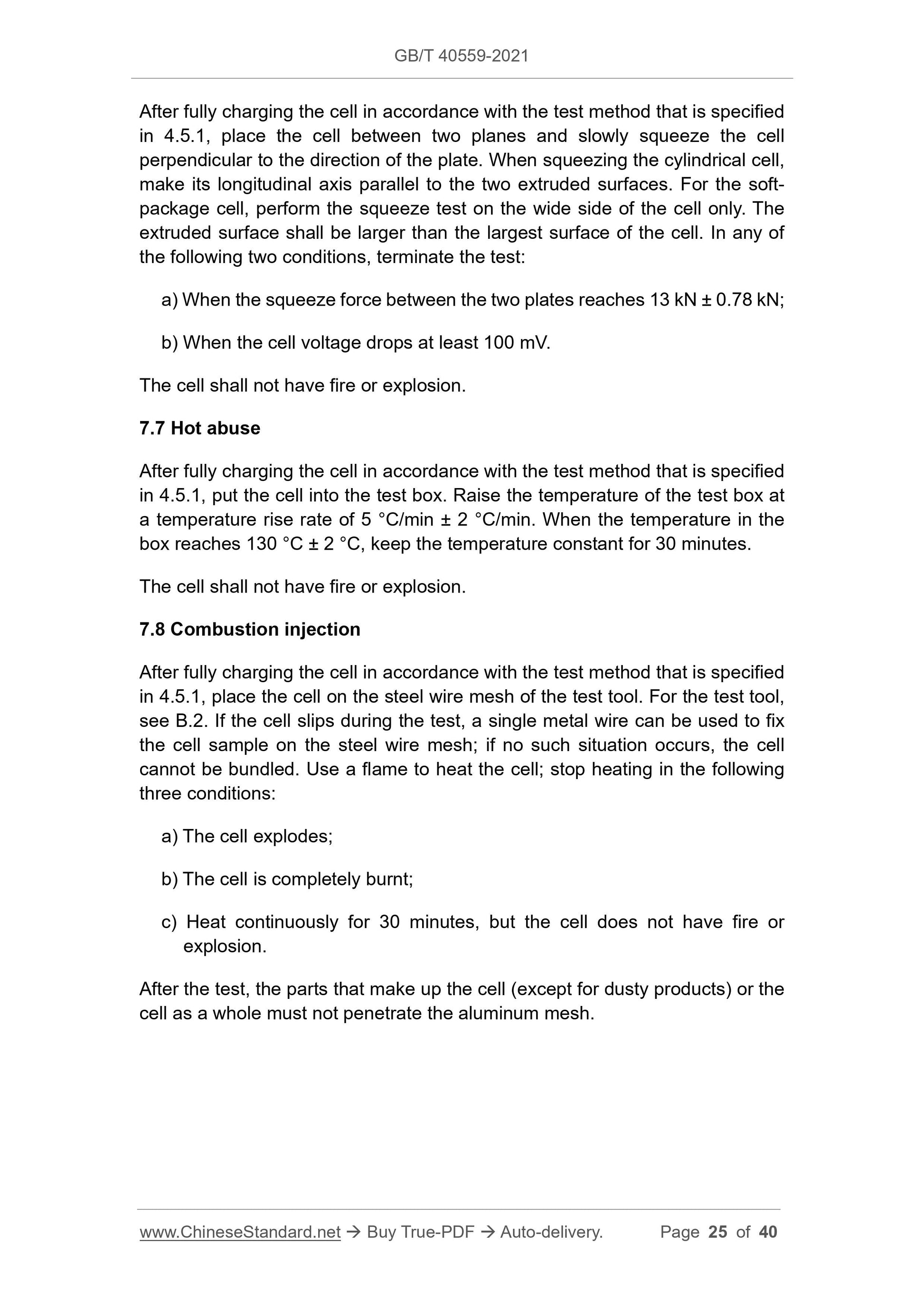

7.6.2 Squeeze
It applies to soft-package and cylindrical cells whose diameter is less than 18.0 mm.
After fully charging the cell in accordance with the test method that is specified in 4.5.1, place the cell between two planes and slowly squeeze the cell perpendicular to the direction of the plate. When squeezing the cylindrical cell, make its longitudinal axis parallel to the two extruded surfaces. For the soft- package cell, perform the squeeze test on the wide side of the cell only. The extruded surface shall be larger than the largest surface of the cell. In any of the following two conditions, terminate the test:
a) When the squeeze force between the two plates reaches 13 kN ?? 0.78 kN; b) When the cell voltage drops at least 100 mV.
The cell shall not have fire or explosion.
7.7 Hot abuse
After fully charging the cell in accordance with the test method that is specified in 4.5.1, put the cell into the test box. Raise the temperature of the test box at a temperature rise rate of 5 ??C/min ?? 2 ??C/min. When the temperature in the box reaches 130 ??C ?? 2 ??C, keep the temperature constant for 30 minutes. The cell shall not have fire or explosion.
7.8 Combustion injection
After fully charging the cell in accordance with the test method that is specified in 4.5.1, place the cell on the steel wire mesh of the test tool. For the test tool, see B.2. If the cell slips during the test, a single metal wire can be used to fix the cell sample on the steel wire mesh; if no such situation occurs, the cell cannot be bundled. Use a flame to heat the cell; stop heating in the following three conditions:
a) The cell explodes;
b) The cell is completely burnt;
c) Heat continuously for 30 minutes, but the cell does not have fire or explosion.
After the test, the parts that make up the cell (except for dusty products) or the cell as a whole must not penetrate the aluminum mesh.
If the time for a discharge-charge cycle is longer than 7 hours, the high temperature test time can be extended to the end of the charge-discharge cycle. 8.8 Salt fog

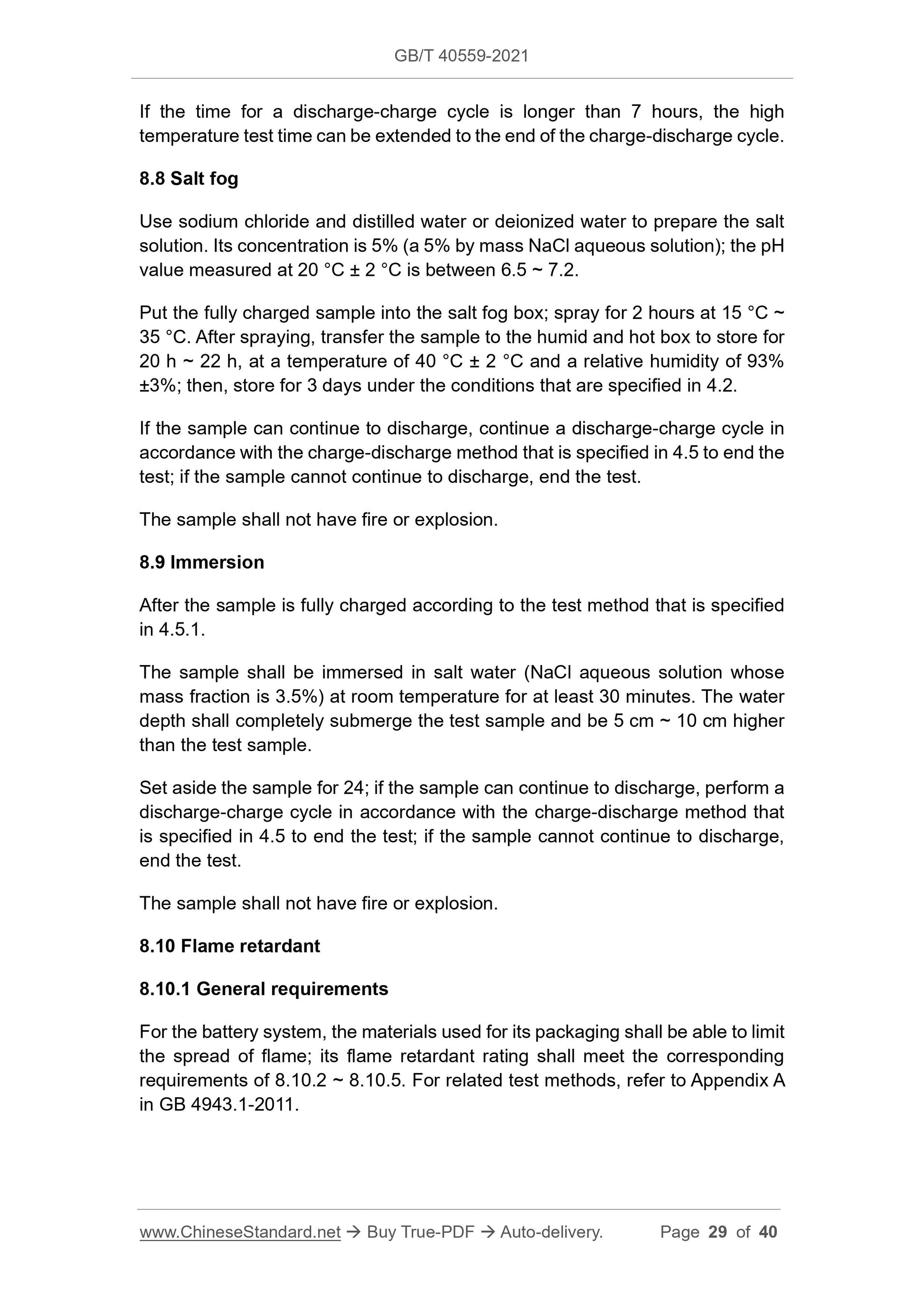

Use sodium chloride and distilled water or deionized water to prepare the salt solution. Its concentration is 5% (a 5% by mass NaCl aqueous solution); the pH value measured at 20 ??C ?? 2 ??C is between 6.5 ~ 7.2.
Put the fully charged sample into the salt fog box; spray for 2 hours at 15 ??C ~ 35 ??C. After spraying, transfer the sample to the humid and hot box to store for 20 h ~ 22 h, at a temperature of 40 ??C ?? 2 ??C and a relative humidity of 93% ??3%; then, store for 3 days under the conditions that are specified in 4.2. If the sample can continue to discharge, continue a discharge-charge cycle in accordance with the charge-discharge method that is specified in 4.5 to end the test; if the sample cannot continue to discharge, end the test.
The sample shall not have fire or explosion.
8.9 Immersion
After the sample is fully charged according to the test method that is specified in 4.5.1.
The sample shall be immersed in salt water (NaCl aqueous solution whose mass fraction is 3.5%) at room temperature for at least 30 minutes. The water depth shall completely submerge the test sample and be 5 cm ~ 10 cm higher than the test sample.
Set aside the sample for 24; if the sample can continue to discharge, perform a discharge-charge cycle in accordance with the charge-discharge method that is specified in 4.5 to end the test; if the sample cannot continue to discharge, end the test.
The sample shall not have fire or explosion.

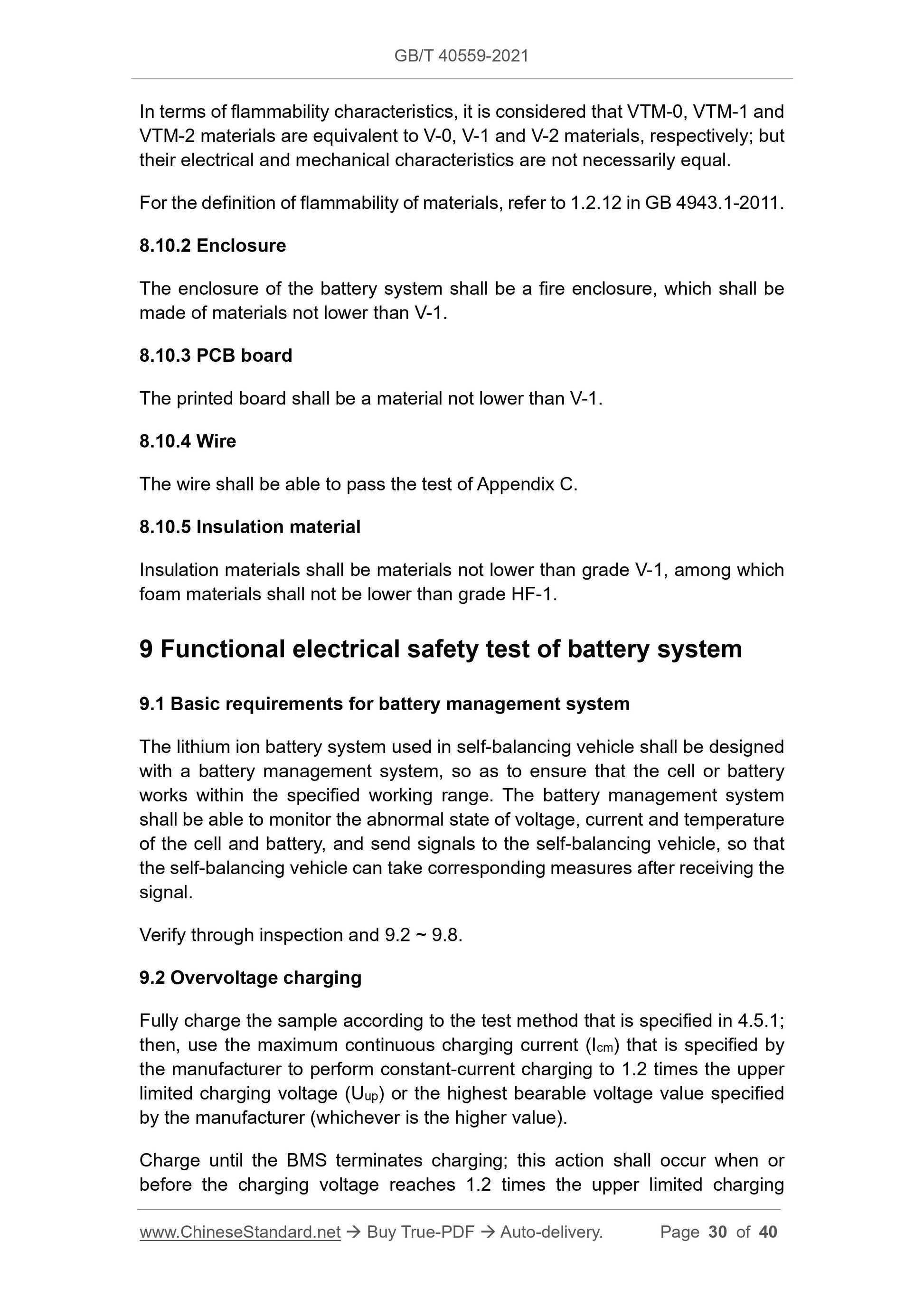

8.10 Flame retardant
8.10.1 General requirements
For the battery system, the materials used for its packaging shall be able to limit the spread of flame; its flame retardant rating shall meet the corresponding requirements of 8.10.2 ~ 8.10.5. For related test methods, refer to Appendix A in GB 4943.1-2011.
In terms of flammability characteristics, it is considered that VTM-0, VTM-1 and VTM-2 materials are equivalent to V-0, V-1 and V-2 materials, respectively; but their electrical and mechanical characteristics are not necessarily equal. For the definition of flammability of materials, refer to 1.2.12 in GB 4943.1-2011. 8.10.2 Enclosure
The enclosure of the battery system shall be a fire enclosure, which shall be made of materials not lower than V-1.
8.10.3 PCB board
The printed board shall be a material not lower than V-1.
8.10.4 Wire
The wire shall be able to pass the test of Appendix C.
8.10.5 Insulation material
Insulation materials shall be materials not lower than grade V-1, among which foam materials shall not be lower than grade HF-1.
9 Functional electrical safety test of battery system
9.1 Basic requirements for battery management system
The lithium ion battery system used in self-balancing vehicle shall be designed with a battery management system, so as to ensure that the cell or battery works within the specified working range. The battery management system shall be able to monitor the abnormal state of voltage, current and temperature of the cell and battery, and send signals to the self-balancing vehicle, so that the self-balancing vehicle can take corresponding measures after receiving the signal.
Verify through inspection and 9.2 ~ 9.8.
9.2 Overvoltage charging
Fully charge the sample according to the test method that is specified in 4.5.1; then, use the maximum continuous charging current (Icm) that is specified by the manufacturer to perform constant-current charging to 1.2 times the upper limited charging voltage (Uup) or the highest bearable voltage value specified by the manufacturer (whichever is the higher value).
Charge until the BMS terminates charging; this action shall occur when or before the charging voltage reaches 1.2 times the upper limited charging 9.5 Overcurrent charging
Discharge the sample in accordance with the test method that is specified in 4.5.2; then, use 1.5 times the over current for charge protection (Icp) for constant-current charging, to the upper limited charging voltage Uup. The BMS shall detect overcurrent charging and take protective actions. Test the sample 3 times.
After the test is completed, perform a discharge-charge cycle in accordance with the provisions of 4.5.
The sample shall not have fire, explosion or leakage.

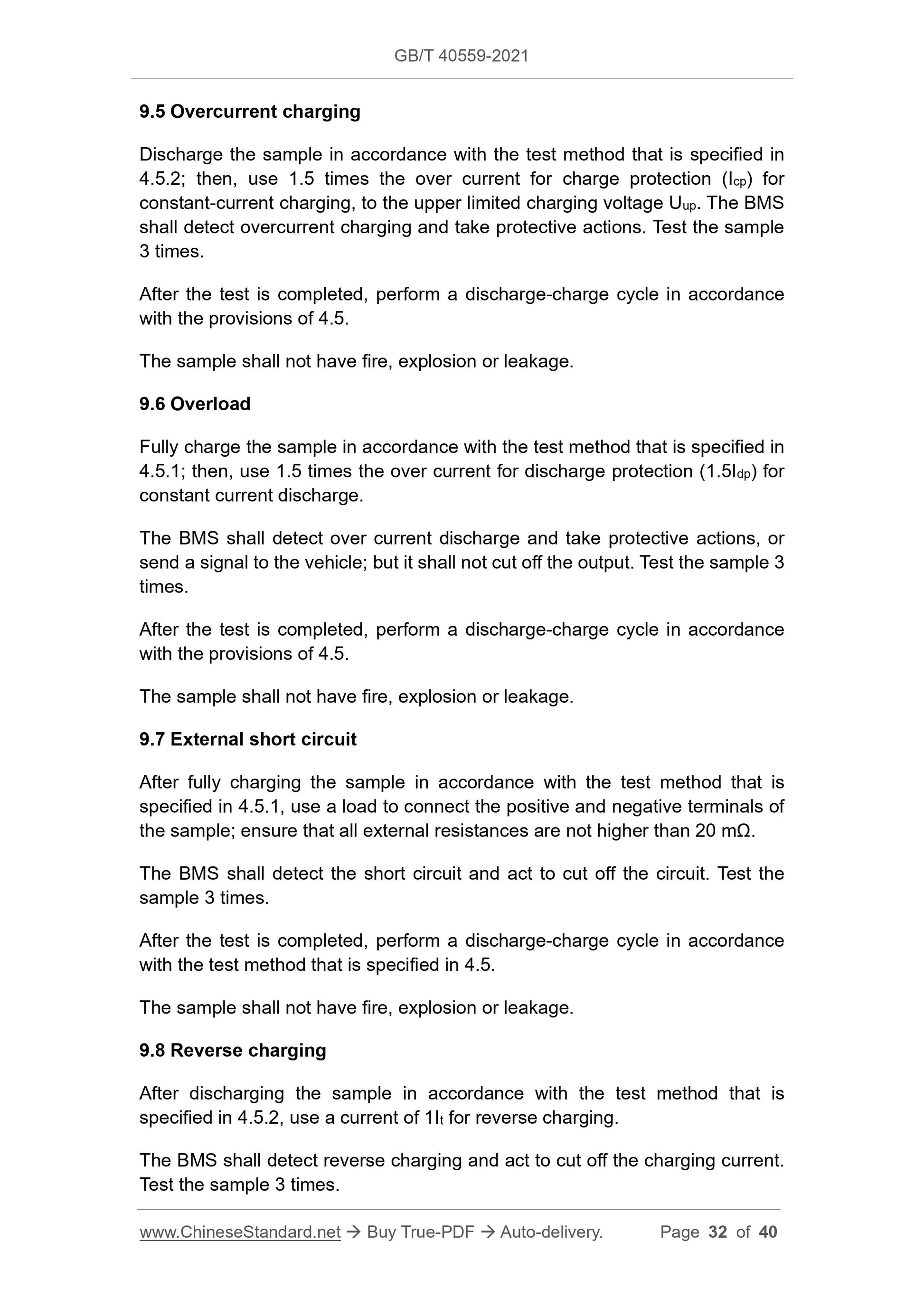

9.6 Overload
Fully charge the sample in accordance with the test method that is specified in 4.5.1; then, use 1.5 times the over current for discharge protection (1.5Idp) for constant current discharge.
The BMS shall detect over current discharge and take protective actions, or send a signal to the vehicle; but it shall not cut off the output. Test the sample 3 times.
After the test is completed, perform a discharge-charge cycle in accordance with the provisions of 4.5.
The sample shall not have fire, explosion or leakage.
9.7 External short circuit
After fully charging the sample in accordance with the test method that is specified in 4.5.1, use a load to connect the positive and negative terminals of the sample; ensure that all external resistances are not higher than 20 m??. The BMS shall detect the short circuit and act to cut off the circuit. Test the sample 3 times.
After the test is completed, perform a discharge-charge cycle in accordance with the test method that is specified in 4.5.
The sample shall not have fire, explosion or leakage.
9.8 Reverse charging
After discharging the sample in accordance with the test method that is specified in 4.5.2, use a current of 1It for reverse charging.
The BMS shall detect reverse charging and act to cut off the charging current. Test the sample 3 times.
The sample shall not have fire, explosion or leakage.
Check the plug or connector design of the cell. The design shall be able to avoid reversed polarity connection.

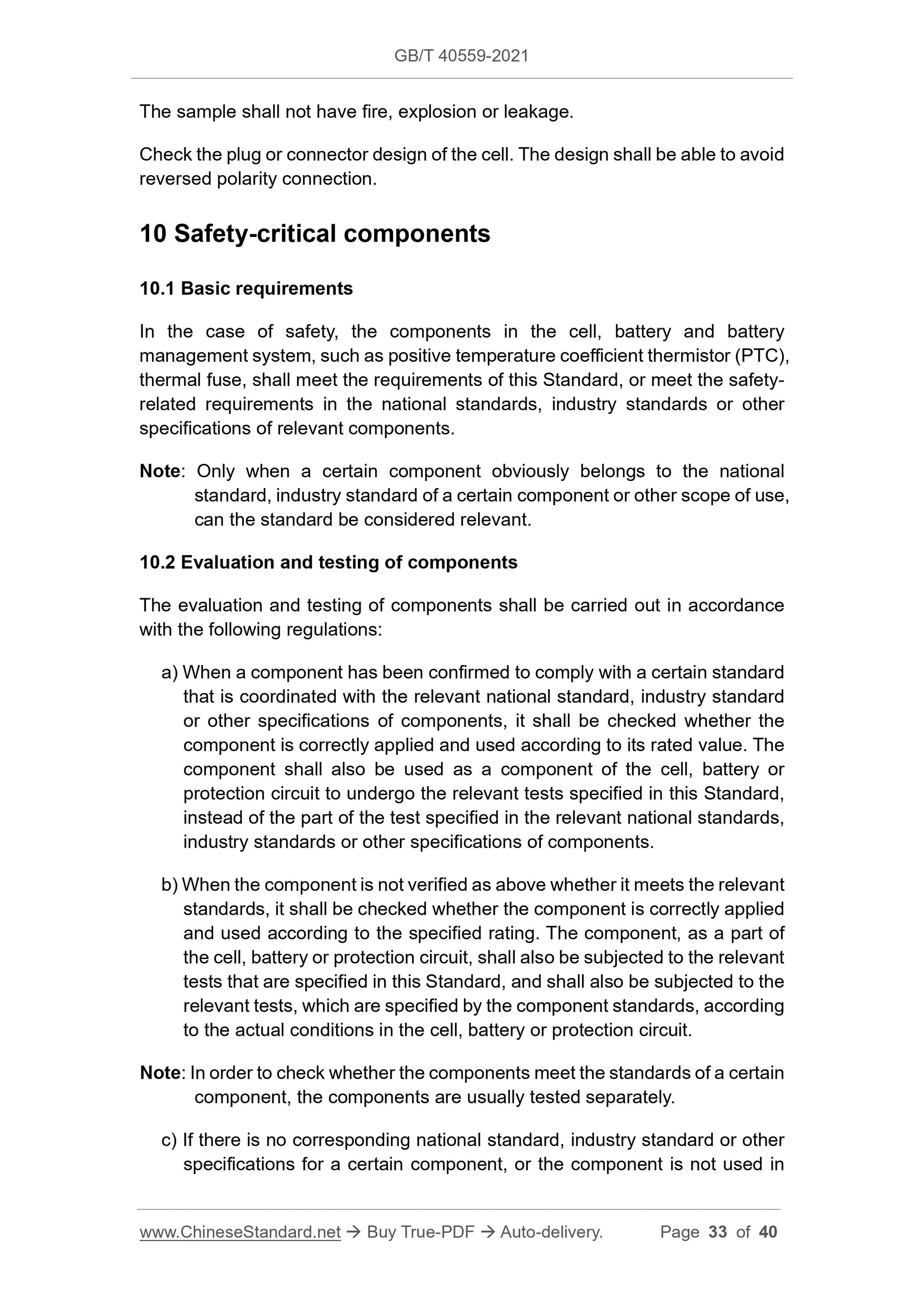

10 Safety-critical components
10.1 Basic requirements
In the case of safety, the components in the cell, battery and battery
management system, such as positive temperature coefficient thermistor (PTC), thermal fuse, shall meet the requirements of this Standard, or meet the safety- related requirements in the national standards, industry standards or other specifications of relevant components.
Note: Only when a certain component obviously belongs to the national
standard, industry standard of a certain component or other scope of use, can the standard be considered relevant.
10.2 Evaluation and testing of components
The evaluation and testing of components shall be carried out in accordance with the following regulations:
a) When a component has been confirmed to comply with a certain standard that is coordinated with the relevant national standard, industry standard or other specifications of components, it shall be checked whether the
component is correctly applied and used according to its rated value. The component shall also be used as a component of the cell, battery or
protection circuit to undergo the relevant tests specified in this Standard, instead of the part of the test specified in the relevant national standards, industry standards or other specifications of components.
b) When the component is not verified as above whether it meets the relevant standards, it shall be checked whether the component is correctly applied and used according to the specified rating. The component, as a part of the cell, battery or protection circuit, shall also be subjected...
