GB/T 40230.1-2021: Methods of visual fatigue test and evaluation - Part 1: Ophthalmology and optometry
This document specifies the test methods and technical requirements for ophthalmology and optometry of visual fatigue. This document is applicable to the test and evaluation of visual fatigue caused by the long-term application of visual display terminal products or lighting products in various places of work and life, etc. This document is not applicable to the measurement of photo-biological safety effects on human beings brought by display or lighting products.

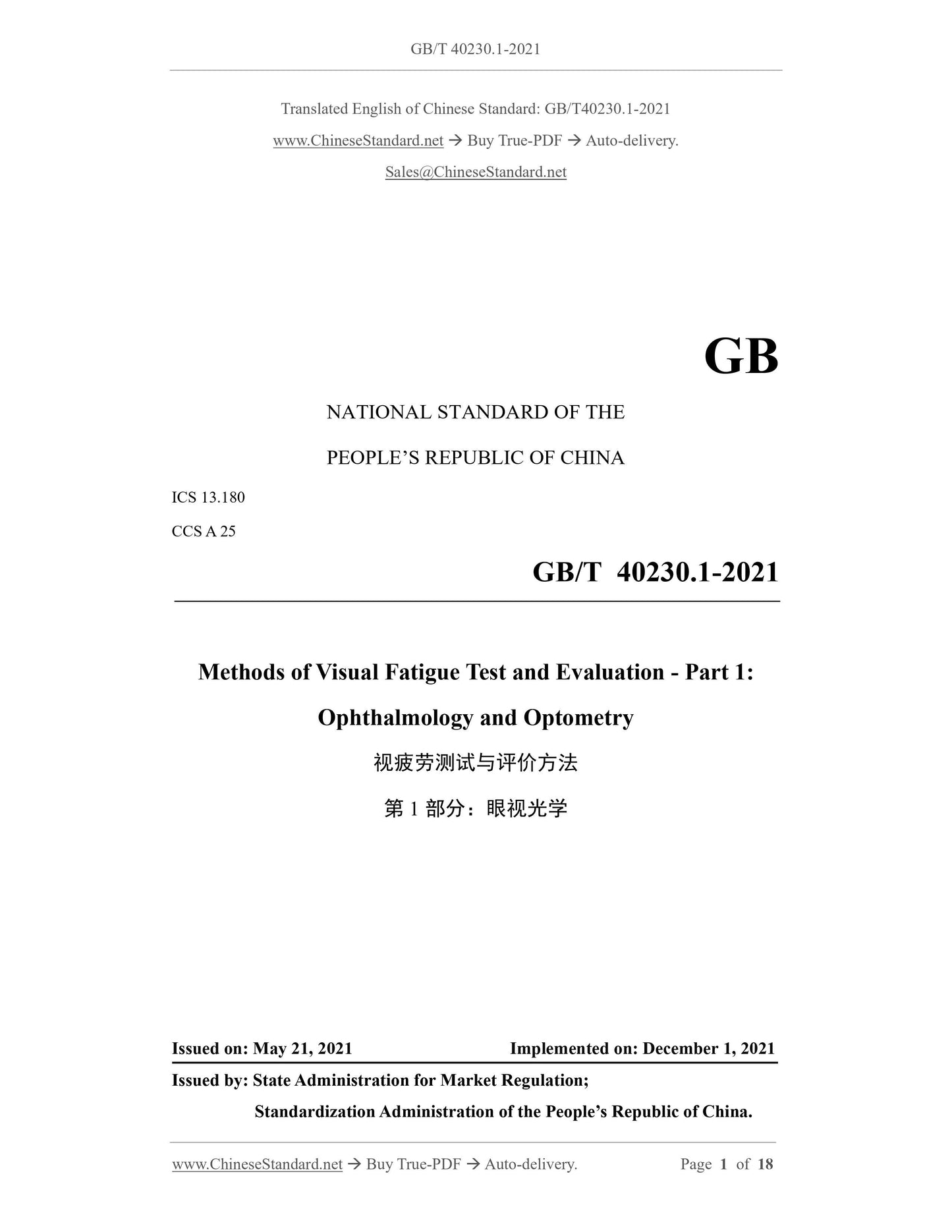

GB/T 40230.1-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 13.180
CCS A 25
Methods of Visual Fatigue Test and Evaluation - Part 1:
Ophthalmology and Optometry
ISSUED ON: MAY 21, 2021
IMPLEMENTED ON: DECEMBER 1, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

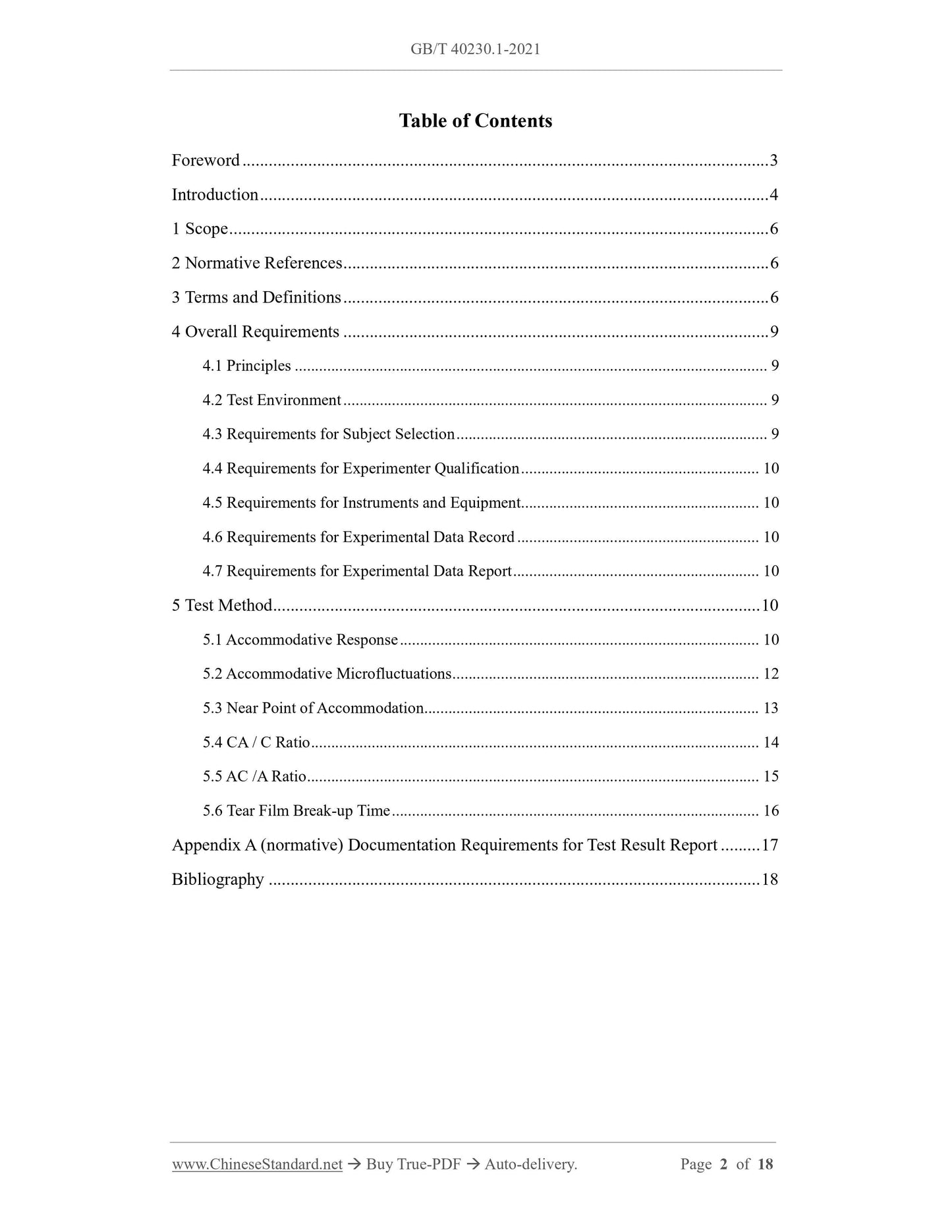

Table of Contents
Foreword ... 3
Introduction ... 4
1 Scope ... 6
2 Normative References ... 6
3 Terms and Definitions ... 6
4 Overall Requirements ... 9
4.1 Principles ... 9
4.2 Test Environment ... 9
4.3 Requirements for Subject Selection ... 9
4.4 Requirements for Experimenter Qualification ... 10
4.5 Requirements for Instruments and Equipment ... 10
4.6 Requirements for Experimental Data Record ... 10
4.7 Requirements for Experimental Data Report ... 10
5 Test Method ... 10
5.1 Accommodative Response ... 10
5.2 Accommodative Microfluctuations ... 12
5.3 Near Point of Accommodation ... 13
5.4 CA / C Ratio ... 14
5.5 AC /A Ratio ... 15
5.6 Tear Film Break-up Time ... 16
Appendix A (normative) Documentation Requirements for Test Result Report ... 17 Bibliography ... 18
Methods of Visual Fatigue Test and Evaluation - Part 1:
Ophthalmology and Optometry

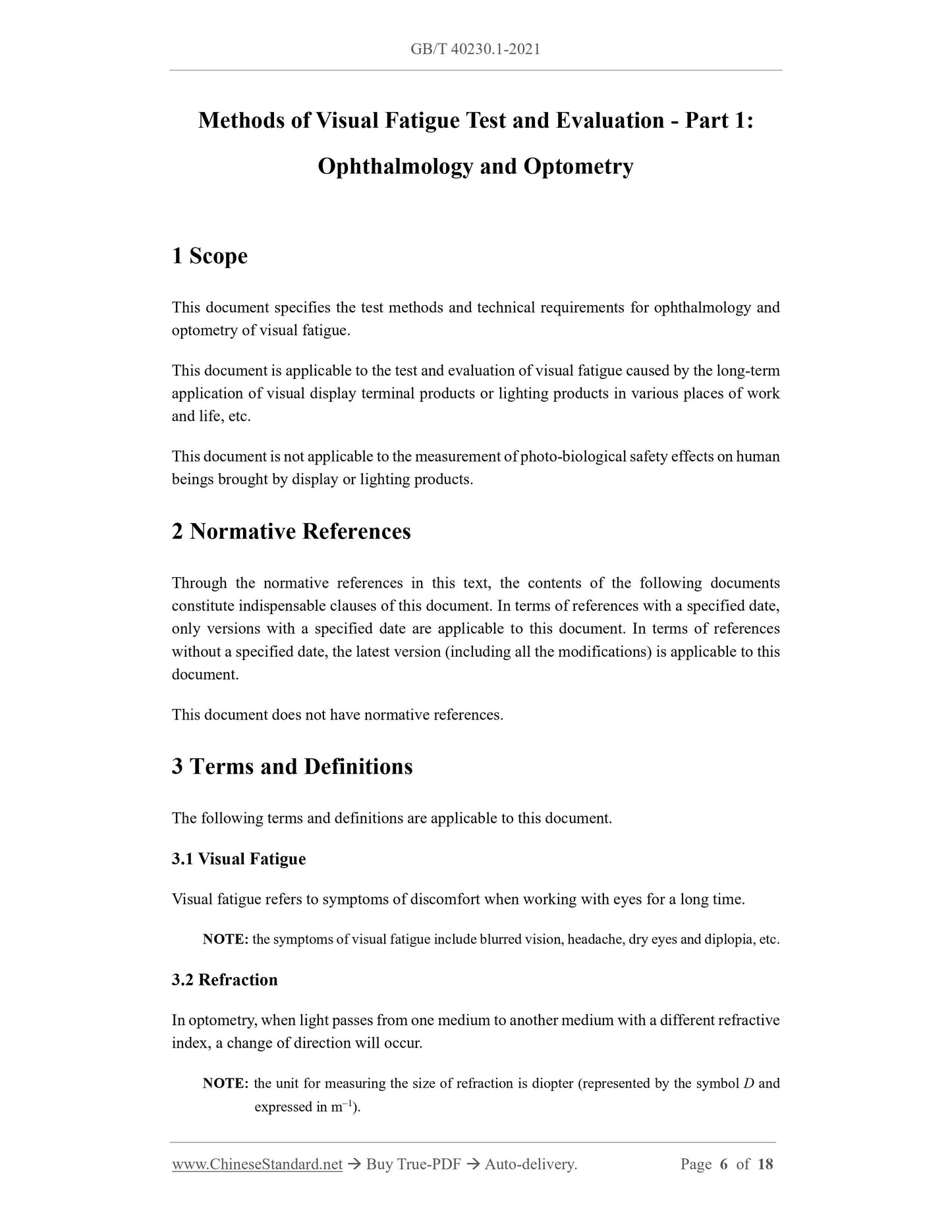

1 Scope
This document specifies the test methods and technical requirements for ophthalmology and optometry of visual fatigue.
This document is applicable to the test and evaluation of visual fatigue caused by the long-term application of visual display terminal products or lighting products in various places of work and life, etc.
This document is not applicable to the measurement of photo-biological safety effects on human beings brought by display or lighting products.
2 Normative References
Through the normative references in this text, the contents of the following documents constitute indispensable clauses of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document.
This document does not have normative references.
3 Terms and Definitions
The following terms and definitions are applicable to this document.
3.1 Visual Fatigue
Visual fatigue refers to symptoms of discomfort when working with eyes for a long time. NOTE: the symptoms of visual fatigue include blurred vision, headache, dry eyes and diplopia, etc. 3.2 Refraction
In optometry, when light passes from one medium to another medium with a different refractive index, a change of direction will occur.
NOTE: the unit for measuring the size of refraction is diopter (represented by the symbol D and expressed in m1).

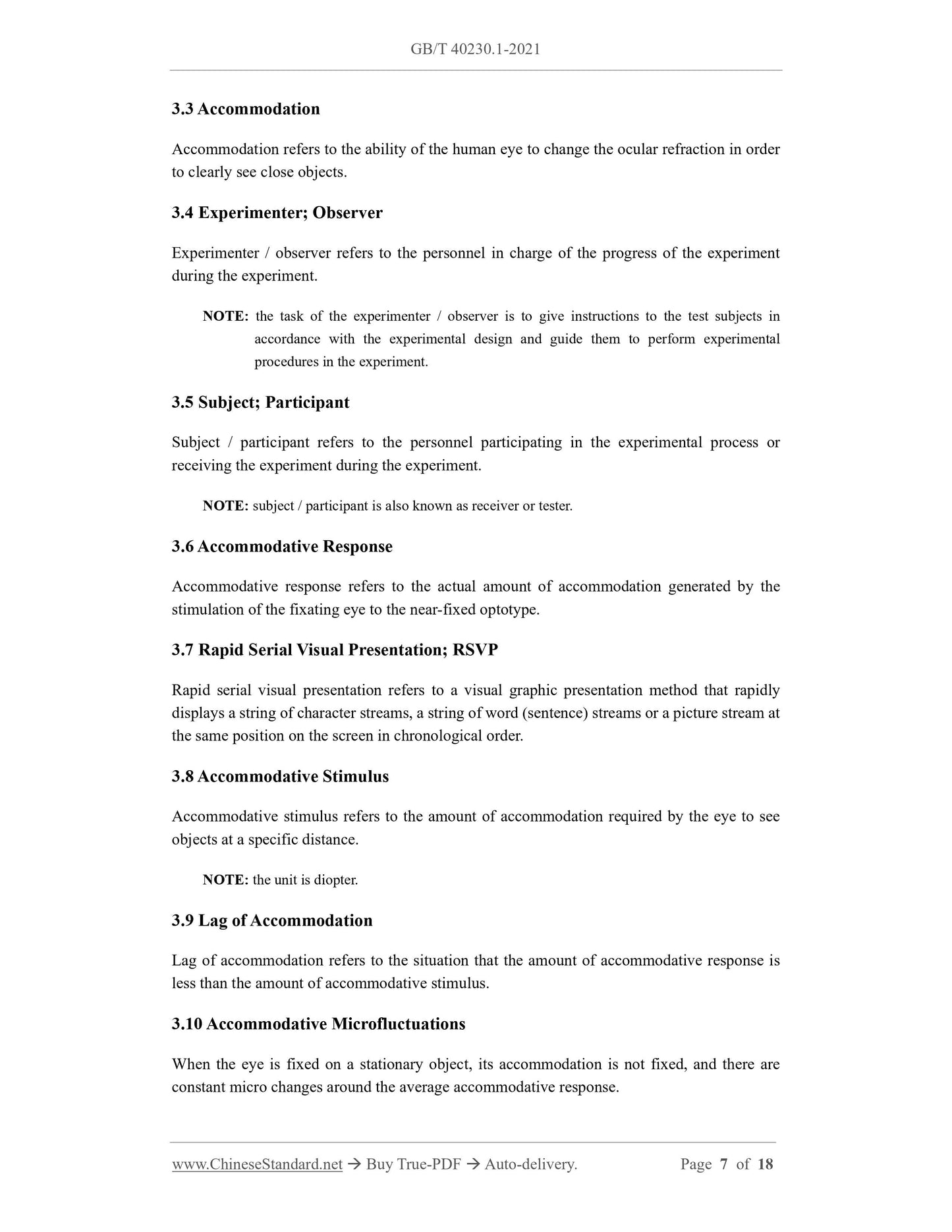

3.3 Accommodation
Accommodation refers to the ability of the human eye to change the ocular refraction in order to clearly see close objects.
3.4 Experimenter; Observer
Experimenter / observer refers to the personnel in charge of the progress of the experiment during the experiment.
NOTE: the task of the experimenter / observer is to give instructions to the test subjects in accordance with the experimental design and guide them to perform experimental procedures in the experiment.
3.5 Subject; Participant
Subject / participant refers to the personnel participating in the experimental process or receiving the experiment during the experiment.
NOTE: subject / participant is also known as receiver or tester.
3.6 Accommodative Response
Accommodative response refers to the actual amount of accommodation generated by the stimulation of the fixating eye to the near-fixed optotype.
3.7 Rapid Serial Visual Presentation; RSVP
Rapid serial visual presentation refers to a visual graphic presentation method that rapidly displays a string of character streams, a string of word (sentence) streams or a picture stream at the same position on the screen in chronological order.
3.8 Accommodative Stimulus
Accommodative stimulus refers to the amount of accommodation required by the eye to see objects at a specific distance.
NOTE: the unit is diopter.
3.9 Lag of Accommodation
Lag of accommodation refers to the situation that the amount of accommodative response is less than the amount of accommodative stimulus.
3.10 Accommodative Microfluctuations
When the eye is fixed on a stationary object, its accommodation is not fixed, and there are constant micro changes around the average accommodative response.
on the same optotype.

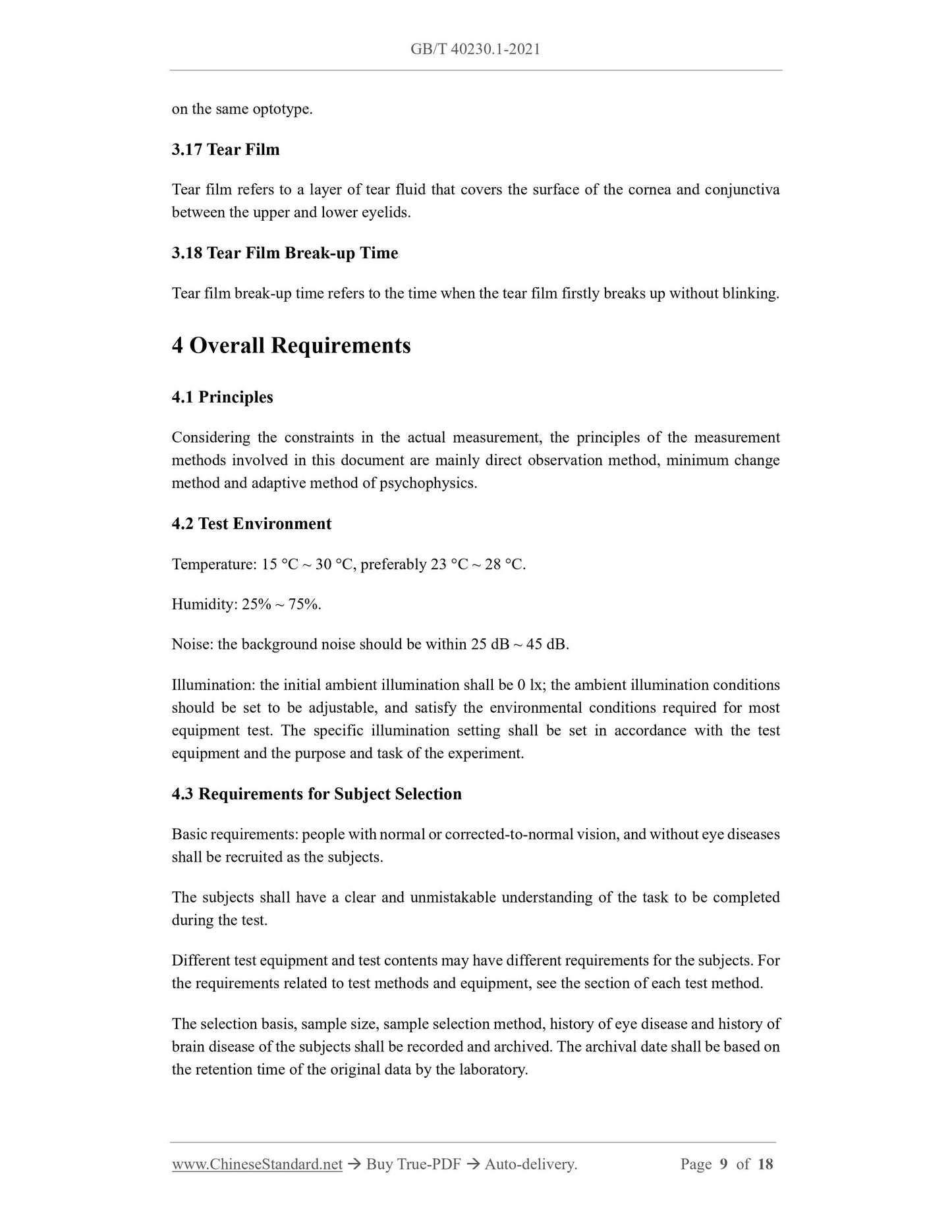

3.17 Tear Film
Tear film refers to a layer of tear fluid that covers the surface of the cornea and conjunctiva between the upper and lower eyelids.
3.18 Tear Film Break-up Time
Tear film break-up time refers to the time when the tear film firstly breaks up without blinking. 4 Overall Requirements
4.1 Principles
Considering the constraints in the actual measurement, the principles of the measurement methods involved in this document are mainly direct observation method, minimum change method and adaptive method of psychophysics.
4.2 Test Environment
Temperature: 15 C ~ 30 C, preferably 23 C ~ 28 C.
Humidity: 25% ~ 75%.
Noise: the background noise should be within 25 dB ~ 45 dB.
Illumination: the initial ambient illumination shall be 0 lx; the ambient illumination conditions should be set to be adjustable, and satisfy the environmental conditions required for most equipment test. The specific illumination setting shall be set in accordance with the test equipment and the purpose and task of the experiment.
4.3 Requirements for Subject Selection
Basic requirements: people with normal or corrected-to-normal vision, and without eye diseases shall be recruited as the subjects.
The subjects shall have a clear and unmistakable understanding of the task to be completed during the test.
Different test equipment and test contents may have different requirements for the subjects. For the requirements related to test methods and equipment, see the section of each test method. The selection basis, sample size, sample selection method, history of eye disease and history of brain disease of the subjects shall be recorded and archived. The archival date shall be based on the retention time of the original data by the laboratory.

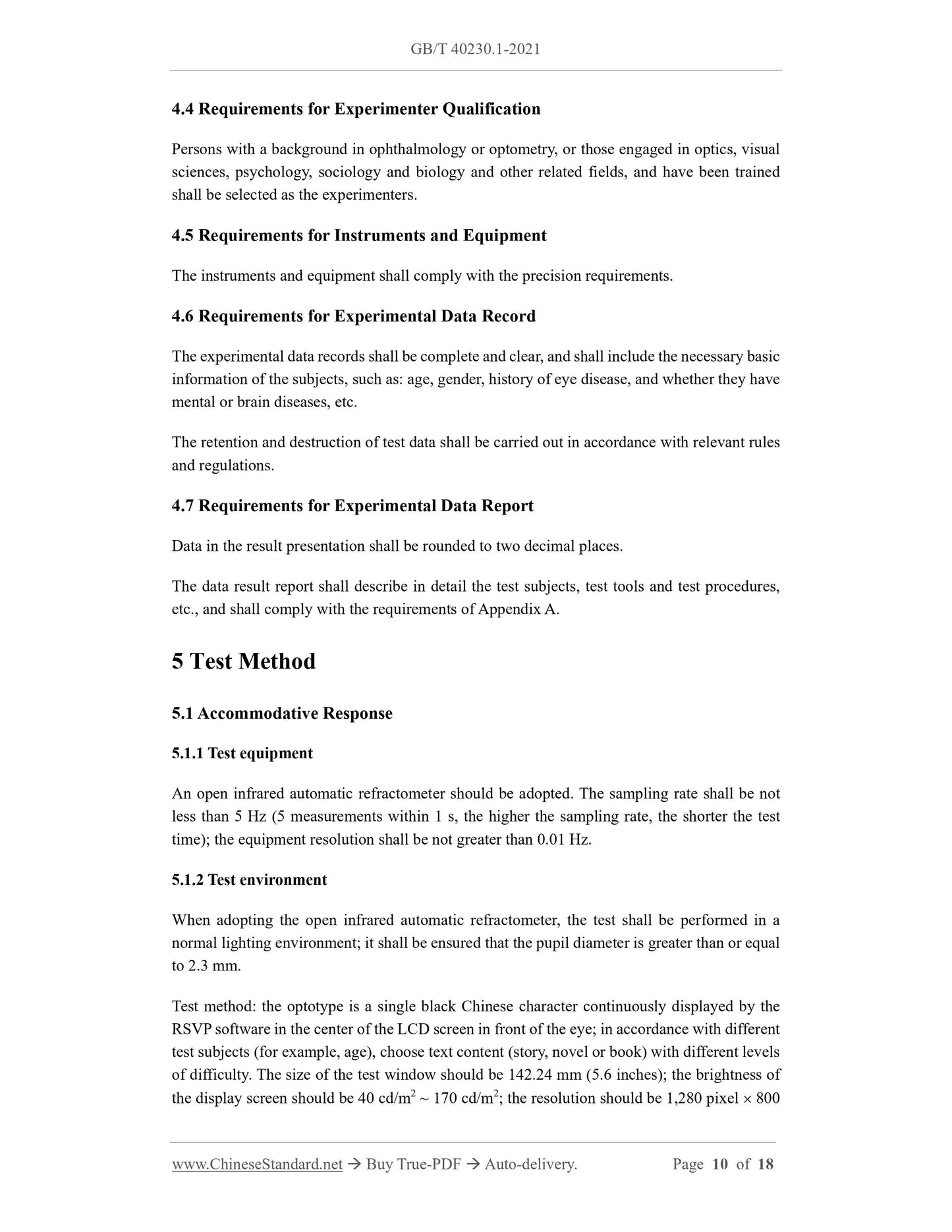

4.4 Requirements for Experimenter Qualification
Persons with a background in ophthalmology or optometry, or those engaged in optics, visual sciences, psychology, sociology and biology and other related fields, and have been trained shall be selected as the experimenters.
4.5 Requirements for Instruments and Equipment
The instruments and equipment shall comply with the precision requirements. 4.6 Requirements for Experimental Data Record
The experimental data records shall be complete and clear, and shall include the necessary basic information of the subjects, such as: age, gender, history of eye disease, and whether they have mental or brain diseases, etc.
The retention and destruction of test data shall be carried out in accordance with relevant rules and regulations.
4.7 Requirements for Experimental Data Report
Data in the result presentation shall be rounded to two decimal places. The data result report shall describe in detail the test subjects, test tools and test procedures, etc., and shall comply with the requirements of Appendix A.
5 Test Method
5.1 Accommodative Response
5.1.1 Test equipment
An open infrared automatic refractometer should be adopted. The sampling rate shall be not less than 5 Hz (5 measurements within 1 s, the higher the sampling rate, the shorter the test time); the equipment resolution shall be not greater than 0.01 Hz.
5.1.2 Test environment
When adopting the open infrared automatic refractometer, the test shall be performed in a normal lighting environment; it shall be ensured that the pupil diameter is greater than or equal to 2.3 mm.
Test method: the optotype is a single black Chinese character continuously displayed by the RSVP software in the center of the LCD screen in front of the eye; in accordance with different test subjects (for example, age), choose text content (story, novel or book) with different levels of difficulty. The size of the test window should be 142.24 mm (5.6 inches); the brightness of the display screen should be 40 cd/m2 ~ 170 cd/m2; the resolution should be 1,280 pixel  800 LensPower---the power added before the eye, expressed in (D).

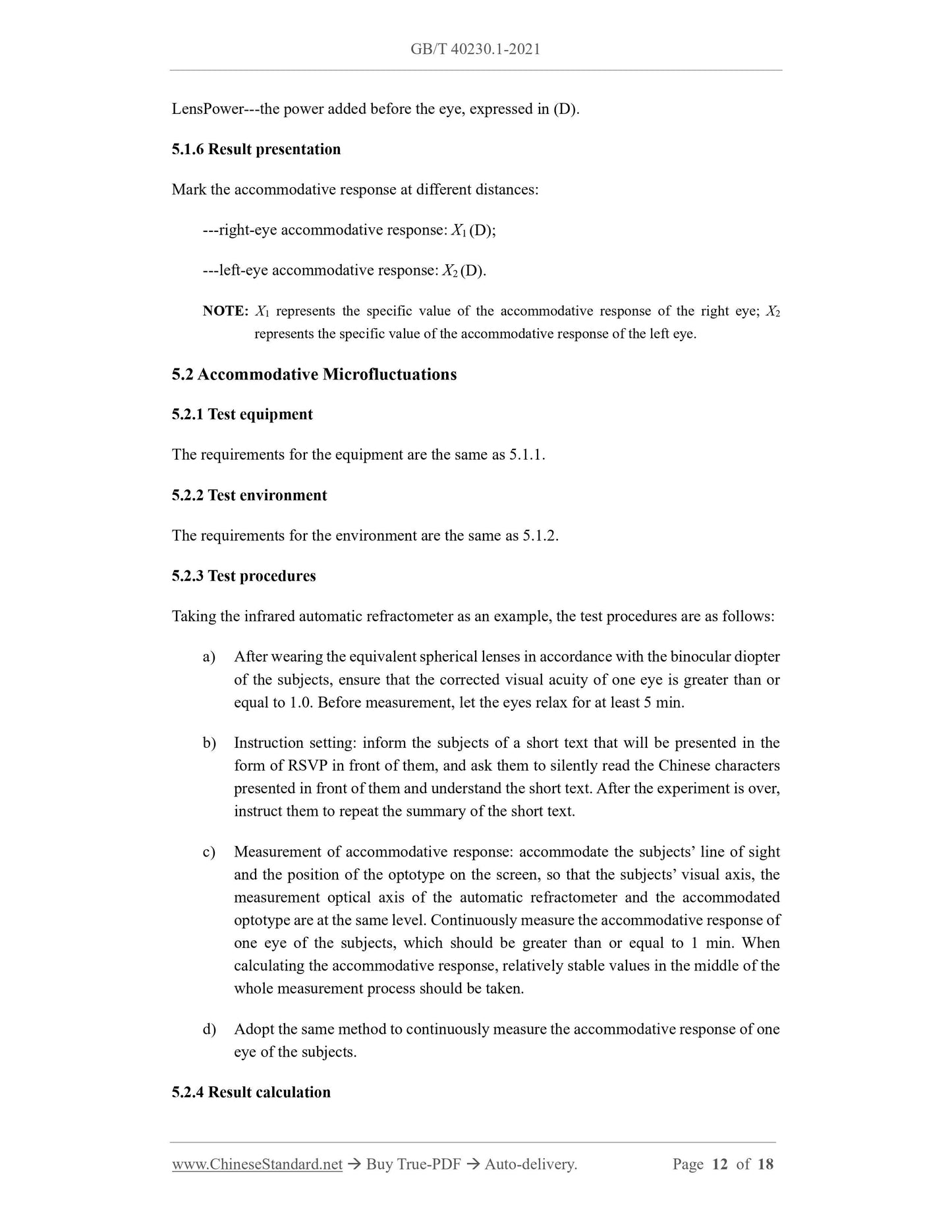

5.1.6 Result presentation
Mark the accommodative response at different distances:
---right-eye accommodative response: X1 (D);
---left-eye accommodative response: X2 (D).
NOTE: X1 represents the specific value of the accommodative response of the right eye; X2 represents the specific value of the accommodative response of the left eye. 5.2 Accommodative Microfluctuations
5.2.1 Test equipment
The requirements for the equipment are the same as 5.1.1.
5.2.2 Test environment
The requirements for the environment are the same as 5.1.2.
5.2.3 Test procedures
Taking the infrared automatic refractometer as an example, the test procedures are as follows: a) After wearing the equivalent spherical lenses in accordance with the binocular diopter of the subjects, ensure that the corrected visual acuity of one eye is greater than or equal to 1.0. Before measurement, let the eyes relax for at least 5 min. b) Instruction setting: inform the subjects of a short text that will be presented in the form of RSVP in front of them, and ask them to silently read the Chinese characters presented in front of them and understand the short text. After the experiment is over, instruct them to repeat the summary of the short text.
c) Measurement of accommodative response: accommodate the subjects’ line of sight and the position of the optotype on the screen, so that the subjects’ visual axis, the measurement optical axis of the automatic refractometer and the accommodated optotype are at the same level. Continuously measure the accommodative response of one eye of the subjects, which should be greater than or equal to 1 min. When calculating the accommodative response, relatively stable values in the middle of the whole measurement process should be taken.
d) Adopt the same method to continuously measure the accommodative response of one eye of the subjects.
5.2.4 Result calculation

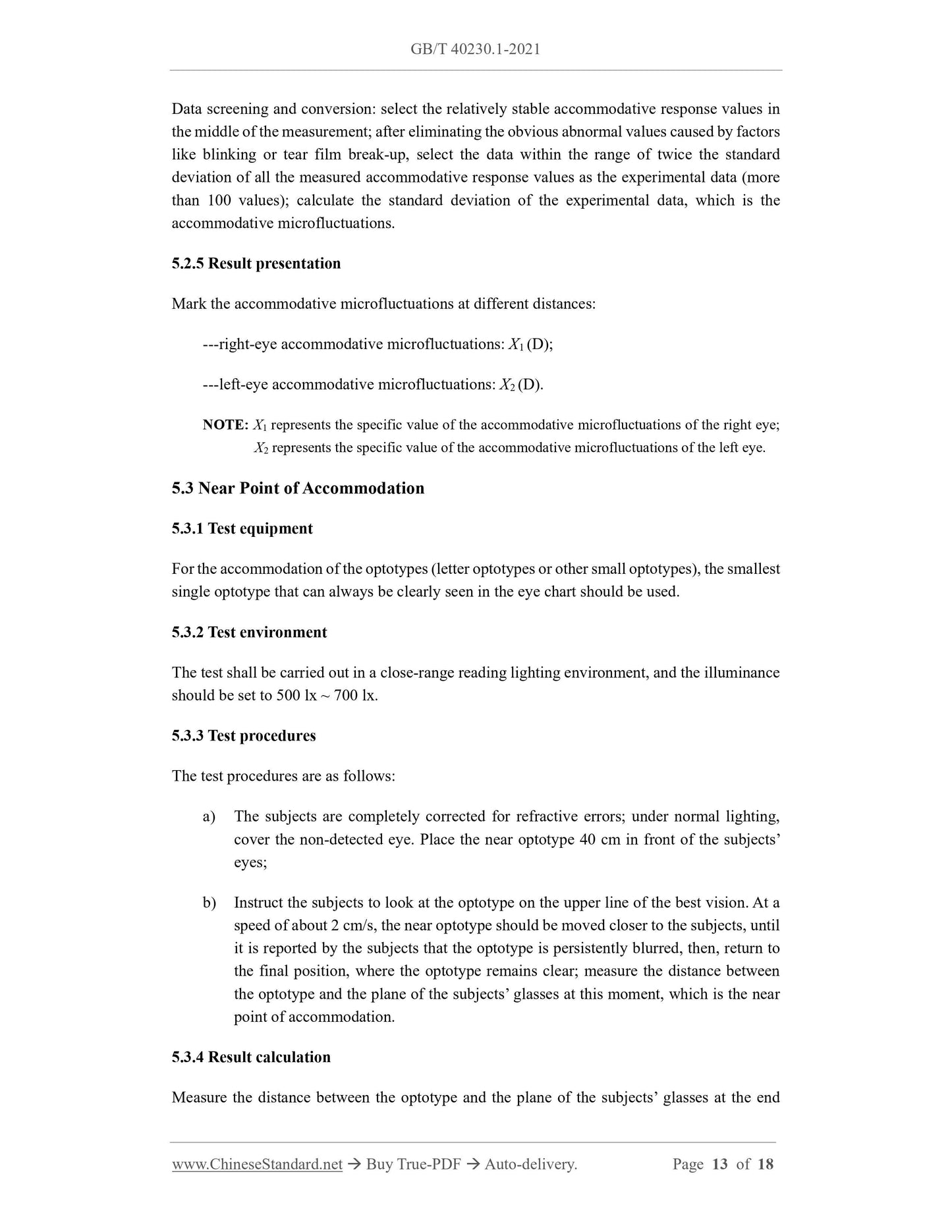

Data screening and conversion: select the relatively stable accommodative response values in the middle of the measurement; after eliminating the obvious abnormal values caused by factors like blinking or tear film break-up, select the data within the range of twice the standard deviation of all the measured accommodative response values as the experimental data (more than 100 values); calculate the standard deviation of the experimental data, which is the accommodative microfluctuations.
5.2.5 Result presentation
Mark the accommodative microfluctuations at different distances:
---right-eye accommodative microfluctuations: X1 (D);
---left-eye accommodative microfluctuations: X2 (D).
NOTE: X1 represents the specific value of the accommodative microfluctuations of the right eye; X2 represents the specific value of the accommodative microfluctuations of the left eye. 5.3 Near Point of Accommodation
5.3.1 Test equipment
For the accommodation of the optotypes (letter optotypes or other small optotypes), the smallest single optotype that can always be clearly seen in the eye chart should be used. 5.3.2 Test environment
The test shall be carried out in a close-range reading lighting environment, and the illuminance should be set to 500 lx ~ 700 lx.
5.3.3 Test procedures
The test procedures are as follows:
a) The subjects are completely corrected for refractive errors; under normal lighting, cover the non-detected eye. Place the near optotype 40 cm in front of the subjects’ eyes;
b) Instruct the subjects to look at the optotype on the upper line of the best vision. At a speed of about 2 cm/s, the near optotype should be moved closer to the subjects, until it is reported by the subjects that the optotype is persistently blurred, then, return to the final position, where the optotype remains clear; measure the distance between the optotype and the plane of the subjects’ glasses at this moment, which is the near point of accommodation.
5.3.4 Result calculation
Measure the distance between the optotype and the plane of the subjects’ glasses at the end NOTE: the advance of accommodation means that the amount of accommodative response is greater than the amount of accommodative stimulus.

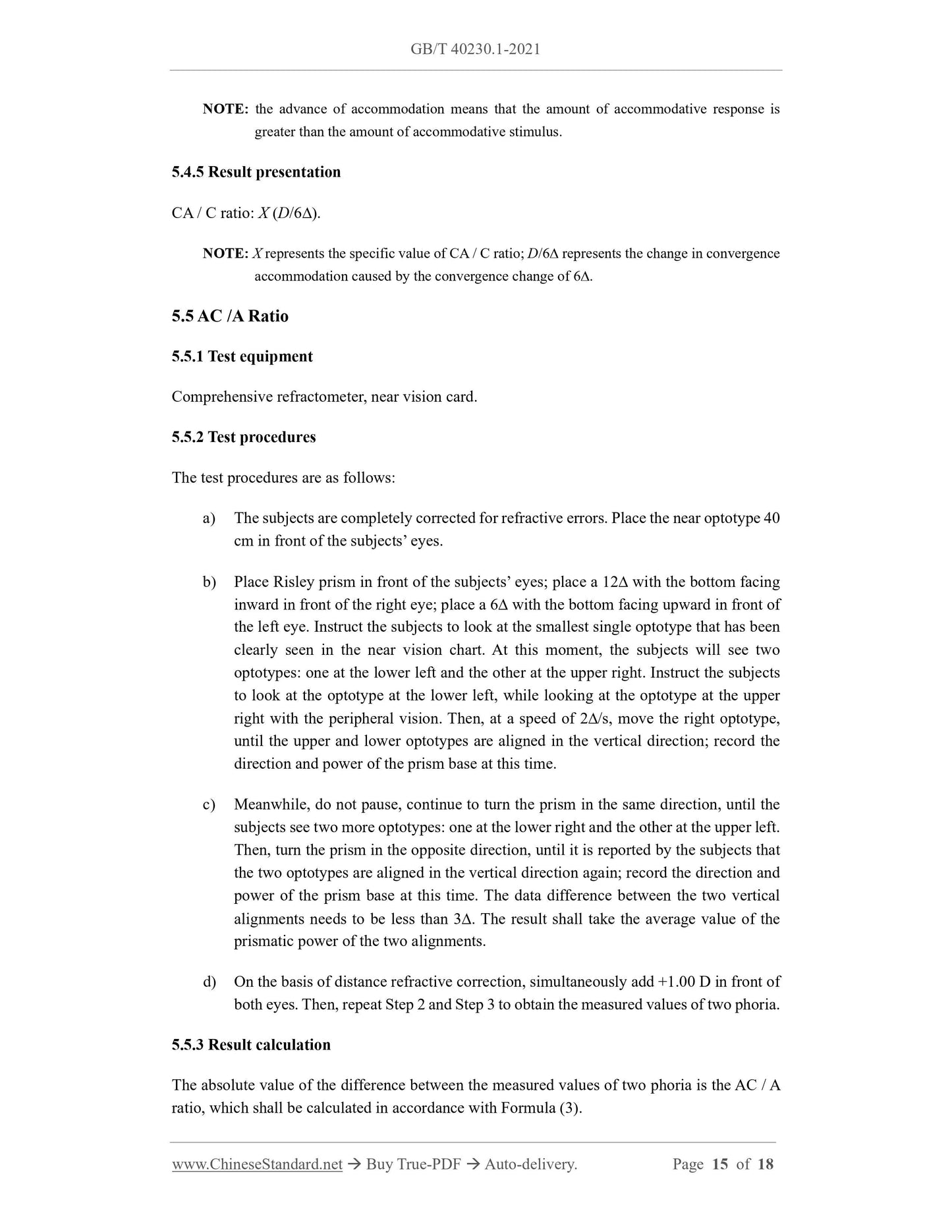

5.4.5 Result presentation
CA / C ratio: X (D/6).
NOTE: X represents the specific value of CA / C ratio; D/6 represents the change in convergence accommodation caused by the convergence change of 6.
5.5 AC /A Ratio
5.5.1 Test equipment
Comprehensive refractometer, near vision card.
5.5.2 Test procedures
The test procedures are as follows:
a) The subjects are completely corrected for refractive errors. Place the near optotype 40 cm in front of the subjects’ eyes.
b) Place Risley prism in front of the subjects’ eyes; place a 12 with the bottom facing inward in front of the right eye; place a 6 with the bottom facing upward in front of the left eye. Instruct the subjects to look at the smallest single optotype that has been clearly seen in the near vision chart. At this moment, the subjects will see two optotypes: one at the lower left and the other at the upper right. Instruct the subjects to look at the optotype at the lower left, while looking at the optotype at the upper right with the peripheral vision. Then, at a speed of 2/s, move the right optotype, until the upper and lower optotypes are aligned in the vertical direction; record the direction and power of the prism base at this time.
c) Meanwhile, do not pause, continue to turn the prism in the same direction, until the subjects see two more optotypes: one at the lower right and the other at the upper left. Then, turn the prism in the opposite direction, until it is reported by the subjects that the two optotypes are aligned in the vertical direction again; record the direction and power of the prism base at this time. The data difference between the two vertical alignments needs to be less than 3. The result shall take the average value of the prismatic power of the two alignments.
d) On the basis of distance refractive correction, simultaneously add +1.00 D in front of both eyes. Then, repeat Step 2 and Step 3 to obtain the measured values of two phoria. 5.5.3 Result calculation
The absolute value of the difference between the measured values of two phoria is the AC / A ratio, which shall be calculated in accordance with Formula (3).

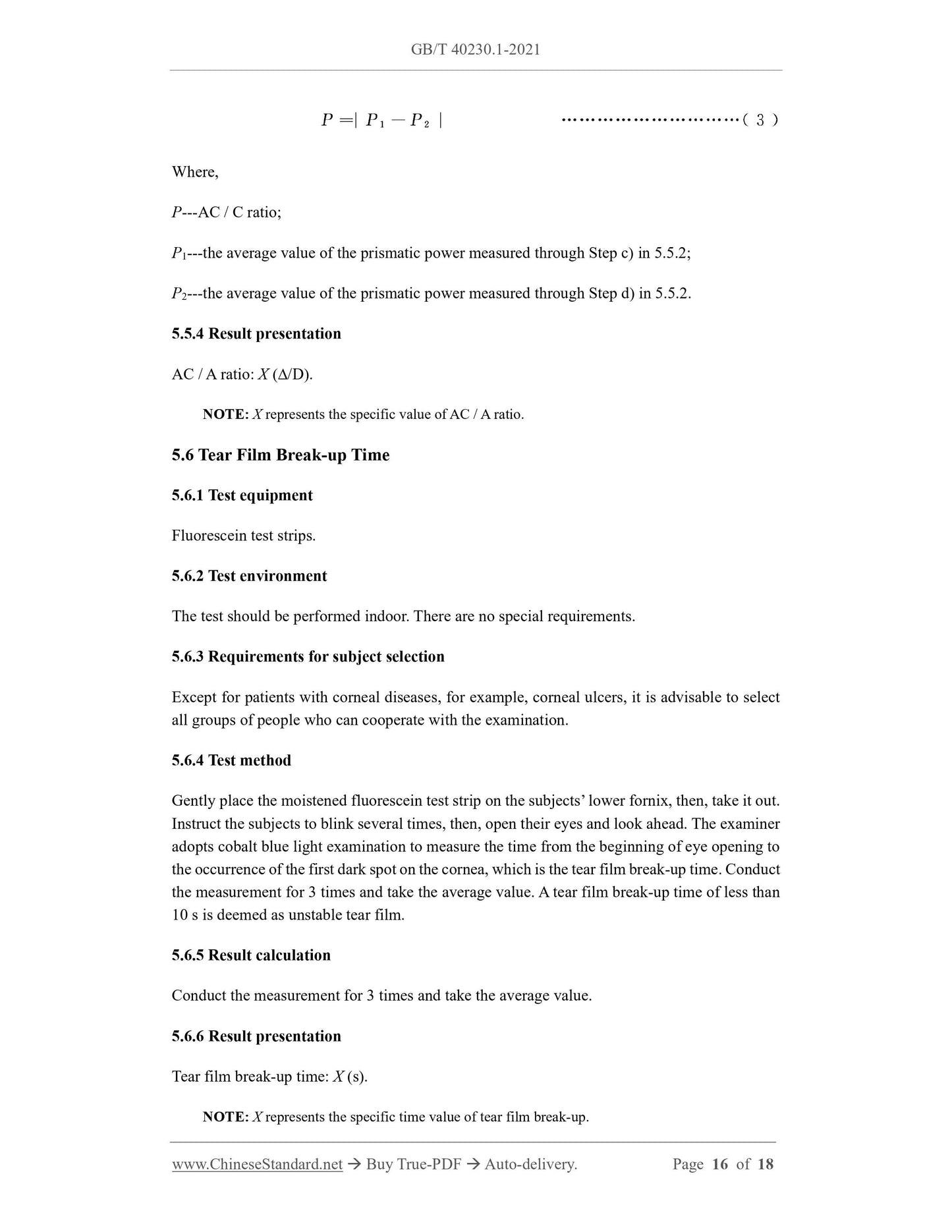

Where,
P---AC / C ratio;
P1---the average value of the prismatic power measured through Step c) in 5.5.2; P2---the average value of the prismatic power measured through Step d) in 5.5.2. 5.5.4 Result presentation
AC / A ratio: X (/D).
NOTE: X represents the specific value of AC / A ratio.
5.6 Tear Film Break-up Time
5.6.1 Test equipment
Fluorescein test strips.
5.6.2 Test environment
The test should be performed indoor. There are no special requirements. 5.6.3 Requirements for subject selection
Except for patients with corneal diseases, for example, corneal ulcers, it is advisable to select all groups of people who can cooperate with the examination.
5.6.4 Test method
Gently place the moistened fluorescein test strip on the subjects’ lower fornix, then, take it out. Instruct the subjects to blink several times, then, open their eyes and look ahead. The examiner adopts cobalt blue light examination to measure the time from the beginning of eye opening to the occurrence of the first dark spot on the cornea, which is the tear film break-up time. Conduct the measurement for 3 times and take the average value. A tear film break-up time of less than 10 s is deemed as unstable tear film.
5.6.5 Result calculation
Conduct the measurement for 3 times and take the average value.
5.6.6 Result presentation
Tear film break-up time: X (s).
NOTE: X represents the specific time value of tear film break-up.
