GB/T 39710-2020: Polycarbonate/acrylonitrile-butadiene-styrene (PC/ABS) material for charging spot housing of electric vehicle

This Standard specifies the requirements, test methods, inspection rules, marking, packaging, transportation and storage of polycarbonate/acrylonitrile-butadienestyrene (hereinafter referred to as PC/ABS) materials for charging spot housing of electric vehicle. This Standard is applicable to PC/ABS materials used in the housing of AC charging spots.

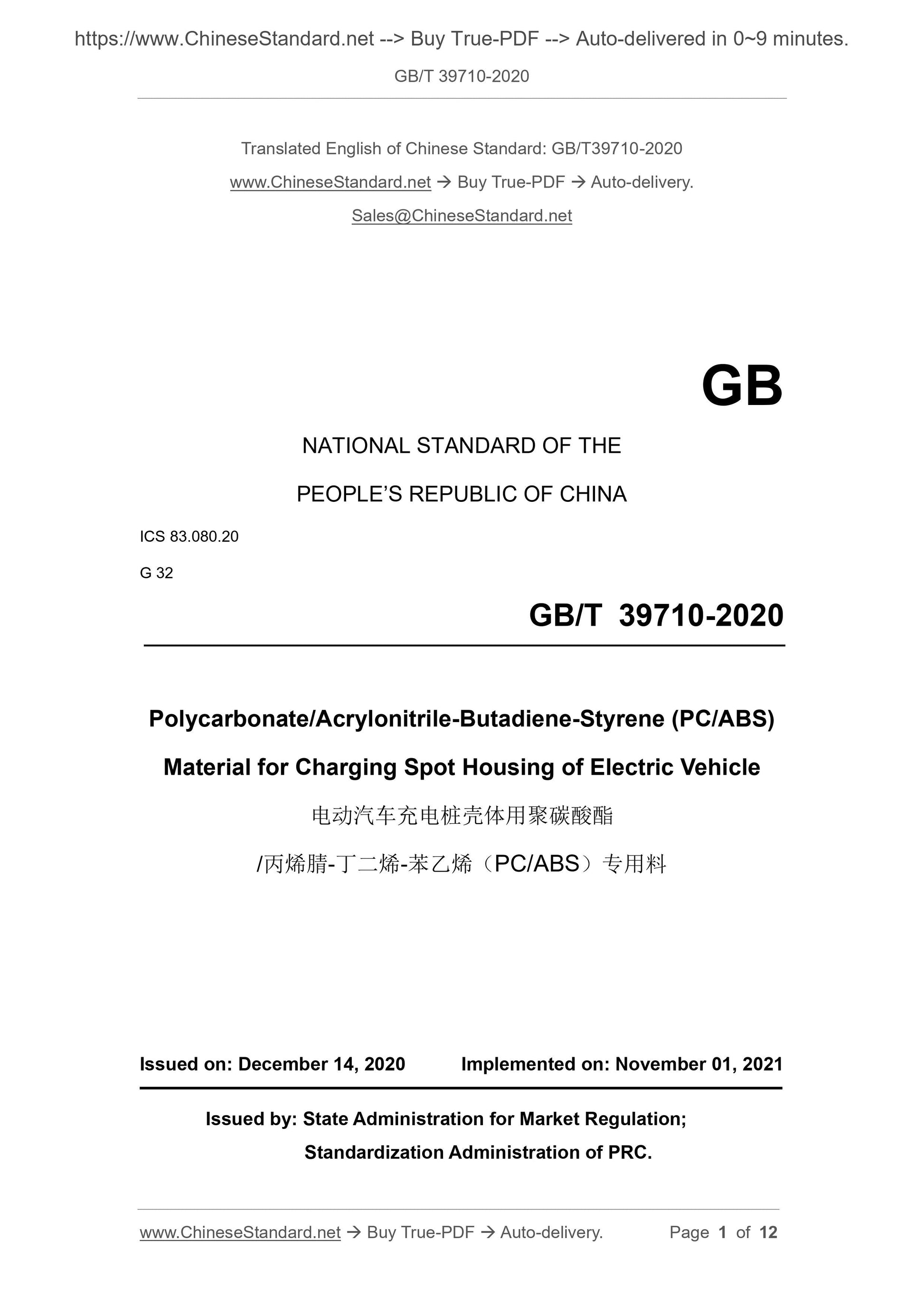

GB/T 39710-2020
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 83.080.20
G 32
Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS)
Material for Charging Spot Housing of Electric Vehicle
ISSUED ON: DECEMBER 14, 2020
IMPLEMENTED ON: NOVEMBER 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of PRC.

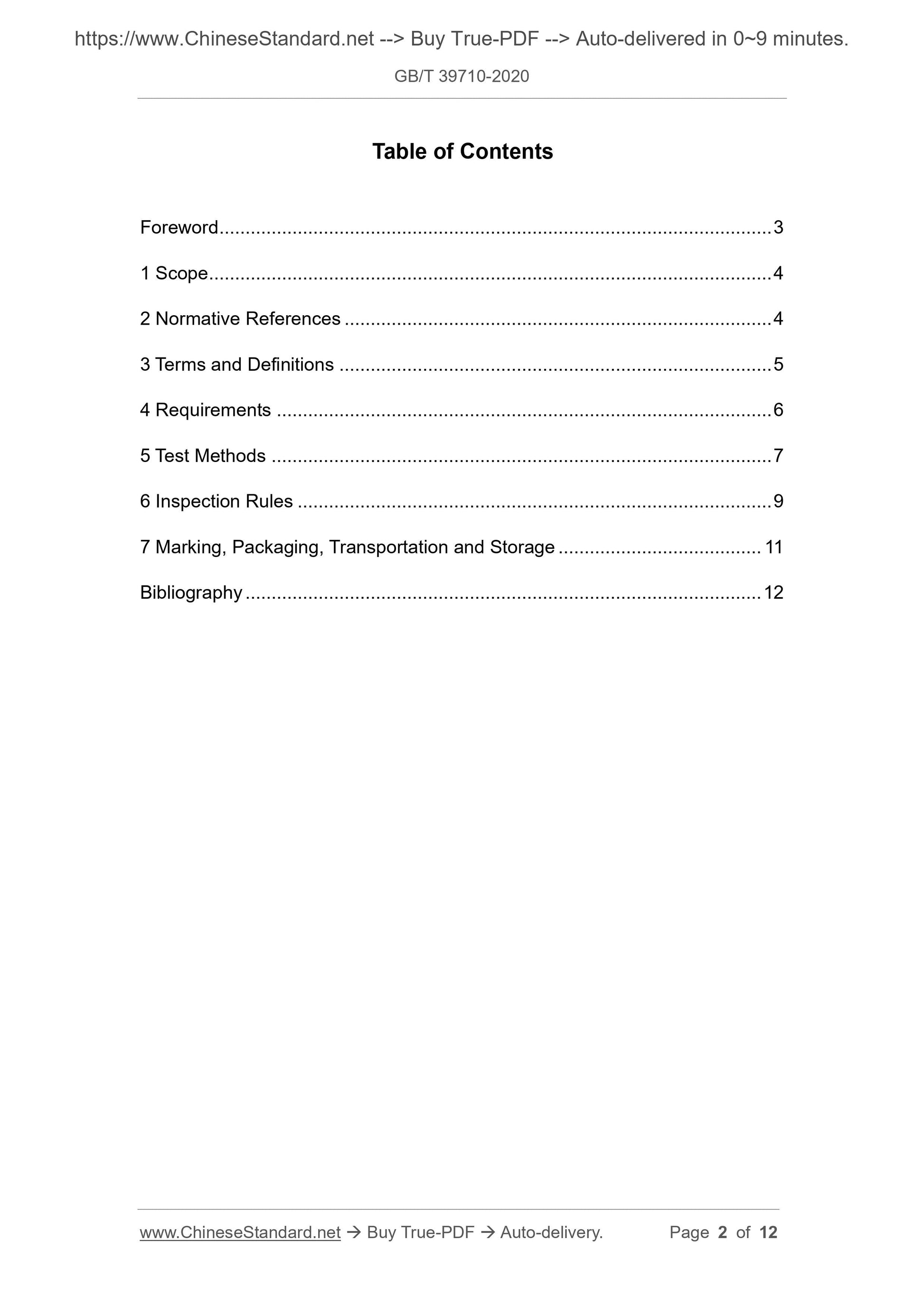

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 5
4 Requirements ... 6
5 Test Methods ... 7
6 Inspection Rules ... 9
7 Marking, Packaging, Transportation and Storage ... 11
Bibliography ... 12
Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS)
Material for Charging Spot Housing of Electric Vehicle

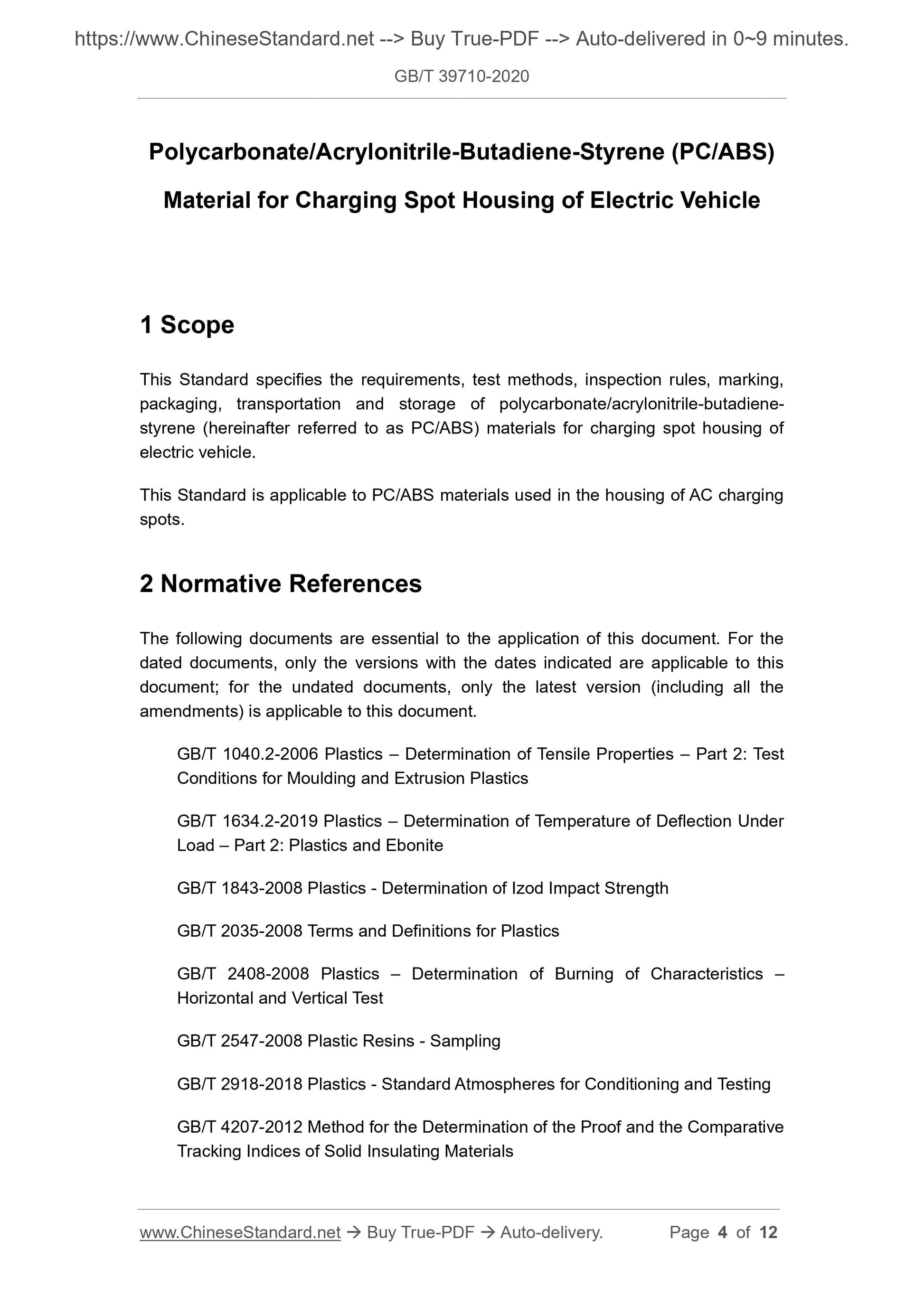

1 Scope
This Standard specifies the requirements, test methods, inspection rules, marking, packaging, transportation and storage of polycarbonate/acrylonitrile-butadiene- styrene (hereinafter referred to as PC/ABS) materials for charging spot housing of electric vehicle.
This Standard is applicable to PC/ABS materials used in the housing of AC charging spots.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this document.
GB/T 1040.2-2006 Plastics ?€? Determination of Tensile Properties ?€? Part 2: Test Conditions for Moulding and Extrusion Plastics
GB/T 1634.2-2019 Plastics ?€? Determination of Temperature of Deflection Under Load ?€? Part 2: Plastics and Ebonite
GB/T 1843-2008 Plastics - Determination of Izod Impact Strength
GB/T 2035-2008 Terms and Definitions for Plastics
GB/T 2408-2008 Plastics ?€? Determination of Burning of Characteristics ?€? Horizontal and Vertical Test
GB/T 2547-2008 Plastic Resins - Sampling
GB/T 2918-2018 Plastics - Standard Atmospheres for Conditioning and Testing GB/T 4207-2012 Method for the Determination of the Proof and the Comparative Tracking Indices of Solid Insulating Materials

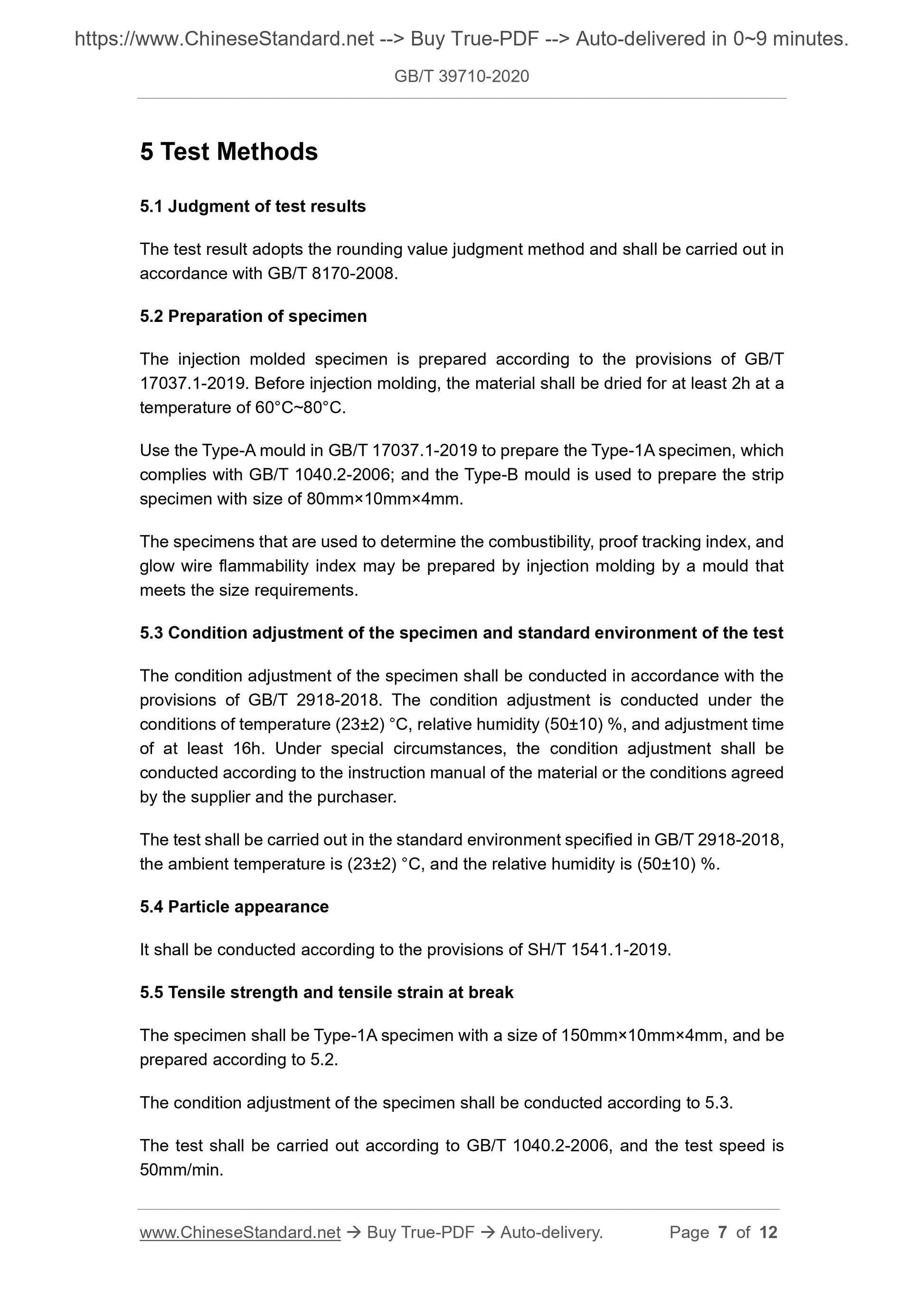

5 Test Methods
5.1 Judgment of test results
The test result adopts the rounding value judgment method and shall be carried out in accordance with GB/T 8170-2008.
5.2 Preparation of specimen
The injection molded specimen is prepared according to the provisions of GB/T 17037.1-2019. Before injection molding, the material shall be dried for at least 2h at a temperature of 60??C~80??C.
Use the Type-A mould in GB/T 17037.1-2019 to prepare the Type-1A specimen, which complies with GB/T 1040.2-2006; and the Type-B mould is used to prepare the strip specimen with size of 80mm??10mm??4mm.
The specimens that are used to determine the combustibility, proof tracking index, and glow wire flammability index may be prepared by injection molding by a mould that meets the size requirements.
5.3 Condition adjustment of the specimen and standard environment of the test The condition adjustment of the specimen shall be conducted in accordance with the provisions of GB/T 2918-2018. The condition adjustment is conducted under the conditions of temperature (23??2) ??C, relative humidity (50??10) %, and adjustment time of at least 16h. Under special circumstances, the condition adjustment shall be conducted according to the instruction manual of the material or the conditions agreed by the supplier and the purchaser.
The test shall be carried out in the standard environment specified in GB/T 2918-2018, the ambient temperature is (23??2) ??C, and the relative humidity is (50??10) %. 5.4 Particle appearance
It shall be conducted according to the provisions of SH/T 1541.1-2019.
5.5 Tensile strength and tensile strain at break
The specimen shall be Type-1A specimen with a size of 150mm??10mm??4mm, and be prepared according to 5.2.
The condition adjustment of the specimen shall be conducted according to 5.3. The test shall be carried out according to GB/T 1040.2-2006, and the test speed is 50mm/min.

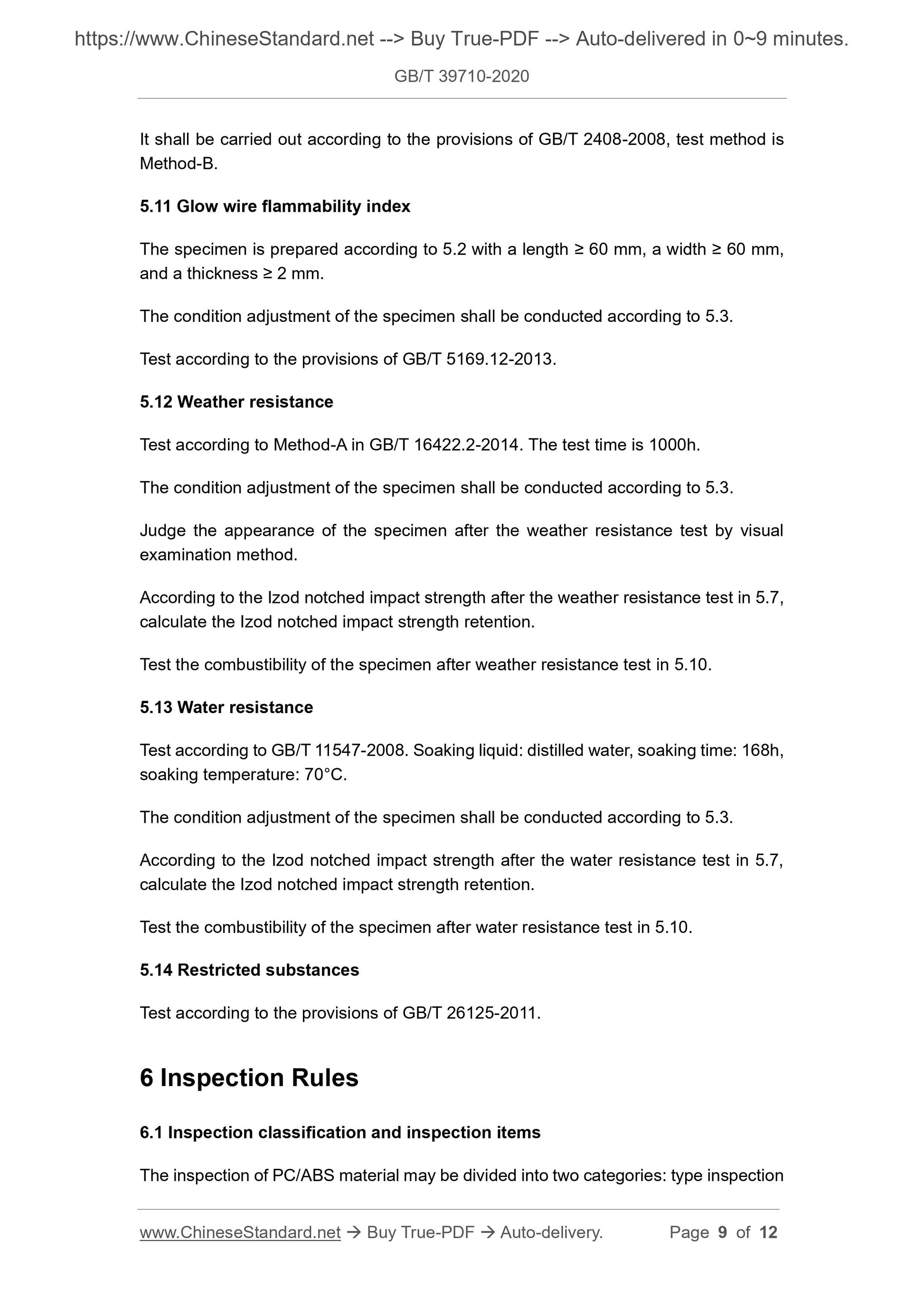

It shall be carried out according to the provisions of GB/T 2408-2008, test method is Method-B.
5.11 Glow wire flammability index
The specimen is prepared according to 5.2 with a length ??? 60 mm, a width ??? 60 mm, and a thickness ??? 2 mm.
The condition adjustment of the specimen shall be conducted according to 5.3. Test according to the provisions of GB/T 5169.12-2013.
5.12 Weather resistance
Test according to Method-A in GB/T 16422.2-2014. The test time is 1000h. The condition adjustment of the specimen shall be conducted according to 5.3. Judge the appearance of the specimen after the weather resistance test by visual examination method.
According to the Izod notched impact strength after the weather resistance test in 5.7, calculate the Izod notched impact strength retention.
Test the combustibility of the specimen after weather resistance test in 5.10. 5.13 Water resistance
Test according to GB/T 11547-2008. Soaking liquid: distilled water, soaking time: 168h, soaking temperature: 70??C.
The condition adjustment of the specimen shall be conducted according to 5.3. According to the Izod notched impact strength after the water resistance test in 5.7, calculate the Izod notched impact strength retention.
Test the combustibility of the specimen after water resistance test in 5.10. 5.14 Restricted substances
Test according to the provisions of GB/T 26125-2011.
6 Inspection Rules
6.1 Inspection classification and inspection items
The inspection of PC/ABS material may be divided into two categories: type inspection the item shall be re-sampled for re-inspection. The re-inspection result shall be used as the basis for quality judgment of this batch of products.

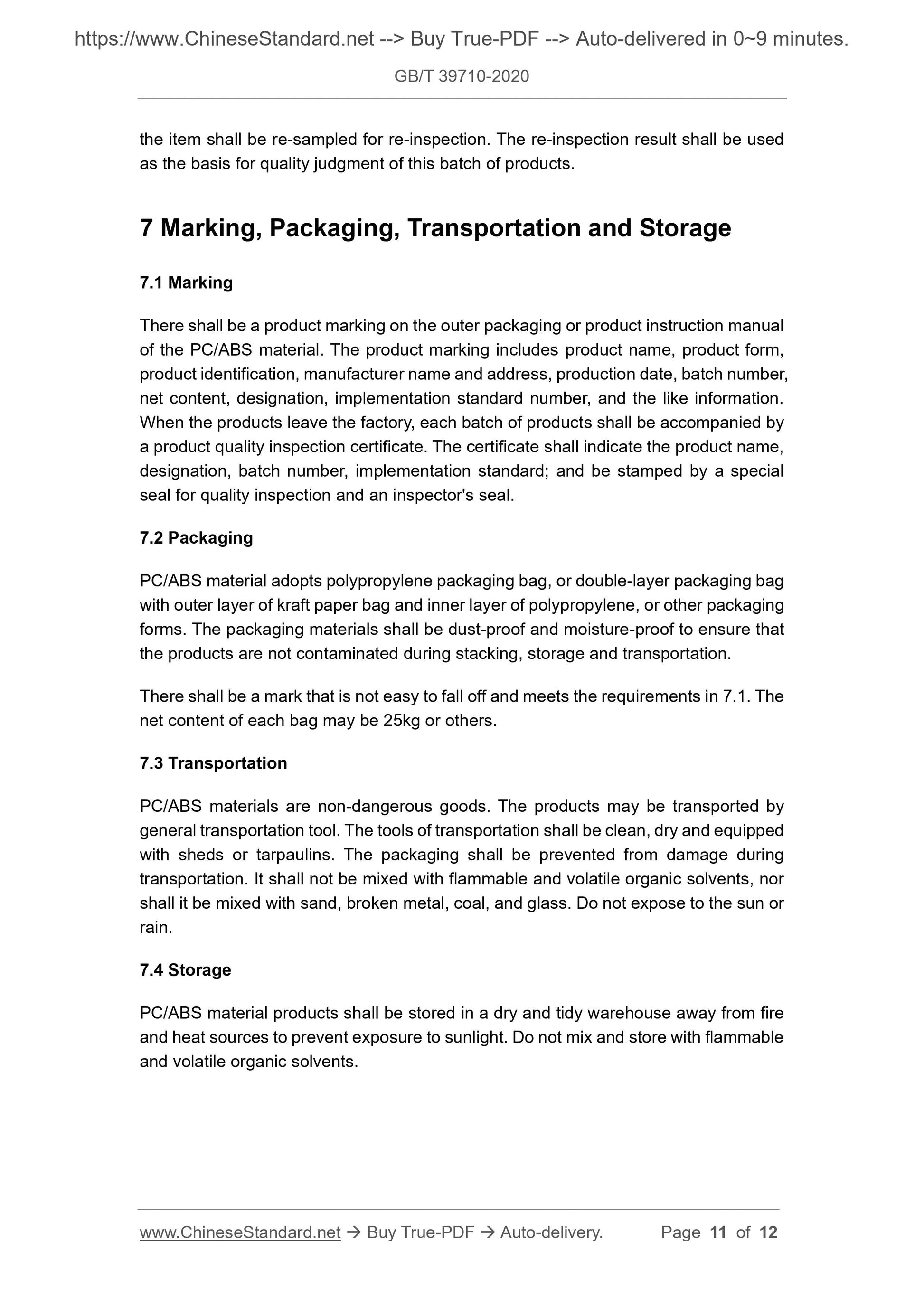

7 Marking, Packaging, Transportation and Storage
7.1 Marking
There shall be a product marking on the outer packaging or product instruction manual of the PC/ABS material. The product marking includes product name, product form, product identification, manufacturer name and address, production date, batch number, net content, designation, implementation standard number, and the like information. When the products leave the factory, each batch of products shall be accompanied by a product quality inspection certificate. The certificate shall indicate the product name, designation, batch number, implementation standard; and be stamped by a special seal for quality inspection and an inspector's seal.
7.2 Packaging
PC/ABS material adopts polypropylene packaging bag, or double-layer packaging bag with outer layer of kraft paper bag and inner layer of polypropylene, or other packaging forms. The packaging materials shall be dust-proof and moisture-proof to ensure that the products are not contaminated during stacking, storage and transportation. There shall be a mark that is not easy to fall off and meets the requirements in 7.1. The net content of each bag may be 25kg or others.
7.3 Transportation
PC/ABS materials are non-dangerous goods. The products may be transported by general transportation tool. The tools of transportation shall be clean, dry and equipped with sheds or tarpaulins. The packaging shall be prevented from damage during transportation. It shall not be mixed with flammable and volatile organic solvents, nor shall it be mixed with sand, broken metal, coal, and glass. Do not expose to the sun or rain.
7.4 Storage
PC/ABS material products shall be stored in a dry and tidy warehouse away from fire and heat sources to prevent exposure to sunlight. Do not mix and store with flammable and volatile organic solvents.
