GB/T 39553-2020: General specification for DC servo motors

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 39553-2020 (Self-service in 1-minute)
Newer / historical versions: GB/T 39553-2020

Preview True-PDF

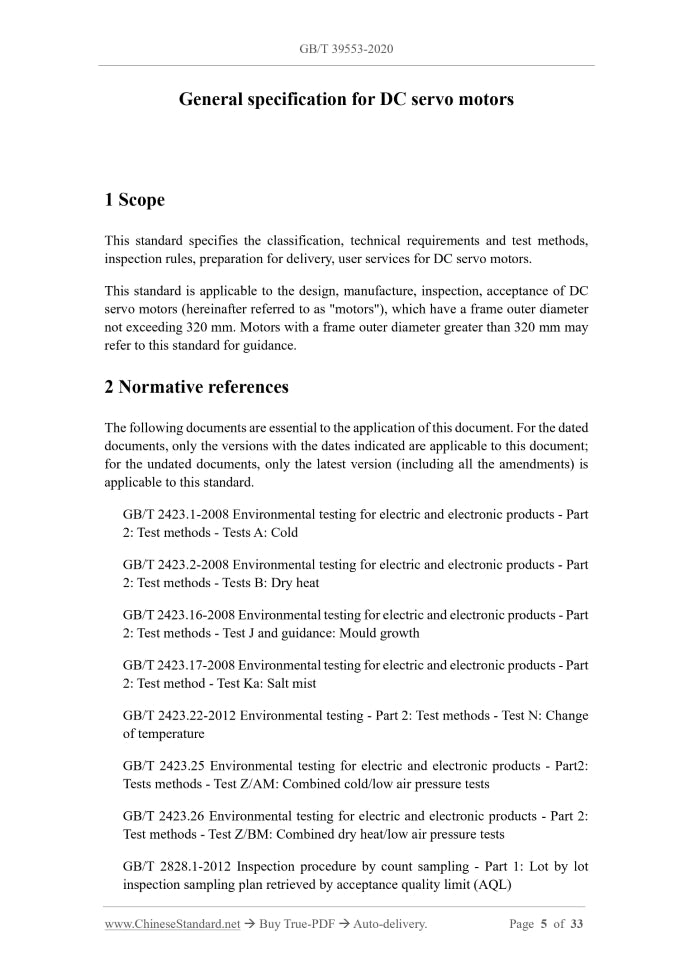

Scope

This standard specifies the classification, technical requirements and test methods,
inspection rules, preparation for delivery, user services for DC servo motors.
This standard is applicable to the design, manufacture, inspection, acceptance of DC
servo motors (hereinafter referred to as "motors"), which have a frame outer diameter
not exceeding 320 mm. Motors with a frame outer diameter greater than 320 mm may
refer to this standard for guidance.

Basic Data

Standard ID	GB/T 39553-2020 (GB/T39553-2020)
Description (Translated English)	General specification for DC servo motors
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	K24
Classification of International Standard	29.160.30
Word Count Estimation	23,294
Date of Issue	2020-12-14
Date of Implementation	2021-07-01
Older Standard (superseded by this standard)	GB/T 14817-2008; GB/T 14819-2008; GB/T 14818-2008
Quoted Standard	GB/T 2423.1-2008; GB/T 2423.2-2008; GB/T 2423.16-2008; GB/T 2423.17-2008; GB/T 2423.22-2012; GB/T 2423.25; GB/T 2423.26; GB/T 2828.1-2012; GB/T 6113.203; GB/T 6113.204; GB/T 7345-2008; GB/T 7346-2015; GB/T 10069.1; GB 17799.3; GB 17799.4; GB/T 18211-2017
Regulation (derived from)	National Standard Announcement No. 28 of 2020
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
Summary	This standard specifies the classification, technical requirements and test methods, inspection rules, delivery preparation and user services of DC servo motors. This standard is applicable to the design, manufacture, inspection and acceptance of DC servo motors (hereinafter referred to as "motors") with a base outer diameter not greater than 320 mm. Motors with a base outer diameter greater than 320 mm can be used as reference.
