GB/T 3903.9-2021: Footwear -- Test methods for insoles -- Heel pin holding strength

This document describes a method for determining the pin holding strength of footwear insole materials to prevent pins from penetrating the insole. This document applies to assembled insoles with heels, as well as to insoles of external heels fixed with pins.

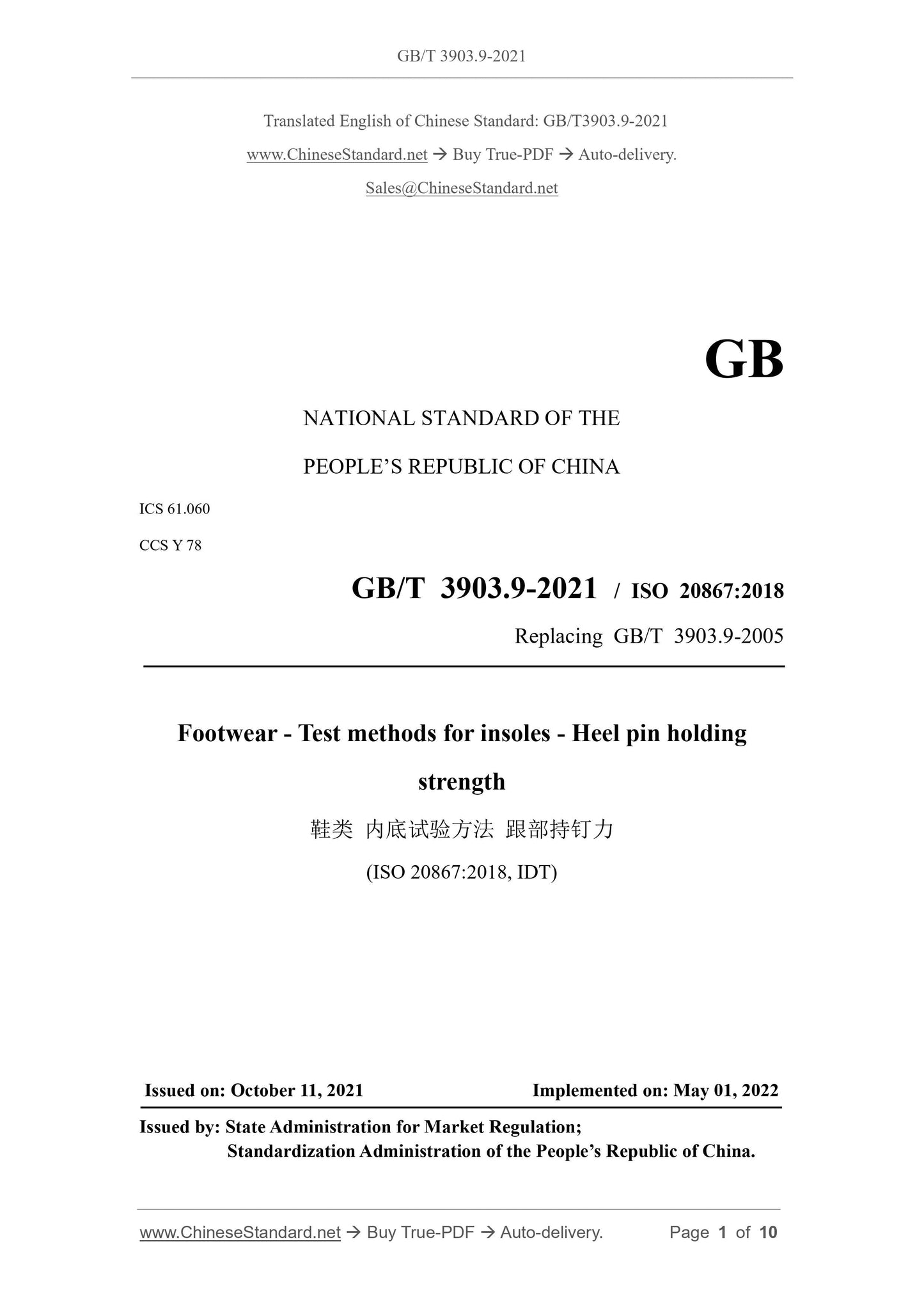

GB/T 3903.9-2021
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 61.060
CCS Y 78
GB/T 3903.9-2021 / ISO 20867:2018
Replacing GB/T 3903.9-2005
Footwear - Test methods for insoles - Heel pin holding
strength
(ISO 20867:2018, IDT)
ISSUED ON: OCTOBER 11, 2021
IMPLEMENTED ON: MAY 01, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of China.

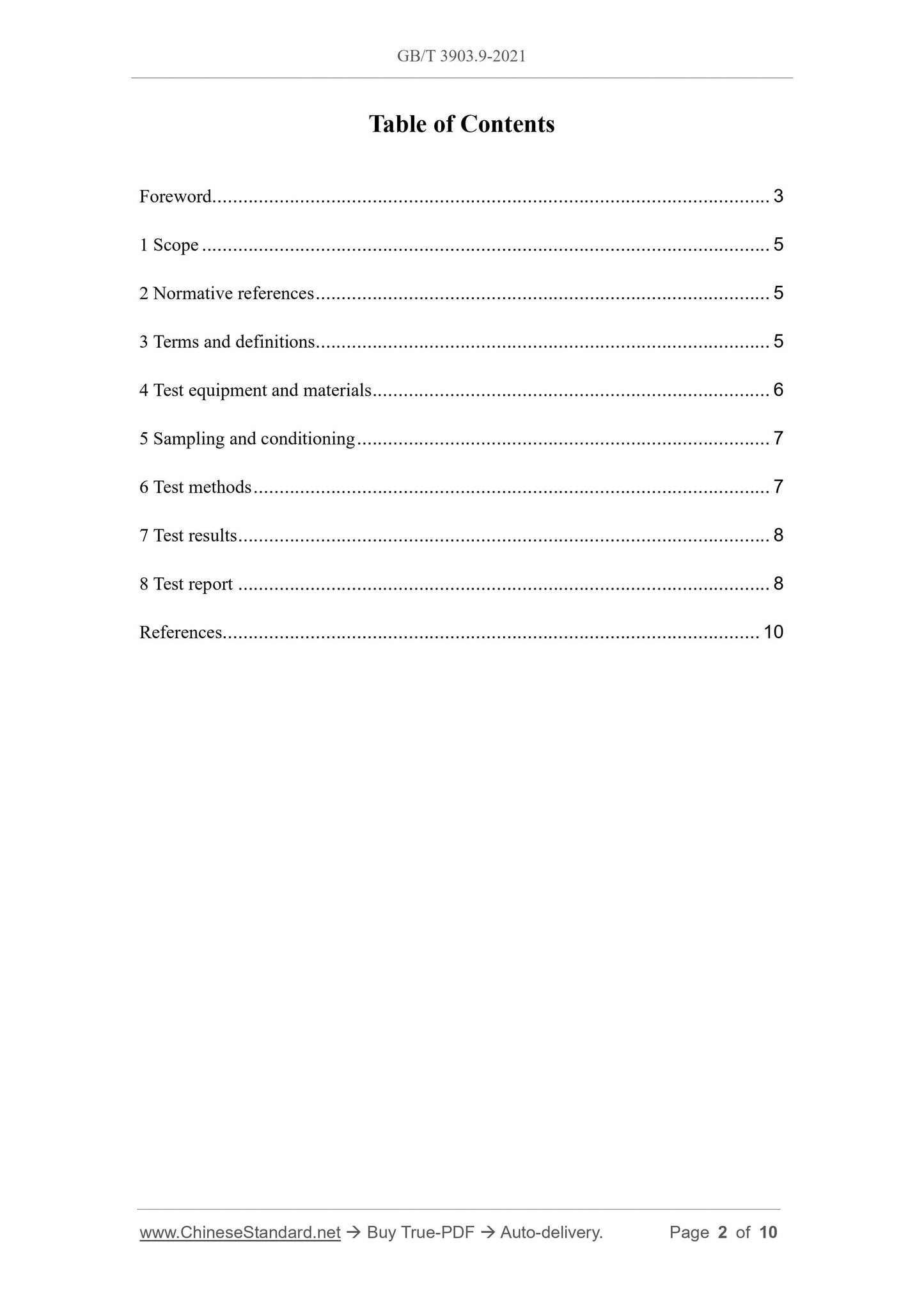

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions... 5
4 Test equipment and materials ... 6
5 Sampling and conditioning ... 7
6 Test methods ... 7
7 Test results ... 8
8 Test report ... 8
References ... 10
Footwear - Test methods for insoles - Heel pin holding
strength

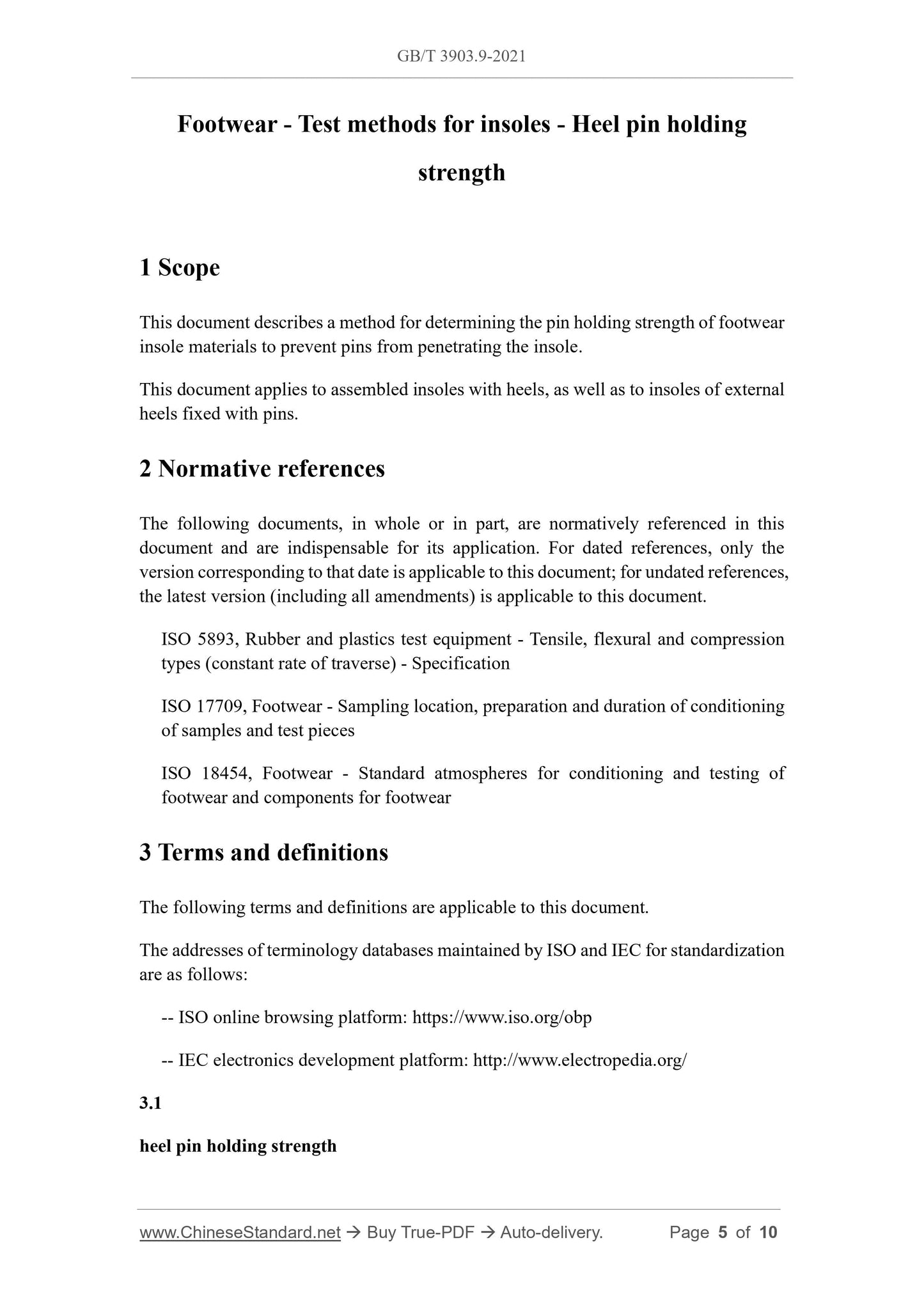

1 Scope
This document describes a method for determining the pin holding strength of footwear insole materials to prevent pins from penetrating the insole.
This document applies to assembled insoles with heels, as well as to insoles of external heels fixed with pins.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the version corresponding to that date is applicable to this document; for undated references, the latest version (including all amendments) is applicable to this document. ISO 5893, Rubber and plastics test equipment - Tensile, flexural and compression types (constant rate of traverse) - Specification
ISO 17709, Footwear - Sampling location, preparation and duration of conditioning of samples and test pieces
ISO 18454, Footwear - Standard atmospheres for conditioning and testing of footwear and components for footwear
3 Terms and definitions
The following terms and definitions are applicable to this document.
The addresses of terminology databases maintained by ISO and IEC for standardization are as follows:
-- ISO online browsing platform: https://www.iso.org/obp
-- IEC electronics development platform: http://www.electropedia.org/
3.1
heel pin holding strength

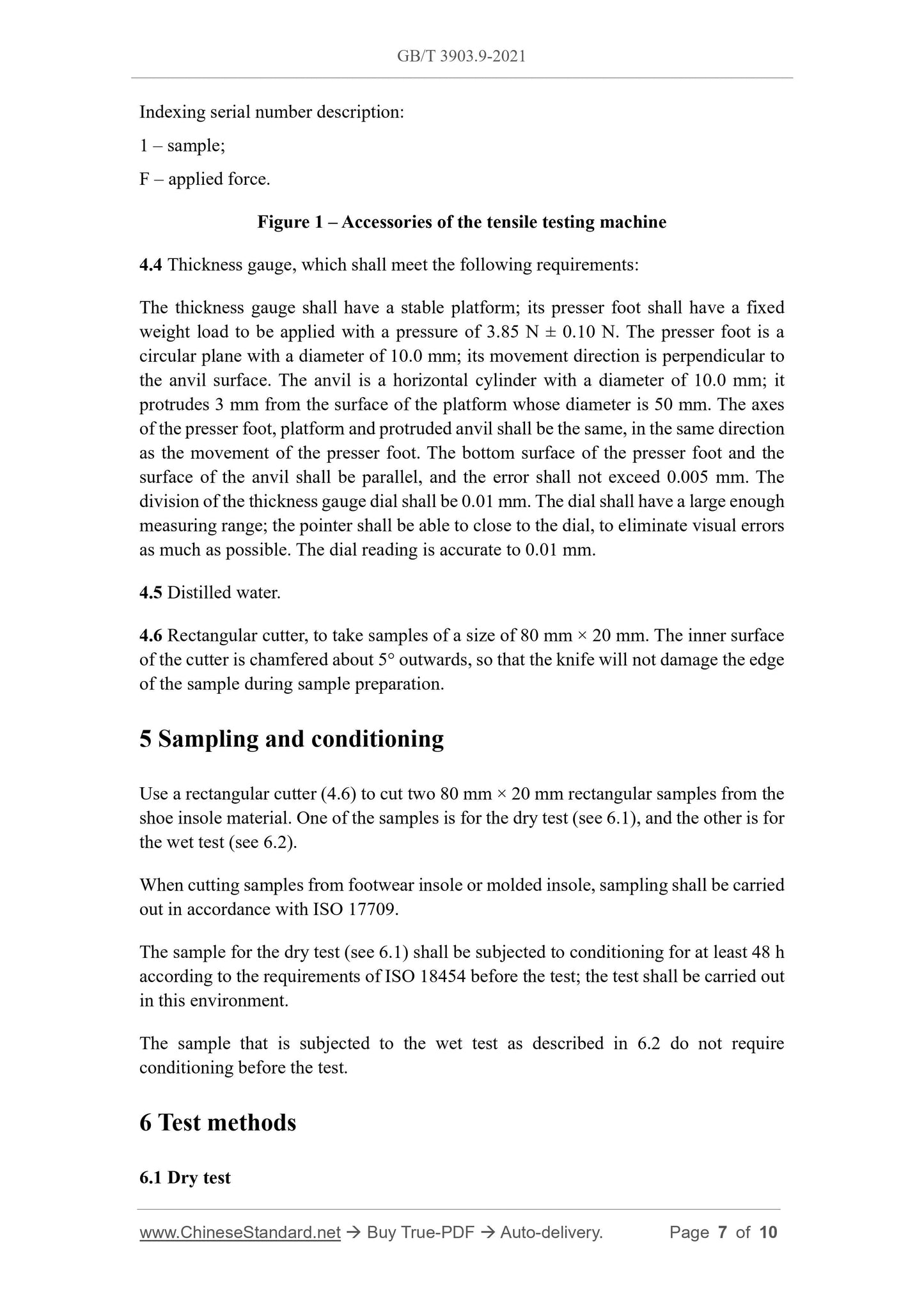

Indexing serial number description:
1 ?€? sample;
F ?€? applied force.
Figure 1 ?€? Accessories of the tensile testing machine
4.4 Thickness gauge, which shall meet the following requirements:
The thickness gauge shall have a stable platform; its presser foot shall have a fixed weight load to be applied with a pressure of 3.85 N ?? 0.10 N. The presser foot is a circular plane with a diameter of 10.0 mm; its movement direction is perpendicular to the anvil surface. The anvil is a horizontal cylinder with a diameter of 10.0 mm; it protrudes 3 mm from the surface of the platform whose diameter is 50 mm. The axes of the presser foot, platform and protruded anvil shall be the same, in the same direction as the movement of the presser foot. The bottom surface of the presser foot and the surface of the anvil shall be parallel, and the error shall not exceed 0.005 mm. The division of the thickness gauge dial shall be 0.01 mm. The dial shall have a large enough measuring range; the pointer shall be able to close to the dial, to eliminate visual errors as much as possible. The dial reading is accurate to 0.01 mm.
4.5 Distilled water.
4.6 Rectangular cutter, to take samples of a size of 80 mm ?? 20 mm. The inner surface of the cutter is chamfered about 5?? outwards, so that the knife will not damage the edge of the sample during sample preparation.
5 Sampling and conditioning
Use a rectangular cutter (4.6) to cut two 80 mm ?? 20 mm rectangular samples from the shoe insole material. One of the samples is for the dry test (see 6.1), and the other is for the wet test (see 6.2).
When cutting samples from footwear insole or molded insole, sampling shall be carried out in accordance with ISO 17709.
The sample for the dry test (see 6.1) shall be subjected to conditioning for at least 48 h according to the requirements of ISO 18454 before the test; the test shall be carried out in this environment.
The sample that is subjected to the wet test as described in 6.2 do not require conditioning before the test.
6 Test methods

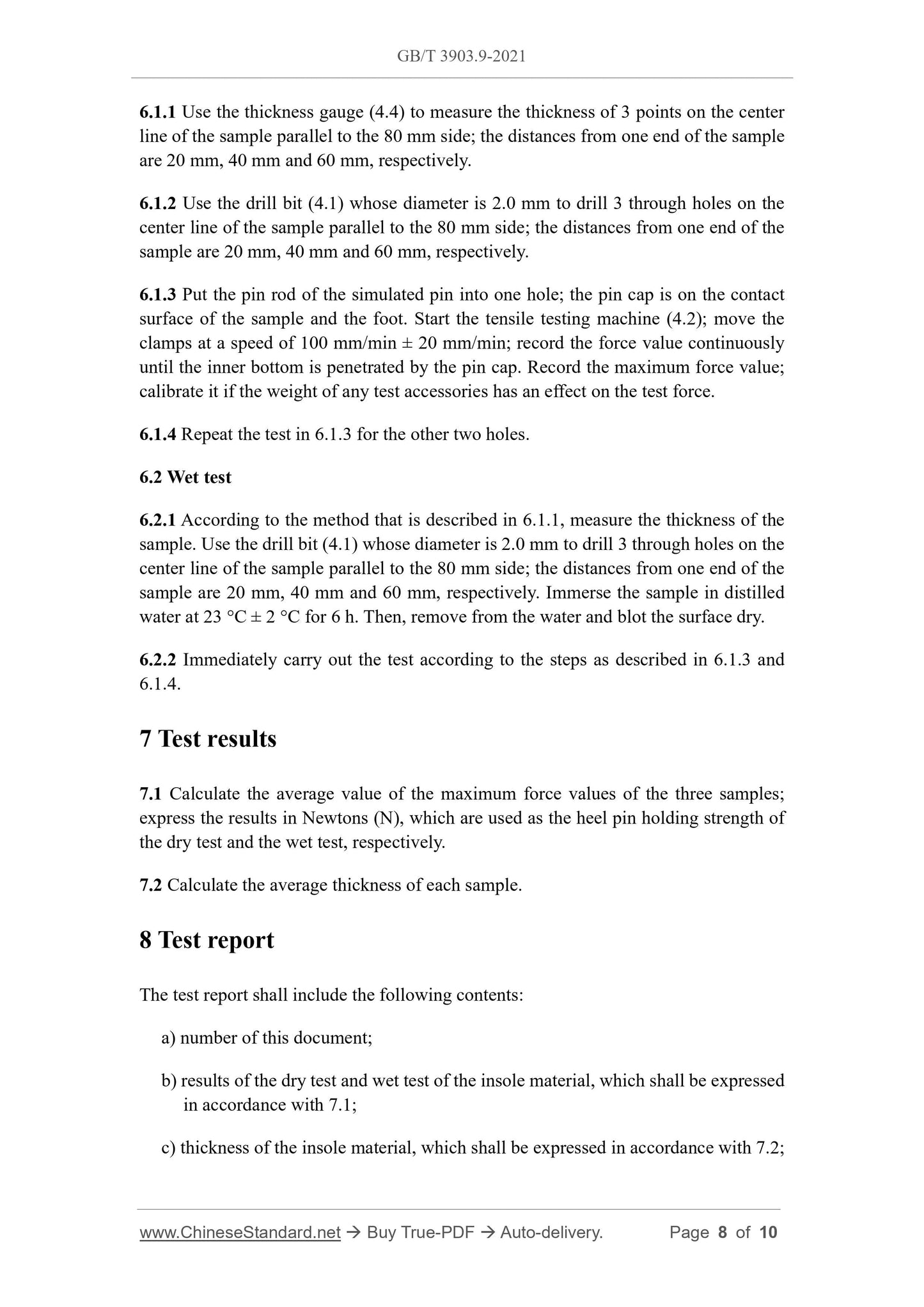

6.1 Dry test
