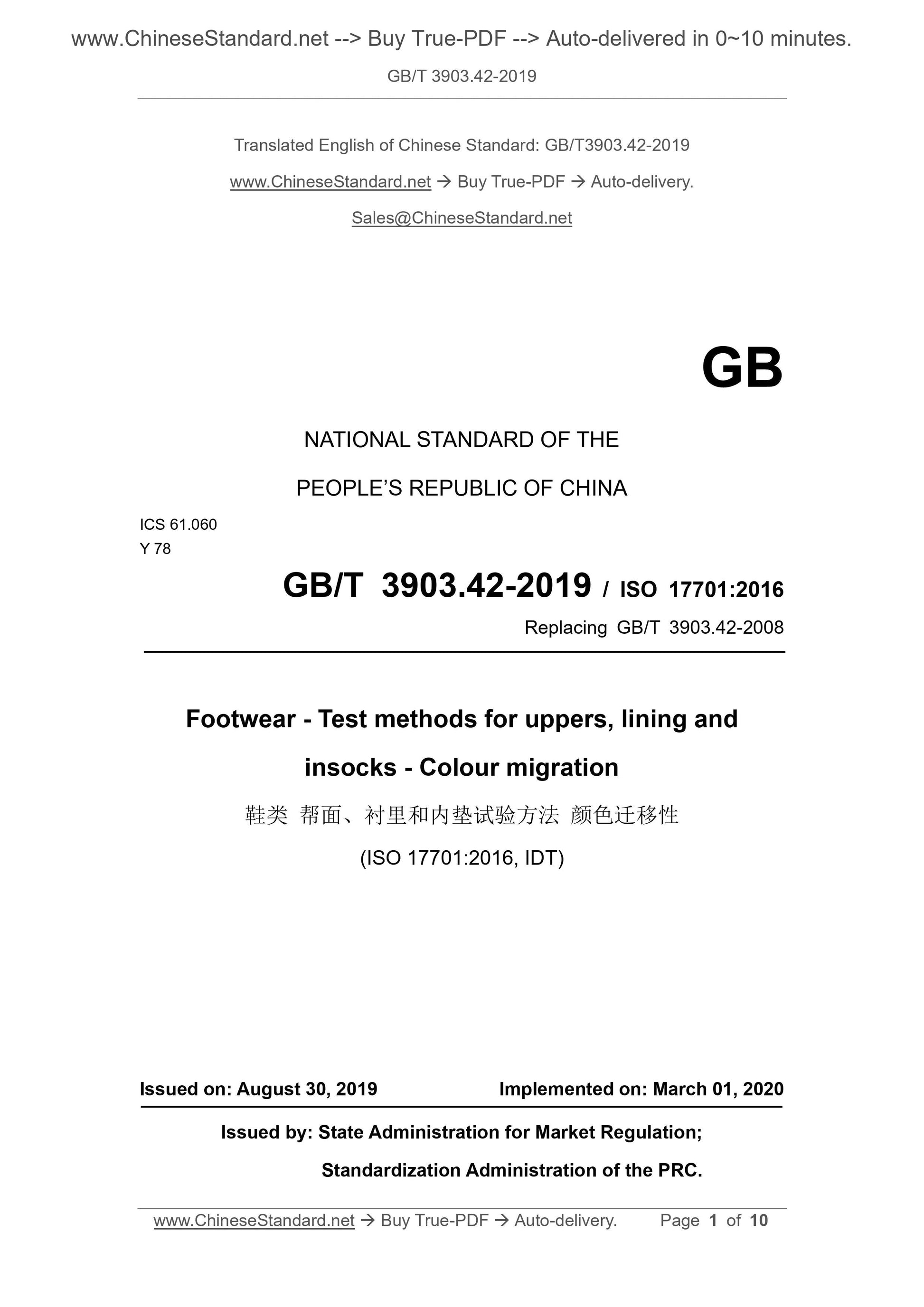

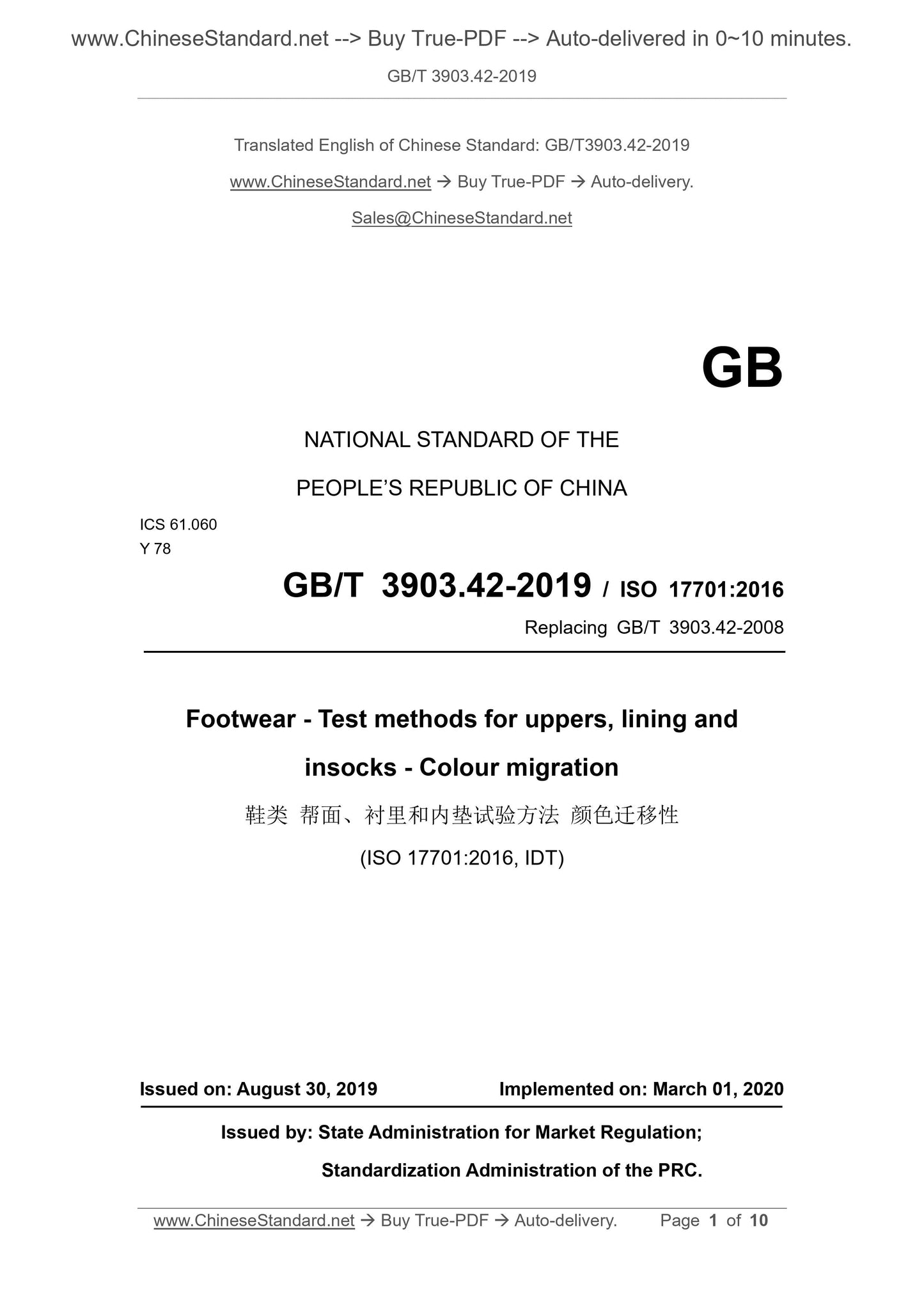

GB/T 3903.42-2019
Footwear - Test methods for uppers, lining and insocks - Colour migration
ICS 61.060
Y78
National Standards of People's Republic of China
Replace GB/T 3903.42-2008
Footwear, lining and inner pad test methods
Color mobility
(ISO 17701.2016, IDT)
Published on.2019-08-30
2020-03-01 implementation
State market supervision and administration
China National Standardization Administration issued

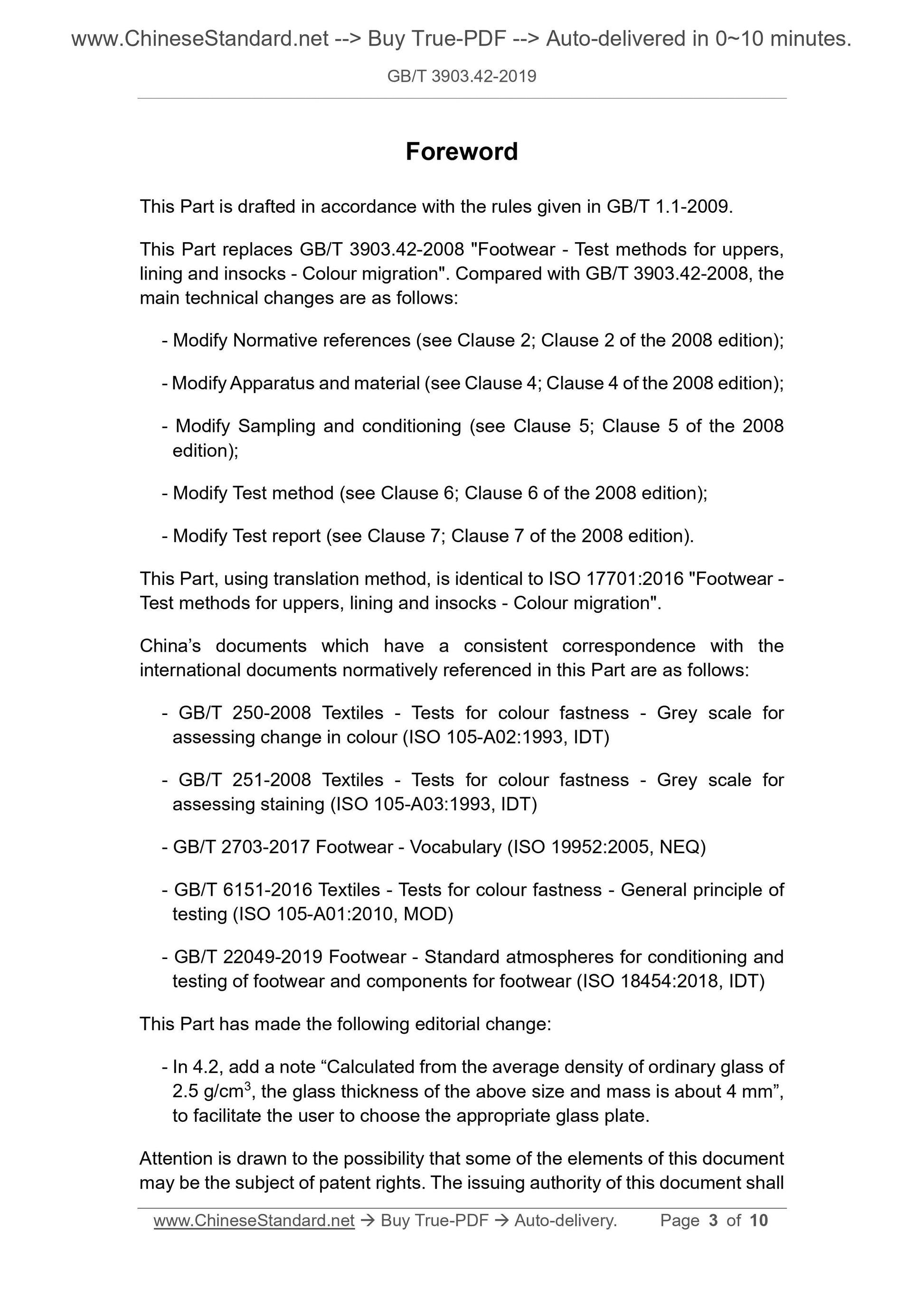

Foreword
This part is drafted in accordance with the rules given in GB/T 1.1-2009.
This part replaces GB/T 3903.42-2008 "Color migration of footwear uppers, linings and inner cushion test methods", and
Compared with GB/T 3903.42-2008, the main technical changes are as follows.
--- Revised the normative reference document (see Chapter 2, Chapter 2 of the.2008 edition);
---Modified equipment and materials (see Chapter 4, Chapter 4 of the.2008 edition);
--- Modified sampling and environmental conditioning (see Chapter 5, Chapter 5 of the.2008 edition);
---Modified test methods (see Chapter 6, Chapter 6 of the.2008 edition);
--- Revised the test report (see Chapter 7, Chapter 7 of the.2008 edition).
This section uses the translation method equivalent to ISO 17701.2016 "shoes, lining and inner pad test method color mobility".
The documents of our country that have a consistent correspondence with the international documents referenced in this part are as follows.
---GB/T 250-2008 Textile color fastness test for gray color card for color change (ISO 105-A02.1993, IDT)
---GB/T 251-2008 Textile color fastness test evaluation gray sample card for staining (ISO 105-A03..1993, IDT)
---GB/T 2703-2017 footwear terminology (ISO .19952.2005, NEQ)
---GB/T 6151-2016 Textile color fastness test test general (ISO 105-A01.2010, MOD)
---GB/T 22049-2019 Standard environment for environmental conditioning and testing of footwear footwear and footwear components (ISO 18454.2018,
IDT)
This section has made the following editorial changes.
--- 4.2 added the note "calculated by the average glass density of 2.5g/cm3, the above size and quality of the glass thickness is about 4mm",
In order to facilitate the user to choose the appropriate glass plate.
Please note that some of the contents of this document may involve patents. The issuing organization of this document is not responsible for identifying these patents.
This part was proposed by the China Light Industry Federation.
This part is under the jurisdiction of the National Technical Committee for the Standardization of Footwear (SAC/TC305).
This section drafted by. China Leather Shoes Research Institute Co., Ltd., Zhejiang Aokang Footwear Co., Ltd.
The main drafters of this section. Shi Hongyue, Wang Zhenduo, Huang Zhiding, Zhang Xianzhong.
The previous versions of the standards replaced by this section are.
---GB/T 3903.42-2008.
Footwear, lining and inner pad test methods
Color mobility

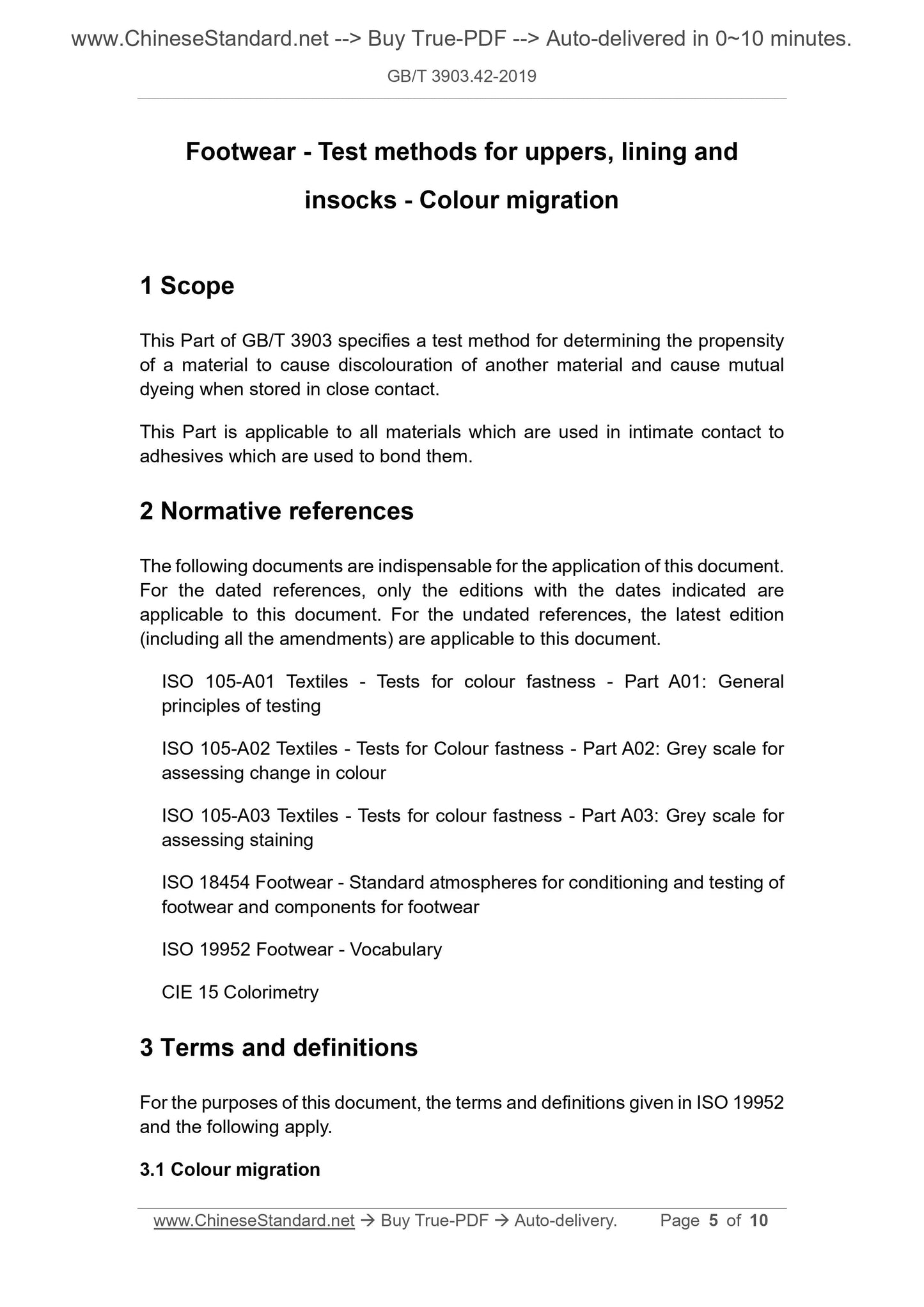

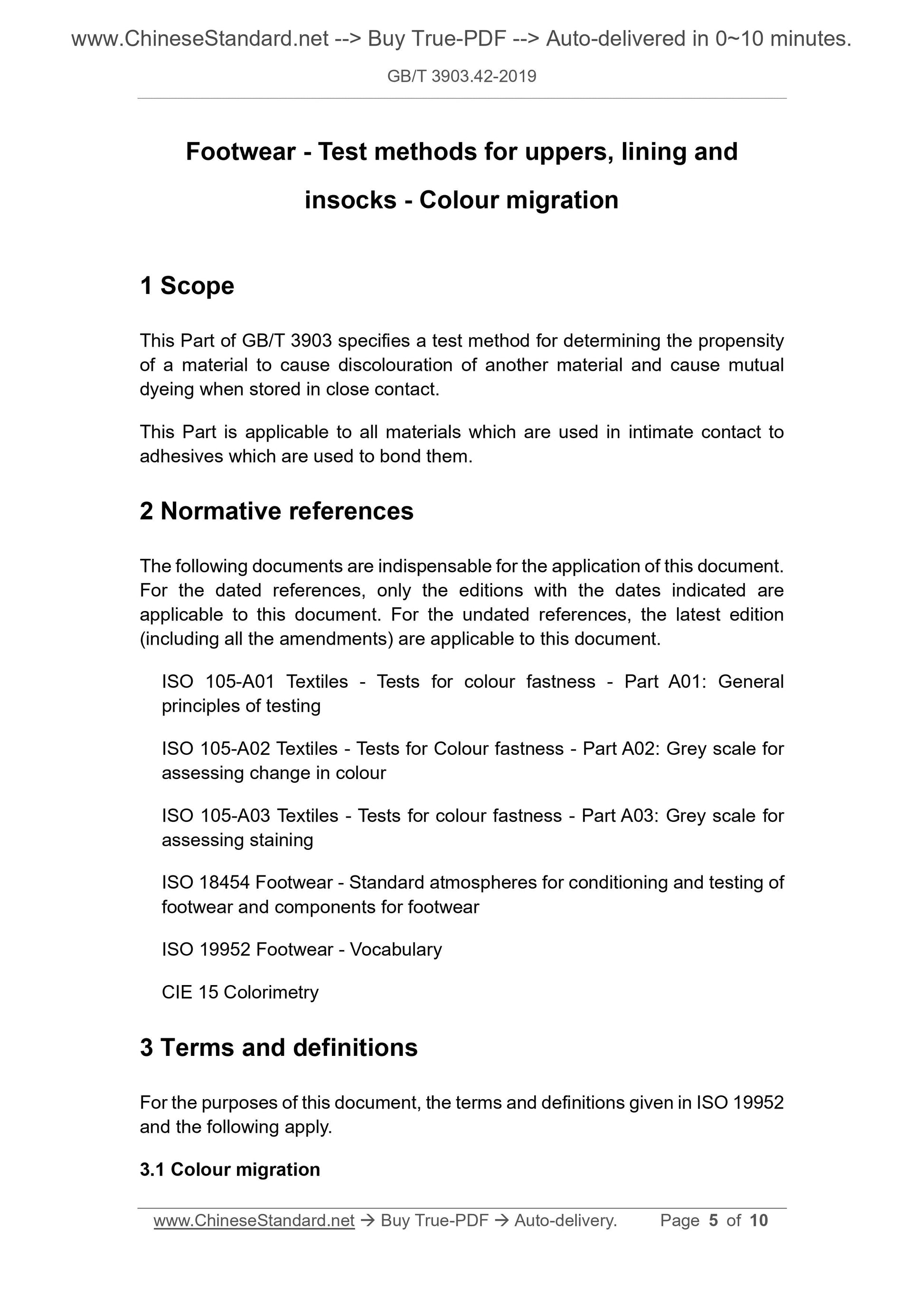

1 Scope
This part of GB/T 3903 stipulates that when a material is in close contact with storage, a material causes the color migration of another material to cause mutual dyeing.
test methods.
This section applies to all closely contacted materials and adhesives used in bonding materials.
2 Normative references
The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article.
Pieces. For undated references, the latest edition (including all amendments) applies to this document.
ISO 105-A01 Textile colour fastness test - Part A01. General rules for testing
ISO 105-A02 Textiles - Tests for colour fastness - Part A02. Gray-like card for assessing discoloration
ISO 105-A03 Textiles - Tests for colour fastness - Part A03. Gray-like card for assessing stains
ISO 18454 Standard environment for environmental conditioning and testing of footwear footwear and footwear components
ISO 19952 Footwear term (Footwear - Vocabulary)
CIE15 Colorimetry
3 Terms and definitions
The following terms and definitions as defined by ISO .19952 apply to this document.
3.1
Color migration colourmigration
The discoloration that occurs when a color migrates from one material to another.
4 instruments and materials
The following test equipment and materials should be used.
4.1 Cut the knife of the sample.
4.2 Two smooth glass plates measuring at least 70mm x 70mm and having a mass of 50g ± 5g.
Note. The glass thickness of the above size and quality is about 4mm, calculated from the average glass density of 2.5g/cm3.
4.3 Weight, large enough to apply a pressure of 5.2 kPa ± 0.5 kPa along with the glass plate.
Note. In order to make the pressure the same, the weight depends on the sample area.
Example.
Sample area = 30mm × 20mm = 600mm2
Heavy object = pressure × area
Weight = 5.2 kPa × 600 mm 2 = 5200 Pa × 600 mm 2 = 5200 kg × m - 1 × s - 2 × 6 × 10 - 4 m - 2
Heavy object = 3.12kg × m × s - 2 = 3.12N
The pressure of the 3.12 N (0.318 kg) weight should be 5.2 kPa.
Note that the quality of a piece of glass should be subtracted. weight = 318g-50g = 268g.
If the sample area is 50 mm × 40 mm, the same pressure can be obtained with a weight of 1.060 kg.
Note that the quality of a piece of glass should be subtracted. weight = 1060g-50g = 1010g.
4.4 Oven, no glass door or glazing, temperature 60 °C ± 2 °C.
4.5 The color of the sample and reference sample is measured with a colorimeter, and the result is converted into a CIE color value, and CIELAB is automatically calculated according to CIE15.
Color difference.
Calibrate the colorimeter with a white standard (light source D65, observation angle 10°, measurement geometry dl 8°).
4.6 Gray sample card to assess discoloration and staining, in accordance with ISO 105-A02 and ISO 105-A03.
4.7 Artificial light source conditions, in accordance with ISO 105-A01, or from daylight in the north.
5 Sampling and environmental conditioning
Pre-test samples are placed in a standard environment as defined by ISO 18454 for environmental conditioning for at least 24 h.
5.1 Color migration test between materials
Two samples of at least (30 ± 2) mm × (20 ± 2) mm were taken from the dark material and the light material, respectively. Each of them
The model has a sample as a control.
If there is not enough material, you can use a smaller sample and correspondingly reduce the mass of the weight to make it less than 1000g ± 10g
Maintain the same pressure.
5.2 Determination of bonding effect
Two samples were taken with a size of (50 ± 2) mm × (50 ± 2) mm. One of the samples was used as a reference sample.
Use the adhesive to be tested and apply it to the center of the sample surface, the same area as the area where the adhesive is to be used in the production.
The area of the field is approximately 75% of the sample, and the amount of binder is the same as that used in the production. The adhesive was allowed to dry at room temperature.
5.3 Determination of adhesion between layers
When testing the adhesion between layers, two samples were taken from each of the laminates, having a size of (50 ± 2) mm × (50 ± 2) mm. among them
One sample of each type was used as a control.
5.3.1 When determining the effect of the interlayer adhesion using the wet bonding process, press the two materials placed together by hand to bond them and at room temperature
Dry down.
5.3.2 When the interlayer adhesion effect using a dry adhesive film adhesion is measured, the two materials are bonded using a method similar to the production process.
5.4 Test of parts such as outsole
5.4.1 Take a uniform thickness of the specimen from the outsole or other component by a suitable method.
5.4.2 Cut a piece of specimen from one material and cut two specimens from the second material (5.1, one of which is a control).
Note. Samples can be taken from shoe materials, forming uppers or finished shoes.
6 Test methods
6.1 Principle
A single material or laminate of two different materials or materials coated with a binder is placed in intimate contact between two glass sheets.
The combined sample was placed in a dark, high temperature condition for a predetermined period of time, and then the sample was examined for color change as compared with the untested control. change
The color indicates that discoloration may occur under normal application conditions.
6.2 Steps
The CIE color values of all samples (including reference samples) were measured with a colorimeter. Controls placed in the dark under ISO 18454 regulations
In a standard environment.
6.2.1 Combination of two materials without adhesive.
6.2.1.1 Place the first sample center symmetrically on the glass plate (see 4.2) with the contact facing up.
6.2.1.2 Place another specimen on the first specimen with the contact facing down.
6.2.1.3 Place the other glass plate (see 4.2) symmetrically on the topmost specimen.
6.2.2 For single materials and laminates coated with adhesive, place the specimen between two glass plates.
6.2.3 Place the weight (see 4.3) symmetrically on the upper glass plate (see 4.2).
6.2.4 Place the combination (see 6.2.1 or 6.2.2) in a dark environment at 60 °C ± 2 °C (see 4.4).
6.2.5 Remove the combination from the test environment after 24 h.
6.2.6 Two materials without adhesive. Separate the two materials and compare the surfaces they are in contact with compared to the untested material. press
6.2.8 Conduct an assessment.
6.2.7 For single materials and laminates coated with adhesive, the specimen is taken out, the surface of the specimen without adhesive is untested
The samples were compared and evaluated according to 6.2.8.
6.2.8 The color CIE value is measured with a colorimeter according to CIE15 (see 4.5). Another method. use artificial light source or day from the north
Light (see 4.7). The tested materials were compared to untested controls to assess fading and were rated using a gray sample card.
6.2.8.1 Compare the fading condition of the tested material to the untested control test to evaluate the color change.
6.2.8.2 Compare the color of the tested material to the untested control to evaluate the staining.
6.2.8.3 In all cases, evaluate the most visible areas.
6.2.8.4 Record the color change or color shift described in terms of color, brightness and color uniformity obtained from 6.2.8.1 to 6.2.8.2
Move rating.
6.2.9 Take the sample device out of the test environment every 24h±1h, repeat the steps of 6.2.1~6.2.8 until the total time of the test reaches
To 7d.
7 test report
The test report should include the following.
a) For each sample, describe any discoloration or staining of each sample obtained from 6.2.8, and the corresponding cumulative contact
time;
b) a method of testing color changes;
c) describe the materials or samples to be tested, including commercial information (style, article number, etc.);
d) the number of this part;
e) the date of the test;
f) date of analysis;
g) Any deviation from this test method.
