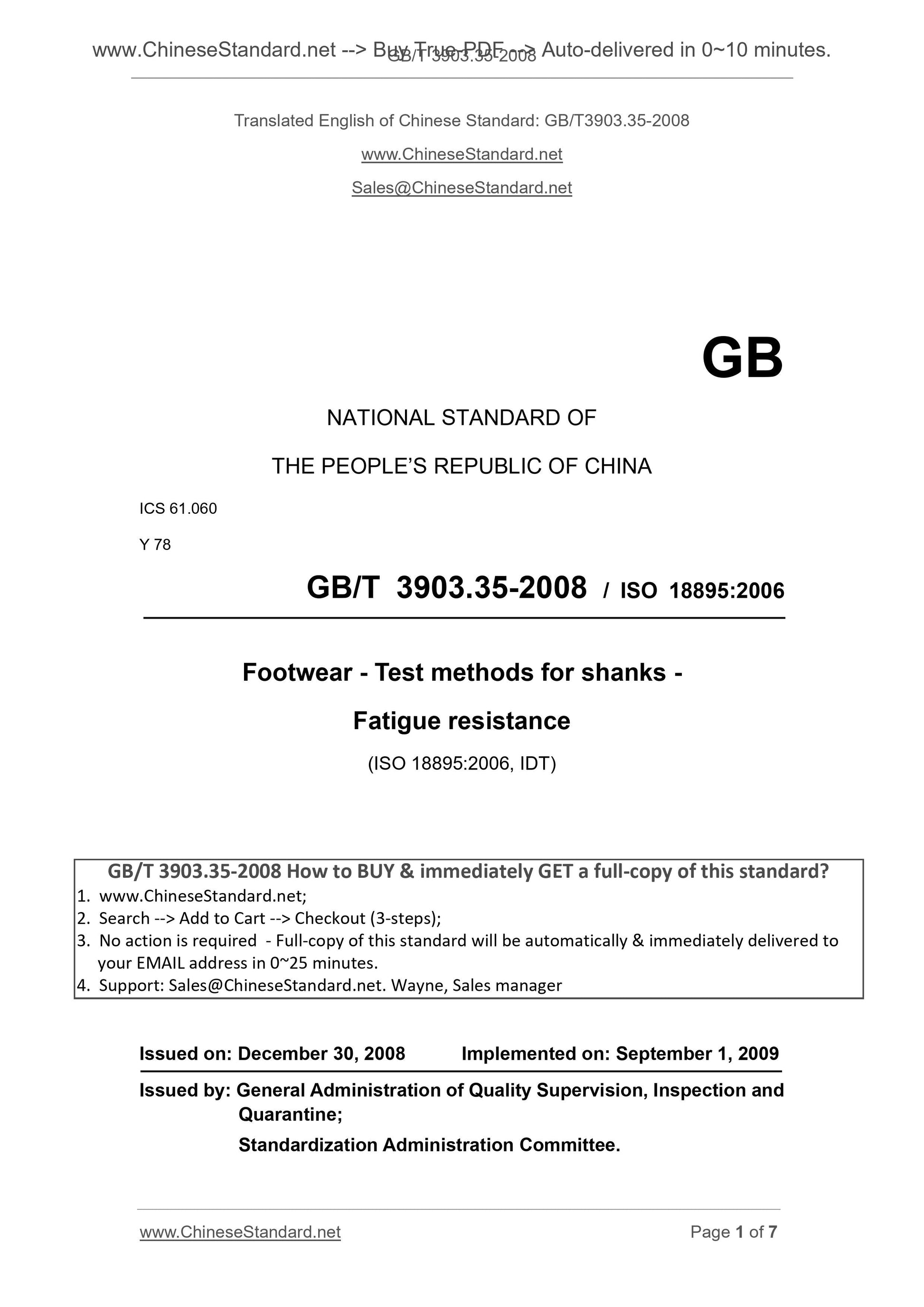

GB/T 3903.35-2008: Footwear -- Test methods for shanks -- Fatigue resistance
GB/T 3903.35-2008
Footwear. Test methods for shanks. Fatigue resistance
ICS 61.060
Y78
National Standards of People's Republic of China
GB/T 3903.35-2008/ISO 18895.2006
Footwear Test methods for shanks fatigue resistance
(ISO 18895.2006, IDT)
Posted 2008-12-30
2009-09-01 implementation
Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China
Standardization Administration of China released

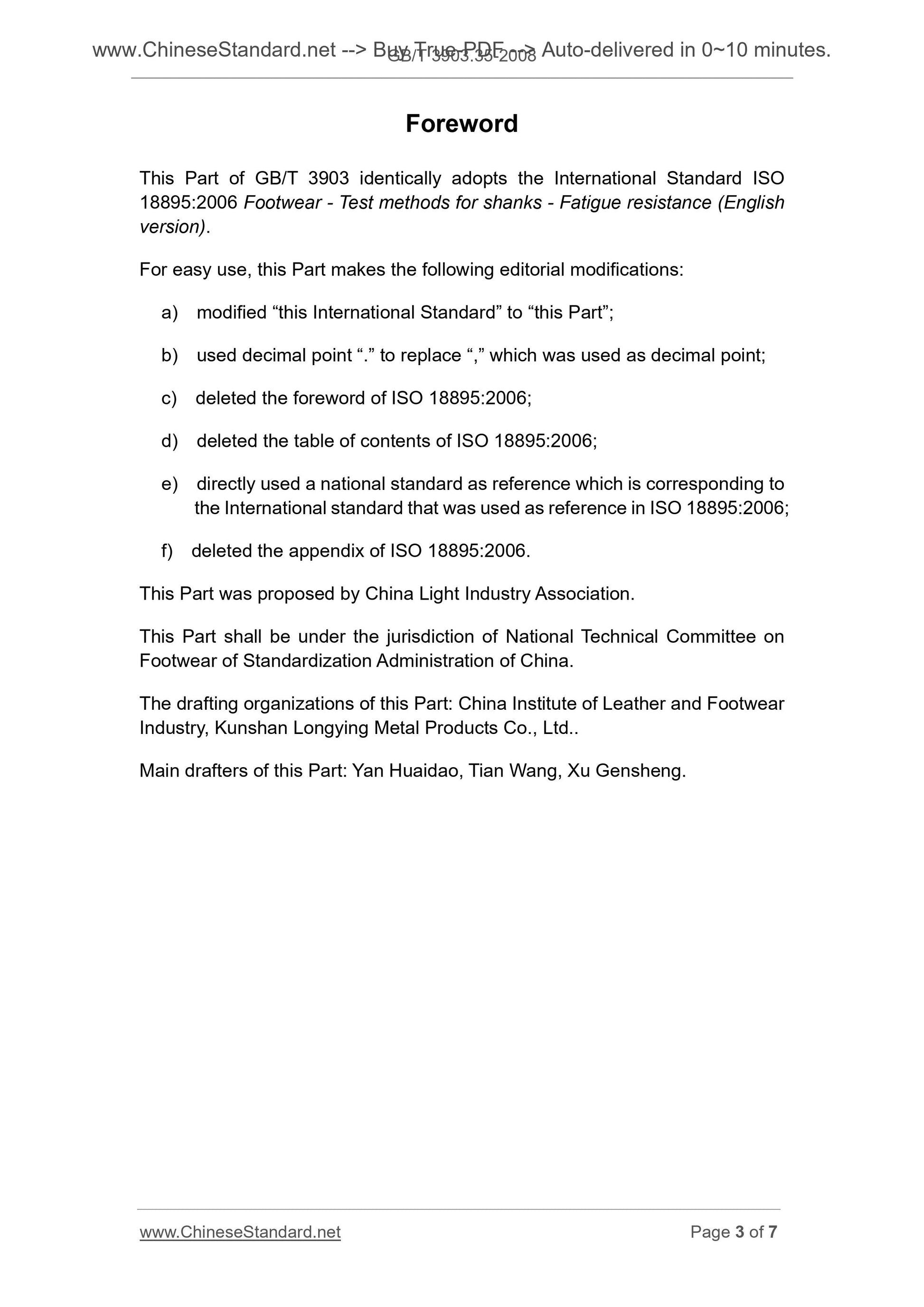

Foreword
GB/T 3903 this part of the equivalent international standard ISO 18895.2006 "Test methods for footwear shanks fatigue resistance" (English
Chinese Version).
For ease of use, this section made the following editorial changes.
a) "this International Standard" be replaced by "this section";
"." B) with a decimal point instead of a comma as the decimal point, "";
c) Remove the preface to international standards;
d) Remove International Standards;
e) For the ISO 18895.2006 international standards referenced in this section with the corresponding direct reference to national standards;
f) Remove the appendix international standards.
This part is proposed by the China National Light Industry Council.
This part of the National Standardization Technical Committee under the jurisdiction of the shoe.
This section drafted by. China Leather and Footwear Industry Research Institute, Kunshan Lung Ying Metal Products Co., Ltd.
The main drafters of this section. Yan Huai Road, Tian Wang, Xu Gensheng.
GB/T 3903.35-2008/ISO 18895.2006
Footwear Test methods for shanks fatigue resistance

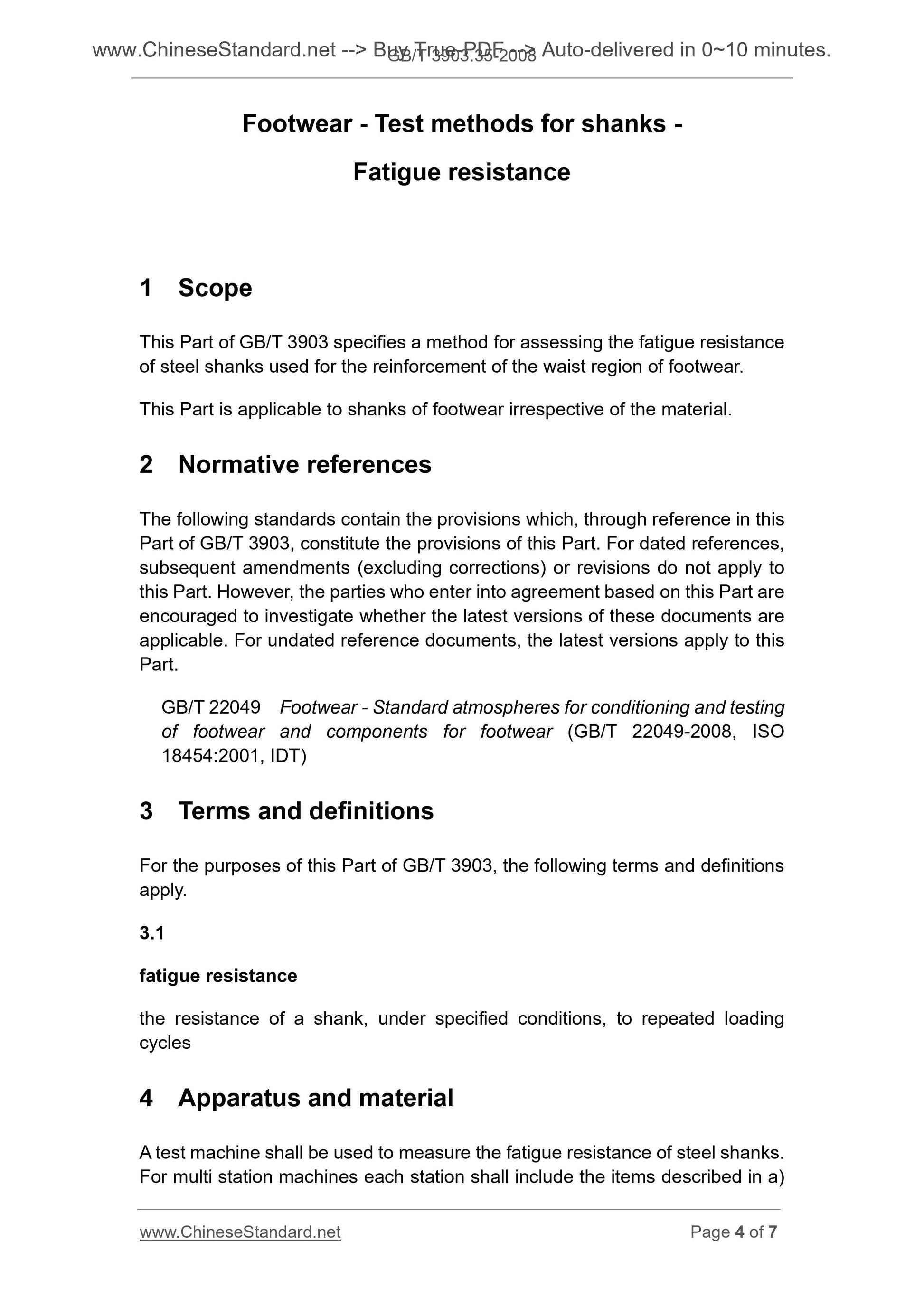

1 Scope
GB/T 3903 provisions of this part of the assessment for reinforcing the shoe flank shank portion Test Method for fatigue resistance.
This section applies to all kinds of footwear shanks.
2 Normative references
The following documents contain provisions which, through GB/T reference in this 3903 constitute provisions of this part. For dated reference documents
Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section
Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this
section.
GB/T 22049 Footwear footwear and footwear components environmental regulation and environmental testing standards (GB/T 22049-2008,
ISO 18454.2001, IDT)
3 Terms and Definitions
The following terms and definitions apply GB/T 3903 of this section.
3.1
Under specified conditions, shanks repeated alternating load resistance.
4 Equipment and Materials
Using anti-fatigue testing machine to measure the shanks fatigue resistance. Work for multi-bit test machine, each of the work stations include a) ~ d) of
part.
a) lower grip pliers. fixed, hard steel flat and a height of 32mm ± 2mm, the width can be firmly clamped shank appropriate.
Jig b) on the clamp. can be adjusted, hard flat steel, the heart can tick embodiment 49N ± 2N force, this force is perpendicular to the lower clamp pliers flat
Surface, the rate of 4r/s. Force exerted by hook heart reciprocating motion, a back and forth motion to form a complete loop. up and down
Figure 1 a schematic view of the fixture clamp.
c) recording means counting the number of cycles when the specimen breaks.
d) controlling the clamp pliers [see a) and b)] which clamping force is 4900N · mm ± 50N · mm devices.
NOTE. You can use a torque wrench.
GB/T 3903.35-2008/ISO 18895.2006
