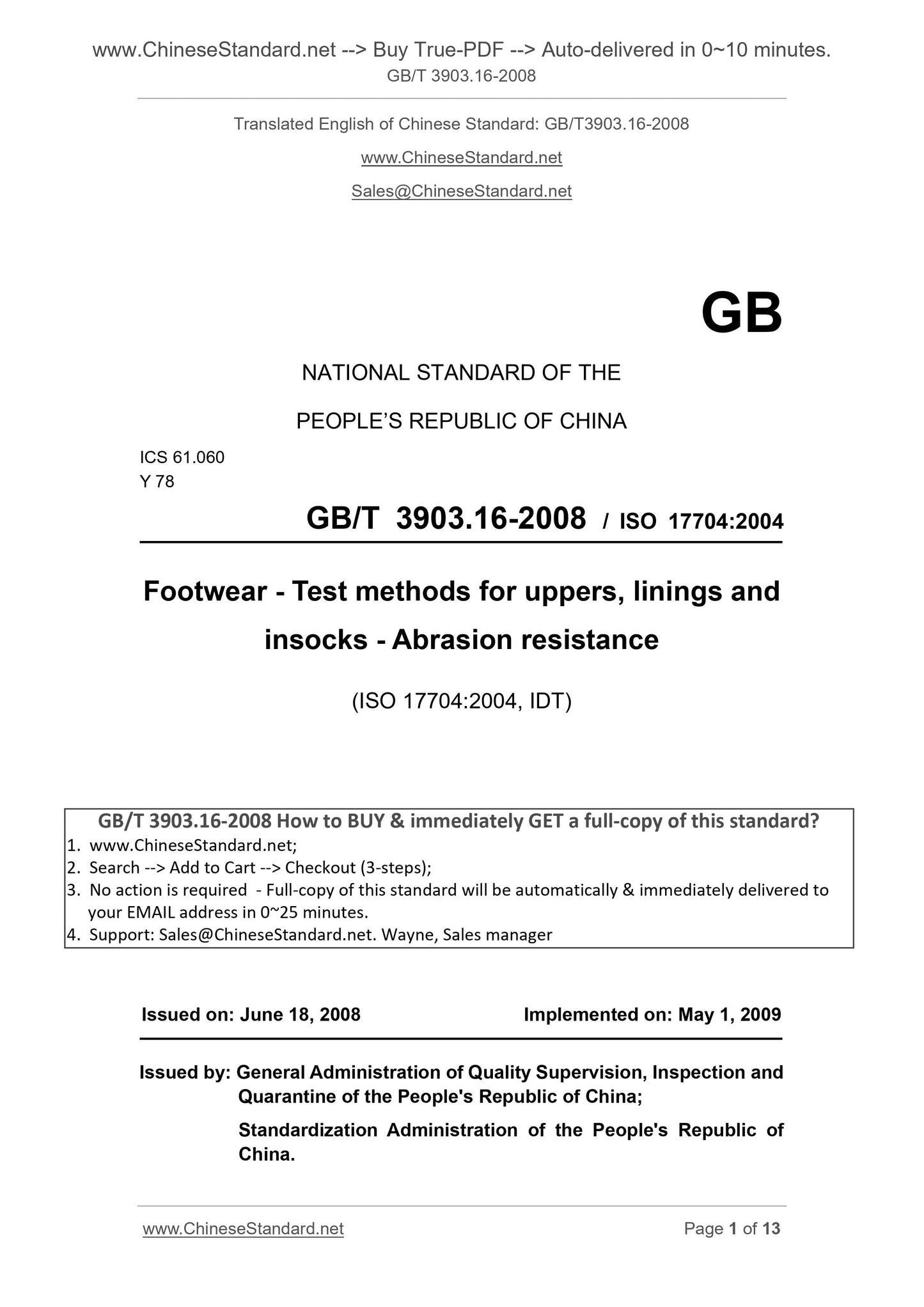

GB/T 3903.16-2008: Footwear -- Test methods for uppers, linings and insocks -- Abrasion resistance
GB/T 3903.16-2008
Footwear. Test methods for uppers, linings and insocks. Abrasion resistance
ICS 61.060
Y78
National Standards of People's Republic of China
GB/T 3903.16-2008/ISO 17704.2004
Uppers, lining and pad test methods
Wear
(ISO 17704.2004, IDT)
Posted 2008-06-18
2009-05-01 implementation
Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China
Standardization Administration of China released
Foreword
GB/T 3903 this part of the equivalent international standard ISO 17704.2004 "uppers, lining and pad resistance test method
Grinding Performance "(in English), the technical content of the same, as only the following editorial changes.
a) "The European Standard" be replaced by "this section";
b) use a decimal point instead of a decimal comma ",". ",";
c) Remove the preface to international standards;
d) Remove International Standards;
e) For the ISO 17704.2004 European standards cited in this section with the corresponding direct reference to national standards;
f) unified table title;
g) The speed unit "rad/s" in terms of "r/min", "rev/min" expression corresponding to "r/min";
h) the reference international standards instead with the corresponding national standards.
This section of Appendix A normative appendix.
This part is proposed by the China National Light Industry Council.
This part of the National Standardization Technical Committee under the jurisdiction of the shoe.
This section is drafted. Cornell Group Co., Ltd., China Leather and Footwear Industry Research Institute.
The main drafters of this section. Zhengxiu, Daijin Qing, Zhang Weijuan.
GB/T 3903.16-2008/ISO 17704.2004
Uppers, lining and pad test methods
Wear

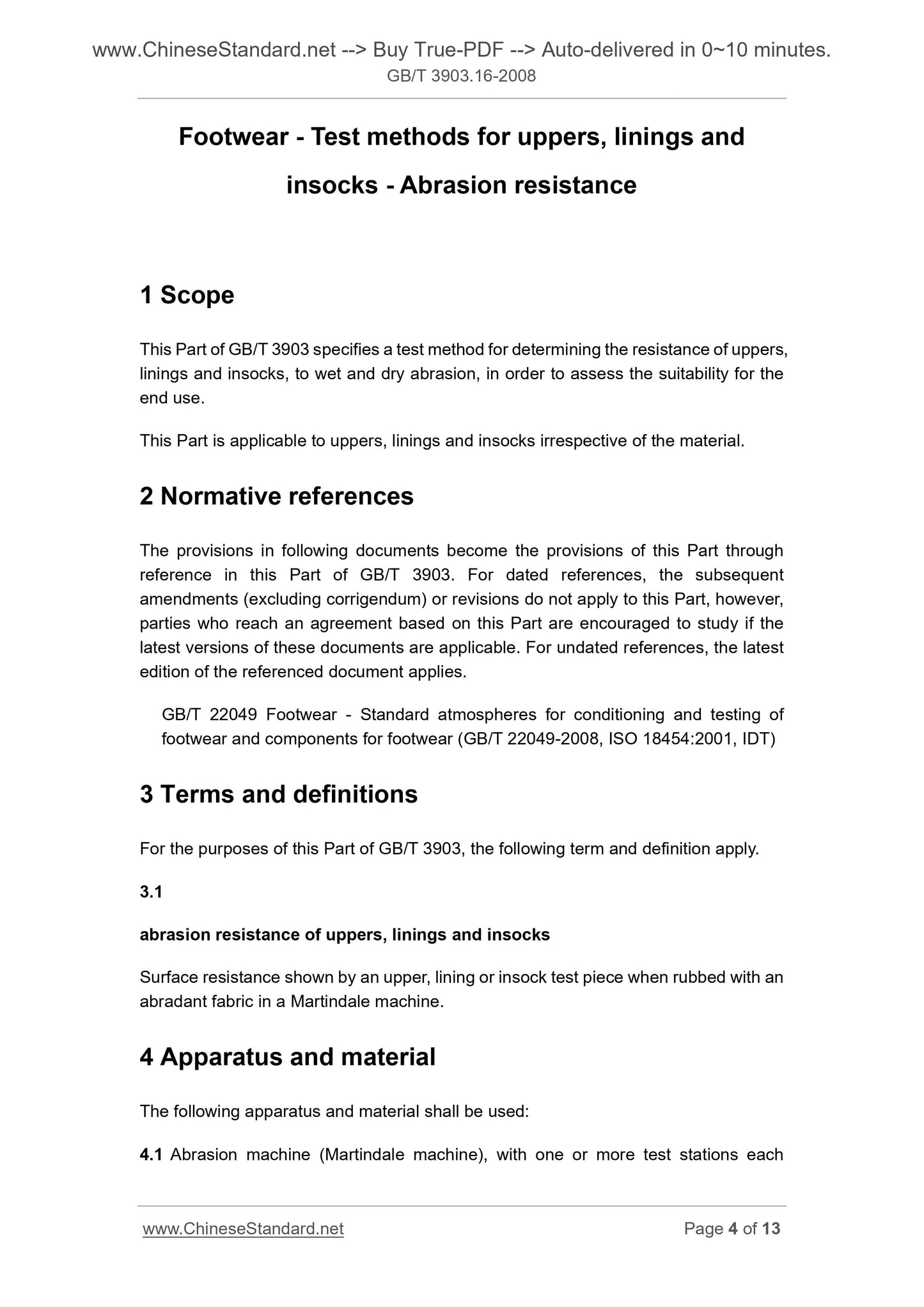

1 Scope
GB/T 3903 provisions of this part of the test method for the determination uppers, lining and pad wear (resistance to wet and dry rub), the purpose is to assess
Its end use suitability.
This section applies to a variety of materials for uppers, linings and pads.
2 Normative references
The following documents contain provisions which, through GB/T reference in this 3903 constitute provisions of this part. For dated reference documents
Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section
Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this
section.
GB/T 22049 Footwear footwear and footwear components environmental regulation and environmental testing standards (GB/T 22049-2008,
ISO 18454.2001, IDT)
3 Terms and Definitions
The following terms and definitions apply GB/T 3903 of this section.
3.1
Use Martindale (Martindale) wearable device, abrasive friction uppers, lining and pad wear resistance test.
4 test equipment and materials
Use the following equipment and materials.
4.1 wear tester (Martindale abrasion tester), one or more test stations, each test station includes the following components.
4.1.1 circular grinding with clamp ring, the peripheral fixed sample, the sample plane convex circular area of \u200b\u200b645mm2 ± 5mm2.
4.1.2 horizontal grinding table, to ensure that there are side length of 88mm square test area. Generally, a circular grinding station, minimum diameter
125mm.
4.1.3 grinding (4.1.1) is raised above the surface and grinding units (4.1.2) into contact, grinding mill can rotate freely in the flat.
Between grinding 4.1.4 (4.1.1) and ground stations (4.1.2) the trajectory of relative motion Lissajous figure area (60mm ± 1mm) ×
(60mm ± 1mm) (see Figure 1). Each Lissajous figure requires grinding operation rate of 16 have elliptical motion (rotation), tester
Is 47.8r/min ± 3.8r/min1).
Note. When running at 47.8r/min ± 3.8r/min, the rate of rotation of the outer shaft tester is 48r/min ± 2r/min.
1) 5rad/s ± 0.4rad/s (1rad≈0.16r/min, 1rad≈9.55r/min)
4.1.5 grinding is maintained between (4.1.1) and ground stations (4.1.2) constant pressure of 12kPa ± 0.2kPa. Quality grinding and related accessories for
795g ± 5g.
4.1.6 For each Lissajous figure, parallel grinding units (4.1.2) and surface grinding (4.1.1) between ± 0.05mm within. Grinding
Count on the scale to verify the parallelism of the grinding station.
GB/T 3903.16-2008/ISO 17704.2004
