GB/T 39019-2020: Custom furniture--Technical requirements for composite assembly identification

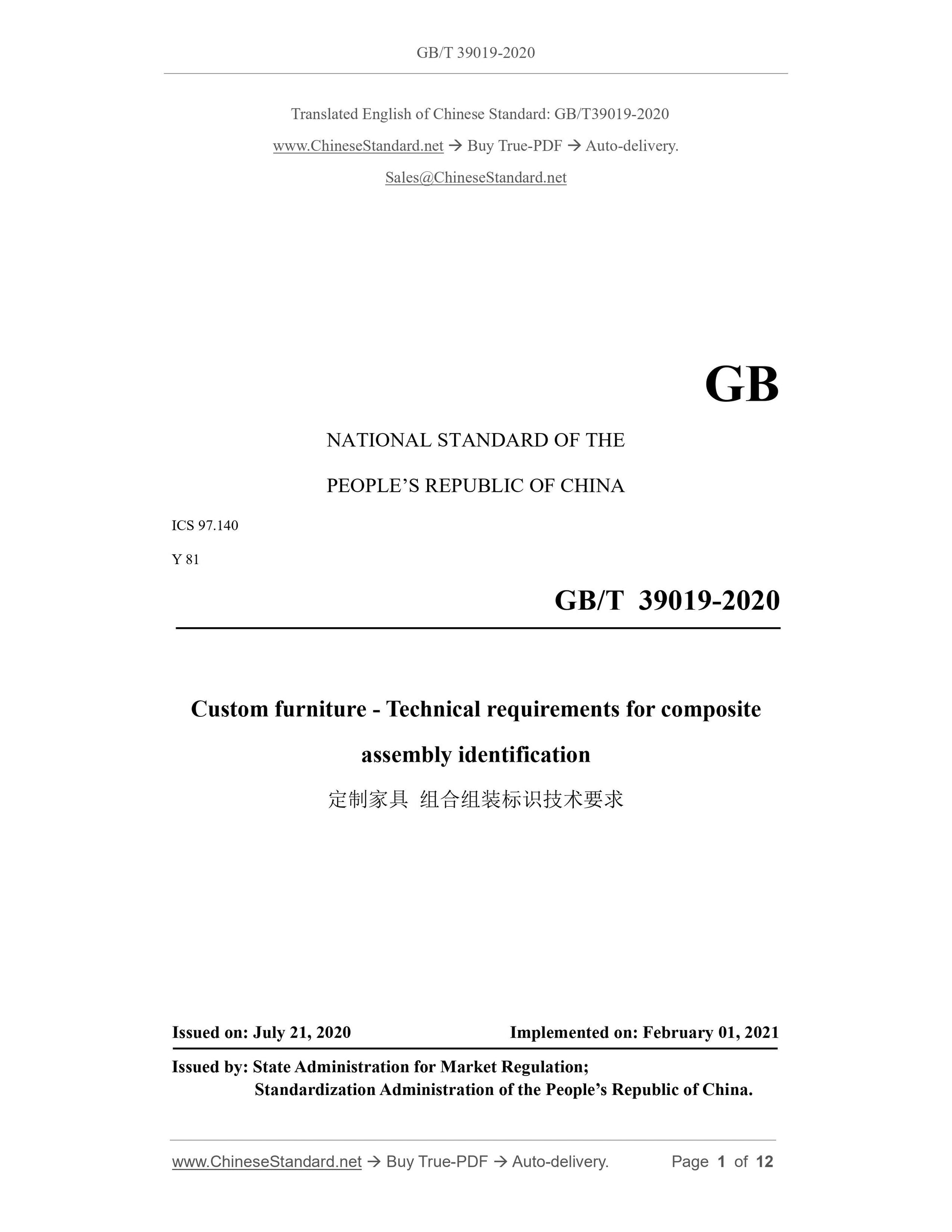

GB/T 39019-2020
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 97.140
Y 81
Custom furniture - Technical requirements for composite
assembly identification
ISSUED ON: JULY 21, 2020
IMPLEMENTED ON: FEBRUARY 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

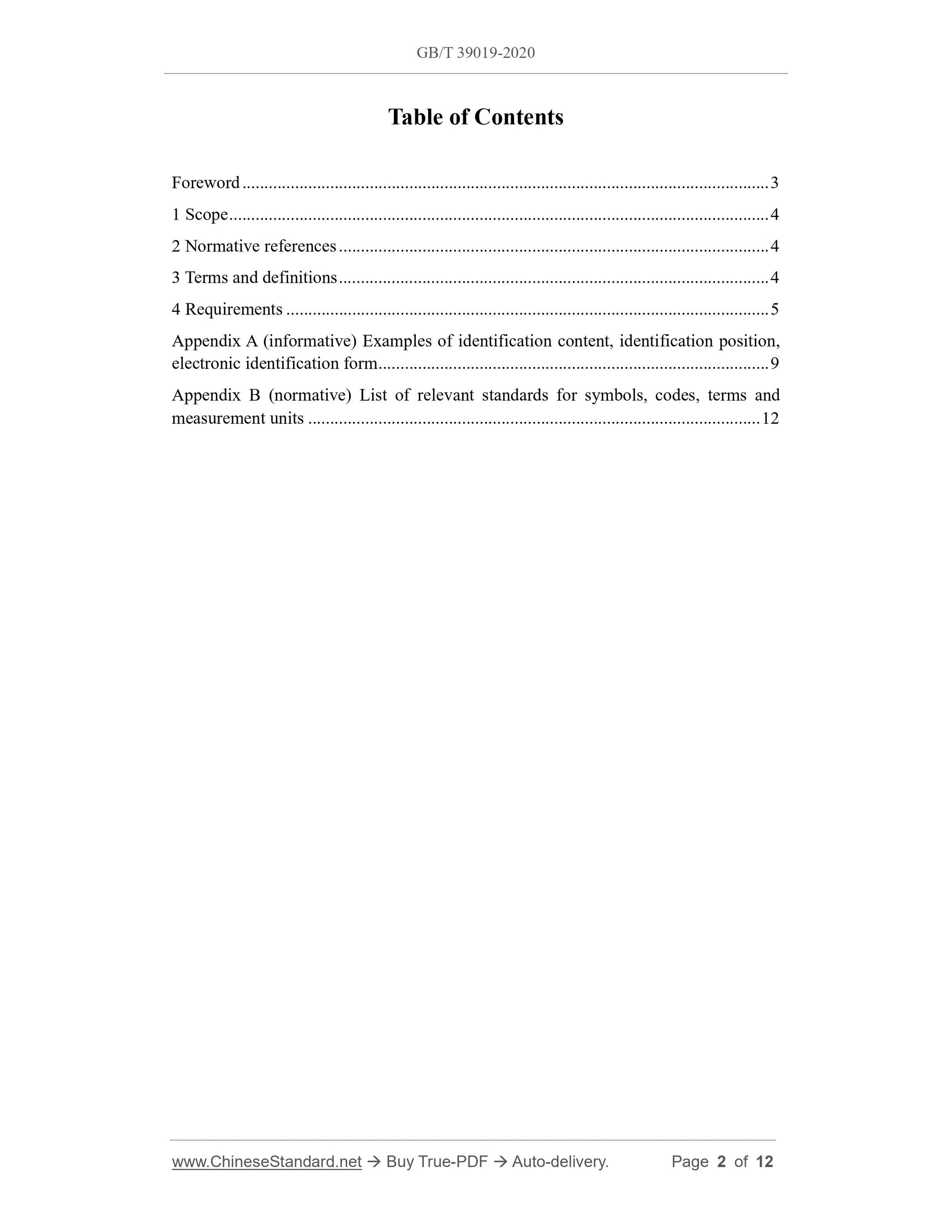

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Requirements ... 5
Appendix A (informative) Examples of identification content, identification position,
electronic identification form ... 9
Appendix B (normative) List of relevant standards for symbols, codes, terms and
measurement units ... 12

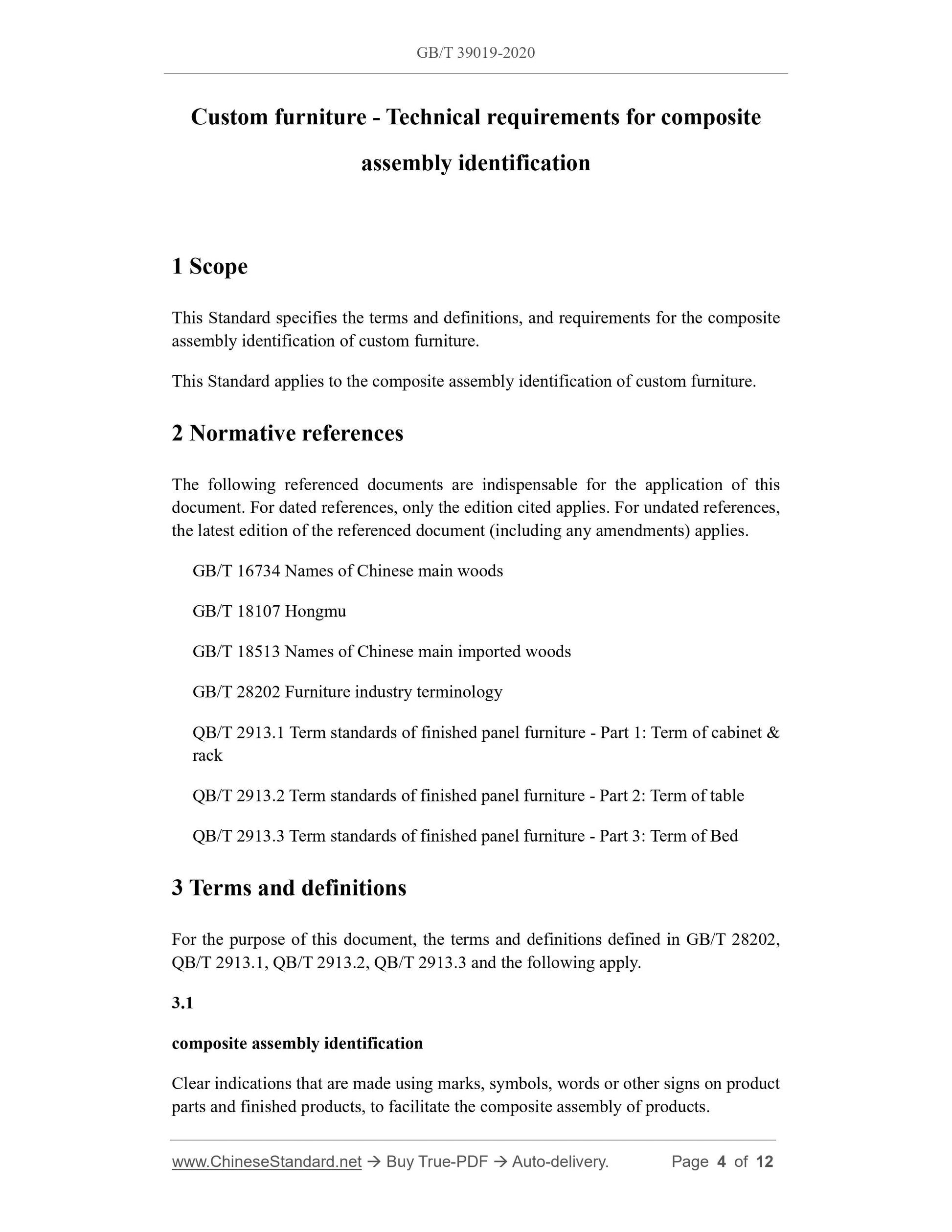

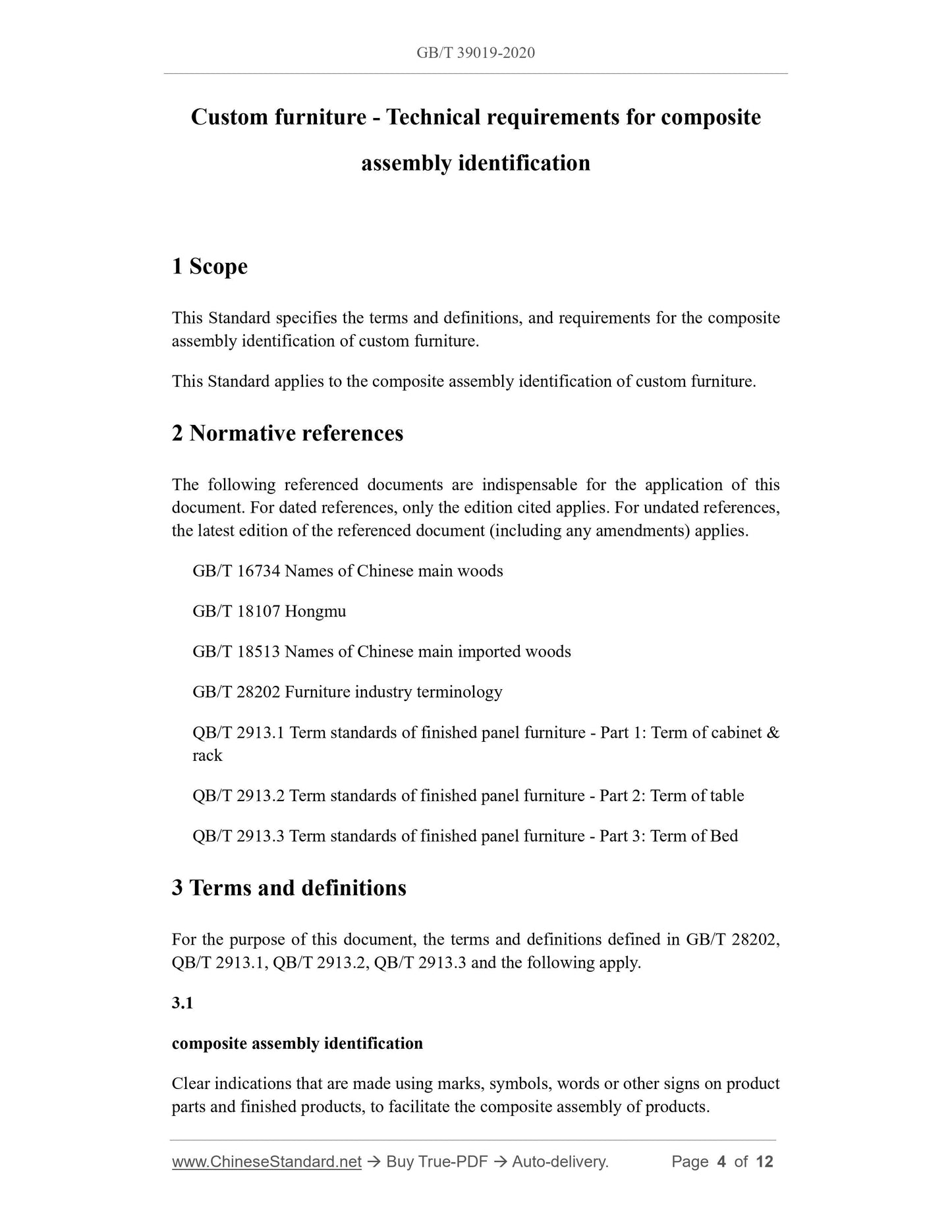

Custom furniture - Technical requirements for composite
assembly identification
1 Scope
This Standard specifies the terms and definitions, and requirements for the composite
assembly identification of custom furniture.
This Standard applies to the composite assembly identification of custom furniture.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 16734 Names of Chinese main woods
GB/T 18107 Hongmu
GB/T 18513 Names of Chinese main imported woods
GB/T 28202 Furniture industry terminology
QB/T 2913.1 Term standards of finished panel furniture - Part 1: Term of cabinet and
rack
QB/T 2913.2 Term standards of finished panel furniture - Part 2: Term of table
QB/T 2913.3 Term standards of finished panel furniture - Part 3: Term of Bed
3 Terms and definitions
For the purpose of this document, the terms and definitions defined in GB/T 28202,
QB/T 2913.1, QB/T 2913.2, QB/T 2913.3 and the following apply.
3.1
composite assembly identification
Clear indications that are made using marks, symbols, words or other signs on product
parts and finished products, to facilitate the composite assembly of products.

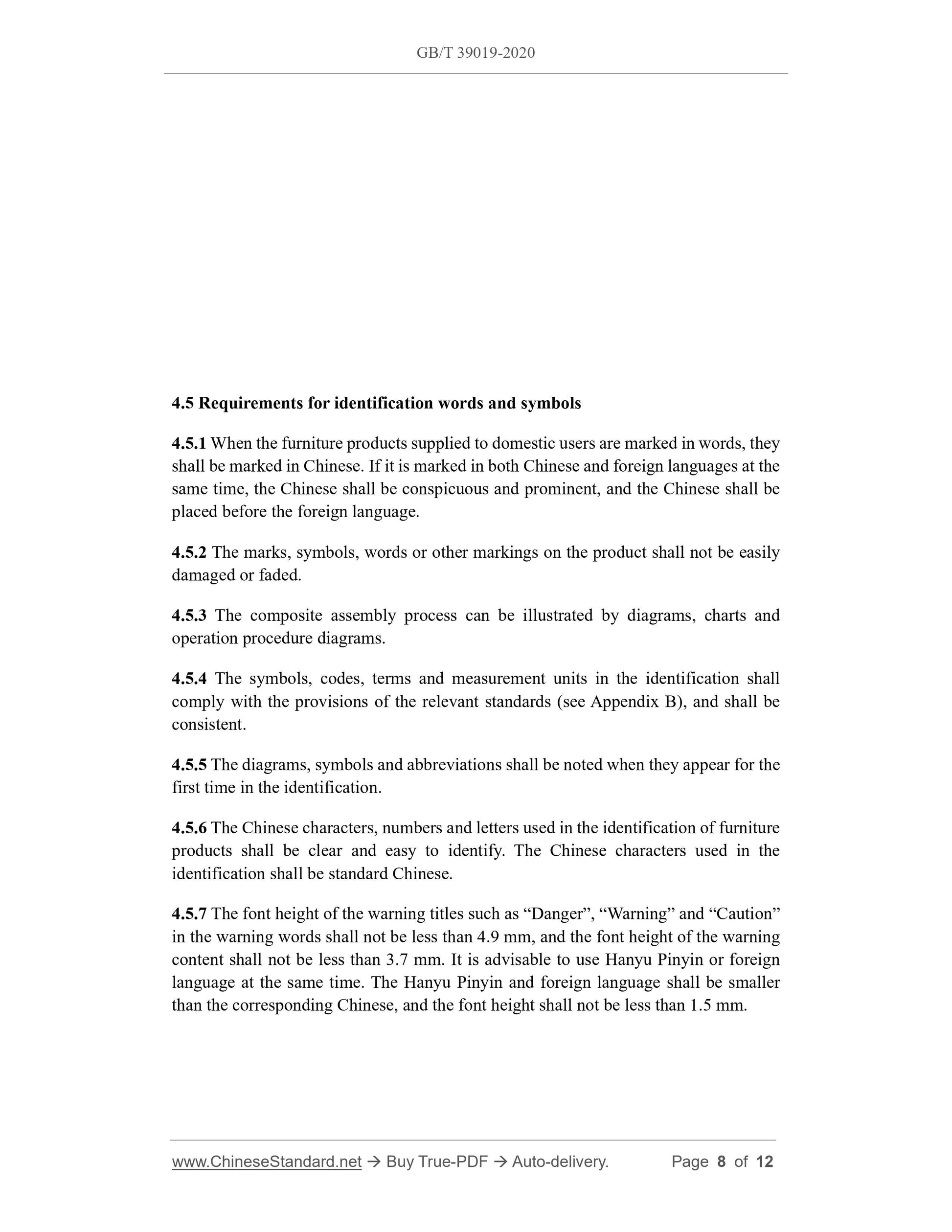

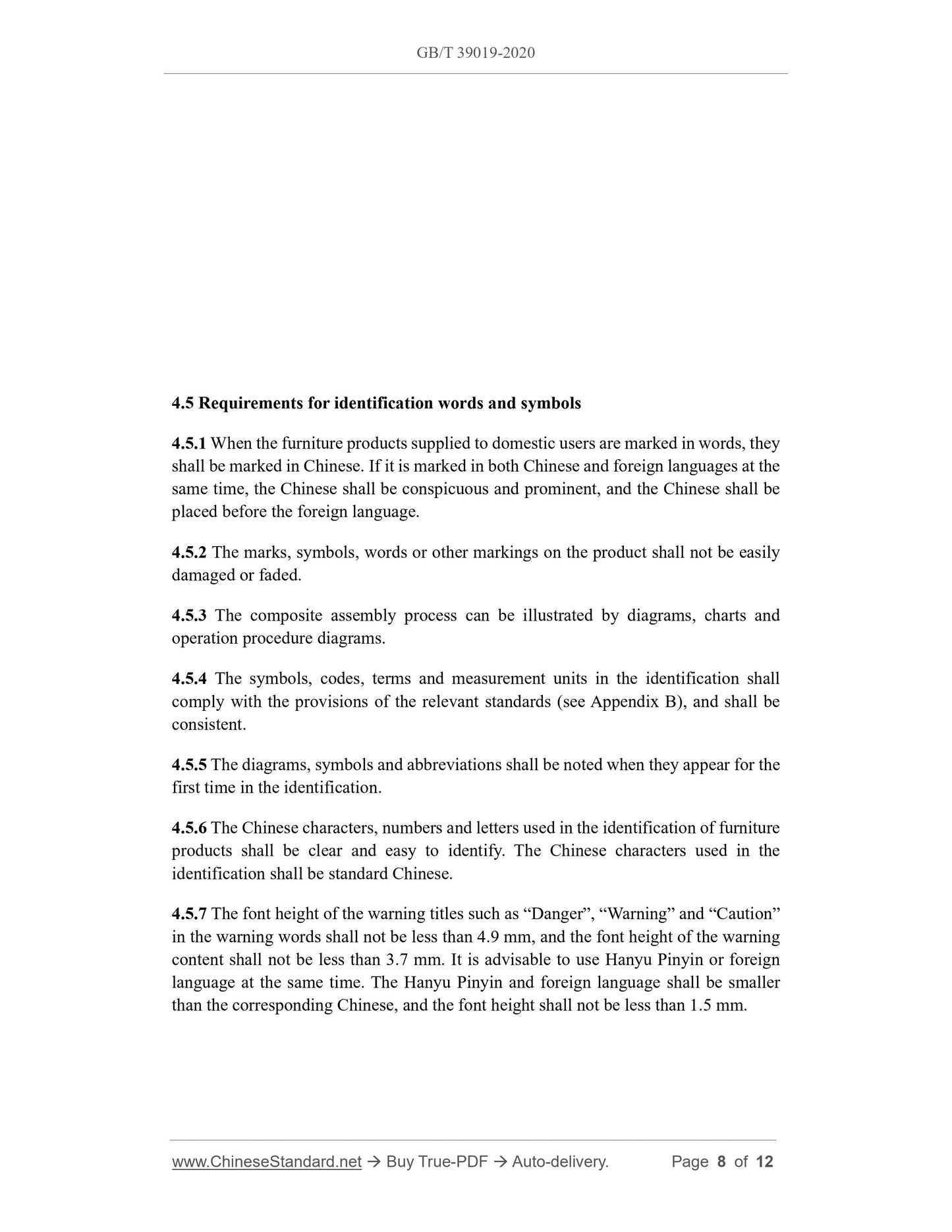

4.5 Requirements for identification words and symbols
4.5.1 When the furniture products supplied to domestic users are marked in words, they
shall be marked in Chinese. If it is marked in both Chinese and foreign languages at the
same time, the Chinese shall be conspicuous and prominent, and the Chinese shall be
placed before the foreign language.
4.5.2 The marks, symbols, words or other markings on the product shall not be easily
damaged or faded.
4.5.3 The composite assembly process can be illustrated by diagrams, charts and
operation procedure diagrams.
4.5.4 The symbols, codes, terms and measurement units in the identification shall
comply with the provisions of the relevant standards (see Appendix B), and shall be
consistent.
4.5.5 The diagrams, symbols and abbreviations shall be noted when they appear for the
first time in the identification.
4.5.6 The Chinese characters, numbers and letters used in the identification of furniture
products shall be clear and easy to identify. The Chinese characters used in the
identification shall be standard Chinese.
4.5.7 The font height of the warning titles such as “Danger”, “Warning” and “Caution”
in the warning words shall not be less than 4.9 mm, and the font height of the warning
content shall not be less than 3.7 mm. It is advisable to use Hanyu Pinyin or foreign
language at the same time. The Hanyu Pinyin and foreign language shall be smaller
than the corresponding Chinese, and the font height shall not be less than 1.5 mm.
