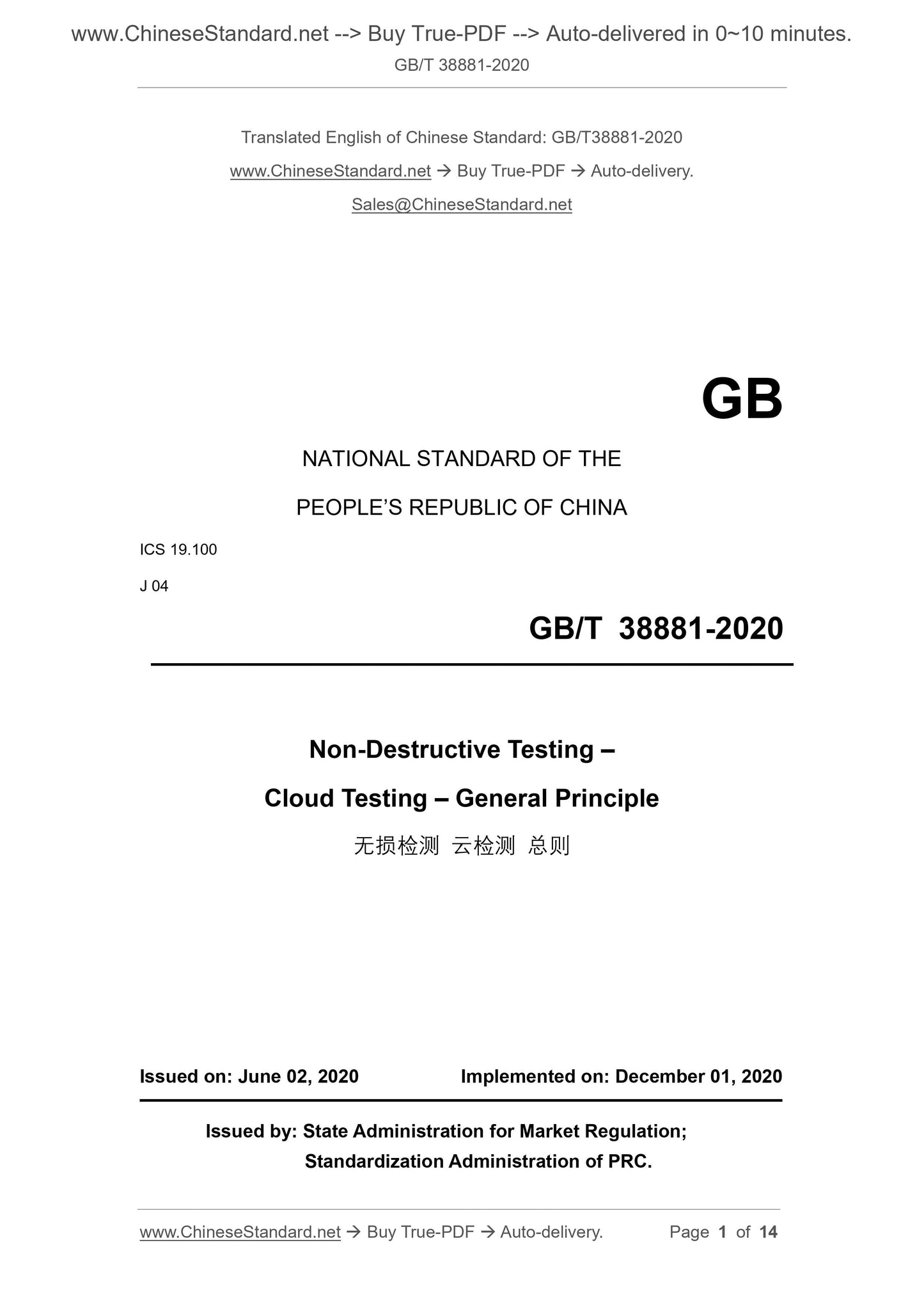

GB/T 38881-2020
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 19.100
J 04
Non-Destructive Testing –
Cloud Testing – General Principle
ISSUED ON: JUNE 02, 2020
IMPLEMENTED ON: DECEMBER 01, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of PRC.

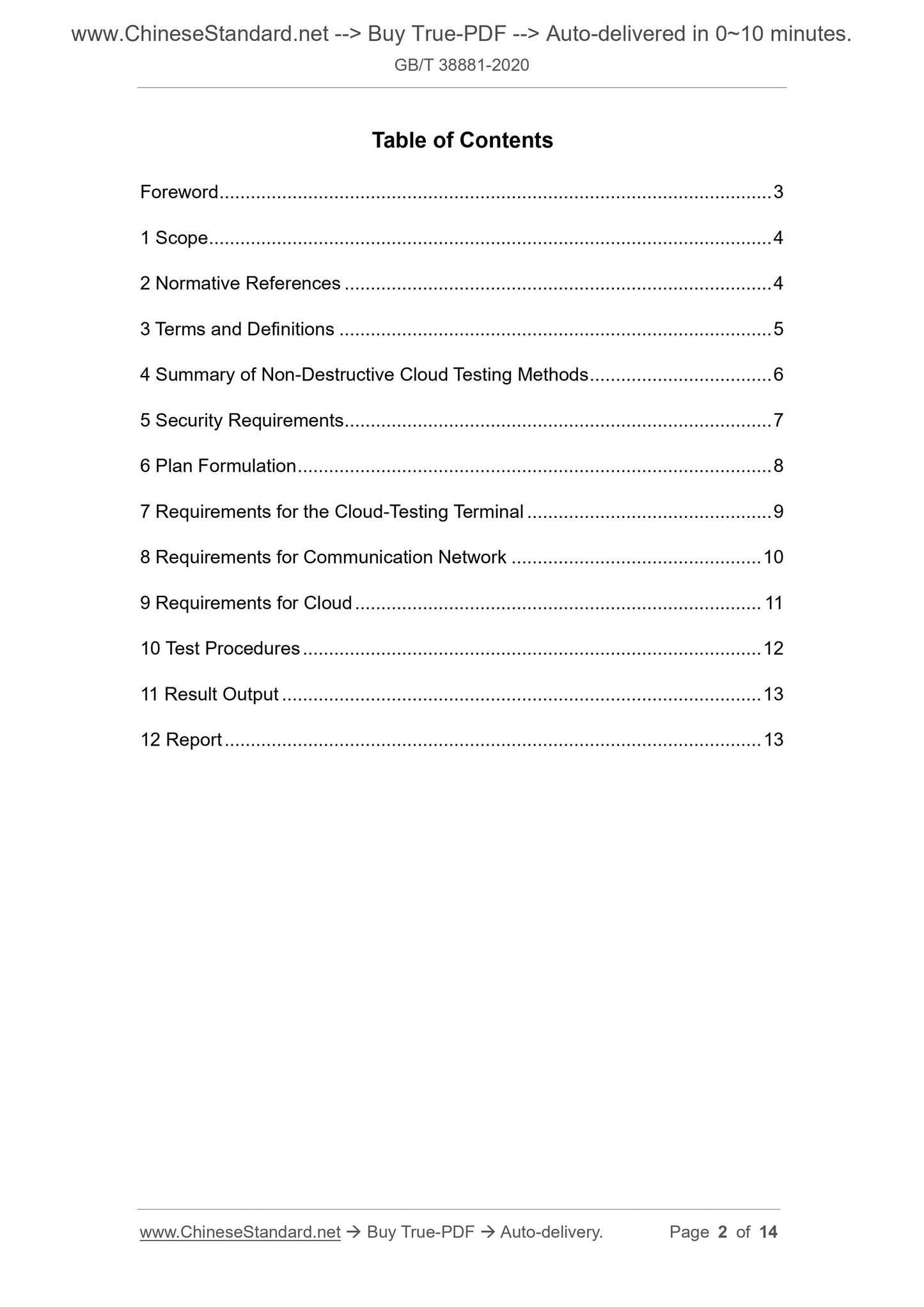

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 5
4 Summary of Non-Destructive Cloud Testing Methods ... 6
5 Security Requirements ... 7
6 Plan Formulation ... 8
7 Requirements for the Cloud-Testing Terminal ... 9
8 Requirements for Communication Network ... 10
9 Requirements for Cloud ... 11
10 Test Procedures ... 12
11 Result Output ... 13
12 Report ... 13

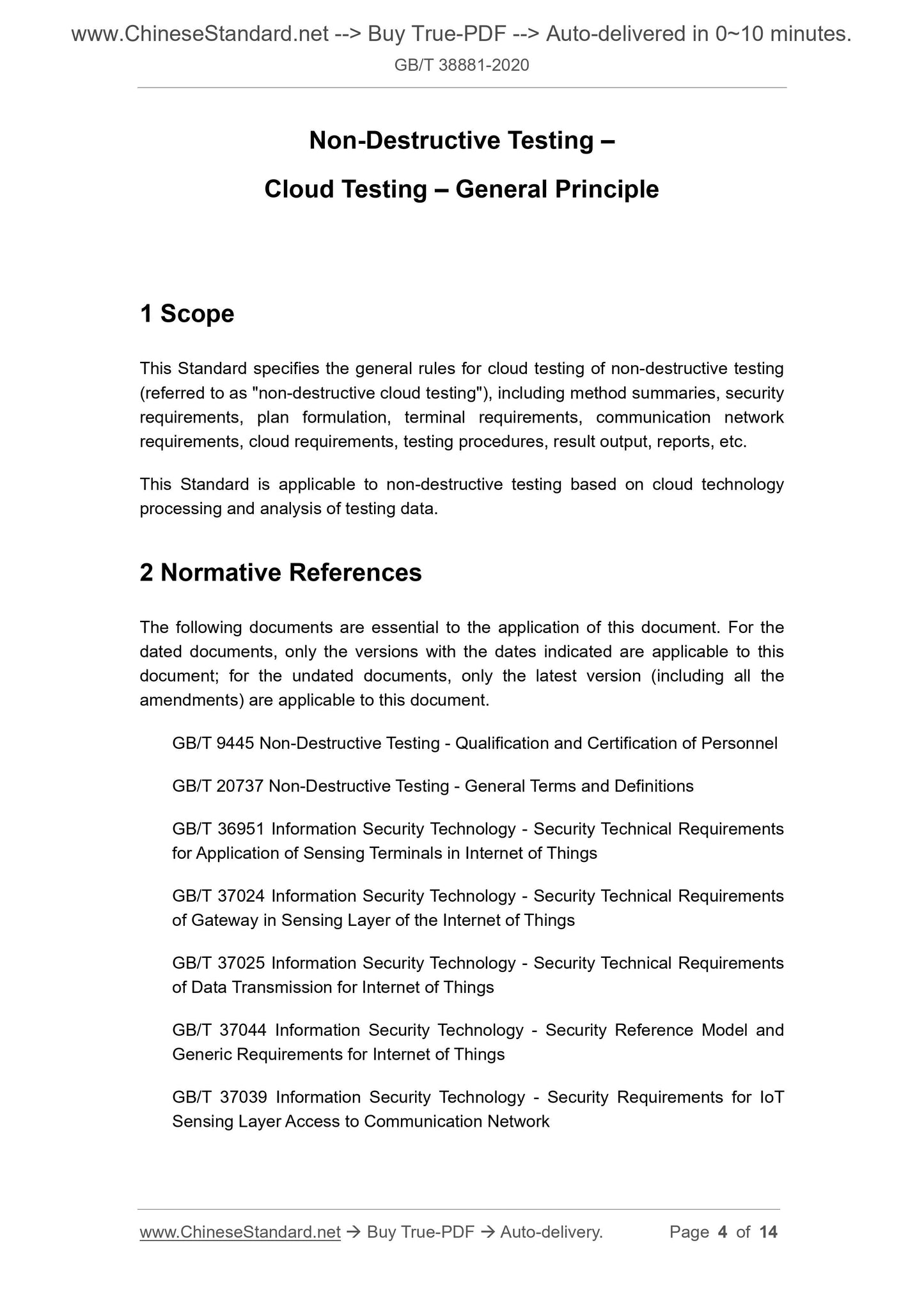

Non-Destructive Testing –
Cloud Testing – General Principle
1 Scope
This Standard specifies the general rules for cloud testing of non-destructive testing
(referred to as "non-destructive cloud testing"), including method summaries, security
requirements, plan formulation, terminal requirements, communication network
requirements, cloud requirements, testing procedures, result output, reports, etc.
This Standard is applicable to non-destructive testing based on cloud technology
processing and analysis of testing data.
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB/T 9445 Non-Destructive Testing - Qualification and Certification of Personnel
GB/T 20737 Non-Destructive Testing - General Terms and Definitions
GB/T 36951 Information Security Technology - Security Technical Requirements
for Application of Sensing Terminals in Internet of Things
GB/T 37024 Information Security Technology - Security Technical Requirements
of Gateway in Sensing Layer of the Internet of Things
GB/T 37025 Information Security Technology - Security Technical Requirements
of Data Transmission for Internet of Things
GB/T 37044 Information Security Technology - Security Reference Model and
Generic Requirements for Internet of Things
GB/T 37039 Information Security Technology - Security Requirements for IoT
Sensing Layer Access to Communication Network

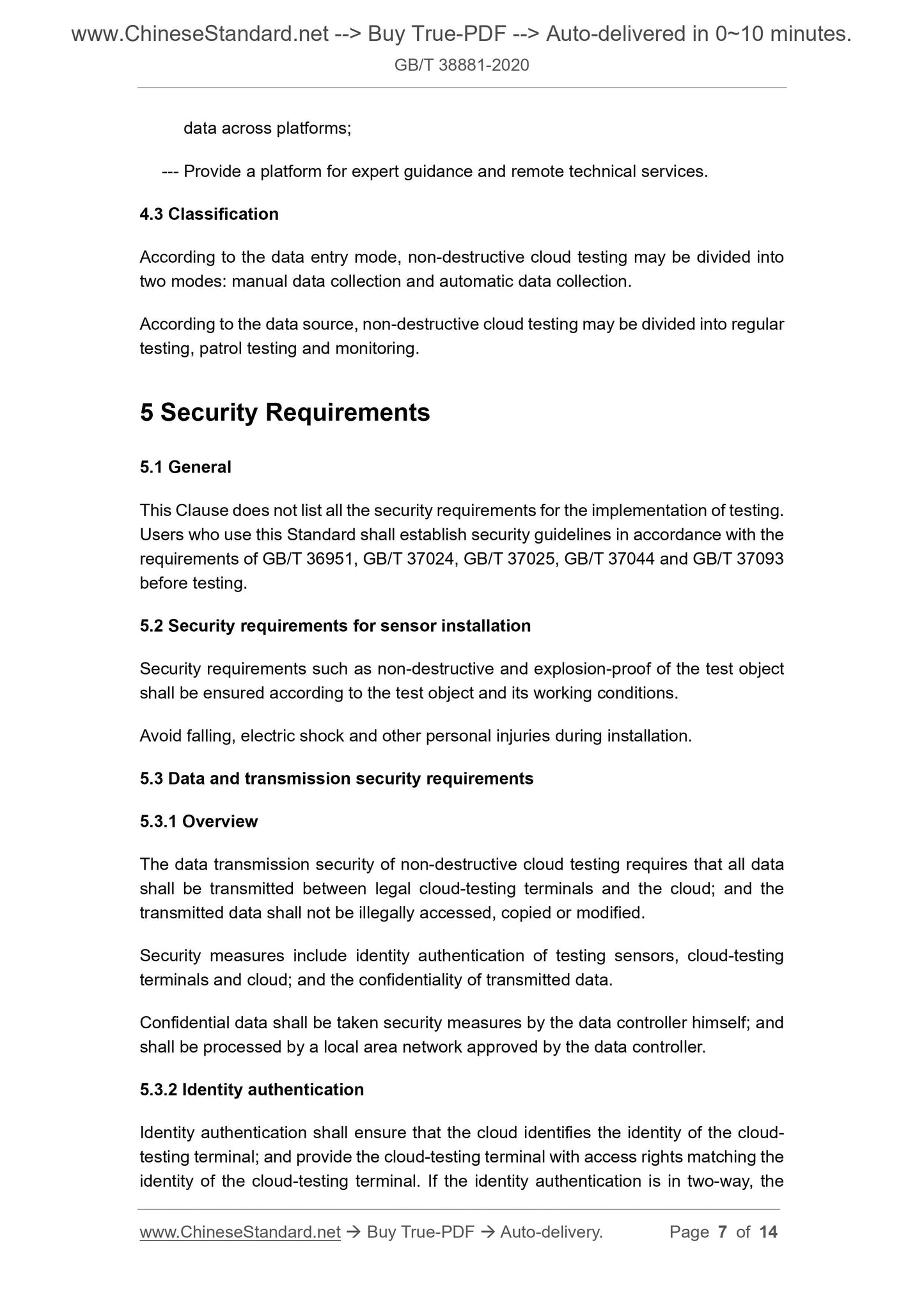

data across platforms;
--- Provide a platform for expert guidance and remote technical services.
4.3 Classification
According to the data entry mode, non-destructive cloud testing may be divided into
two modes: manual data collection and automatic data collection.
According to the data source, non-destructive cloud testing may be divided into regular
testing, patrol testing and monitoring.
5 Security Requirements
5.1 General
This Clause does not list all the security requirements for the implementation of testing.
Users who use this Standard shall establish security guidelines in accordance with the
requirements of GB/T 36951, GB/T 37024, GB/T 37025, GB/T 37044 and GB/T 37093
before testing.
5.2 Security requirements for sensor installation
Security requirements such as non-destructive and explosion-proof of the test object
shall be ensured according to the test object and its working conditions.
Avoid falling, electric shock and other personal injuries during installation.
5.3 Data and transmission security requirements
5.3.1 Overview
The data transmission security of non-destructive cloud testing requires that all data
shall be transmitted between legal cloud-testing terminals and the cloud; and the
transmitted data shall not be illegally accessed, copied or modified.
Security measures include identity authentication of testing sensors, cloud-testing
terminals and cloud; and the confidentiality of transmitted data.
Confidential data shall be taken security measures by the data controller himself; and
shall be processed by a local area network approved by the data controller.
5.3.2 Identity authentication
Identity authentication shall ensure that the cloud identifies the identity of the cloud-
testing terminal; and provide the cloud-testing terminal with access rights matching the
identity of the cloud-testing terminal. If the identity authentication is in two-way, the

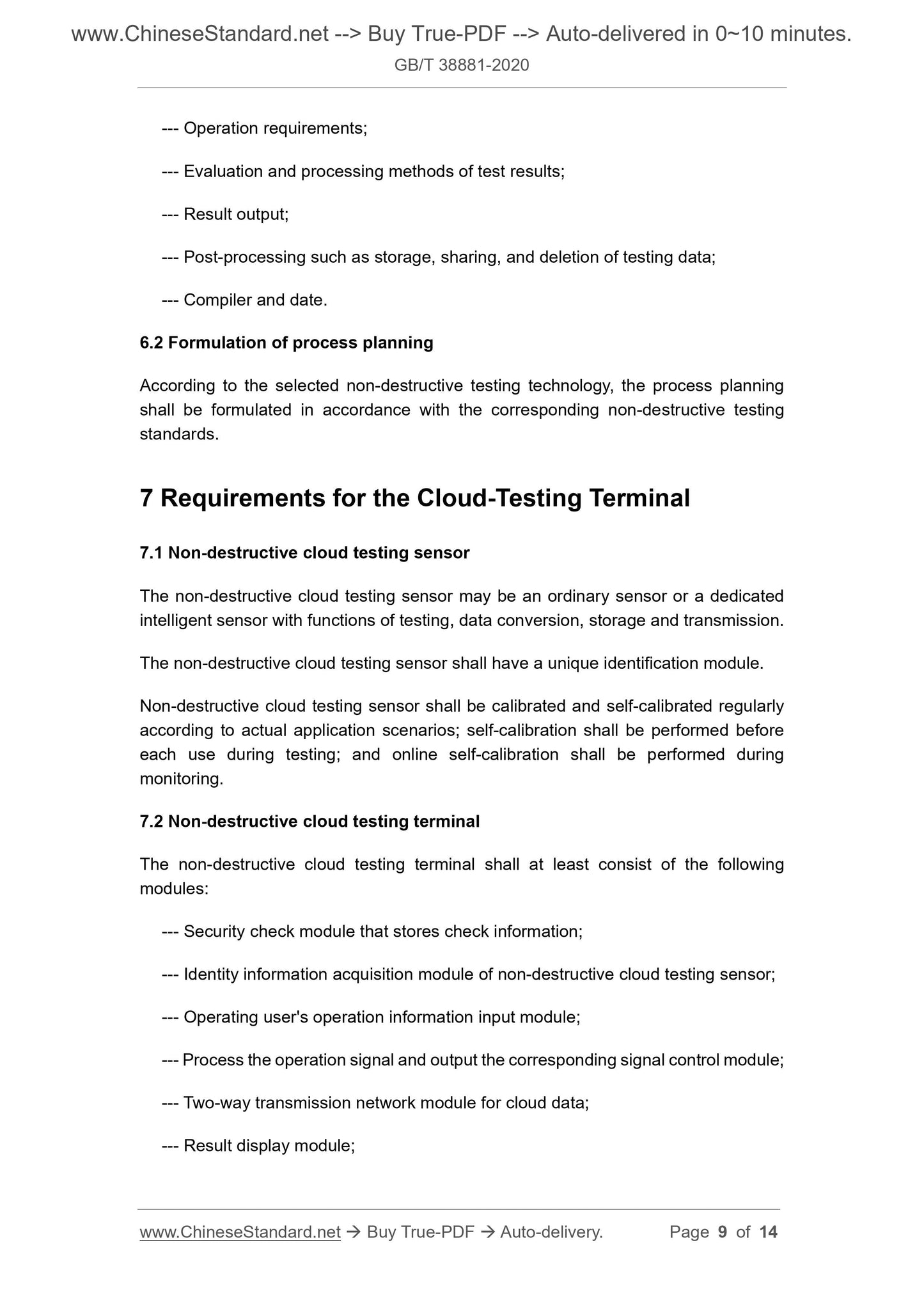

--- Operation requirements;
--- Evaluation and processing methods of test results;
--- Result output;
--- Post-processing such as storage, sharing, and deletion of testing data;
--- Compiler and date.
6.2 Formulation of process planning
According to the selected non-destructive testing technology, the process planning
shall be formulated in accordance with the corresponding non-destructive testing
standards.
7 Requirements for the Cloud-Testing Terminal
7.1 Non-destructive cloud testing sensor
The non-destructive cloud testing sensor may be an ordinary sensor or a dedicated
intelligent sensor with functions of testing, data conversion, storage and transmission.
The non-destructive cloud testing sensor shall have a unique identification module.
Non-destructive cloud testing sensor shall be calibrated and self-calibrated regularly
according to actual application scenarios; self-calibration shall be performed before
each use during testing; and online self-calibration shall be performed during
monitoring.
7.2 Non-destructive cloud testing terminal
The non-destructive cloud testing terminal shall at least consist of the following
modules:
--- Security check module that stores check information;
--- Identity information acquisition module of non-destructive cloud testing sensor;
--- Operating user's operation information input module;
--- Process the operation signal and output the corresponding signal control module;
--- Two-way transmission network module for cloud data;
--- Result display module;

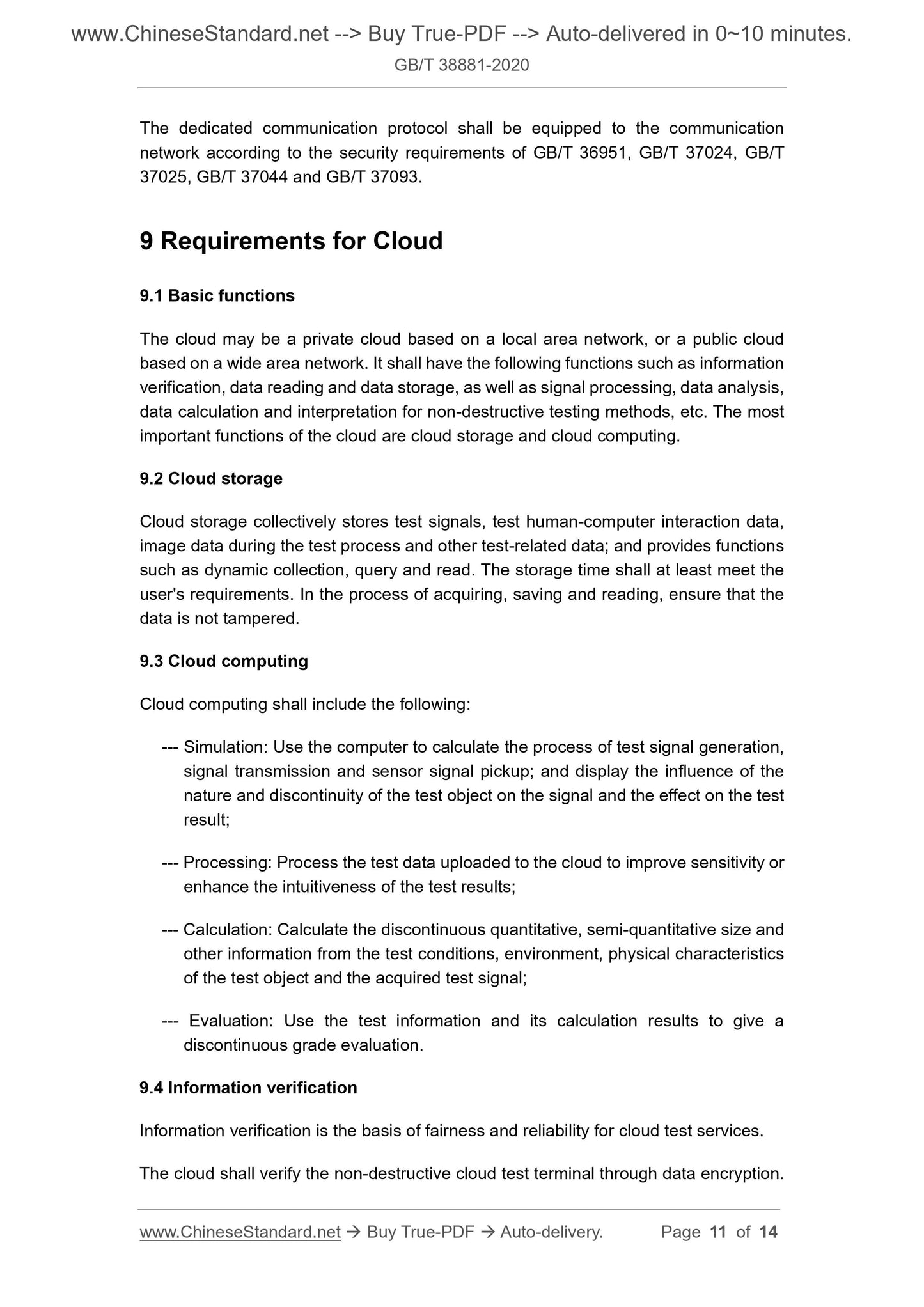

The dedicated communication protocol shall be equipped to the communication
network according to the security requirements of GB/T 36951, GB/T 37024, GB/T
37025, GB/T 37044 and GB/T 37093.
9 Requirements for Cloud
9.1 Basic functions
The cloud may be a private cloud based on a local area network, or a public cloud
based on a wide area network. It shall have the following functions such as information
verification, data reading and data storage, as well as signal processing, data analysis,
data calculation and interpretation for non-destructive testing methods, etc. The most
important functions of the cloud are cloud storage and cloud computing.
9.2 Cloud storage
Cloud storage collectively stores test signals, test human-computer interaction data,
image data during the test process and other test-related data; and provides functions
such as dynamic collection, query and read. The storage time shall at least meet the
user's requirements. In the process of acquiring, saving and reading, ensure that the
data is not tampered.
9.3 Cloud computing
Cloud computing shall include the following:
--- Simulation: Use the computer to calculate the process of test signal generation,
signal transmission and sensor signal pickup; and display the influence of the
nature and discontinuity of the test object on the signal and the effect on the test
result;
--- Processing: Process the test data uploaded to the cloud to improve sensitivity or
enhance the intuitiveness of the test results;
--- Calculation: Calculate the discontinuous quantitative, semi-quantitative size and
other information from the test conditions, environment, physical characteristics
of the test object and the acquired test signal;
--- Evaluation: Use the test information and its calculation results to give a
discontinuous grade evaluation.
9.4 Information verification
Information verification is the basis of fairness and reliability for cloud test services.
The cloud shall verify the non-destructive cloud test terminal through data encryption.

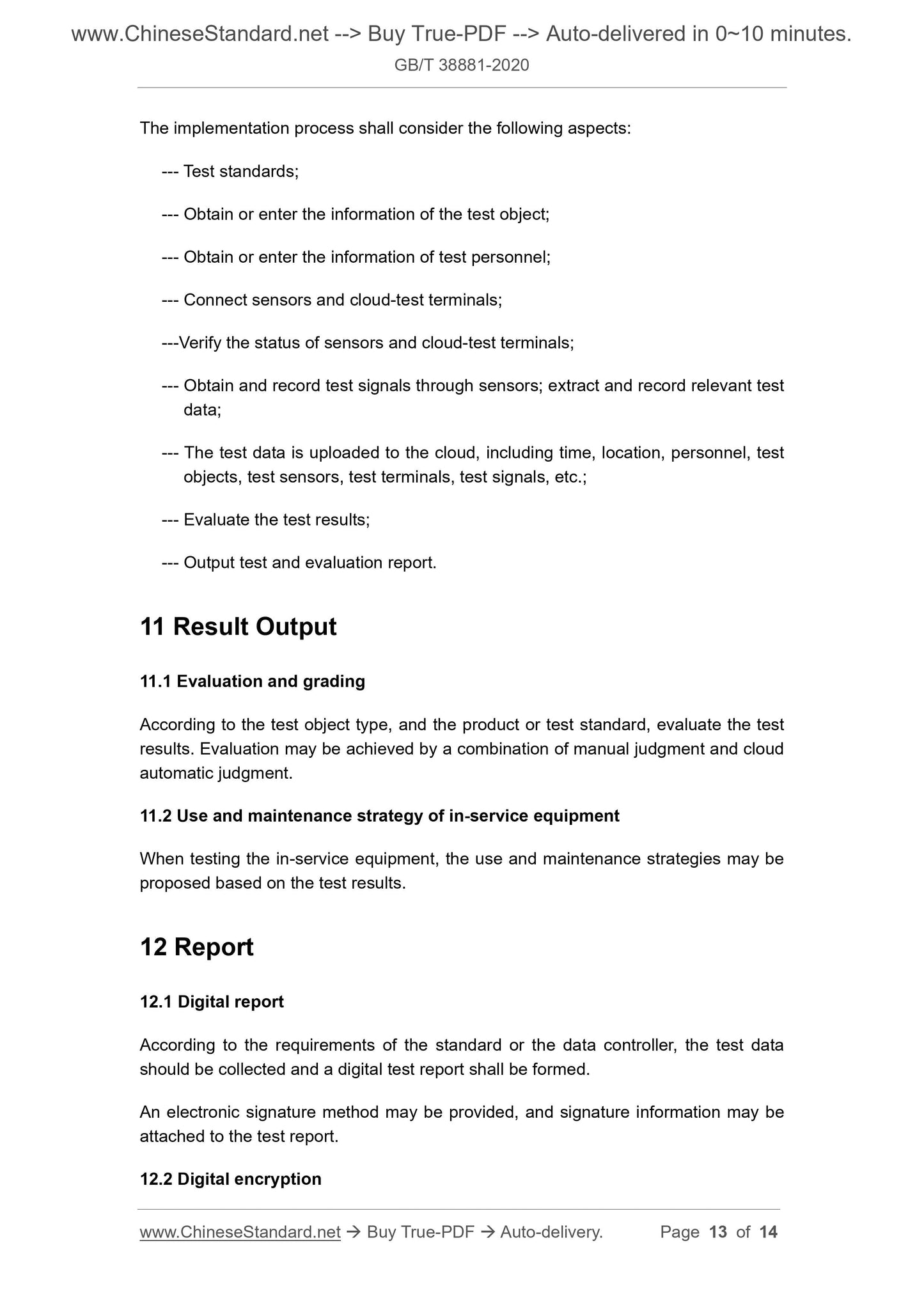

The implementation process shall consider the following aspects:
--- Test standards;
--- Obtain or enter the information of the test object;
--- Obtain or enter the information of test personnel;
--- Connect sensors and cloud-test terminals;
---Verify the status of sensors and cloud-test terminals;
--- Obtain and record test signals through sensors; extract and record relevant test
data;
--- The test data is uploaded to the cloud, including time, location, personnel, test
objects, test sensors, test terminals, test signals, etc.;
--- Evaluate the test results;
--- Output test and evaluation report.
11 Result Output
11.1 Evaluation and grading
According to the test object type, and the product or test standard, evaluate the test
results. Evaluation may be achieved by a combination of manual judgment and cloud
automatic judgment.
11.2 Use and maintenance strategy of in-service equipment
When testing the in-service equipment, the use and maintenance strategies may be
proposed based on the test results.
12 Report
12.1 Digital report
According to the requirements of the standard or the data controller, the test data
should be collected and a digital test report shall be formed.
An electronic signature method may be provided, and signature information may be
attached to the test report.
12.2 Digital encryption
