GB/T 38811-2020: Metallic materials - Residual stress - Method of sound beam control

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 38811-2020 (Self-service in 1-minute)
Newer / historical versions: GB/T 38811-2020

Preview True-PDF

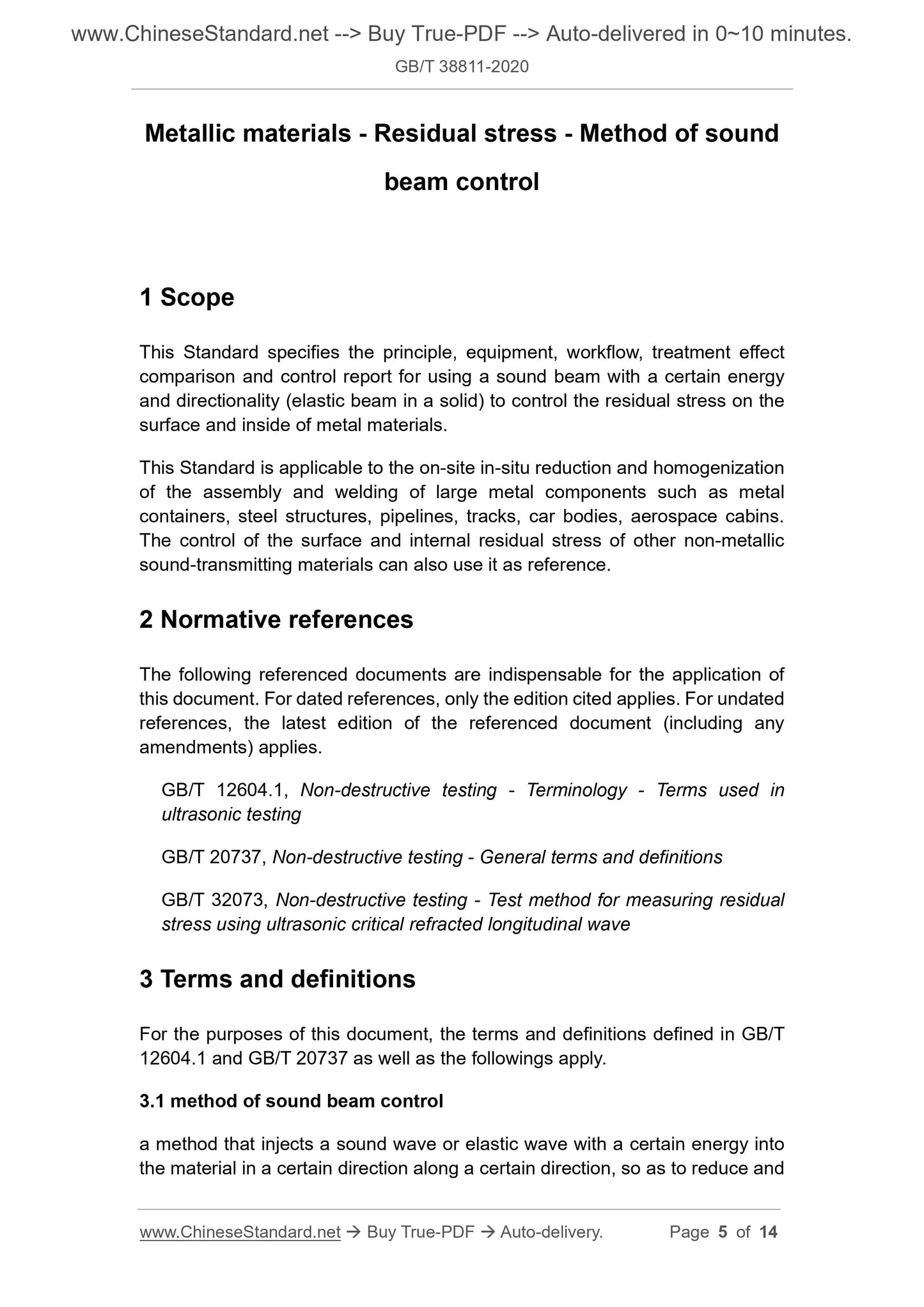

Scope

This Standard specifies the principle, equipment, workflow, treatment effect
comparison and control report for using a sound beam with a certain energy
and directionality (elastic beam in a solid) to control the residual stress on the
surface and inside of metal materials.
This Standard is applicable to the on-site in-situ reduction and homogenization
of the assembly and welding of large metal components such as metal
containers, steel structures, pipelines, tracks, car bodies, aerospace cabins.
The control of the surface and internal residual stress of other non-metallic
sound-transmitting materials can also use it as reference.

Basic Data

Standard ID	GB/T 38811-2020 (GB/T38811-2020)
Description (Translated English)	Metallic materials - Residual stress - Method of sound beam control
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	H22
Classification of International Standard	77.040.10
Word Count Estimation	10,159
Date of Issue	2020-06-02
Date of Implementation	2020-12-01
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
