GB/T 3880.1-2012: Wrought aluminium and aluminium alloy plates, sheets and strips for general engineering -- Part 1: Technical conditions of delivery
Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Newer version: (Replacing this standard) GB/T 3880.1-2023
Get Quotation: Click GB/T 3880.1-2012 (Self-service in 1-minute)
Historical versions (Master-website): GB/T 3880.1-2023
Preview True-PDF (Reload/Scroll-down if blank)

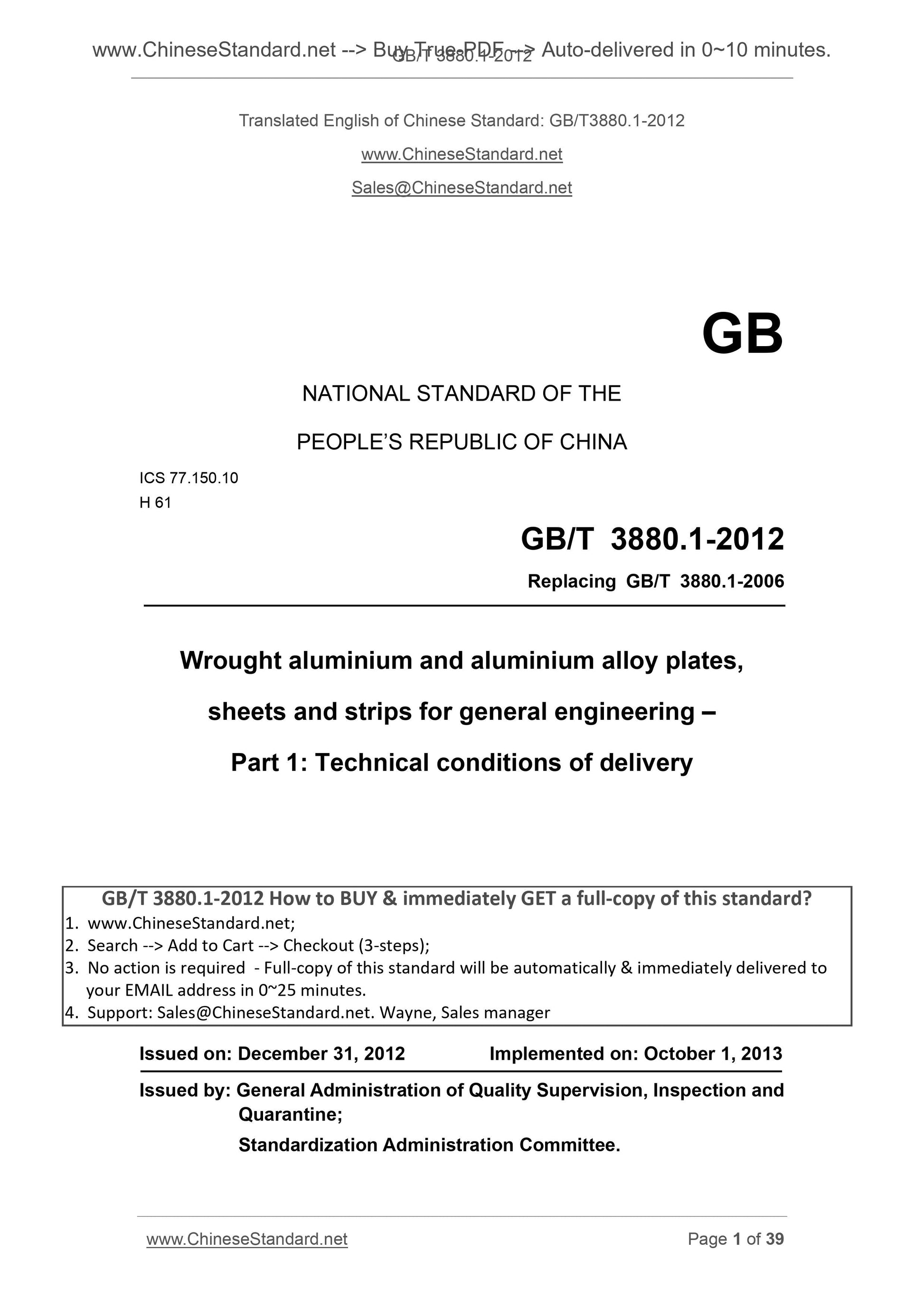

GB/T 3880.1-2012
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.10
H 61
Replacing GB/T 3880.1-2006
Wrought aluminium and aluminium alloy plates,
sheets and strips for general engineering –
Part 1. Technical conditions of delivery
ISSUED ON. DECEMBER 31, 2012
IMPLEMENTED ON. OCTOBER 1, 2013
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration Committee.

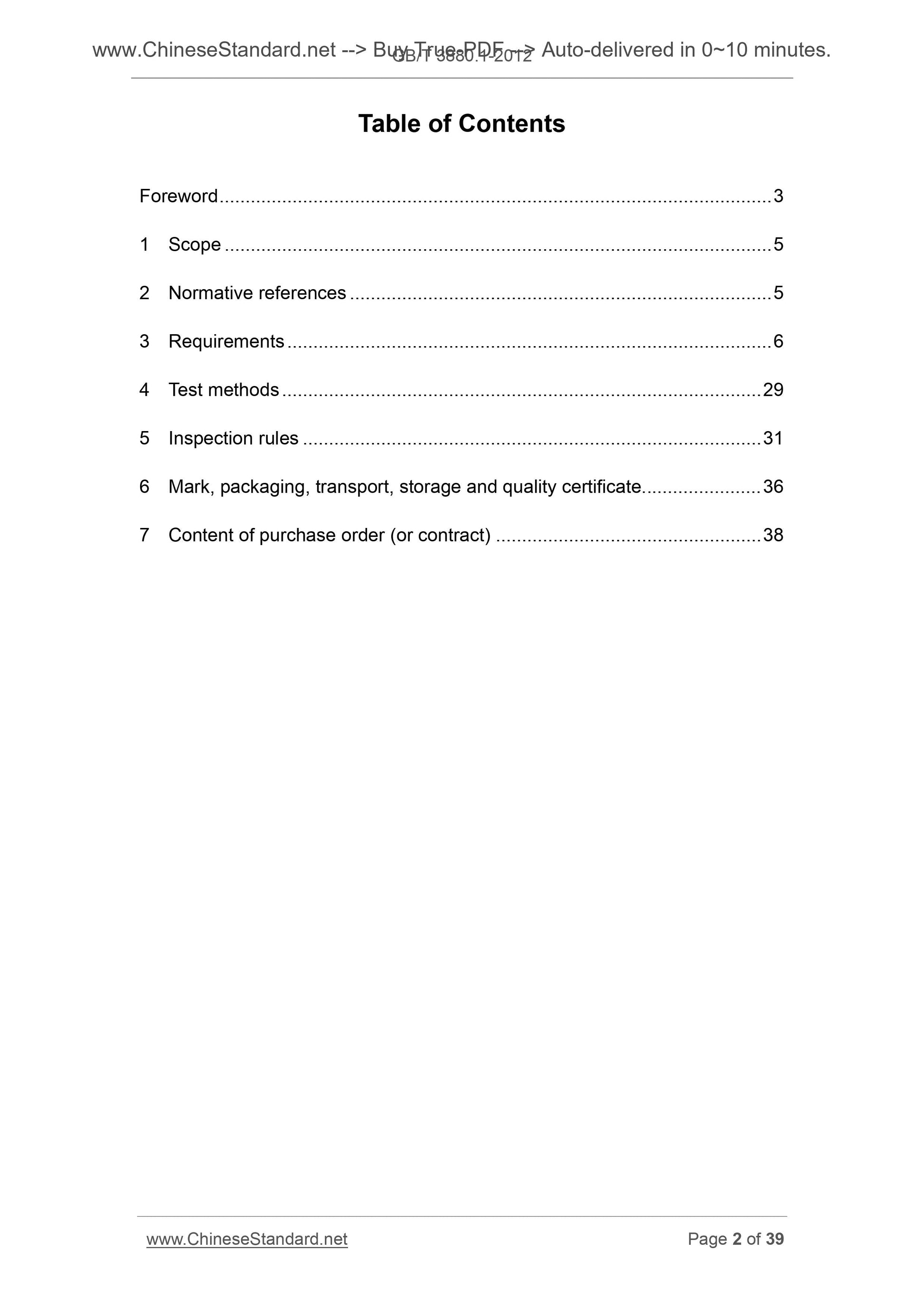

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Requirements ... 6
4 Test methods ... 29
5 Inspection rules ... 31
6 Mark, packaging, transport, storage and quality certificate... 36
7 Content of purchase order (or contract) ... 38

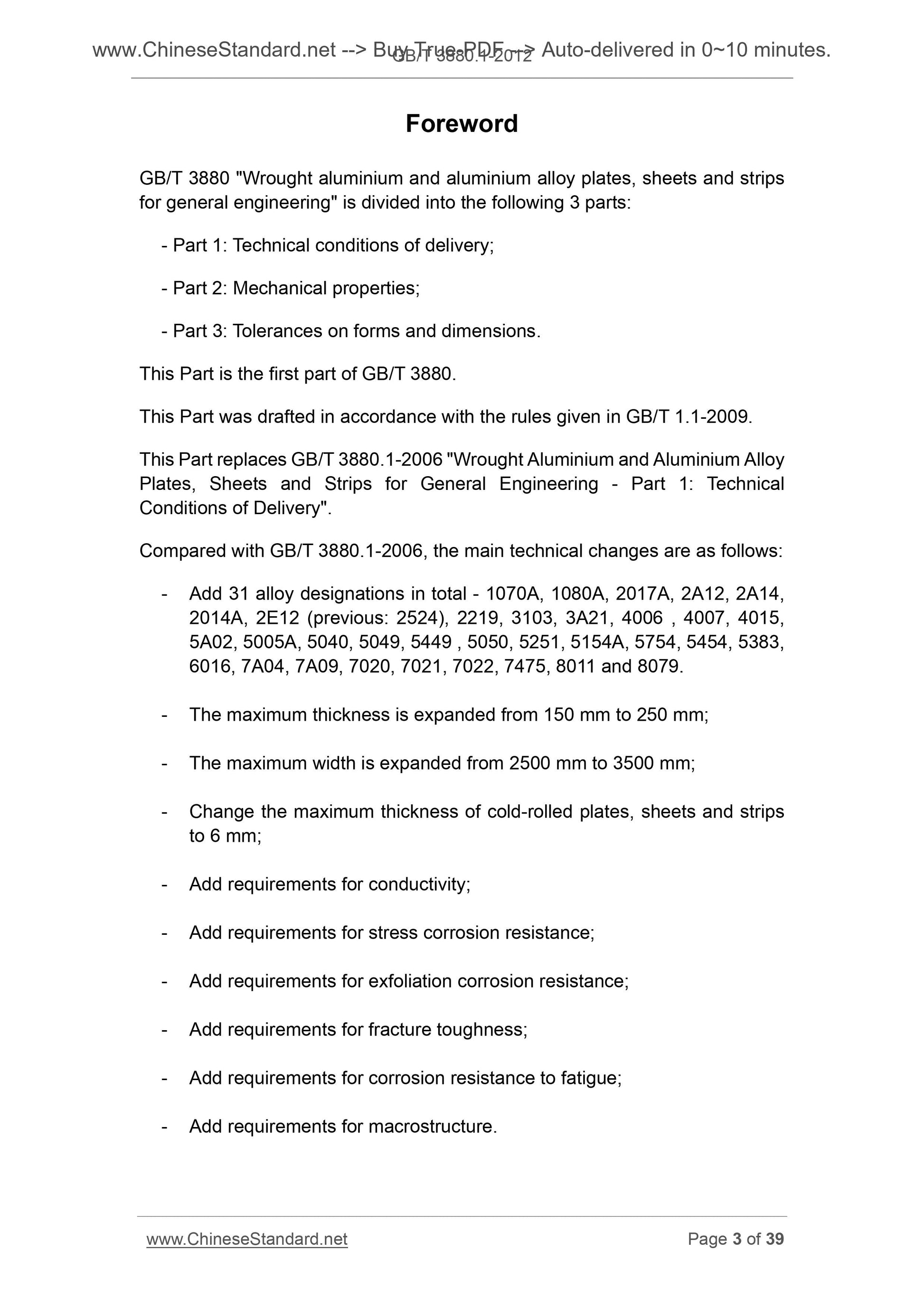

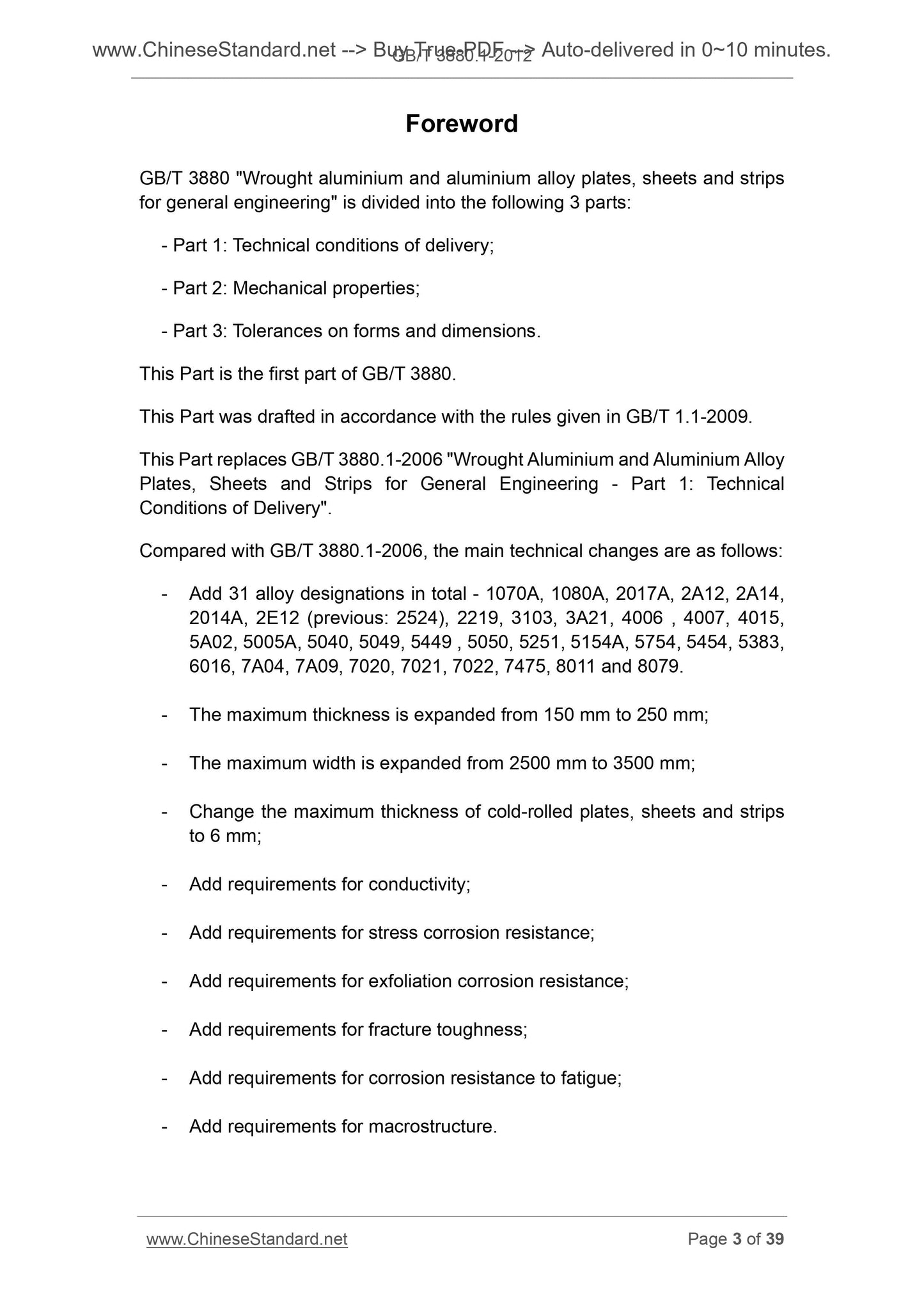

Foreword
GB/T 3880 "Wrought aluminium and aluminium alloy plates, sheets and strips
for general engineering" is divided into the following 3 parts.
- Part 1. Technical conditions of delivery;
- Part 2. Mechanical properties;
- Part 3. Tolerances on forms and dimensions.
This Part is the first part of GB/T 3880.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009.
This Part replaces GB/T 3880.1-2006 "Wrought Aluminium and Aluminium Alloy
Plates, Sheets and Strips for General Engineering - Part 1. Technical
Conditions of Delivery".
Compared with GB/T 3880.1-2006, the main technical changes are as follows.
- Add 31 alloy designations in total - 1070A, 1080A, 2017A, 2A12, 2A14,
2014A, 2E12 (previous. 2524), 2219, 3103, 3A21, 4006 , 4007, 4015,
5A02, 5005A, 5040, 5049, 5449 , 5050, 5251, 5154A, 5754, 5454, 5383,
6016, 7A04, 7A09, 7020, 7021, 7022, 7475, 8011 and 8079.
- The maximum thickness is expanded from 150 mm to 250 mm;
- The maximum width is expanded from 2500 mm to 3500 mm;
- Change the maximum thickness of cold-rolled plates, sheets and strips
to 6 mm;
- Add requirements for conductivity;
- Add requirements for stress corrosion resistance;
- Add requirements for exfoliation corrosion resistance;
- Add requirements for fracture toughness;
- Add requirements for corrosion resistance to fatigue;
- Add requirements for macrostructure.

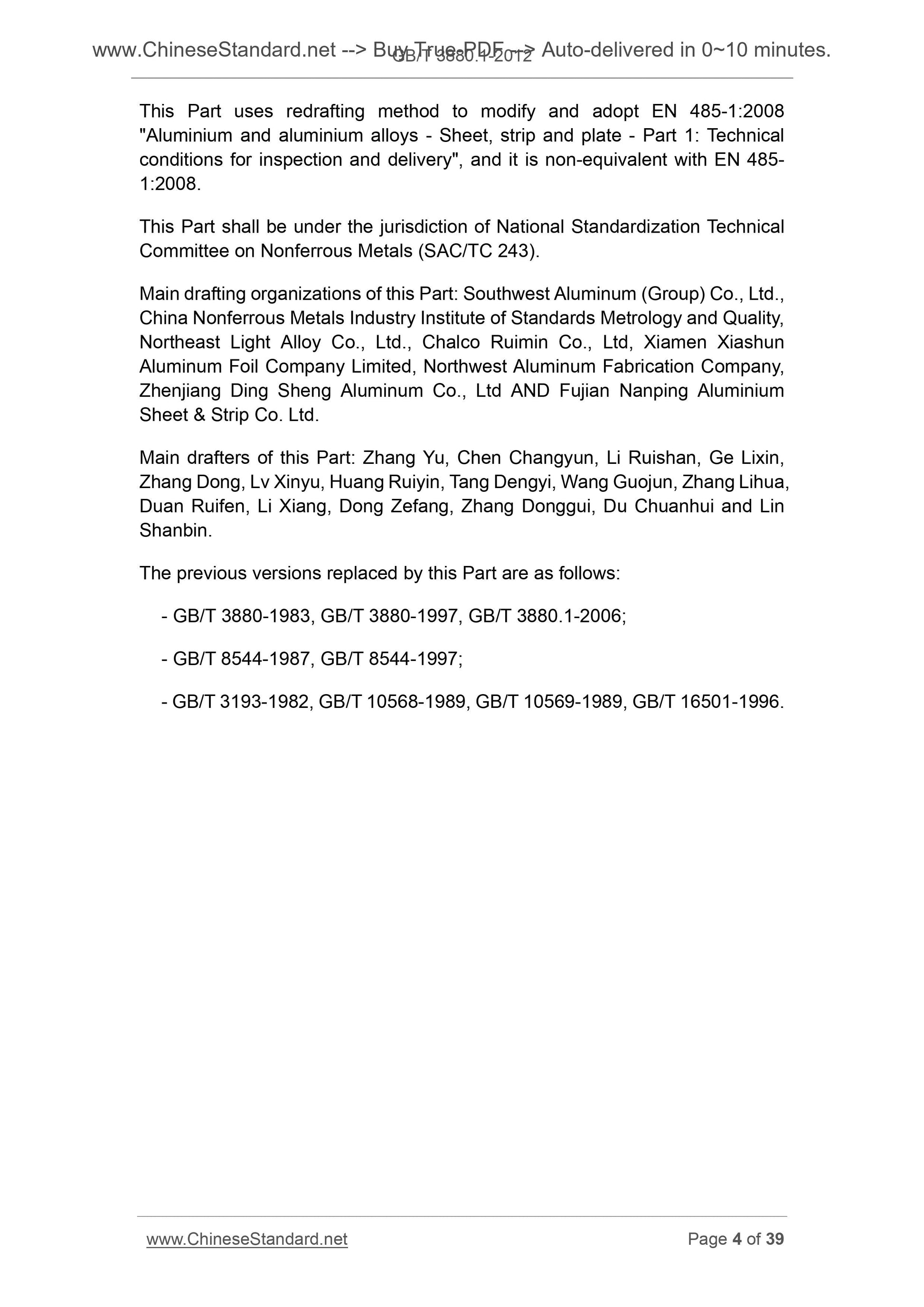

This Part uses redrafting method to modify and adopt EN 485-1.2008
"Aluminium and aluminium alloys - Sheet, strip and plate - Part 1. Technical
conditions for inspection and delivery", and it is non-equivalent with EN 485-
1.2008.
This Part shall be under the jurisdiction of National Standardization Technical
Committee on Nonferrous Metals (SAC/TC 243).
Main drafting organizations of this Part. Southwest Aluminum (Group) Co., Ltd.,
China Nonferrous Metals Industry Institute of Standards Metrology and Quality,
Northeast Light Alloy Co., Ltd., Chalco Ruimin Co., Ltd, Xiamen Xiashun
Aluminum Foil Company Limited, Northwest Aluminum Fabrication Company,
Zhenjiang Ding Sheng Aluminum Co., Ltd AND Fujian Nanping Aluminium
Sheet and Strip Co. Ltd.
Main drafters of this Part. Zhang Yu, Chen Changyun, Li Ruishan, Ge Lixin,
Zhang Dong, Lv Xinyu, Huang Ruiyin, Tang Dengyi, Wang Guojun, Zhang Lihua,
Duan Ruifen, Li Xiang, Dong Zefang, Zhang Donggui, Du Chuanhui and Lin
Shanbin.
The previous versions replaced by this Part are as follows.
- GB/T 3880-1983, GB/T 3880-1997, GB/T 3880.1-2006;
- GB/T 8544-1987, GB/T 8544-1997;
- GB/T 3193-1982, GB/T 10568-1989, GB/T 10569-1989, GB/T 16501-1996.

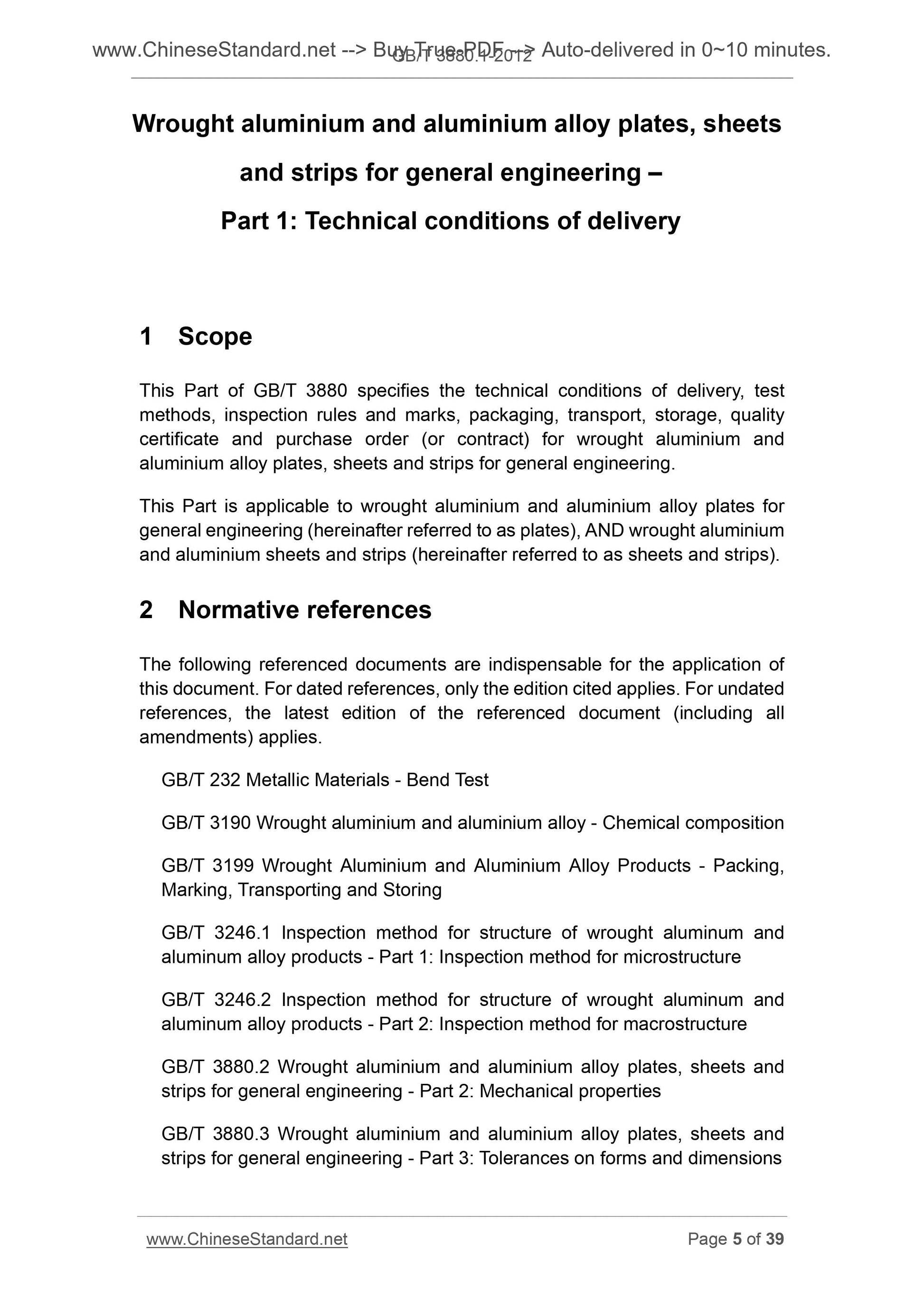

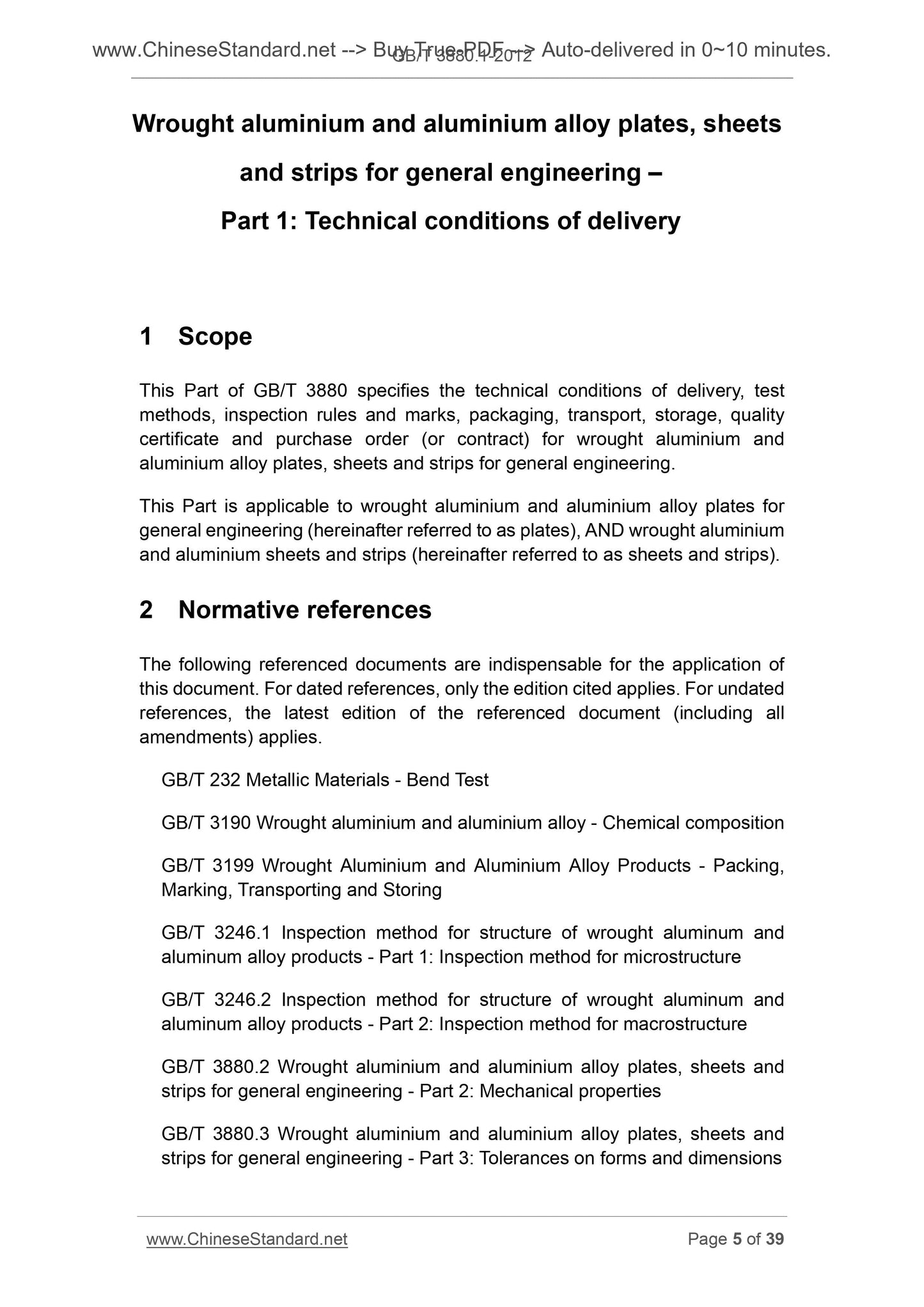

Wrought aluminium and aluminium alloy plates, sheets
and strips for general engineering –
Part 1. Technical conditions of delivery
1 Scope
This Part of GB/T 3880 specifies the technical conditions of delivery, test
methods, inspection rules and marks, packaging, transport, storage, quality
certificate and purchase order (or contract) for wrought aluminium and
aluminium alloy plates, sheets and strips for general engineering.
This Part is applicable to wrought aluminium and aluminium alloy plates for
general engineering (hereinafter referred to as plates), AND wrought aluminium
and aluminium sheets and strips (hereinafter referred to as sheets and strips).
2 Normative references
The following referenced documents are indispensable for the application of
this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including all
amendments) applies.
GB/T 232 Metallic Materials - Bend Test
GB/T 3190 Wrought aluminium and aluminium alloy - Chemical composition
GB/T 3199 Wrought Aluminium and Aluminium Alloy Products - Packing,
Marking, Transporting and Storing
GB/T 3246.1 Inspection method for structure of wrought aluminum and
aluminum alloy products - Part 1. Inspection method for microstructure
GB/T 3246.2 Inspection method for structure of wrought aluminum and
aluminum alloy products - Part 2. Inspection method for macrostructure
GB/T 3880.2 Wrought aluminium and aluminium alloy plates, sheets and
strips for general engineering - Part 2. Mechanical properties
GB/T 3880.3 Wrought aluminium and aluminium alloy plates, sheets and
strips for general engineering - Part 3. Tolerances on forms and dimensions

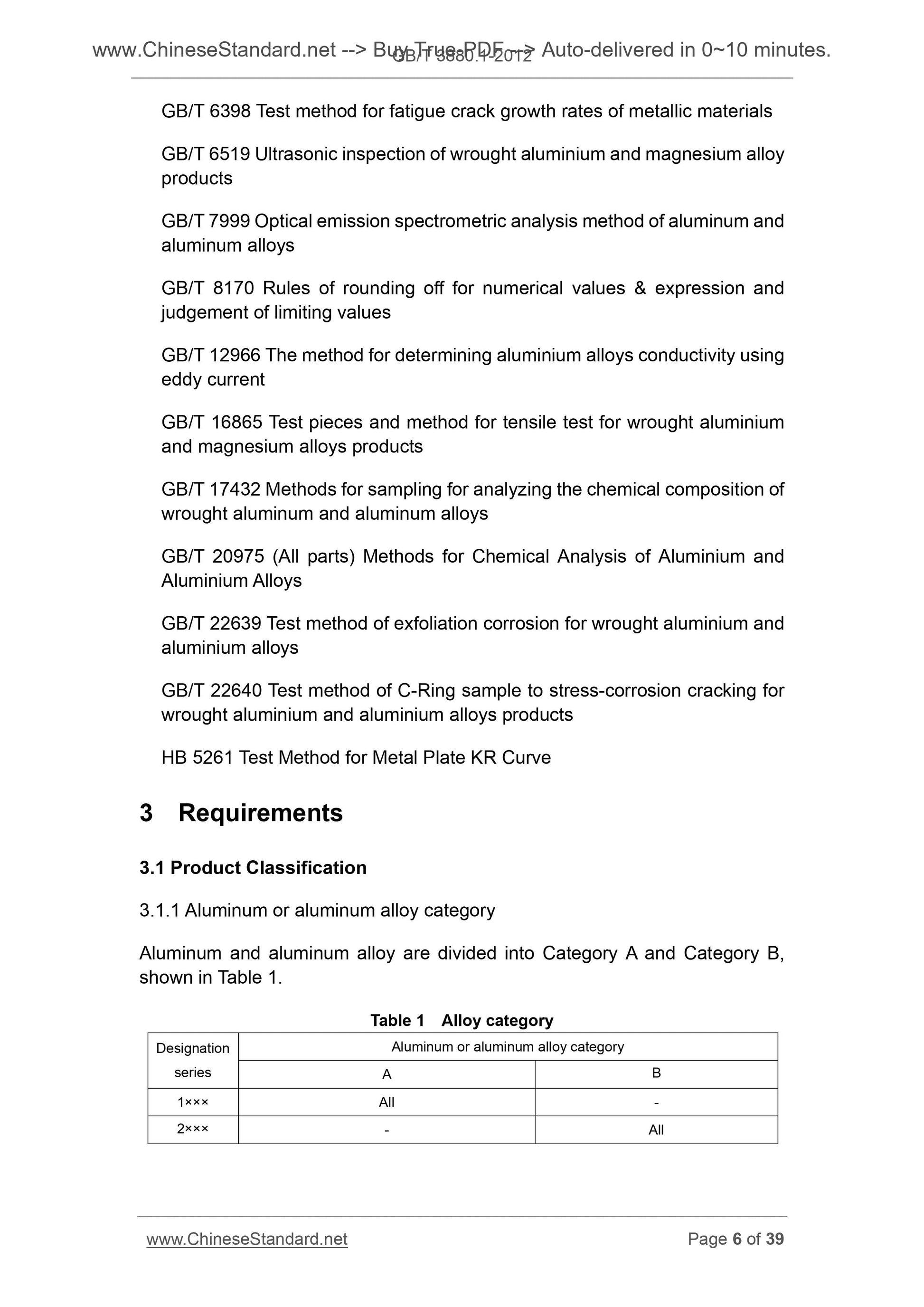

GB/T 6398 Test method for fatigue crack growth rates of metallic materials
GB/T 6519 Ultrasonic inspection of wrought aluminium and magnesium alloy
products
GB/T 7999 Optical emission spectrometric analysis method of aluminum and
aluminum alloys
GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 12966 The method for determining aluminium alloys conductivity using
eddy current
GB/T 16865 Test pieces and method for tensile test for wrought aluminium
and magnesium alloys products
GB/T 17432 Methods for sampling for analyzing the chemical composition of
wrought aluminum and aluminum alloys
GB/T 20975 (All parts) Methods for Chemical Analysis of Aluminium and
Aluminium Alloys
GB/T 22639 Test method of exfoliation corrosion for wrought aluminium and
aluminium alloys
GB/T 22640 Test method of C-Ring sample to stress-corrosion cracking for
wrought aluminium and aluminium alloys products
HB 5261 Test Method for Metal Plate KR Curve
3 Requirements
3.1 Product Classification
3.1.1 Aluminum or aluminum alloy category
Aluminum and aluminum alloy are divided into Category A and Category B,
shown in Table 1.
Table 1 Alloy category
Designation
series
Aluminum or aluminum alloy category
A B
1××× All -
2××× - All

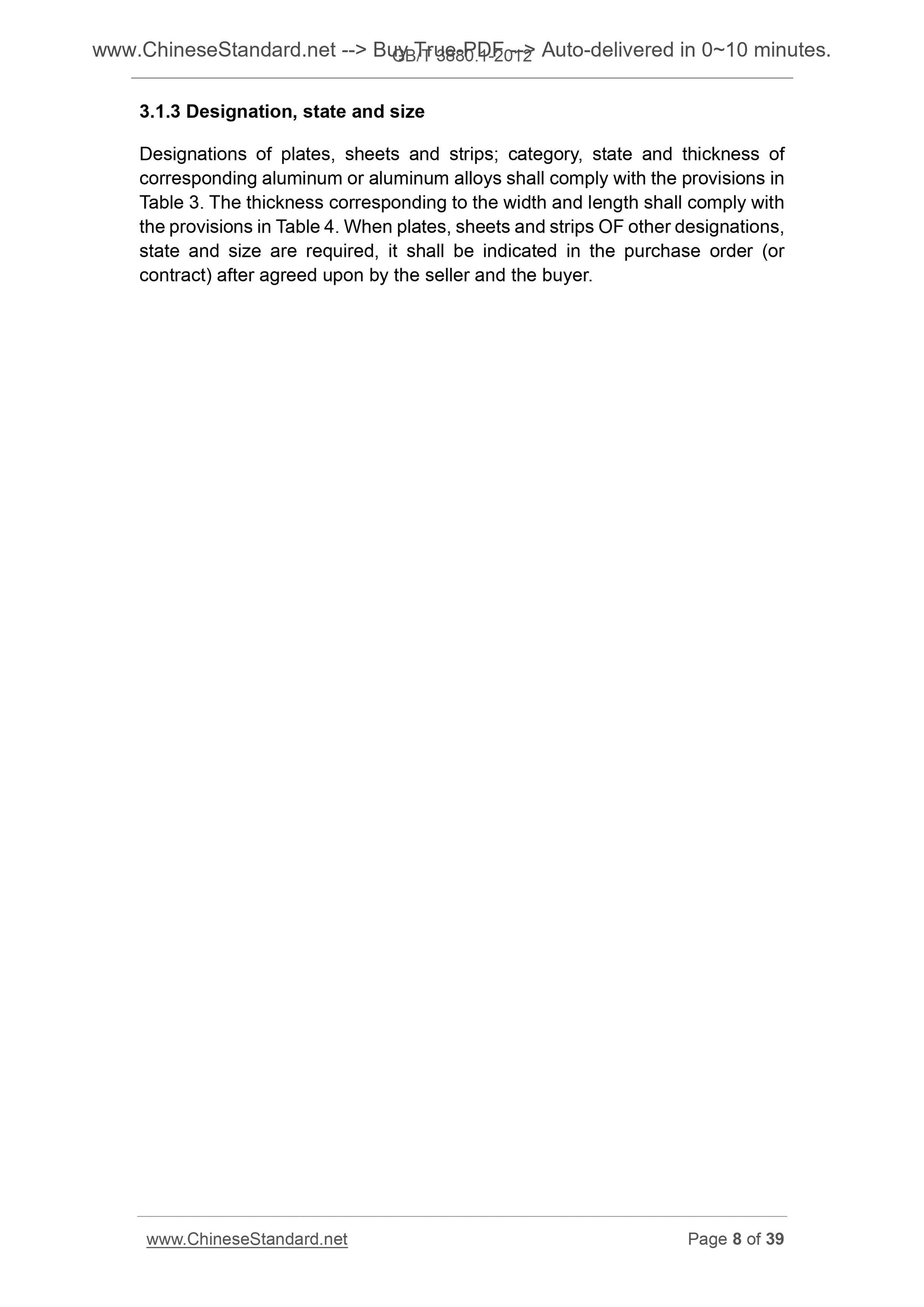

3.1.3 Designation, state and size
Designations of plates, sheets and strips; category, state and thickness of
corresponding aluminum or aluminum alloys shall comply with the provisions in
Table 3. The thickness corresponding to the width and length shall comply with
the provisions in Table 4. When plates, sheets and strips OF other designations,
state and size are required, it shall be indicated in the purchase order (or
contract) after agreed upon by the seller and the buyer.

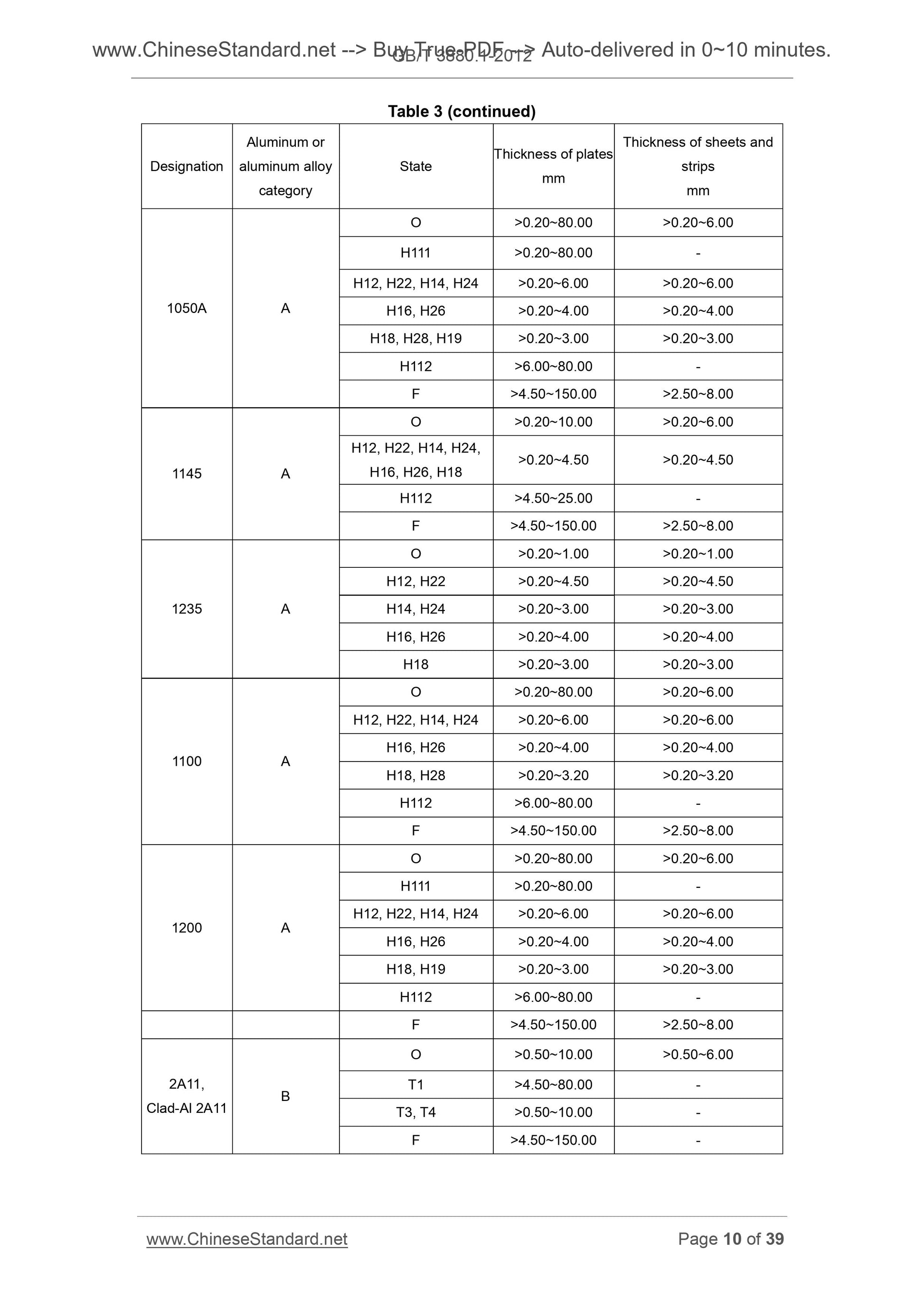

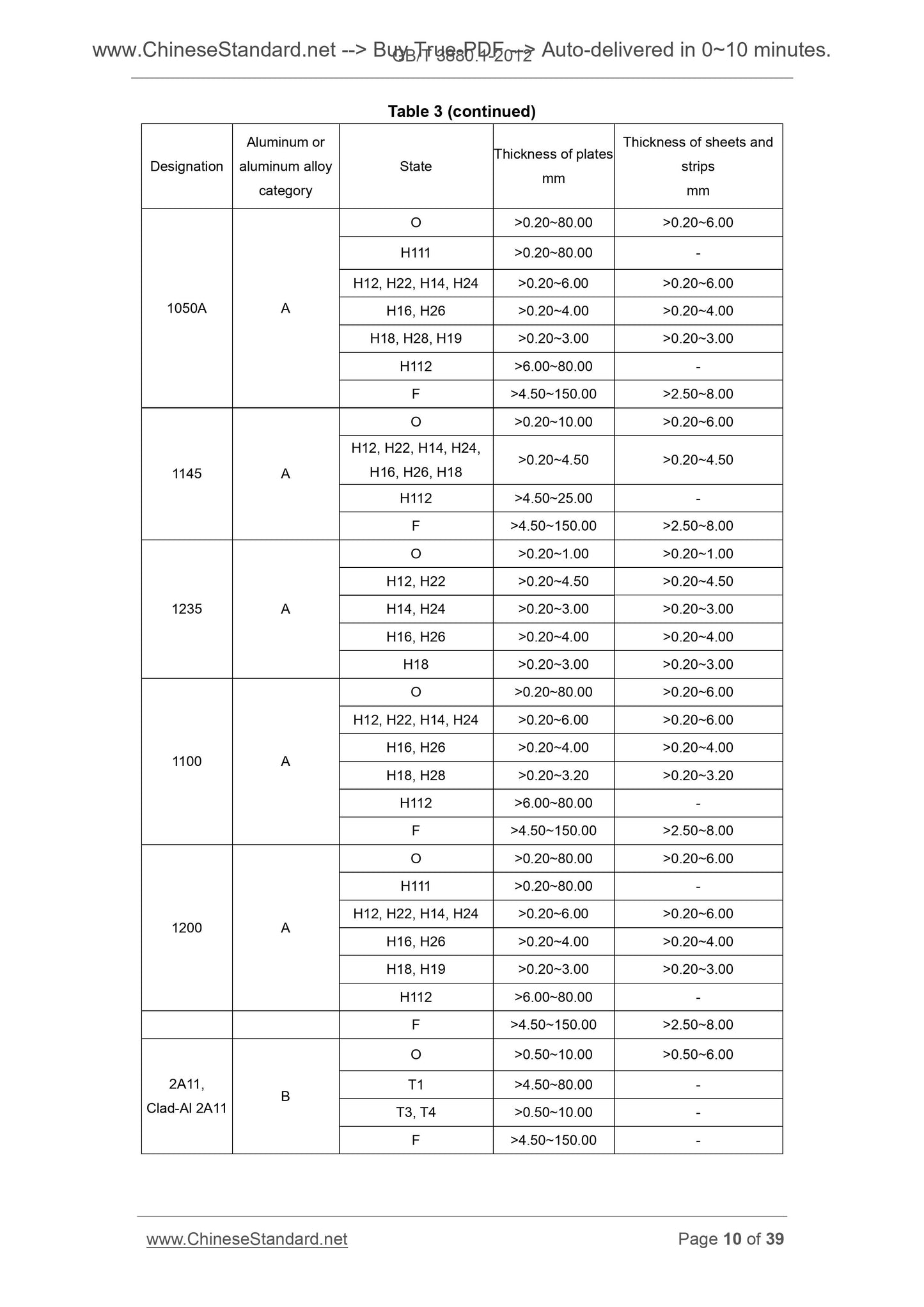

Table 3 (continued)
Designation
Aluminum or
aluminum alloy
category
State Thickness of platesmm
Thickness of sheets and
strips
mm
1050A A
O >0.20~80.00 >0.20~6.00
H111 >0.20~80.00 -
H12, H22, H14, H24 >0.20~6.00 >0.20~6.00
H16, H26 >0.20~4.00 >0.20~4.00
H18, H28, H19 >0.20~3.00 >0.20~3.00
H112 >6.00~80.00 -
F >4.50~150.00 >2.50~8.00
1145 A
O >0.20~10.00 >0.20~6.00
H12, H22, H14, H24,
H16, H26, H18 >0.20~4.50 >0.20~4.50
H112 >4.50~25.00 -
F >4.50~150.00 >2.50~8.00
1235 A
O >0.20~1.00 >0.20~1.00
H12, H22 >0.20~4.50 >0.20~4.50
H14, H24 >0.20~3.00 >0.20~3.00
H16, H26 >0.20~4.00 >0.20~4.00
H18 >0.20~3.00 >0.20~3.00
1100 A
O >0.20~80.00 >0.20~6.00
H12, H22, H14, H24 >0.20~6.00 >0.20~6.00
H16, H26 >0.20~4.00 >0.20~4.00
H18, H28 >0.20~3.20 >0.20~3.20
H112 >6.00~80.00 -
F >4.50~150.00 >2.50~8.00
1200 A
O >0.20~80.00 >0.20~6.00
H111 >0.20~80.00 -
H12, H22, H14, H24 >0.20~6.00 >0.20~6.00
H16, H26 >0.20~4.00 >0.20~4.00
H18, H19 >0.20~3.00 >0.20~3.00
H112 >6.00~80.00 -
F >4.50~150.00 >2.50~8.00
2A11,
Clad-Al 2A11 B
O >0.50~10.00 >0.50~6.00
T1 >4.50~80.00 -
T3, T4 >0.50~10.00 -
F >4.50~150.00 -

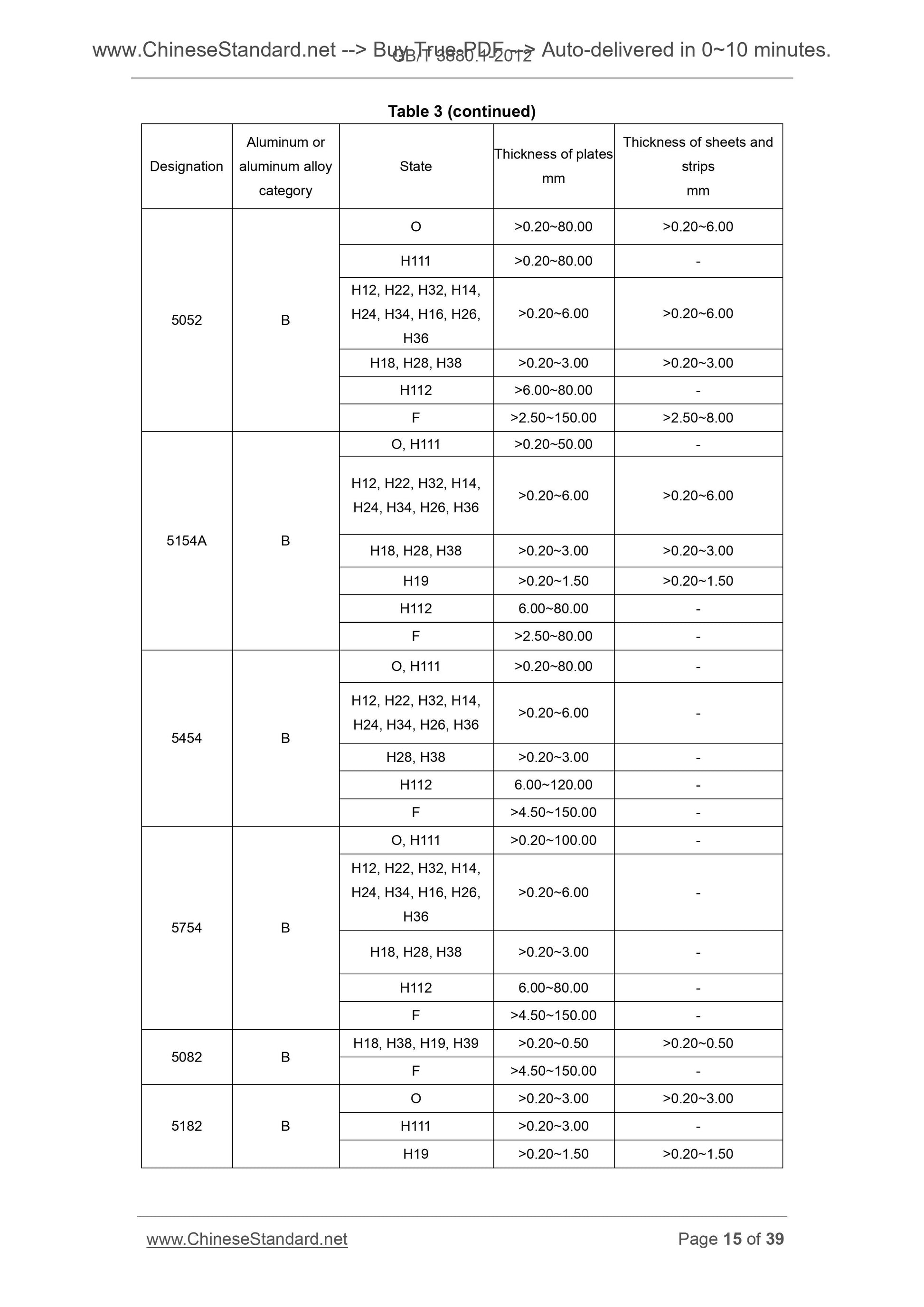

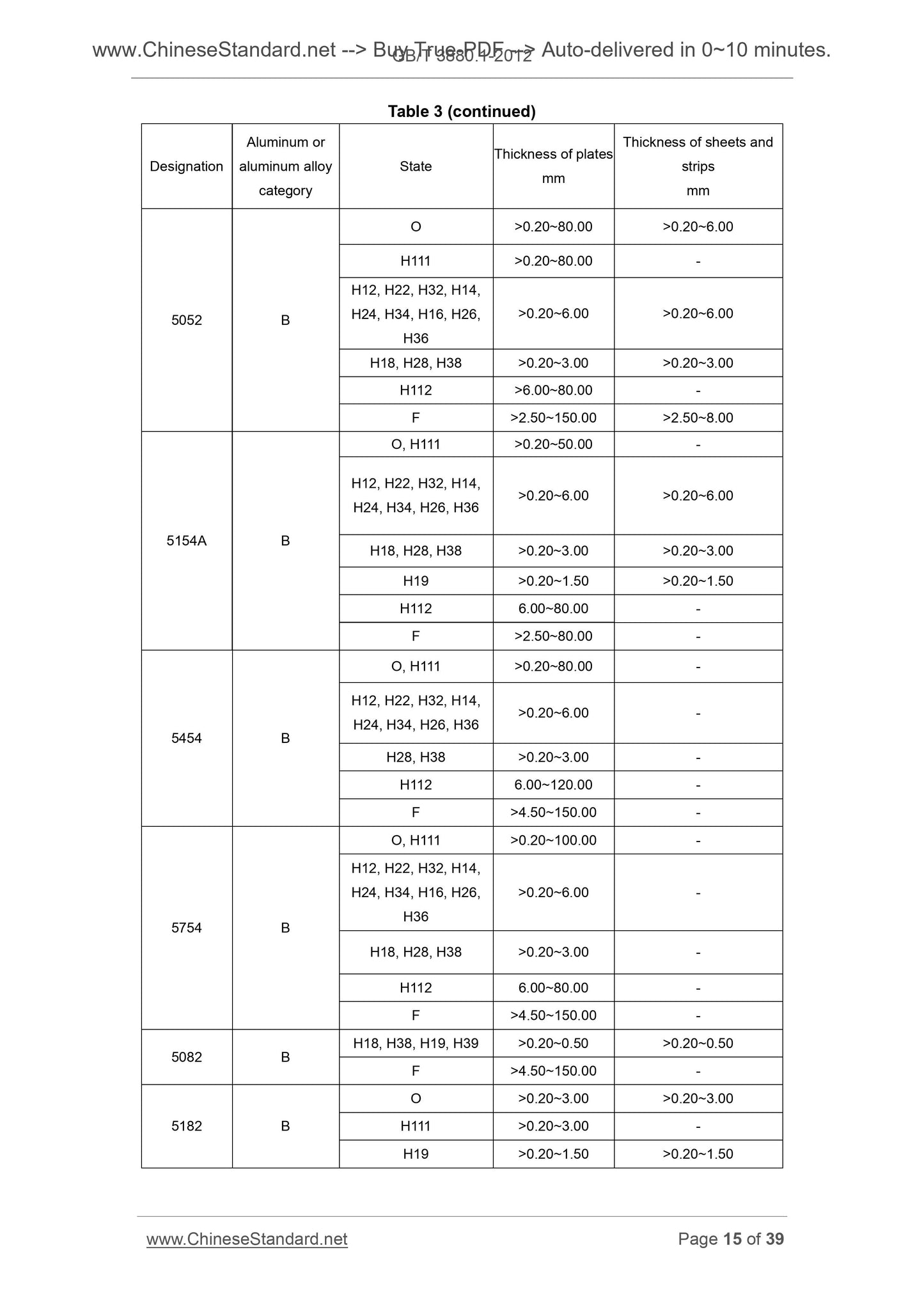

Table 3 (continued)
Designation
Aluminum or
aluminum alloy
category
State Thickness of platesmm
Thickness of sheets and
strips
mm
5052 B
O >0.20~80.00 >0.20~6.00
H111 >0.20~80.00 -
H12, H22, H32, H14,
H24, H34, H16, H26,
H36
>0.20~6.00 >0.20~6.00
H18, H28, H38 >0.20~3.00 >0.20~3.00
H112 >6.00~80.00 -
F >2.50~150.00 >2.50~8.00
5154A B
O, H111 >0.20~50.00 -
H12, H22, H32, H14,
H24, H34, H26, H36 >0.20~6.00 >0.20~6.00
H18, H28, H38 >0.20~3.00 >0.20~3.00
H19 >0.20~1.50 >0.20~1.50
H112 6.00~80.00 -
F >2.50~80.00 -
5454 B
O, H111 >0.20~80.00 -
H12, H22, H32, H14,
H24, H34, H26, H36 >0.20~6.00 -
H28, H38 >0.20~3.00 -
H112 6.00~120.00 -
F >4.50~150.00 -
5754 B
O, H111 >0.20~100.00 -
H12, H22, H32, H14,
H24, H34, H16, H26,
H36
>0.20~6.00 -
H18, H28, H38 >0.20~3.00 -
H112 6.00~80.00 -
F >4.50~150.00 -
5082 B H18, H38, H19, H39 >0.20~0.50 >0.20~0.50 F >4.50~150.00 -
5182 B
O >0.20~3.00 >0.20~3.00
H111 >0.20~3.00 -
H19 >0.20~1.50 >0.20~1.50

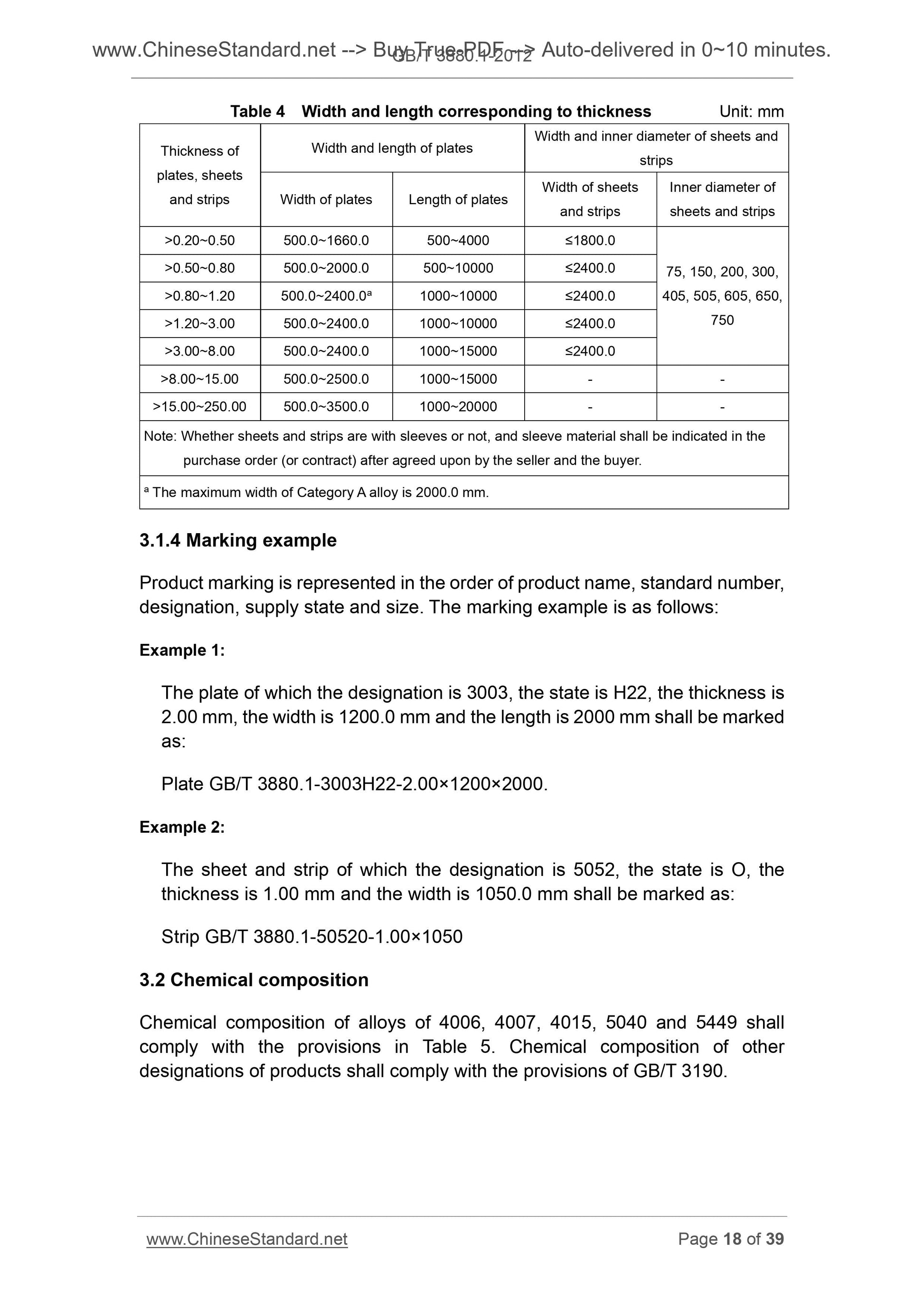

Table 4 Width and length corresponding to thickness Unit. mm
Thickness of
plates, sheets
and strips ...
GB/T 3880.1-2012
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.10
H 61
Replacing GB/T 3880.1-2006
Wrought aluminium and aluminium alloy plates,
sheets and strips for general engineering –
Part 1. Technical conditions of delivery
ISSUED ON. DECEMBER 31, 2012
IMPLEMENTED ON. OCTOBER 1, 2013
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration Committee.
Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Requirements ... 6
4 Test methods ... 29
5 Inspection rules ... 31
6 Mark, packaging, transport, storage and quality certificate... 36
7 Content of purchase order (or contract) ... 38
Foreword
GB/T 3880 "Wrought aluminium and aluminium alloy plates, sheets and strips
for general engineering" is divided into the following 3 parts.
- Part 1. Technical conditions of delivery;
- Part 2. Mechanical properties;
- Part 3. Tolerances on forms and dimensions.
This Part is the first part of GB/T 3880.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009.
This Part replaces GB/T 3880.1-2006 "Wrought Aluminium and Aluminium Alloy
Plates, Sheets and Strips for General Engineering - Part 1. Technical
Conditions of Delivery".
Compared with GB/T 3880.1-2006, the main technical changes are as follows.
- Add 31 alloy designations in total - 1070A, 1080A, 2017A, 2A12, 2A14,
2014A, 2E12 (previous. 2524), 2219, 3103, 3A21, 4006 , 4007, 4015,
5A02, 5005A, 5040, 5049, 5449 , 5050, 5251, 5154A, 5754, 5454, 5383,
6016, 7A04, 7A09, 7020, 7021, 7022, 7475, 8011 and 8079.
- The maximum thickness is expanded from 150 mm to 250 mm;
- The maximum width is expanded from 2500 mm to 3500 mm;
- Change the maximum thickness of cold-rolled plates, sheets and strips
to 6 mm;
- Add requirements for conductivity;
- Add requirements for stress corrosion resistance;
- Add requirements for exfoliation corrosion resistance;
- Add requirements for fracture toughness;
- Add requirements for corrosion resistance to fatigue;
- Add requirements for macrostructure.
This Part uses redrafting method to modify and adopt EN 485-1.2008
"Aluminium and aluminium alloys - Sheet, strip and plate - Part 1. Technical
conditions for inspection and delivery", and it is non-equivalent with EN 485-
1.2008.
This Part shall be under the jurisdiction of National Standardization Technical
Committee on Nonferrous Metals (SAC/TC 243).
Main drafting organizations of this Part. Southwest Aluminum (Group) Co., Ltd.,
China Nonferrous Metals Industry Institute of Standards Metrology and Quality,
Northeast Light Alloy Co., Ltd., Chalco Ruimin Co., Ltd, Xiamen Xiashun
Aluminum Foil Company Limited, Northwest Aluminum Fabrication Company,
Zhenjiang Ding Sheng Aluminum Co., Ltd AND Fujian Nanping Aluminium
Sheet and Strip Co. Ltd.
Main drafters of this Part. Zhang Yu, Chen Changyun, Li Ruishan, Ge Lixin,
Zhang Dong, Lv Xinyu, Huang Ruiyin, Tang Dengyi, Wang Guojun, Zhang Lihua,
Duan Ruifen, Li Xiang, Dong Zefang, Zhang Donggui, Du Chuanhui and Lin
Shanbin.
The previous versions replaced by this Part are as follows.
- GB/T 3880-1983, GB/T 3880-1997, GB/T 3880.1-2006;
- GB/T 8544-1987, GB/T 8544-1997;
- GB/T 3193-1982, GB/T 10568-1989, GB/T 10569-1989, GB/T 16501-1996.
Wrought aluminium and aluminium alloy plates, sheets
and strips for general engineering –
Part 1. Technical conditions of delivery
1 Scope
This Part of GB/T 3880 specifies the technical conditions of delivery, test
methods, inspection rules and marks, packaging, transport, storage, quality
certificate and purchase order (or contract) for wrought aluminium and
aluminium alloy plates, sheets and strips for general engineering.
This Part is applicable to wrought aluminium and aluminium alloy plates for
general engineering (hereinafter referred to as plates), AND wrought aluminium
and aluminium sheets and strips (hereinafter referred to as sheets and strips).
2 Normative references
The following referenced documents are indispensable for the application of
this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including all
amendments) applies.
GB/T 232 Metallic Materials - Bend Test
GB/T 3190 Wrought aluminium and aluminium alloy - Chemical composition
GB/T 3199 Wrought Aluminium and Aluminium Alloy Products - Packing,
Marking, Transporting and Storing
GB/T 3246.1 Inspection method for structure...
Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Newer version: (Replacing this standard) GB/T 3880.1-2023
Get Quotation: Click GB/T 3880.1-2012 (Self-service in 1-minute)
Historical versions (Master-website): GB/T 3880.1-2023
Preview True-PDF (Reload/Scroll-down if blank)
GB/T 3880.1-2012
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.10
H 61
Replacing GB/T 3880.1-2006
Wrought aluminium and aluminium alloy plates,
sheets and strips for general engineering –
Part 1. Technical conditions of delivery
ISSUED ON. DECEMBER 31, 2012
IMPLEMENTED ON. OCTOBER 1, 2013
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration Committee.
Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Requirements ... 6
4 Test methods ... 29
5 Inspection rules ... 31
6 Mark, packaging, transport, storage and quality certificate... 36
7 Content of purchase order (or contract) ... 38
Foreword
GB/T 3880 "Wrought aluminium and aluminium alloy plates, sheets and strips
for general engineering" is divided into the following 3 parts.
- Part 1. Technical conditions of delivery;
- Part 2. Mechanical properties;
- Part 3. Tolerances on forms and dimensions.
This Part is the first part of GB/T 3880.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009.
This Part replaces GB/T 3880.1-2006 "Wrought Aluminium and Aluminium Alloy
Plates, Sheets and Strips for General Engineering - Part 1. Technical
Conditions of Delivery".
Compared with GB/T 3880.1-2006, the main technical changes are as follows.
- Add 31 alloy designations in total - 1070A, 1080A, 2017A, 2A12, 2A14,
2014A, 2E12 (previous. 2524), 2219, 3103, 3A21, 4006 , 4007, 4015,
5A02, 5005A, 5040, 5049, 5449 , 5050, 5251, 5154A, 5754, 5454, 5383,
6016, 7A04, 7A09, 7020, 7021, 7022, 7475, 8011 and 8079.
- The maximum thickness is expanded from 150 mm to 250 mm;
- The maximum width is expanded from 2500 mm to 3500 mm;
- Change the maximum thickness of cold-rolled plates, sheets and strips
to 6 mm;
- Add requirements for conductivity;
- Add requirements for stress corrosion resistance;
- Add requirements for exfoliation corrosion resistance;
- Add requirements for fracture toughness;
- Add requirements for corrosion resistance to fatigue;
- Add requirements for macrostructure.
This Part uses redrafting method to modify and adopt EN 485-1.2008
"Aluminium and aluminium alloys - Sheet, strip and plate - Part 1. Technical
conditions for inspection and delivery", and it is non-equivalent with EN 485-
1.2008.
This Part shall be under the jurisdiction of National Standardization Technical
Committee on Nonferrous Metals (SAC/TC 243).
Main drafting organizations of this Part. Southwest Aluminum (Group) Co., Ltd.,
China Nonferrous Metals Industry Institute of Standards Metrology and Quality,
Northeast Light Alloy Co., Ltd., Chalco Ruimin Co., Ltd, Xiamen Xiashun
Aluminum Foil Company Limited, Northwest Aluminum Fabrication Company,
Zhenjiang Ding Sheng Aluminum Co., Ltd AND Fujian Nanping Aluminium
Sheet and Strip Co. Ltd.
Main drafters of this Part. Zhang Yu, Chen Changyun, Li Ruishan, Ge Lixin,
Zhang Dong, Lv Xinyu, Huang Ruiyin, Tang Dengyi, Wang Guojun, Zhang Lihua,
Duan Ruifen, Li Xiang, Dong Zefang, Zhang Donggui, Du Chuanhui and Lin
Shanbin.
The previous versions replaced by this Part are as follows.
- GB/T 3880-1983, GB/T 3880-1997, GB/T 3880.1-2006;
- GB/T 8544-1987, GB/T 8544-1997;
- GB/T 3193-1982, GB/T 10568-1989, GB/T 10569-1989, GB/T 16501-1996.
Wrought aluminium and aluminium alloy plates, sheets
and strips for general engineering –
Part 1. Technical conditions of delivery
1 Scope
This Part of GB/T 3880 specifies the technical conditions of delivery, test
methods, inspection rules and marks, packaging, transport, storage, quality
certificate and purchase order (or contract) for wrought aluminium and
aluminium alloy plates, sheets and strips for general engineering.
This Part is applicable to wrought aluminium and aluminium alloy plates for
general engineering (hereinafter referred to as plates), AND wrought aluminium
and aluminium sheets and strips (hereinafter referred to as sheets and strips).
2 Normative references
The following referenced documents are indispensable for the application of
this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including all
amendments) applies.
GB/T 232 Metallic Materials - Bend Test
GB/T 3190 Wrought aluminium and aluminium alloy - Chemical composition
GB/T 3199 Wrought Aluminium and Aluminium Alloy Products - Packing,
Marking, Transporting and Storing
GB/T 3246.1 Inspection method for structure of wrought aluminum and
aluminum alloy products - Part 1. Inspection method for microstructure
GB/T 3246.2 Inspection method for structure of wrought aluminum and
aluminum alloy products - Part 2. Inspection method for macrostructure
GB/T 3880.2 Wrought aluminium and aluminium alloy plates, sheets and
strips for general engineering - Part 2. Mechanical properties
GB/T 3880.3 Wrought aluminium and aluminium alloy plates, sheets and
strips for general engineering - Part 3. Tolerances on forms and dimensions
GB/T 6398 Test method for fatigue crack growth rates of metallic materials
GB/T 6519 Ultrasonic inspection of wrought aluminium and magnesium alloy
products
GB/T 7999 Optical emission spectrometric analysis method of aluminum and
aluminum alloys
GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 12966 The method for determining aluminium alloys conductivity using
eddy current
GB/T 16865 Test pieces and method for tensile test for wrought aluminium
and magnesium alloys products
GB/T 17432 Methods for sampling for analyzing the chemical composition of
wrought aluminum and aluminum alloys
GB/T 20975 (All parts) Methods for Chemical Analysis of Aluminium and
Aluminium Alloys
GB/T 22639 Test method of exfoliation corrosion for wrought aluminium and
aluminium alloys
GB/T 22640 Test method of C-Ring sample to stress-corrosion cracking for
wrought aluminium and aluminium alloys products
HB 5261 Test Method for Metal Plate KR Curve
3 Requirements
3.1 Product Classification
3.1.1 Aluminum or aluminum alloy category
Aluminum and aluminum alloy are divided into Category A and Category B,
shown in Table 1.
Table 1 Alloy category
Designation
series
Aluminum or aluminum alloy category
A B
1××× All -
2××× - All
3.1.3 Designation, state and size
Designations of plates, sheets and strips; category, state and thickness of
corresponding aluminum or aluminum alloys shall comply with the provisions in
Table 3. The thickness corresponding to the width and length shall comply with
the provisions in Table 4. When plates, sheets and strips OF other designations,
state and size are required, it shall be indicated in the purchase order (or
contract) after agreed upon by the seller and the buyer.
Table 3 (continued)
Designation
Aluminum or
aluminum alloy
category
State Thickness of platesmm
Thickness of sheets and
strips
mm
1050A A
O >0.20~80.00 >0.20~6.00
H111 >0.20~80.00 -
H12, H22, H14, H24 >0.20~6.00 >0.20~6.00
H16, H26 >0.20~4.00 >0.20~4.00
H18, H28, H19 >0.20~3.00 >0.20~3.00
H112 >6.00~80.00 -
F >4.50~150.00 >2.50~8.00
1145 A
O >0.20~10.00 >0.20~6.00
H12, H22, H14, H24,
H16, H26, H18 >0.20~4.50 >0.20~4.50
H112 >4.50~25.00 -
F >4.50~150.00 >2.50~8.00
1235 A
O >0.20~1.00 >0.20~1.00
H12, H22 >0.20~4.50 >0.20~4.50
H14, H24 >0.20~3.00 >0.20~3.00
H16, H26 >0.20~4.00 >0.20~4.00
H18 >0.20~3.00 >0.20~3.00
1100 A
O >0.20~80.00 >0.20~6.00
H12, H22, H14, H24 >0.20~6.00 >0.20~6.00
H16, H26 >0.20~4.00 >0.20~4.00
H18, H28 >0.20~3.20 >0.20~3.20
H112 >6.00~80.00 -
F >4.50~150.00 >2.50~8.00
1200 A
O >0.20~80.00 >0.20~6.00
H111 >0.20~80.00 -
H12, H22, H14, H24 >0.20~6.00 >0.20~6.00
H16, H26 >0.20~4.00 >0.20~4.00
H18, H19 >0.20~3.00 >0.20~3.00
H112 >6.00~80.00 -
F >4.50~150.00 >2.50~8.00
2A11,
Clad-Al 2A11 B
O >0.50~10.00 >0.50~6.00
T1 >4.50~80.00 -
T3, T4 >0.50~10.00 -
F >4.50~150.00 -
Table 3 (continued)
Designation
Aluminum or
aluminum alloy
category
State Thickness of platesmm
Thickness of sheets and
strips
mm
5052 B
O >0.20~80.00 >0.20~6.00
H111 >0.20~80.00 -
H12, H22, H32, H14,
H24, H34, H16, H26,
H36
>0.20~6.00 >0.20~6.00
H18, H28, H38 >0.20~3.00 >0.20~3.00
H112 >6.00~80.00 -
F >2.50~150.00 >2.50~8.00
5154A B
O, H111 >0.20~50.00 -
H12, H22, H32, H14,
H24, H34, H26, H36 >0.20~6.00 >0.20~6.00
H18, H28, H38 >0.20~3.00 >0.20~3.00
H19 >0.20~1.50 >0.20~1.50
H112 6.00~80.00 -
F >2.50~80.00 -
5454 B
O, H111 >0.20~80.00 -
H12, H22, H32, H14,
H24, H34, H26, H36 >0.20~6.00 -
H28, H38 >0.20~3.00 -
H112 6.00~120.00 -
F >4.50~150.00 -
5754 B
O, H111 >0.20~100.00 -
H12, H22, H32, H14,
H24, H34, H16, H26,
H36
>0.20~6.00 -
H18, H28, H38 >0.20~3.00 -
H112 6.00~80.00 -
F >4.50~150.00 -
5082 B H18, H38, H19, H39 >0.20~0.50 >0.20~0.50 F >4.50~150.00 -
5182 B
O >0.20~3.00 >0.20~3.00
H111 >0.20~3.00 -
H19 >0.20~1.50 >0.20~1.50
Table 4 Width and length corresponding to thickness Unit. mm
Thickness of
plates, sheets
and strips ...
GB/T 3880.1-2012
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.10
H 61
Replacing GB/T 3880.1-2006
Wrought aluminium and aluminium alloy plates,
sheets and strips for general engineering –
Part 1. Technical conditions of delivery
ISSUED ON. DECEMBER 31, 2012
IMPLEMENTED ON. OCTOBER 1, 2013
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration Committee.
Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Requirements ... 6
4 Test methods ... 29
5 Inspection rules ... 31
6 Mark, packaging, transport, storage and quality certificate... 36
7 Content of purchase order (or contract) ... 38
Foreword
GB/T 3880 "Wrought aluminium and aluminium alloy plates, sheets and strips
for general engineering" is divided into the following 3 parts.
- Part 1. Technical conditions of delivery;
- Part 2. Mechanical properties;
- Part 3. Tolerances on forms and dimensions.
This Part is the first part of GB/T 3880.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009.
This Part replaces GB/T 3880.1-2006 "Wrought Aluminium and Aluminium Alloy
Plates, Sheets and Strips for General Engineering - Part 1. Technical
Conditions of Delivery".
Compared with GB/T 3880.1-2006, the main technical changes are as follows.
- Add 31 alloy designations in total - 1070A, 1080A, 2017A, 2A12, 2A14,
2014A, 2E12 (previous. 2524), 2219, 3103, 3A21, 4006 , 4007, 4015,
5A02, 5005A, 5040, 5049, 5449 , 5050, 5251, 5154A, 5754, 5454, 5383,
6016, 7A04, 7A09, 7020, 7021, 7022, 7475, 8011 and 8079.
- The maximum thickness is expanded from 150 mm to 250 mm;
- The maximum width is expanded from 2500 mm to 3500 mm;
- Change the maximum thickness of cold-rolled plates, sheets and strips
to 6 mm;
- Add requirements for conductivity;
- Add requirements for stress corrosion resistance;
- Add requirements for exfoliation corrosion resistance;
- Add requirements for fracture toughness;
- Add requirements for corrosion resistance to fatigue;
- Add requirements for macrostructure.
This Part uses redrafting method to modify and adopt EN 485-1.2008
"Aluminium and aluminium alloys - Sheet, strip and plate - Part 1. Technical
conditions for inspection and delivery", and it is non-equivalent with EN 485-
1.2008.
This Part shall be under the jurisdiction of National Standardization Technical
Committee on Nonferrous Metals (SAC/TC 243).
Main drafting organizations of this Part. Southwest Aluminum (Group) Co., Ltd.,
China Nonferrous Metals Industry Institute of Standards Metrology and Quality,
Northeast Light Alloy Co., Ltd., Chalco Ruimin Co., Ltd, Xiamen Xiashun
Aluminum Foil Company Limited, Northwest Aluminum Fabrication Company,
Zhenjiang Ding Sheng Aluminum Co., Ltd AND Fujian Nanping Aluminium
Sheet and Strip Co. Ltd.
Main drafters of this Part. Zhang Yu, Chen Changyun, Li Ruishan, Ge Lixin,
Zhang Dong, Lv Xinyu, Huang Ruiyin, Tang Dengyi, Wang Guojun, Zhang Lihua,
Duan Ruifen, Li Xiang, Dong Zefang, Zhang Donggui, Du Chuanhui and Lin
Shanbin.
The previous versions replaced by this Part are as follows.
- GB/T 3880-1983, GB/T 3880-1997, GB/T 3880.1-2006;
- GB/T 8544-1987, GB/T 8544-1997;
- GB/T 3193-1982, GB/T 10568-1989, GB/T 10569-1989, GB/T 16501-1996.
Wrought aluminium and aluminium alloy plates, sheets
and strips for general engineering –
Part 1. Technical conditions of delivery
1 Scope
This Part of GB/T 3880 specifies the technical conditions of delivery, test
methods, inspection rules and marks, packaging, transport, storage, quality
certificate and purchase order (or contract) for wrought aluminium and
aluminium alloy plates, sheets and strips for general engineering.
This Part is applicable to wrought aluminium and aluminium alloy plates for
general engineering (hereinafter referred to as plates), AND wrought aluminium
and aluminium sheets and strips (hereinafter referred to as sheets and strips).
2 Normative references
The following referenced documents are indispensable for the application of
this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including all
amendments) applies.
GB/T 232 Metallic Materials - Bend Test
GB/T 3190 Wrought aluminium and aluminium alloy - Chemical composition
GB/T 3199 Wrought Aluminium and Aluminium Alloy Products - Packing,
Marking, Transporting and Storing
GB/T 3246.1 Inspection method for structure...
Share
