GB/T 38668-2020: Intelligent manufacturing -- Radio frequency identification system -- General technical requirements
This Standard specifies the composition of intelligent manufacturing-oriented radio frequency identification system, as well as the general technical requirements for RFID tag, reader-writer and middleware, etc. This Standard is applicable to the design, development and application of intelligent manufacturing-oriented radio frequency identification system.

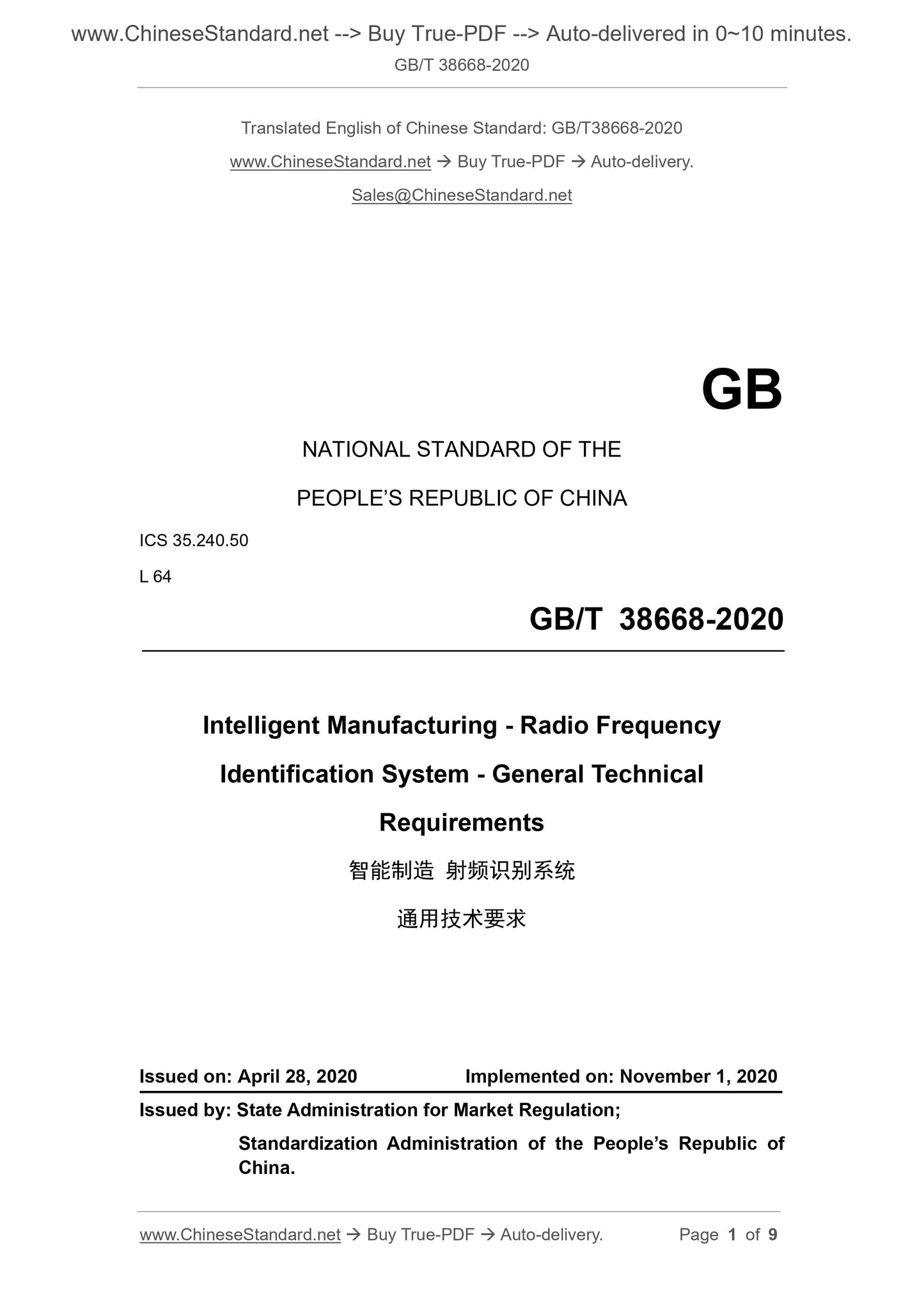

GB/T 38668-2020
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 35.240.50
L 64
Intelligent Manufacturing - Radio Frequency
Identification System - General Technical
Requirements
智能制造 射频识别系统
ISSUED ON: APRIL 28, 2020
IMPLEMENTED ON: NOVEMBER 1, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of
China.

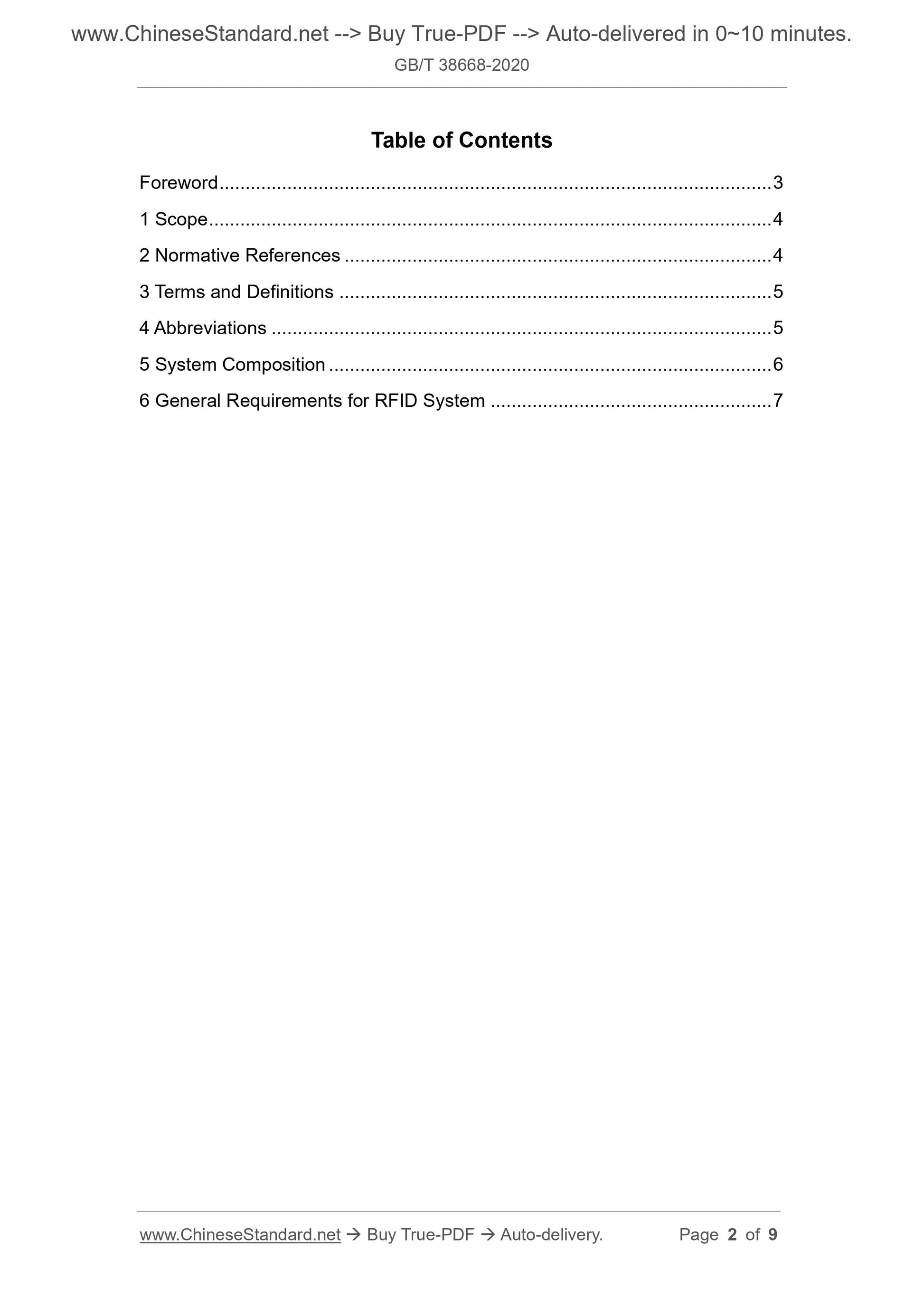

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 5
4 Abbreviations ... 5
5 System Composition ... 6
6 General Requirements for RFID System ... 7

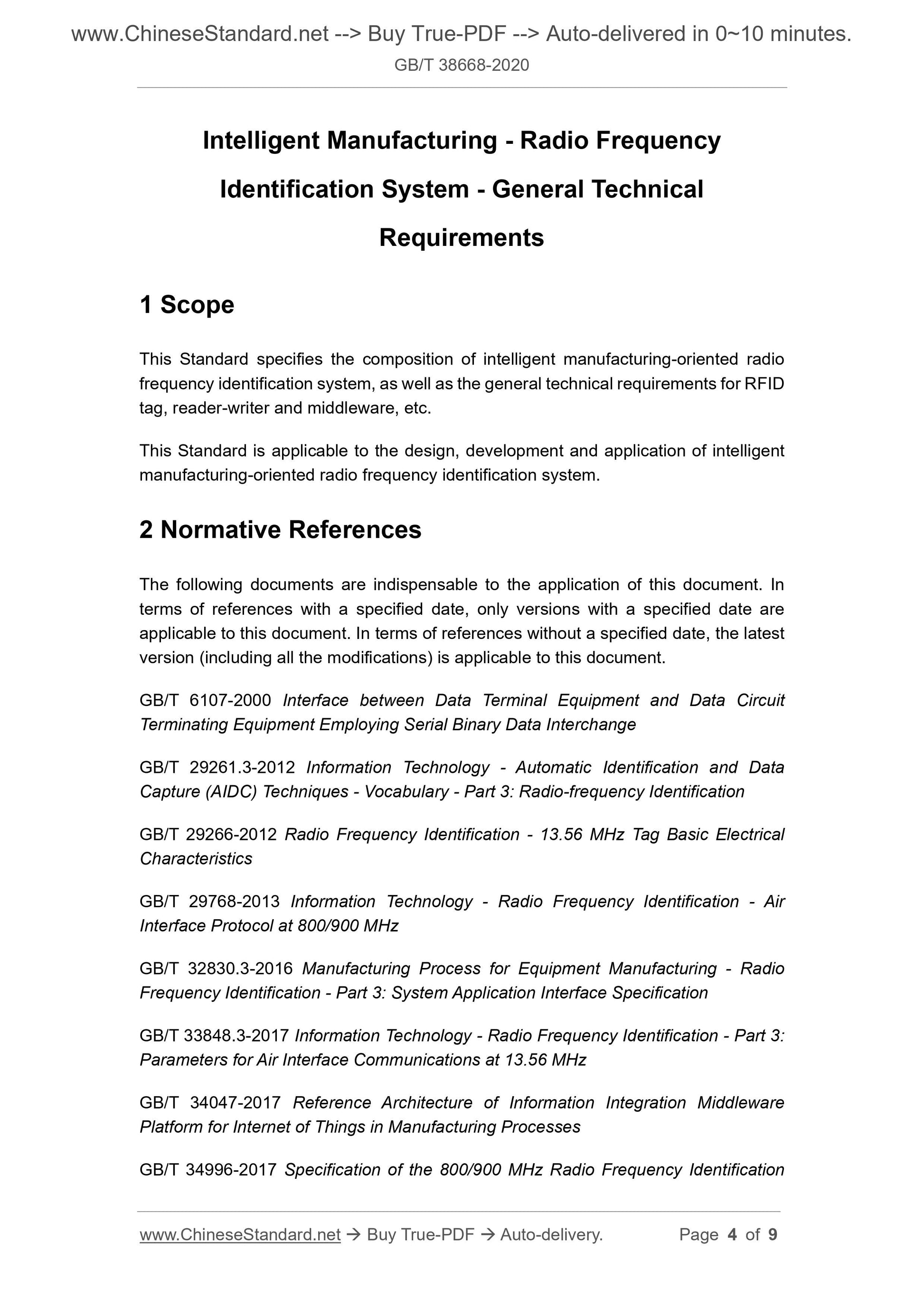

Intelligent Manufacturing - Radio Frequency
Identification System - General Technical
Requirements
1 Scope
This Standard specifies the composition of intelligent manufacturing-oriented radio frequency identification system, as well as the general technical requirements for RFID tag, reader-writer and middleware, etc.
This Standard is applicable to the design, development and application of intelligent manufacturing-oriented radio frequency identification system.
2 Normative References
The following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 6107-2000 Interface between Data Terminal Equipment and Data Circuit Terminating Equipment Employing Serial Binary Data Interchange
GB/T 29261.3-2012 Information Technology - Automatic Identification and Data Capture (AIDC) Techniques - Vocabulary - Part 3: Radio-frequency Identification GB/T 29266-2012 Radio Frequency Identification - 13.56 MHz Tag Basic Electrical Characteristics
GB/T 29768-2013 Information Technology - Radio Frequency Identification - Air Interface Protocol at 800/900 MHz
GB/T 32830.3-2016 Manufacturing Process for Equipment Manufacturing - Radio Frequency Identification - Part 3: System Application Interface Specification GB/T 33848.3-2017 Information Technology - Radio Frequency Identification - Part 3: Parameters for Air Interface Communications at 13.56 MHz
GB/T 34047-2017 Reference Architecture of Information Integration Middleware Platform for Internet of Things in Manufacturing Processes

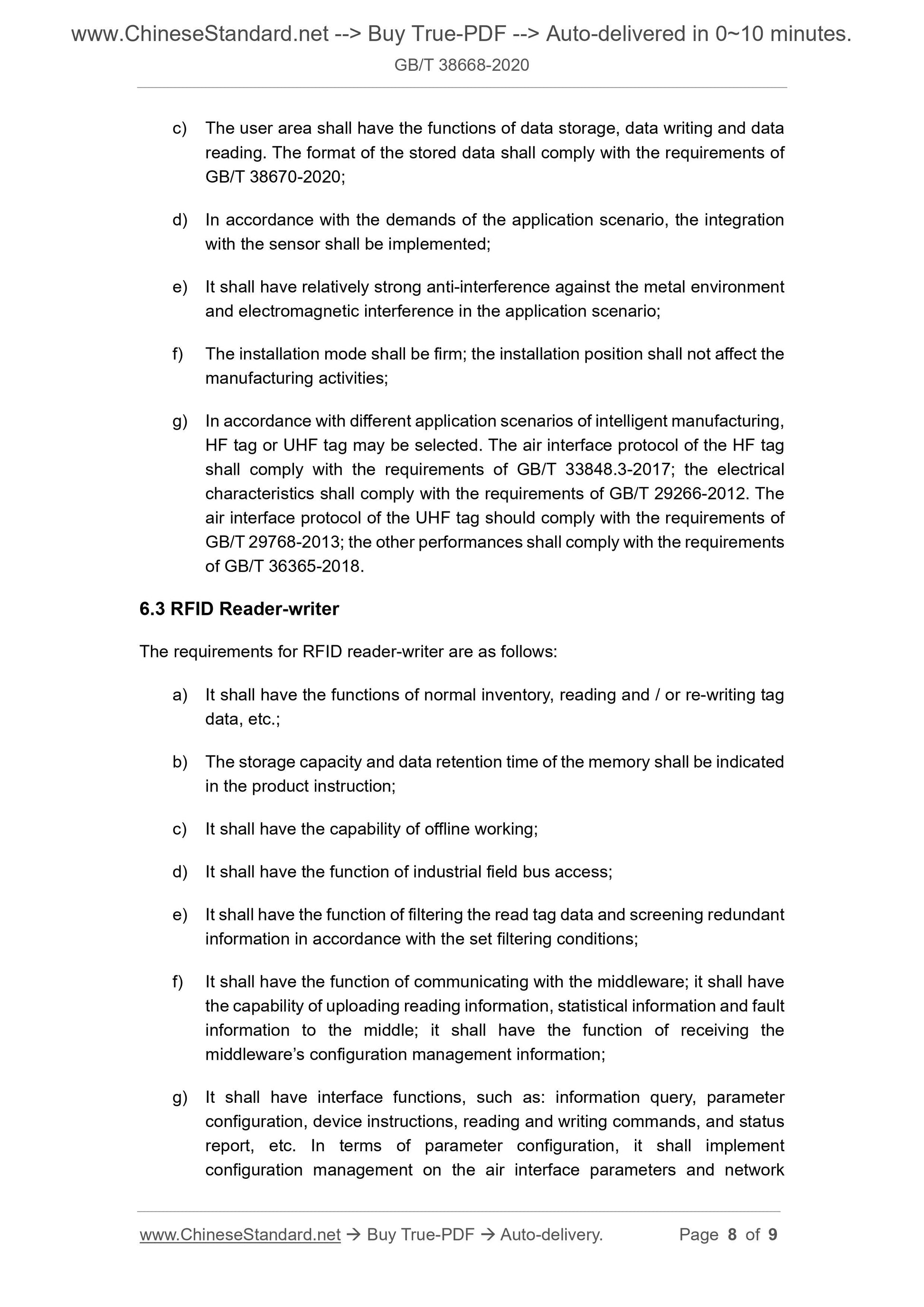

GB/T 34996-2017 Specification of the 800/900 MHz Radio Frequency Identification c) The user area shall have the functions of data storage, data writing and data reading. The format of the stored data shall comply with the requirements of GB/T 38670-2020;
d) In accordance with the demands of the application scenario, the integration with the sensor shall be implemented;
e) It shall have relatively strong anti-interference against the metal environment and electromagnetic interference in the application scenario;
f) The installation mode shall be firm; the installation position shall not affect the manufacturing activities;
g) In accordance with different application scenarios of intelligent manufacturing, HF tag or UHF tag may be selected. The air interface protocol of the HF tag shall comply with the requirements of GB/T 33848.3-2017; the electrical characteristics shall comply with the requirements of GB/T 29266-2012. The air interface protocol of the UHF tag should comply with the requirements of GB/T 29768-2013; the other performances shall comply with the requirements of GB/T 36365-2018.
6.3 RFID Reader-writer
The requirements for RFID reader-writer are as follows:
a) It shall have the functions of normal inventory, reading and / or re-writing tag data, etc.;
b) The storage capacity and data retention time of the memory shall be indicated in the product instruction;
c) It shall have the capability of offline working;
d) It shall have the function of industrial field bus access;
e) It shall have the function of filtering the read tag data and screening redundant information in accordance with the set filtering conditions;
f) It shall have the function of communicating with the middleware; it shall have the capability of uploading reading information, statistical information and fault information to the middle; it shall have the function of receiving the
middleware’s configuration management information;
g) It shall have interface functions, such as: information query, parameter configuration, device instructions, reading and writing commands, and status report, etc. In terms of parameter configuration, it shall implement
configuration management on the air interface parameters and network
