GB/T 38599-2020: Safety valves and bursting disc safety devices in combination

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 38599-2020 (Self-service in 1-minute)
Newer / historical versions: GB/T 38599-2020

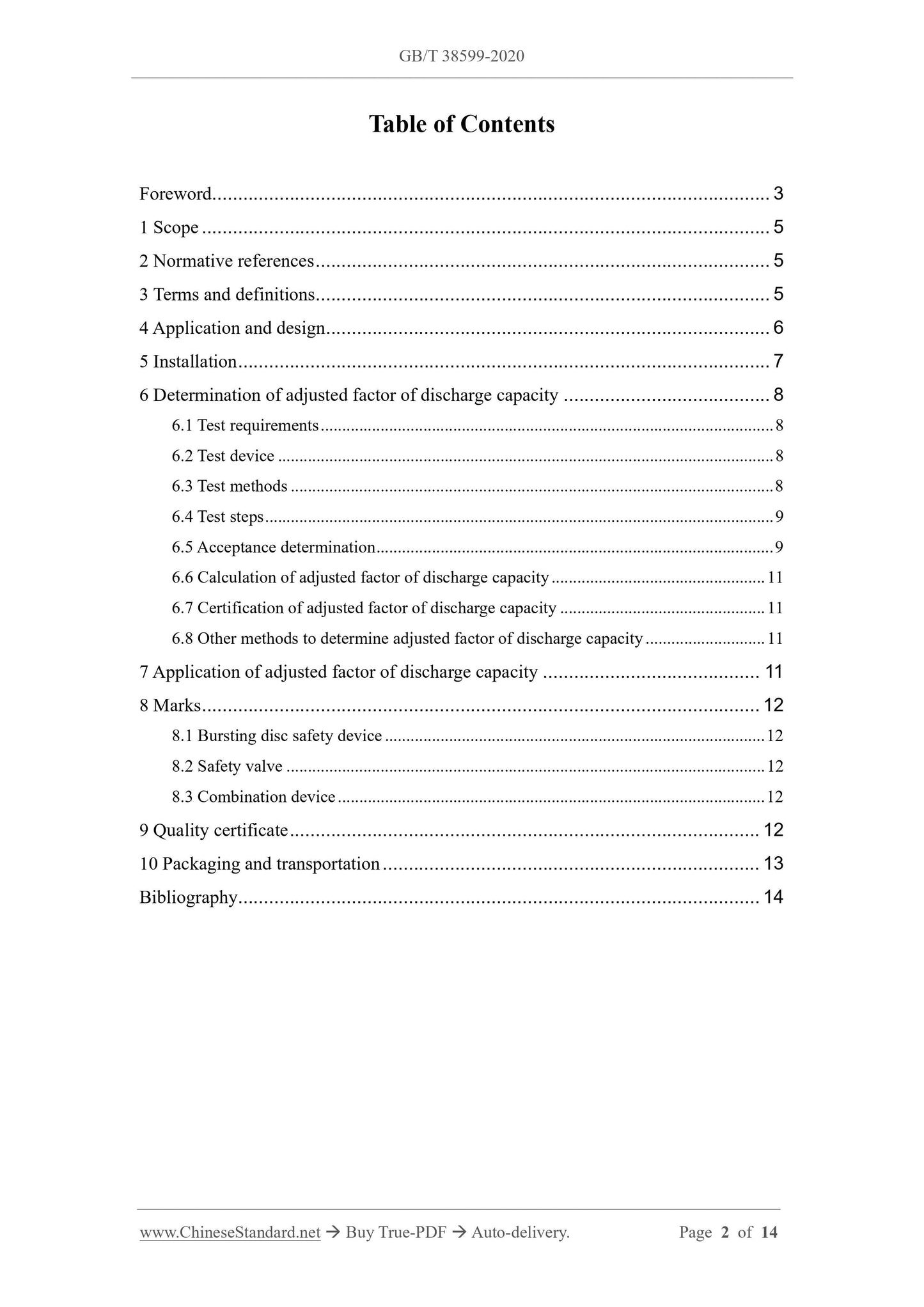

Preview True-PDF

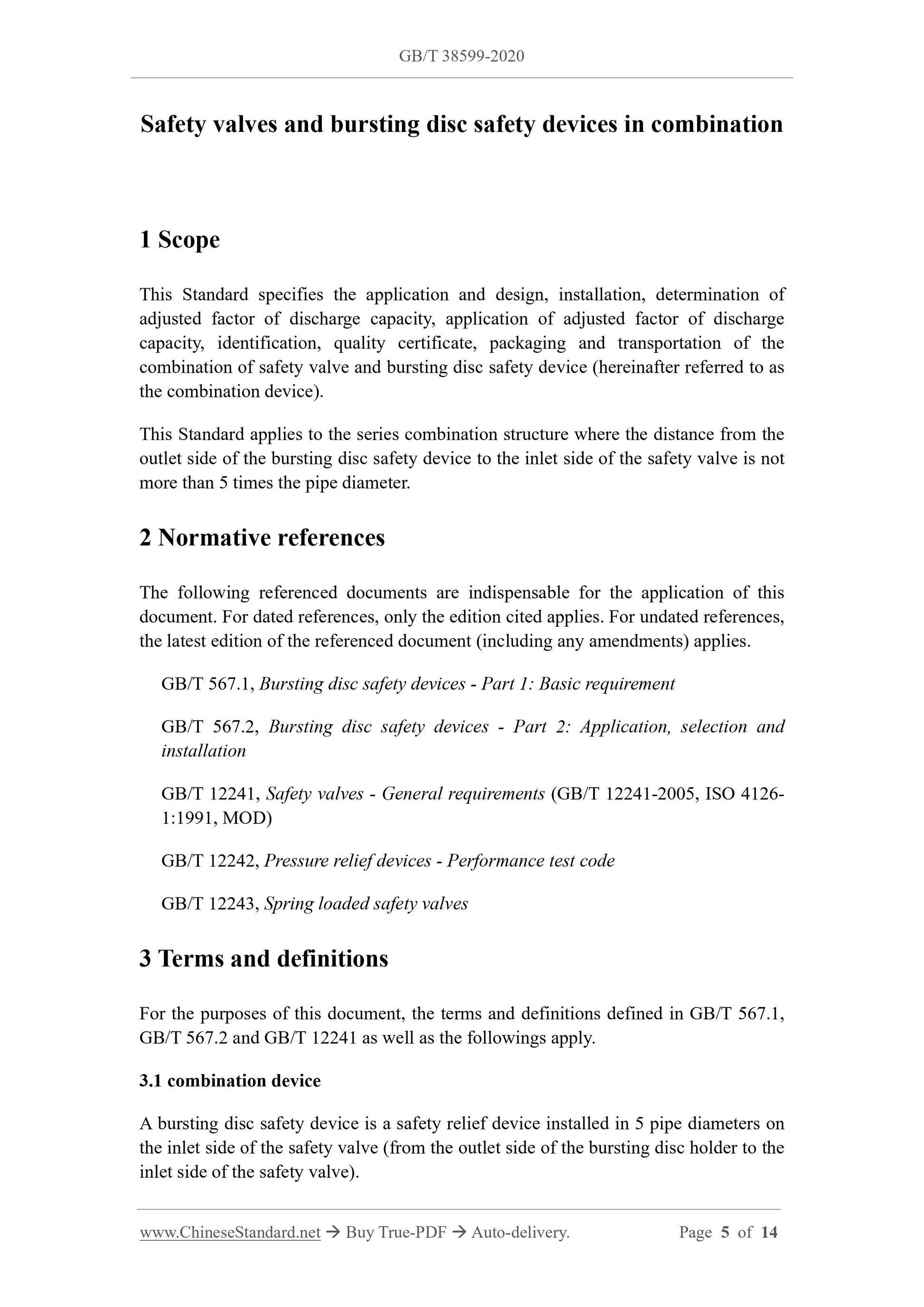

Scope

This Standard specifies the application and design, installation, determination of
adjusted factor of discharge capacity, application of adjusted factor of discharge
capacity, identification, quality certificate, packaging and transportation of the
combination of safety valve and bursting disc safety device (hereinafter referred to as
the combination device).
This Standard applies to the series combination structure where the distance from the
outlet side of the bursting disc safety device to the inlet side of the safety valve is not
more than 5 times the pipe diameter.

Basic Data

Standard ID	GB/T 38599-2020 (GB/T38599-2020)
Description (Translated English)	Safety valves and bursting disc safety devices in combination
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J16
Classification of International Standard	13.240
Word Count Estimation	10,145
Date of Issue	2020-03-31
Date of Implementation	2020-10-01
Quoted Standard	GB/T 567.1; GB/T 567.2; GB/T 12241; GB/T 12242; GB/T 12243
Adopted Standard	ISO 4126-3-2006, MOD
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
Summary	This standard specifies the application and design, installation, determination of displacement correction factor, application of displacement correction factor, identification, quality certificate, packaging and transportation of the combination of safety valve and bursting disc safety device (hereinafter referred to as combination device). This standard is applicable to the series combination structure where the distance from the outlet side of the bursting disc safety device to the population side of the safety valve is not more than 5 times the pipe diameter.
