GB/T 3836.35-2021: Explosive atmospheres -- Part 35: Classification of areas for explosive dust atmospheres

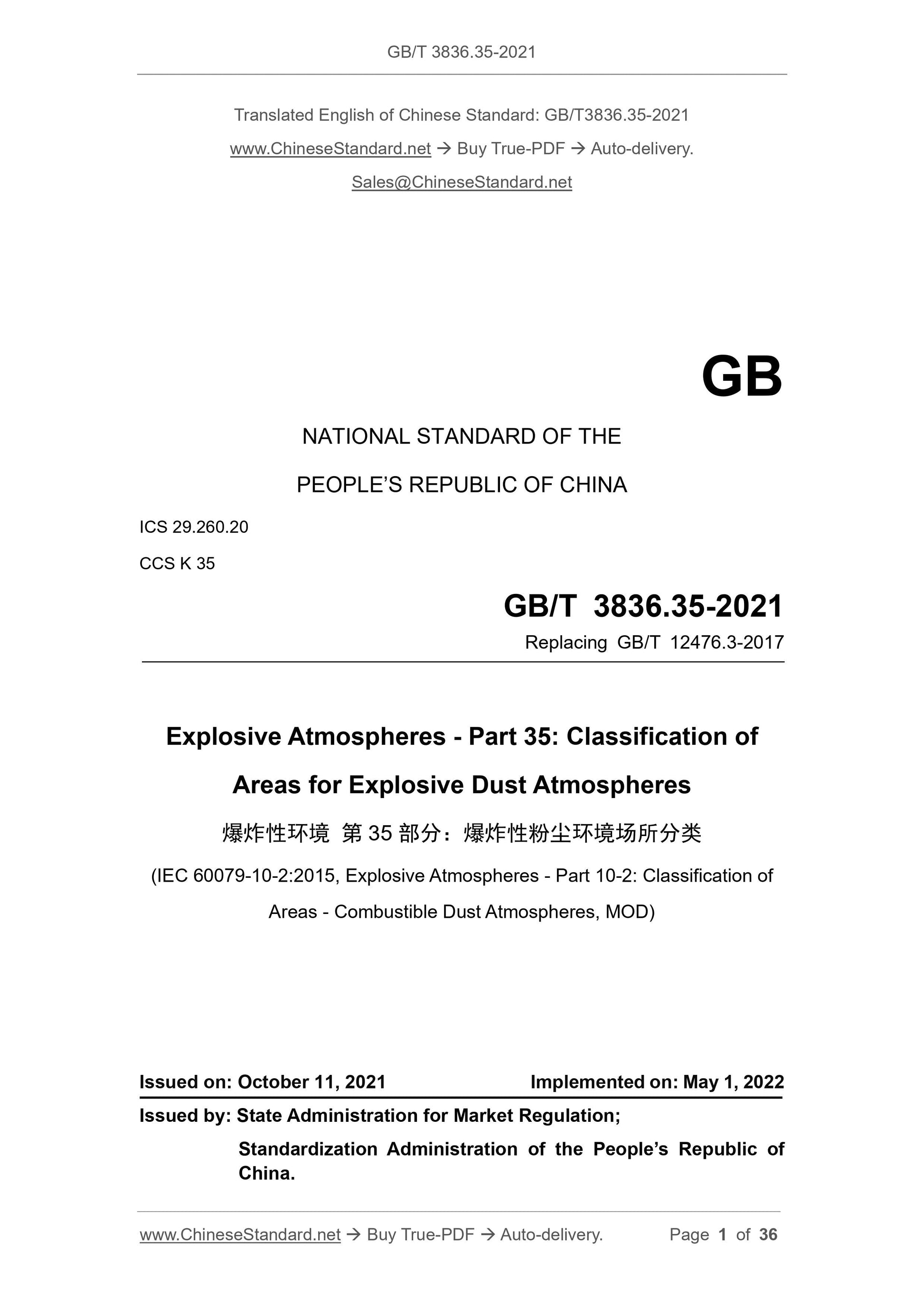

GB/T 3836.35-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.260.20
CCS K 35
Replacing GB/T 12476.3-2017
Explosive Atmospheres - Part 35: Classification of
Areas for Explosive Dust Atmospheres
(IEC 60079-10-2:2015, Explosive Atmospheres - Part 10-2: Classification of
Areas - Combustible Dust Atmospheres, MOD)
ISSUED ON: OCTOBER 11, 2021
IMPLEMENTED ON: MAY 1, 2022
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of
China.

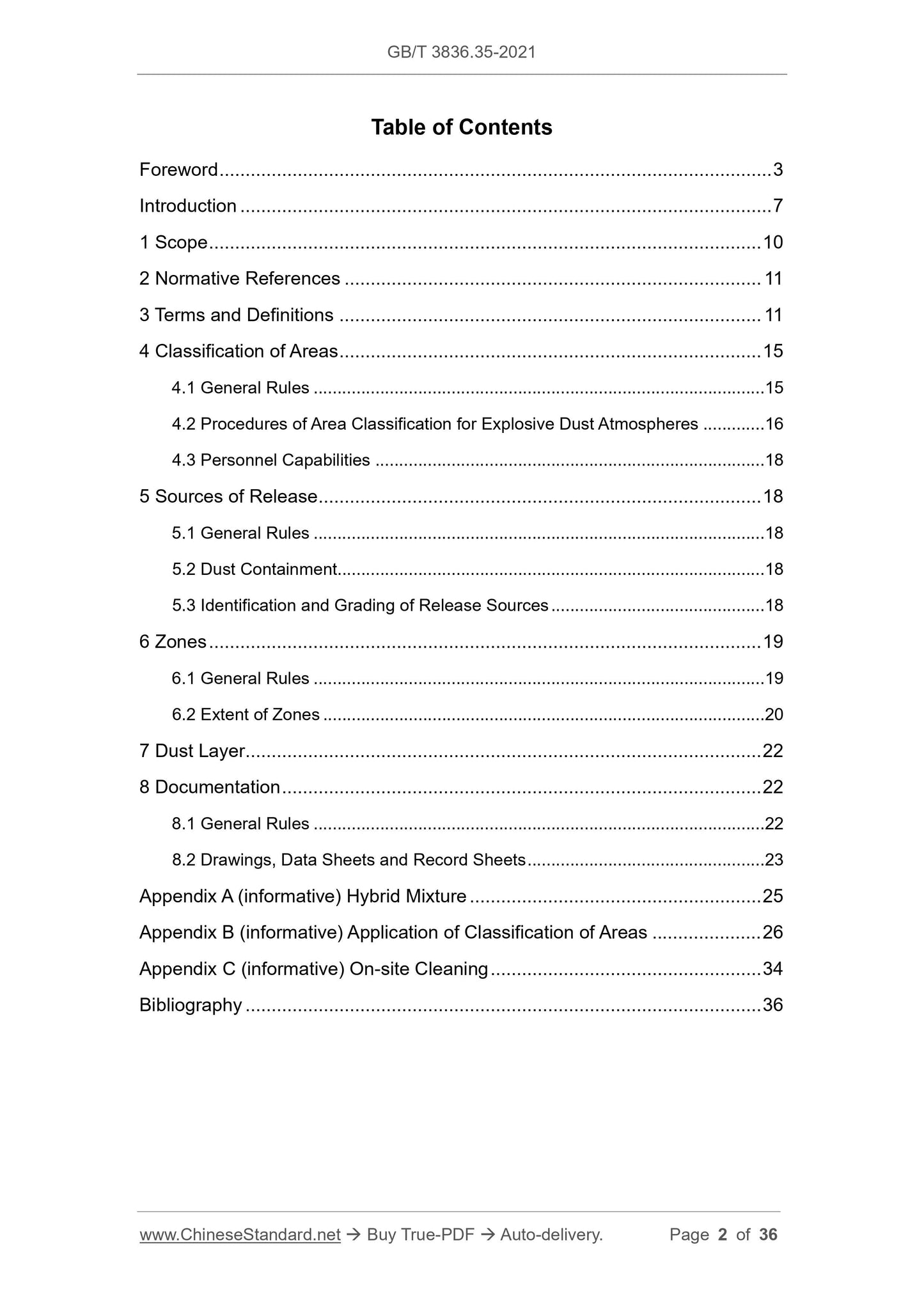

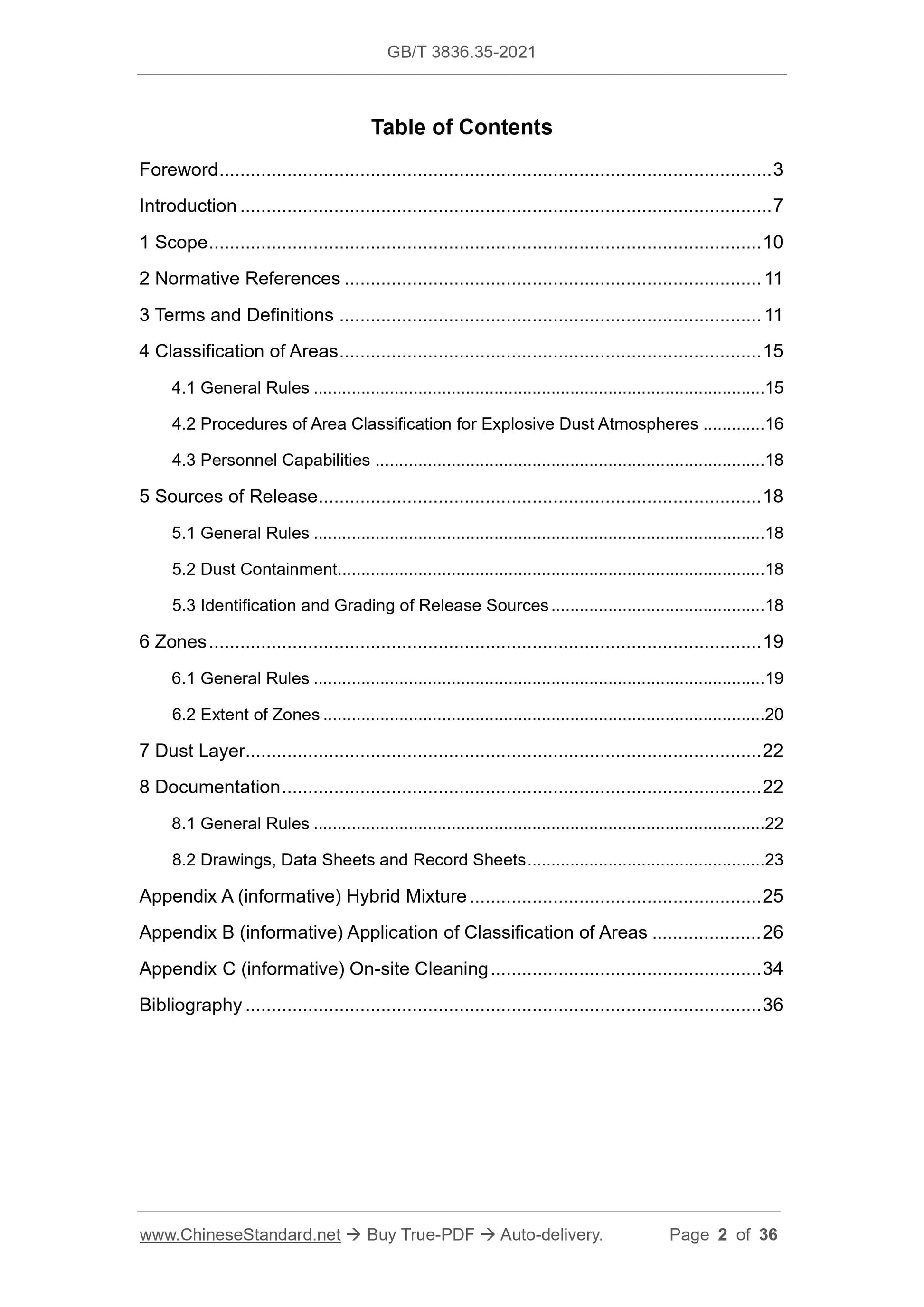

Table of Contents
Foreword ... 3
Introduction ... 7
1 Scope ... 10
2 Normative References ... 11
3 Terms and Definitions ... 11
4 Classification of Areas ... 15
4.1 General Rules ... 15
4.2 Procedures of Area Classification for Explosive Dust Atmospheres ... 16
4.3 Personnel Capabilities ... 18
5 Sources of Release ... 18
5.1 General Rules ... 18
5.2 Dust Containment... 18
5.3 Identification and Grading of Release Sources ... 18
6 Zones ... 19
6.1 General Rules ... 19
6.2 Extent of Zones ... 20
7 Dust Layer... 22
8 Documentation ... 22
8.1 General Rules ... 22
8.2 Drawings, Data Sheets and Record Sheets ... 23
Appendix A (informative) Hybrid Mixture ... 25
Appendix B (informative) Application of Classification of Areas ... 26
Appendix C (informative) On-site Cleaning ... 34
Bibliography ... 36

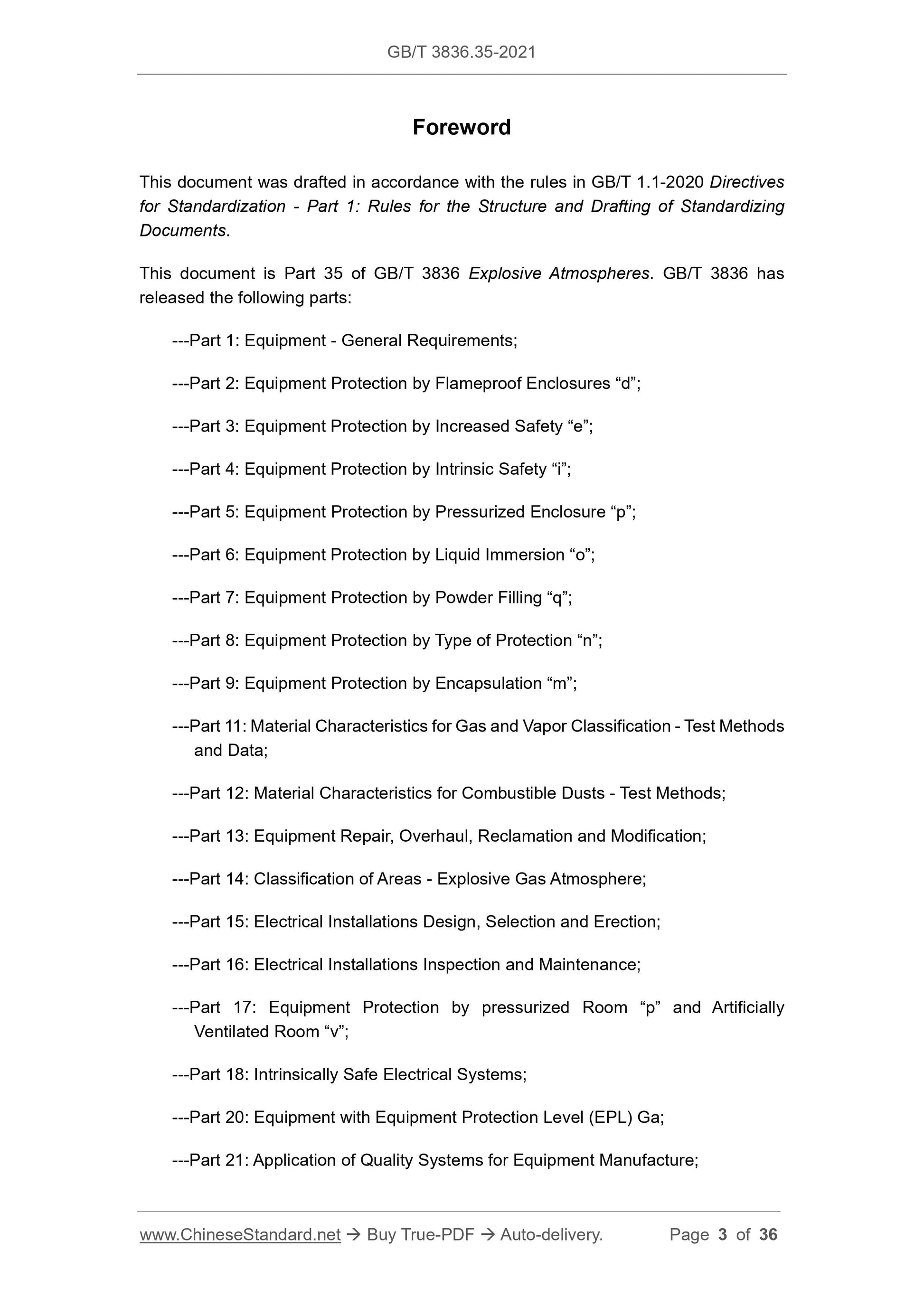

Foreword
This document was drafted in accordance with the rules in GB/T 1.1-2020 Directives
for Standardization - Part 1: Rules for the Structure and Drafting of Standardizing
Documents.
This document is Part 35 of GB/T 3836 Explosive Atmospheres. GB/T 3836 has
released the following parts:
---Part 1: Equipment - General Requirements;
---Part 2: Equipment Protection by Flameproof Enclosures “d”;
---Part 3: Equipment Protection by Increased Safety “e”;
---Part 4: Equipment Protection by Intrinsic Safety “i”;
---Part 5: Equipment Protection by Pressurized Enclosure “p”;
---Part 6: Equipment Protection by Liquid Immersion “o”;
---Part 7: Equipment Protection by Powder Filling “q”;
---Part 8: Equipment Protection by Type of Protection “n”;
---Part 9: Equipment Protection by Encapsulation “m”;
---Part 11: Material Characteristics for Gas and Vapor Classification - Test Methods
and Data;
---Part 12: Material Characteristics for Combustible Dusts - Test Methods;
---Part 13: Equipment Repair, Overhaul, Reclamation and Modification;
---Part 14: Classification of Areas - Explosive Gas Atmosphere;
---Part 15: Electrical Installations Design, Selection and Erection;
---Part 16: Electrical Installations Inspection and Maintenance;
---Part 17: Equipment Protection by pressurized Room “p” and Artificially
Ventilated Room “v”;
---Part 18: Intrinsically Safe Electrical Systems;
---Part 20: Equipment with Equipment Protection Level (EPL) Ga;
---Part 21: Application of Quality Systems for Equipment Manufacture;
---Part 22: Protection of Equipment and Transmission System Using Optical
Radiation;
---Part 23: Group I, Category EPL Ma Equipment Intended to Remain Functional
in Atmospheres Endangered by Firedamp and / or Coal Dust;
---Part 24: Equipment Protection by Special Protection “s”;
---Part 25: Requirements for Process Sealing between Flammable Process Fluids
and Electrical Systems;
---Part 26: Electrostatic Hazards - Guidance;
---Part 27: Electrostatic Hazards - Test;
---Part 28: Non-electrical Equipment for Explosive Atmospheres - Basic Method
and Requirements;
---Part 29: Non-electrical Equipment for Explosive Atmospheres - Constructional
Safety “c”, Control of Ignition Source “b”, Liquid Immersion “k”;
---Part 30: Equipment and Components in Explosive Atmospheres in Underground
Mines;
---Part 31: Equipment Dust Ignition Protection by Enclosure “t”;
---Part 32: Intrinsically Safe Systems with Electronically Controlled Spark Duration
Limitation;
---Part 33: Equipment in Adverse Service Conditions;
---Part 34: Equipment Assemblies;
---Part 35: Classification of Areas for Explosive Dust Atmospheres.

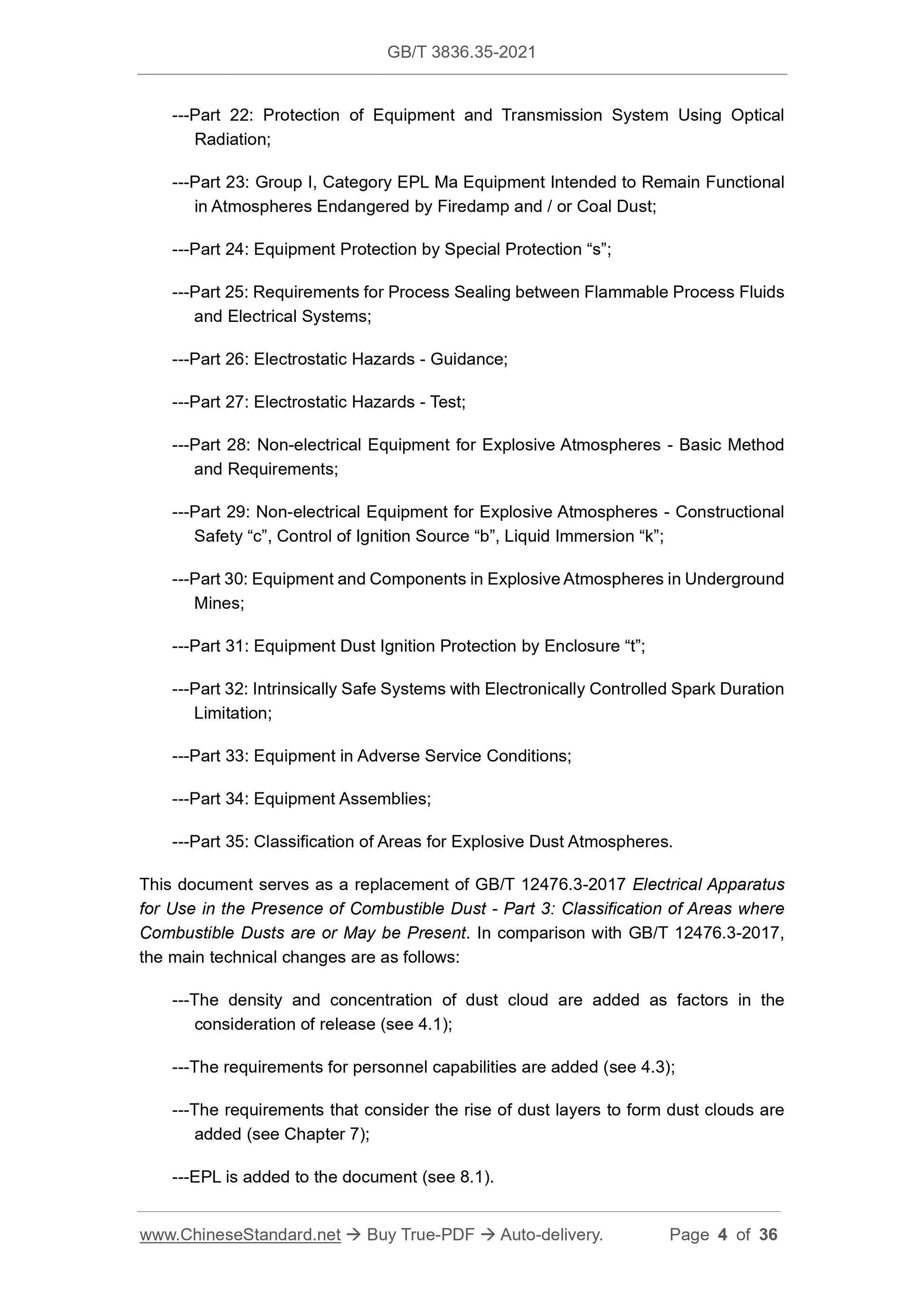

This document serves as a replacement of GB/T 12476.3-2017 Electrical Apparatus
for Use in the Presence of Combustible Dust - Part 3: Classification of Areas where
Combustible Dusts are or May be Present. In comparison with GB/T 12476.3-2017,
the main technical changes are as follows:
---The density and concentration of dust cloud are added as factors in the
consideration of release (see 4.1);
---The requirements for personnel capabilities are added (see 4.3);
---The requirements that consider the rise of dust layers to form dust clouds are
added (see Chapter 7);
---EPL is added to the document (see 8.1).

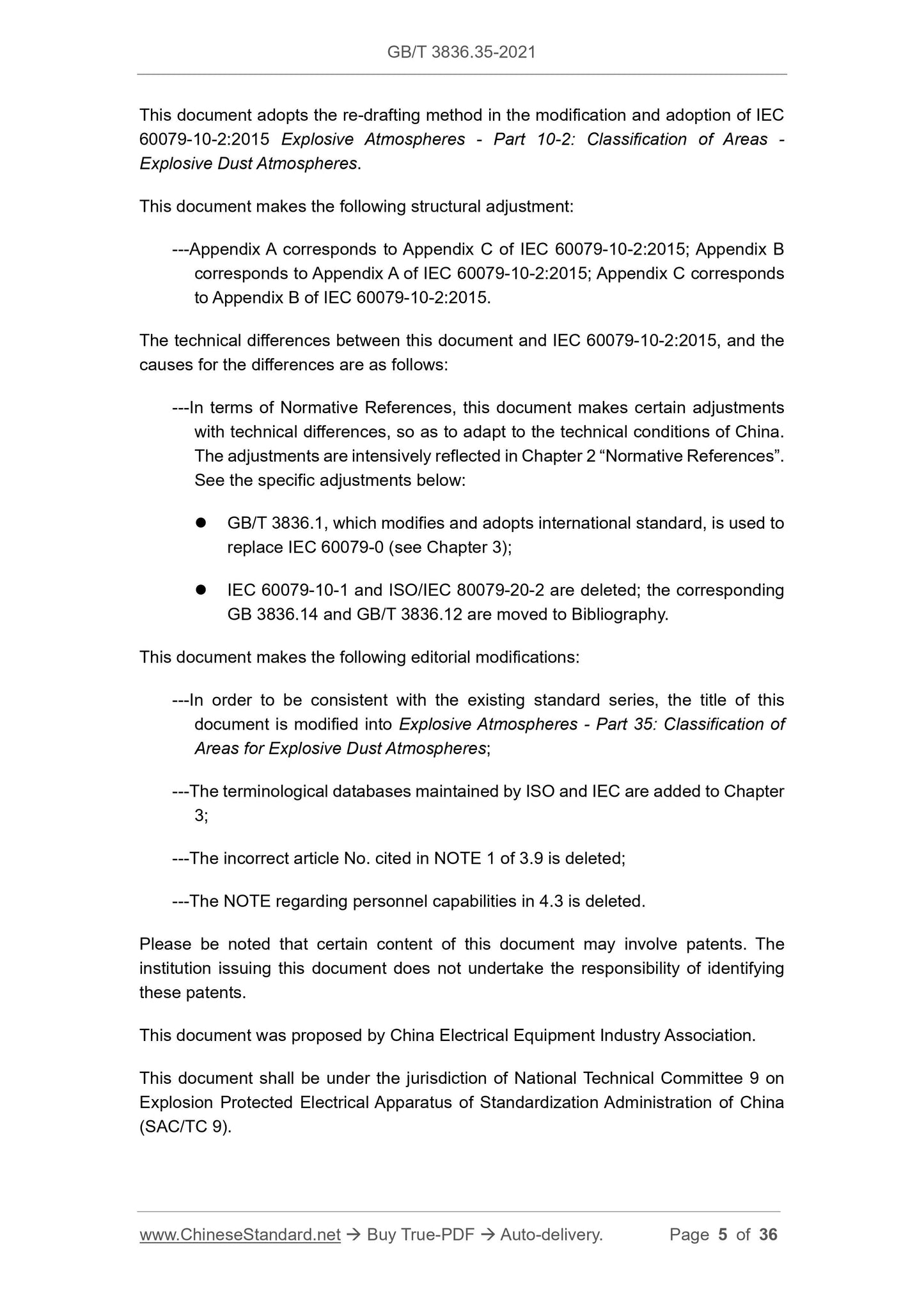

This document adopts the re-drafting method in the modification and adoption of IEC
60079-10-2:2015 Explosive Atmospheres - Part 10-2: Classification of Areas -
Explosive Dust Atmospheres.
This document makes the following structural adjustment:
---Appendix A corresponds to Appendix C of IEC 60079-10-2:2015; Appendix B
corresponds to Appendix A of IEC 60079-10-2:2015; Appendix C corresponds
to Appendix B of IEC 60079-10-2:2015.
The technical differences between this document and IEC 60079-10-2:2015, and the
causes for the differences are as follows:
---In terms of Normative References, this document makes certain adjustments
with technical differences, so as to adapt to the technical conditions of China.
The adjustments are intensively reflected in Chapter 2 “Normative References”.
See the specific adjustments below:
 GB/T 3836.1, which modifies and adopts international standard, is used to
replace IEC 60079-0 (see Chapter 3);
 IEC 60079-10-1 and ISO/IEC 80079-20-2 are deleted; the corresponding
GB 3836.14 and GB/T 3836.12 are moved to Bibliography.
This document makes the following editorial modifications:
---In order to be consistent with the existing standard series, the title of this
document is modified into Explosive Atmospheres - Part 35: Classification of
Areas for Explosive Dust Atmospheres;
---The terminological databases maintained by ISO and IEC are added to Chapter
3;
---The incorrect article No. cited in NOTE 1 of 3.9 is deleted;
---The NOTE regarding personnel capabilities in 4.3 is deleted.
Please be noted that certain content of this document may involve patents. The
institution issuing this document does not undertake the responsibility of identifying
these patents.
This document was proposed by China Electrical Equipment Industry Association.
This document shall be under the jurisdiction of National Technical Committee 9 on
Explosion Protected Electrical Apparatus of Standardization Administration of China
(SAC/TC 9).
Explosive Atmospheres - Part 35: Classification of
Areas for Explosive Dust Atmospheres

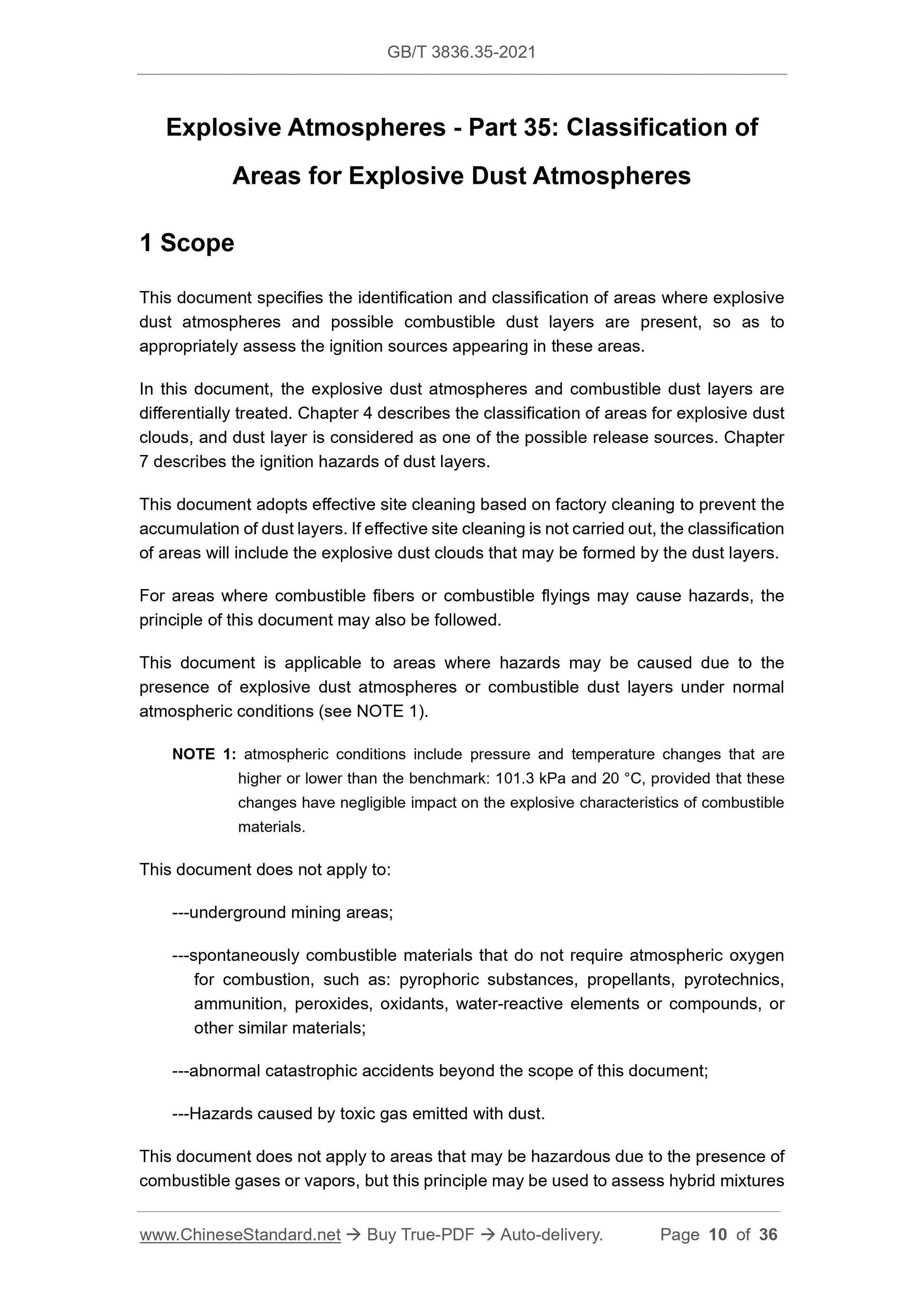

1 Scope
This document specifies the identification and classification of areas where explosive
dust atmospheres and possible combustible dust layers are present, so as to
appropriately assess the ignition sources appearing in these areas.
In this document, the explosive dust atmospheres and combustible dust layers are
differentially treated. Chapter 4 describes the classification of areas for explosive dust
clouds, and dust layer is considered as one of the possible release sources. Chapter
7 describes the ignition hazards of dust layers.
This document adopts effective site cleaning based on factory cleaning to prevent the
accumulation of du...
