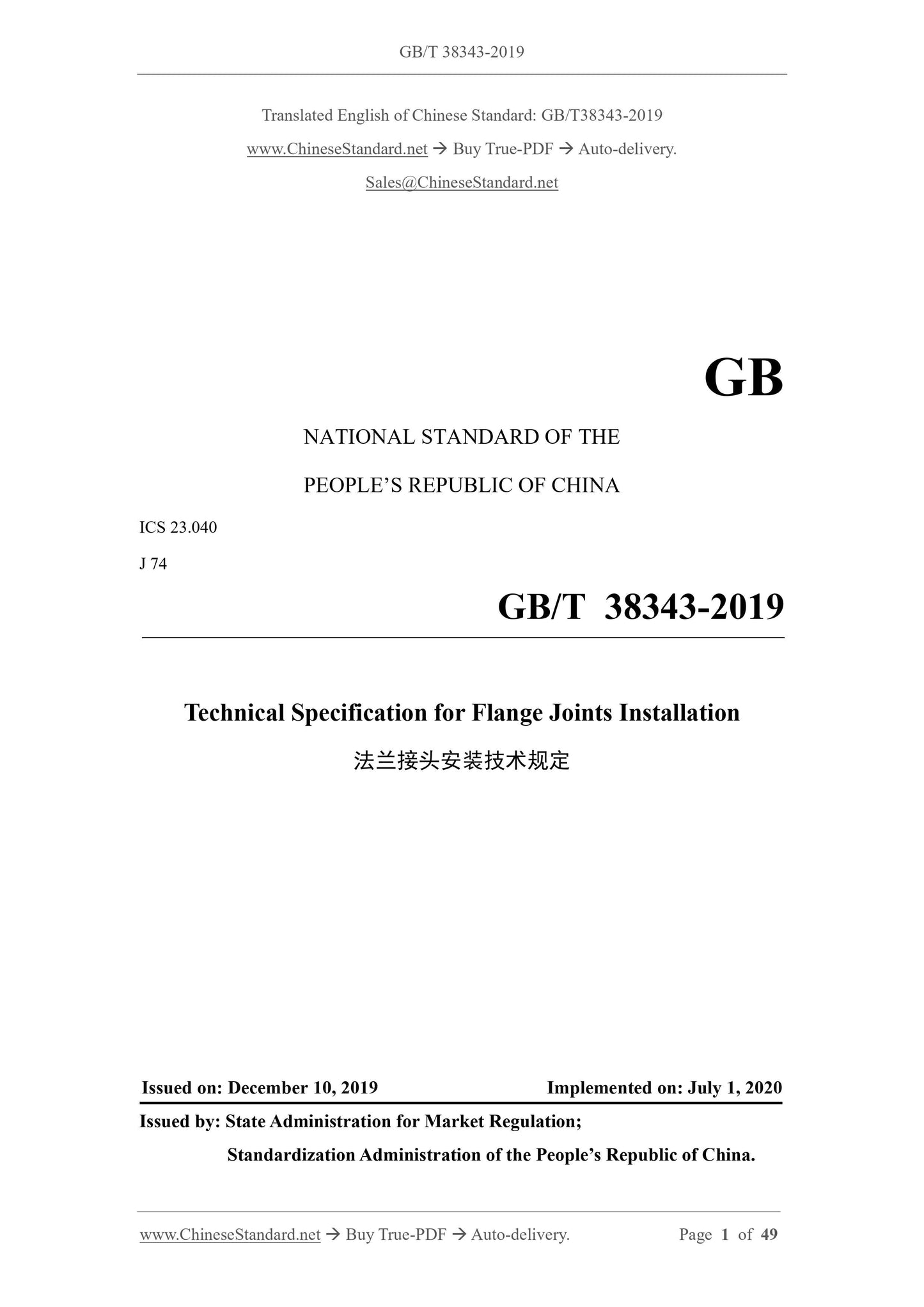

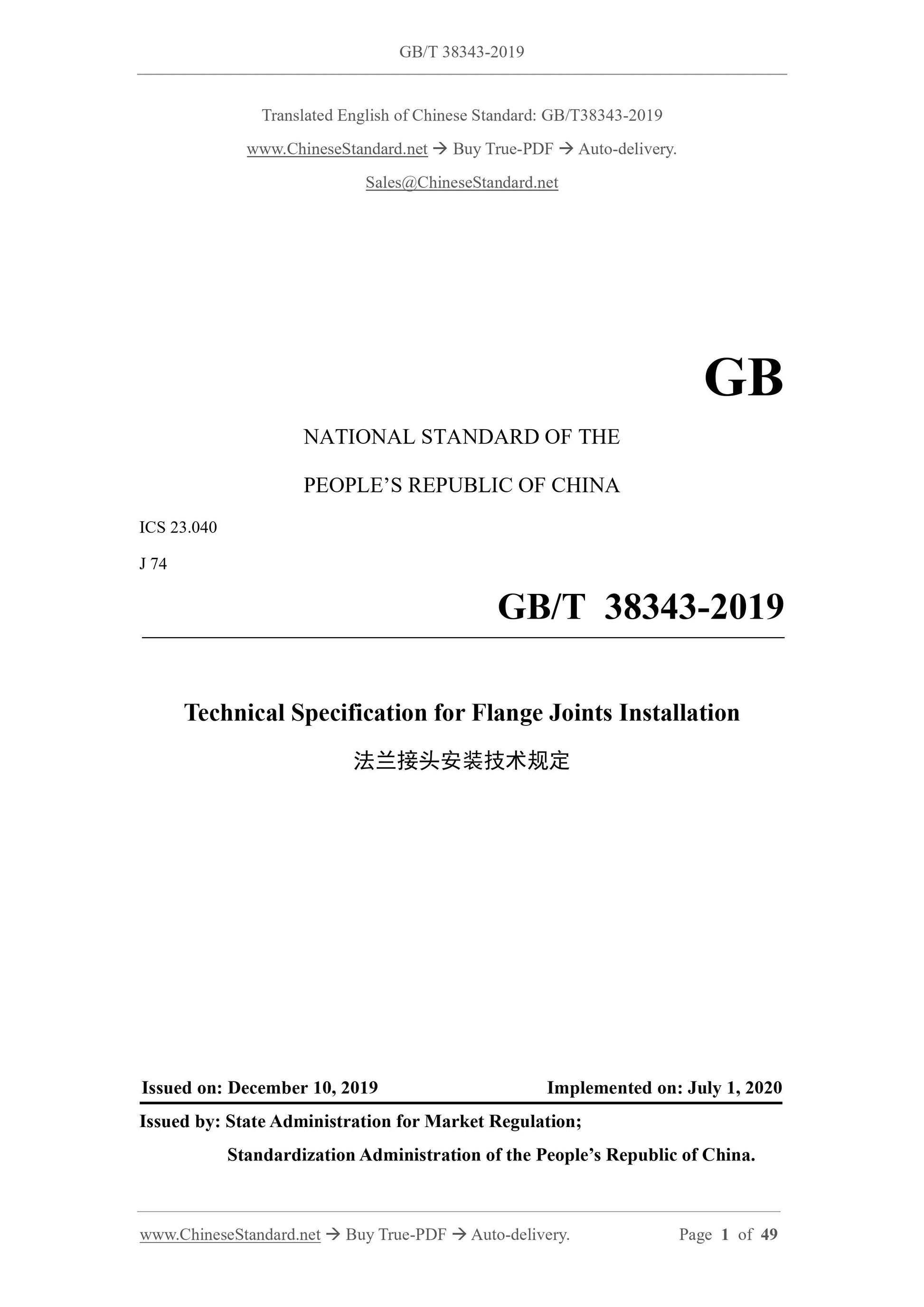

GB/T 38343-2019: Technical specification for flange joints installation

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 38343-2019 (Self-service in 1-minute)
Newer / historical versions: GB/T 38343-2019

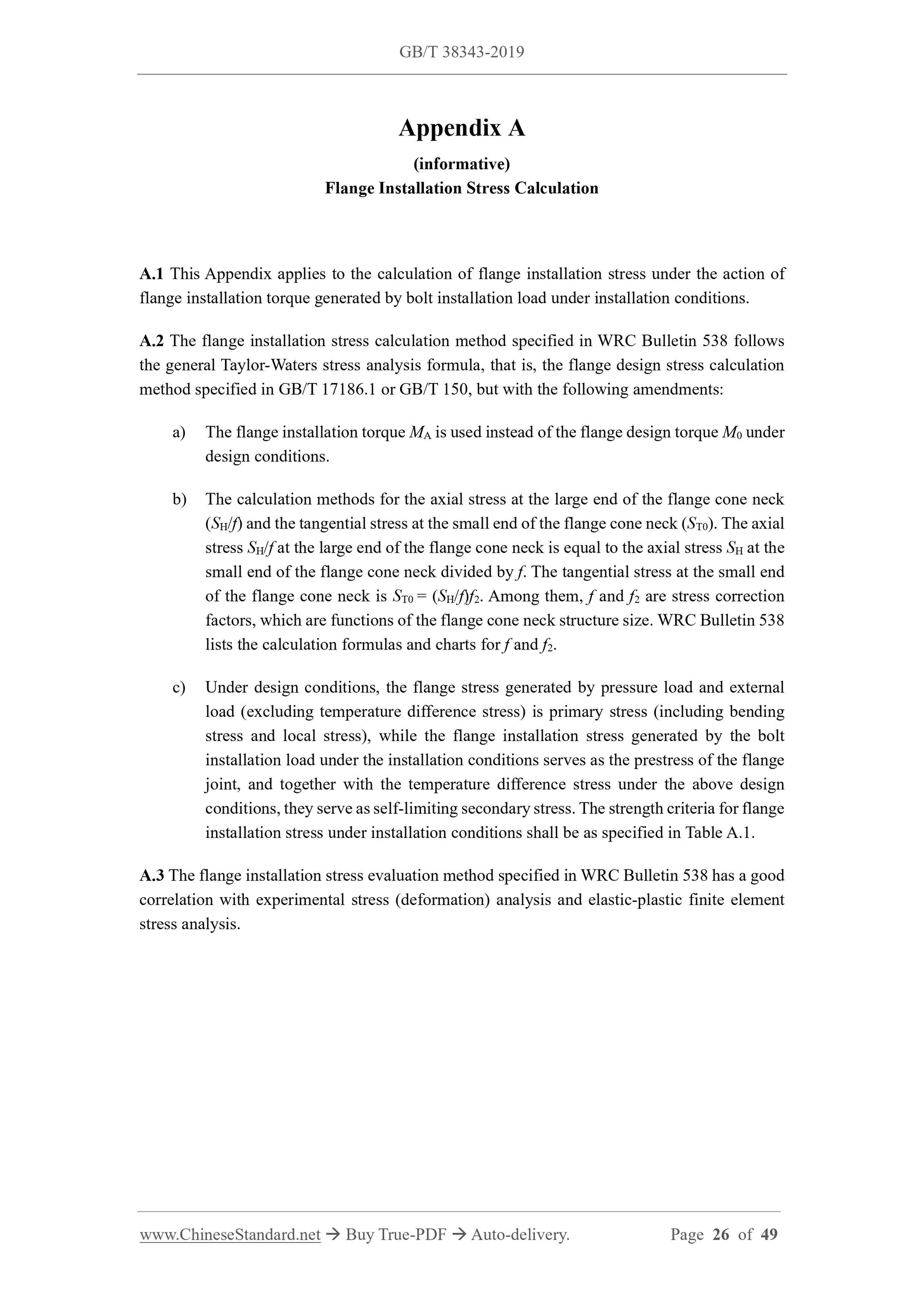

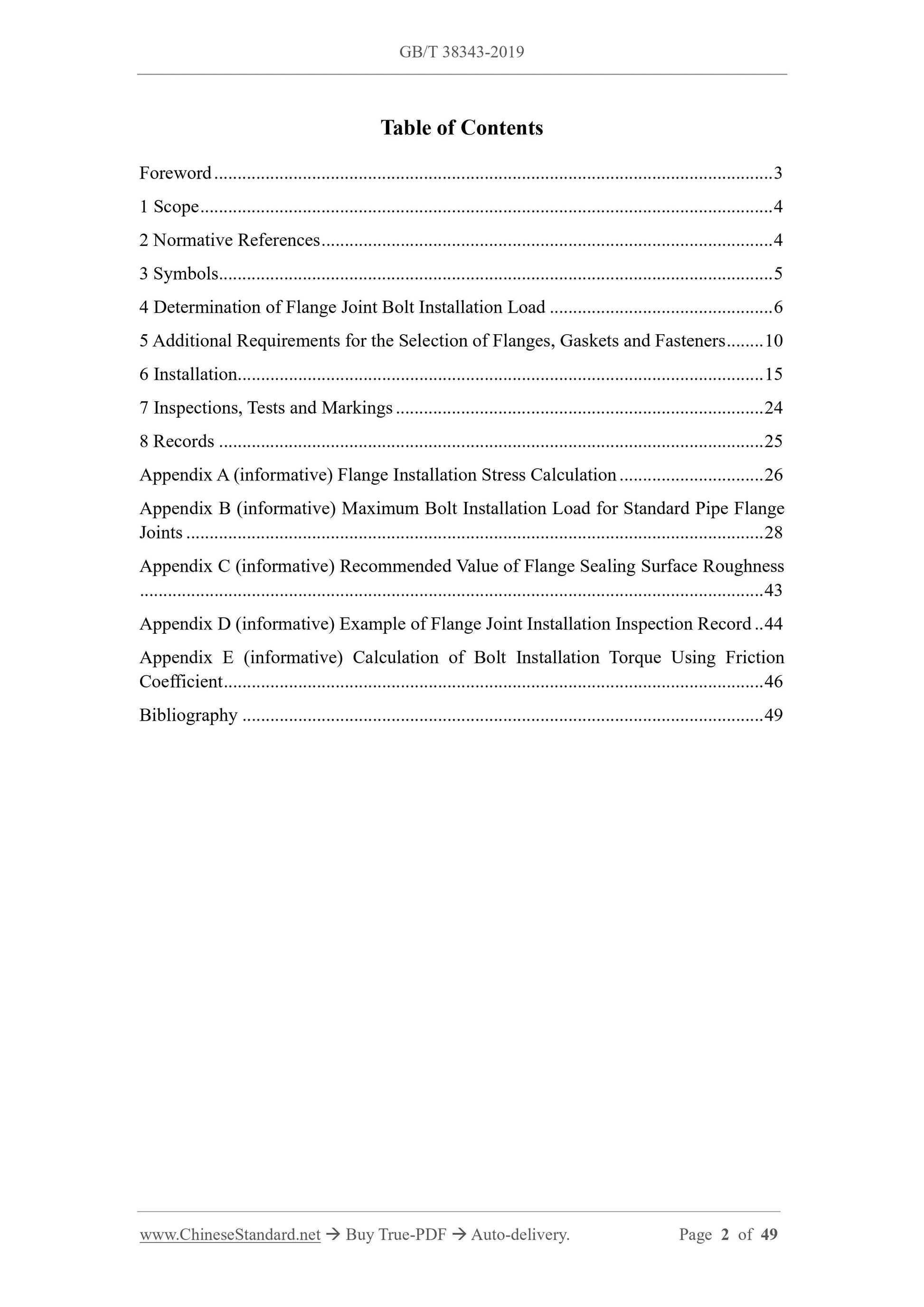

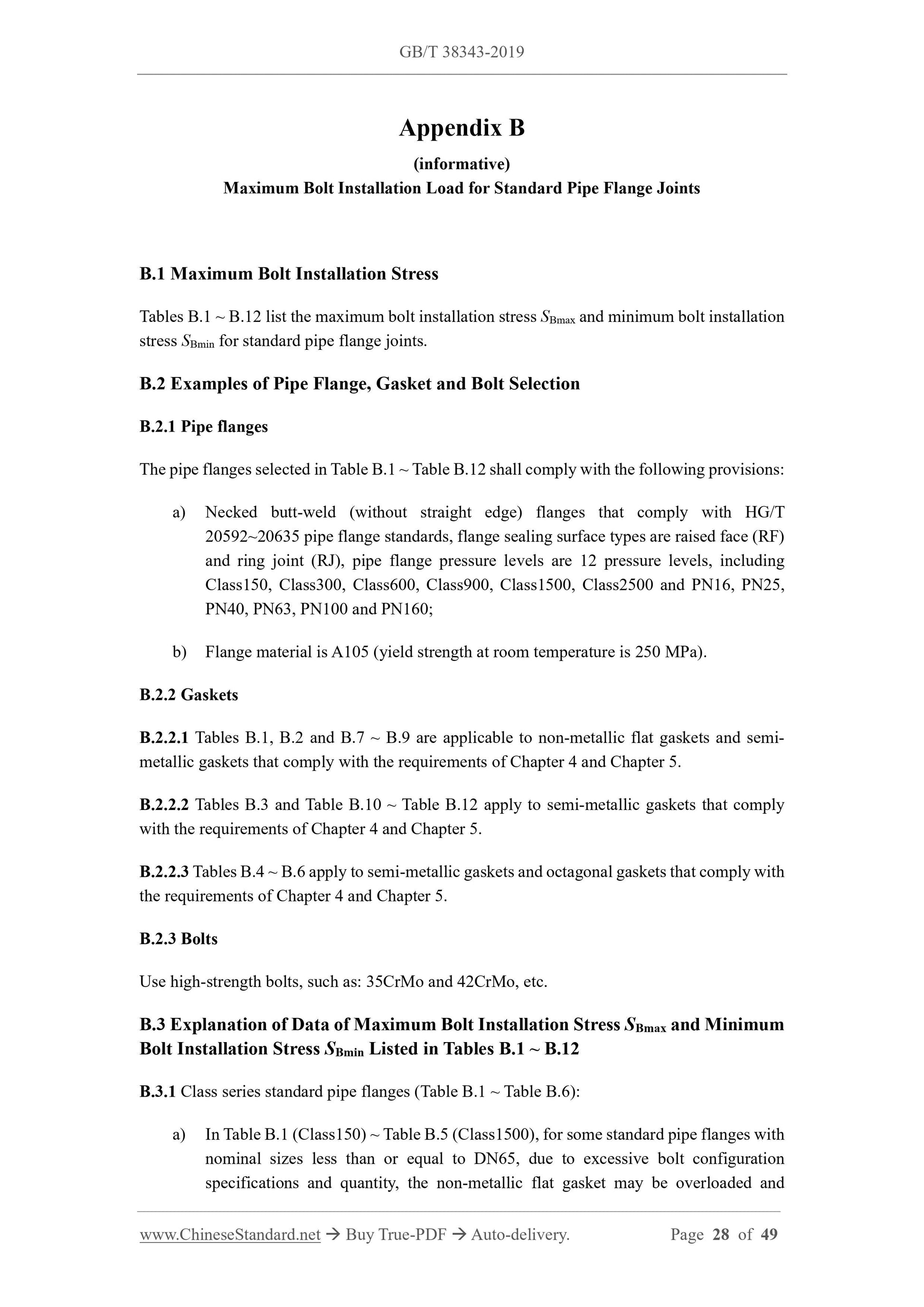

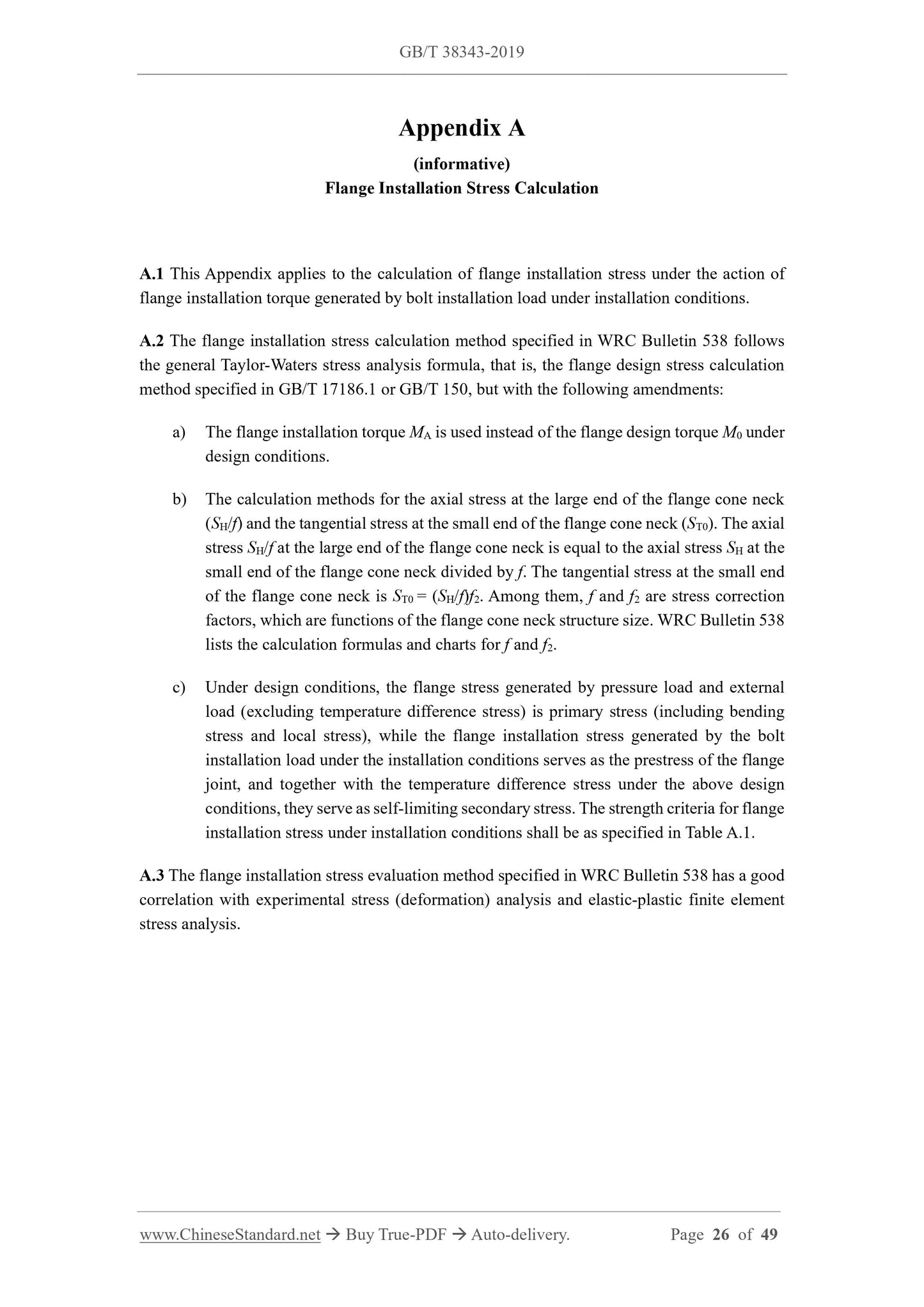

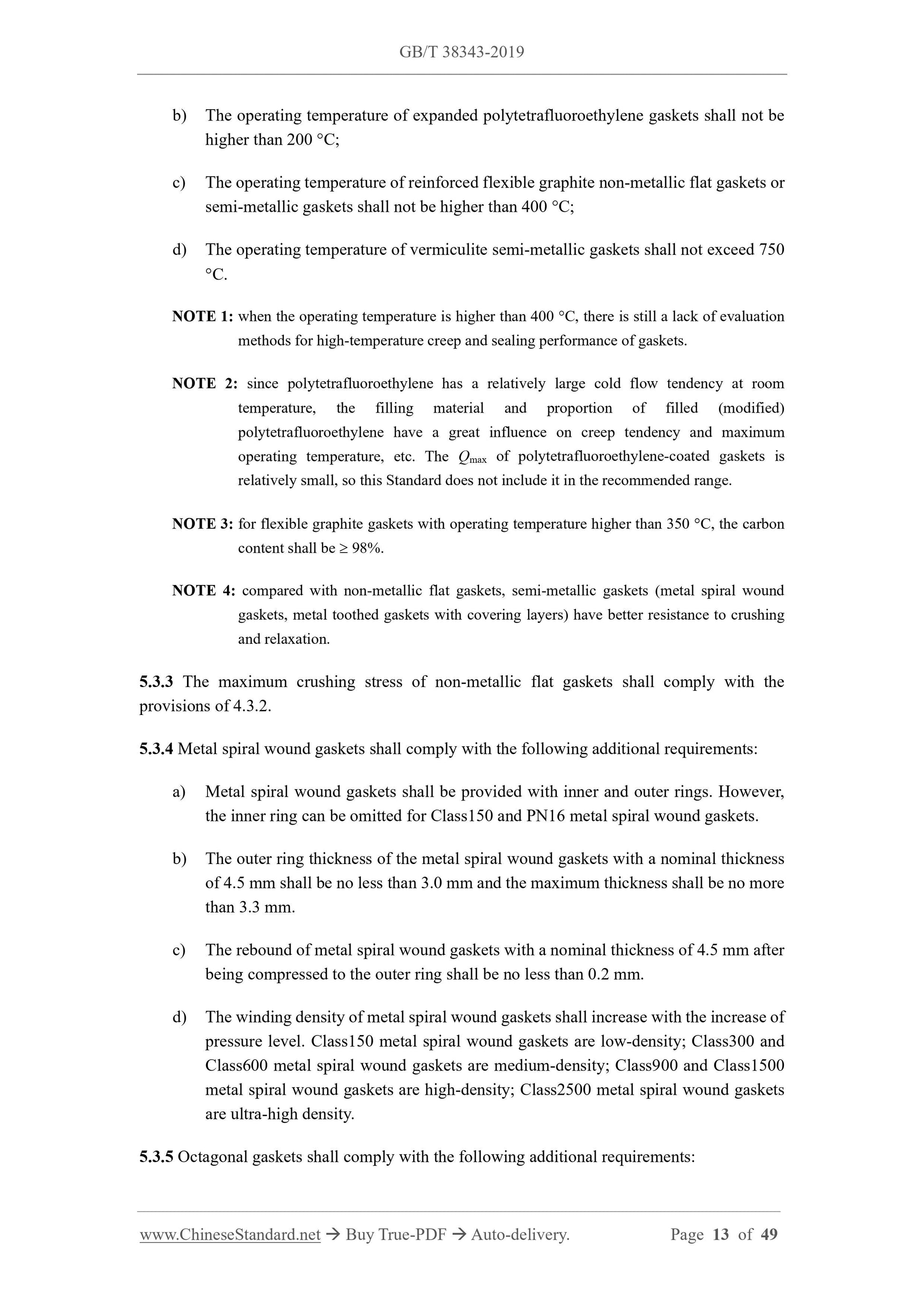

Preview True-PDF

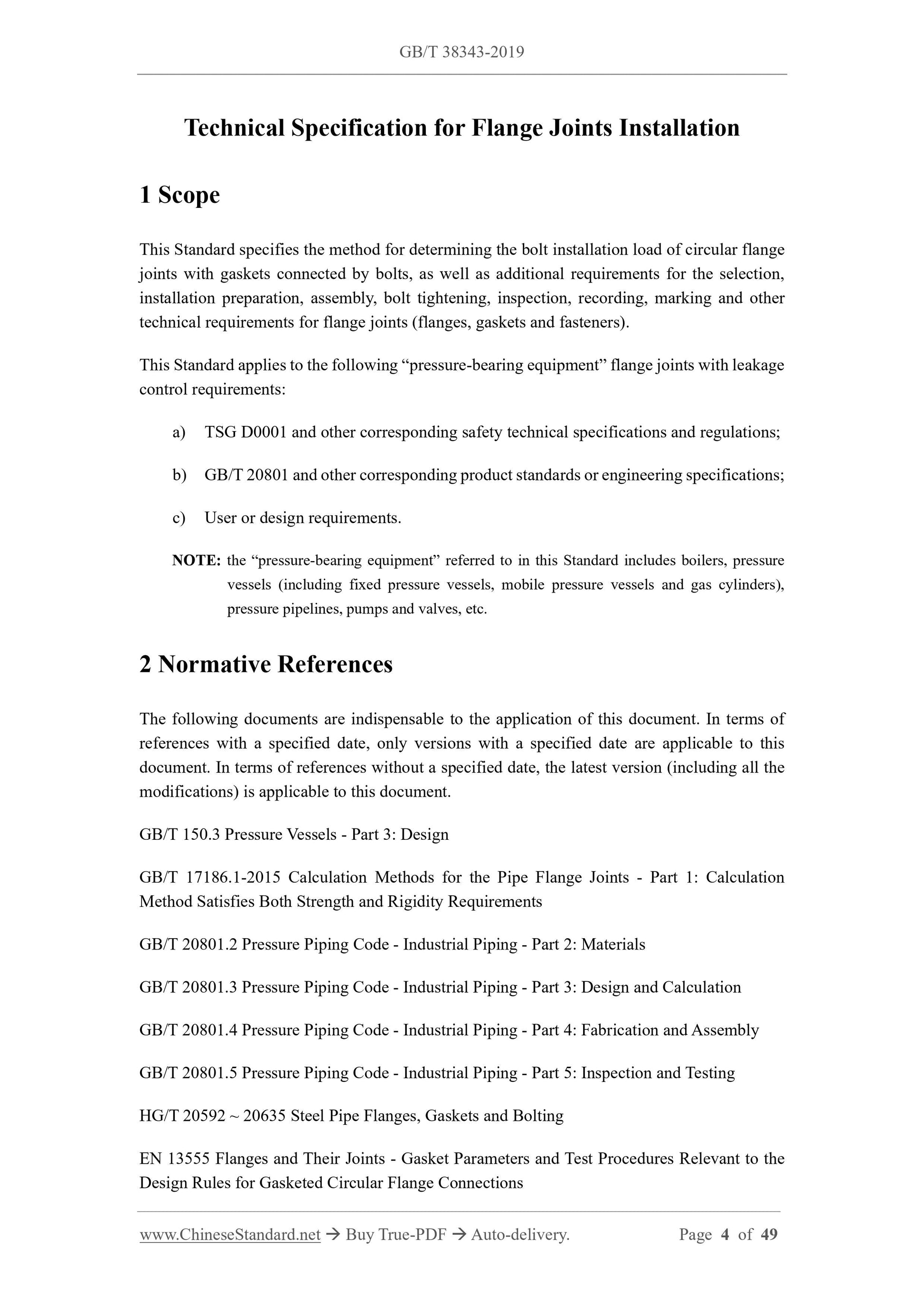

Scope

This Standard specifies the method for determining the bolt installation load of circular flange
joints with gaskets connected by bolts, as well as additional requirements for the selection,
installation preparation, assembly, bolt tightening, inspection, recording, marking and other
technical requirements for flange joints (flanges, gaskets and fasteners).
This Standard applies to the following “pressure-bearing equipment” flange joints with leakage
control requirements.
a) TSG D0001 and other corresponding safety technical specifications and regulations;
b) GB/T 20801 and other corresponding product standards or engineering specifications;
c) User or design requirements.
NOTE. the “pressure-bearing equipment” referred to in this Standard includes boilers, pressure
vessels (including fixed pressure vessels, mobile pressure vessels and gas cylinders),
pressure pipelines, pumps and valves, etc.

Basic Data

Standard ID	GB/T 38343-2019 (GB/T38343-2019)
Description (Translated English)	Technical specification for flange joints installation
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J74
Classification of International Standard	23.040
Word Count Estimation	38,357
Date of Issue	2019-12-10
Date of Implementation	2020-07-01
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
