GB/T 37735-2019: Information technology -- Cloud computing -- Cloud service metering indicators

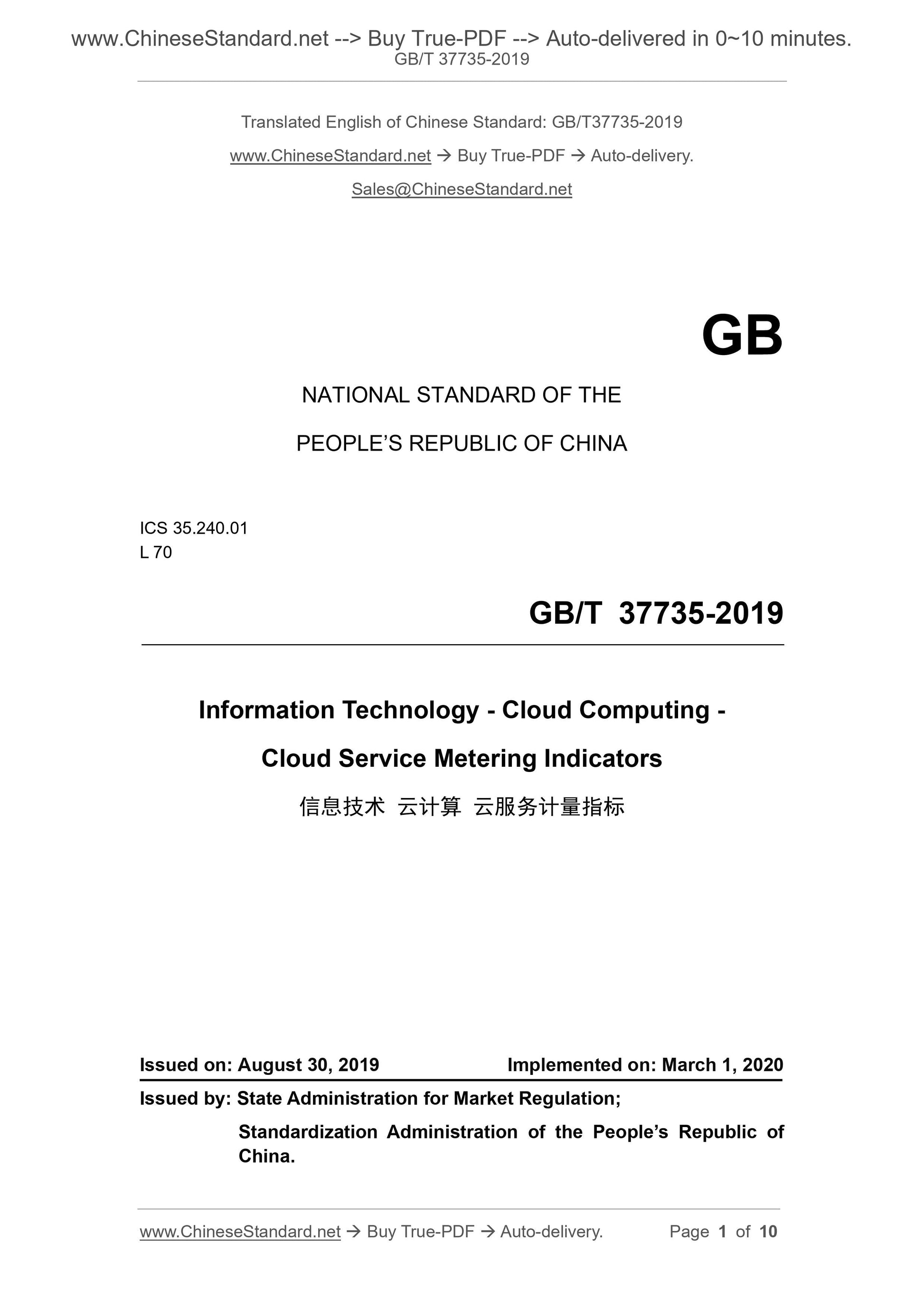

GB/T 37735-2019
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 35.240.01
L 70
Information Technology - Cloud Computing -
Cloud Service Metering Indicators
ISSUED ON: AUGUST 30, 2019
IMPLEMENTED ON: MARCH 1, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of
China.

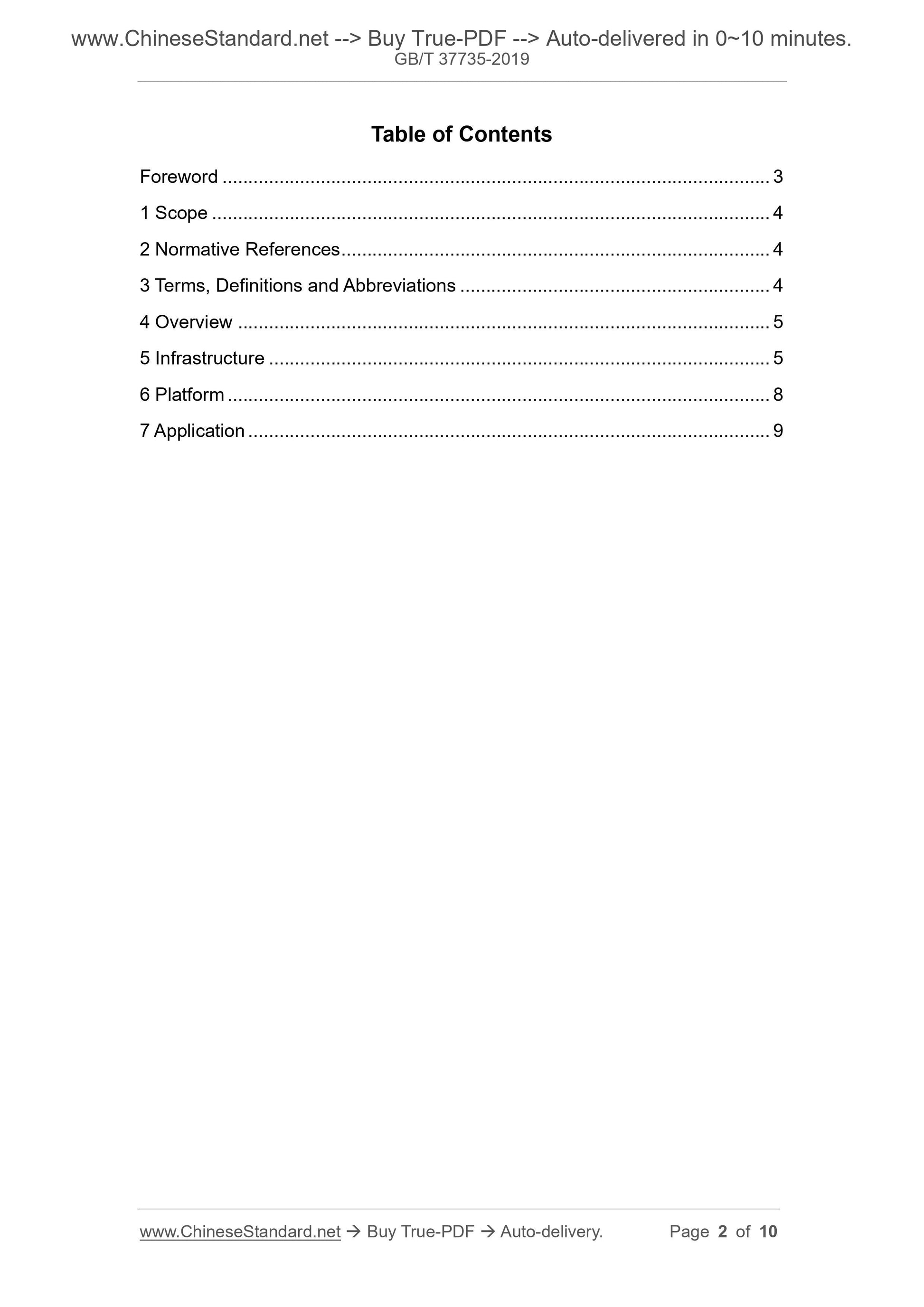

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms, Definitions and Abbreviations ... 4
4 Overview ... 5
5 Infrastructure ... 5
6 Platform ... 8
7 Application ... 9

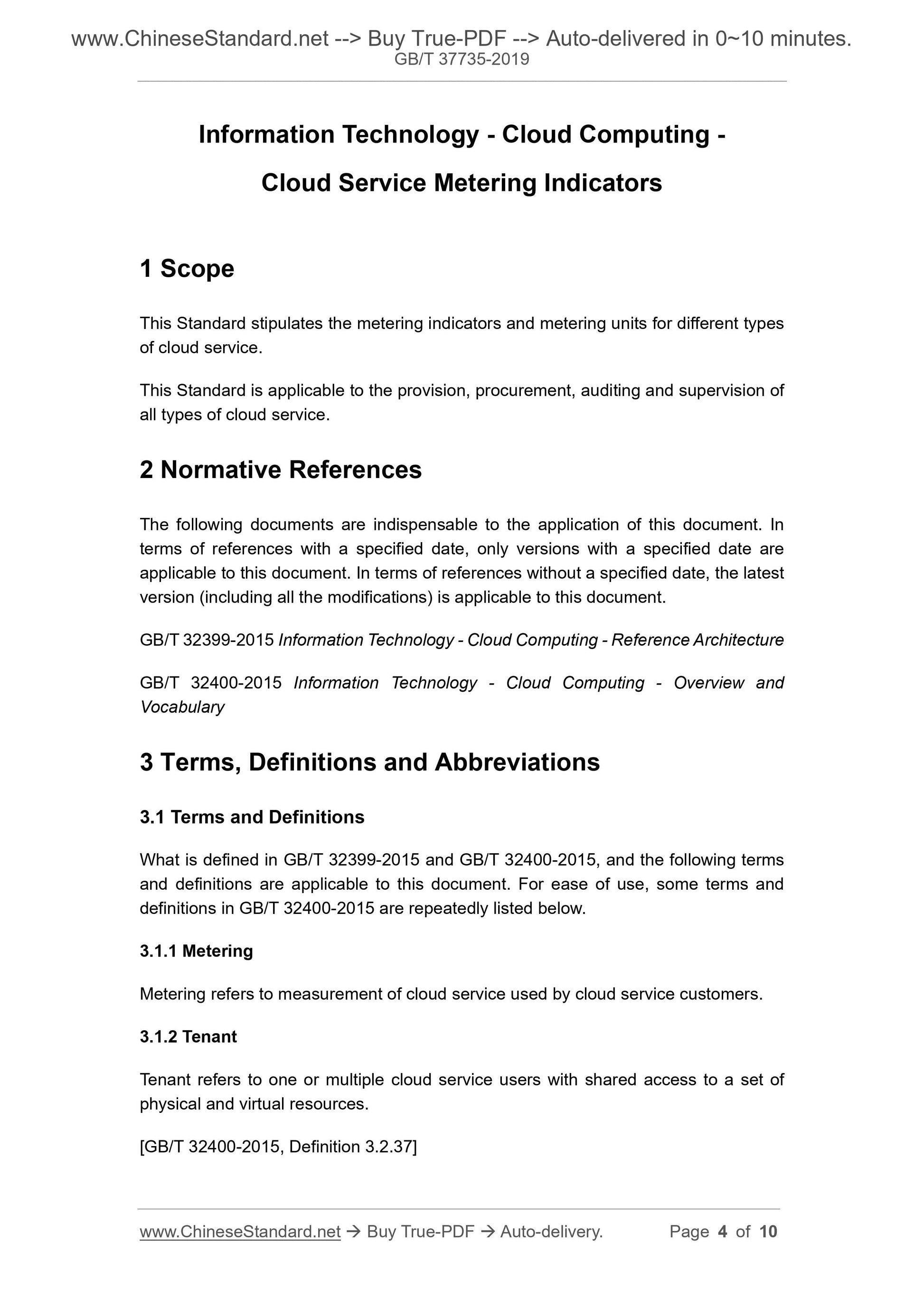

Information Technology - Cloud Computing -
Cloud Service Metering Indicators
1 Scope
This Standard stipulates the metering indicators and metering units for different types
of cloud service.
This Standard is applicable to the provision, procurement, auditing and supervision of
all types of cloud service.
2 Normative References
The following documents are indispensable to the application of this document. In
terms of references with a specified date, only versions with a specified date are
applicable to this document. In terms of references without a specified date, the latest
version (including all the modifications) is applicable to this document.
GB/T 32399-2015 Information Technology - Cloud Computing - Reference Architecture
GB/T 32400-2015 Information Technology - Cloud Computing - Overview and
Vocabulary
3 Terms, Definitions and Abbreviations
3.1 Terms and Definitions
What is defined in GB/T 32399-2015 and GB/T 32400-2015, and the following terms
and definitions are applicable to this document. For ease of use, some terms and
definitions in GB/T 32400-2015 are repeatedly listed below.
3.1.1 Metering
Metering refers to measurement of cloud service used by cloud service customers.
3.1.2 Tenant
Tenant refers to one or multiple cloud service users with shared access to a set of
physical and virtual resources.
[GB/T 32400-2015, Definition 3.2.37]

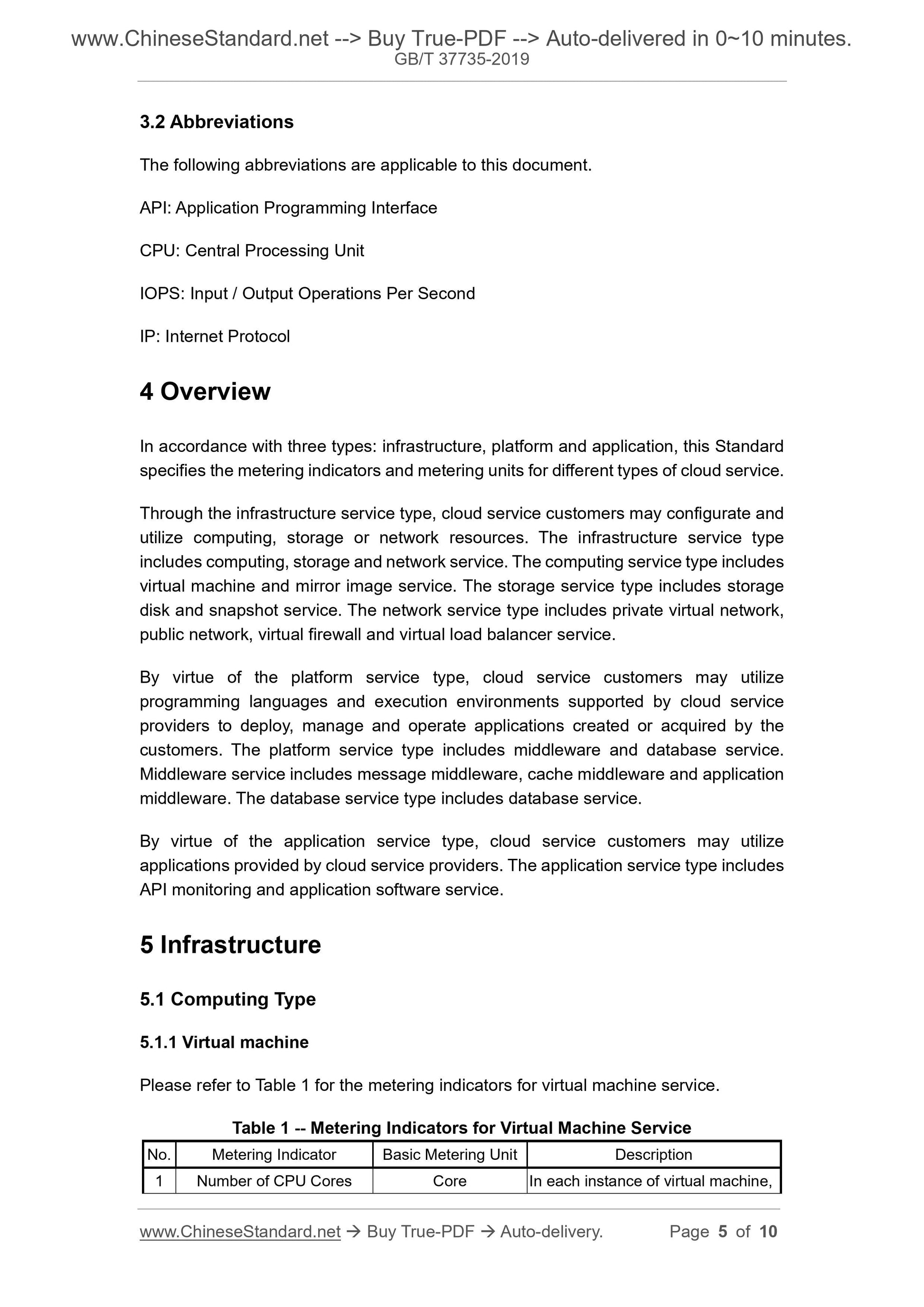

3.2 Abbreviations
The following abbreviations are applicable to this document.
API: Application Programming Interface
CPU: Central Processing Unit
IOPS: Input / Output Operations Per Second
IP: Internet Protocol
4 Overview
In accordance with three types: infrastructure, platform and application, this Standard
specifies the metering indicators and metering units for different types of cloud service.
Through the infrastructure service type, cloud service customers may configurate and
utilize computing, storage or network resources. The infrastructure service type
includes computing, storage and network service. The computing service type includes
virtual machine and mirror image service. The storage service type includes storage
disk and snapshot service. The network service type includes private virtual network,
public network, virtual firewall and virtual load balancer service.
By virtue of the platform service type, cloud service customers may utilize
programming languages and execution environments supported by cloud service
providers to deploy, manage and operate applications created or acquired by the
customers. The platform service type includes middleware and database service.
Middleware service includes message middleware, cache middleware and application
middleware. The database service type includes database service.
By virtue of the application service type, cloud service customers may utilize
applications provided by cloud service providers. The application service type includes
API monitoring and application software service.
5 Infrastructure
5.1 Computing Type
5.1.1 Virtual machine
Please refer to Table 1 for the metering indicators for virtual machine service.
Table 1 -- Metering Indicators for Virtual Machine Service
No. Metering Indicator Basic Metering Unit Description
1 Number of CPU Cores Core In each instance of virtual machine,
