GB/T 37570-2019: Copper alloy sheet for oilless bearing

This Standard stipulates the technical requirements, test methods, inspection rules, marking, packaging, transportation, storage, quality certificate and order form (or contract) content of copper alloy sheet for oilless bearing. This Standard is applicable to copper alloy sheet for Oilless bearing.

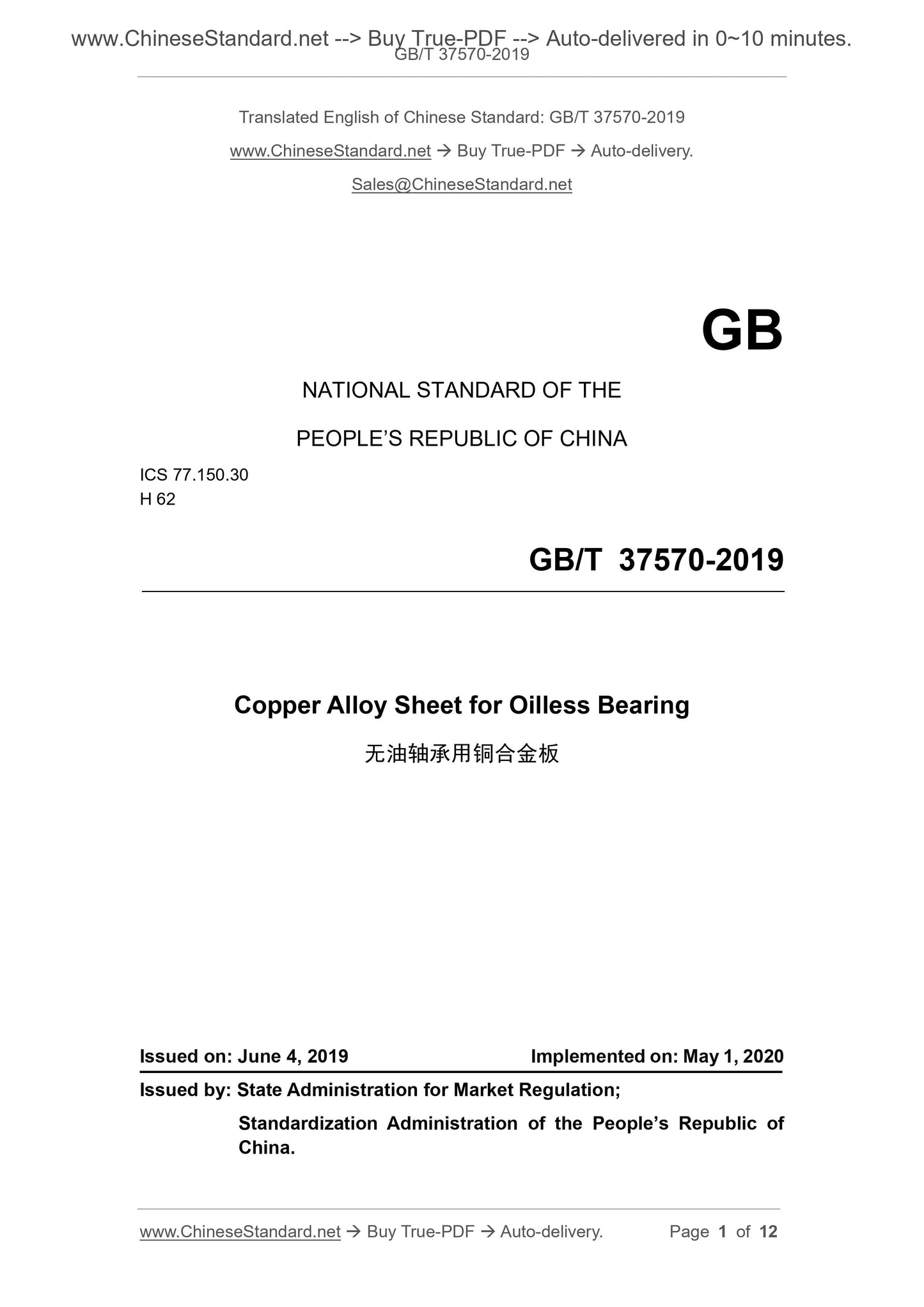

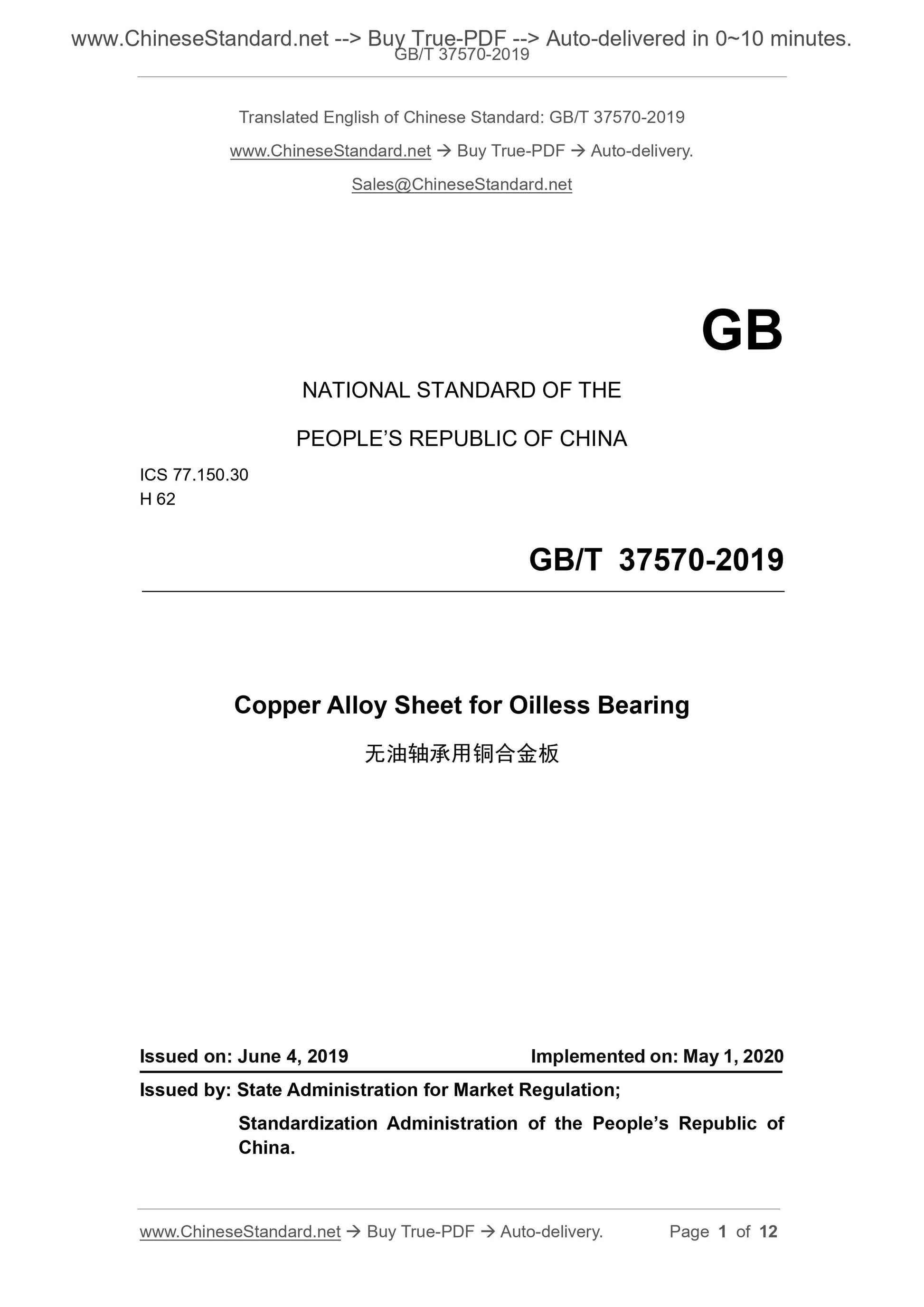

GB/T 37570-2019
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.150.30
H 62
Copper Alloy Sheet for Oilless Bearing
ISSUED ON: JUNE 4, 2019
IMPLEMENTED ON: MAY 1, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of
China.

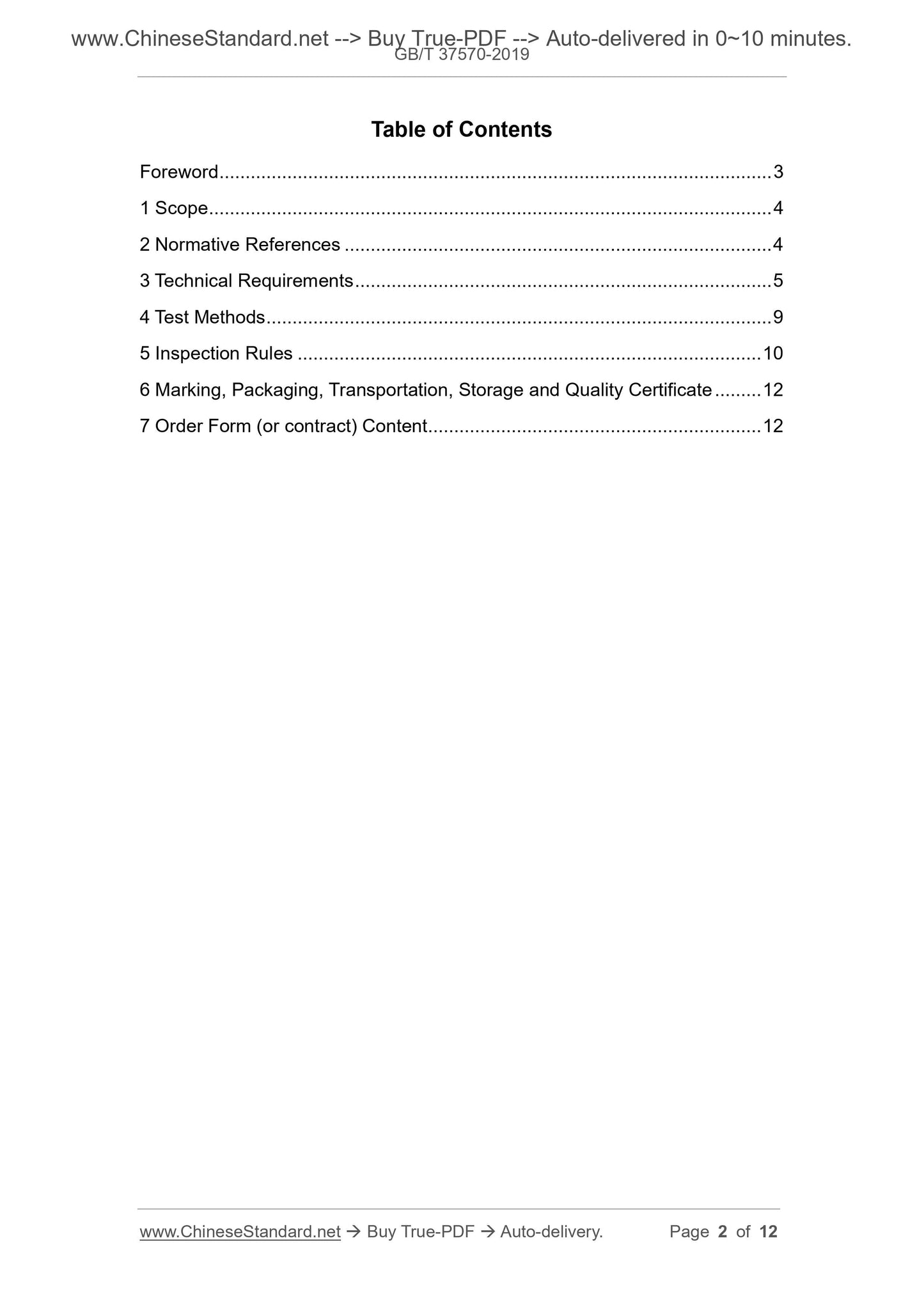

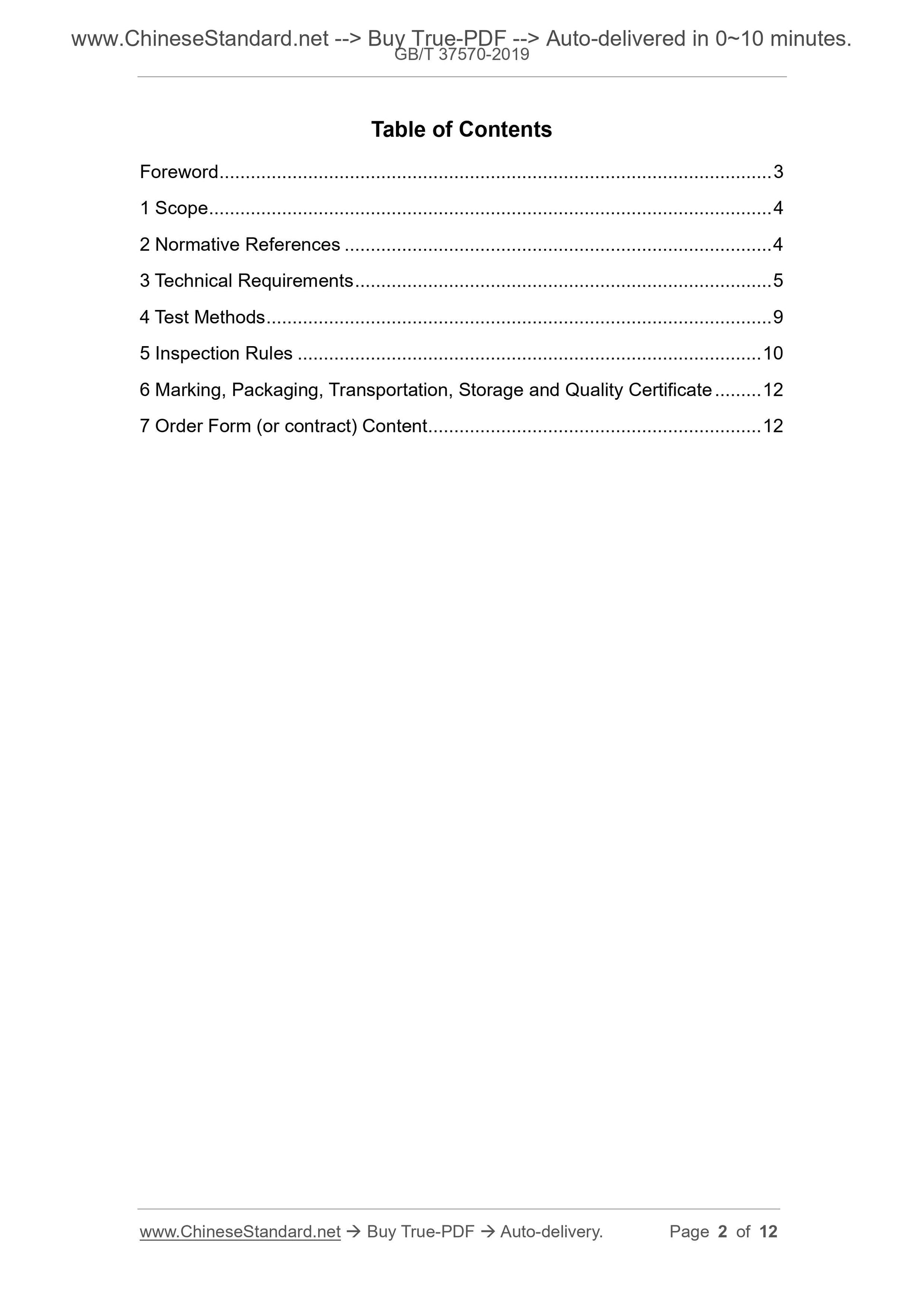

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Technical Requirements ... 5
4 Test Methods ... 9
5 Inspection Rules ... 10
6 Marking, Packaging, Transportation, Storage and Quality Certificate ... 12 7 Order Form (or contract) Content ... 12

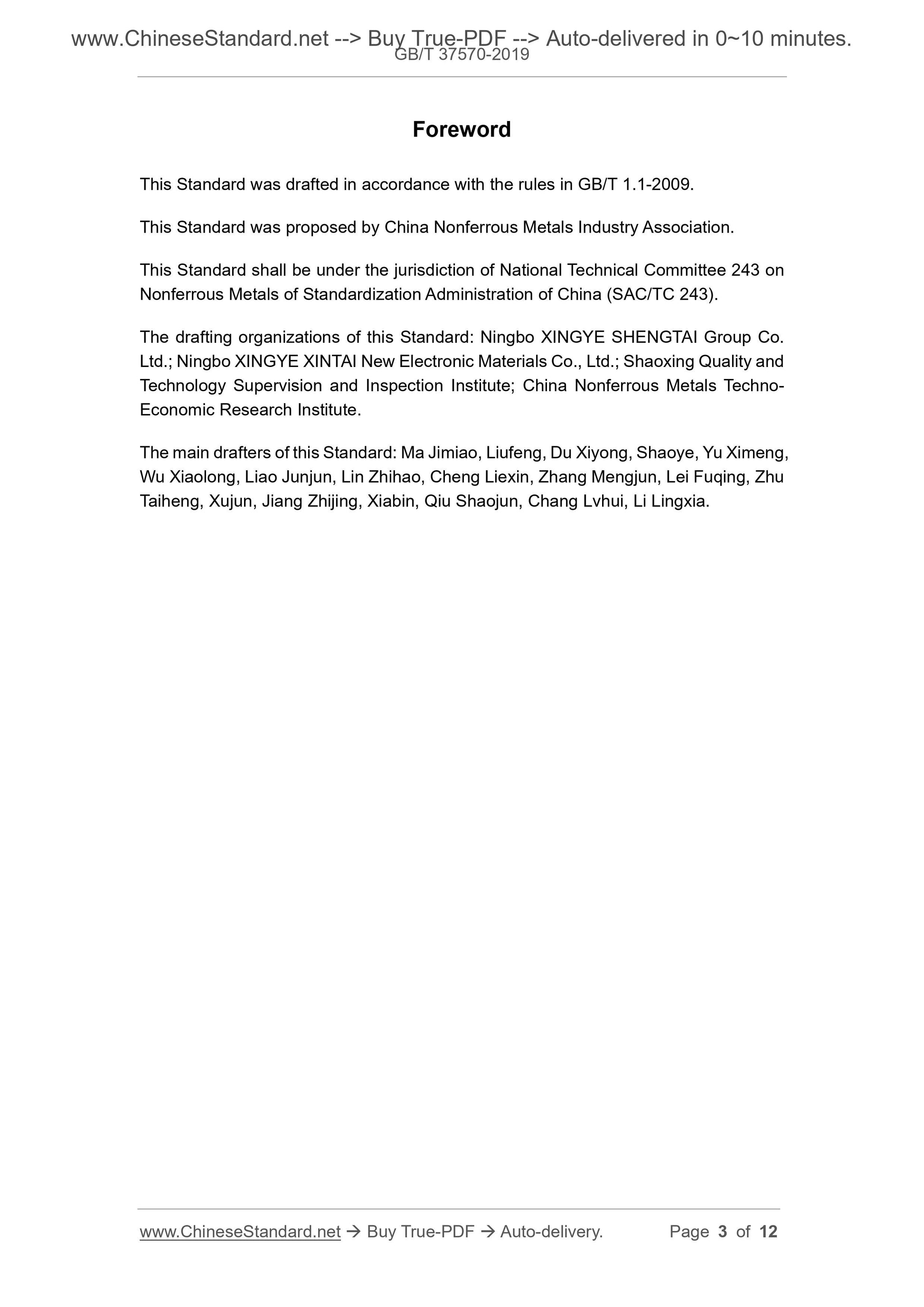

Foreword
This Standard was drafted in accordance with the rules in GB/T 1.1-2009. This Standard was proposed by China Nonferrous Metals Industry Association. This Standard shall be under the jurisdiction of National Technical Committee 243 on Nonferrous Metals of Standardization Administration of China (SAC/TC 243). The drafting organizations of this Standard: Ningbo XINGYE SHENGTAI Group Co. Ltd.; Ningbo XINGYE XINTAI New Electronic Materials Co., Ltd.; Shaoxing Quality and Technology Supervision and Inspection Institute; China Nonferrous Metals Techno- Economic Research Institute.
The main drafters of this Standard: Ma Jimiao, Liufeng, Du Xiyong, Shaoye, Yu Ximeng, Wu Xiaolong, Liao Junjun, Lin Zhihao, Cheng Liexin, Zhang Mengjun, Lei Fuqing, Zhu Taiheng, Xujun, Jiang Zhijing, Xiabin, Qiu Shaojun, Chang Lvhui, Li Lingxia. Copper Alloy Sheet for Oilless Bearing

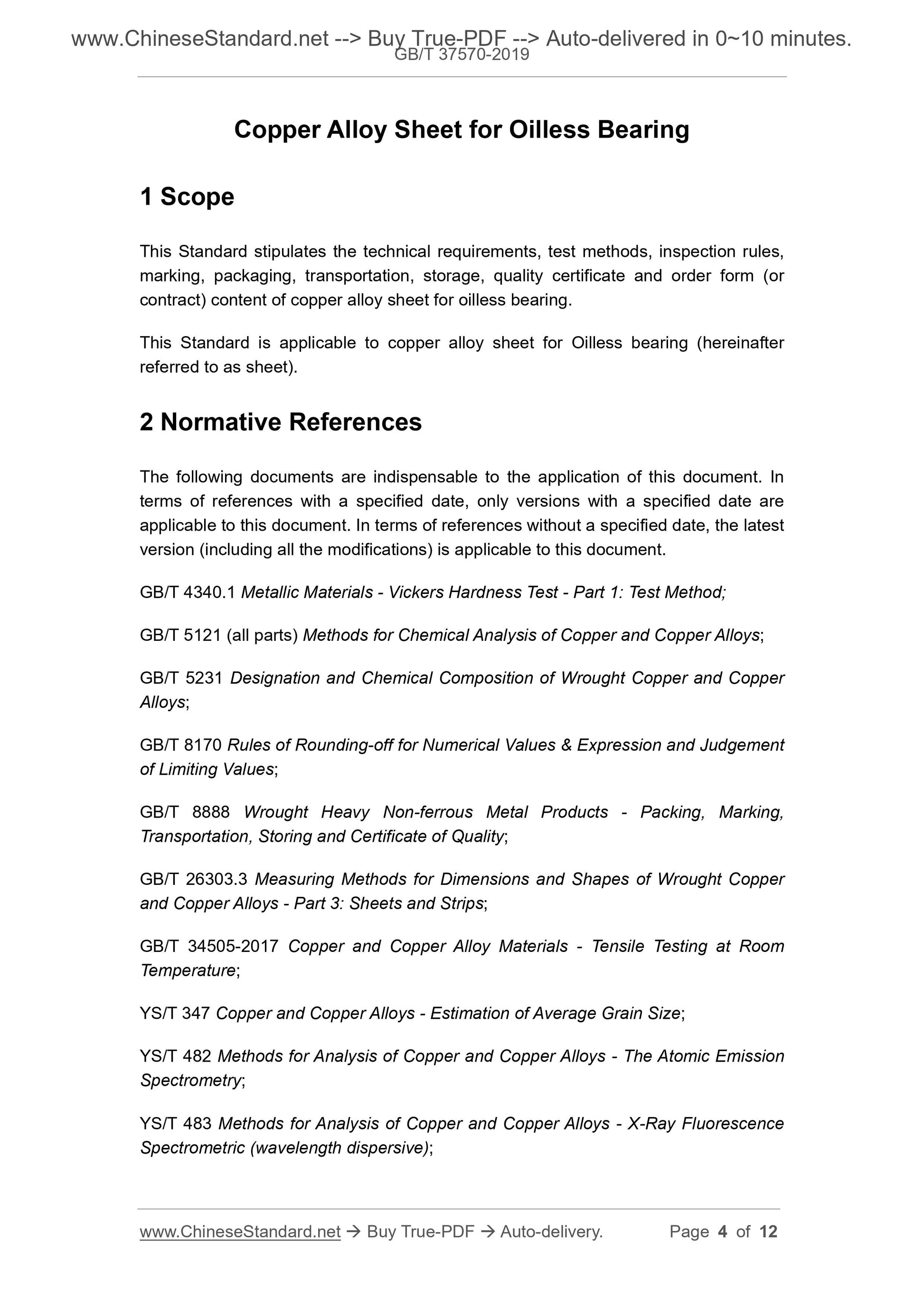

1 Scope
This Standard stipulates the technical requirements, test methods, inspection rules, marking, packaging, transportation, storage, quality certificate and order form (or contract) content of copper alloy sheet for oilless bearing.
This Standard is applicable to copper alloy sheet for Oilless bearing (hereinafter referred to as sheet).
2 Normative References
The following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 4340.1 Metallic Materials - Vickers Hardness Test - Part 1: Test Method; GB/T 5121 (all parts) Methods for Chemical Analysis of Copper and Copper Alloys; GB/T 5231 Designation and Chemical Composition of Wrought Copper and Copper Alloys;
GB/T 8170 Rules of Rounding-off for Numerical Values & Expression and Judgement of Limiting Values;
GB/T 8888 Wrought Heavy Non-ferrous Metal Products - Packing, Marking,
Transportation, Storing and Certificate of Quality;
GB/T 26303.3 Measuring Methods for Dimensions and Shapes of Wrought Copper and Copper Alloys - Part 3: Sheets and Strips;
GB/T 34505-2017 Copper and Copper Alloy Materials - Tensile Testing at Room Temperature;
YS/T 347 Copper and Copper Alloys - Estimation of Average Grain Size;
YS/T 482 Methods for Analysis of Copper and Copper Alloys - The Atomic Emission Spectrometry;
YS/T 483 Methods for Analysis of Copper and Copper Alloys - X-Ray Fluorescence Spectrometric (wavelength dispersive);

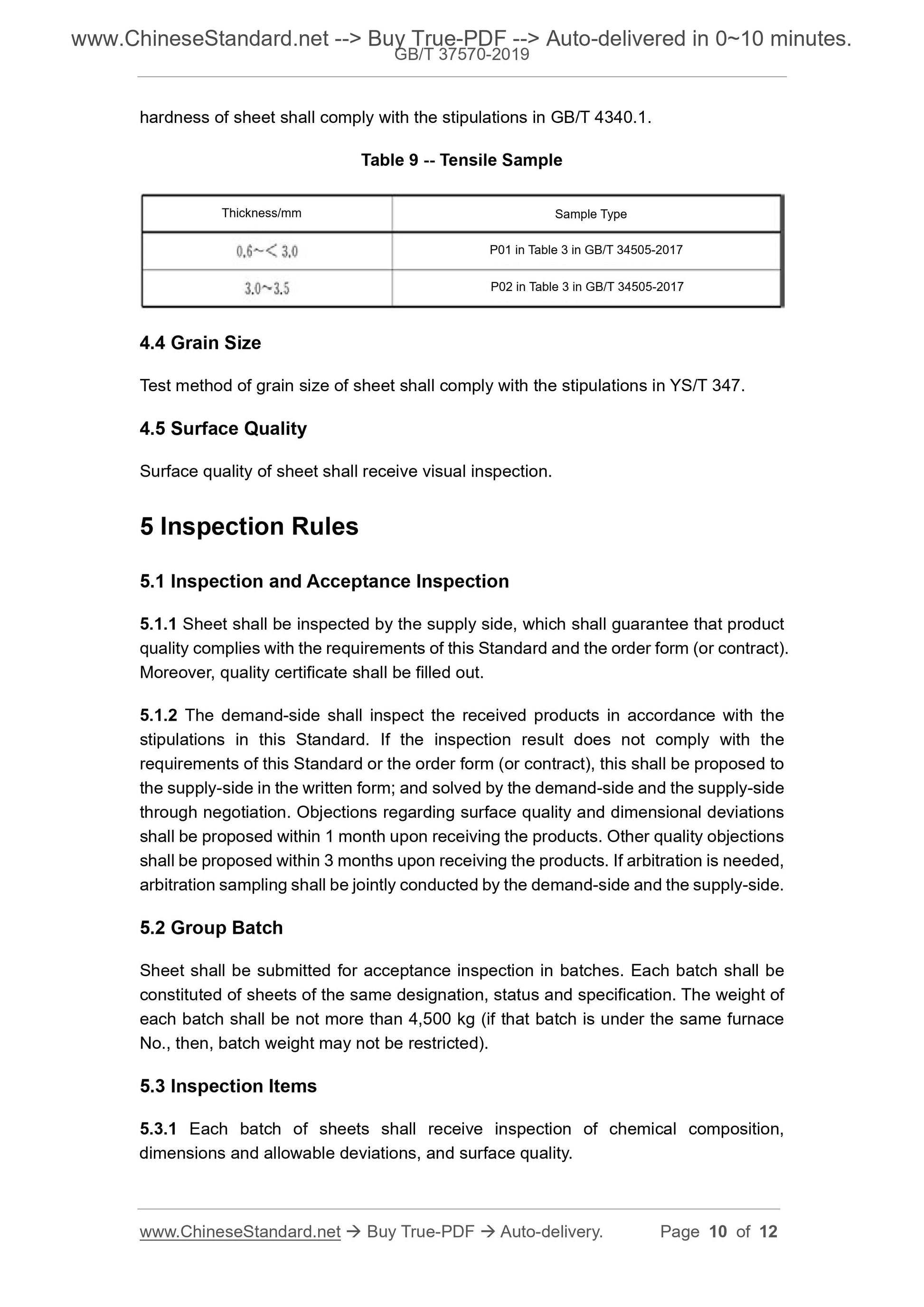

hardness of sheet shall comply with the stipulations in GB/T 4340.1.
Table 9 -- Tensile Sample
4.4 Grain Size
Test method of grain size of sheet shall comply with the stipulations in YS/T 347. 4.5 Surface Quality
Surface quality of sheet shall receive visual inspection.
5 Inspection Rules
5.1 Inspection and Acceptance Inspection
5.1.1 Sheet shall be inspected by the supply side, which shall guarantee that product quality complies with the requirements of this Standard and the order form (or contract). Moreover, quality certificate shall be filled out.
5.1.2 The demand-side shall inspect the received products in accordance with the stipulations in this Standard. If the inspection result does not comply with the requirements of this Standard or the order form (or contract), this shall be proposed to the supply-side in the written form; and solved by the demand-side and the supply-side through negotiation. Objections regarding surface quality and dimensional deviations shall be proposed within 1 month upon receiving the products. Other quality objections shall be proposed within 3 months upon receiving the products. If arbitration is needed, arbitration sampling shall be jointly conducted by the demand-side and the supply-side. 5.2 Group Batch
Sheet shall be submitted for acceptance inspection in batches. Each batch shall be constituted of sheets of the same designation, status and specification. The weight of each batch shall be not more than 4,500 kg (if that batch is under the same furnace No., then, batch weight may not be restricted).
5.3 Inspection Items
5.3.1 Each batch of sheets shall receive inspection of chemical composition, dimensions and allowable deviations, and surface quality.
Thickness/mm Sample Type
P01 in Table 3 in GB/T 34505-2017
P02 in Table 3 in GB/T 34505-2017

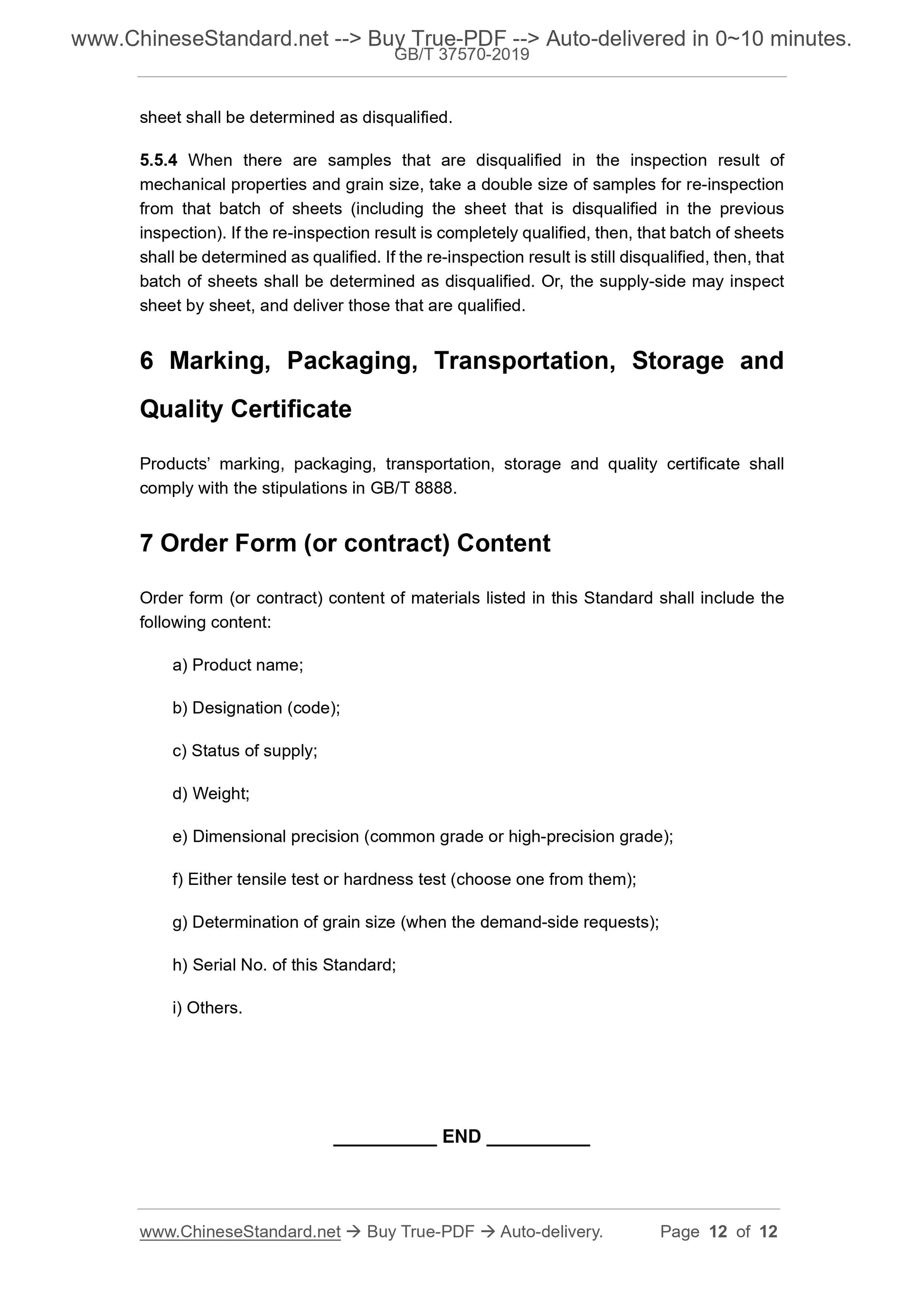

sheet shall be determined as disqualified.
5.5.4 When there are samples that are disqualified in the inspection result of mechanical properties and grain size, take a double size of samples for re-inspection from that batch of sheets (including the sheet that is disqualified in the previous inspection). If the re-inspection result is completely qualified, then, that batch of sheets shall be determined as qualified. If the re-inspection result is still disqualified, then, that batch of sheets shall be determined as disqualified. Or, the supply-side may inspect sheet by sheet, and deliver those that are qualified.
6 Marking, Packaging, Transportation, Storage and
Quality Certificate
Products?€? marking, packaging, transportation, storage and quality certificate shall comply with the stipulations in GB/T 8888.
7 Order Form (or contract) Content
Order form (or contract) content of materials listed in this Standard shall include the following content:
a) Product name;
b) Designation (code);
c) Status of supply;
d) Weight;
e) Dimensional precision (common grade or high-precision grade);
f) Either tensile test or hardness test (choose one from them);
g) Determination of grain size (when the demand-side requests);
h) Serial No. of this Standard;
i) Others.
__________ END __________
