GB/T 37567-2019 English PDF (GBT37567-2019)

GB/T 37567-2019 English PDF (GBT37567-2019)

Regular price $145.00 USD
Regular price Sale price $145.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 37567-2019 to get it for Purchase Approval, Bank TT...

GB/T 37567-2019: Copper and copper alloy sheet and strip for building decoration

This Standard specifies technical requirements, test methods, inspection rules, marks, packaging, transport, storage, quality certificate and content of order sheet (or contract) of copper and copper alloy sheet and strip for building decoration. This Standard is applicable to copper and copper alloy sheet and strip that are used to produce copper doors, copper tiles, bronze sculptures, roofing, roofs, exterior walls for building decoration.

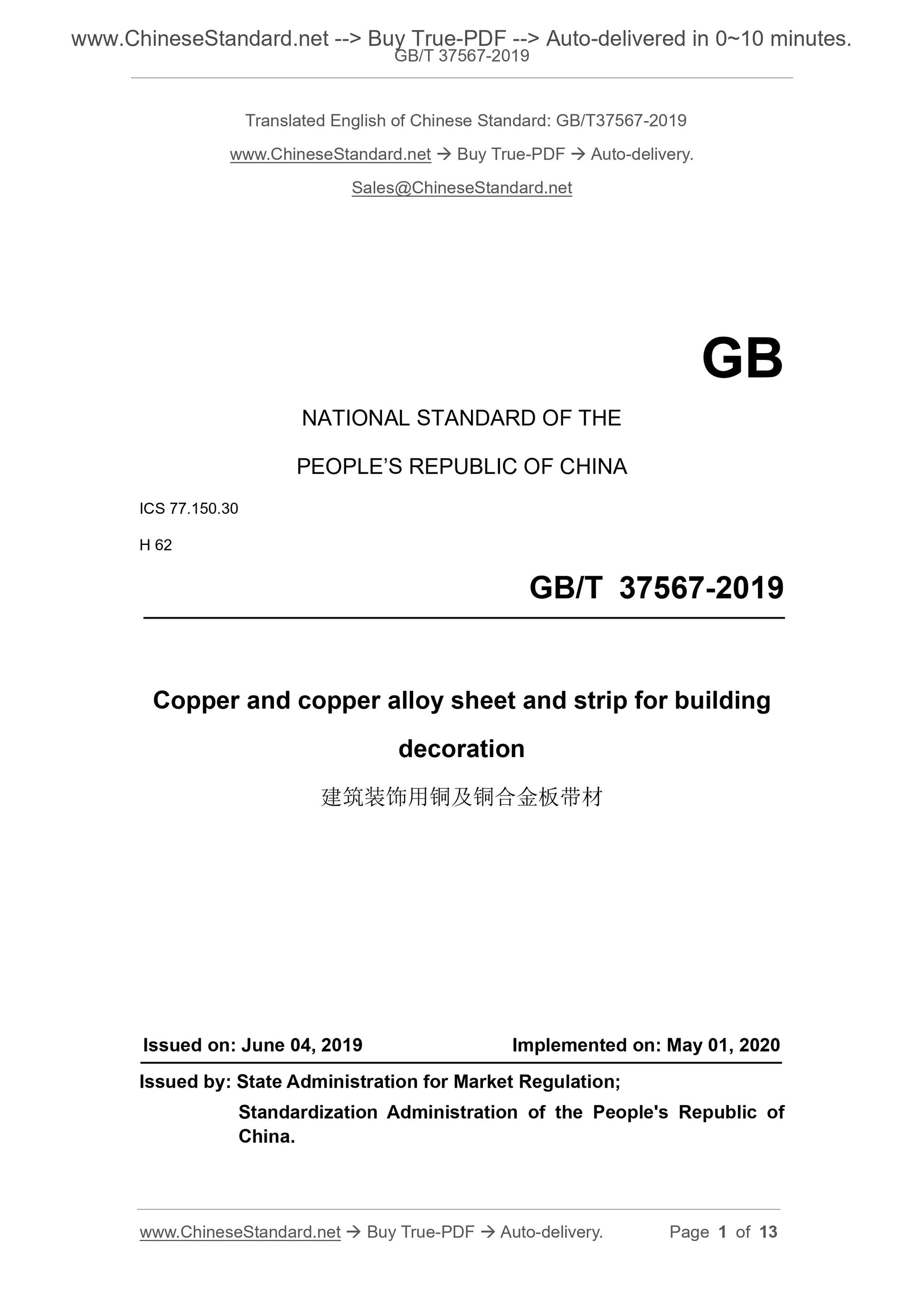

GB/T 37567-2019
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.150.30
H 62
Copper and copper alloy sheet and strip for building
decoration
ISSUED ON: JUNE 04, 2019
IMPLEMENTED ON: MAY 01, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of
China.

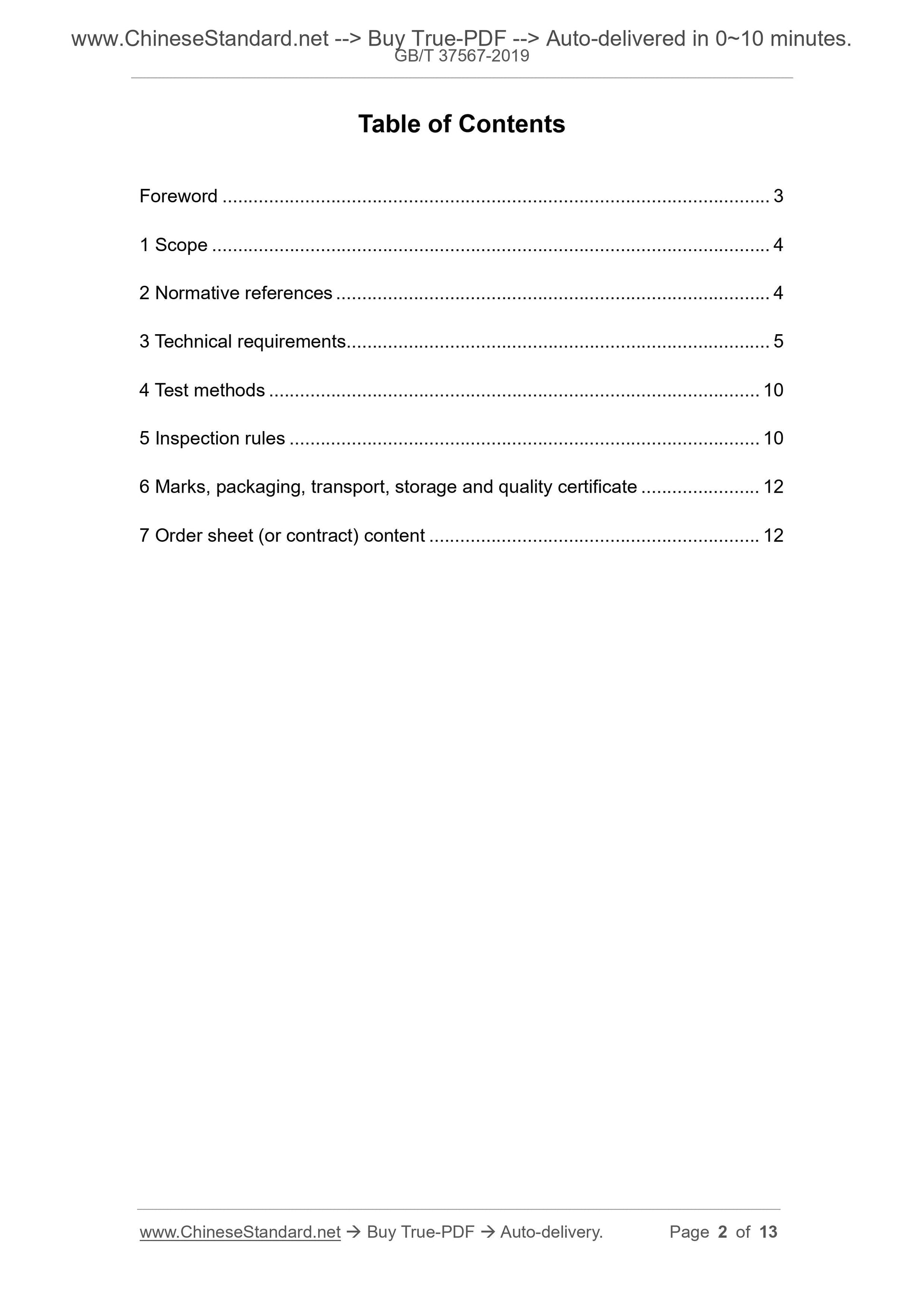

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Technical requirements ... 5
4 Test methods ... 10
5 Inspection rules ... 10
6 Marks, packaging, transport, storage and quality certificate ... 12
7 Order sheet (or contract) content ... 12

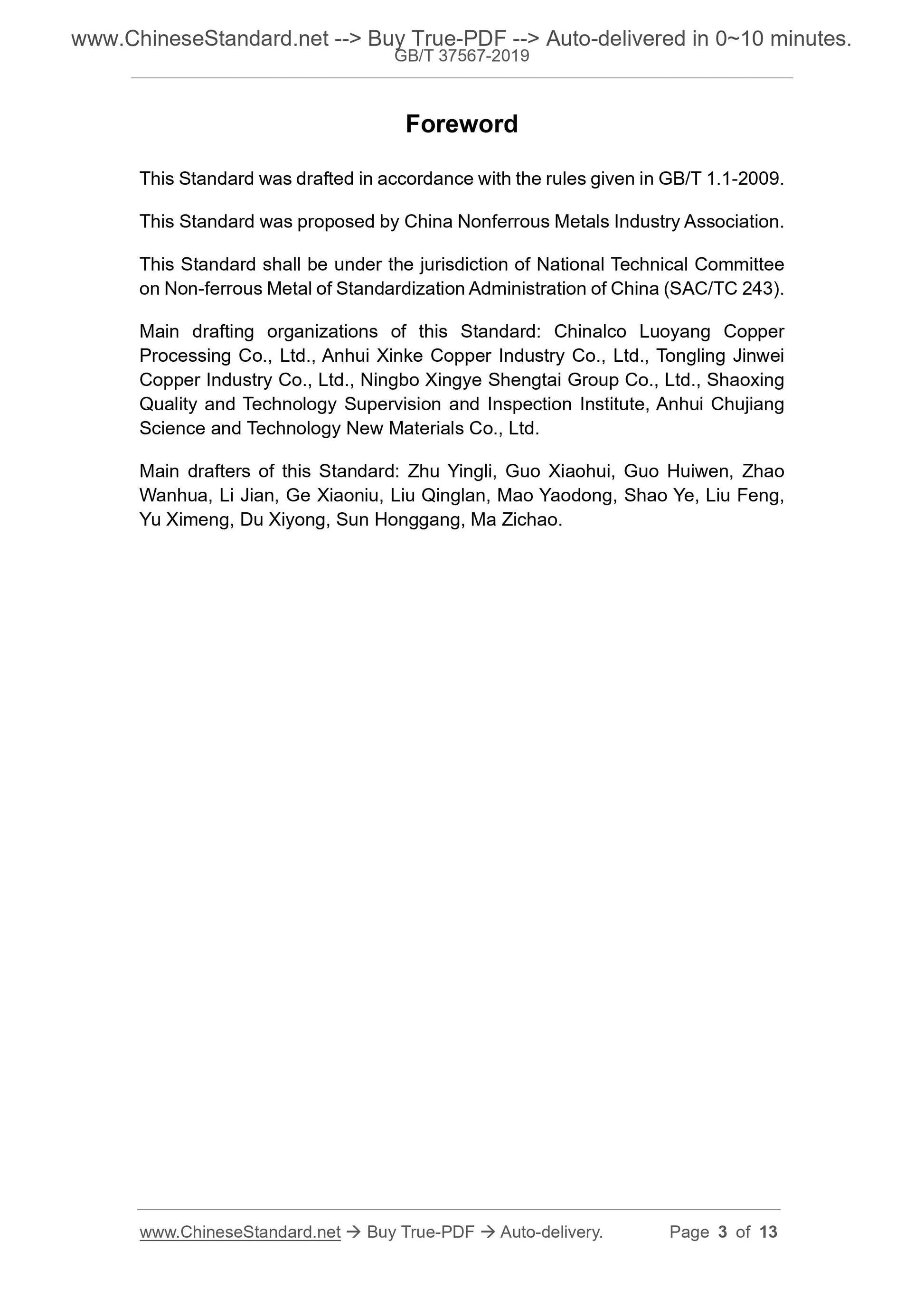

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard was proposed by China Nonferrous Metals Industry Association. This Standard shall be under the jurisdiction of National Technical Committee on Non-ferrous Metal of Standardization Administration of China (SAC/TC 243). Main drafting organizations of this Standard: Chinalco Luoyang Copper
Processing Co., Ltd., Anhui Xinke Copper Industry Co., Ltd., Tongling Jinwei Copper Industry Co., Ltd., Ningbo Xingye Shengtai Group Co., Ltd., Shaoxing Quality and Technology Supervision and Inspection Institute, Anhui Chujiang Science and Technology New Materials Co., Ltd.
Main drafters of this Standard: Zhu Yingli, Guo Xiaohui, Guo Huiwen, Zhao Wanhua, Li Jian, Ge Xiaoniu, Liu Qinglan, Mao Yaodong, Shao Ye, Liu Feng, Yu Ximeng, Du Xiyong, Sun Honggang, Ma Zichao.

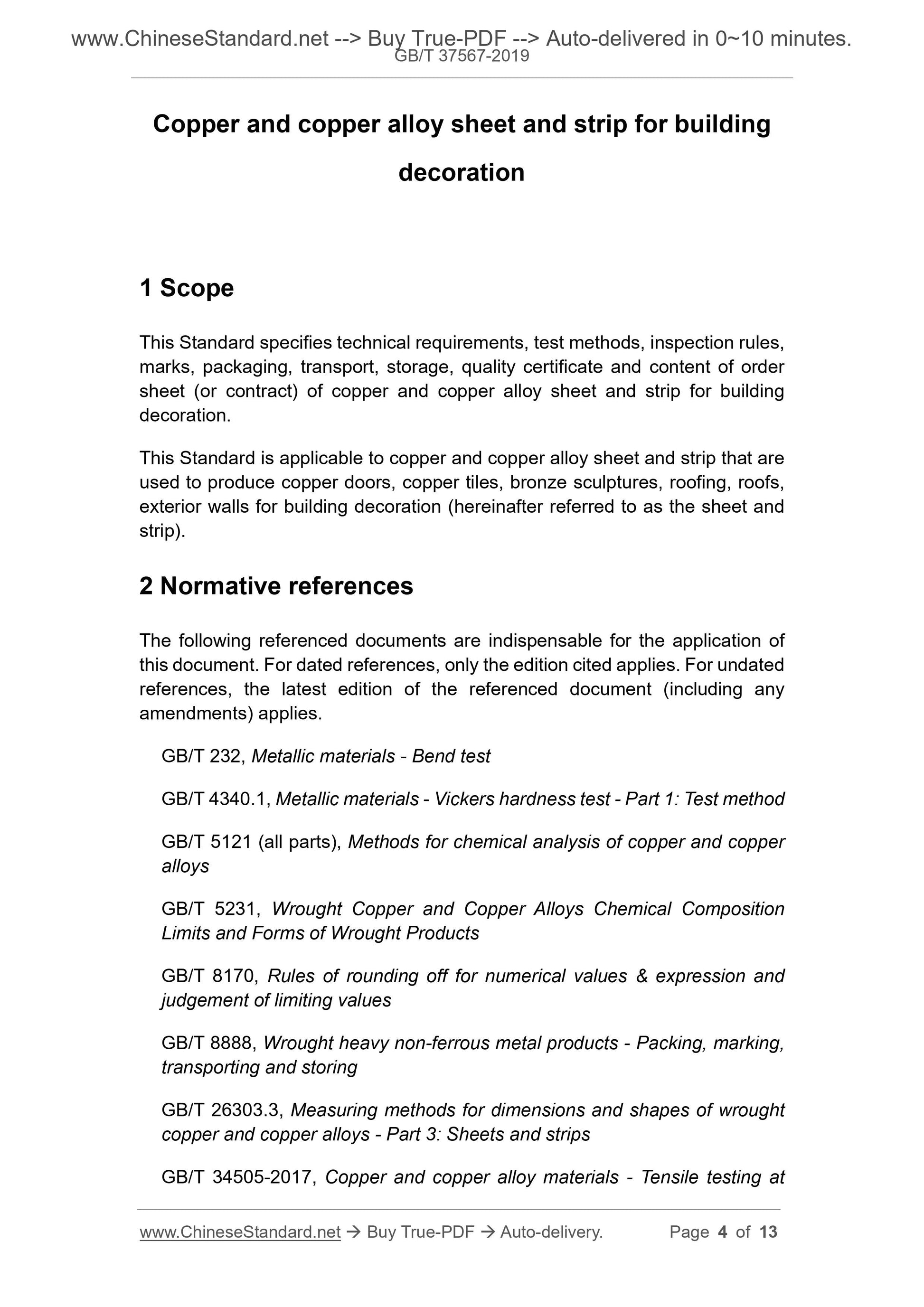

Copper and copper alloy sheet and strip for building
decoration
1 Scope
This Standard specifies technical requirements, test methods, inspection rules, marks, packaging, transport, storage, quality certificate and content of order sheet (or contract) of copper and copper alloy sheet and strip for building decoration.
This Standard is applicable to copper and copper alloy sheet and strip that are used to produce copper doors, copper tiles, bronze sculptures, roofing, roofs, exterior walls for building decoration (hereinafter referred to as the sheet and strip).
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 232, Metallic materials - Bend test
GB/T 4340.1, Metallic materials - Vickers hardness test - Part 1: Test method GB/T 5121 (all parts), Methods for chemical analysis of copper and copper alloys
GB/T 5231, Wrought Copper and Copper Alloys Chemical Composition
Limits and Forms of Wrought Products
GB/T 8170, Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 8888, Wrought heavy non-ferrous metal products - Packing, marking, transporting and storing
GB/T 26303.3, Measuring methods for dimensions and shapes of wrought
copper and copper alloys - Part 3: Sheets and strips

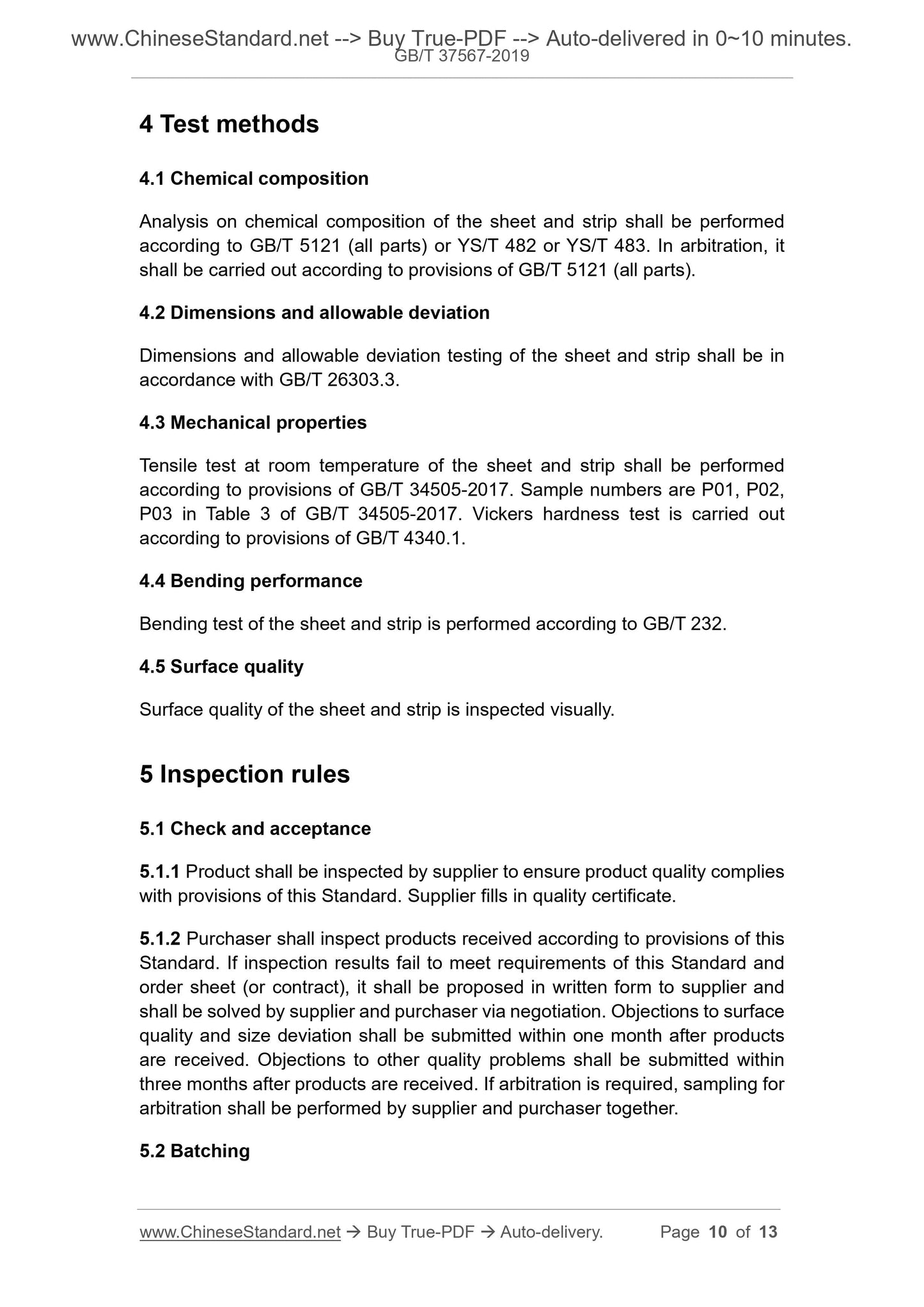

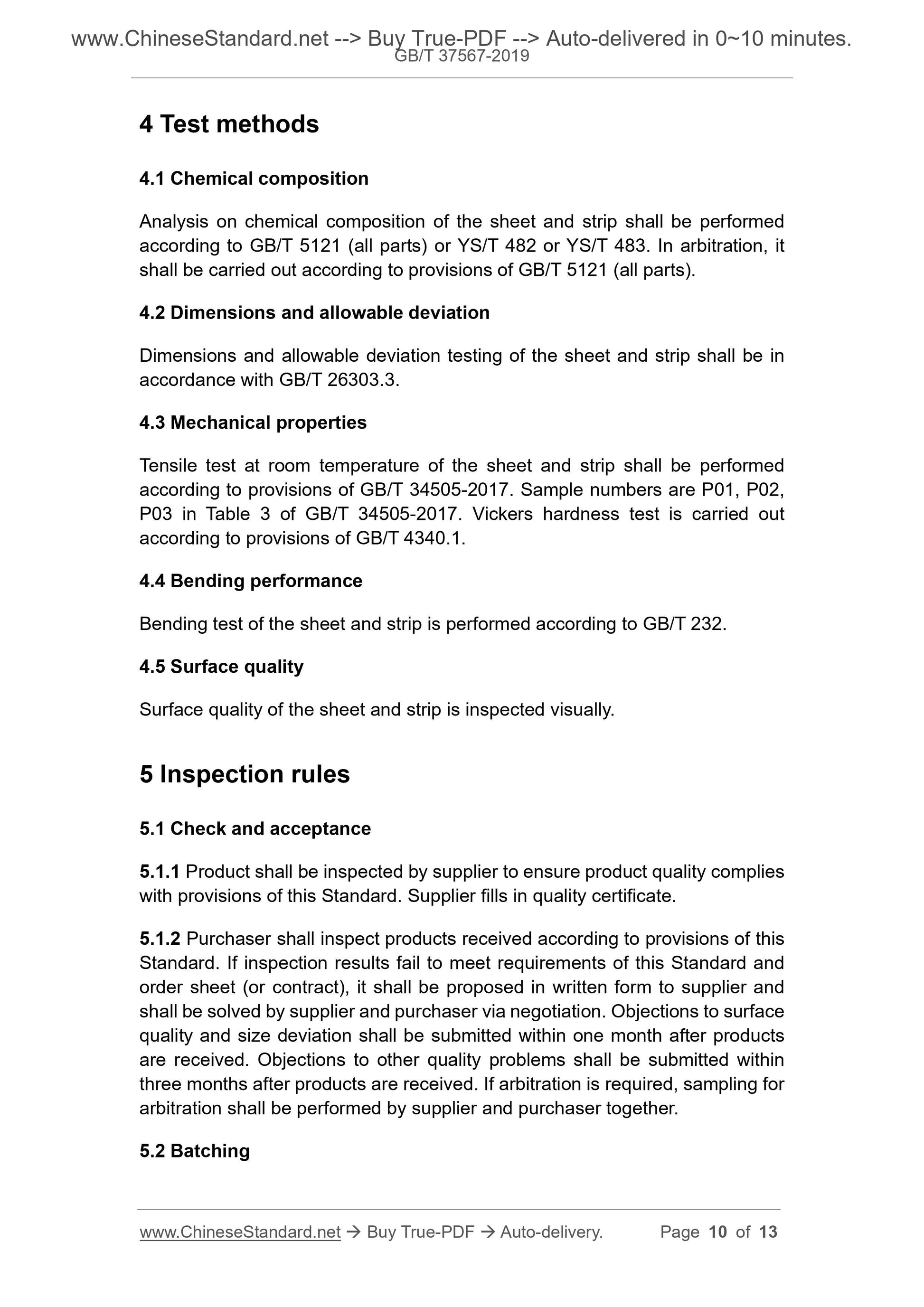

GB/T 34505-2017, Copper and copper alloy materials - Tensile testing at 4 Test methods
4.1 Chemical composition
Analysis on chemical composition of the sheet and strip shall be performed according to GB/T 5121 (all parts) or YS/T 482 or YS/T 483. In arbitration, it shall be carried out according to provisions of GB/T 5121 (all parts).
4.2 Dimensions and allowable deviation
Dimensions and allowable deviation testing of the sheet and strip shall be in accordance with GB/T 26303.3.
4.3 Mechanical properties
Tensile test at room temperature of the sheet and strip shall be performed according to provisions of GB/T 34505-2017. Sample numbers are P01, P02, P03 in Table 3 of GB/T 34505-2017. Vickers hardness test is carried out according to provisions of GB/T 4340.1.
4.4 Bending performance
Bending test of the sheet and strip is performed according to GB/T 232. 4.5 Surface quality
Surface quality of the sheet and strip is inspected visually.
5 Inspection rules
5.1 Check and acceptance
5.1.1 Product shall be inspected by supplier to ensure product quality complies with provisions of this Standard. Supplier fills in quality certificate. 5.1.2 Purchaser shall inspect products received according to provisions of this Standard. If inspection results fail to meet requirements of this Standard and order sheet (or contract), it shall be proposed in written form to supplier and shall be solved by supplier and purchaser via negotiation. Objections to surface quality and size deviation shall be submitted within one month after products are received. Objections to other quality problems shall be submitted within three months after products are received. If arbitration is required, sampling for arbitration shall be performed by supplier and purchaser together.
5.2 Batching

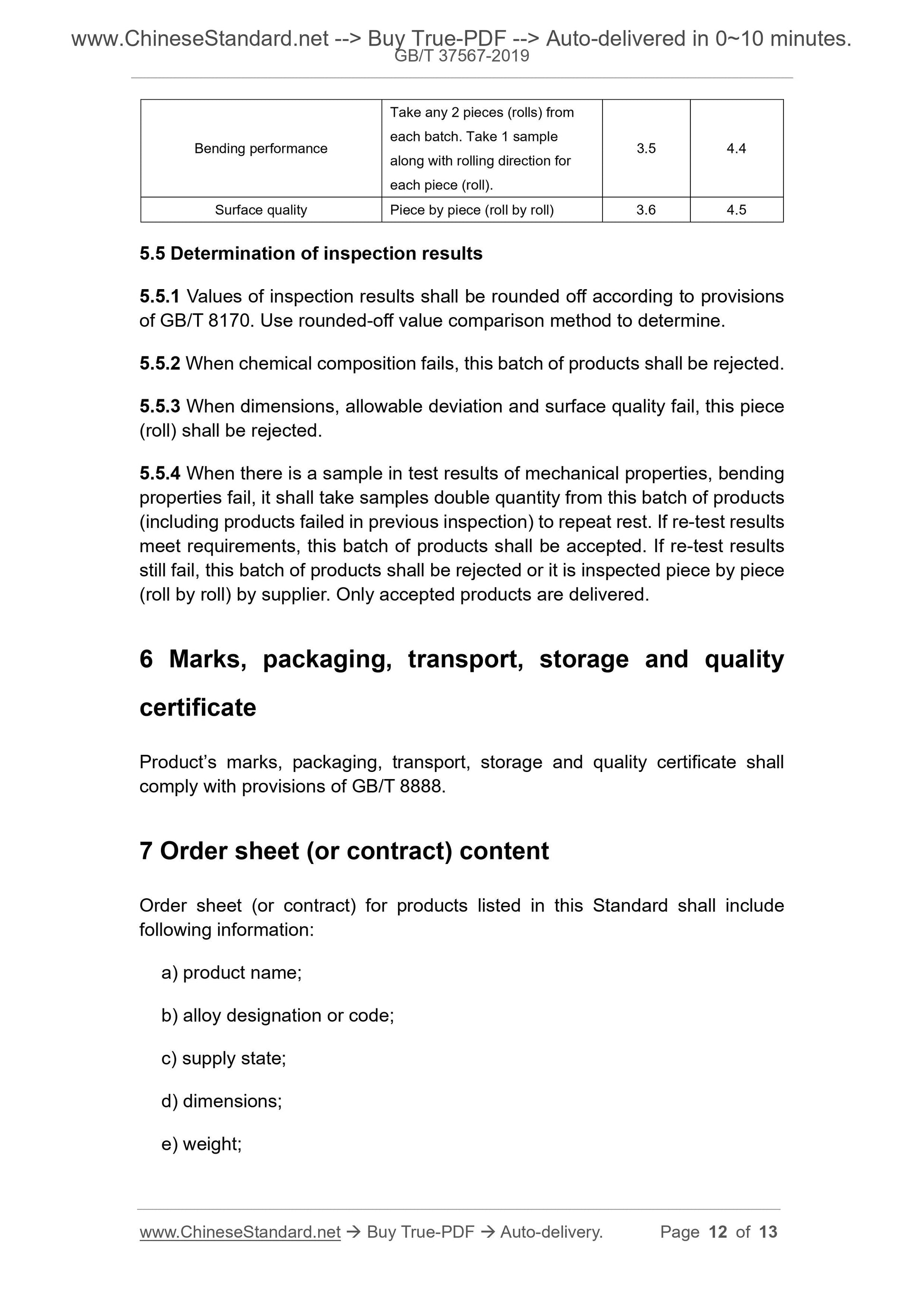

Bending performance
Take any 2 pieces (rolls) from
each batch. Take 1 sample
along with rolling direction for
each piece (roll).
3.5 4.4
Surface quality Piece by piece (roll by roll) 3.6 4.5
5.5 Determination of inspection results
5.5.1 Values of inspection results shall be rounded off according to provisions of GB/T 8170. Use rounded-off value comparison method to determine.
5.5.2 When chemical composition fails, this batch of products shall be rejected. 5.5.3 When dimensions, allowable deviation and surface quality fail, this piece (roll) shall be rejected.
5.5.4 When there is a sample in test results of mechanical properties, bending properties fail, it shall take samples double quantity from this batch of products (including products failed in previous inspection) to repeat rest. If re-test results meet requirements, this batch of products shall be accepted. If re-test results still fail, this batch of products shall be rejected or it is inspected piece by piece (roll by roll) by supplier. Only accepted products are delivered.
6 Marks, packaging, transport, storage and quality
certificate
Product?€?s marks, packaging, transport, storage and quality certificate shall comply with provisions of GB/T 8888.
7 Order sheet (or contract) content
Order sheet (or contract) for products listed in this Standard shall include following information:
a) product name;
b) alloy designation or code;
c) supply state;
d) dimensions;
e) weight;
