GB/T 37348-2019: Design guidelines for deck loading plan of self-elevating drilling units

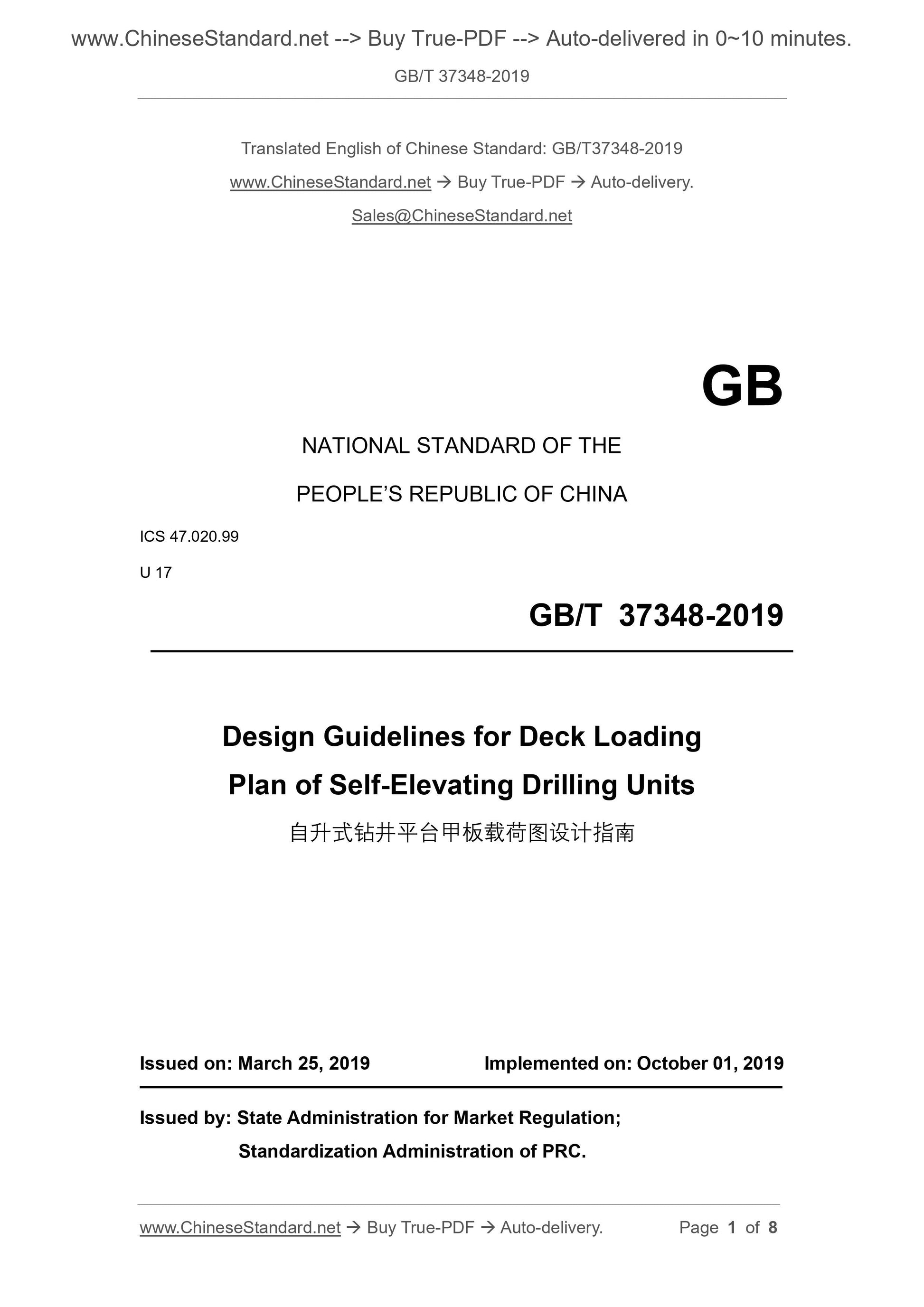

GB/T 37348-2019
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 47.020.99
U 17
Design Guidelines for Deck Loading
Plan of Self-Elevating Drilling Units
ISSUED ON: MARCH 25, 2019
IMPLEMENTED ON: OCTOBER 01, 2019
Issued by: State Administration for Market Regulation;
Standardization Administration of PRC.

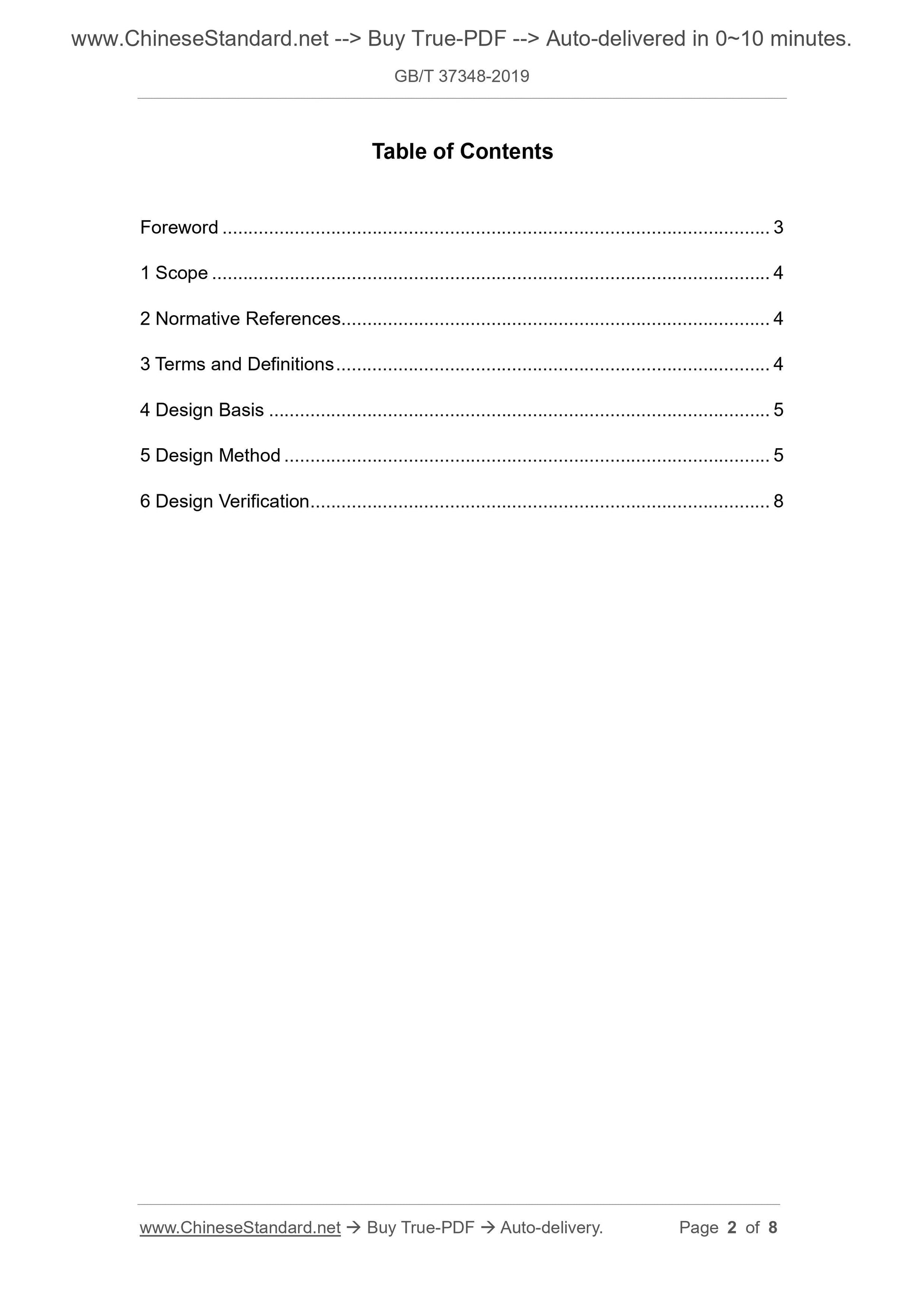

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Design Basis ... 5
5 Design Method ... 5
6 Design Verification ... 8
Design Guidelines for Deck Loading
Plan of Self-Elevating Drilling Units

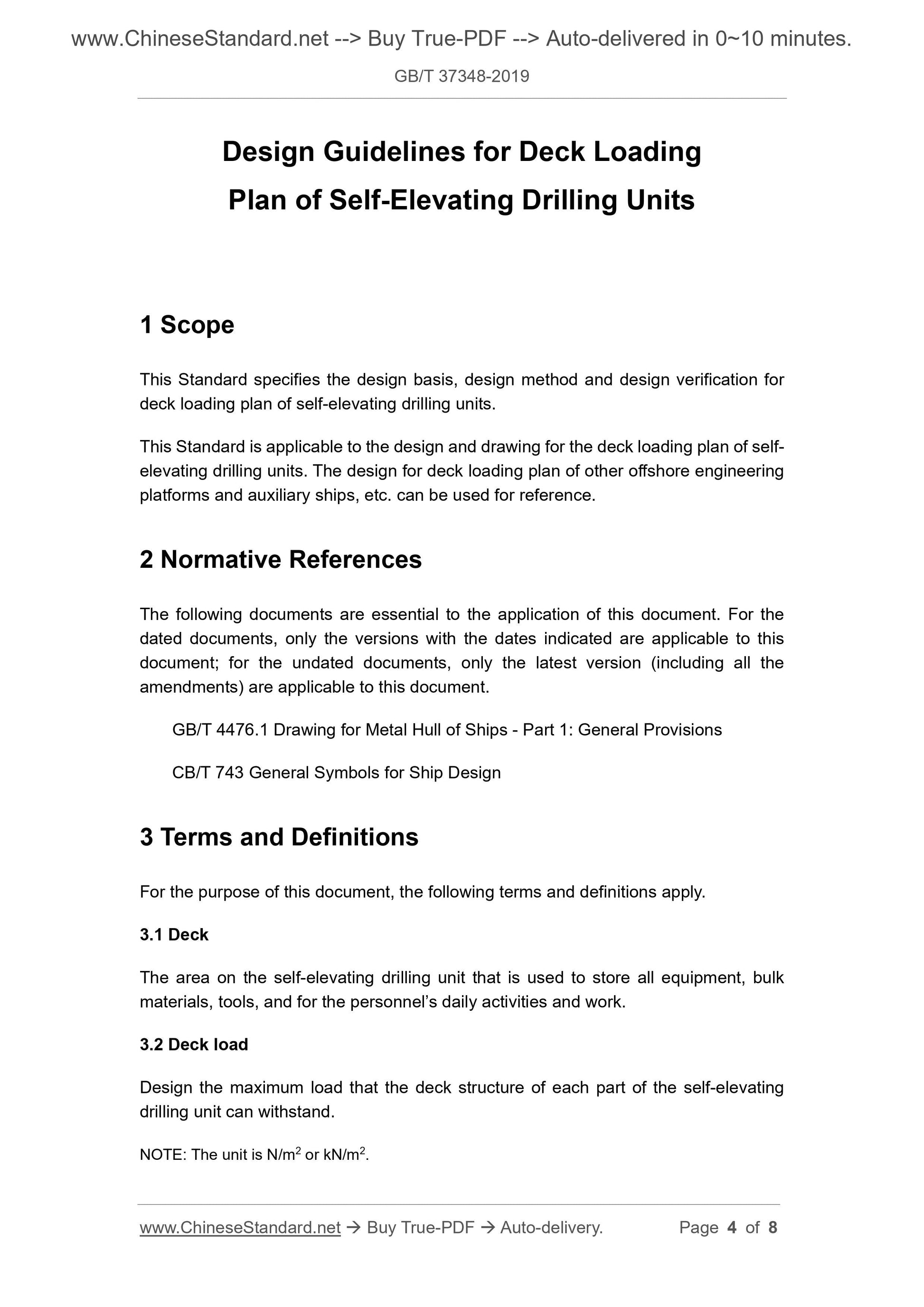

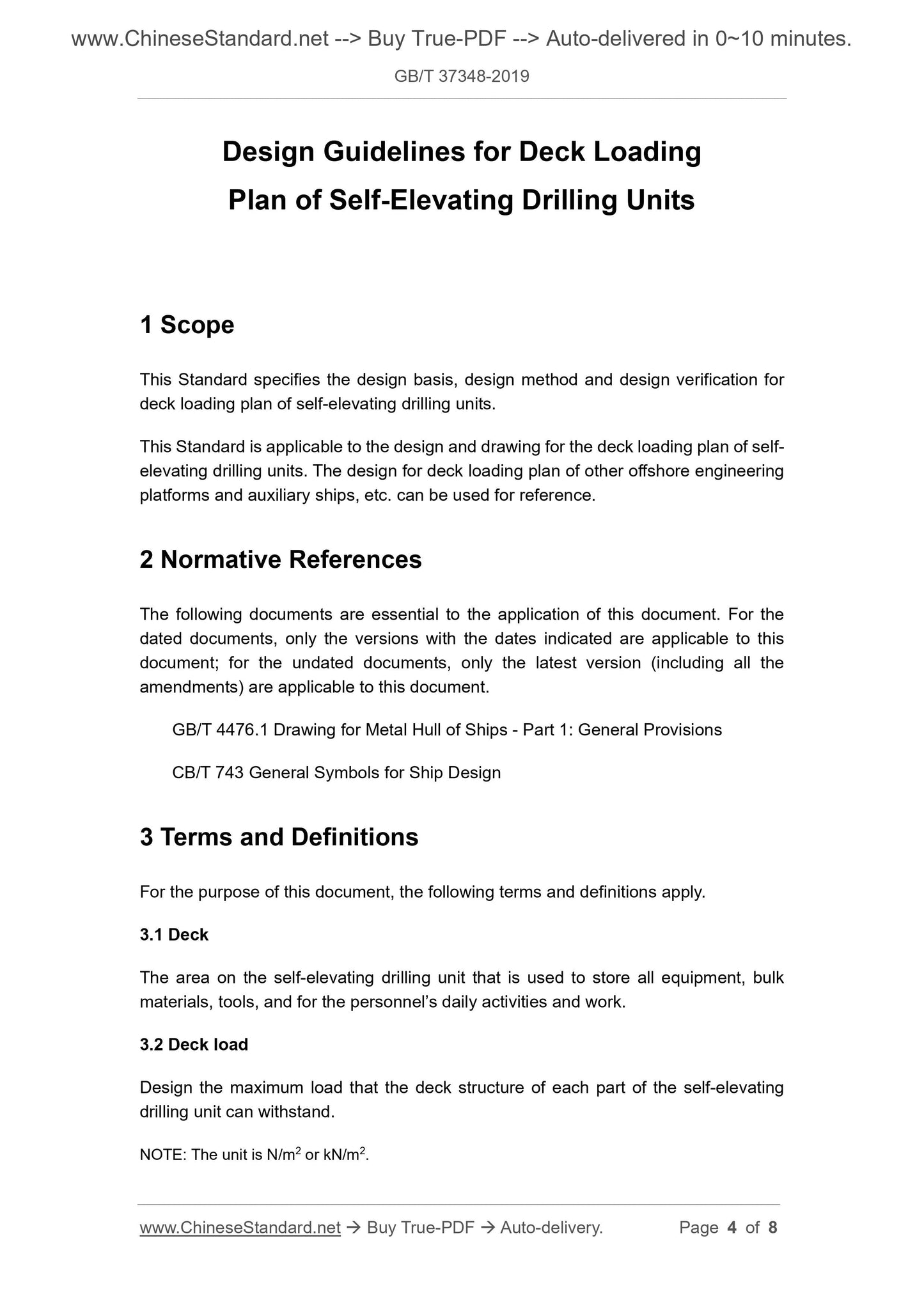

1 Scope
This Standard specifies the design basis, design method and design verification for
deck loading plan of self-elevating drilling units.
This Standard is applicable to the design and drawing for the deck loading plan of self-
elevating drilling units. The design for deck loading plan of other offshore engineering
platforms and auxiliary ships, etc. can be used for reference.
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB/T 4476.1 Drawing for Metal Hull of Ships - Part 1: General Provisions
CB/T 743 General Symbols for Ship Design
3 Terms and Definitions
For the purpose of this document, the following terms and definitions apply.
3.1 Deck
The area on the self-elevating drilling unit that is used to store all equipment, bulk
materials, tools, and for the personnel’s daily activities and work.
3.2 Deck load
Design the maximum load that the deck structure of each part of the self-elevating
drilling unit can withstand.
NOTE: The unit is N/m2 or kN/m2.

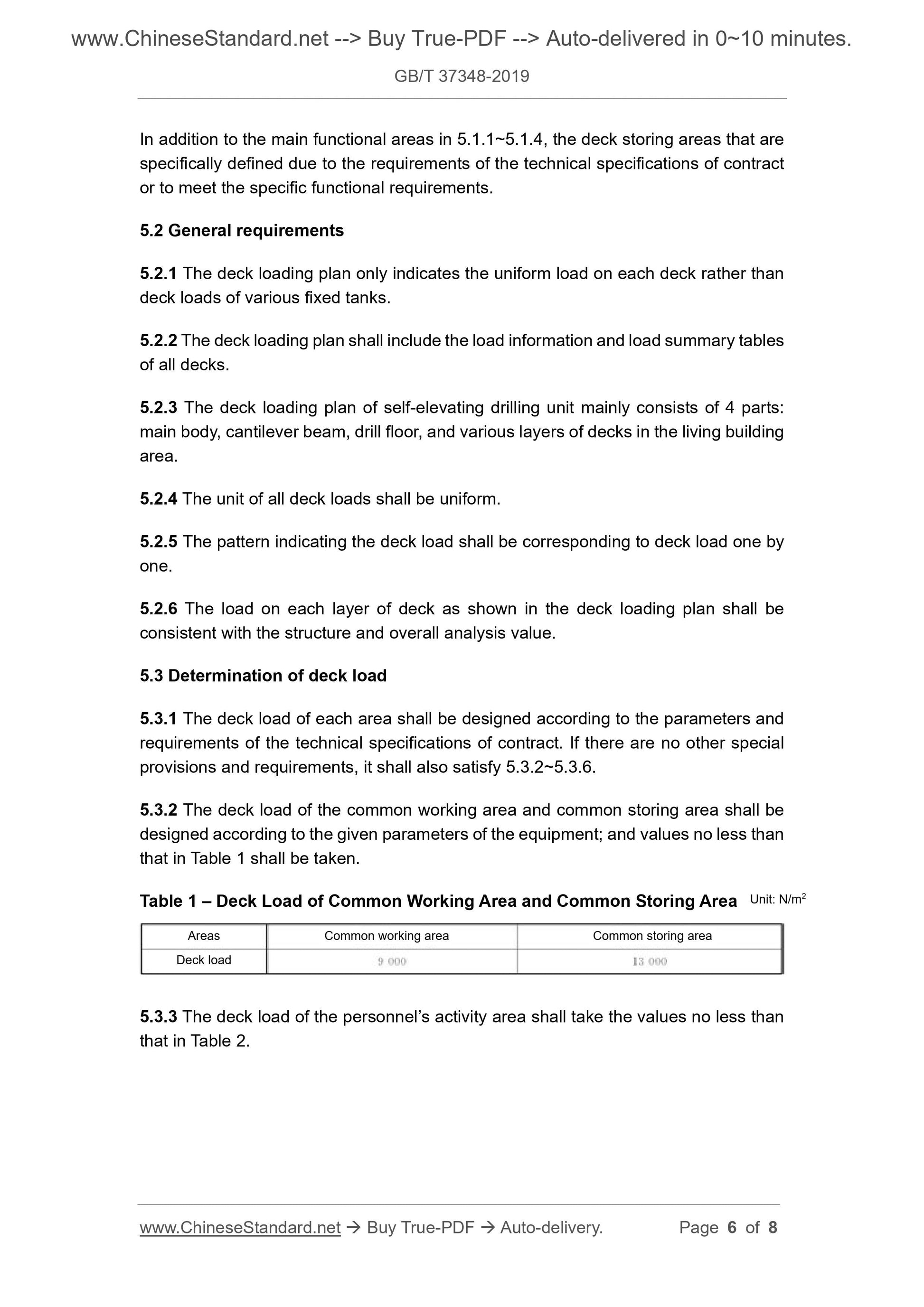

In addition to the main functional areas in 5.1.1~5.1.4, the deck storing areas that are
specifically defined due to the requirements of the technical specifications of contract
or to meet the specific functional requirements.
5.2 General requirements
5.2.1 The deck loading plan only indicates the uniform load on each deck rather than
deck loads of various fixed tanks.
5.2.2 The deck loading plan shall include the load information and load summary tables
of all decks.
5.2.3 The deck loading plan of self-elevating drilling unit mainly consists of 4 parts:
main body, cantilever beam, drill floor, and various layers of decks in the living building
area.
5.2.4 The unit of all deck loads shall be uniform.
5.2.5 The pattern indicating the deck load shall be corresponding to deck load one by
one.
5.2.6 The load on each layer of deck as shown in the deck loading plan shall be
consistent with the structure and overall analysis value.
5.3 Determination of deck load
5.3.1 The deck load of each area shall be designed according to the parameters and
requirements of the technical specifications of contract. If there are no other special
provisions and requirements, it shall also satisfy 5.3.2~5.3.6.
5.3.2 The deck load of the common working area and common storing area shall be
designed according to the given parameters of the equipment; and values no less than
that in Table 1 shall be taken.
Table 1 – Deck Load of Common Working Area and Common Storing Area
5.3.3 The deck load of the personnel’s activity area shall take the values no less than
that in Table 2.
Unit: N/m2
Common working area Common storing area Areas
Deck load
