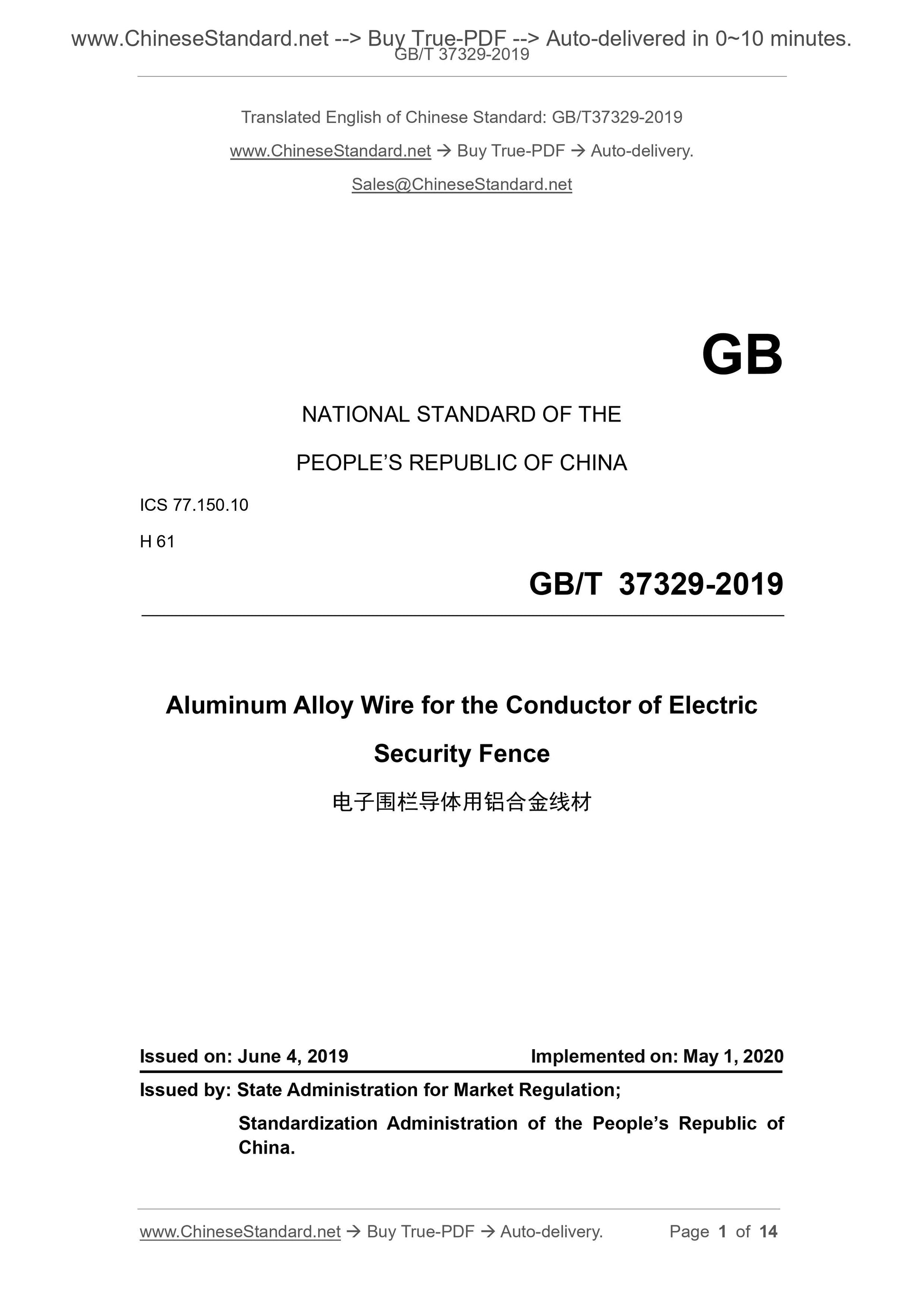

GB/T 37329-2019
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.10
H 61
Aluminum Alloy Wire for the Conductor of Electric
Security Fence
ISSUED ON: JUNE 4, 2019
IMPLEMENTED ON: MAY 1, 2020
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of
China.

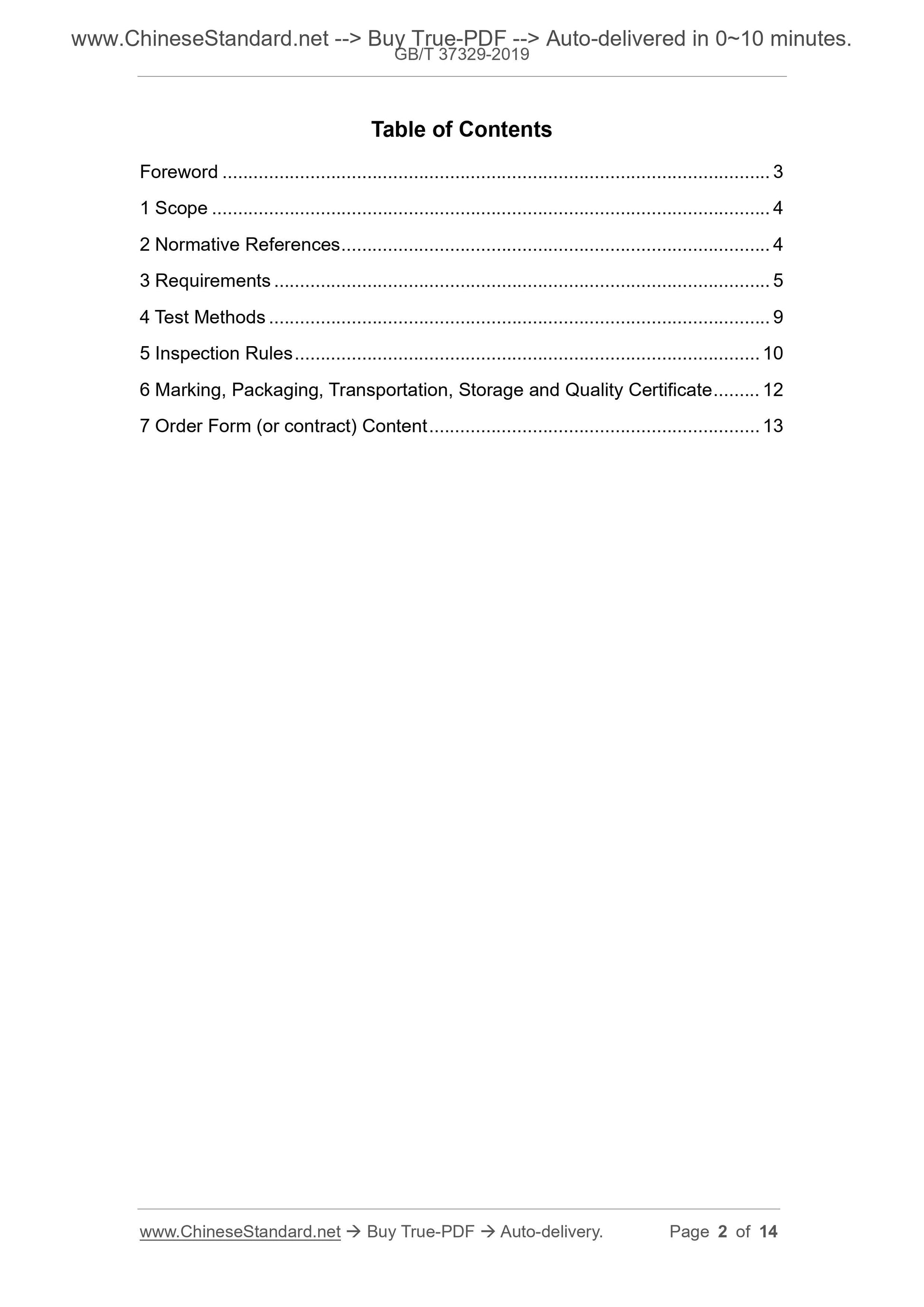

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Requirements ... 5
4 Test Methods ... 9
5 Inspection Rules ... 10
6 Marking, Packaging, Transportation, Storage and Quality Certificate ... 12
7 Order Form (or contract) Content ... 13

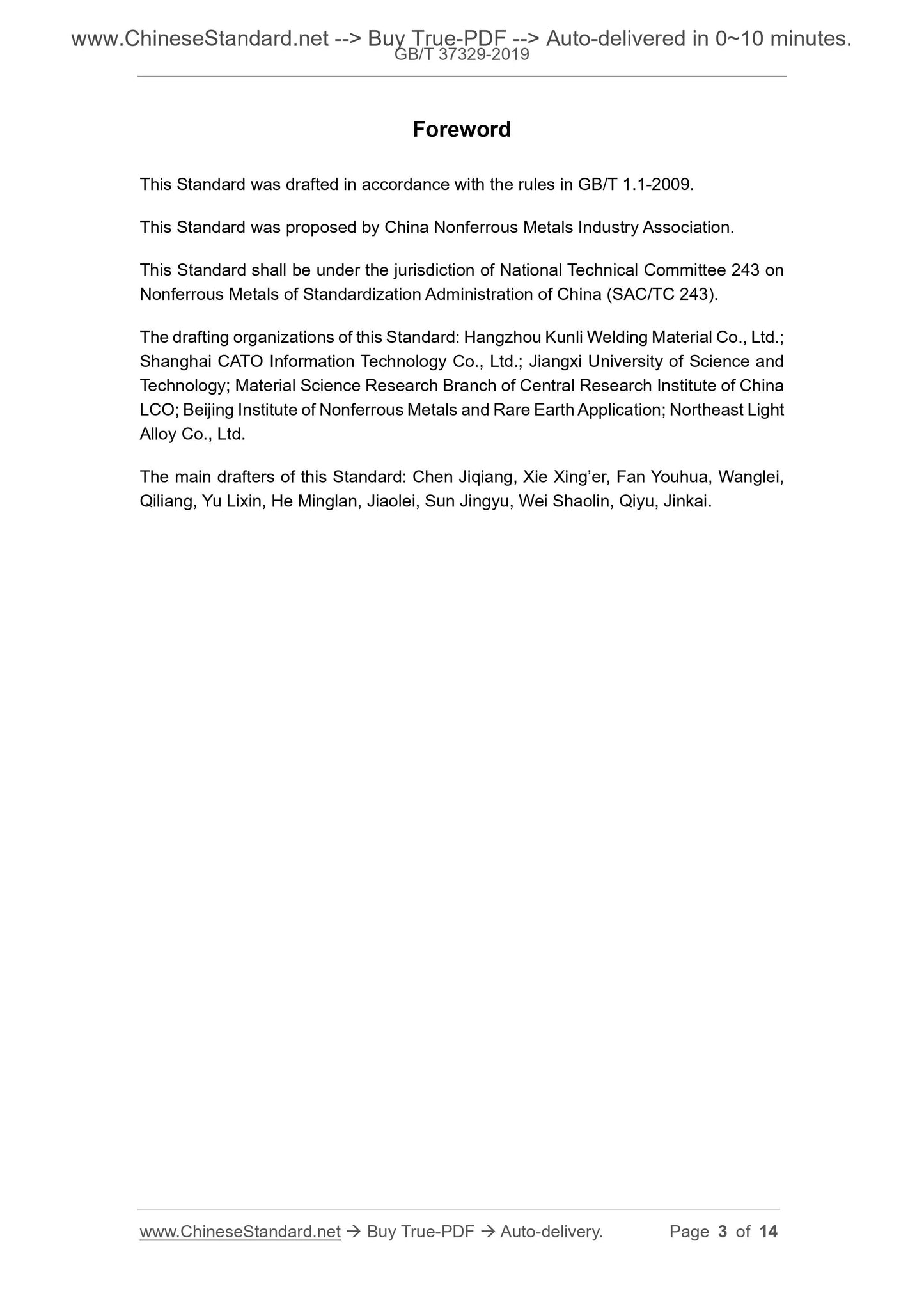

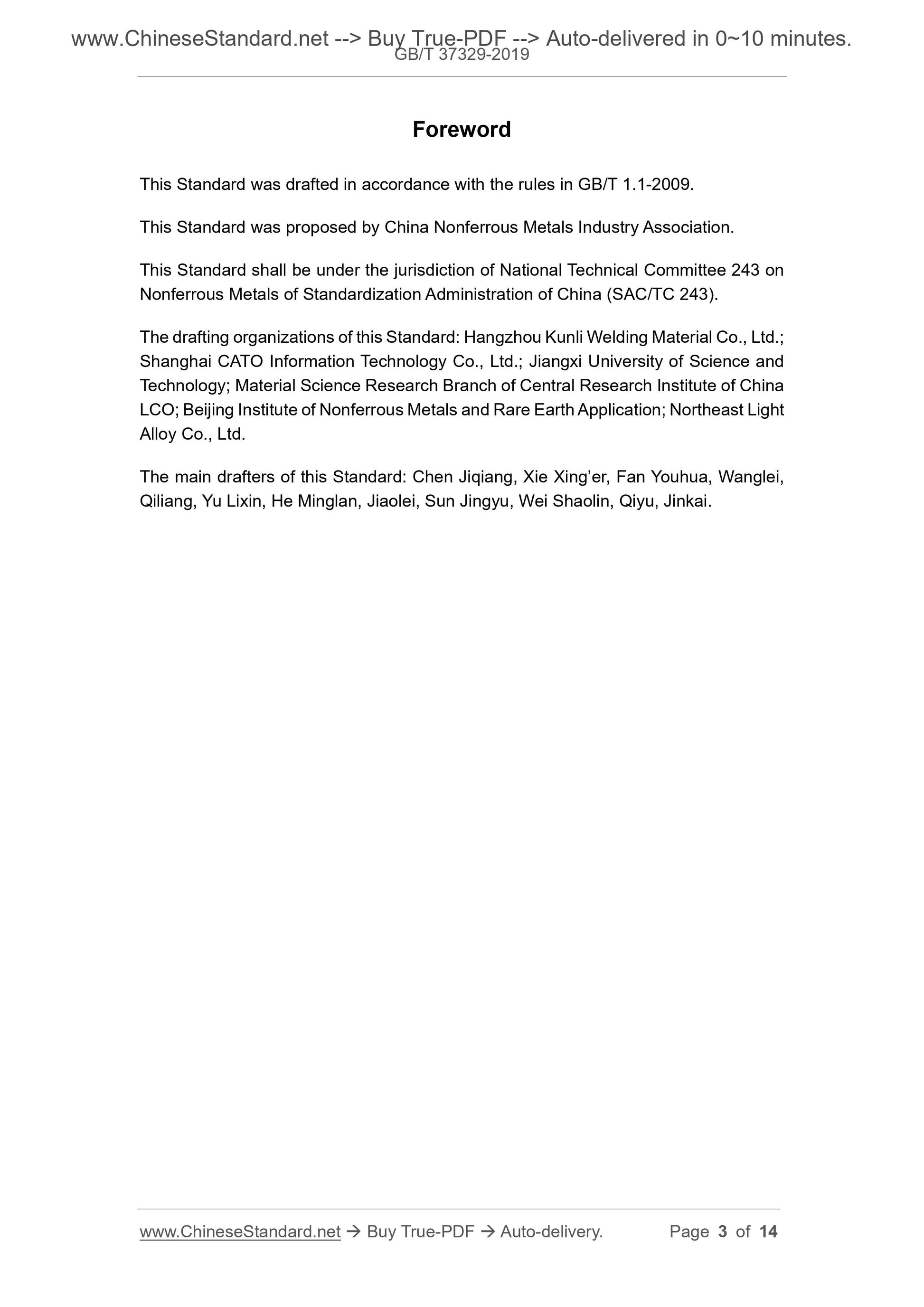

Foreword
This Standard was drafted in accordance with the rules in GB/T 1.1-2009.
This Standard was proposed by China Nonferrous Metals Industry Association.
This Standard shall be under the jurisdiction of National Technical Committee 243 on
Nonferrous Metals of Standardization Administration of China (SAC/TC 243).
The drafting organizations of this Standard: Hangzhou Kunli Welding Material Co., Ltd.;
Shanghai CATO Information Technology Co., Ltd.; Jiangxi University of Science and
Technology; Material Science Research Branch of Central Research Institute of China
LCO; Beijing Institute of Nonferrous Metals and Rare Earth Application; Northeast Light
Alloy Co., Ltd.
The main drafters of this Standard: Chen Jiqiang, Xie Xing’er, Fan Youhua, Wanglei,
Qiliang, Yu Lixin, He Minglan, Jiaolei, Sun Jingyu, Wei Shaolin, Qiyu, Jinkai.

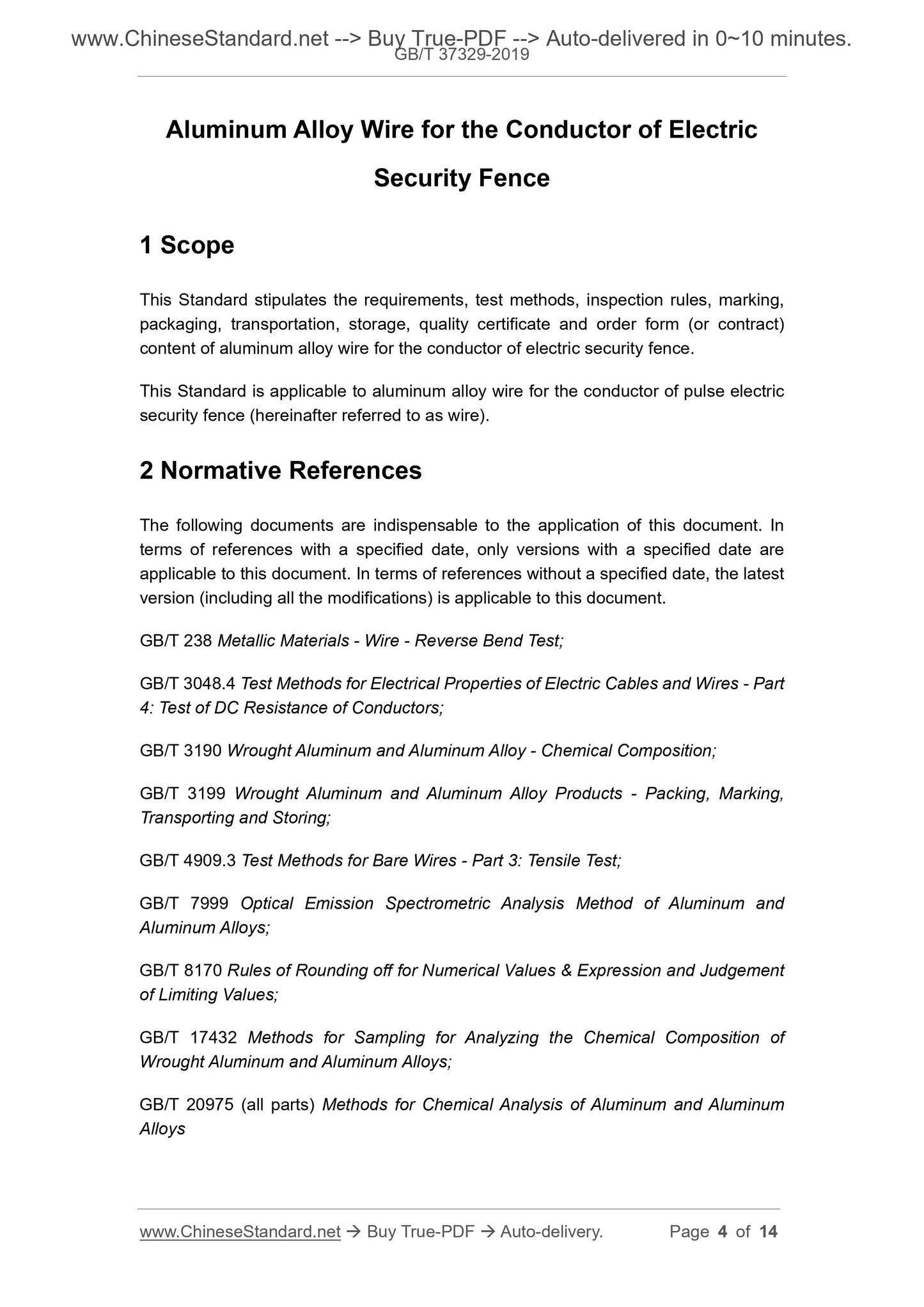

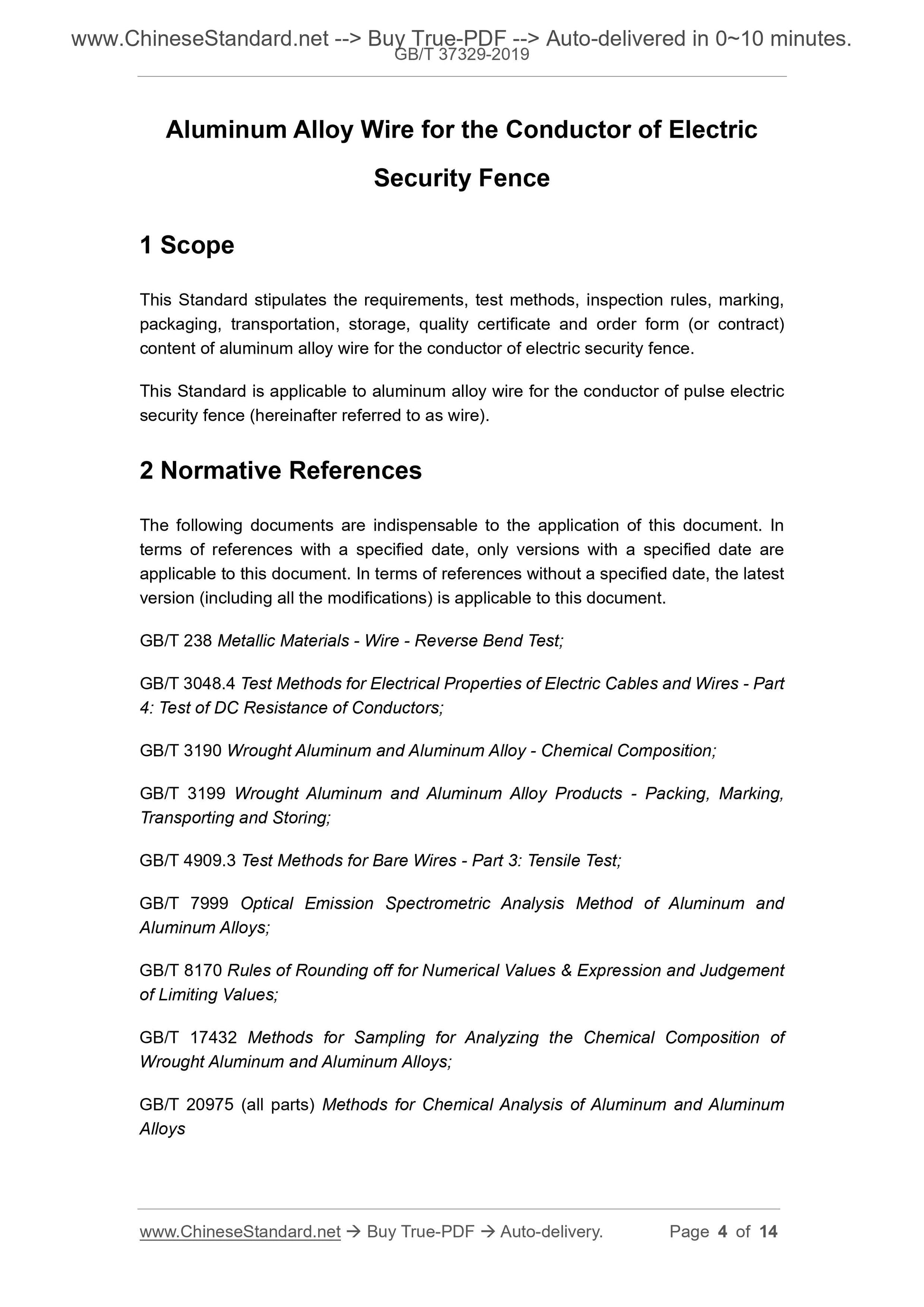

Aluminum Alloy Wire for the Conductor of Electric
Security Fence
1 Scope
This Standard stipulates the requirements, test methods, inspection rules, marking,
packaging, transportation, storage, quality certificate and order form (or contract)
content of aluminum alloy wire for the conductor of electric security fence.
This Standard is applicable to aluminum alloy wire for the conductor of pulse electric
security fence (hereinafter referred to as wire).
2 Normative References
The following documents are indispensable to the application of this document. In
terms of references with a specified date, only versions with a specified date are
applicable to this document. In terms of references without a specified date, the latest
version (including all the modifications) is applicable to this document.
GB/T 238 Metallic Materials - Wire - Reverse Bend Test;
GB/T 3048.4 Test Methods for Electrical Properties of Electric Cables and Wires - Part
4: Test of DC Resistance of Conductors;
GB/T 3190 Wrought Aluminum and Aluminum Alloy - Chemical Composition;
GB/T 3199 Wrought Aluminum and Aluminum Alloy Products - Packing, Marking,
Transporting and Storing;
GB/T 4909.3 Test Methods for Bare Wires - Part 3: Tensile Test;
GB/T 7999 Optical Emission Spectrometric Analysis Method of Aluminum and
Aluminum Alloys;
GB/T 8170 Rules of Rounding off for Numerical Values and Expression and Judgement
of Limiting Values;
GB/T 17432 Methods for Sampling for Analyzing the Chemical Composition of
Wrought Aluminum and Aluminum Alloys;
GB/T 20975 (all parts) Methods for Chemical Analysis of Aluminum and Aluminum
Alloys

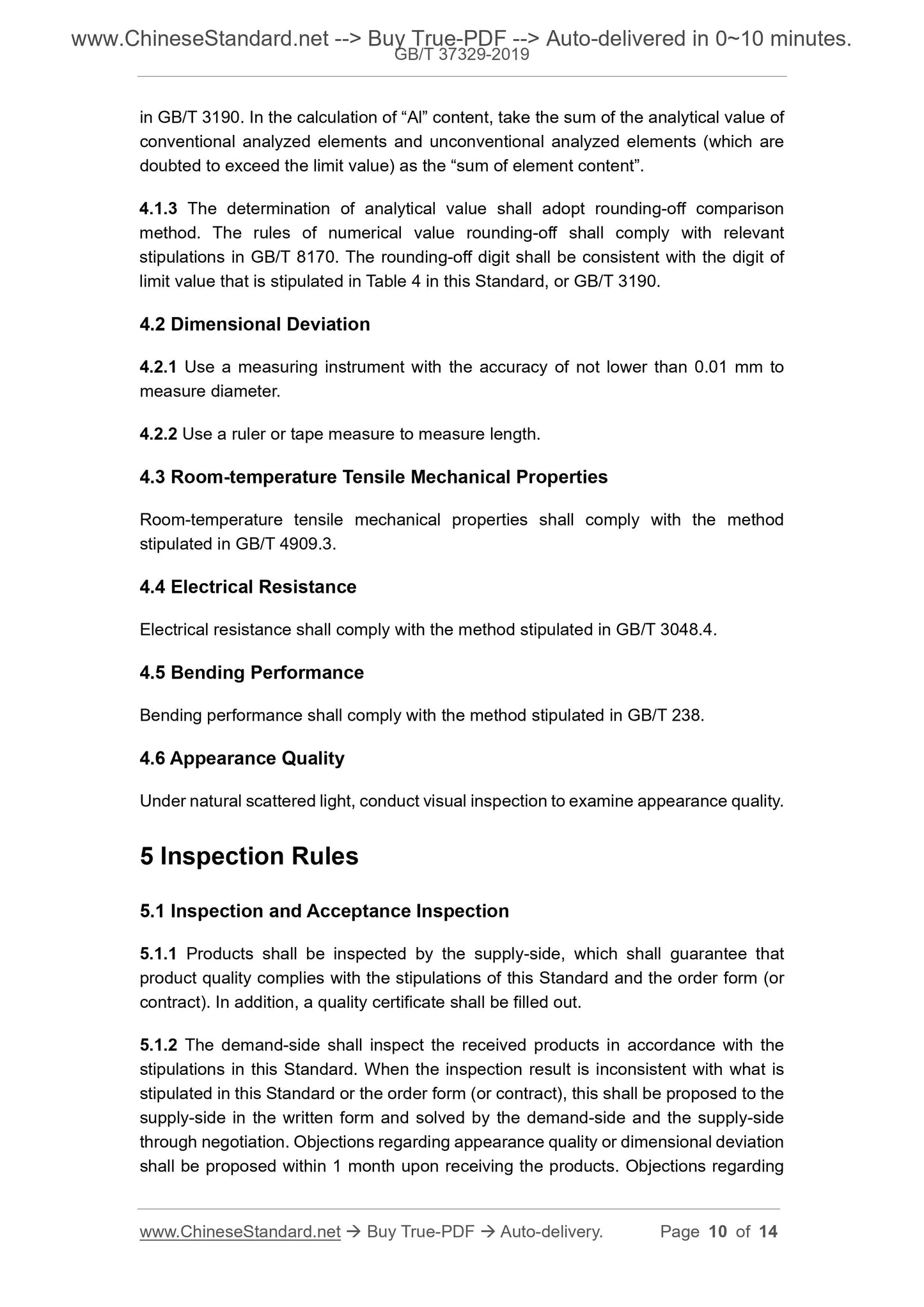

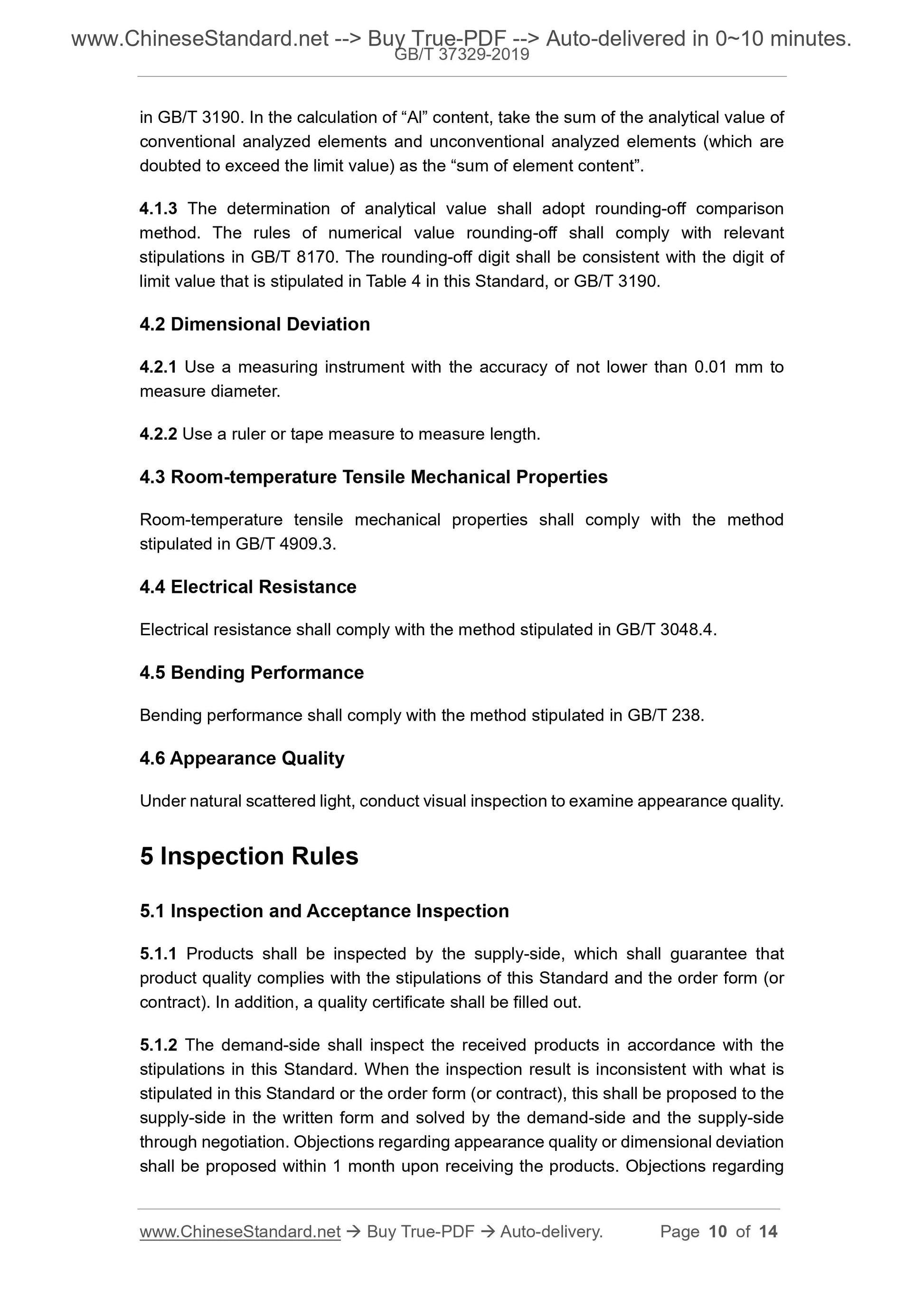

in GB/T 3190. In the calculation of “Al” content, take the sum of the analytical value of
conventional analyzed elements and unconventional analyzed elements (which are
doubted to exceed the limit value) as the “sum of element content”.
4.1.3 The determination of analytical value shall adopt rounding-off comparison
method. The rules of numerical value rounding-off shall comply with relevant
stipulations in GB/T 8170. The rounding-off digit shall be consistent with the digit of
limit value that is stipulated in Table 4 in this Standard, or GB/T 3190.
4.2 Dimensional Deviation
4.2.1 Use a measuring instrument with the accuracy of not lower than 0.01 mm to
measure diameter.
4.2.2 Use a ruler or tape measure to measure length.
4.3 Room-temperature Tensile Mechanical Properties
Room-temperature tensile mechanical properties shall comply with the method
stipulated in GB/T 4909.3.
4.4 Electrical Resistance
Electrical resistance shall comply with the method stipulated in GB/T 3048.4.
4.5 Bending Performance
Bending performance shall comply with the method stipulated in GB/T 238.
4.6 Appearance Quality
Under natural scattered light, conduct visual inspection to examine appearance quality.
5 Inspection Rules
5.1 Inspection and Acceptance Inspection
5.1.1 Products shall be inspected by the supply-side, which shall guarantee that
product quality complies with the stipulations of this Standard and the order form (or
contract). In addition, a quality certificate shall be filled out.
5.1.2 The demand-side shall inspect the received products in accordance with the
stipulations in this Standard. When the inspection result is inconsistent with what is
stipulated in this Standard or the order form (or contract), this shall be proposed to the
supply-side in the written form and solved by the demand-side and the supply-side
through negotiation. Objections regarding appearance quality or dimensional deviation
shall be proposed within 1 month upon receiving the products. Objections regarding

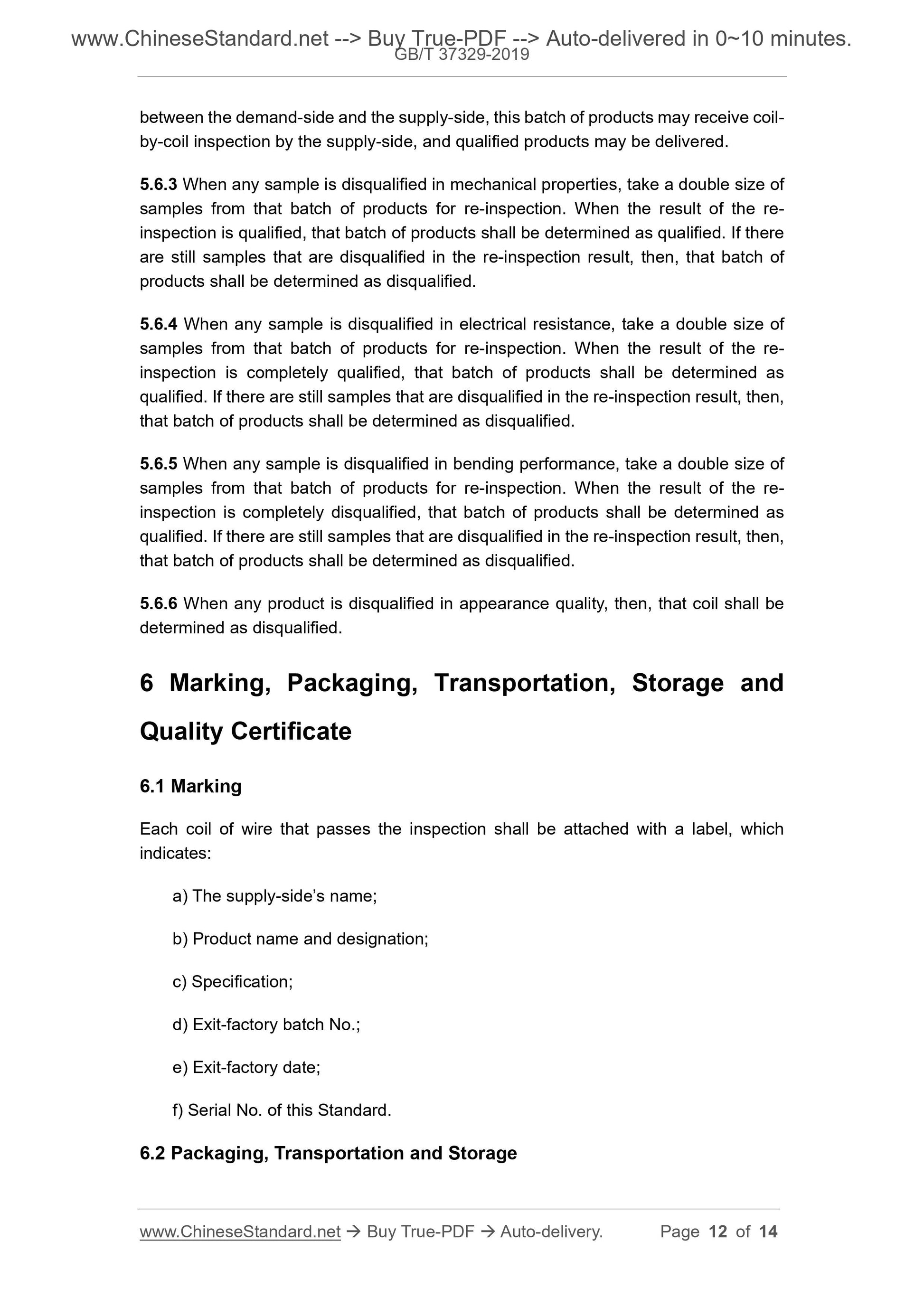

between the demand-side and the supply-side, this batch of products may receive coil-
by-coil inspection by the supply-side, and qualified products may be delivered.
5.6.3 When any sample is disqualified in mechanical properties, take a double size of
samples from that batch of products for re-inspection. When the result of the re-
inspection is qualified, that batch of products shall be determined as qualified. If there
are still samples that are disqualified in the re-inspection result, then, that batch of
products shall be determined as disqualified.
5.6.4 When any sample is disqualified in electrical resistance, take a double size of
samples from that batch of products for re-inspection. When the result of the re-
inspection is completely qualified, that batch of products shall be determined as
qualified. If there are still samples that are disqualified in the re-inspection result, then,
that batch of products shall be determined as disqualified.
5.6.5 When any sample is disqualified in bending performance, take a double size of
samples from that batch of products for re-inspection. When the result of the re-
inspection is completely disqualified, that batch of products shall be determined as
qualified. If there are still samples that are disqualified in the re-inspection result, then,
that batch of products shall be determined as disqualified.
5.6.6 When any product is disqualified in appearance quality, then, that coil shall be
determined as disqualified.
6 Marking, Packaging, Transportation, Storage and
Quality Certificate
6.1 Marking
Each coil of wire that passes the inspection shall be attached with a label, which
indicates:
a) The supply-side’s name;
b) Product name and designation;
c) Specification;
d) Exit-factory batch No.;
e) Exit-factory date;
f) Serial No. of this Standard.
6.2 Packaging, Transportation and Storage
