GB/T 3683-2011: Rubber hoses and hose assemblies -- Wire-braid-reinforced hydraulic types for oil-based or water-based fluids -- Specification

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 3683-2011 (Self-service in 1-minute)
Newer / historical versions: GB/T 3683-2011

Preview True-PDF

Scope

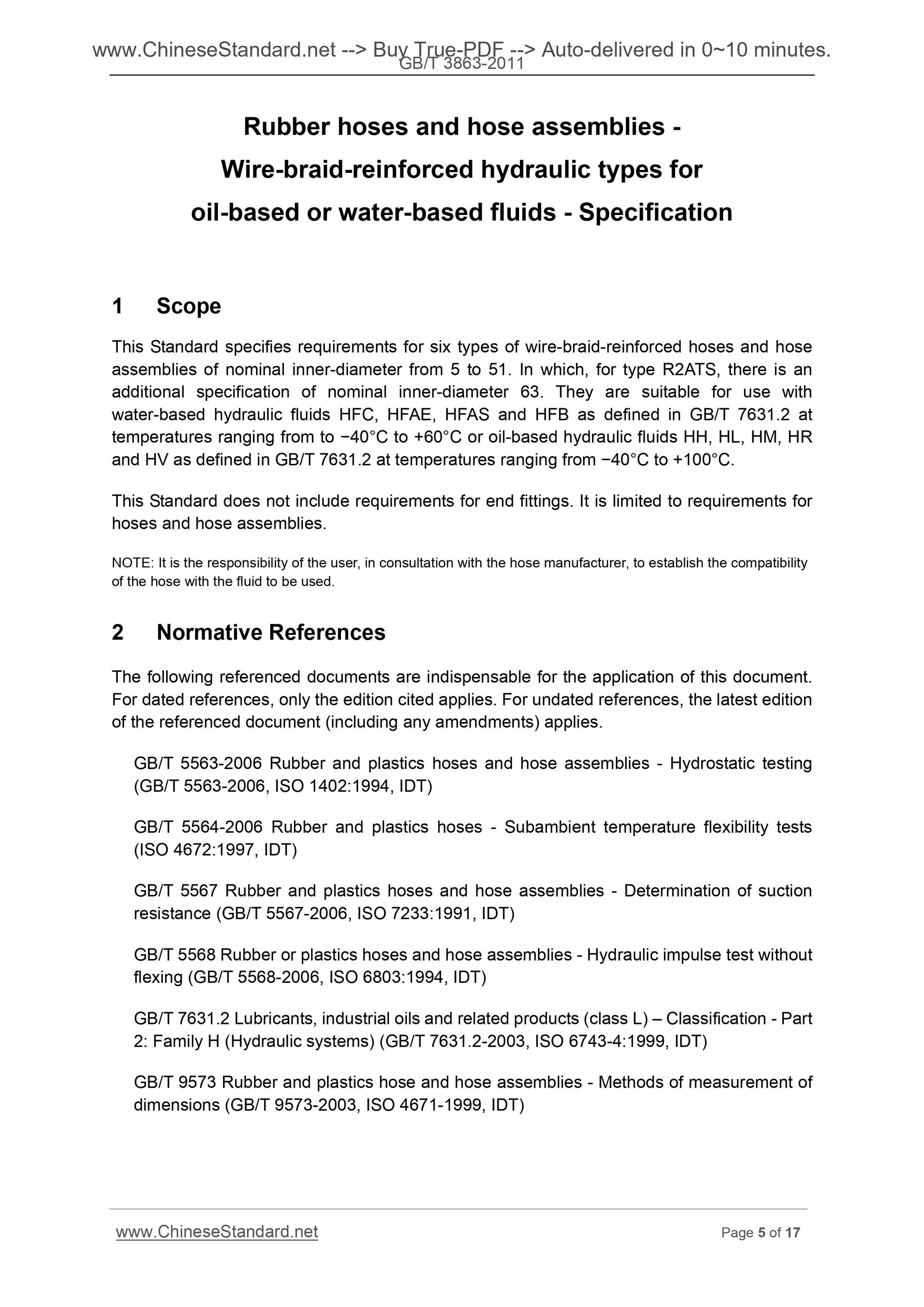

This Standard specifies requirements for six types of wire-braid-reinforced hoses and hose
assemblies of nominal inner-diameter from 5 to 51.In which, for type R2ATS, there is an
additional specification of nominal inner-diameter 63.They are suitable for use with
water-based hydraulic fluids HFC, HFAE, HFAS and HFB as defined in GB/T 7631.2 at
temperatures ranging from to −40°C to +60°C or oil-based hydraulic fluids HH, HL, HM, HR
and HV as defined in GB/T 7631.2 at temperatures ranging from −40°C to +100°C.
This Standard does not include requirements for end fittings. It is limited to requirements for
hoses and hose assemblies.
NOTE. It is the responsibility of the user, in consultation with the hose manufacturer, to establish the compatibility
of the hose with the fluid to be used.

Basic Data

Standard ID	GB/T 3683-2011 (GB/T3683-2011)
Description (Translated English)	Rubber hoses and hose assemblies -- Wire-braid-reinforced hydraulic types for oil-based or water-based fluids -- Specification
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	G42
Classification of International Standard	23.100.40; 83.140.40
Word Count Estimation	14,125
Date of Issue	2011-05-12
Date of Implementation	2011-12-01
Older Standard (superseded by this standard)	GB/T 3683.1-2006
Quoted Standard	GB/T 5563; GB/T 5564-2006; GB/T 5567; GB/T 5568; GB/T 7631.2; GB/T 9573; GB/T 9575; GB/T 14905-2009; ISO 1817; ISO 6605; ISO 8330; GB/T 24134-2009
Adopted Standard	ISO 1436-2009, IDT
Regulation (derived from)	Announcement of Newly Approved National Standards No. 6 of 2011
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the nominal inside diameter of 5 to 51, six types steel braided reinforced hose and hose assembly requirements, including R2ATS type a nominal diameter of more than 63 specifications. At -40��C ~ +60��C temperature range applicable to GB/T 7631. 2 defined HFC, HFAE, HFAS and HFB water-based hydraulic fluid, or at -40��C ~ +100��C temperature range applicable to GB/T 7631. 2 provisions HH. HL. HM. HR and HV oil-based hydraulic fluids. This standard does not include requirements for pipe joint, only the hose and hose assemblies for performance requirements.
