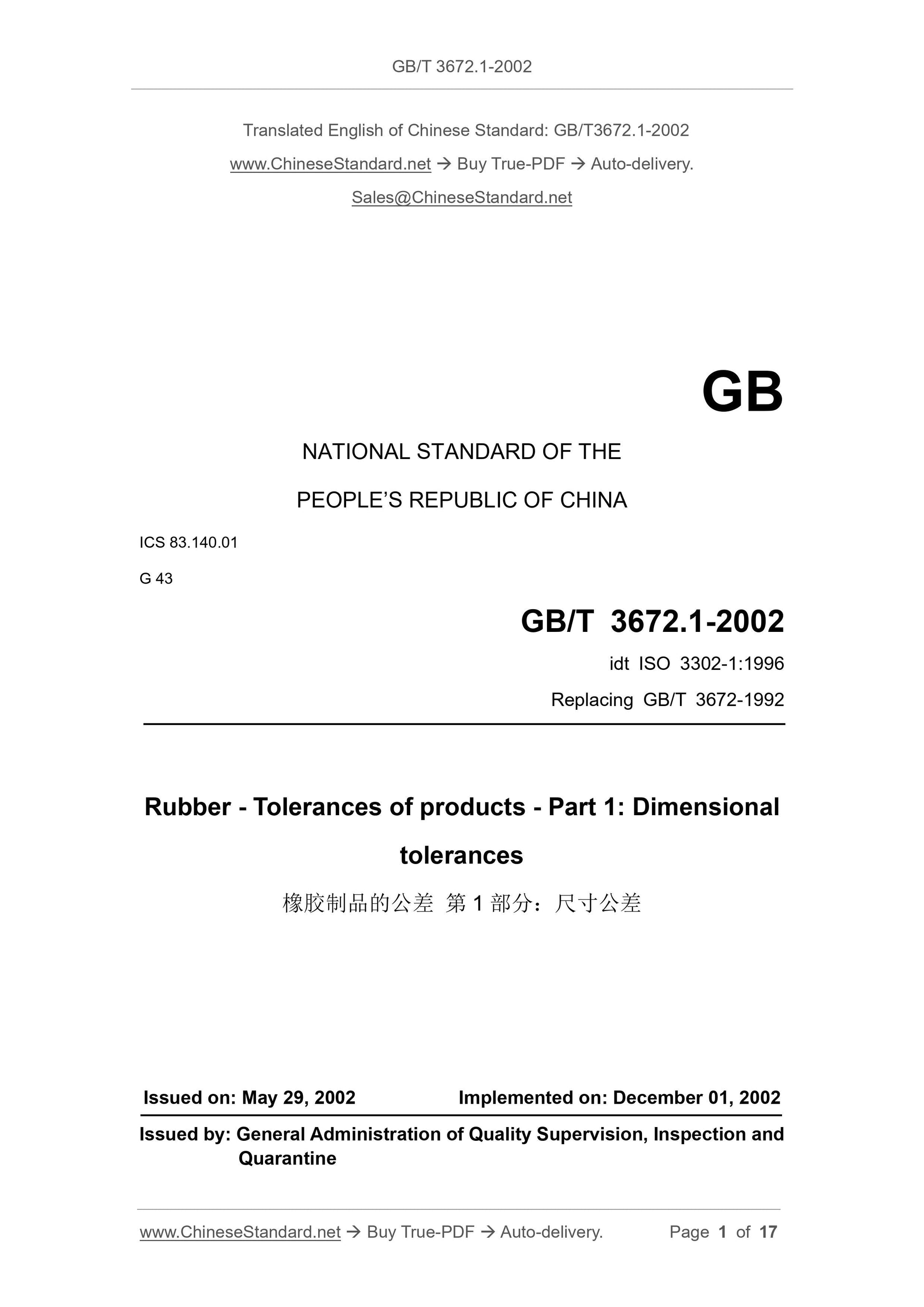

GB/T 3672.1-2002: Rubber -- Tolerances of products -- Part 1: Dimensional tolerances
GB/T 3672.1-2002
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 83.140.01
G 43
idt ISO 3302-1:1996
Replacing GB/T 3672-1992
Rubber - Tolerances of products - Part 1: Dimensional
tolerances
ISSUED ON: MAY 29, 2002
IMPLEMENTED ON: DECEMBER 01, 2002
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine

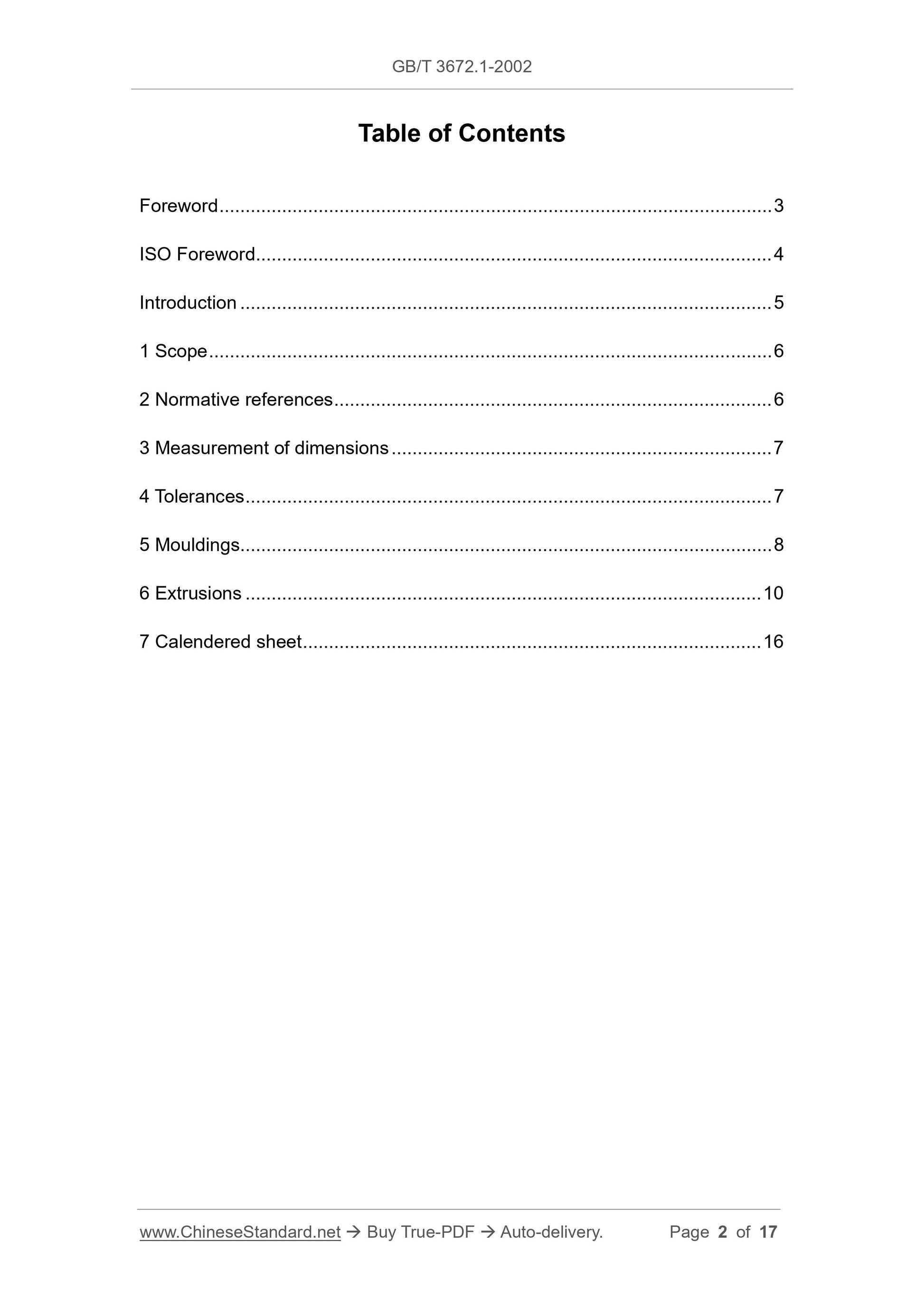

Table of Contents
Foreword ... 3
ISO Foreword ... 4
Introduction ... 5
1 Scope ... 6
2 Normative references ... 6
3 Measurement of dimensions ... 7
4 Tolerances ... 7
5 Mouldings... 8
6 Extrusions ... 10
7 Calendered sheet ... 16

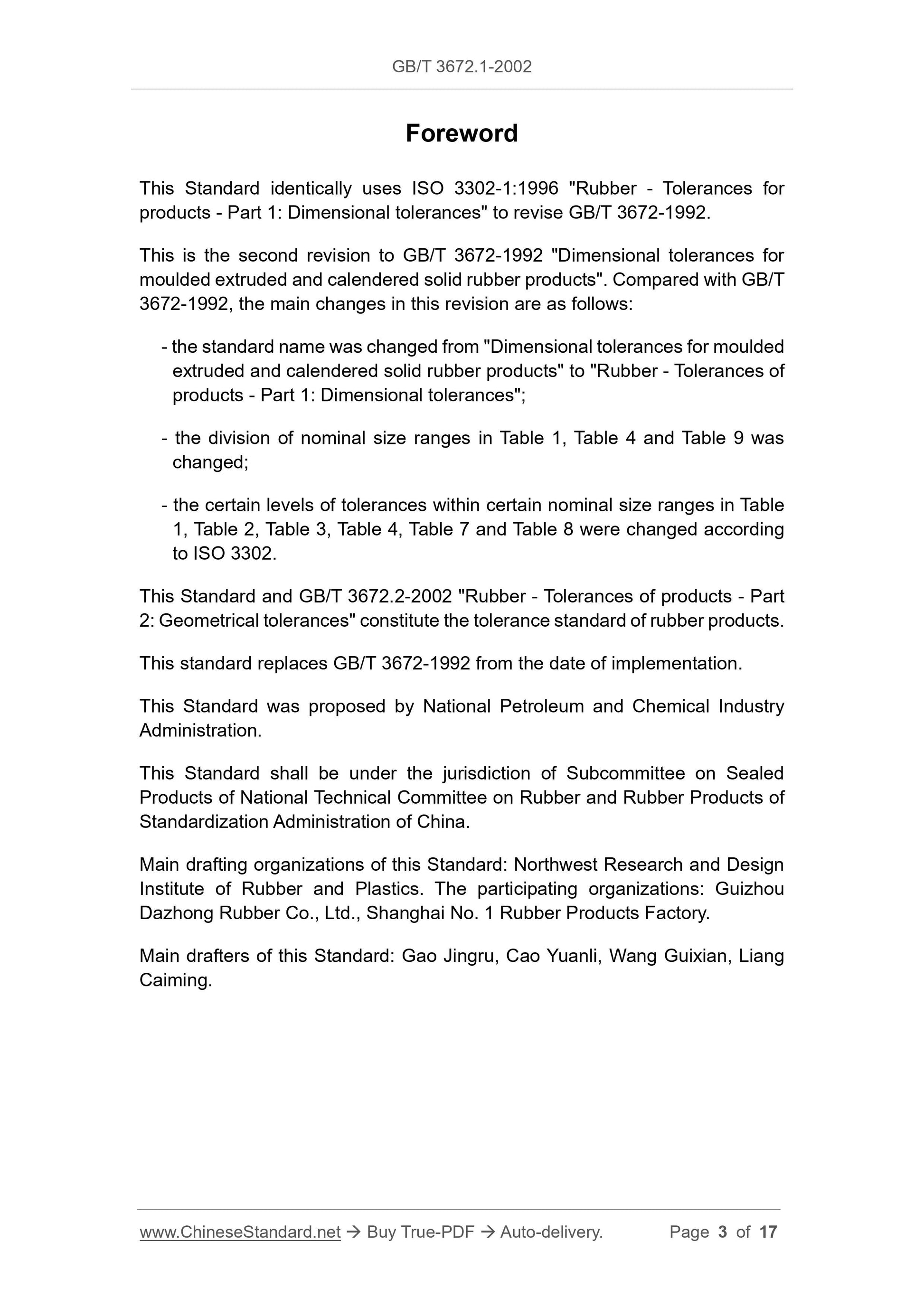

Foreword
This Standard identically uses ISO 3302-1:1996 "Rubber - Tolerances for
products - Part 1: Dimensional tolerances" to revise GB/T 3672-1992.
This is the second revision to GB/T 3672-1992 "Dimensional tolerances for
moulded extruded and calendered solid rubber products". Compared with GB/T
3672-1992, the main changes in this revision are as follows:
- the standard name was changed from "Dimensional tolerances for moulded
extruded and calendered solid rubber products" to "Rubber - Tolerances of
products - Part 1: Dimensional tolerances";
- the division of nominal size ranges in Table 1, Table 4 and Table 9 was
changed;
- the certain levels of tolerances within certain nominal size ranges in Table
1, Table 2, Table 3, Table 4, Table 7 and Table 8 were changed according
to ISO 3302.
This Standard and GB/T 3672.2-2002 "Rubber - Tolerances of products - Part
2: Geometrical tolerances" constitute the tolerance standard of rubber products.
This standard replaces GB/T 3672-1992 from the date of implementation.
This Standard was proposed by National Petroleum and Chemical Industry
Administration.
This Standard shall be under the jurisdiction of Subcommittee on Sealed
Products of National Technical Committee on Rubber and Rubber Products of
Standardization Administration of China.
Main drafting organizations of this Standard: Northwest Research and Design
Institute of Rubber and Plastics. The participating organizations: Guizhou
Dazhong Rubber Co., Ltd., Shanghai No. 1 Rubber Products Factory.
Main drafters of this Standard: Gao Jingru, Cao Yuanli, Wang Guixian, Liang
Caiming.

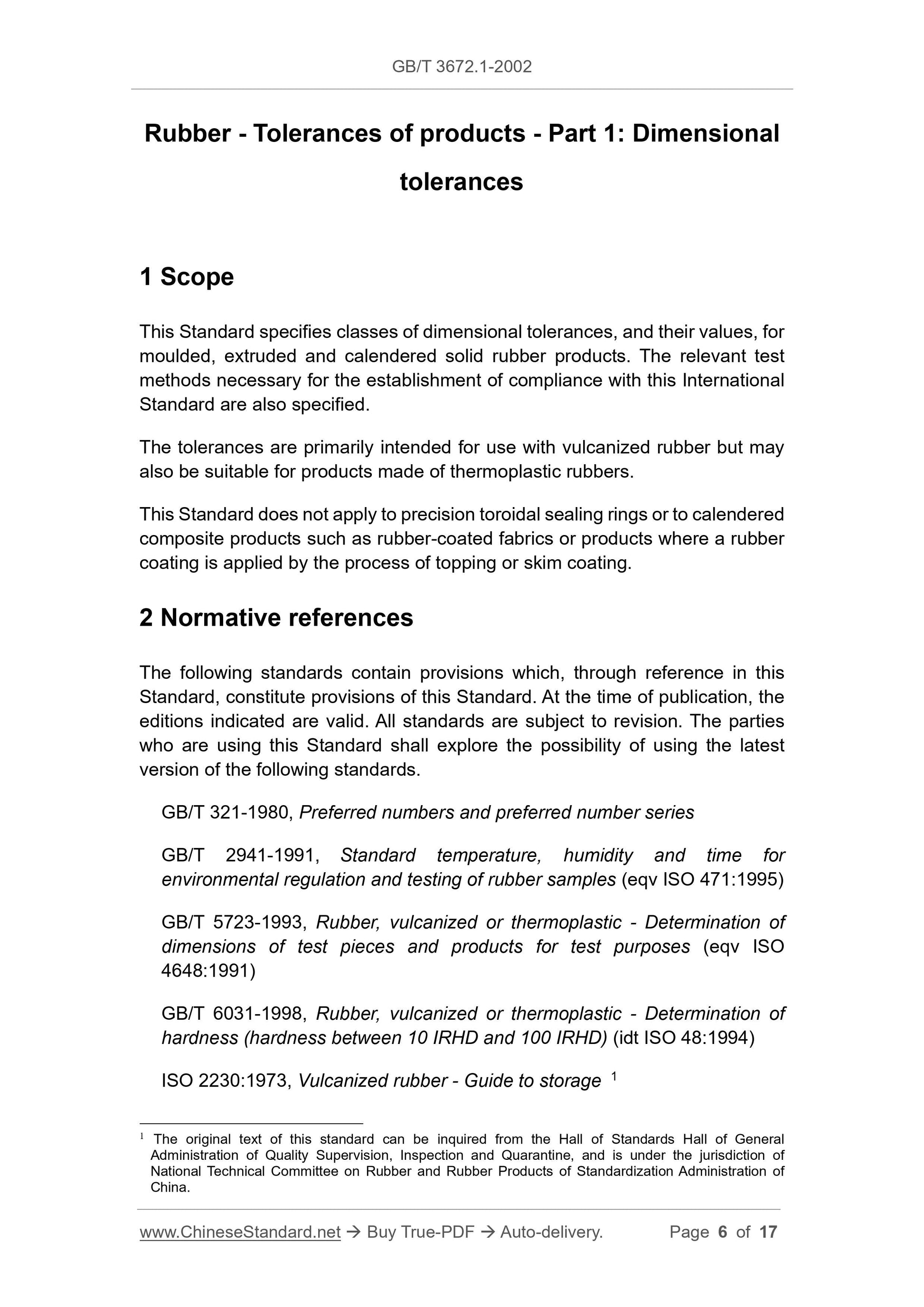

Rubber - Tolerances of products - Part 1: Dimensional
tolerances
1 Scope
This Standard specifies classes of dimensional tolerances, and their values, for
moulded, extruded and calendered solid rubber products. The relevant test
methods necessary for the establishment of compliance with this International
Standard are also specified.
The tolerances are primarily intended for use with vulcanized rubber but may
also be suitable for products made of thermoplastic rubbers.
This Standard does not apply to precision toroidal sealing rings or to calendered
composite products such as rubber-coated fabrics or products where a rubber
coating is applied by the process of topping or skim coating.
2 Normative references
The following standards contain provisions which, through reference in this
Standard, constitute provisions of this Standard. At the time of publication, the
editions indicated are valid. All standards are subject to revision. The parties
who are using this Standard shall explore the possibility of using the latest
version of the following standards.
GB/T 321-1980, Preferred numbers and preferred number series
GB/T 2941-1991, Standard temperature, humidity and time for
environmental regulation and testing of rubber samples (eqv ISO 471:1995)
GB/T 5723-1993, Rubber, vulcanized or thermoplastic - Determination of
dimensions of test pieces and products for test purposes (eqv ISO
4648:1991)
GB/T 6031-1998, Rubber, vulcanized or thermoplastic - Determination of
hardness (hardness between 10 IRHD and 100 IRHD) (idt ISO 48:1994)
ISO 2230:1973, Vulcanized rubber - Guide to storage 1
1 The original text of this standard can be inquired from the Hall of Standards Hall of General
Administration of Quality Supervision, Inspection and Quarantine, and is under the jurisdiction of
National Technical Committee on Rubber and Rubber Products of Standardization Administration of
China.
