GB/T 36398-2018: Lanthanum cerium-magnesium alloy

This Standard specifies the requirements, test methods, inspection rules and marking, packing, transport, storage, and quality certificate of lanthanum cerium-magnesium alloy. This Standard is applicable to the lanthanum cerium-magnesium alloy prepared by the smelting method with lanthanum cerium metal as raw material, which is mainly used for the production of 3C electronic thin-walled products, as well as the main additive for rare earth magnesium alloys such as automobile engine block, gearbox housing heat-resistant parts, and fuel tank bottom shell diecasting.

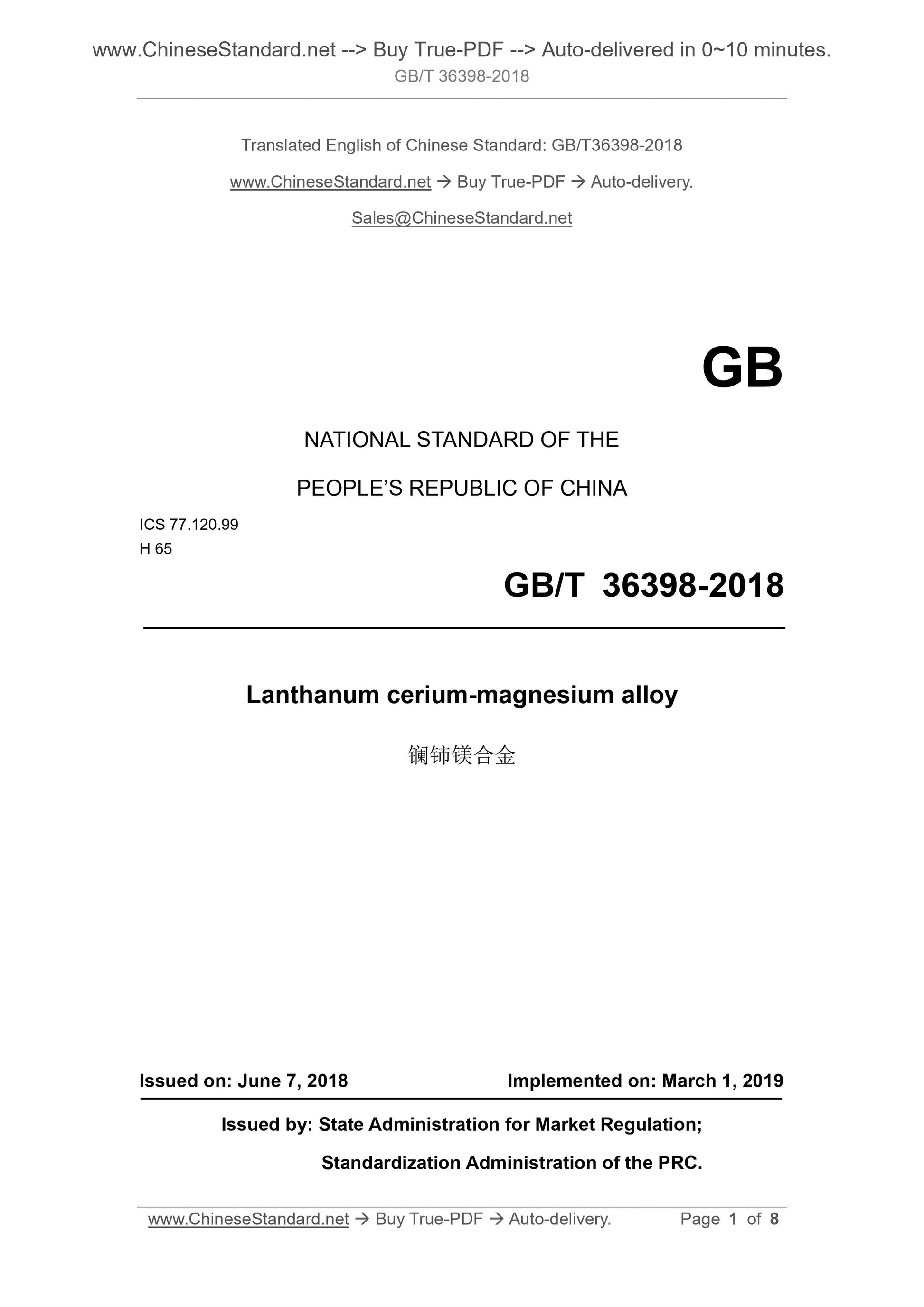

GB/T 36398-2018
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.120.99
H 65
Lanthanum cerium-magnesium alloy
ISSUED ON. JUNE 7, 2018
IMPLEMENTED ON. MARCH 1, 2019
Issued by. State Administration for Market Regulation;
Standardization Administration of the PRC.

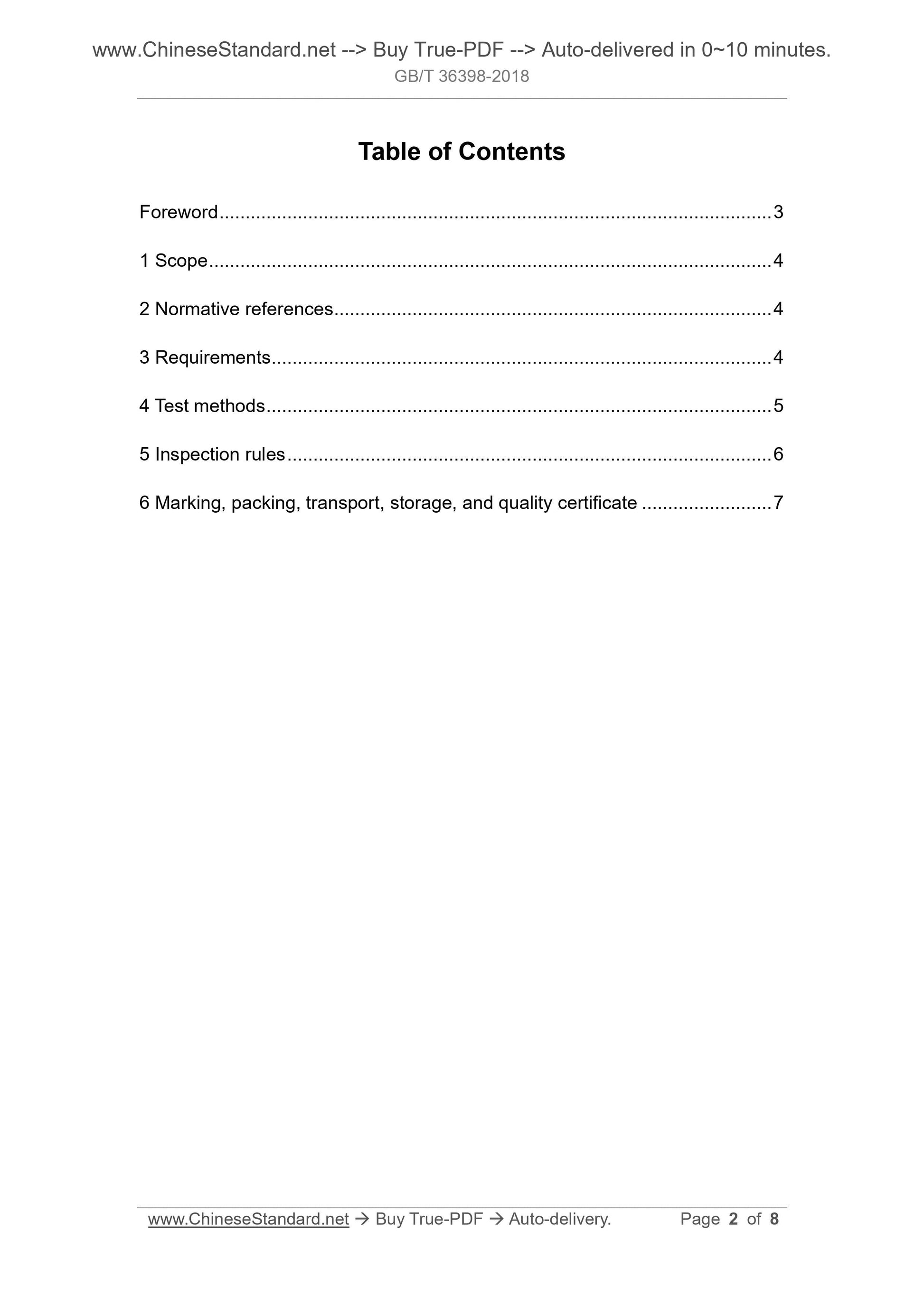

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Requirements ... 4
4 Test methods ... 5
5 Inspection rules ... 6
6 Marking, packing, transport, storage, and quality certificate ... 7

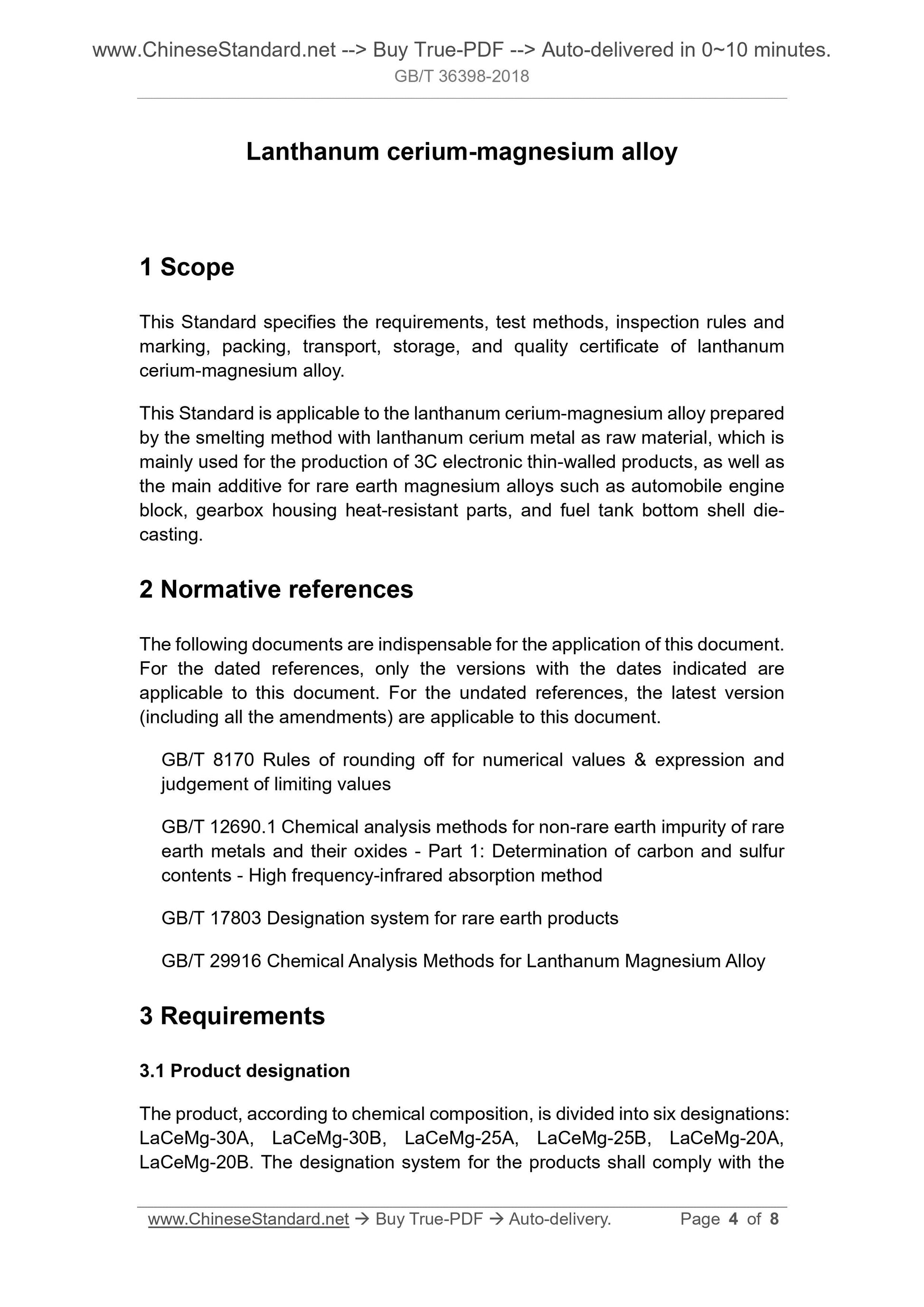

Lanthanum cerium-magnesium alloy
1 Scope
This Standard specifies the requirements, test methods, inspection rules and marking, packing, transport, storage, and quality certificate of lanthanum cerium-magnesium alloy.
This Standard is applicable to the lanthanum cerium-magnesium alloy prepared by the smelting method with lanthanum cerium metal as raw material, which is mainly used for the production of 3C electronic thin-walled products, as well as the main additive for rare earth magnesium alloys such as automobile engine block, gearbox housing heat-resistant parts, and fuel tank bottom shell die- casting.
2 Normative references
The following documents are indispensable for the application of this document. For the dated references, only the versions with the dates indicated are applicable to this document. For the undated references, the latest version (including all the amendments) are applicable to this document.
GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 12690.1 Chemical analysis methods for non-rare earth impurity of rare earth metals and their oxides - Part 1. Determination of carbon and sulfur contents - High frequency-infrared absorption method
GB/T 17803 Designation system for rare earth products
GB/T 29916 Chemical Analysis Methods for Lanthanum Magnesium Alloy
3 Requirements
3.1 Product designation
The product, according to chemical composition, is divided into six designations. LaCeMg-30A, LaCeMg-30B, LaCeMg-25A, LaCeMg-25B, LaCeMg-20A,

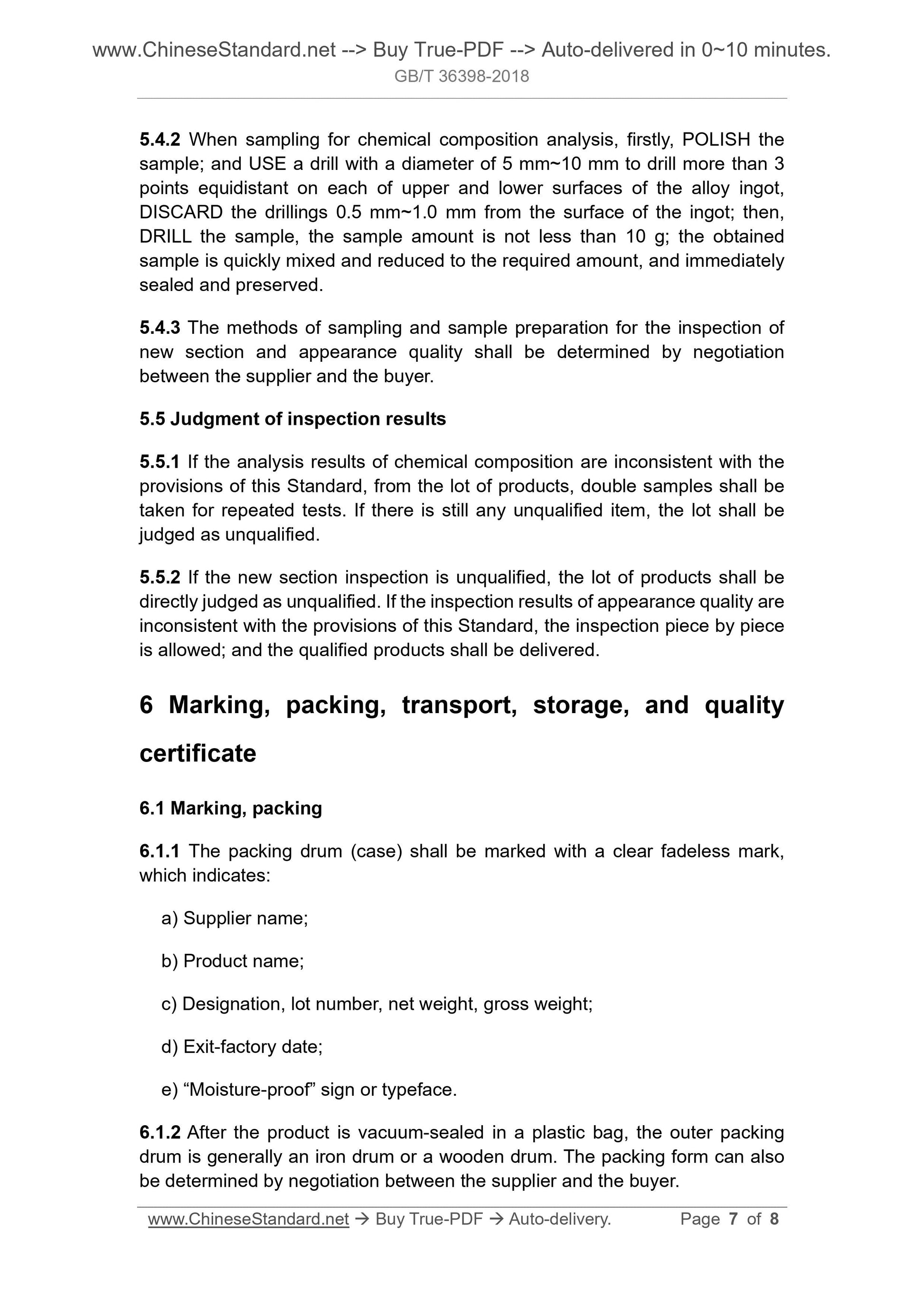

LaCeMg-20B. The designation system for the products shall comply with the 5.4.2 When sampling for chemical composition analysis, firstly, POLISH the sample; and USE a drill with a diameter of 5 mm~10 mm to drill more than 3 points equidistant on each of upper and lower surfaces of the alloy ingot, DISCARD the drillings 0.5 mm~1.0 mm from the surface of the ingot; then, DRILL the sample, the sample amount is not less than 10 g; the obtained sample is quickly mixed and reduced to the required amount, and immediately sealed and preserved.
5.4.3 The methods of sampling and sample preparation for the inspection of new section and appearance quality shall be determined by negotiation
between the supplier and the buyer.
5.5 Judgment of inspection results
5.5.1 If the analysis results of chemical composition are inconsistent with the provisions of this Standard, from the lot of products, double samples shall be taken for repeated tests. If there is still any unqualified item, the lot shall be judged as unqualified.
5.5.2 If the new section inspection is unqualified, the lot of products shall be directly judged as unqualified. If the inspection results of appearance quality are inconsistent with the provisions of this Standard, the inspection piece by piece is allowed; and the qualified products shall be delivered.
6 Marking, packing, transport, storage, and quality
certificate
6.1 Marking, packing
6.1.1 The packing drum (case) shall be marked with a clear fadeless mark, which indicates.
a) Supplier name;
b) Product name;
c) Designation, lot number, net weight, gross weight;
d) Exit-factory date;
e) ?€?Moisture-proof?€? sign or typeface.
6.1.2 After the product is vacuum-sealed in a plastic bag, the outer packing drum is generally an iron drum or a wooden drum. The packing form can also be determined by negotiation between the supplier and the buyer.
