GB/T 36287-2018: Urban rail transit -- Ground system for vehicle braking regenerative energy utilization

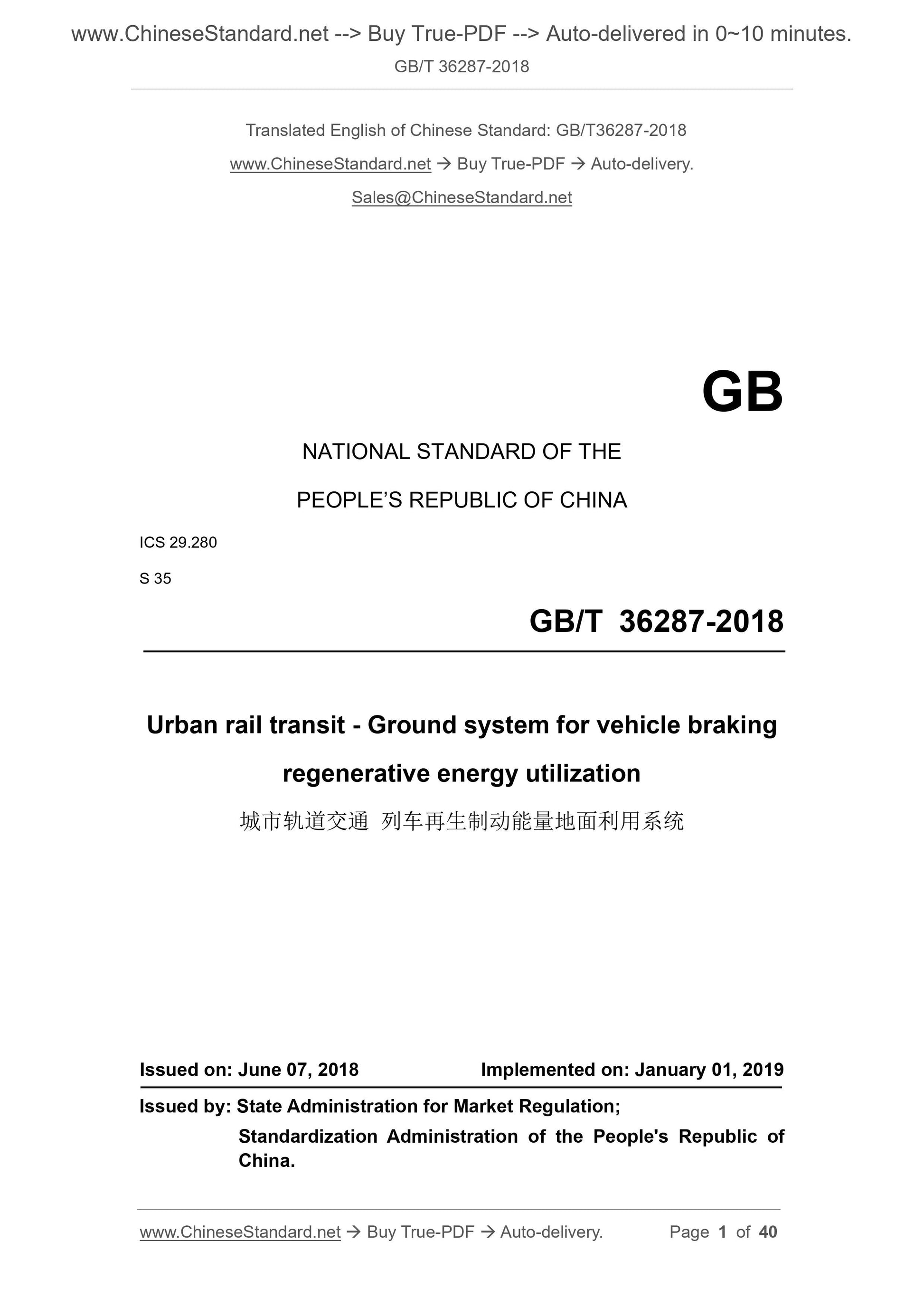

GB/T 36287-2018
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.280
S 35
Urban rail transit - Ground system for vehicle braking
regenerative energy utilization
ISSUED ON: JUNE 07, 2018
IMPLEMENTED ON: JANUARY 01, 2019
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of
China.

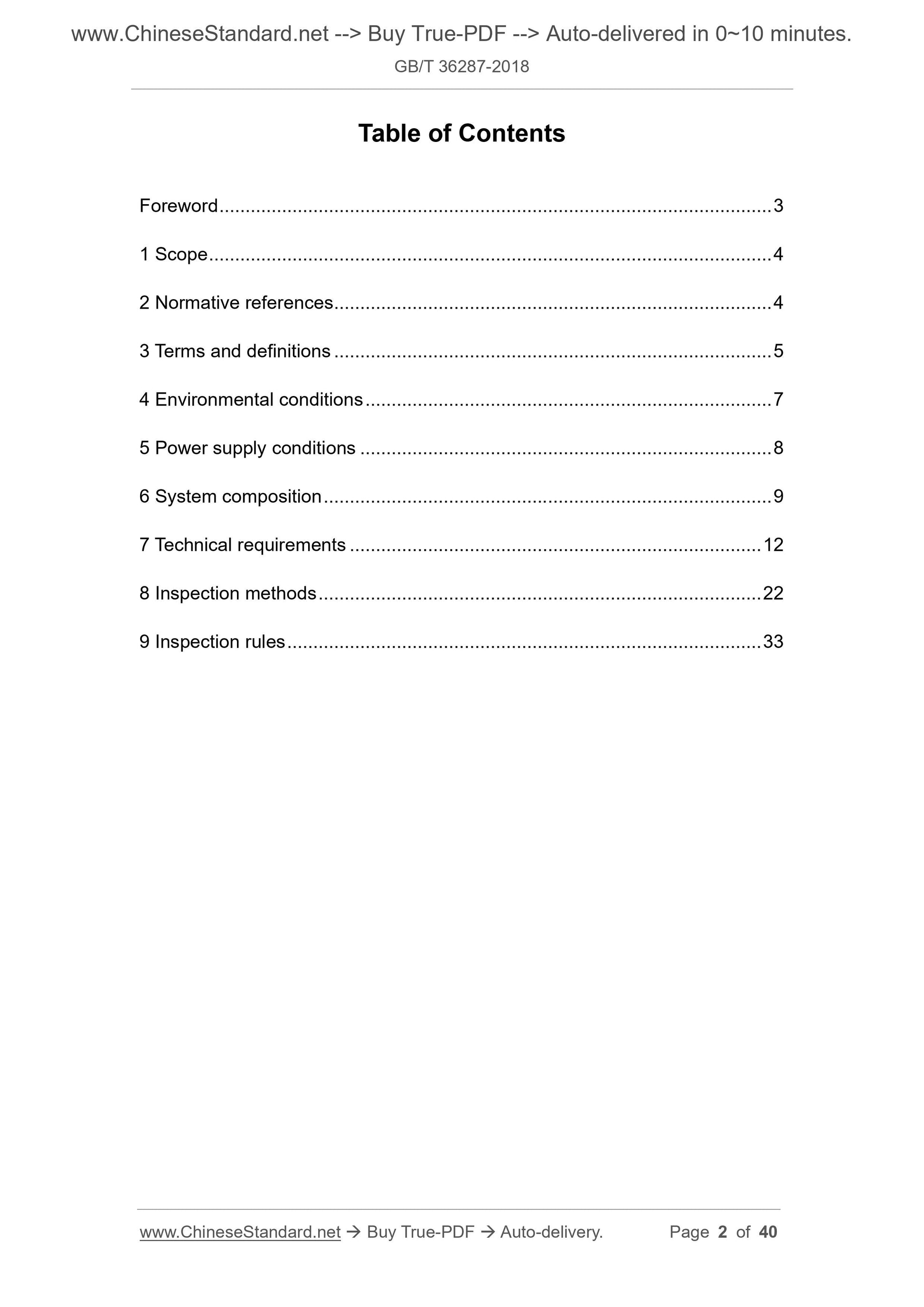

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Environmental conditions ... 7
5 Power supply conditions ... 8
6 System composition ... 9

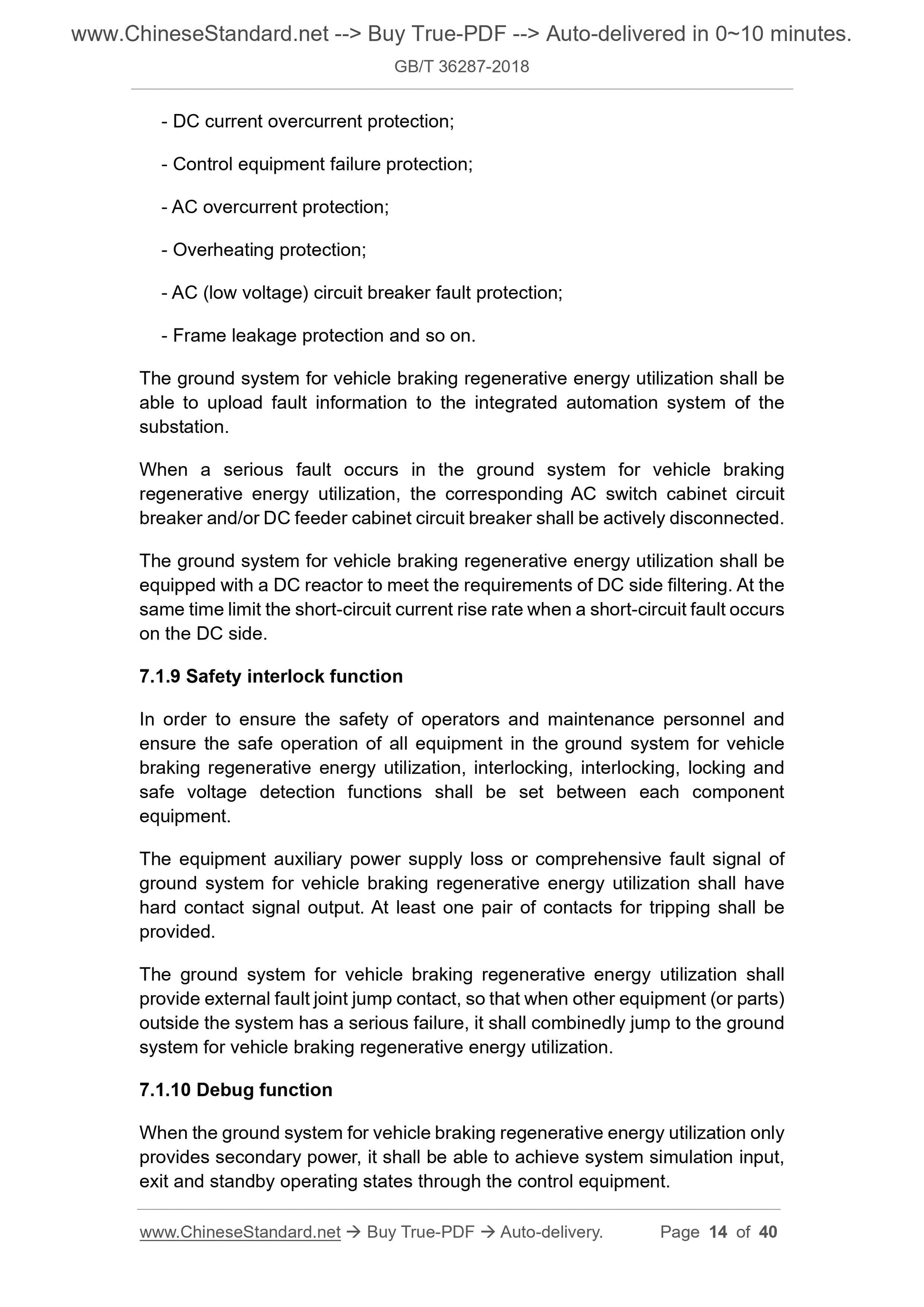

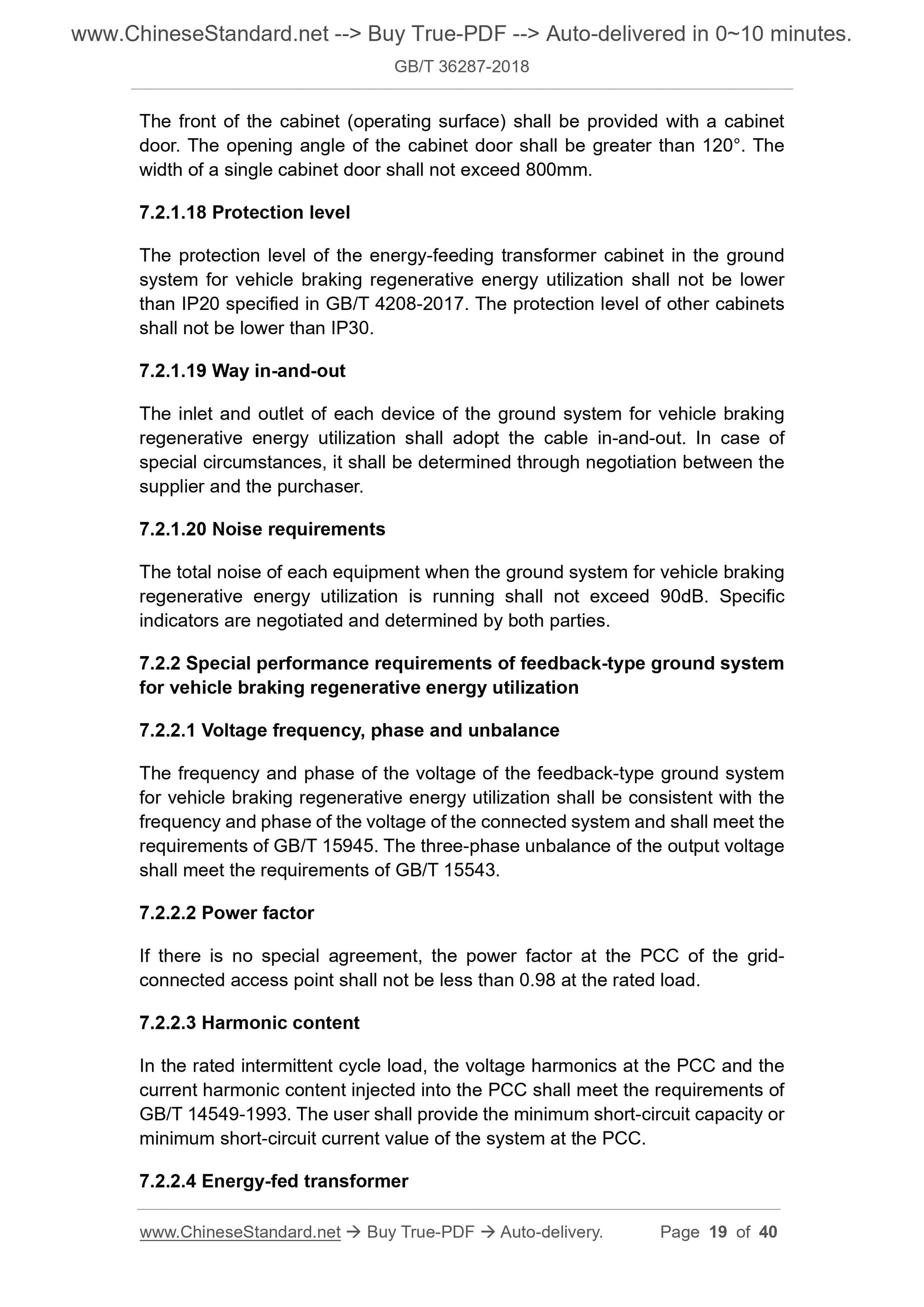

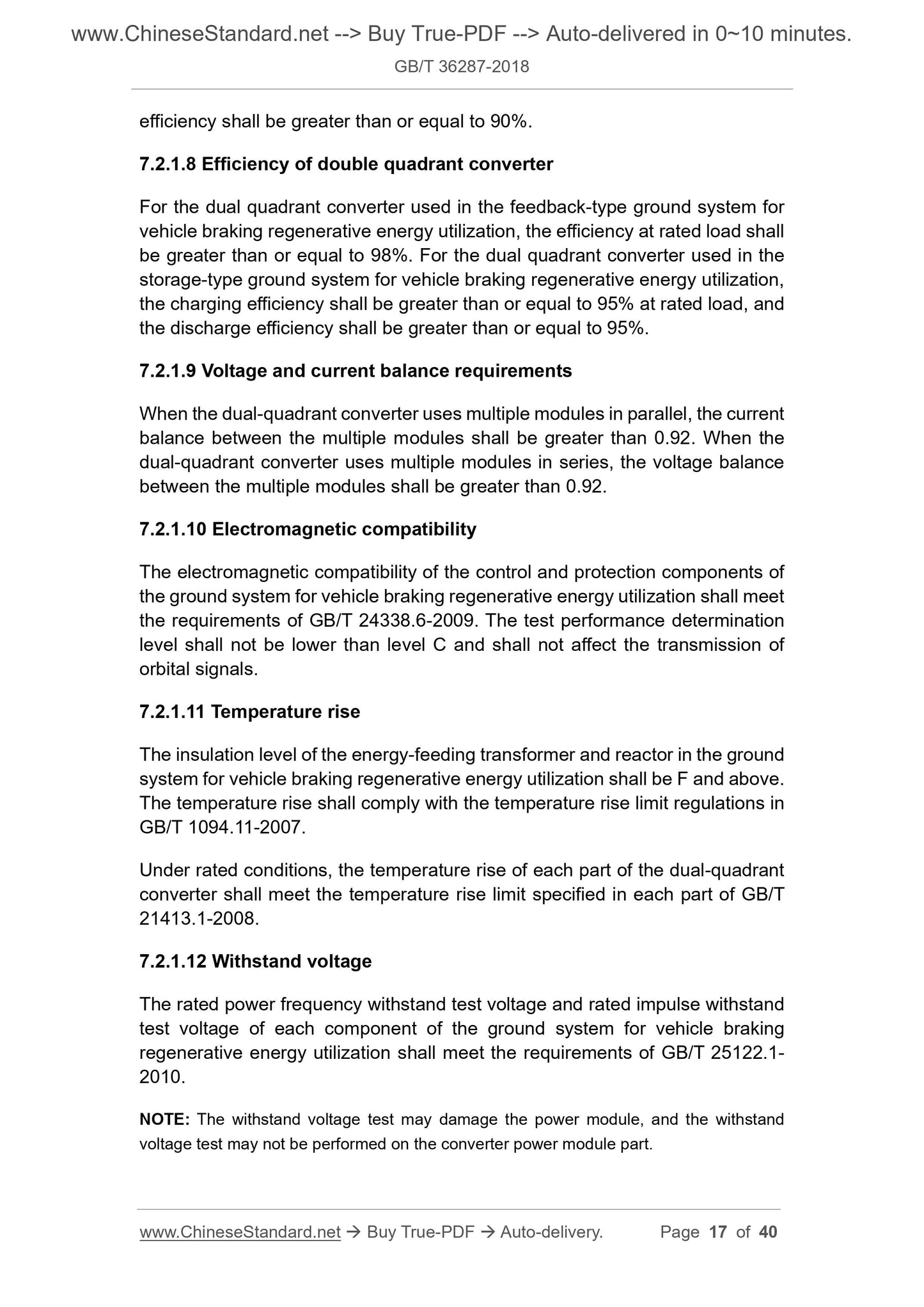

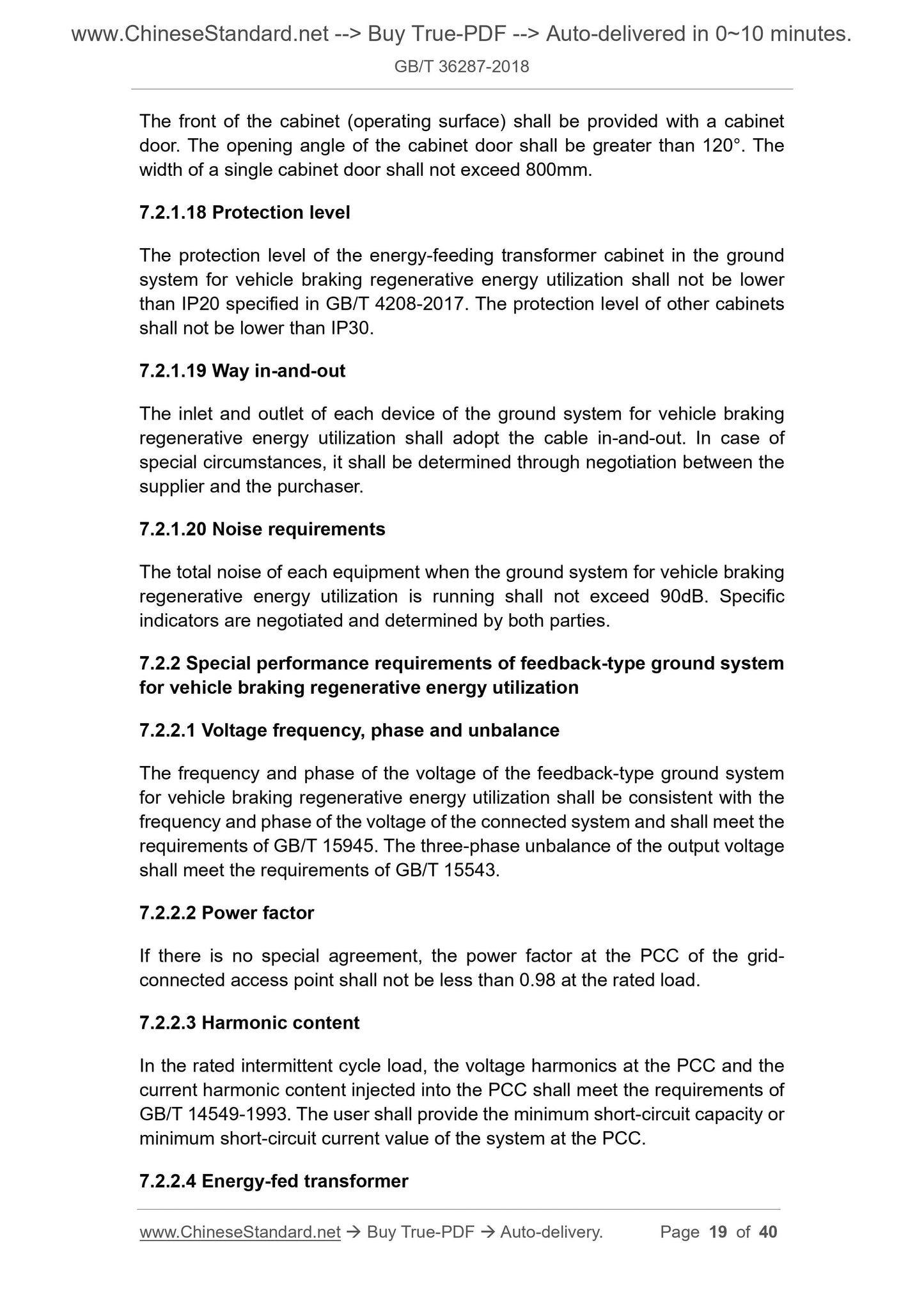

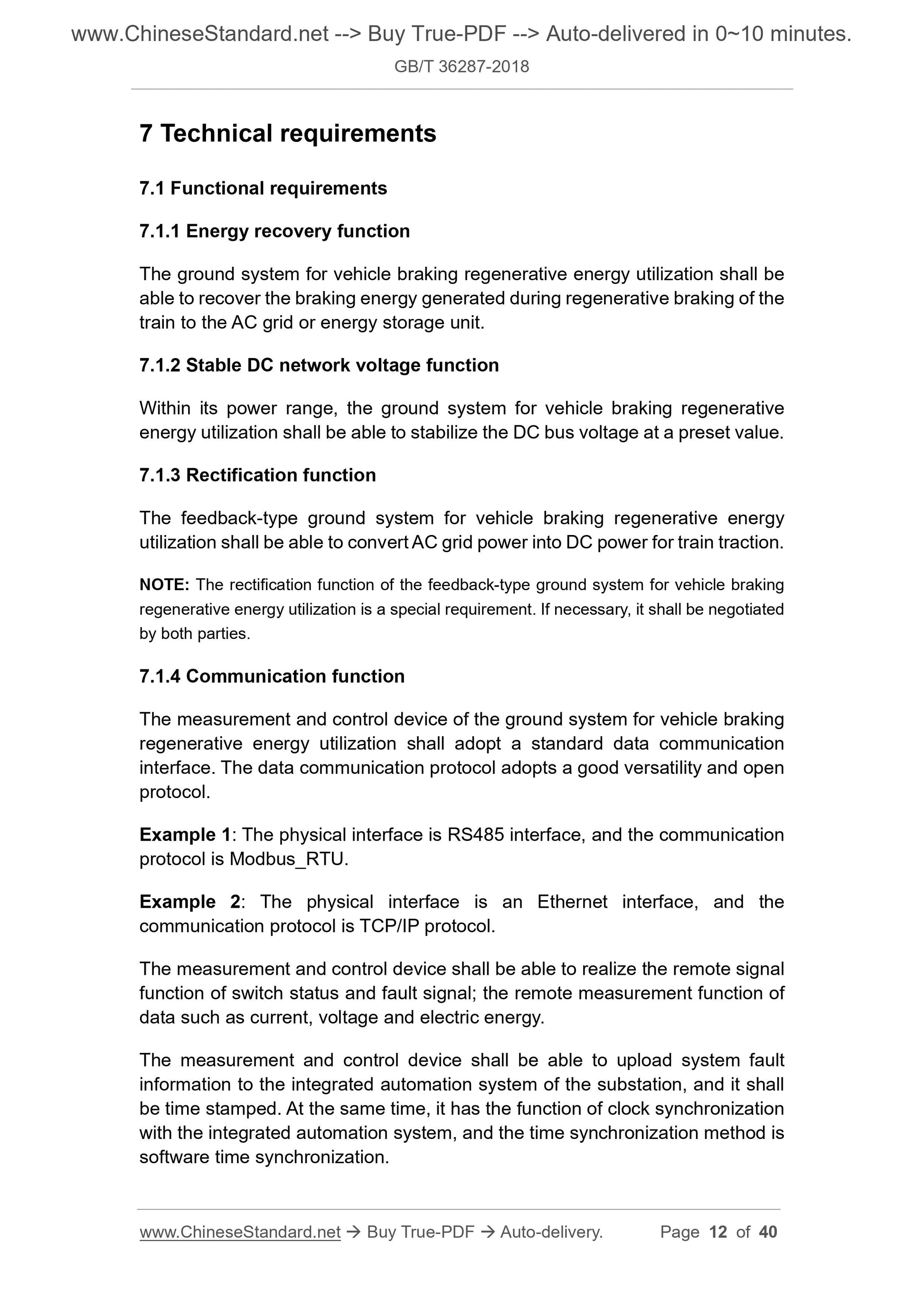

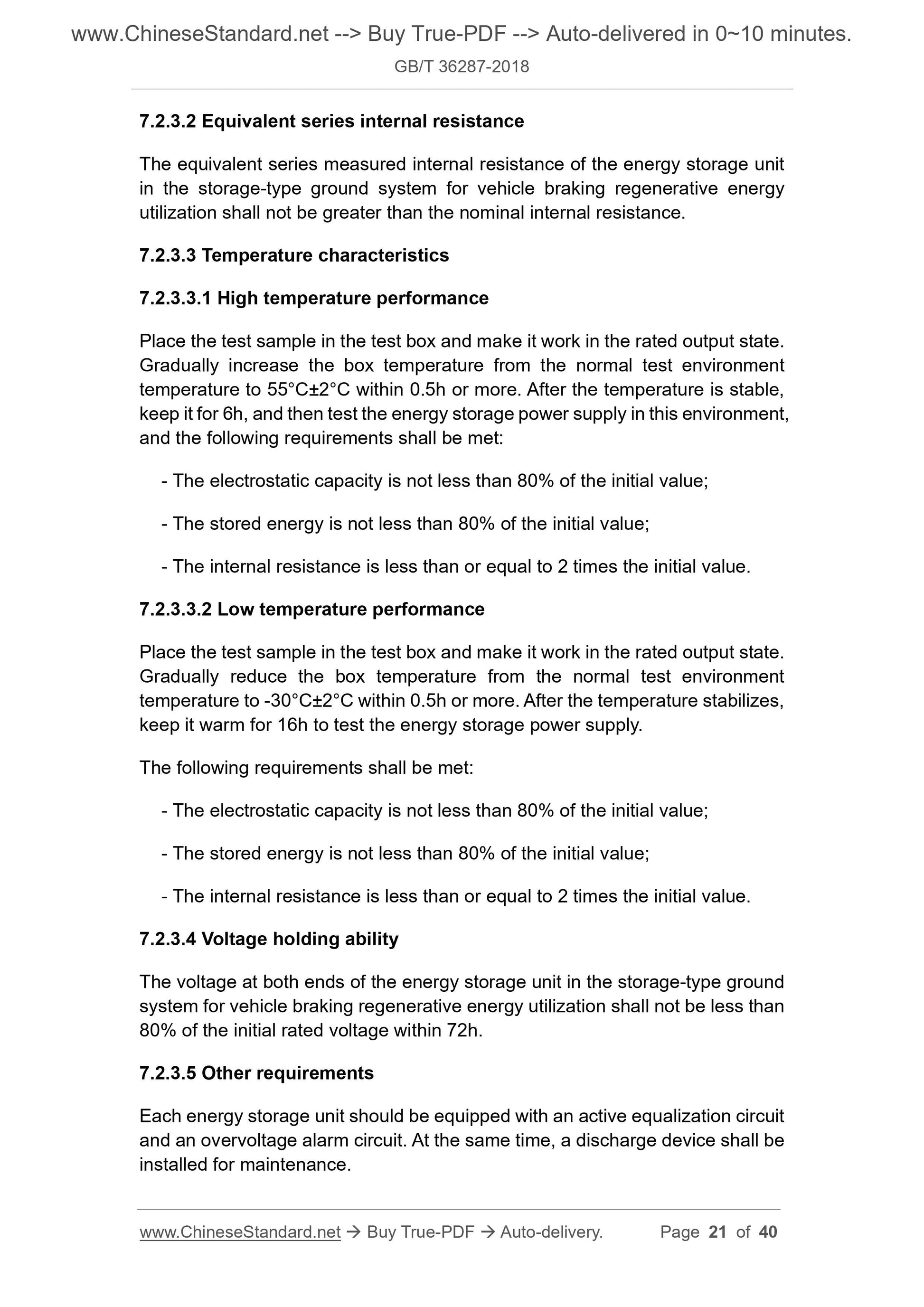

7 Technical requirements ... 12

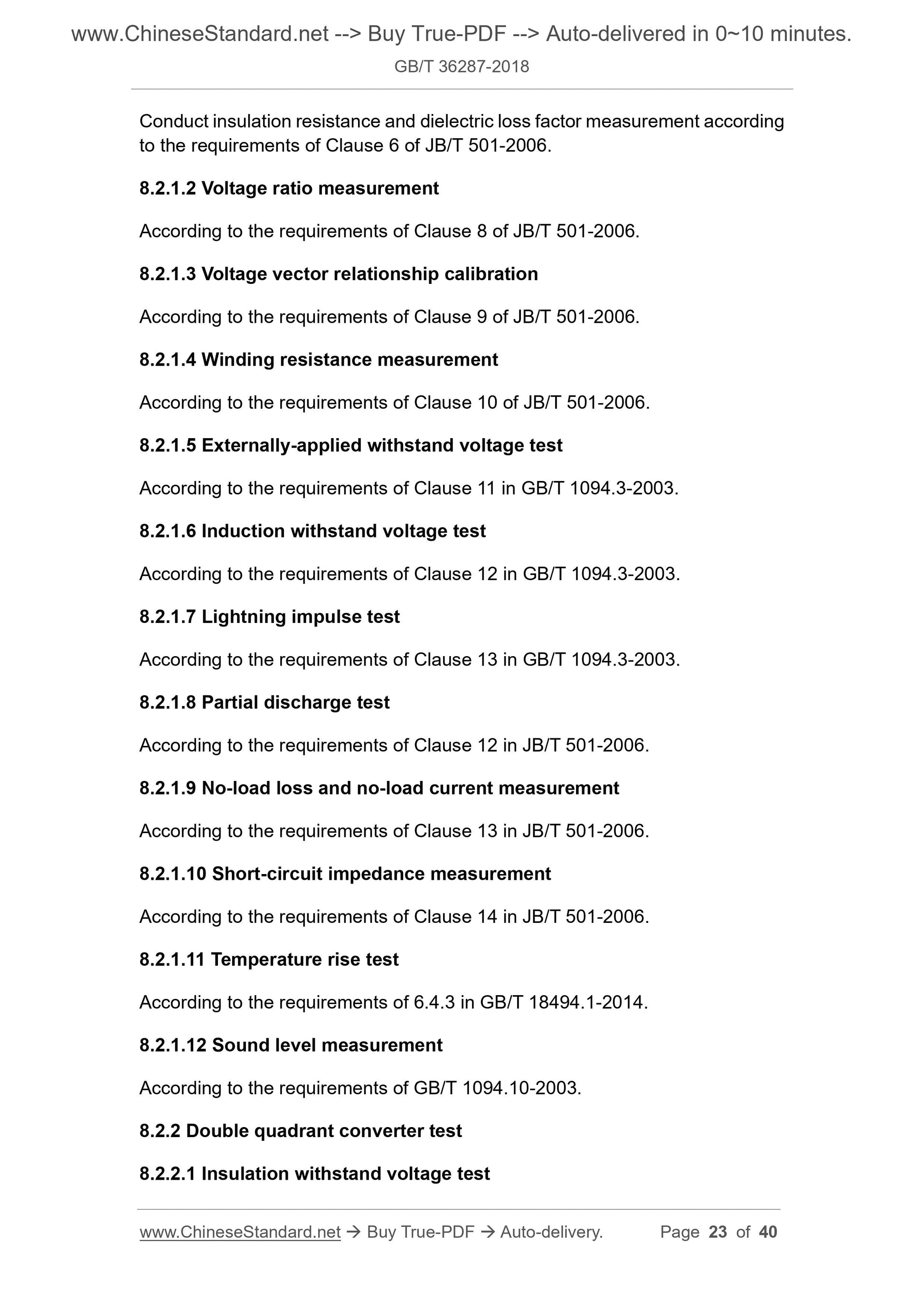

8 Inspection methods ... 22
9 Inspection rules ... 33

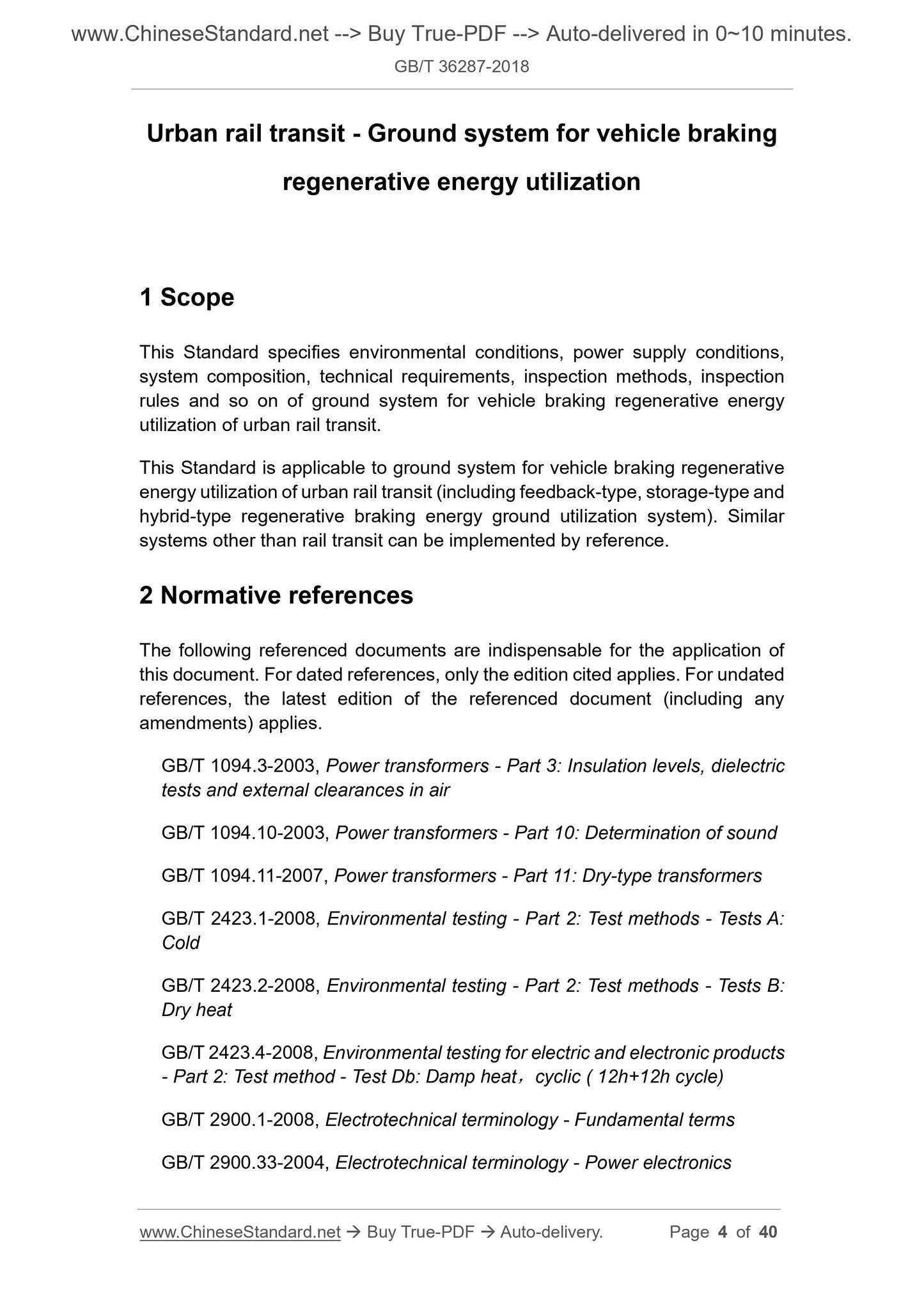

Urban rail transit - Ground system for vehicle braking
regenerative energy utilization
1 Scope
This Standard specifies environmental conditions, power supply conditions,
system composition, technical requirements, inspection methods, inspection
rules and so on of ground system for vehicle braking regenerative energy
utilization of urban rail transit.
This Standard is applicable to ground system for vehicle braking regenerative
energy utilization of urban rail transit (including feedback-type, storage-type and
hybrid-type regenerative braking energy ground utilization system). Similar
systems other than rail transit can be implemented by reference.
2 Normative references
The following referenced documents are indispensable for the application of
this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any
amendments) applies.
GB/T 1094.3-2003, Power transformers - Part 3: Insulation levels, dielectric
tests and external clearances in air
GB/T 1094.10-2003, Power transformers - Part 10: Determination of sound
GB/T 1094.11-2007, Power transformers - Part 11: Dry-type transformers
GB/T 2423.1-2008, Environmental testing - Part 2: Test methods - Tests A:
Cold
GB/T 2423.2-2008, Environmental testing - Part 2: Test methods - Tests B:
Dry heat
GB/T 2423.4-2008, Environmental testing for electric and electronic products
- Part 2: Test method - Test Db: Damp heat, cyclic ( 12h+12h cycle)
GB/T 2900.1-2008, Electrotechnical terminology - Fundamental terms
GB/T 2900.33-2004, Electrotechnical terminology - Power electronics

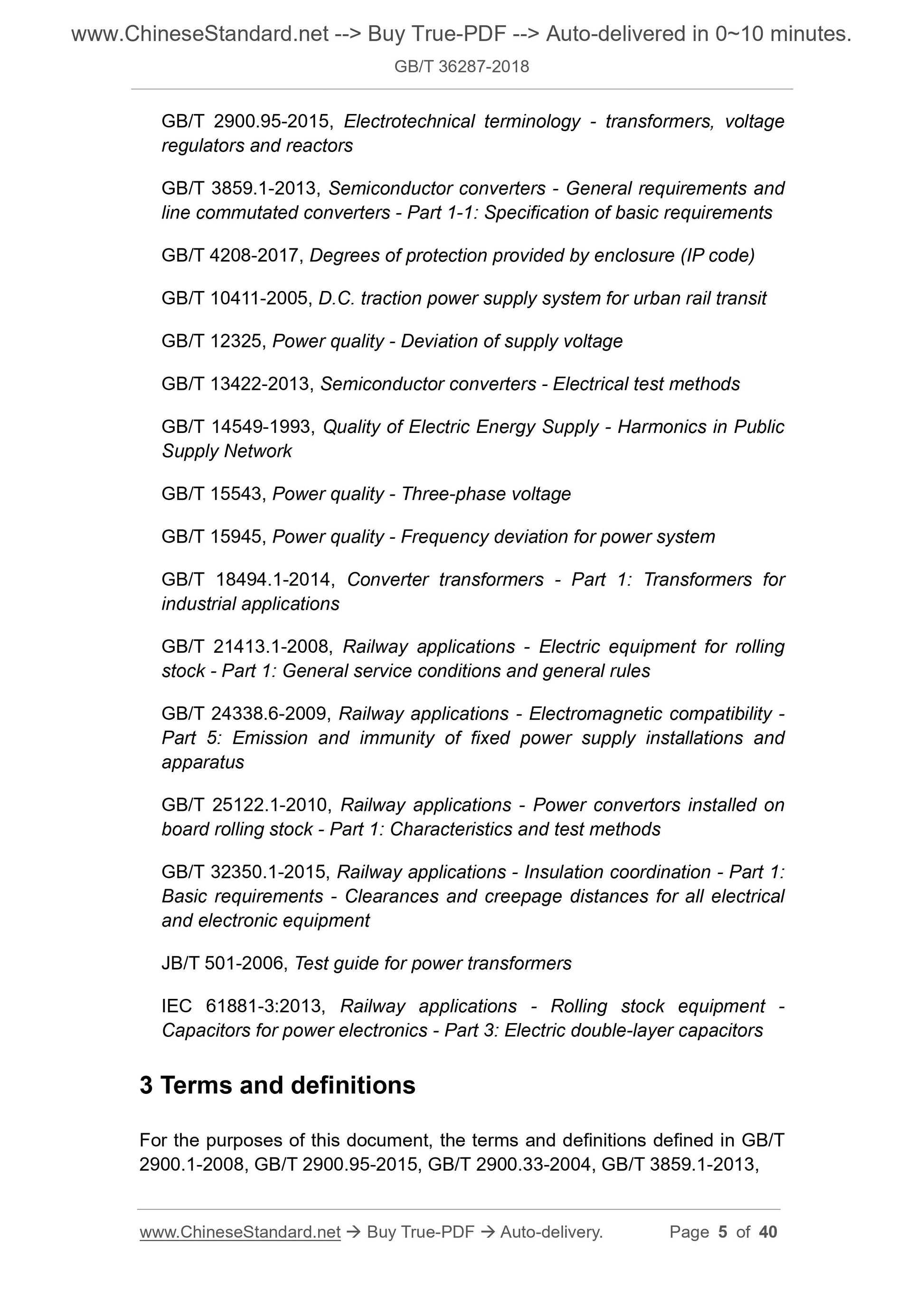

GB/T 2900.95-2015, Electrotechnical terminology - transformers, voltage
regulators and reactors
GB/T 3859.1-2013, Semiconductor converters - General requirements and
line commutated converters - Part 1-1: Specification of basic requirements
GB/T 4208-2017, Degrees of protection provided by enclosure (IP code)
GB/T 10411-2005, D.C. traction power supply system for urban rail transit
GB/T 12325, Power quality - Deviation of supply voltage
GB/T 13422-2013, Semiconductor converters - Electrical test methods
GB/T 14549-1993, Quality of Electric Energy Supply - Harmonics in Public
Supply Network
GB/T 15543, Power quality - Three-phase voltage
GB/T 15945, Power quality - Frequency deviation for power system
GB/T 18494.1-2014, Converter transformers - Part 1: Transformers for
industrial applications
GB/T 21413.1-2008, Railway applications - Electric equipment for rolling
stock - Part 1: General service conditions and general rules
GB/T 24338.6-2009, Railway applications - Electromagnetic compatibility -
Part 5: Emission and immunity of fixed power supply installations and
apparatus
GB/T 25122.1-2010, Railway applications - Power convertors installed on
board rolling stock - Part 1: Characteristics and test methods
GB/T 32350.1-2015, Railway applications - Insulation coordination - Part 1:
Basic requirements - Clearances and creepage distances for all electrical
and electronic equipment
JB/T 501-2006, Test guide for power transformers
IEC 61881-3:2013, Railway applications - Rolling stock equipment -
Capacitors for power electronics - Part 3: Electric double-layer capacitors
3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T
2900.1-2008, GB/T 2900.95-2015, GB/T 2900.33-2004, GB/T 3859.1-2013,

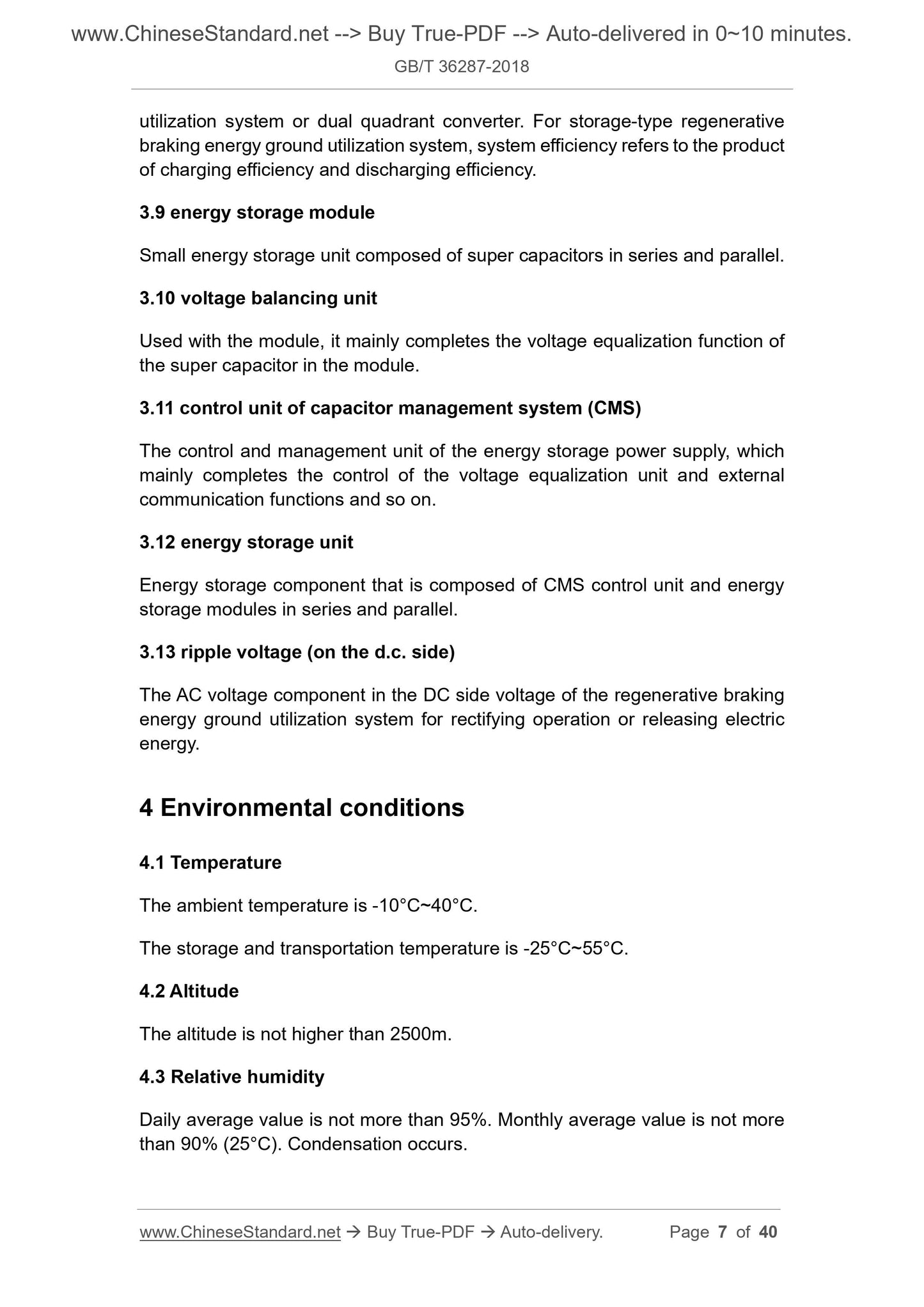

utilization system or dual quadrant converter. For storage-type regenerative
braking energy ground utilization system, system efficiency refers to the product
of charging efficiency and discharging efficiency.
3.9 energy storage module
Small energy storage unit composed of super capacitors in series and parallel.
3.10 voltage balancing unit
Used with the module, it mainly completes the voltage equalization function of
the super capacitor in the module.
3.11 control unit of capacitor management system (CMS)
The control and management unit of the energy storage power supply, which
mainly completes the control of the voltage equalization unit and external
communication functions and so on.
3.12 energy storage unit
Energy storage component that is composed of CMS control unit and energy
storage modules in series and parallel.
3.13 ripple voltage (on the d.c. side)
The AC voltage component in the DC side voltage of the regenerative braking
energy ground utilization system for rectifying operation or releasing electric
energy.
4 Environmental conditions
4.1 Temperature
The ambient temperature is -10°C~40°C.
The storage and transportation temperature is -25°C~55°C.
4.2 Altitude
The altitude is not higher than 2500m.
4.3 Relative humidity
Daily average value is not more than 95%. Monthly average value is not more
than 90% (25°C). Condensation occurs.

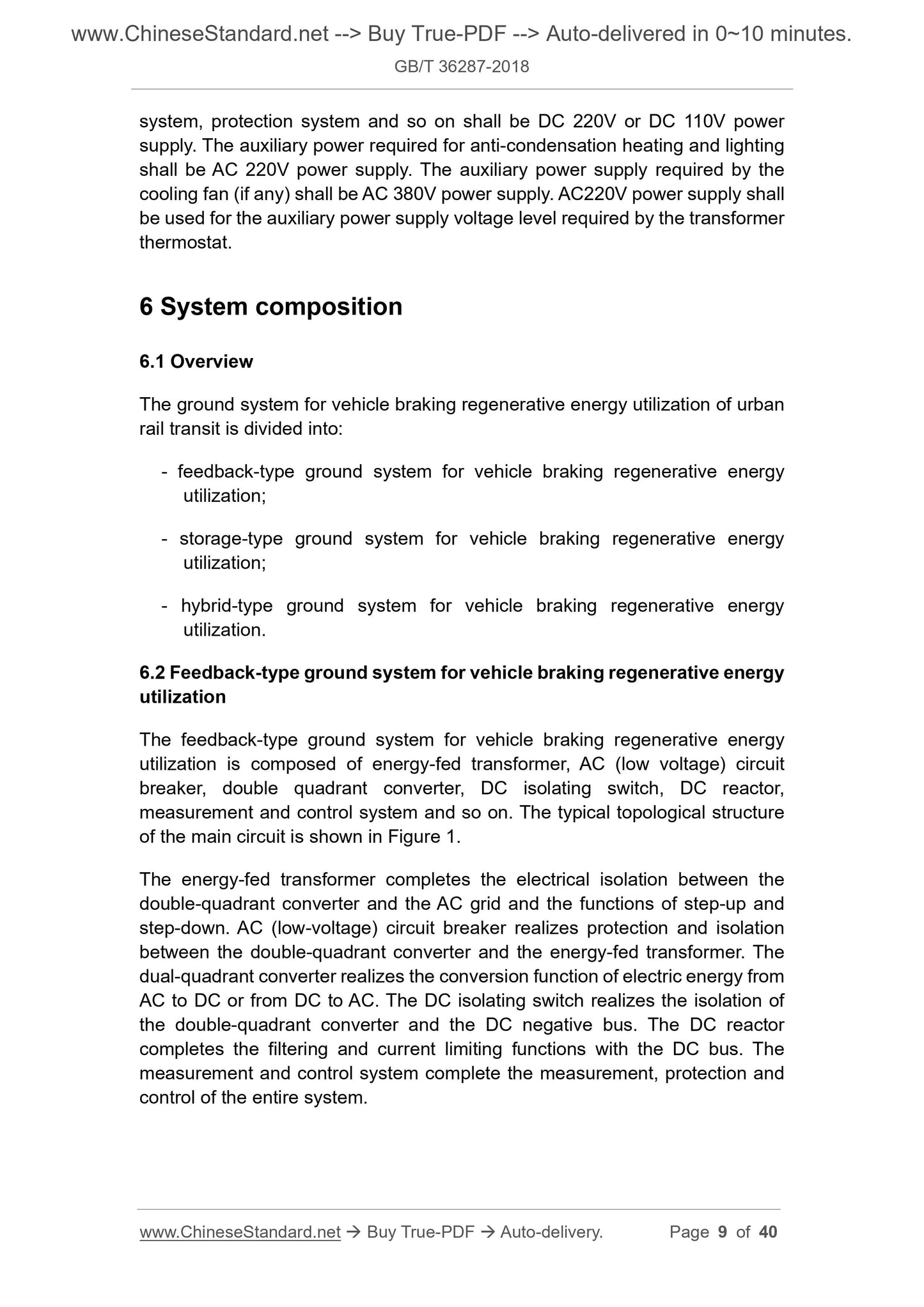

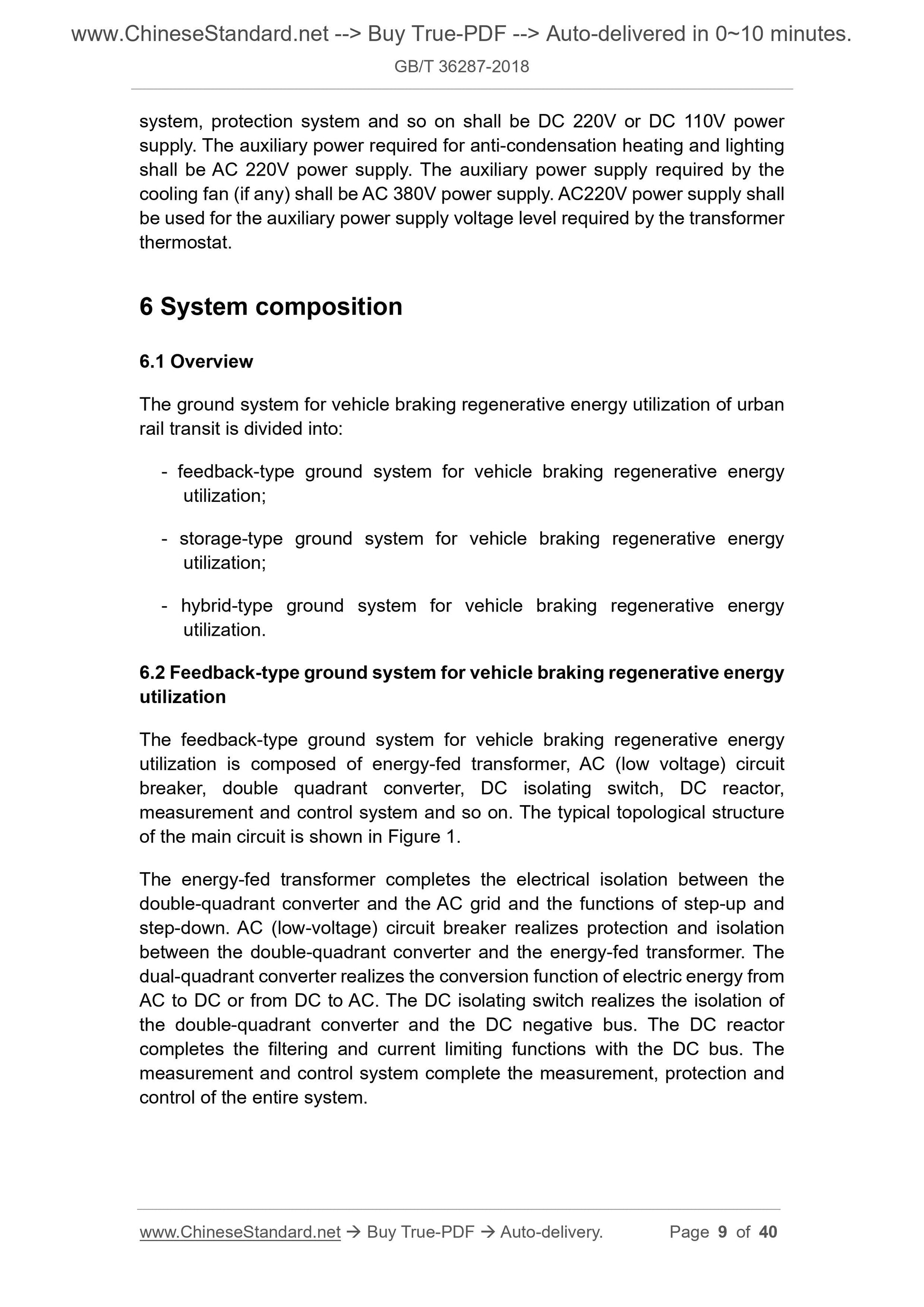

system, protection system and so on shall be DC 220V or DC 110V power
supply. The auxiliary power required for anti-condensation heating and lighting
shall be AC 220V power supply. The auxiliary power supply required by the
cooling fan (if any) shall be AC 380V power supply. AC220V power supply shall
be used for the auxiliary power supply voltage level required by the transformer
thermostat.
6 System composition
6.1 Overview
The ground system for vehicle braking regenerative energy utilization of urban
rail transit is divided into:
- feedback-type ground system for vehicle braking regenerative energy
utilization;
- storage-type ground system for vehicle braking regenerative energy
utilization;
- hybrid-type ground system for vehicle braking regenerative energy
utilization.
6.2 Feedback-type ground system for vehicle braking regenerative energy
utilization
The feedback-type ground system for vehicle braking regenerative energy
utilization is composed of energy-fed transformer, AC (low voltage) circuit
breaker, double quadrant converter, DC isolating switch, DC reactor,
measurement and control system and so on. The typical topological structure
of the main circuit is shown in Figure 1.
The energy-fed transformer completes the electrical isolation between the
double-quadrant converter and the AC grid and the functions of step-up and
step-down. AC (low-voltage) circuit breaker realizes protection and isolation
between the double-quadrant converter and the energy-fed transformer. The
dual-quadrant converter realizes the conversion function of electric energy from
AC to DC or from DC to AC. The DC isolating switch realizes the isolation of
the double-quadrant converter and the DC negative bus. The DC reactor
completes the filtering and current limiting functions with the DC bus. The
measurement and control system complete the measurement, protection and
contro...
