GB/T 36266-2018: Glass for Shower Enclosures
Delivery: 9 seconds. Download (& Email) true-PDF + Invoice.
Get Quotation: Click GB/T 36266-2018 (Self-service in 1-minute)
Historical versions (Master-website): GB/T 36266-2018
Preview True-PDF (Reload/Scroll-down if blank)

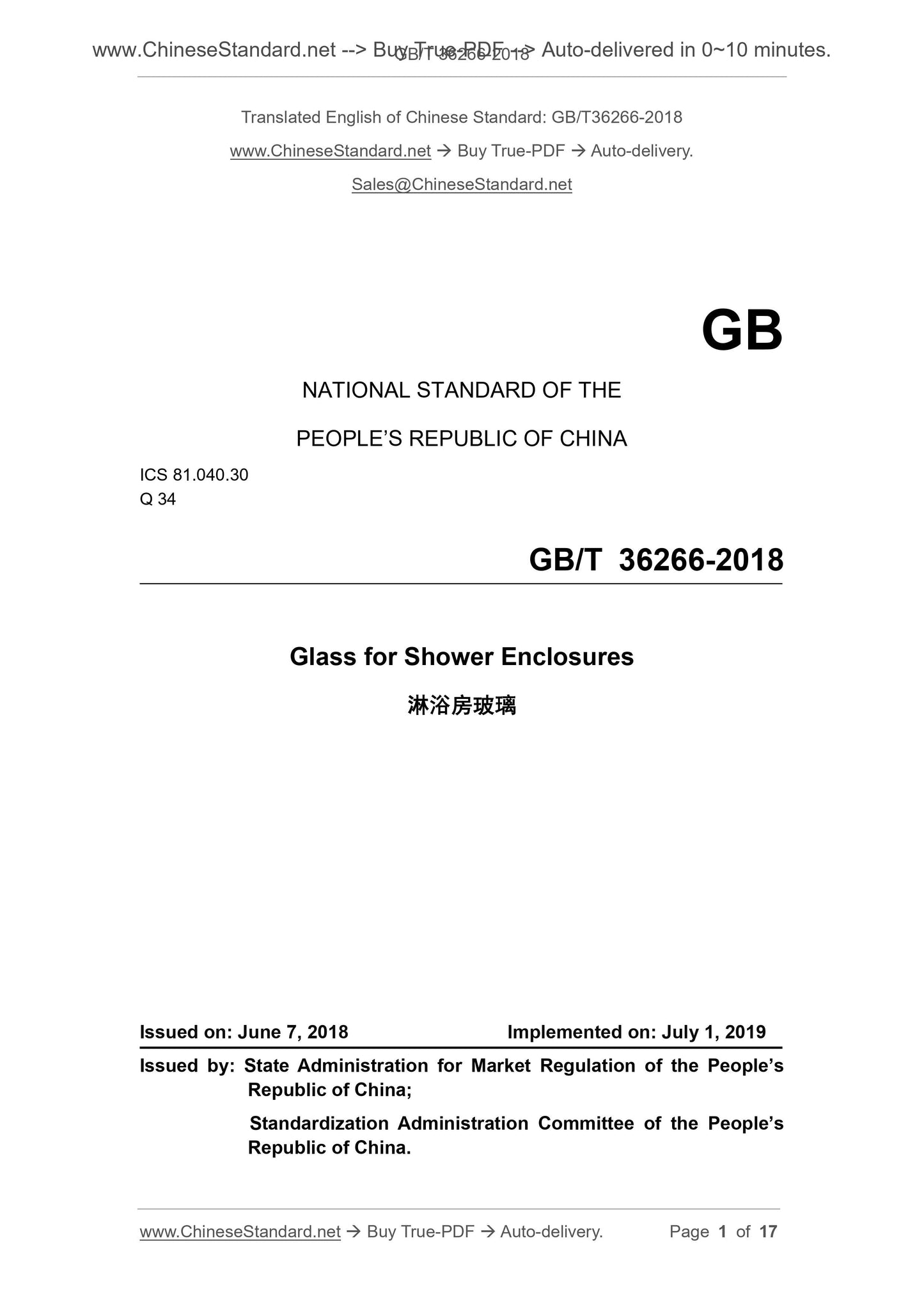

GB/T 36266-2018
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 81.040.30
Q 34
Glass for Shower Enclosures
淋浴房玻璃
ISSUED ON. JUNE 7, 2018
IMPLEMENTED ON. JULY 1, 2019
Issued by. State Administration for Market Regulation of the People’s
Republic of China;
Standardization Administration Committee of the People’s
Republic of China.

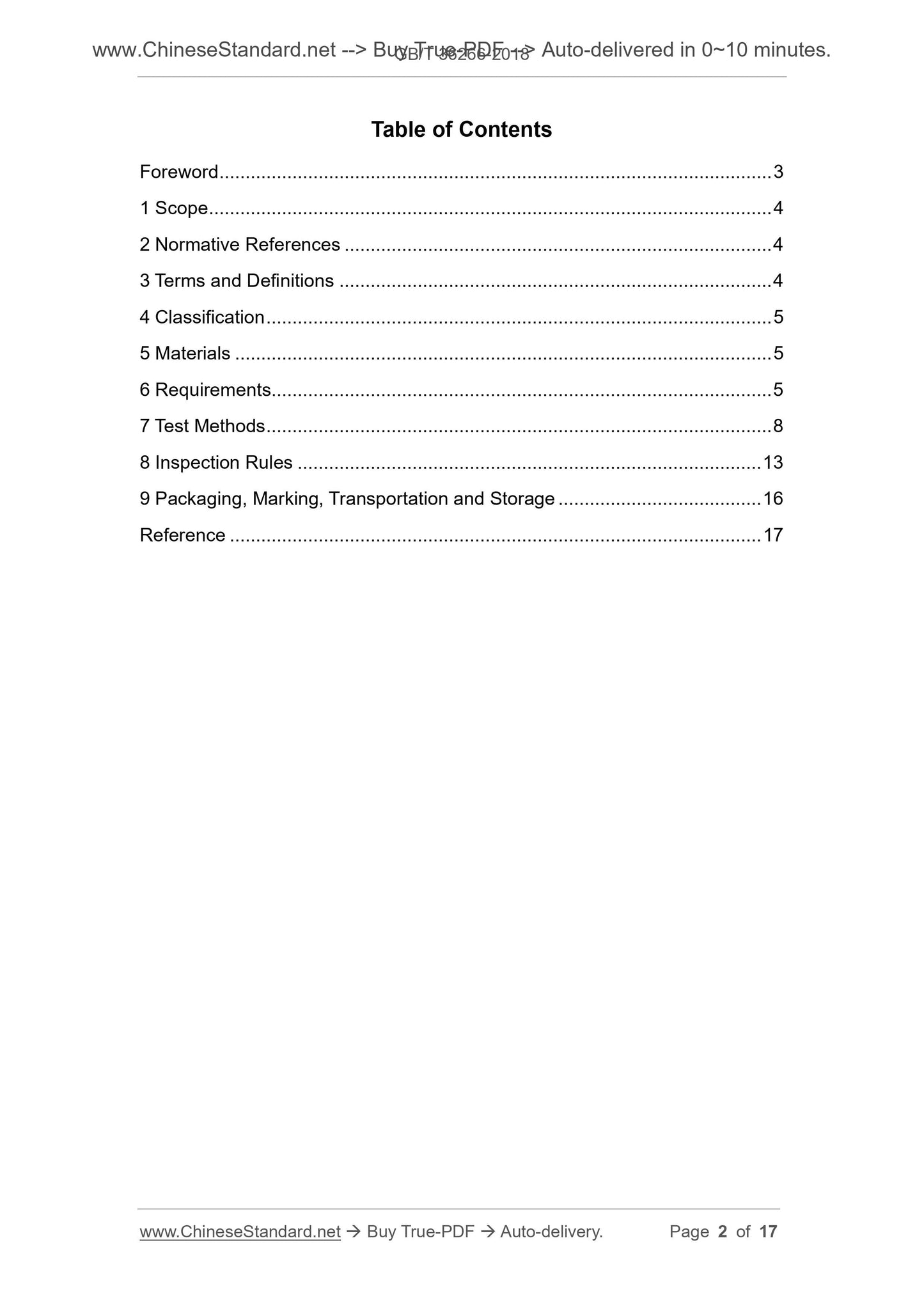

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Classification ... 5
5 Materials ... 5
6 Requirements... 5
7 Test Methods ... 8
8 Inspection Rules ... 13
9 Packaging, Marking, Transportation and Storage ... 16
Reference ... 17

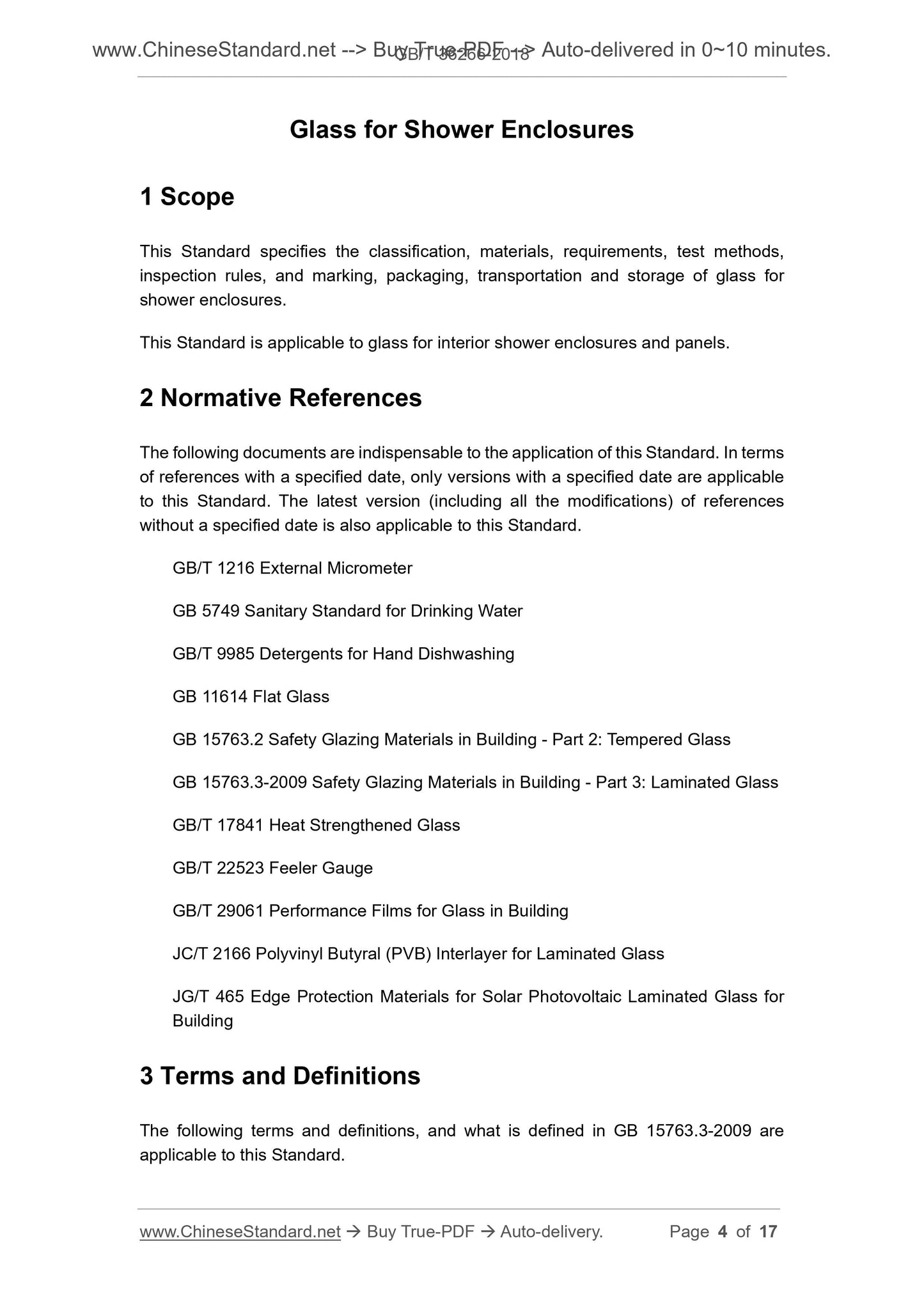

Glass for Shower Enclosures
1 Scope
This Standard specifies the classification, materials, requirements, test methods,
inspection rules, and marking, packaging, transportation and storage of glass for
shower enclosures.
This Standard is applicable to glass for interior shower enclosures and panels.
2 Normative References
The following documents are indispensable to the application of this Standard. In terms
of references with a specified date, only versions with a specified date are applicable
to this Standard. The latest version (including all the modifications) of references
without a specified date is also applicable to this Standard.
GB/T 1216 External Micrometer
GB 5749 Sanitary Standard for Drinking Water
GB/T 9985 Detergents for Hand Dishwashing
GB 11614 Flat Glass
GB 15763.2 Safety Glazing Materials in Building - Part 2. Tempered Glass
GB 15763.3-2009 Safety Glazing Materials in Building - Part 3. Laminated Glass
GB/T 17841 Heat Strengthened Glass
GB/T 22523 Feeler Gauge
GB/T 29061 Performance Films for Glass in Building
JC/T 2166 Polyvinyl Butyral (PVB) Interlayer for Laminated Glass
JG/T 465 Edge Protection Materials for Solar Photovoltaic Laminated Glass for
Building
3 Terms and Definitions
The following terms and definitions, and what is defined in GB 15763.3-2009 are
applicable to this Standard.

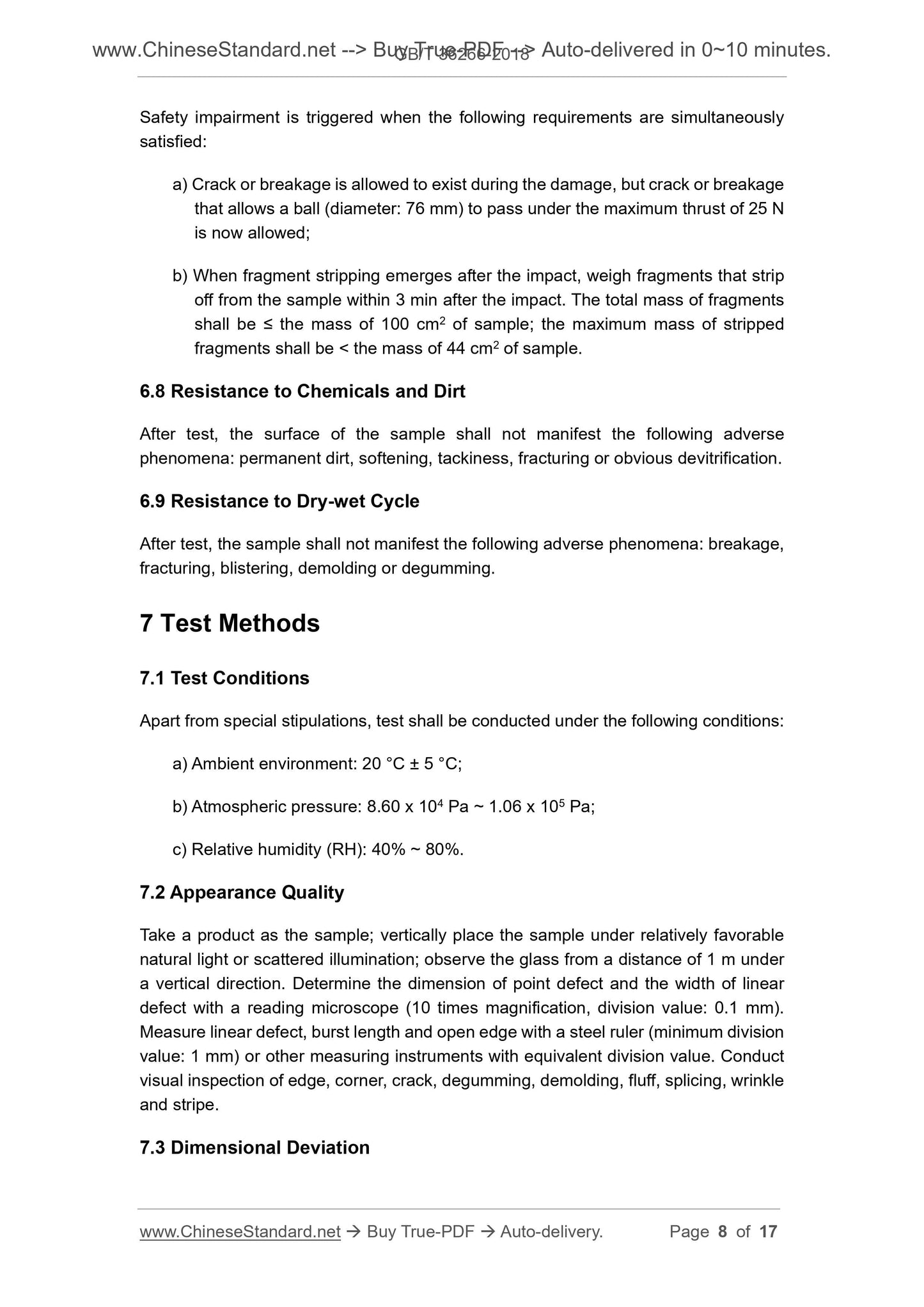

Safety impairment is triggered when the following requirements are simultaneously
satisfied.
a) Crack or breakage is allowed to exist during the damage, but crack or breakage
that allows a ball (diameter. 76 mm) to pass under the maximum thrust of 25 N
is now allowed;
b) When fragment stripping emerges after the impact, weigh fragments that strip
off from the sample within 3 min after the impact. The total mass of fragments
shall be ≤ the mass of 100 cm2 of sample; the maximum mass of stripped
fragments shall be < the mass of 44 cm2 of sample.
6.8 Resistance to Chemicals and Dirt
After test, the surface of the sample shall not manifest the following adverse
phenomena. permanent dirt, softening, tackiness, fracturing or obvious devitrification.
6.9 Resistance to Dry-wet Cycle
After test, the sample shall not manifest the following adverse phenomena. breakage,
fracturing, blistering, demolding or degumming.
7 Test Methods
7.1 Test Conditions
Apart from special stipulations, test shall be conducted under the following conditions.
a) Ambient environment. 20 °C ± 5 °C;
b) Atmospheric pressure. 8.60 x 104 Pa ~ 1.06 x 105 Pa;
c) Relative humidity (RH). 40% ~ 80%.
7.2 Appearance Quality
Take a product as the sample; vertically place the sample under relatively favorable
natural light or scattered illumination; observe the glass from a distance of 1 m under
a vertical direction. Determine the dimension of point defect and the width of linear
defect with a reading microscope (10 times magnification, division value. 0.1 mm).
Measure linear defect, burst length and open edge with a steel ruler (minimum division
value. 1 mm) or other measuring instruments with equivalent division value. Conduct
visual inspection of edge, corner, crack, degumming, demolding, fluff, splicing, wrinkle
and stripe.
7.3 Dimensional Deviation

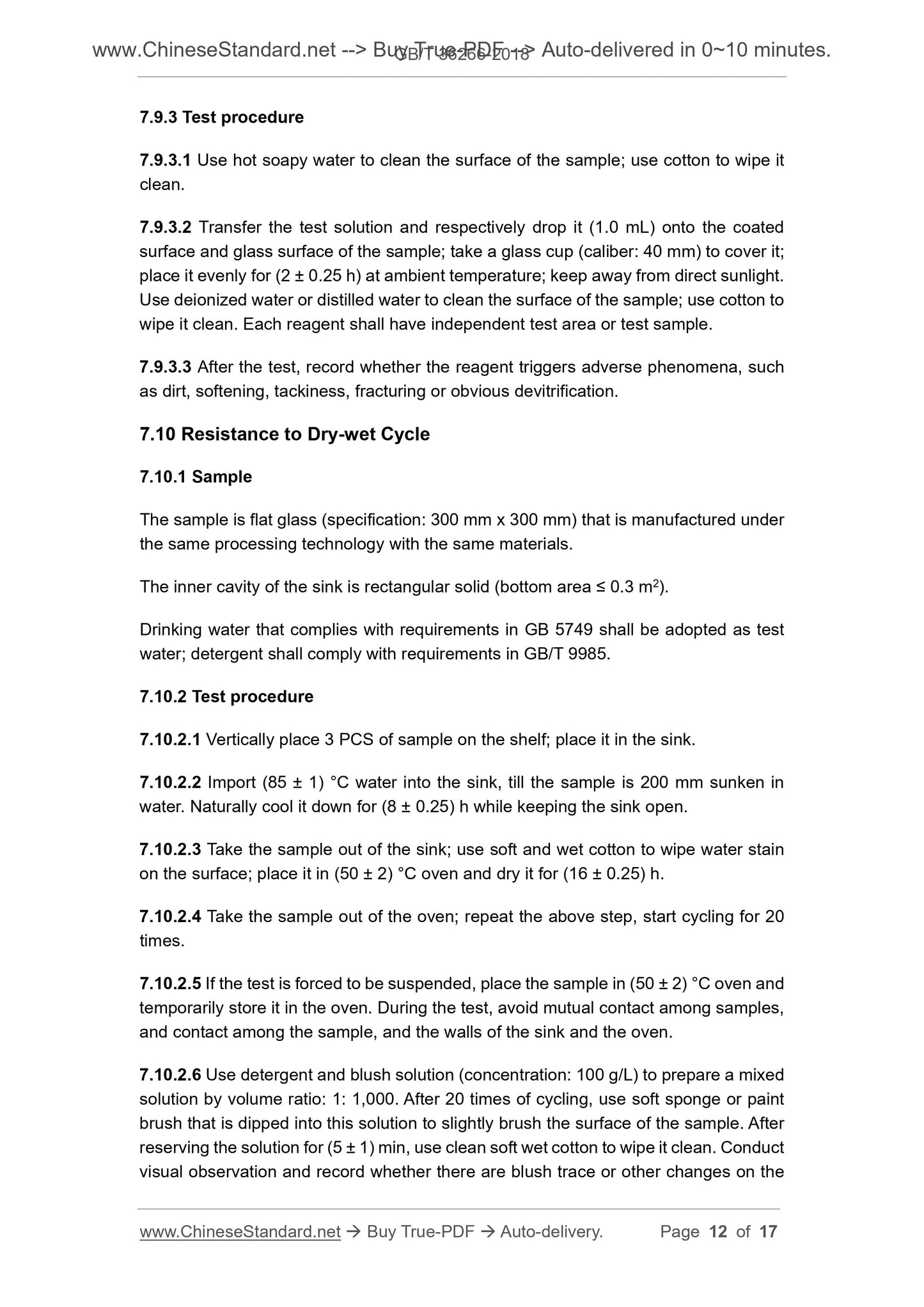

7.9.3 Test procedure
7.9.3.1 Use hot soapy water to clean the surface of the sample; use cotton to wipe it
clean.
7.9.3.2 Transfer the test solution and respectively drop it (1.0 mL) onto the coated
surface and glass surface of the sample; take a glass cup (caliber. 40 mm) to cover it;
place it evenly for (2 ± 0.25 h) at ambient temperature; keep away from direct sunlight.
Use deionized water or distilled water to clean the surface of the sample; use cotton to
wipe it clean. Each reagent shall have independent test area or test sample.
7.9.3.3 After the test, record whether the reagent triggers adverse phenomena, such
as dirt, softening, tackiness, fracturing or obvious devitrification.
7.10 Resistance to Dry-wet Cycle
7.10.1 Sample
The sample is flat glass (specification. 300 mm x 300 mm) that is manufactured under
the same processing technology with the same materials.
The inner cavity of the sink is rectangular solid (bottom area ≤ 0.3 m2).
Drinking water that complies with requirements in GB 5749 shall be adopted as test
water; detergent shall comply with requirements in GB/T 9985.
7.10.2 Test procedure
7.10.2.1 Vertically place 3 PCS of sample on the shelf; place it in the sink.
7.10.2.2 Import (85 ± 1) °C water into the sink, till the sample is 200 mm sunken in
water. Naturally cool it down for (8 ± 0.25) h while keeping the sink open.
7.10.2.3 Take the sample out of the sink; use soft and wet cotton to wipe water stain
on the surface; place it in (50 ± 2) °C oven and dry it for (16 ± 0.25) h.
7.10.2.4 Take the sample out of the oven; repeat the above step, start cycling for 20
times.
7.10.2.5 If the test is forced to be suspended, place the sample in (50 ± 2) °C oven and
temporarily store it in the oven. During the test, avoid mutual contact among samples,
and contact among the sample, and the walls of the sink and the oven.
7.10.2.6 Use detergent and blush solution (concentration. 100 g/L) to prepare a mixed
solution by volume ratio. 1. 1,000. After 20 times of cycling, use soft sponge or paint
brush that is dipped into this solution to slightly brush the surface of the sample. After
reserving the solution for (5 ± 1) min, use clean soft wet cotton to wipe it clean. Conduct
visual observation and record whether there are blush trace or other changes on the

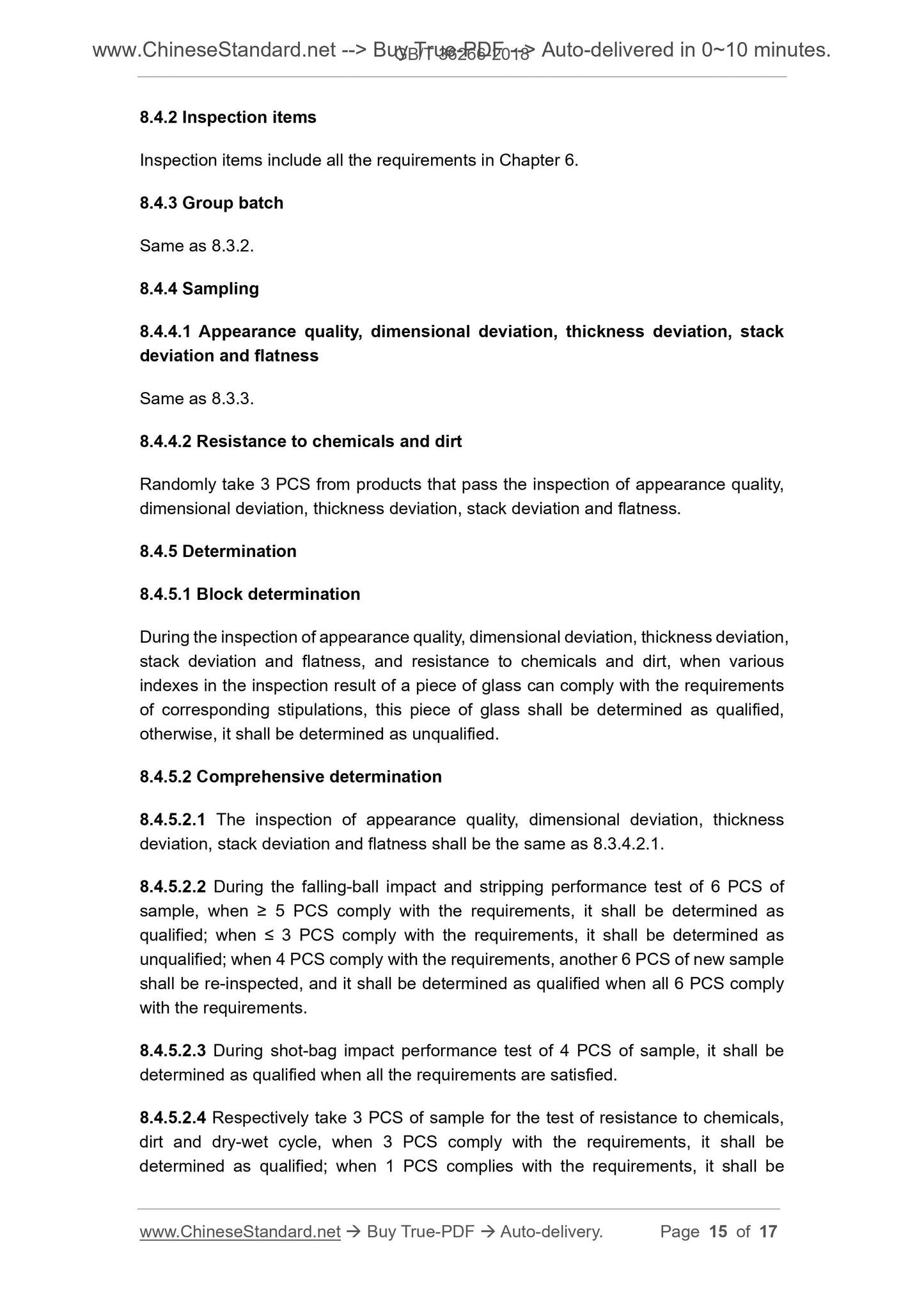

8.4.2 Inspection items
Inspection items include all the requirements in Chapter 6.
8.4.3 Group batch
Same as 8.3.2.
8.4.4 Sampling
8.4.4.1 Appearance quality, dimensional deviation, thickness deviation, stack
deviation and flatness
Same as 8.3.3.
8.4.4.2 Resistance to chemicals and dirt
Randomly take 3 PCS from products that pass the inspection of appearance quality,
dimensional deviation, thickness deviation, stack deviation and flatness.
8.4.5 Determination
8.4.5.1 Block determination
During the inspection of appearance quality, dimensional deviation, thickness deviation,
stack deviation and flatness, and resistance to chemicals and dirt, when various
indexes in the inspection result of a piece of glass can comply with the requirements
of corresponding stipulations, this piece of glass shall be determined as qualified,
otherwise, it shall be determined as unqualified.
8.4.5.2 Comprehensive determination
8.4.5.2.1 The inspection of appearance quality, dimensional deviation, thickness
deviation, stack deviation and flatness shall be the same as 8.3.4.2.1.
8.4.5.2.2 During the falling-ball impact and stripping performance test of 6 PCS of
sample, when ≥ 5 PCS comply with the requirements, it shall be determined as
qualified; when ≤ 3 PCS comply with the requirements, it shall be determined as
unqualified; when 4 PCS comply with the requirements, another 6 PCS of new sample
shall be re-inspected, and it shall be determined as qualified when all 6 PCS comply
with the requirements.
8.4.5.2.3 During shot-bag impact performance test of 4 PCS of sample, it shall be
determined as qualified when all the requirements are satisfied.
8.4.5.2.4 Respectively take 3 PCS of sample for the test of resistance to chemicals,
dirt and dry-wet cycle, when 3 PCS comply with the requirements, it shall be
determined as qualified; when 1 PCS complies with the requirements, it shall be
