GB/T 36249-2018: Model based aviation equipment research and development -- Technical data package

This Standard specifies the contents, organization and requirements for the technical data package of the model-based aviation equipment research and development product. This Standard is applicable to the creation and management of the technical data package for the aviation equipment research and development enterprise.

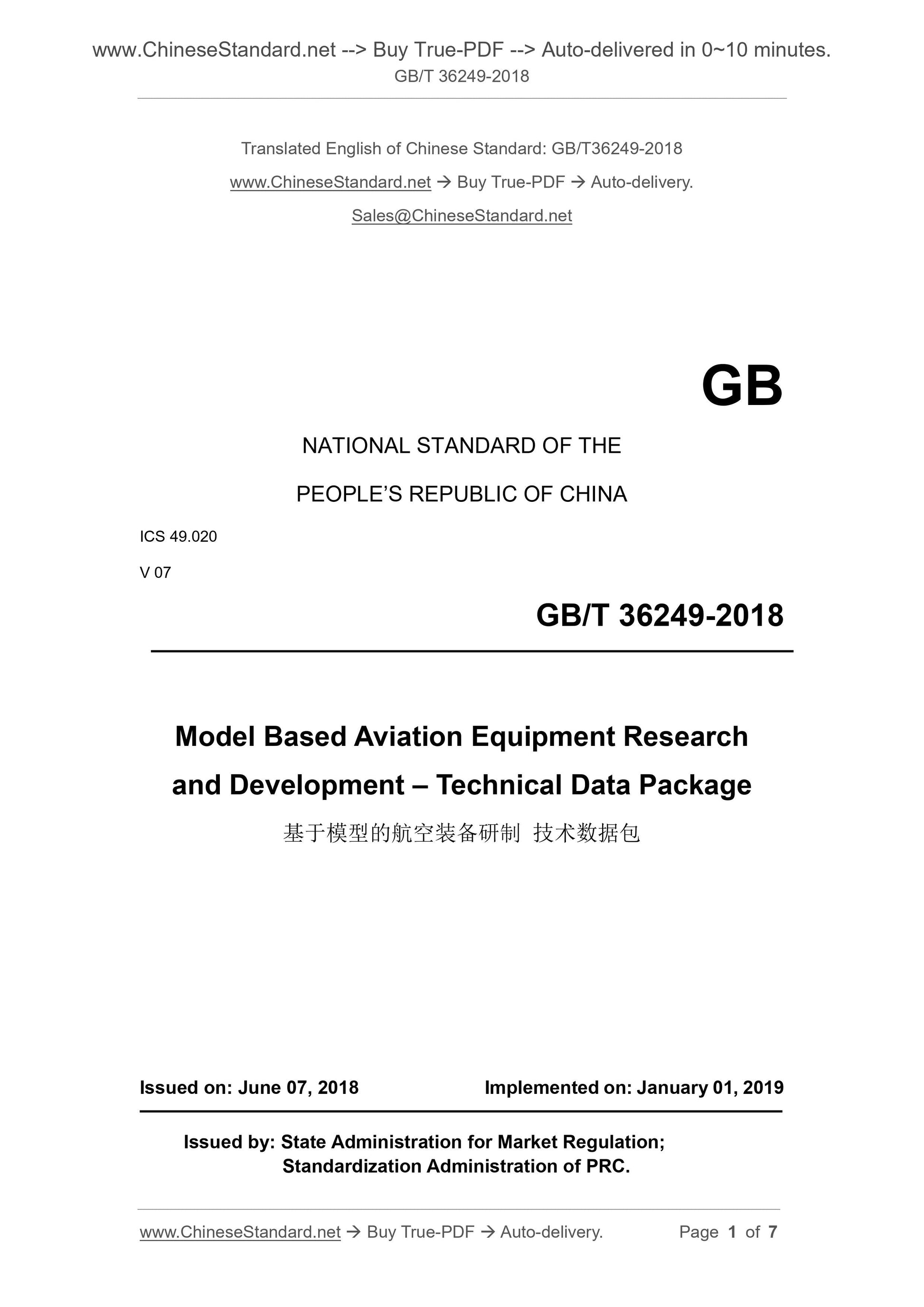

GB/T 36249-2018
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 49.020
V 07
Model Based Aviation Equipment Research
and Development ?€? Technical Data Package
ISSUED ON. JUNE 07, 2018
IMPLEMENTED ON. JANUARY 01, 2019
Issued by. State Administration for Market Regulation;
Standardization Administration of PRC.

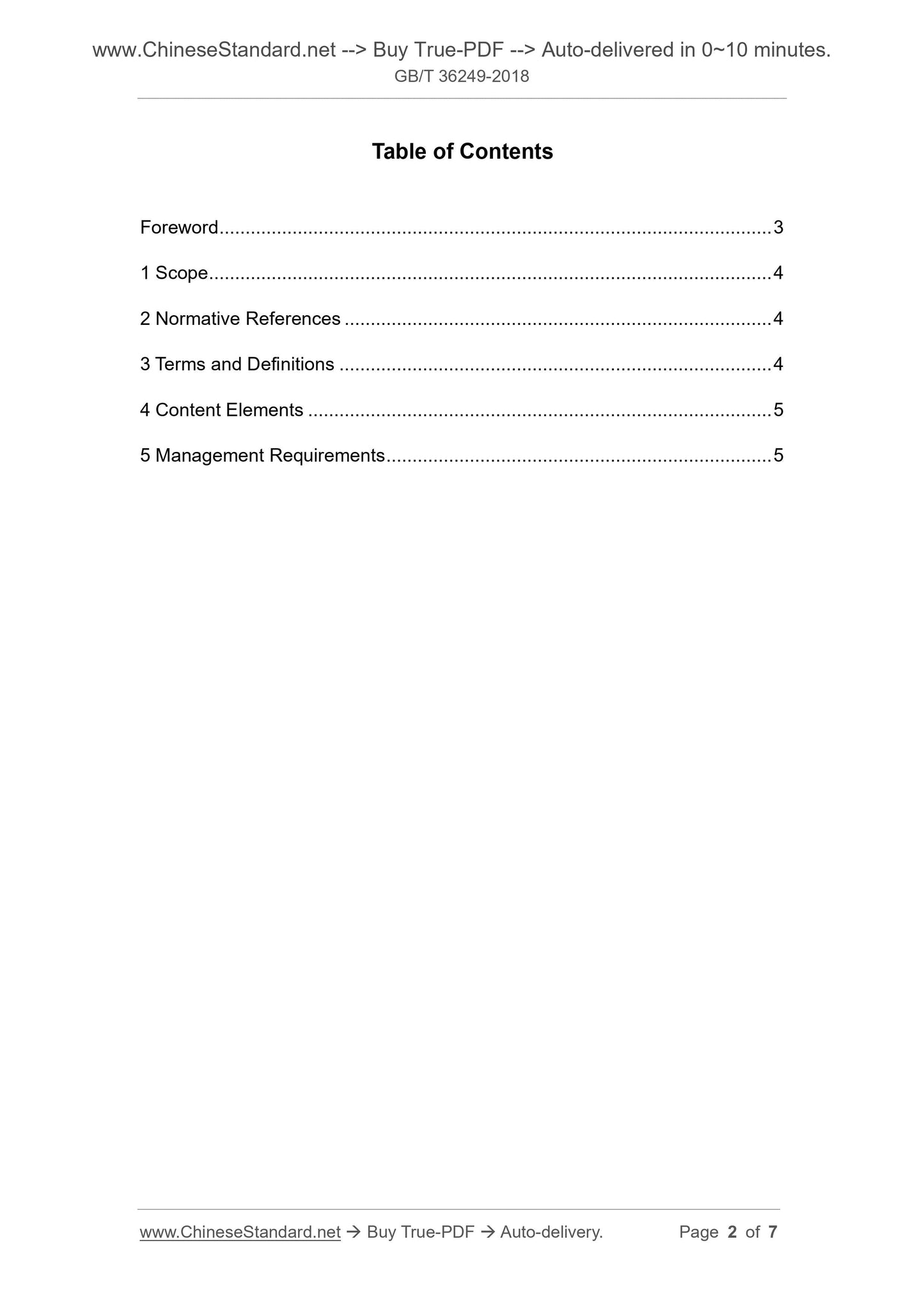

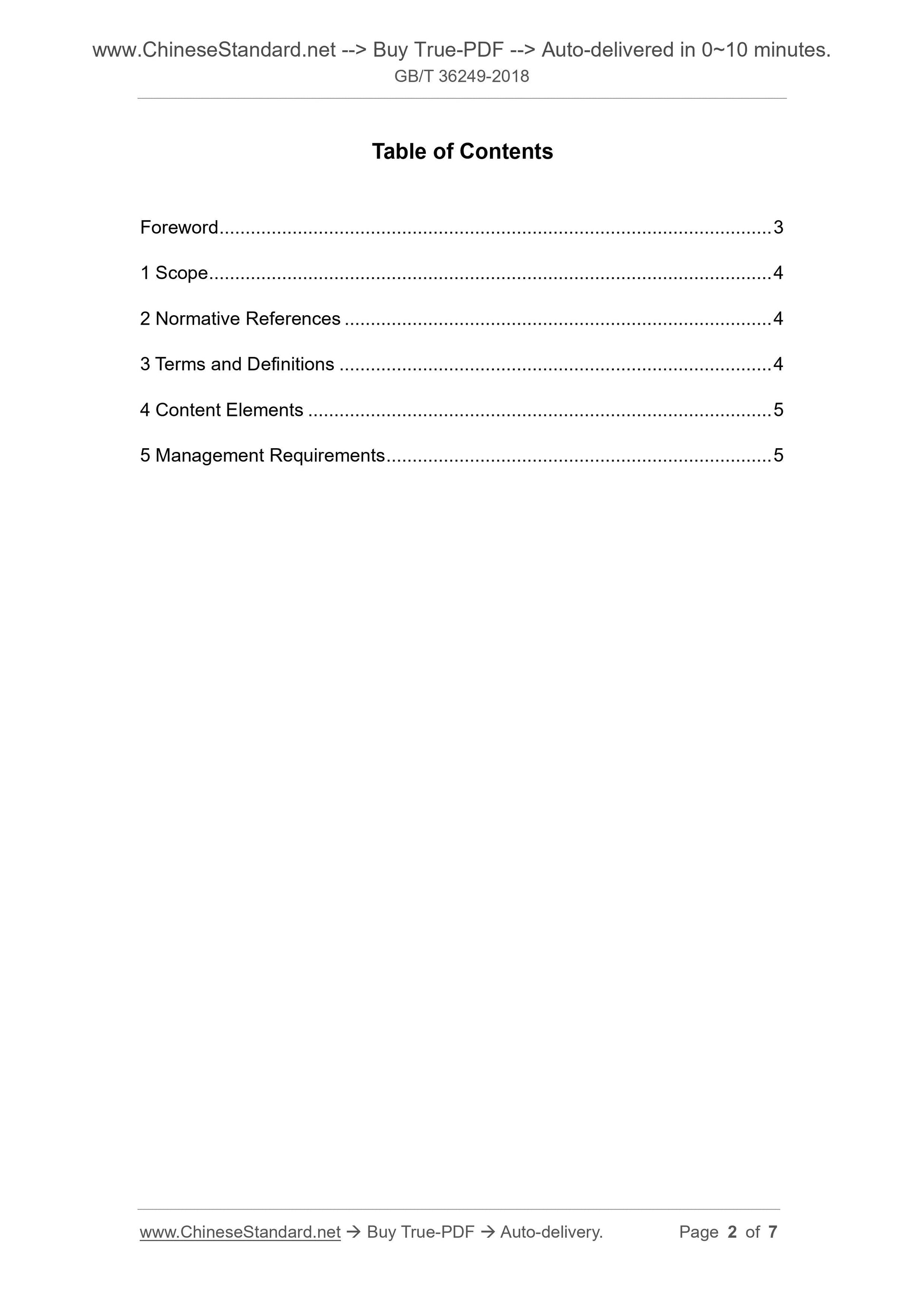

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Content Elements ... 5
5 Management Requirements ... 5
Model Based Aviation Equipment Research
and Development ?€? Technical Data Package

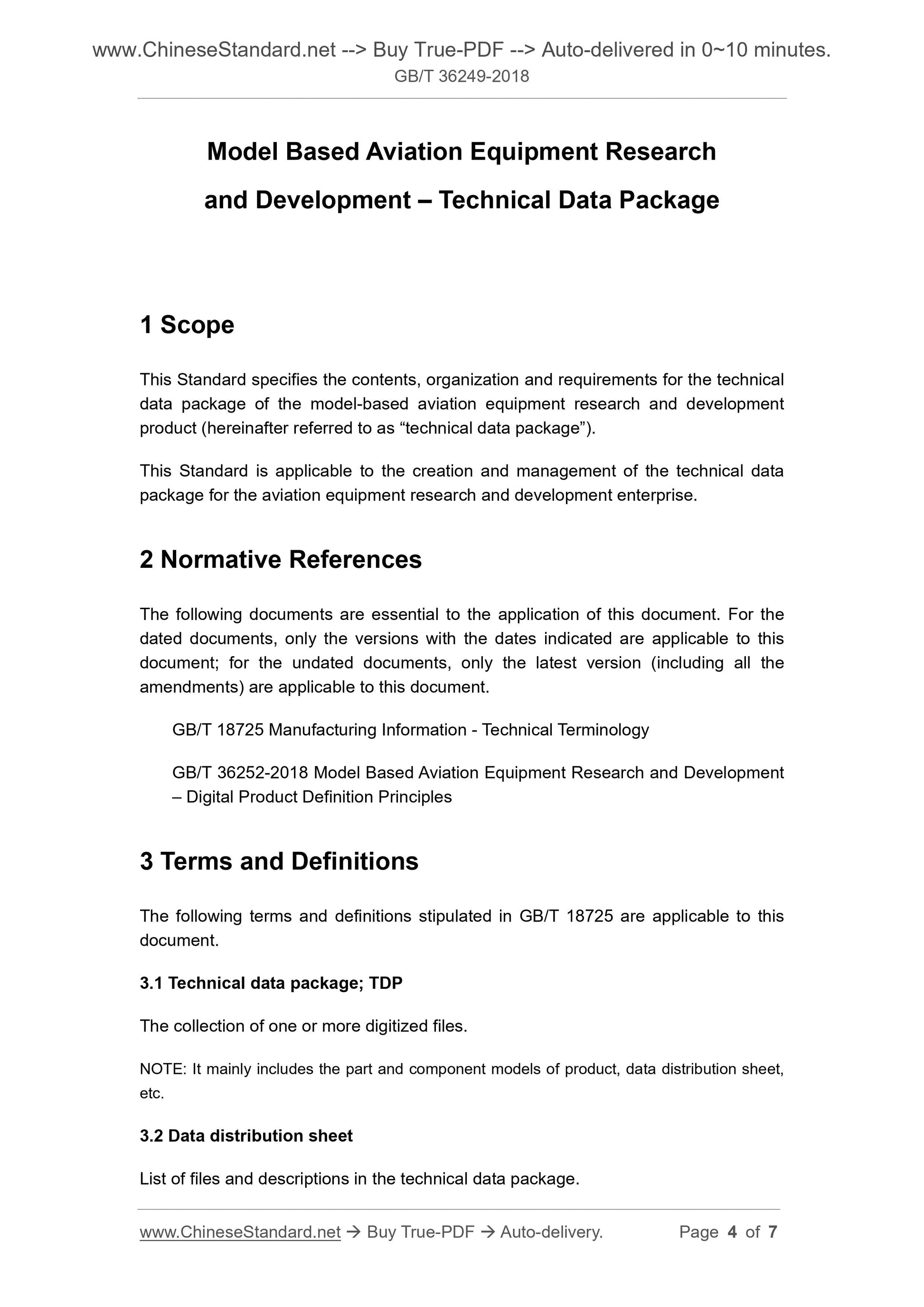

1 Scope
This Standard specifies the contents, organization and requirements for the technical data package of the model-based aviation equipment research and development product (hereinafter referred to as ?€?technical data package?€?).
This Standard is applicable to the creation and management of the technical data package for the aviation equipment research and development enterprise. 2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.
GB/T 18725 Manufacturing Information - Technical Terminology
GB/T 36252-2018 Model Based Aviation Equipment Research and Development ?€? Digital Product Definition Principles
3 Terms and Definitions
The following terms and definitions stipulated in GB/T 18725 are applicable to this document.
3.1 Technical data package; TDP
The collection of one or more digitized files.
NOTE. It mainly includes the part and component models of product, data distribution sheet, etc.
3.2 Data distribution sheet
List of files and descriptions in the technical data package.

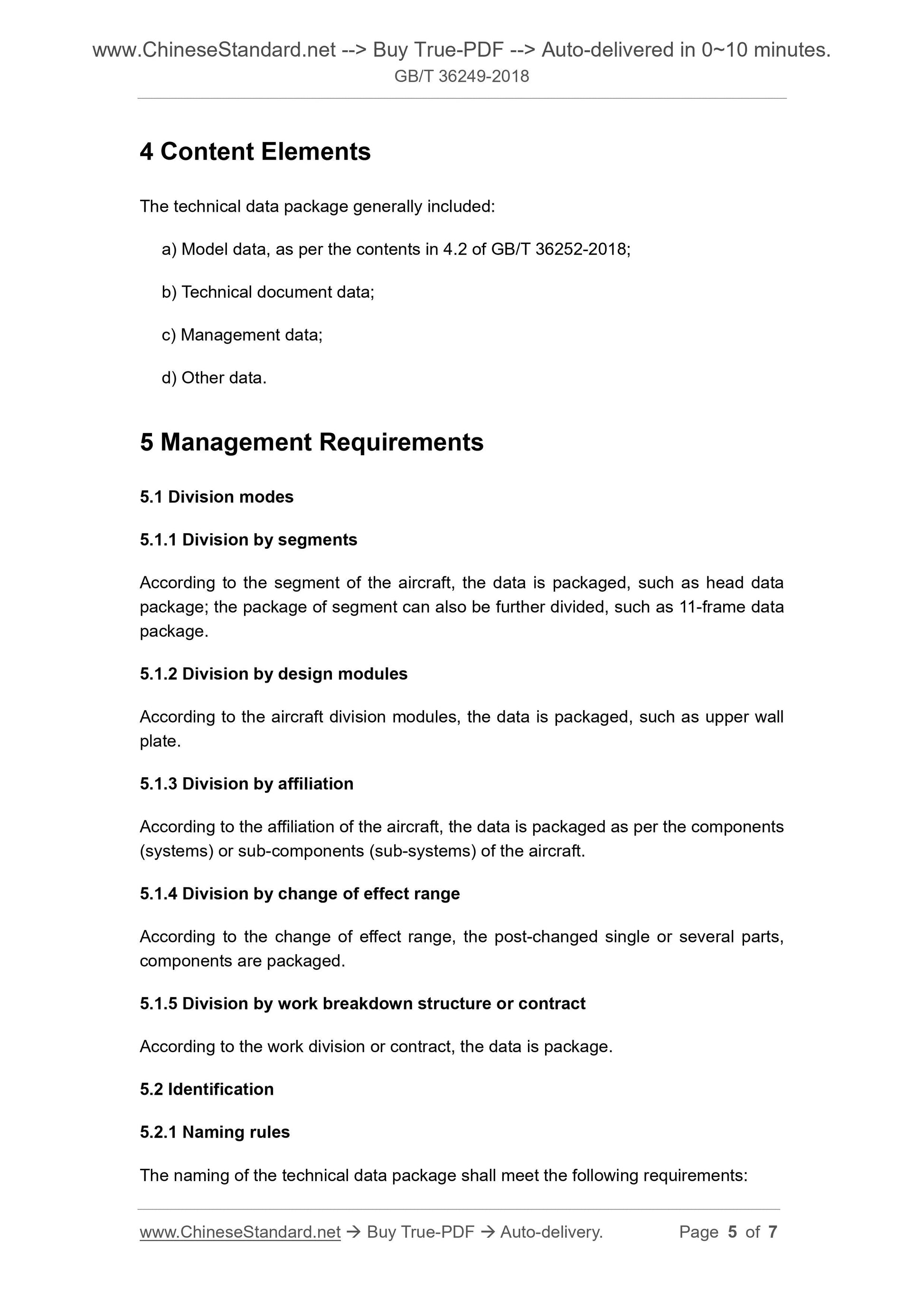

4 Content Elements
The technical data package generally included.
a) Model data, as per the contents in 4.2 of GB/T 36252-2018;
b) Technical document data;
c) Management data;
d) Other data.
5 Management Requirements
5.1 Division modes
5.1.1 Division by segments
According to the segment of the aircraft, the data is packaged, such as head data package; the package of segment can also be further divided, such as 11-frame data package.
5.1.2 Division by design modules
According to the aircraft division modules, the data is packaged, such as upper wall plate.
5.1.3 Division by affiliation
According to the affiliation of the aircraft, the data is packaged as per the components (systems) or sub-components (sub-systems) of the aircraft.
5.1.4 Division by change of effect range
According to the change of effect range, the post-changed single or several parts, components are packaged.
5.1.5 Division by work breakdown structure or contract
According to the work division or contract, the data is package.
5.2 Identification
5.2.1 Naming rules
The naming of the technical data package shall meet the following requirements.
