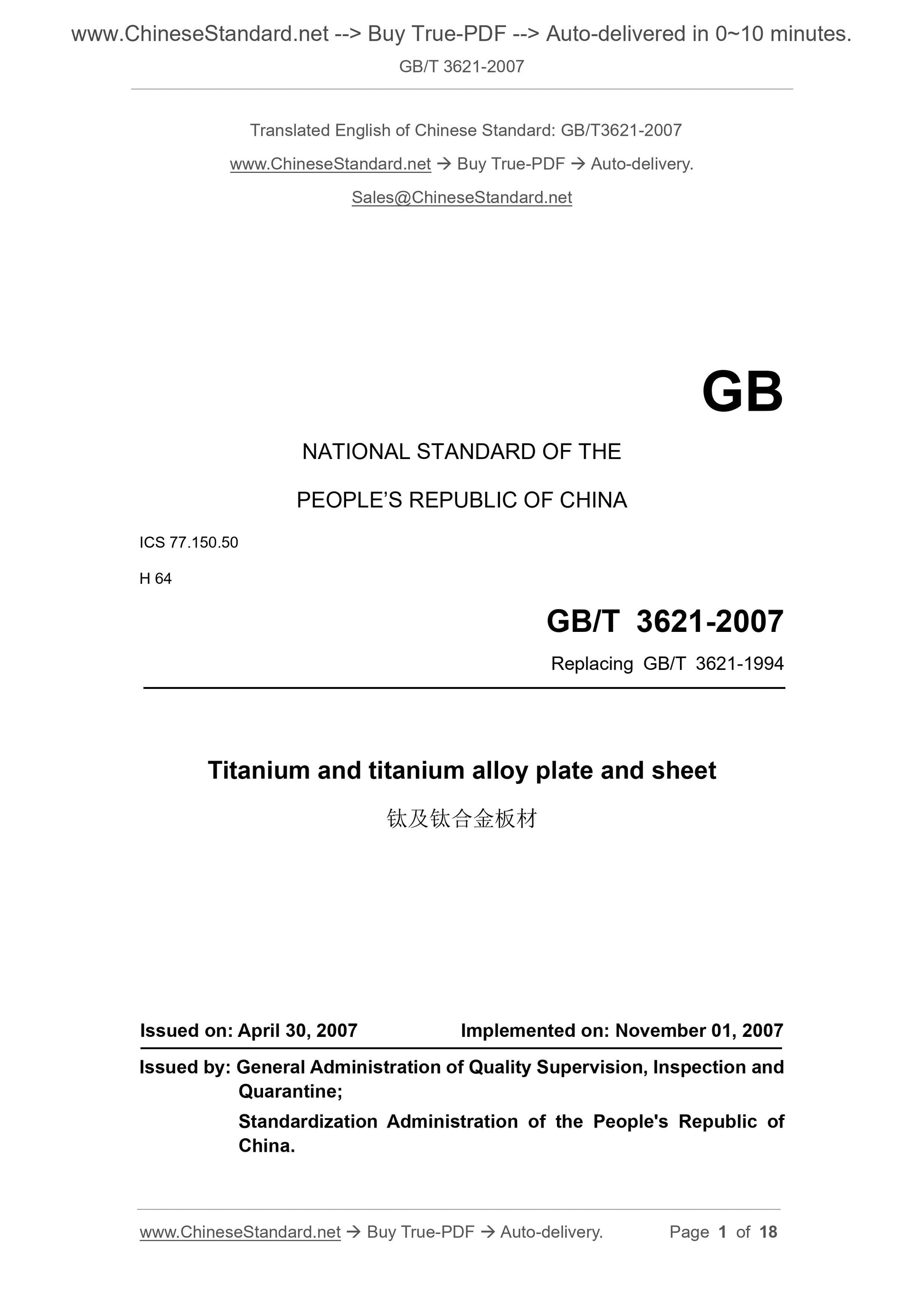

GB/T 3621-2007
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 77.150.50
H 64
Replacing GB/T 3621-1994
Titanium and titanium alloy plate and sheet
ISSUED ON: APRIL 30, 2007
IMPLEMENTED ON: NOVEMBER 01, 2007
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration of the People's Republic of
China.

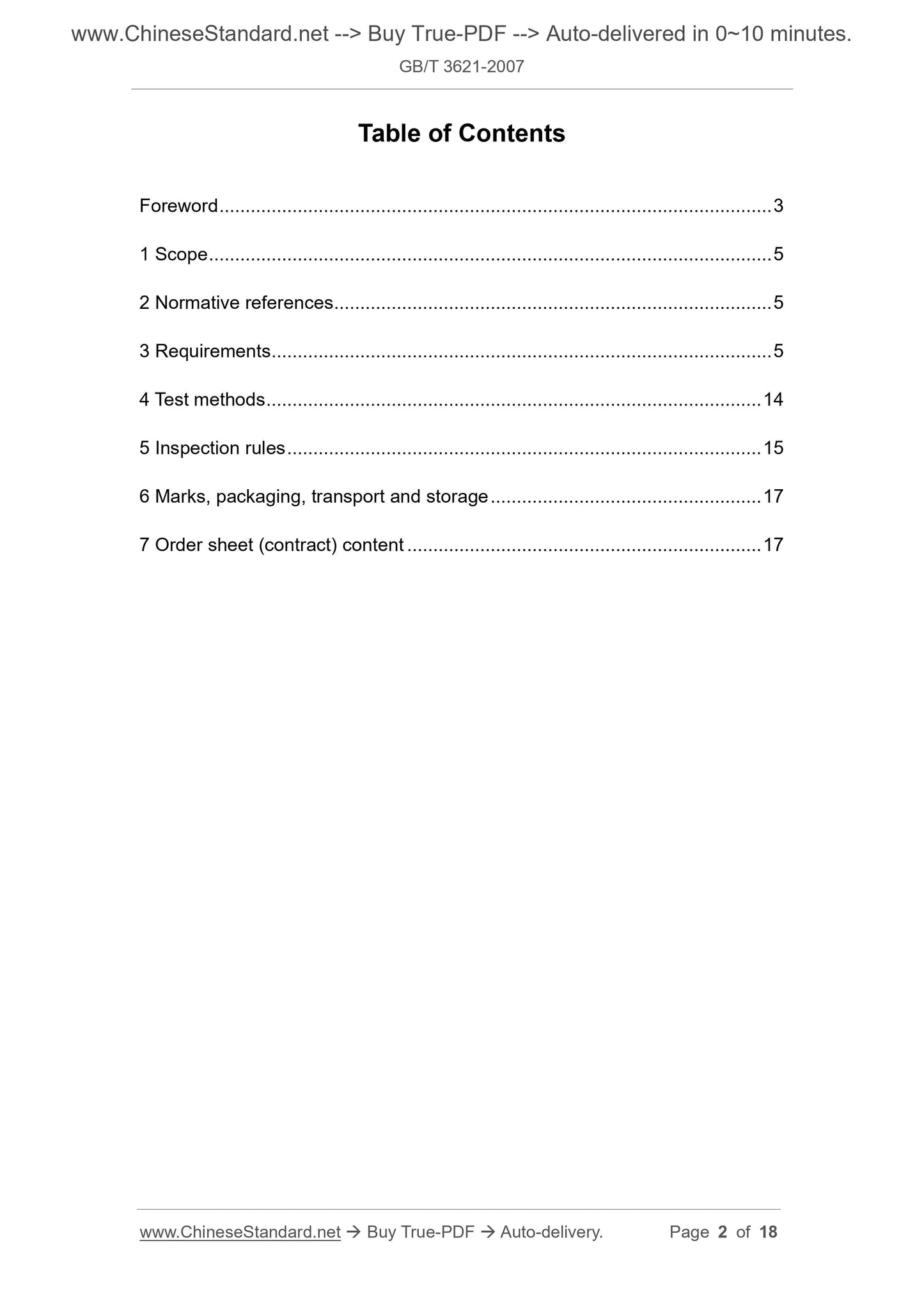

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Requirements ... 5
4 Test methods ... 14
5 Inspection rules ... 15
6 Marks, packaging, transport and storage ... 17
7 Order sheet (contract) content ... 17

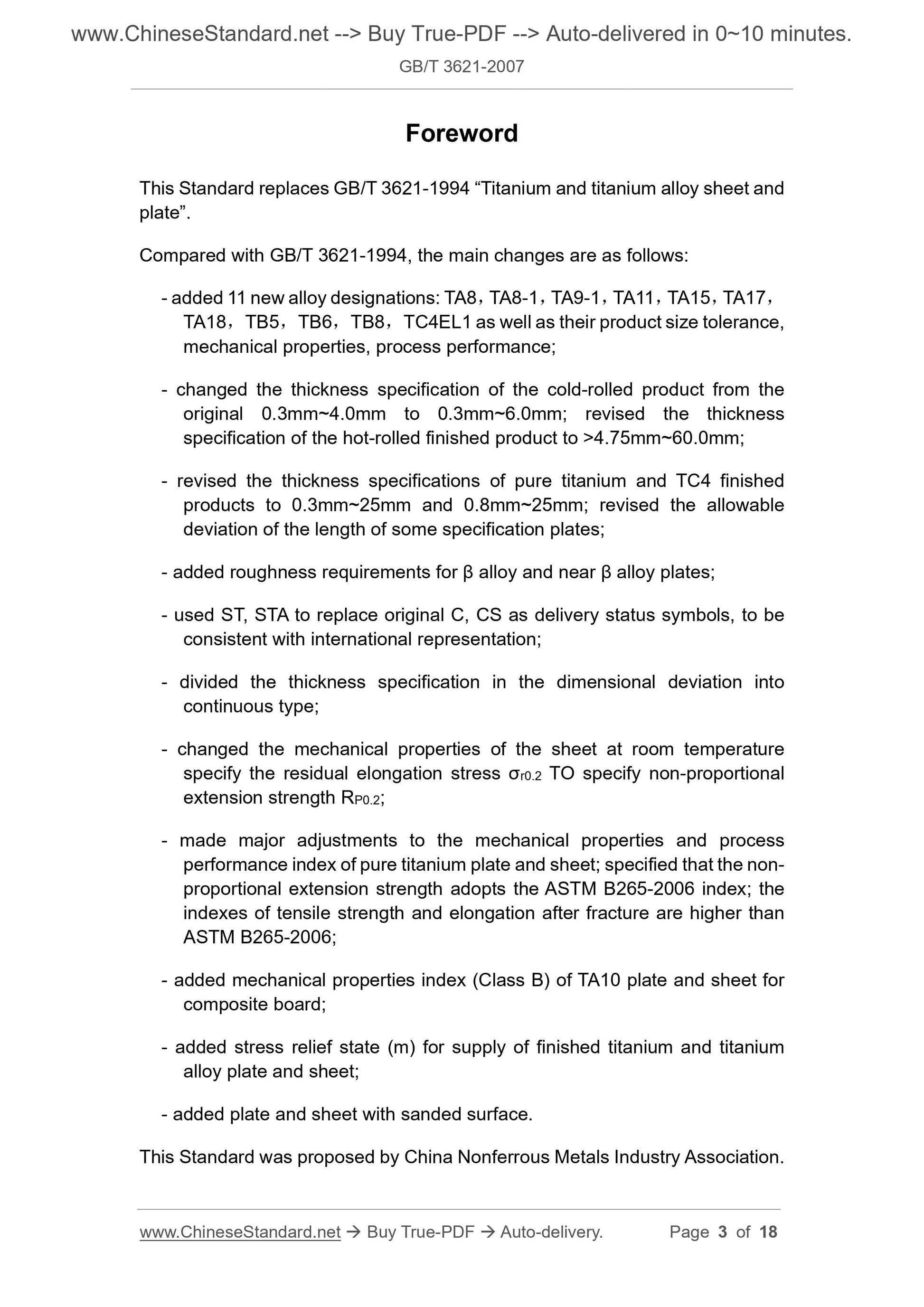

Foreword
This Standard replaces GB/T 3621-1994 “Titanium and titanium alloy sheet and
plate”.
Compared with GB/T 3621-1994, the main changes are as follows:
- added 11 new alloy designations: TA8, TA8-1, TA9-1, TA11, TA15, TA17,
TA18, TB5, TB6, TB8, TC4EL1 as well as their product size tolerance,
mechanical properties, process performance;
- changed the thickness specification of the cold-rolled product from the
original 0.3mm~4.0mm to 0.3mm~6.0mm; revised the thickness
specification of the hot-rolled finished product to >4.75mm~60.0mm;
- revised the thickness specifications of pure titanium and TC4 finished
products to 0.3mm~25mm and 0.8mm~25mm; revised the allowable
deviation of the length of some specification plates;
- added roughness requirements for β alloy and near β alloy plates;
- used ST, STA to replace original C, CS as delivery status symbols, to be
consistent with international representation;
- divided the thickness specification in the dimensional deviation into
continuous type;
- changed the mechanical properties of the sheet at room temperature
specify the residual elongation stress σr0.2 TO specify non-proportional
extension strength RP0.2;
- made major adjustments to the mechanical properties and process
performance index of pure titanium plate and sheet; specified that the non-
proportional extension strength adopts the ASTM B265-2006 index; the
indexes of tensile strength and elongation after fracture are higher than
ASTM B265-2006;
- added mechanical properties index (Class B) of TA10 plate and sheet for
composite board;
- added stress relief state (m) for supply of finished titanium and titanium
alloy plate and sheet;
- added plate and sheet with sanded surface.
This Standard was proposed by China Nonferrous Metals Industry Association.

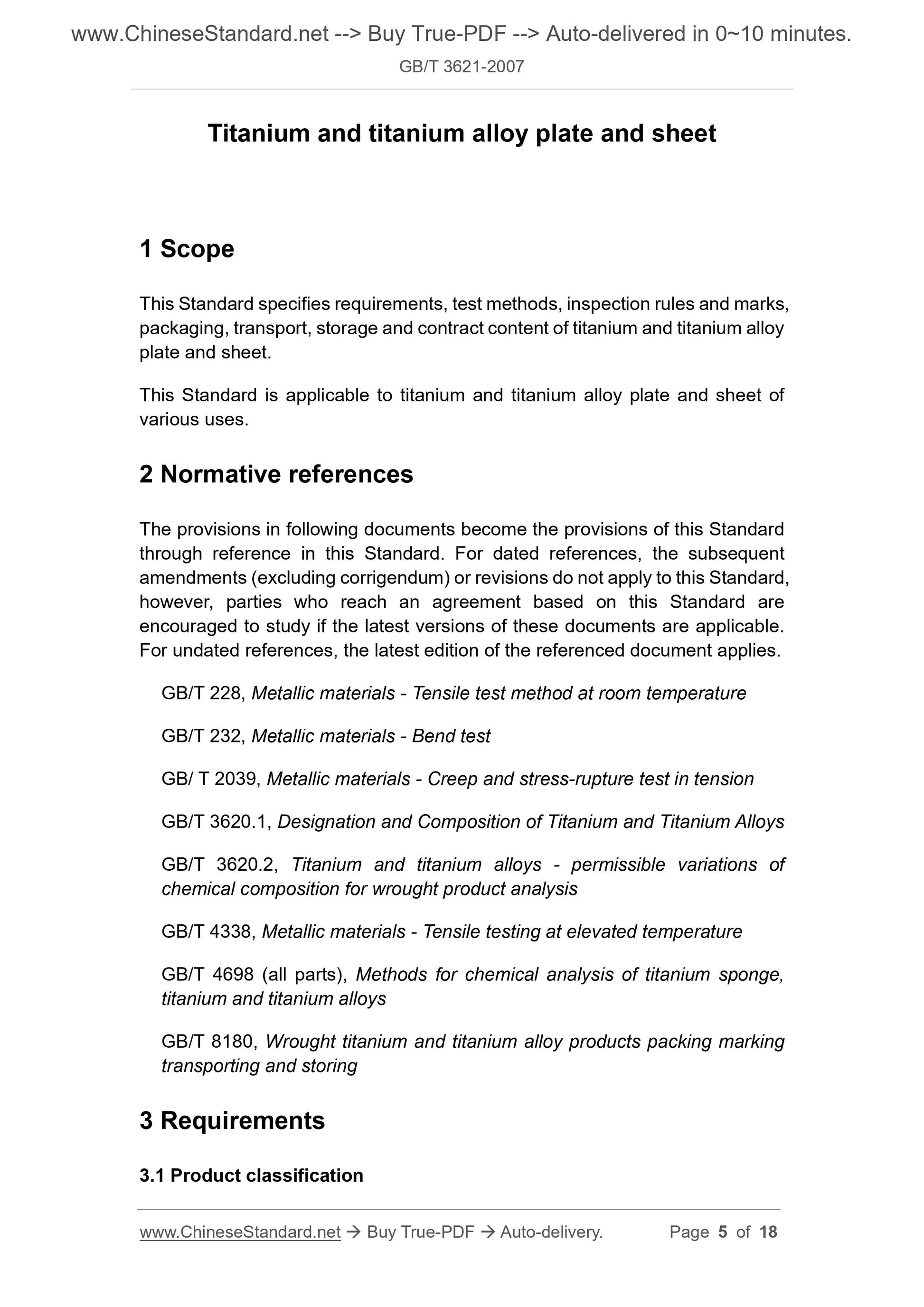

Titanium and titanium alloy plate and sheet
1 Scope
This Standard specifies requirements, test methods, inspection rules and marks,
packaging, transport, storage and contract content of titanium and titanium alloy
plate and sheet.
This Standard is applicable to titanium and titanium alloy plate and sheet of
various uses.
2 Normative references
The provisions in following documents become the provisions of this Standard
through reference in this Standard. For dated references, the subsequent
amendments (excluding corrigendum) or revisions do not apply to this Standard,
however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable.
For undated references, the latest edition of the referenced document applies.
GB/T 228, Metallic materials - Tensile test method at room temperature
GB/T 232, Metallic materials - Bend test
GB/ T 2039, Metallic materials - Creep and stress-rupture test in tension
GB/T 3620.1, Designation and Composition of Titanium and Titanium Alloys
GB/T 3620.2, Titanium and titanium alloys - permissible variations of
chemical composition for wrought product analysis
GB/T 4338, Metallic materials - Tensile testing at elevated temperature
GB/T 4698 (all parts), Methods for chemical analysis of titanium sponge,
titanium and titanium alloys
GB/T 8180, Wrought titanium and titanium alloy products packing marking
transporting and storing
3 Requirements
3.1 Product classification
unevenness of plate and sheet.

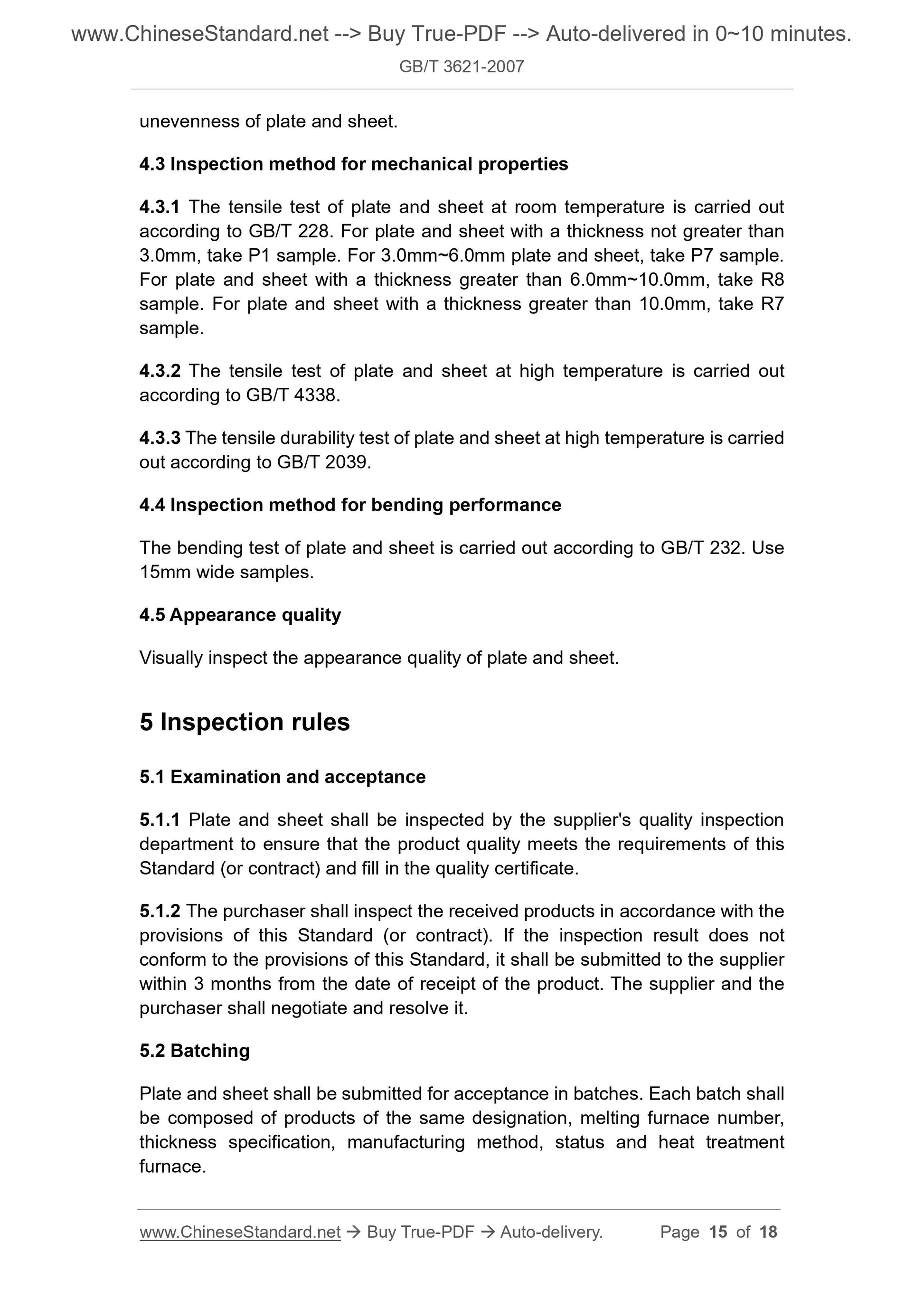

4.3 Inspection method for mechanical properties
4.3.1 The tensile test of plate and sheet at room temperature is carried out
according to GB/T 228. For plate and sheet with a thickness not greater than
3.0mm, take P1 sample. For 3.0mm~6.0mm plate and sheet, take P7 sample.
For plate and sheet with a thickness greater than 6.0mm~10.0mm, take R8
sample. For plate and sheet with a thickness greater than 10.0mm, take R7
sample.
4.3.2 The tensile test of plate and sheet at high temperature is carried out
according to GB/T 4338.
4.3.3 The tensile durability test of plate and sheet at high temperature is carried
out according to GB/T 2039.
4.4 Inspection method for bending performance
The bending test of plate and sheet is carried out according to GB/T 232. Use
15mm wide samples.
4.5 Appearance quality
Visually inspect the appearance quality of plate and sheet.
5 Inspection rules
5.1 Examination and acceptance
5.1.1 Plate and sheet shall be inspected by the supplier's quality inspection
department to ensure that the product quality meets the requirements of this
Standard (or contract) and fill in the quality certificate.
5.1.2 The purchaser shall inspect the received products in accordance with the
provisions of this Standard (or contract). If the inspection result does not
conform to the provisions of this Standard, it shall be submitted to the supplier
within 3 months from the date of receipt of the product. The supplier and the
purchaser shall negotiate and resolve it.
5.2 Batching
Plate and sheet shall be submitted for acceptance in batches. Each batch shall
be composed of products of the same designation, melting furnace number,
thickness specification, manufacturing method, status and heat treatment
furnace.

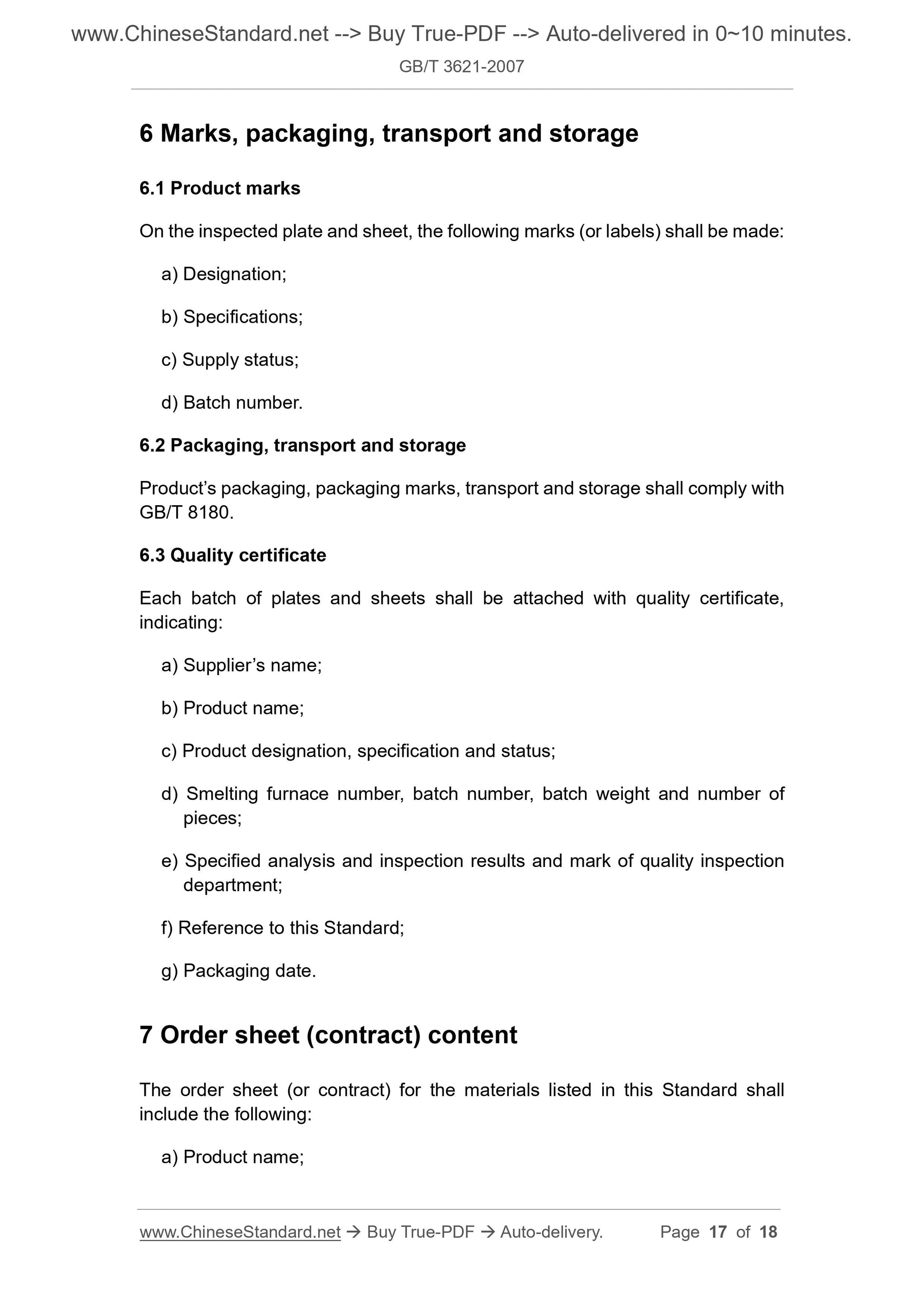

6 Marks, packaging, transport and storage
6.1 Product marks
On the inspected plate and sheet, the following marks (or labels) shall be made:
a) Designation;
b) Specifications;
c) Supply status;
d) Batch number.
6.2 Packaging, transport and storage
Product’s packaging, packaging marks, transport and storage shall comply with
GB/T 8180.
6.3 Quality certificate
Each batch of plates and sheets shall be attached with quality certificate,
indicating:
a) Supplier’s name;
b) Product name;
c) Product designation, specification and status;
d) Smelting furnace number, batch number, batch weight and number of
pieces;
e) Specified analysis and inspection results and mark of quality inspection
department;
f) Reference to this Standard;
g) Packaging date.
7 Order sheet (contract) content
The order sheet (or contract) for the materials listed in this Standard shall
include the following:
a) Product name;
