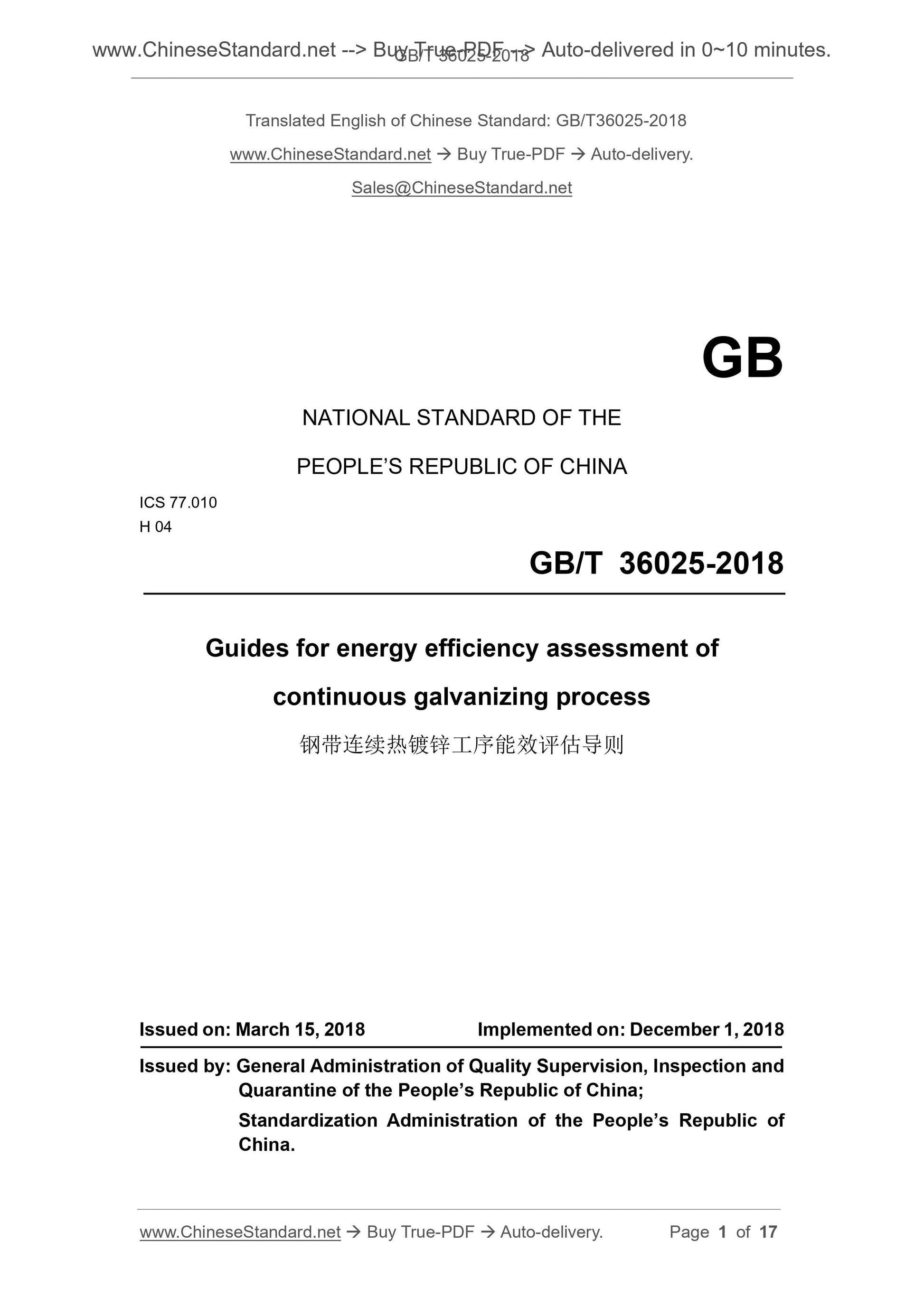

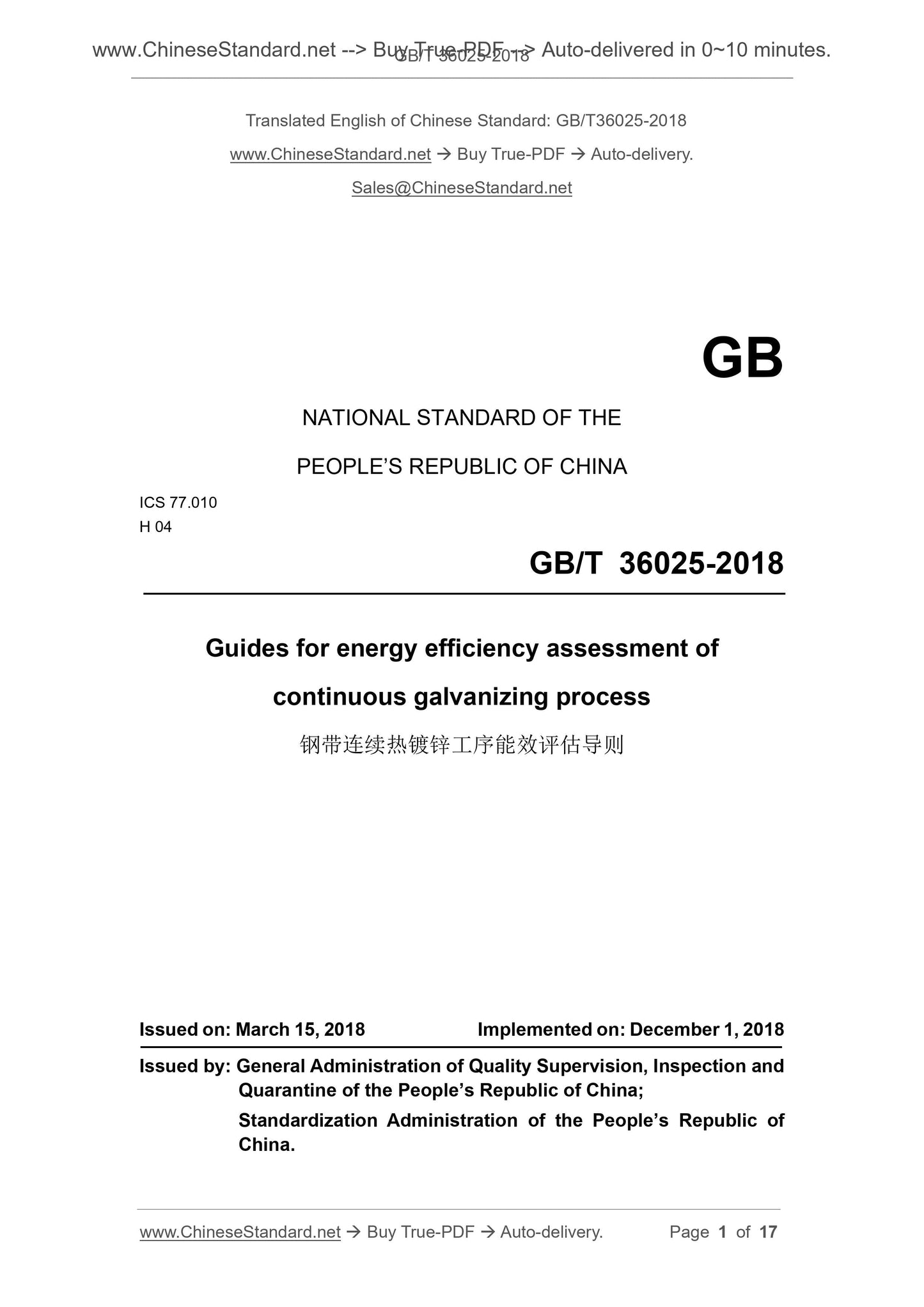

Guides for energy efficiency assessment of
continuous galvanizing process
ISSUED ON. MARCH 15, 2018
IMPLEMENTED ON. DECEMBER 1, 2018
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People’s Republic of China;
Standardization Administration of the People’s Republic of
China.

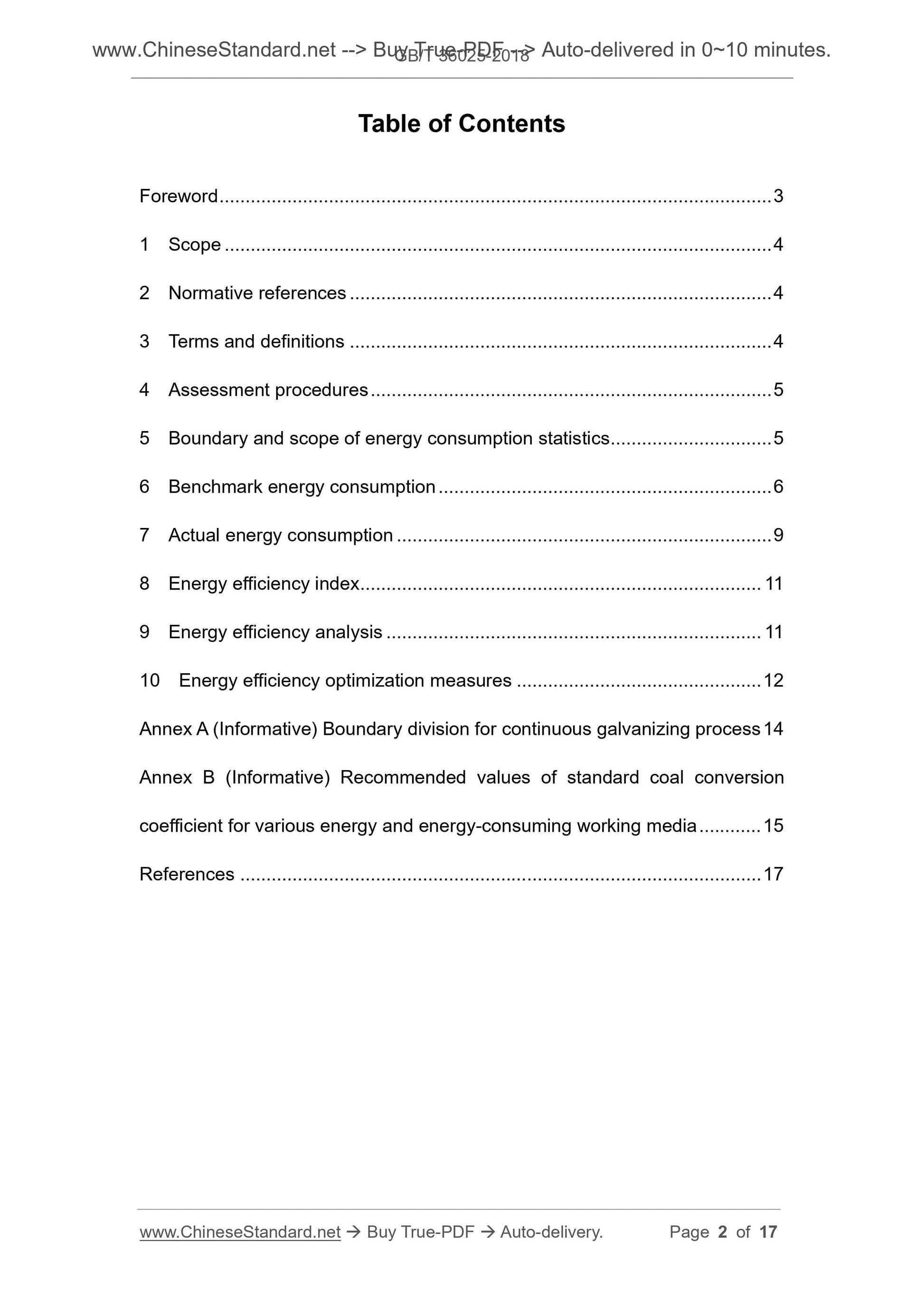

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Assessment procedures ... 5
5 Boundary and scope of energy consumption statistics ... 5
6 Benchmark energy consumption ... 6
7 Actual energy consumption ... 9
8 Energy efficiency index ... 11
9 Energy efficiency analysis ... 11
10 Energy efficiency optimization measures ... 12
Annex A (Informative) Boundary division for continuous galvanizing process 14
Annex B (Informative) Recommended values of standard coal conversion
coefficient for various energy and energy-consuming working media ... 15
References ... 17
Guides for energy efficiency assessment of
continuous galvanizing process

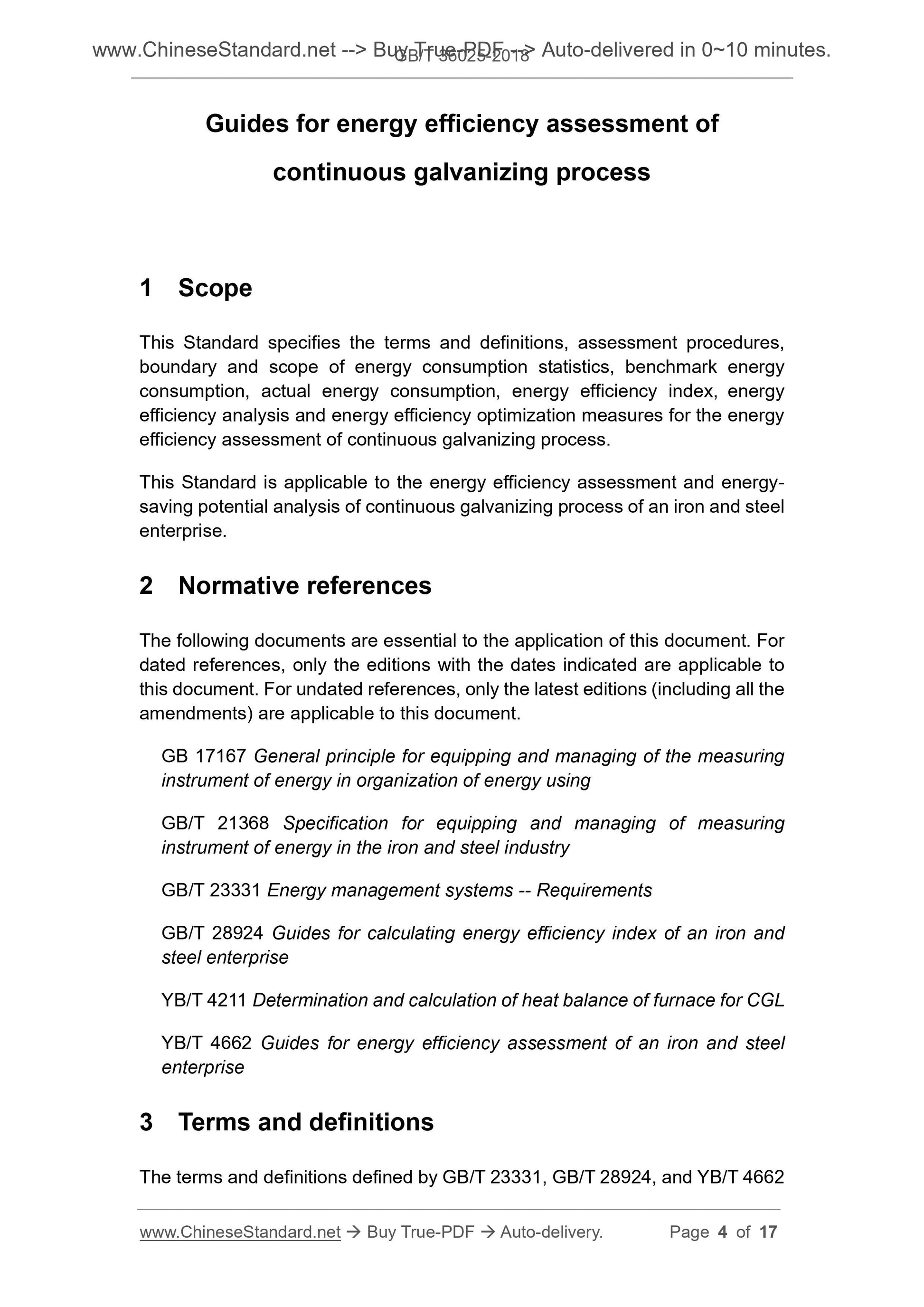

1 Scope
This Standard specifies the terms and definitions, assessment procedures,
boundary and scope of energy consumption statistics, benchmark energy
consumption, actual energy consumption, energy efficiency index, energy
efficiency analysis and energy efficiency optimization measures for the energy
efficiency assessment of continuous galvanizing process.
This Standard is applicable to the energy efficiency assessment and energy-
saving potential analysis of continuous galvanizing process of an iron and steel
enterprise.
2 Normative references
The following documents are essential to the application of this document. For
dated references, only the editions with the dates indicated are applicable to
this document. For undated references, only the latest editions (including all the
amendments) are applicable to this document.
GB 17167 General principle for equipping and managing of the measuring
instrument of energy in organization of energy using
GB/T 21368 Specification for equipping and managing of measuring
instrument of energy in the iron and steel industry
GB/T 23331 Energy management systems -- Requirements
GB/T 28924 Guides for calculating energy efficiency index of an iron and
steel enterprise
YB/T 4211 Determination and calculation of heat balance of furnace for CGL
YB/T 4662 Guides for energy efficiency assessment of an iron and steel
enterprise
3 Terms and definitions
The terms and definitions defined by GB/T 23331, GB/T 28924, and YB/T 4662

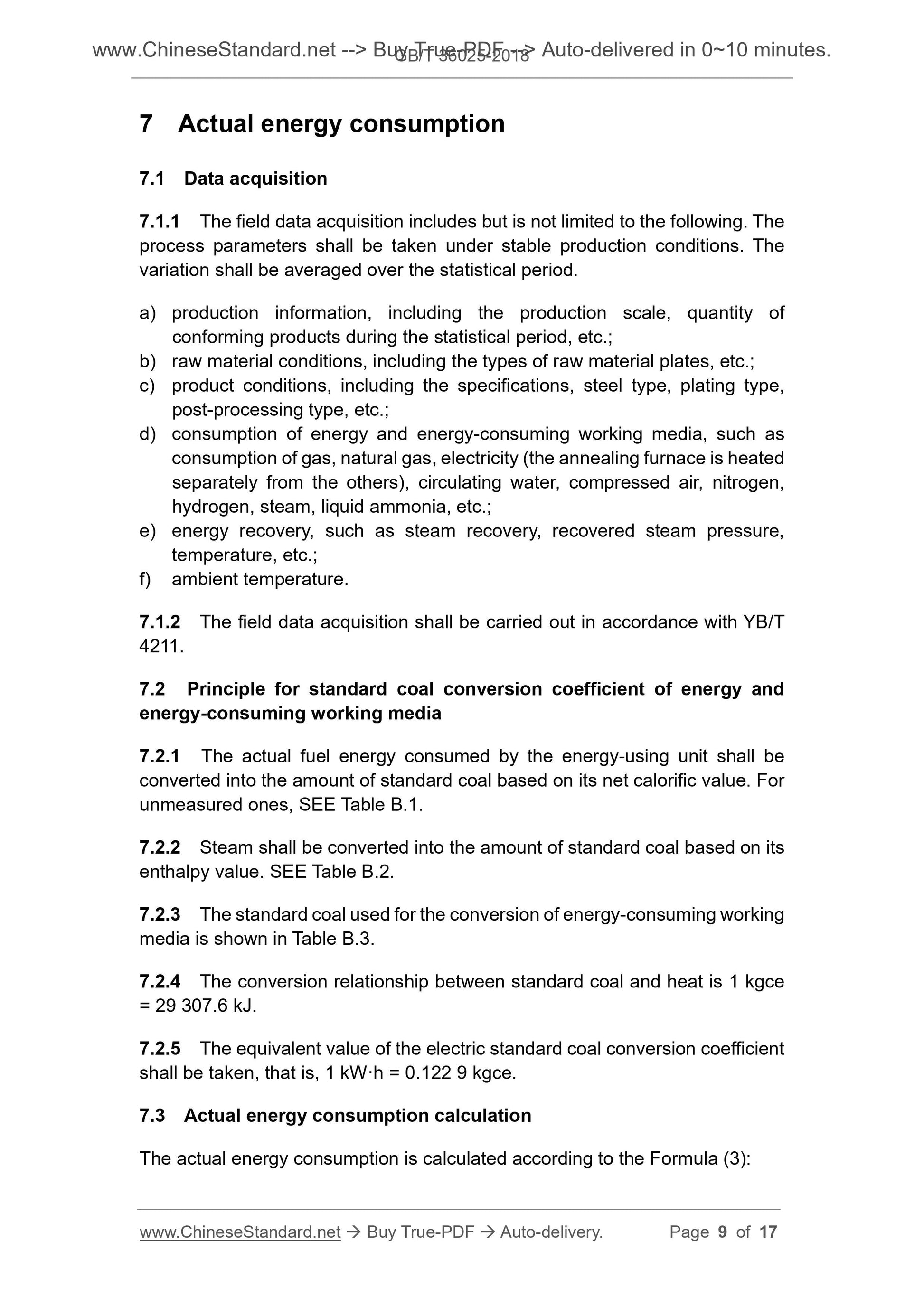

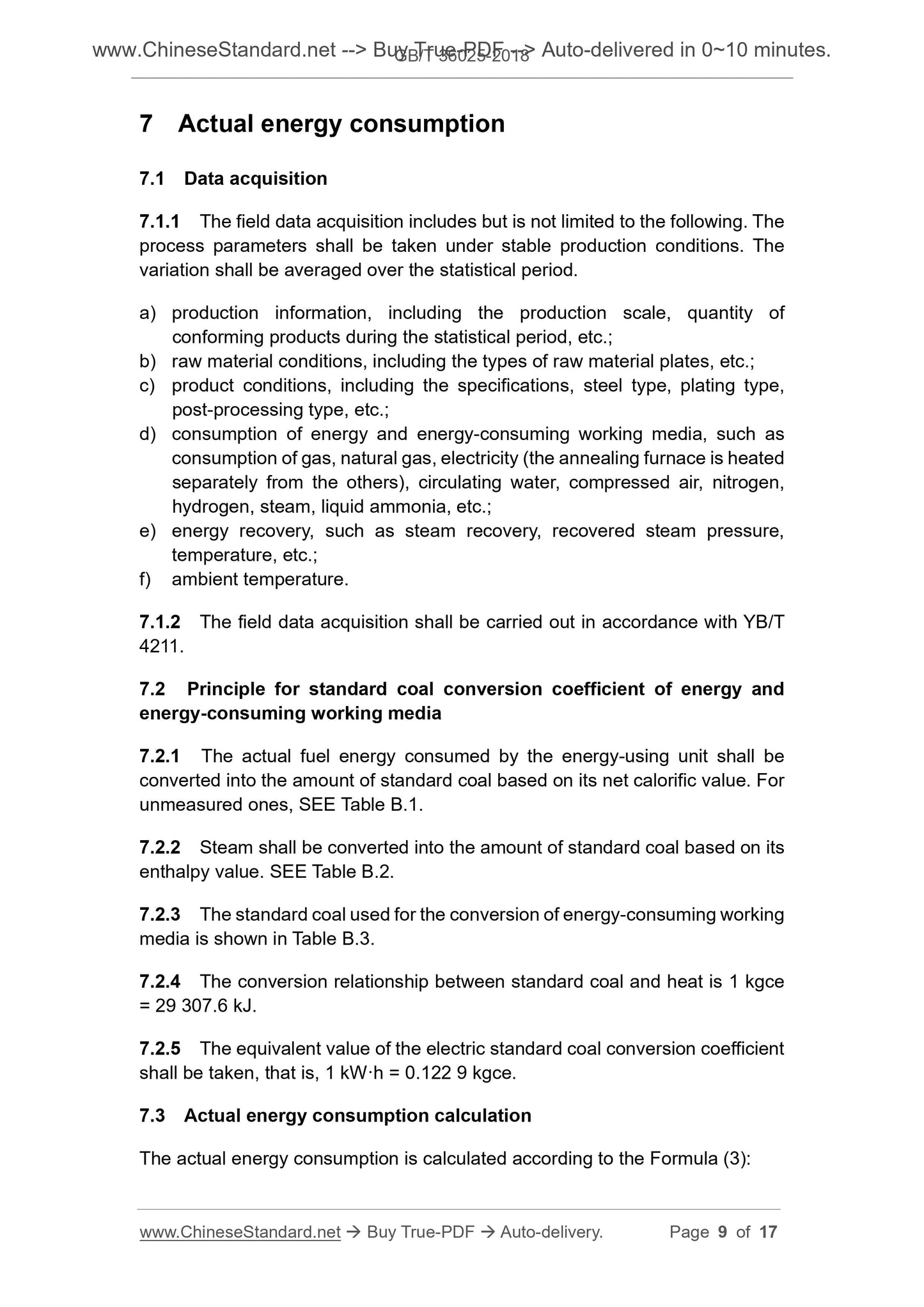

7 Actual energy consumption
7.1 Data acquisition
7.1.1 The field data acquisition includes but is not limited to the following. The
process parameters shall be taken under stable production conditions. The
variation shall be averaged over the statistical period.
a) production information, including the production scale, quantity of
conforming products during the statistical period, etc.;
b) raw material conditions, including the types of raw material plates, etc.;
c) product conditions, including the specifications, steel type, plating type,
post-processing type, etc.;
d) consumption of energy and energy-consuming working media, such as
consumption of gas, natural gas, electricity (the annealing furnace is heated
separately from the others), circulating water, compressed air, nitrogen,
hydrogen, steam, liquid ammonia, etc.;
e) energy recovery, such as steam recovery, recovered steam pressure,
temperature, etc.;
f) ambient temperature.
7.1.2 The field data acquisition shall be carried out in accordance with YB/T
4211.
7.2 Principle for standard coal conversion coefficient of energy and
energy-consuming working media
7.2.1 The actual fuel energy consumed by the energy-using unit shall be
converted into the amount of standard coal based on its net calorific value. For
unmeasured ones, SEE Table B.1.
7.2.2 Steam shall be converted into the amount of standard coal based on its
enthalpy value. SEE Table B.2.
7.2.3 The standard coal used for the conversion of energy-consuming working
media is shown in Table B.3.
7.2.4 The conversion relationship between standard coal and heat is 1 kgce
= 29 307.6 kJ.
7.2.5 The equivalent value of the electric standard coal conversion coefficient
shall be taken, that is, 1 kW·h = 0.122 9 kgce.
7.3 Actual energy consumption calculation
The actual energy consumption is calculated according to the Formula (3).

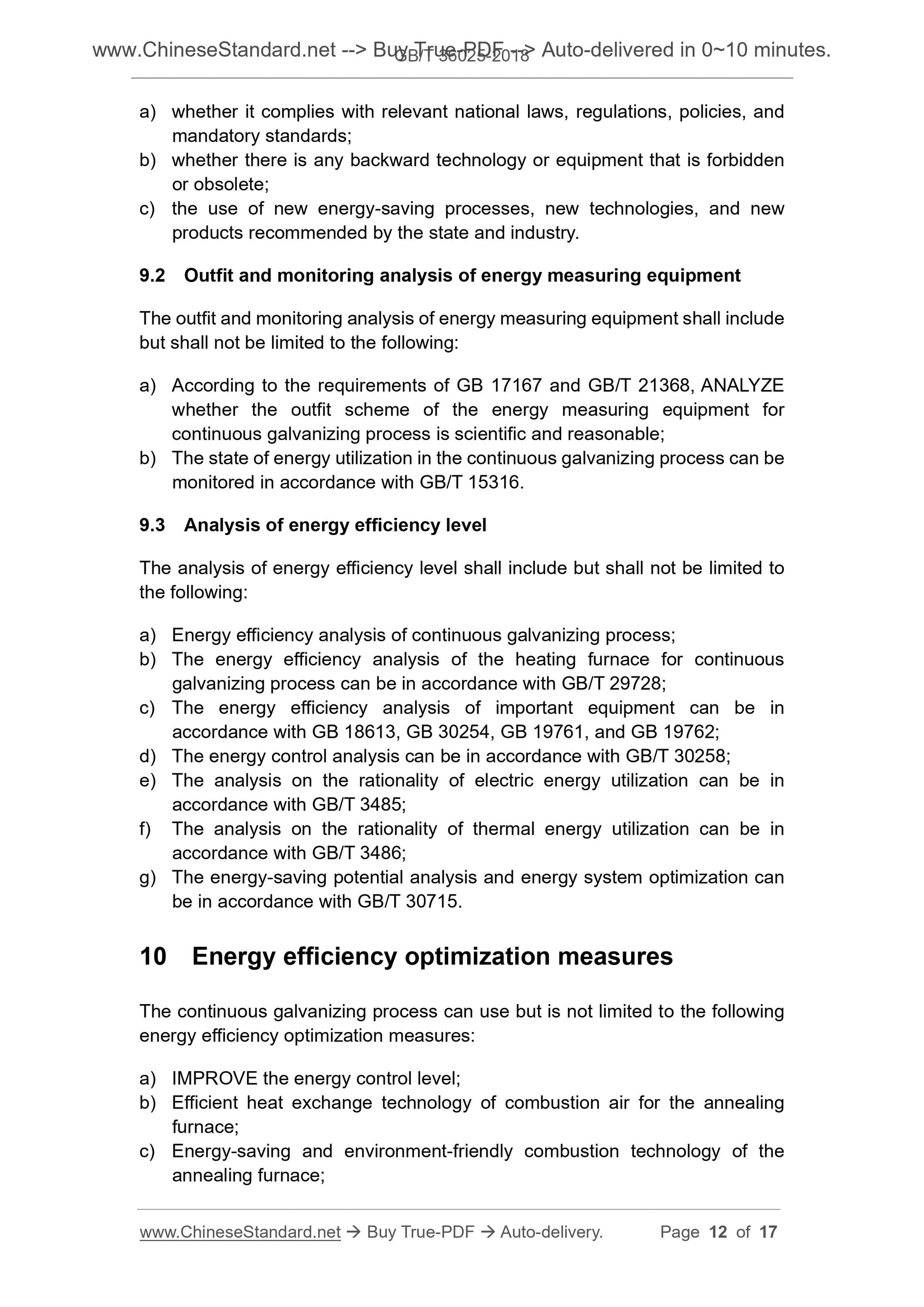

a) whether it complies with relevant national laws, regulations, policies, and
mandatory standards;
b) whether there is any backward technology or equipment that is forbidden
or obsolete;
c) the use of new energy-saving processes, new technologies, and new
products recommended by the state and industry.
9.2 Outfit and monitoring analysis of energy measuring equipment
The outfit and monitoring analysis of energy measuring equipment shall include
but shall not be limited to the following.
a) According to the requirements of GB 17167 and GB/T 21368, ANALYZE
whether the outfit scheme of the energy measuring equipment for
continuous galvanizing process is scientific and reasonable;
b) The state of energy utilization in the continuous galvanizing process can be
monitored in accordance with GB/T 15316.
9.3 Analysis of energy efficiency level
The analysis of energy efficiency level shall include but shall not be limited to
the following.
a) Energy efficiency analysis of continuous galvanizing process;
b) The energy efficiency analysis of the heating furnace for continuous
galvanizing process can be in accordance with GB/T 29728;
c) The energy efficiency analysis of important equipment can be in
accordance with GB 18613, GB 30254, GB 19761, and GB 19762;
d) The energy control analysis can be in accordance with GB/T 30258;
e) The analysis on the rationality of electric energy utilization can be in
accordance with GB/T 3485;
f) The analysis on the rationality of thermal energy utilization can be in
accordance with GB/T 3486;
g) The energy-saving potential analysis and energy system optimization can
be in accordance with GB/T 30715.
10 Energy efficiency optimization measures
The continuous galvanizing process can use but is not limited to the following
energy efficiency optimization measures.
a) IMPROVE the energy control level;
b) Efficient heat exchange technology of combustion air for the annealing
furnace;
c) Energy-saving and environment-friendly combustion technology of the
annealing furnace;

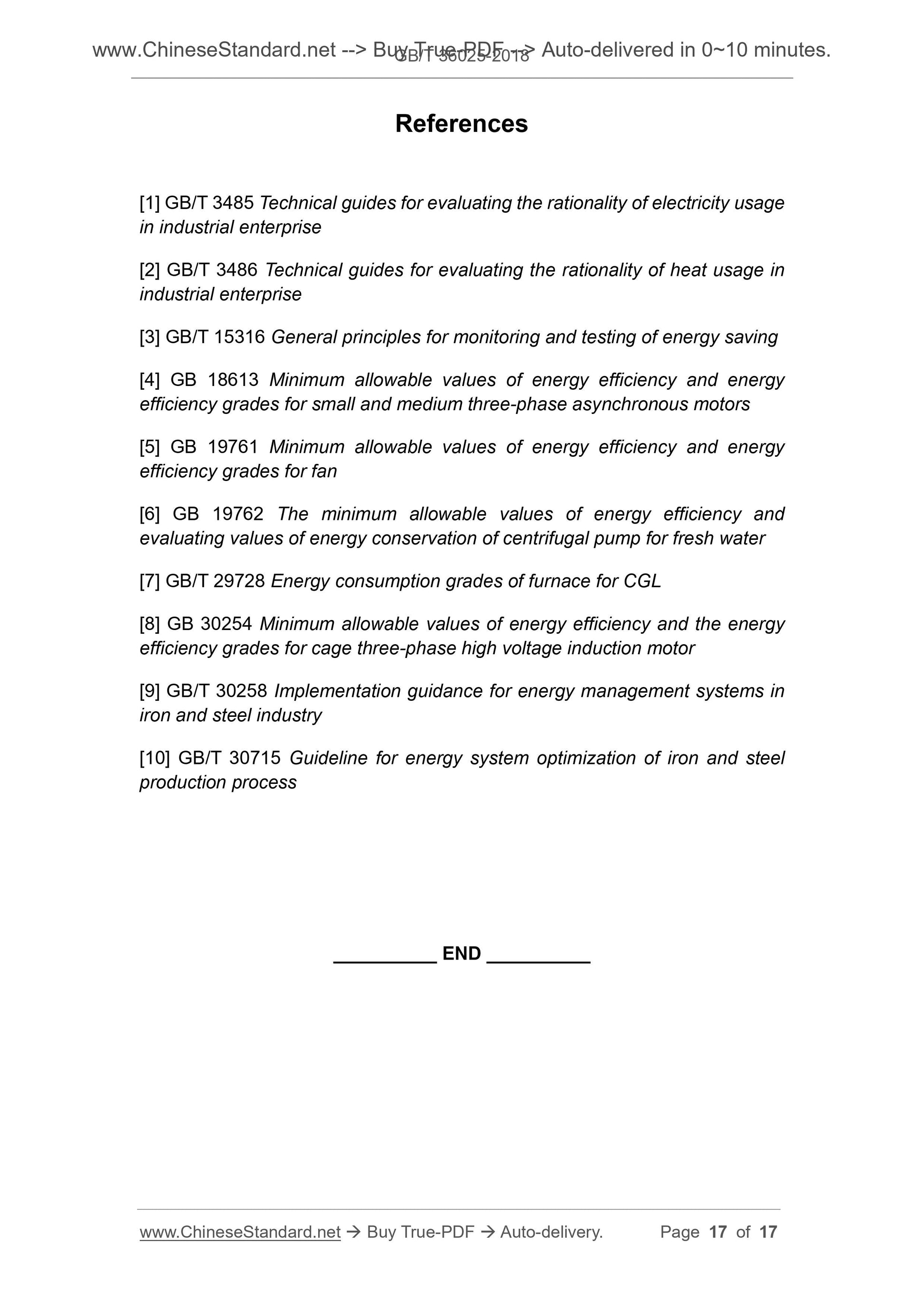

References
[1] GB/T 3485 Technical guides for evaluating the rationality of electricity usage
in industrial enterprise
[2] GB/T 3486 Technical guides for evaluating the rationality of heat usage in
industrial enterprise
[3] GB/T 15316 General principles for monitoring and testing of energy saving
[4] GB 18613 Minimum allowable values of energy efficiency and energy
efficiency grades for small and medium three-phase asynchronous motors
[5] GB 19761 Minimum allowable values of energy efficiency and energy
efficiency grades for fan
[6] GB 19762 The minimum allowable values of energy efficiency and
evaluating values of energy conservation of centrifugal pump for fresh water
[7] GB/T 29728 Energy consumption grades of furnace for CGL
[8] GB 30254 Minimum allowable values of energy efficiency and the en...
