GB/T 35840.1-2018: Steels for plastic mould -- Part 1: Non-alloy steels

This Part of GB/T 35840 specifies the ordering content, dimensions, shape, weight, technical requirements, test methods, inspection rules, packaging, marking and quality certificate for non-alloy steels for plastic mould. This Part applies to hot-rolled or forged non-alloy round steel, square steel, flat steel and steel plates (sheets) for the manufacture of plastic mould.

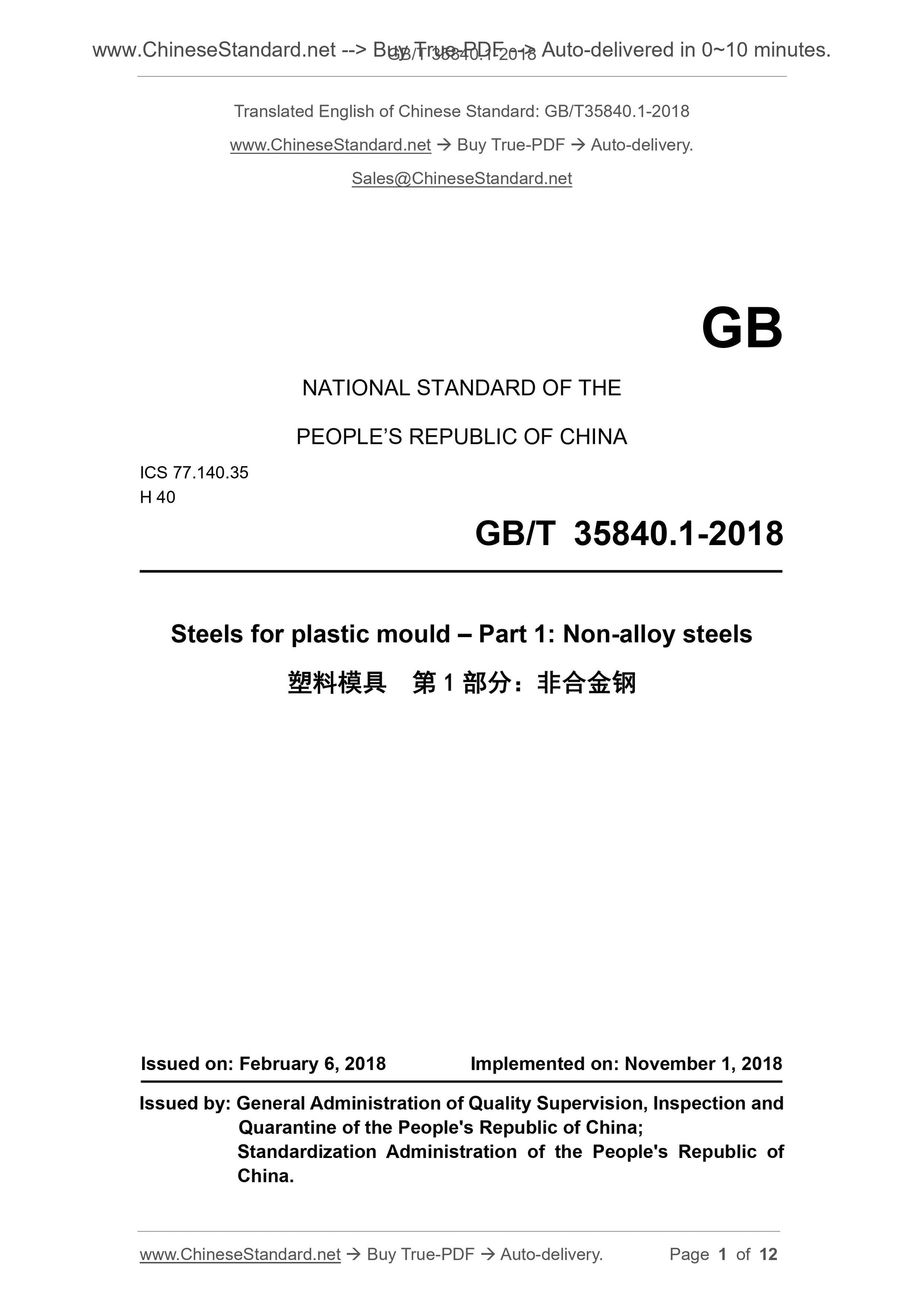

GB/T 35840.1-2018
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.35
H 40
Steels for plastic mould ?€? Part 1. Non-alloy steels
ISSUED ON. FEBRUARY 6, 2018
IMPLEMENTED ON. NOVEMBER 1, 2018
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

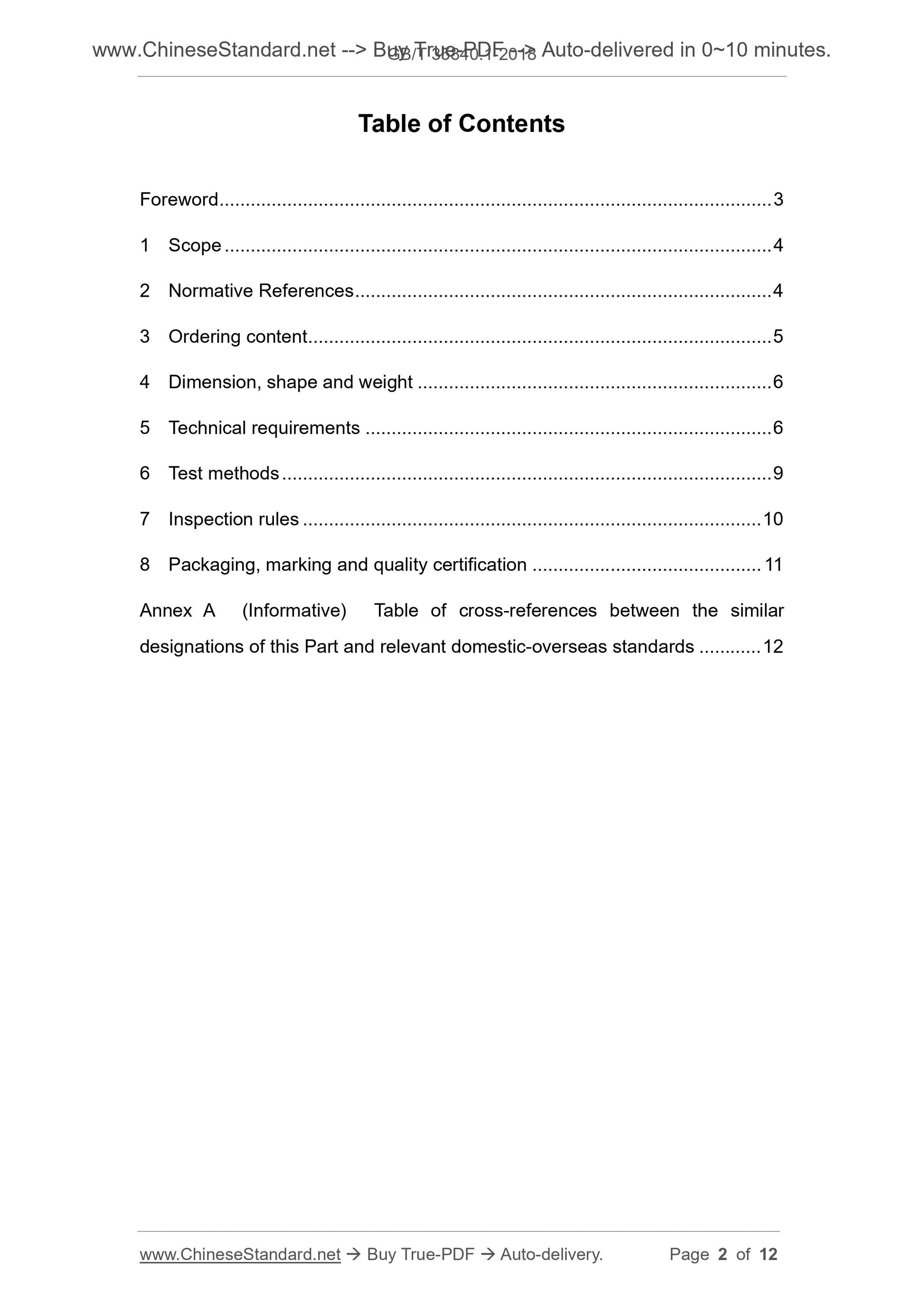

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Ordering content ... 5
4 Dimension, shape and weight ... 6
5 Technical requirements ... 6
6 Test methods ... 9
7 Inspection rules ... 10
8 Packaging, marking and quality certification ... 11
Annex A (Informative) Table of cross-references between the similar
designations of this Part and relevant domestic-overseas standards ... 12 Foreword

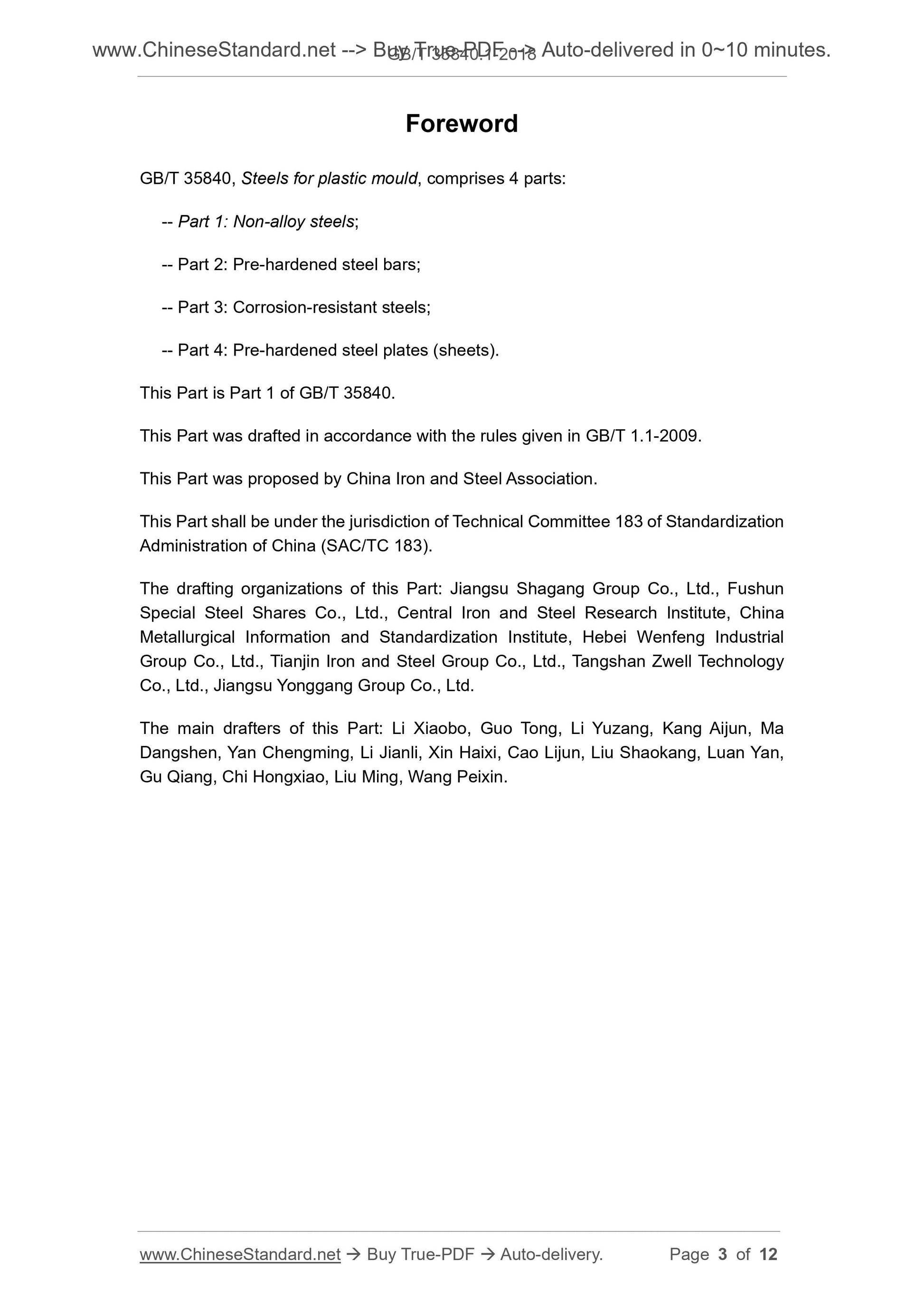

GB/T 35840, Steels for plastic mould, comprises 4 parts.
-- Part 1. Non-alloy steels;
-- Part 2. Pre-hardened steel bars;
-- Part 3. Corrosion-resistant steels;
-- Part 4. Pre-hardened steel plates (sheets).
This Part is Part 1 of GB/T 35840.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009. This Part was proposed by China Iron and Steel Association.
This Part shall be under the jurisdiction of Technical Committee 183 of Standardization Administration of China (SAC/TC 183).
The drafting organizations of this Part. Jiangsu Shagang Group Co., Ltd., Fushun Special Steel Shares Co., Ltd., Central Iron and Steel Research Institute, China Metallurgical Information and Standardization Institute, Hebei Wenfeng Industrial Group Co., Ltd., Tianjin Iron and Steel Group Co., Ltd., Tangshan Zwell Technology Co., Ltd., Jiangsu Yonggang Group Co., Ltd.
The main drafters of this Part. Li Xiaobo, Guo Tong, Li Yuzang, Kang Aijun, Ma Dangshen, Yan Chengming, Li Jianli, Xin Haixi, Cao Lijun, Liu Shaokang, Luan Yan, Gu Qiang, Chi Hongxiao, Liu Ming, Wang Peixin.

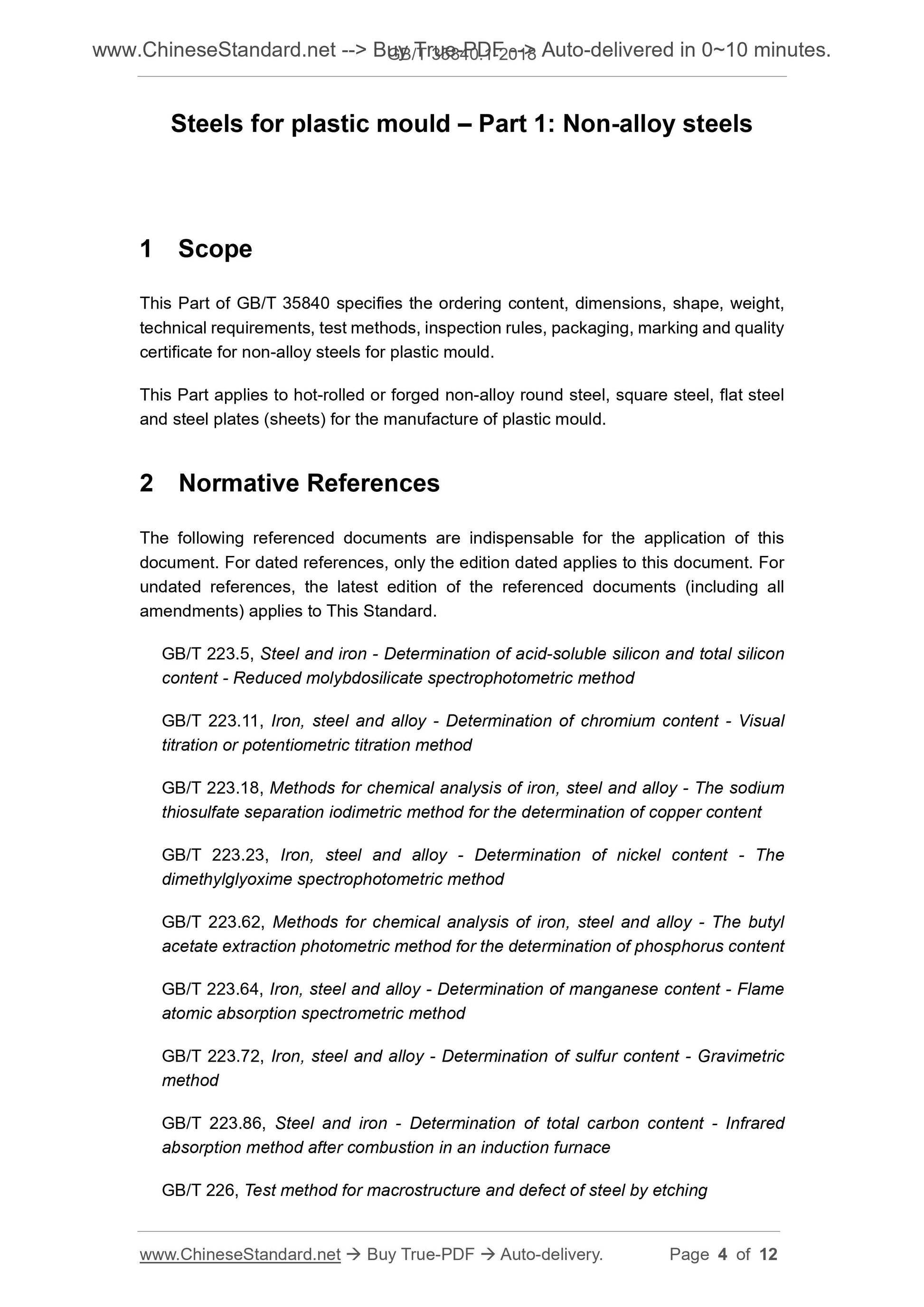

Steels for plastic mould ?€? Part 1. Non-alloy steels
1 Scope
This Part of GB/T 35840 specifies the ordering content, dimensions, shape, weight, technical requirements, test methods, inspection rules, packaging, marking and quality certificate for non-alloy steels for plastic mould.
This Part applies to hot-rolled or forged non-alloy round steel, square steel, flat steel and steel plates (sheets) for the manufacture of plastic mould.
2 Normative References
The following referenced documents are indispensable for the application of this document. For dated references, only the edition dated applies to this document. For undated references, the latest edition of the referenced documents (including all amendments) applies to This Standard.
GB/T 223.5, Steel and iron - Determination of acid-soluble silicon and total silicon content - Reduced molybdosilicate spectrophotometric method
GB/T 223.11, Iron, steel and alloy - Determination of chromium content - Visual titration or potentiometric titration method
GB/T 223.18, Methods for chemical analysis of iron, steel and alloy - The sodium thiosulfate separation iodimetric method for the determination of copper content GB/T 223.23, Iron, steel and alloy - Determination of nickel content - The dimethylglyoxime spectrophotometric method
GB/T 223.62, Methods for chemical analysis of iron, steel and alloy - The butyl acetate extraction photometric method for the determination of phosphorus content GB/T 223.64, Iron, steel and alloy - Determination of manganese content - Flame atomic absorption spectrometric method
GB/T 223.72, Iron, steel and alloy - Determination of sulfur content - Gravimetric method
GB/T 223.86, Steel and iron - Determination of total carbon content - Infrared absorption method after combustion in an induction furnace

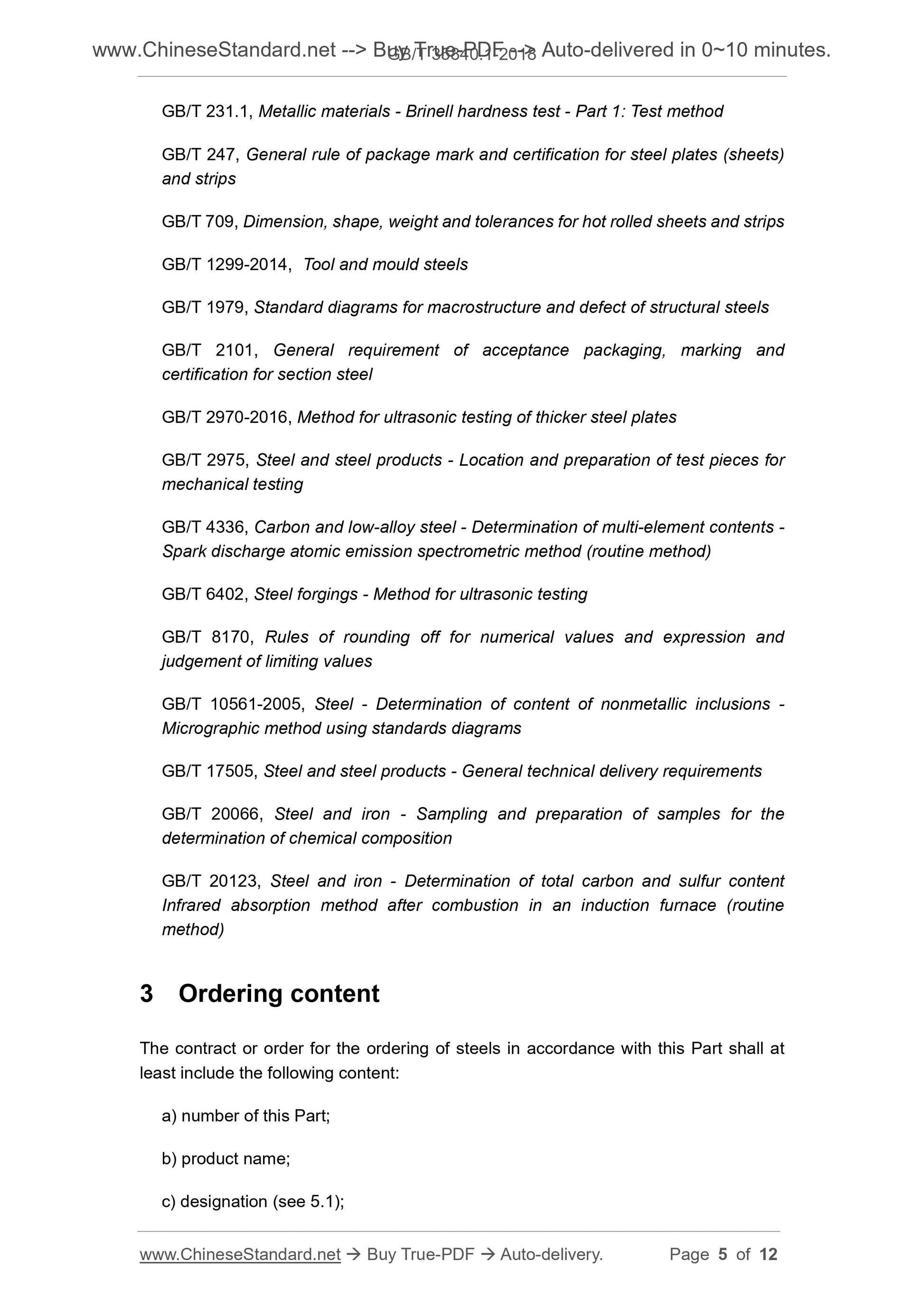

GB/T 226, Test method for macrostructure and defect of steel by etching GB/T 231.1, Metallic materials - Brinell hardness test - Part 1. Test method GB/T 247, General rule of package mark and certification for steel plates (sheets) and strips
GB/T 709, Dimension, shape, weight and tolerances for hot rolled sheets and strips GB/T 1299-2014, Tool and mould steels
GB/T 1979, Standard diagrams for macrostructure and defect of structural steels GB/T 2101, General requirement of acceptance packaging, marking and
certification for section steel
GB/T 2970-2016, Method for ultrasonic testing of thicker steel plates
GB/T 2975, Steel and steel products - Location and preparation of test pieces for mechanical testing
GB/T 4336, Carbon and low-alloy steel - Determination of multi-element contents - Spark discharge atomic emission spectrometric method (routine method)
GB/T 6402, Steel forgings - Method for ultrasonic testing
GB/T 8170, Rules of rounding off for numerical values and expression and judgement of limiting values
GB/T 10561-2005, Steel - Determination of content of nonmetallic inclusions - Micrographic method using standards diagrams
GB/T 17505, Steel and steel products - General technical delivery requirements GB/T 20066, Steel and iron - Sampling and preparation of samples for the determination of chemical composition
GB/T 20123, Steel and iron - Determination of total carbon and sulfur content Infrared absorption method after combustion in an induction furnace (routine method)
3 Ordering content
The contract or order for the ordering of steels in accordance with this Part shall at least include the following content.
a) number of this Part;
b) product name;
c) designation (see 5.1);

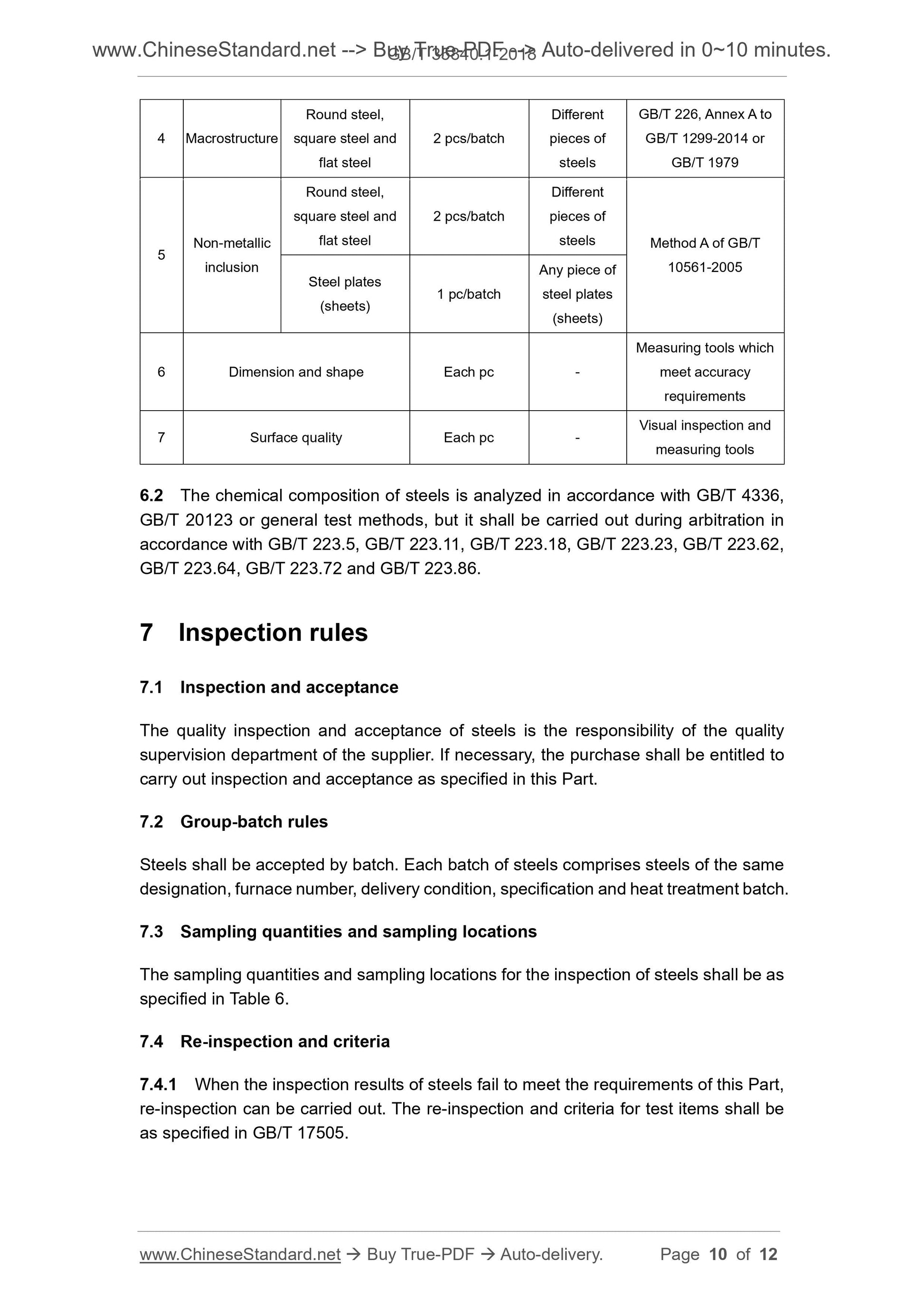

4 Macrostructure
Round steel,
square steel and
flat steel
2 pcs/batch
Different
pieces of
steels
GB/T 226, Annex A to
GB/T 1299-2014 or
GB/T 1979
5 Non-metallic inclusion
Round steel,
square steel and
flat steel
2 pcs/batch
Different
pieces of
steels Method A of GB/T
10561-2005
Steel plates
(sheets) 1 pc/batch
Any piece of
steel plates
(sheets)
6 Dimension and shape Each pc -
Measuring tools which
meet accuracy
requirements
7 Surface quality Each pc - Visual inspection and measuring tools
6.2 The chemical composition of steels is analyzed in accordance with GB/T 4336, GB/T 20123 or general test methods, but it shall be carried out during arbitration in accordance with GB/T 223.5, GB/T 223.11, GB/T 223.18, GB/T 223.23, GB/T 223.62, GB/T 223.64, GB/T 223.72 and GB/T 223.86.
7 Inspection rules
7.1 Inspection and acceptance
The quality inspection and acceptance of steels is the responsibility of the quality supervision department of the supplier. If necessary, the purchase shall be entitled to carry out inspection and acceptance as specified in this Part.
7.2 Group-batch rules
Steels shall be accepted by batch. Each batch of steels comprises steels of the same designation, furnace number, delivery condition, specification and heat treatment batch. 7.3 Sampling quantities and sampling locations
The sampling quantities and sampling locations for the inspection of steels shall be as specified in Table 6.
7.4 Re-inspection and criteria
7.4.1 When the inspection results of steels fail to meet the requirements of this Part, re-inspection can be carried out. The re-inspection and criteria for test items shall be as specified in GB/T 17505.
