GB/T 35789.1-2017: General specification for the electronic identification of motor vehicles -- Part 1: Automobile

This Part of GB/T 35789 specifies the requirements, test methods, quality assessment procedures, markings, packaging, transportation and storage of motor vehicle electronic identification based on UHF radio frequency identification technology installed on automobiles. This Part is applicable to the design, production, testing and use of motor vehicle electronic identification based on UHF radio frequency identification technology installed on automobiles.

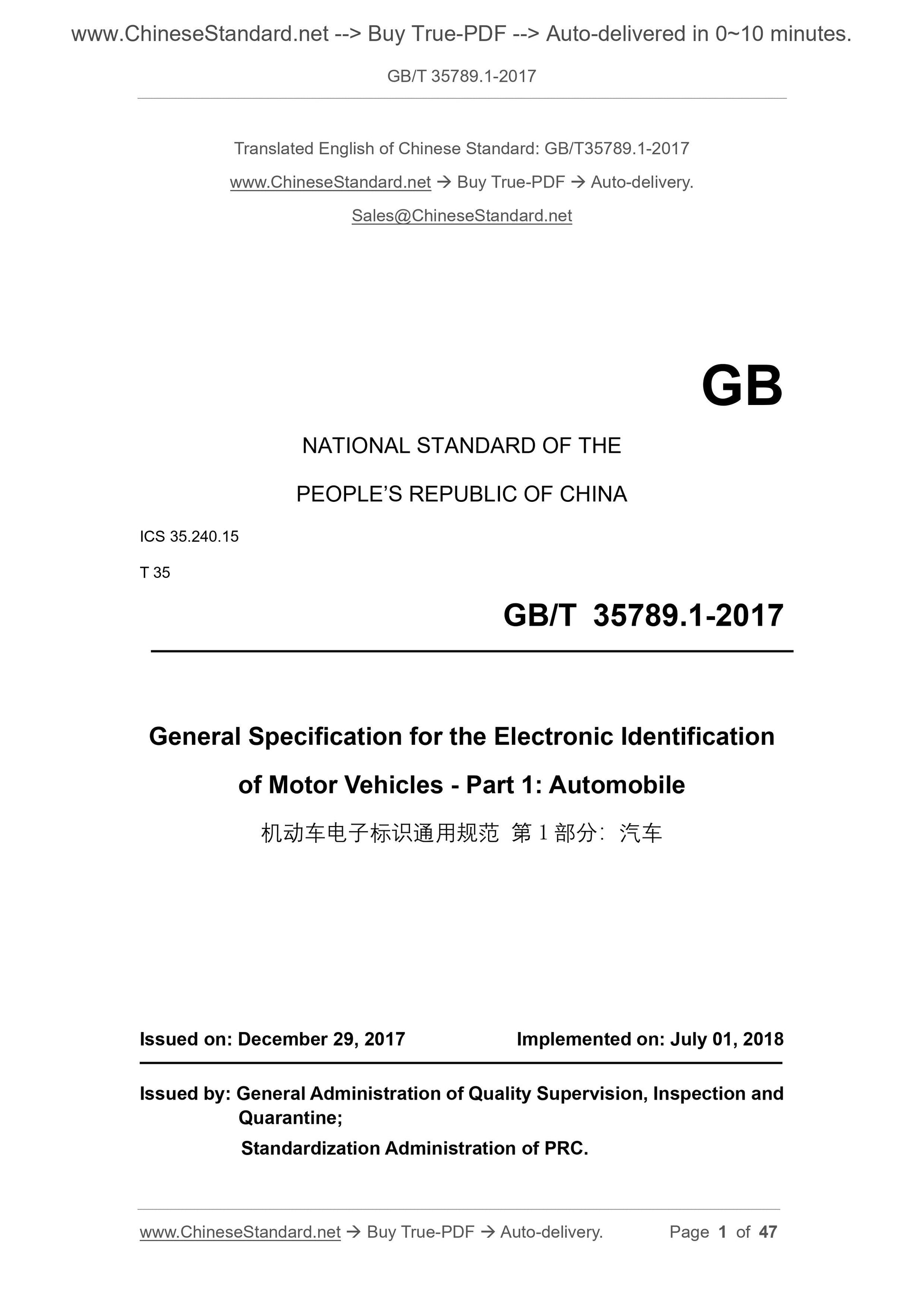

GB/T 35789.1-2017
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 35.240.15
T 35
General Specification for the Electronic Identification
of Motor Vehicles - Part 1: Automobile
ISSUED ON: DECEMBER 29, 2017
IMPLEMENTED ON: JULY 01, 2018
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.

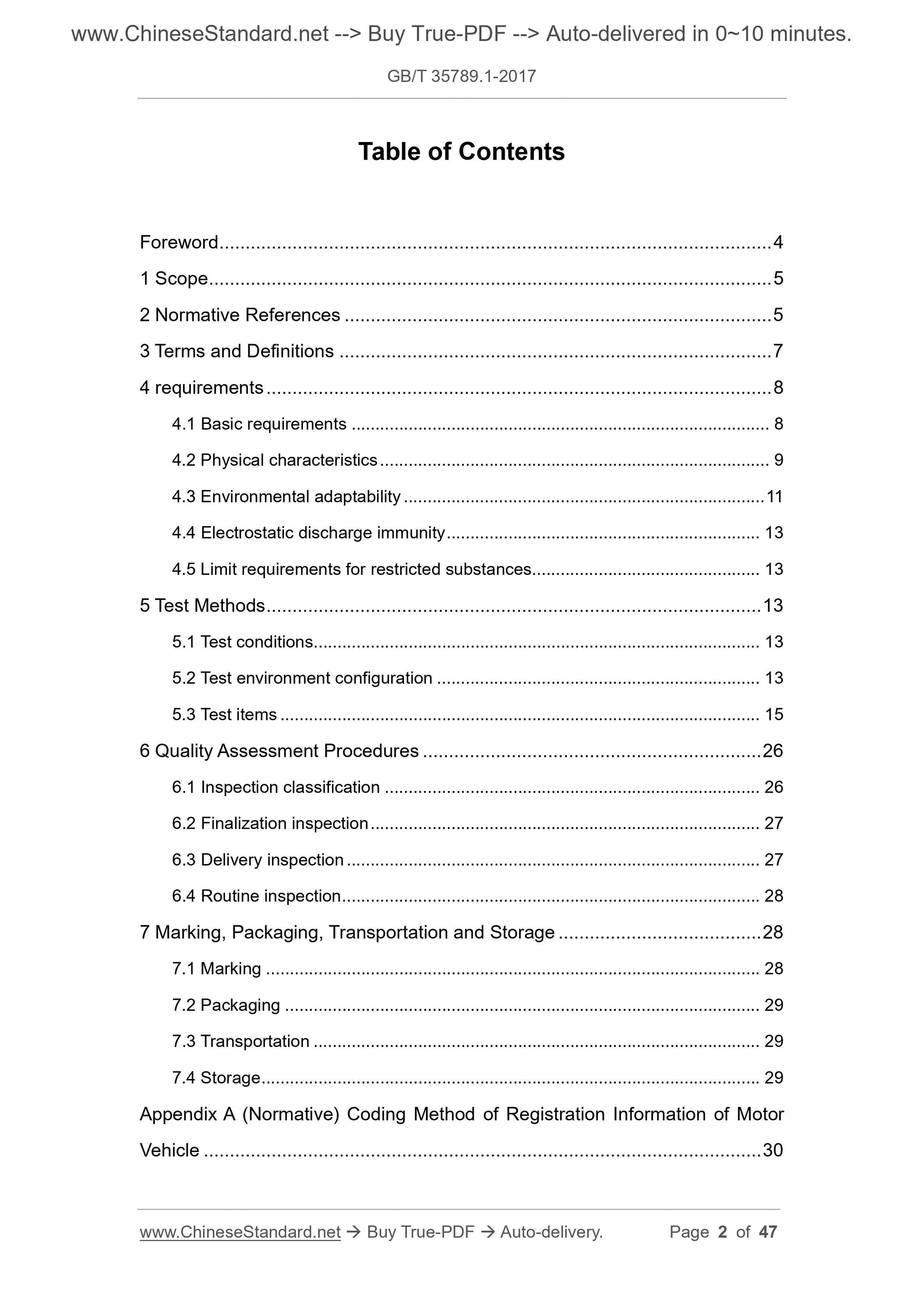

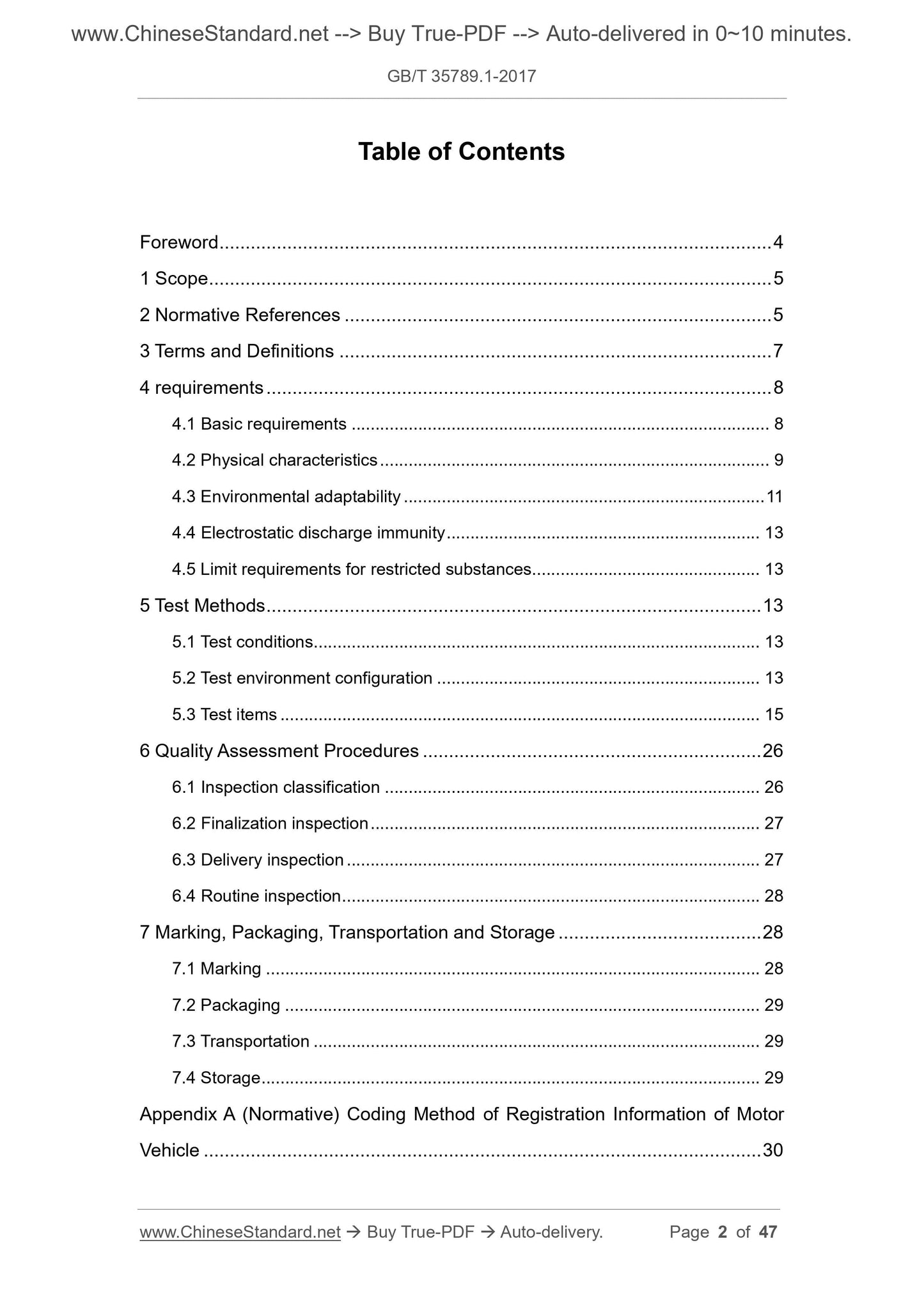

Table of Contents
Foreword ... 4
1 Scope ... 5
2 Normative References ... 5
3 Terms and Definitions ... 7
4 requirements ... 8
4.1 Basic requirements ... 8
4.2 Physical characteristics ... 9
4.3 Environmental adaptability ... 11
4.4 Electrostatic discharge immunity ... 13
4.5 Limit requirements for restricted substances... 13
5 Test Methods ... 13
5.1 Test conditions ... 13
5.2 Test environment configuration ... 13
5.3 Test items ... 15
6 Quality Assessment Procedures ... 26
6.1 Inspection classification ... 26
6.2 Finalization inspection ... 27
6.3 Delivery inspection ... 27
6.4 Routine inspection ... 28
7 Marking, Packaging, Transportation and Storage ... 28
7.1 Marking ... 28
7.2 Packaging ... 29
7.3 Transportation ... 29
7.4 Storage ... 29
Appendix A (Normative) Coding Method of Registration Information of Motor Vehicle ... 30

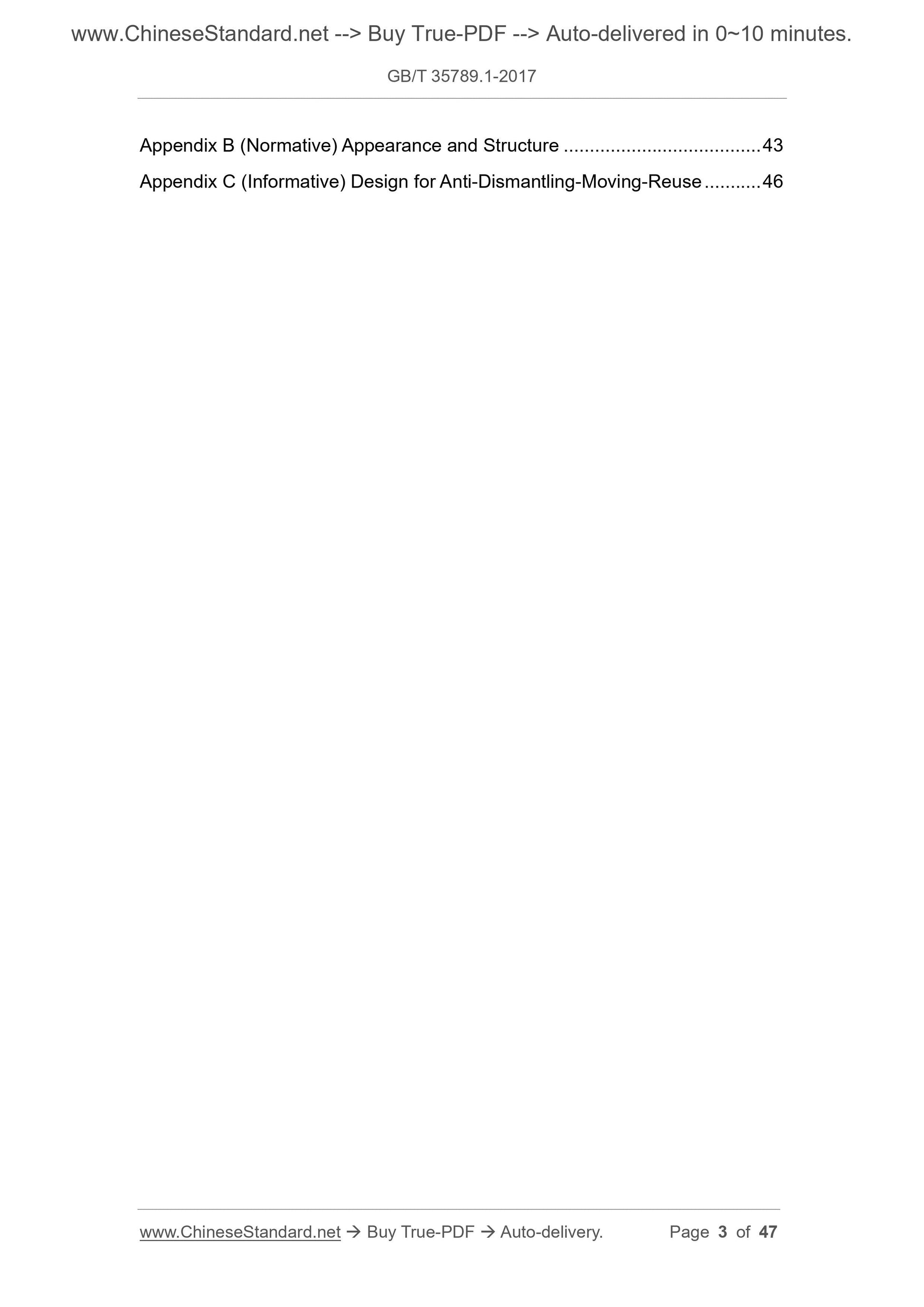

Appendix B (Normative) Appearance and Structure ... 43
Appendix C (Informative) Design for Anti-Dismantling-Moving-Reuse ... 46 General Specification for the Electronic Identification
of Motor Vehicles - Part 1: Automobile

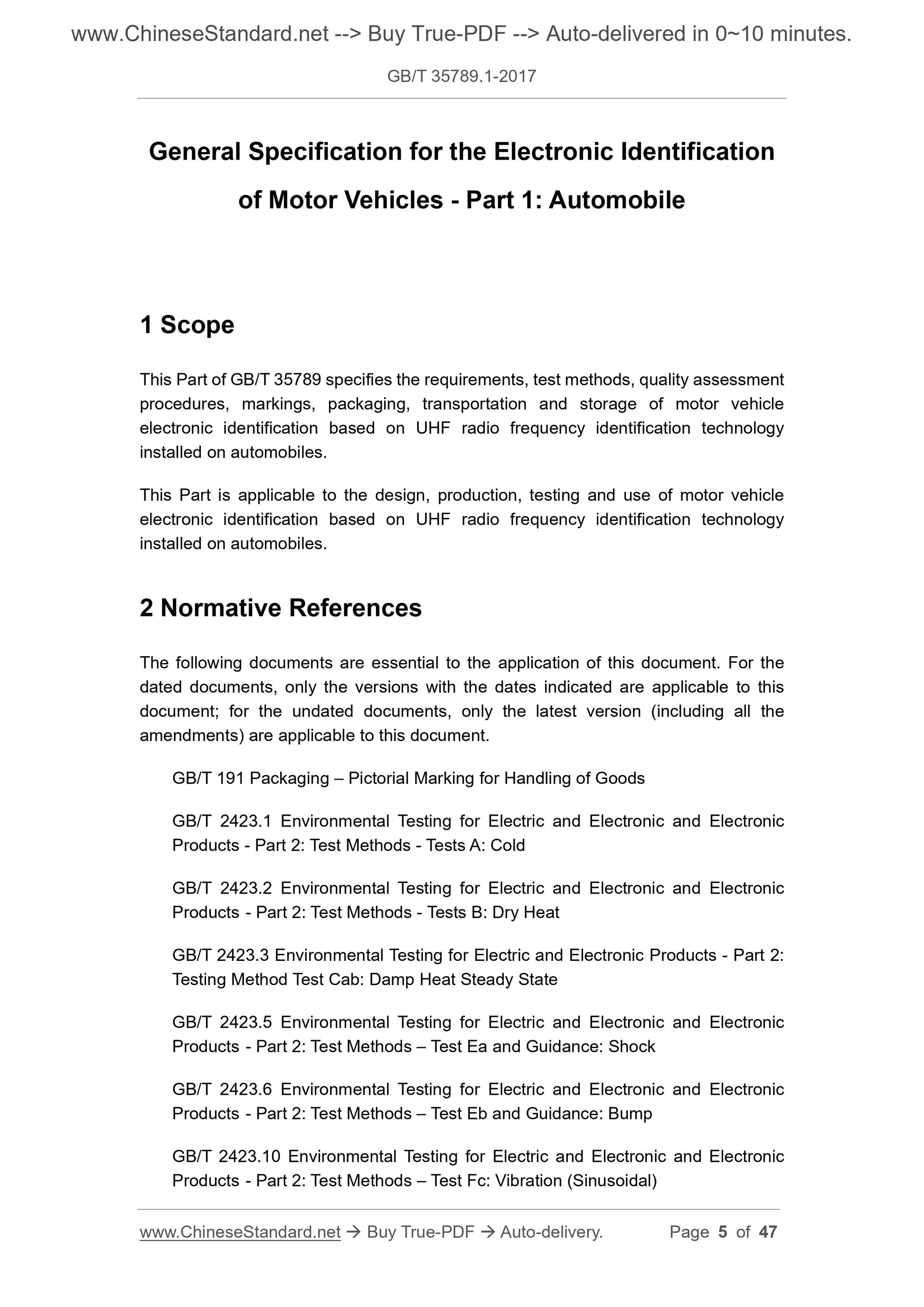

1 Scope
This Part of GB/T 35789 specifies the requirements, test methods, quality assessment procedures, markings, packaging, transportation and storage of motor vehicle electronic identification based on UHF radio frequency identification technology installed on automobiles.
This Part is applicable to the design, production, testing and use of motor vehicle electronic identification based on UHF radio frequency identification technology installed on automobiles.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.

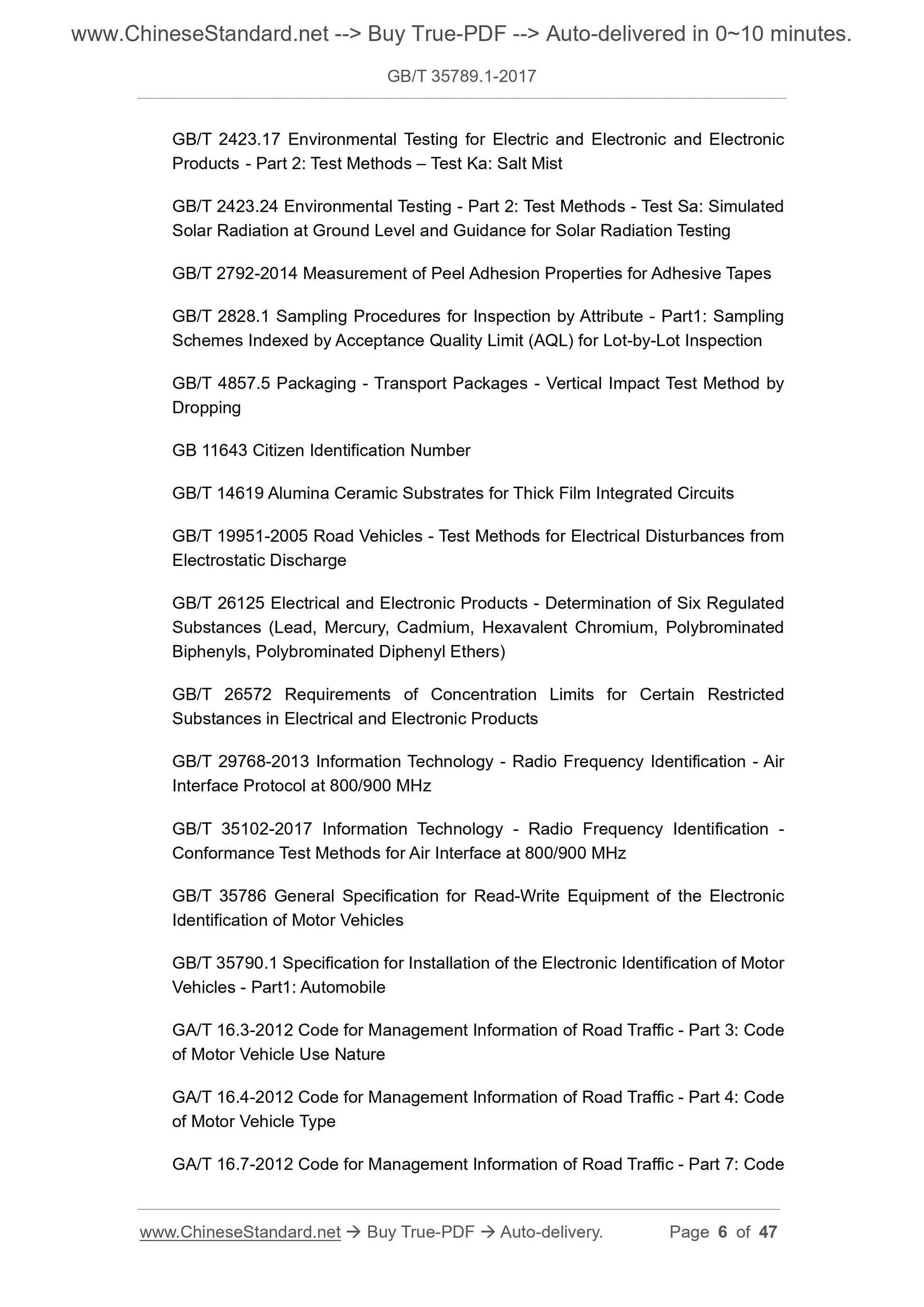

GB/T 191 Packaging ?€? Pictorial Marking for Handling of Goods
GB/T 2423.1 Environmental Testing for Electric and Electronic and Electronic Products - Part 2: Test Methods - Tests A: Cold
GB/T 2423.2 Environmental Testing for Electric and Electronic and Electronic Products - Part 2: Test Methods - Tests B: Dry Heat
GB/T 2423.3 Environmental Testing for Electric and Electronic Products - Part 2: Testing Method Test Cab: Damp Heat Steady State
GB/T 2423.5 Environmental Testing for Electric and Electronic and Electronic Products - Part 2: Test Methods ?€? Test Ea and Guidance: Shock
GB/T 2423.6 Environmental Testing for Electric and Electronic and Electronic Products - Part 2: Test Methods ?€? Test Eb and Guidance: Bump
GB/T 2423.10 Environmental Testing for Electric and Electronic and Electronic Products - Part 2: Test Methods ?€? Test Fc: Vibration (Sinusoidal)
GB/T 2423.17 Environmental Testing for Electric and Electronic and Electronic Products - Part 2: Test Methods ?€? Test Ka: Salt Mist
GB/T 2423.24 Environmental Testing - Part 2: Test Methods - Test Sa: Simulated Solar Radiation at Ground Level and Guidance for Solar Radiation Testing GB/T 2792-2014 Measurement of Peel Adhesion Properties for Adhesive Tapes GB/T 2828.1 Sampling Procedures for Inspection by Attribute - Part1: Sampling Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-by-Lot Inspection GB/T 4857.5 Packaging - Transport Packages - Vertical Impact Test Method by Dropping
GB 11643 Citizen Identification Number
GB/T 14619 Alumina Ceramic Substrates for Thick Film Integrated Circuits GB/T 19951-2005 Road Vehicles - Test Methods for Electrical Disturbances from Electrostatic Discharge
GB/T 26125 Electrical and Electronic Products - Determination of Six Regulated Substances (Lead, Mercury, Cadmium, Hexavalent Chromium, Polybrominated Biphenyls, Polybrominated Diphenyl Ethers)
GB/T 26572 Requirements of Concentration Limits for Certain Restricted
Substances in Electrical and Electronic Products
GB/T 29768-2013 Information Technology - Radio Frequency Identification - Air Interface Protocol at 800/900 MHz
GB/T 35102-2017 Information Technology - Radio Frequency Identification - Conformance Test Methods for Air Interface at 800/900 MHz
GB/T 35786 General Specification for Read-Write Equipment of the Electronic Identification of Motor Vehicles
GB/T 35790.1 Specification for Installation of the Electronic Identification of Motor Vehicles - Part1: Automobile
GA/T 16.3-2012 Code for Management Information of Road Traffic - Part 3: Code of Motor Vehicle Use Nature
GA/T 16.4-2012 Code for Management Information of Road Traffic - Part 4: Code of Motor Vehicle Type
GA/T 16.7-2012 Code for Management Information of Road Traffic - Part 7: Code The maximum horizontal distance BETWEEN the geometric center of the antenna unit of the read-write device AND the geometric center of the motor vehicle electronic identifier, when the read-write device effectively writes the electronic vehicle identification.
4 requirements
4.1 Basic requirements

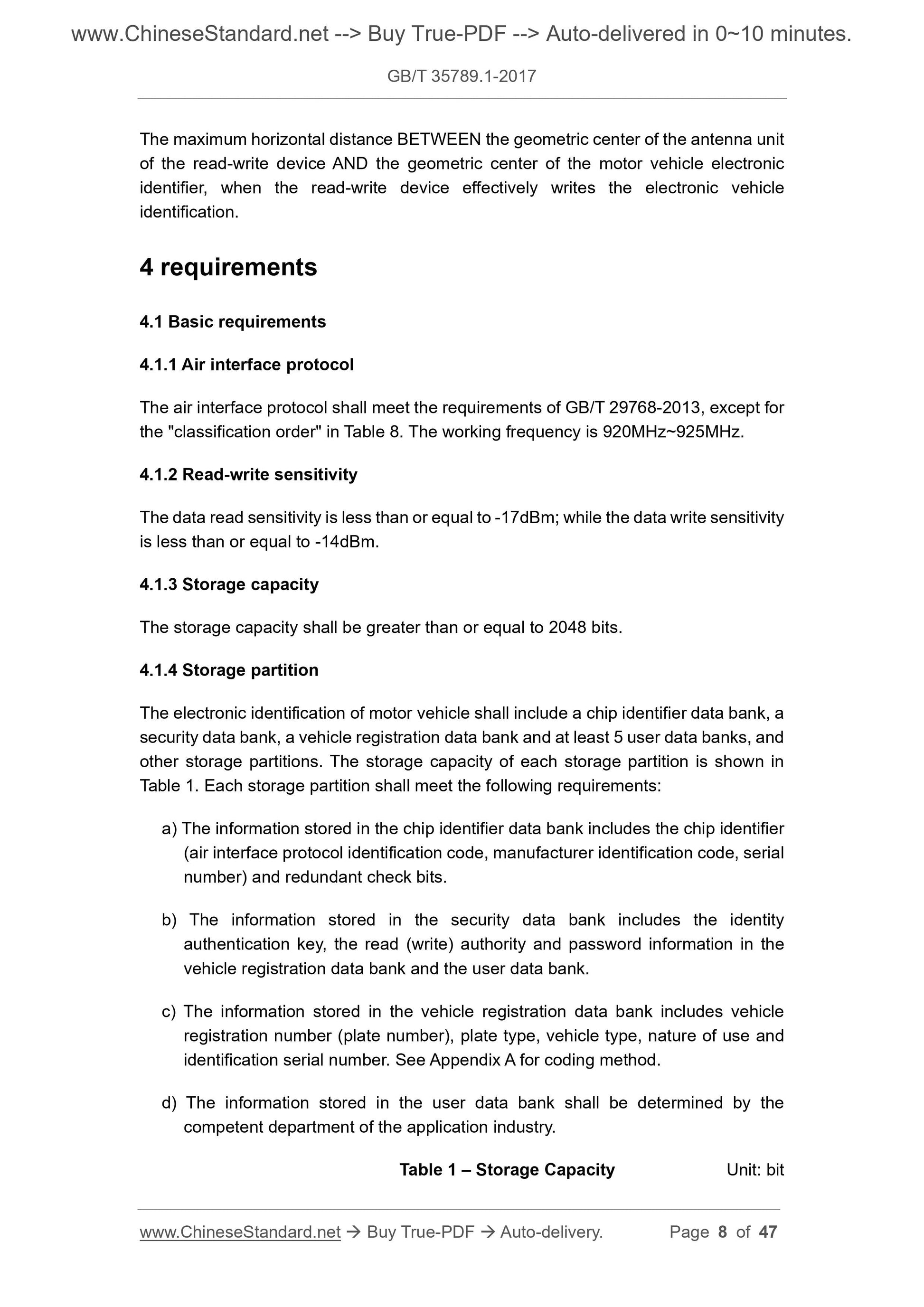

4.1.1 Air interface protocol
The air interface protocol shall meet the requirements of GB/T 29768-2013, except for the "classification order" in Table 8. The working frequency is 920MHz~925MHz. 4.1.2 Read-write sensitivity
The data read sensitivity is less than or equal to -17dBm; while the data write sensitivity is less than or equal to -14dBm.
4.1.3 Storage capacity
The storage capacity shall be greater than or equal to 2048 bits.
4.1.4 Storage partition
The electronic identification of motor vehicle shall include a chip identifier data bank, a security data bank, a vehicle registration data bank and at least 5 user data banks, and other storage partitions. The storage capacity of each storage partition is shown in Table 1. Each storage partition shall meet the following requirements:
a) The information stored in the chip identifier data bank includes the chip identifier (air interface protocol identification code, manufacturer identification code, serial number) and redundant check bits.
b) The information stored in the security data bank includes the identity authentication key, the read (write) authority and password information in the vehicle registration data bank and the user data bank.
c) The information stored in the vehicle registration data bank includes vehicle registration number (plate number), plate type, vehicle type, nature of use and identification serial number. See Appendix A for coding method.
d) The information stored in the user data bank shall be determined by the competent department of the application industry.
Table 1 ?€? Storage Capacity Unit: bit
precautions.

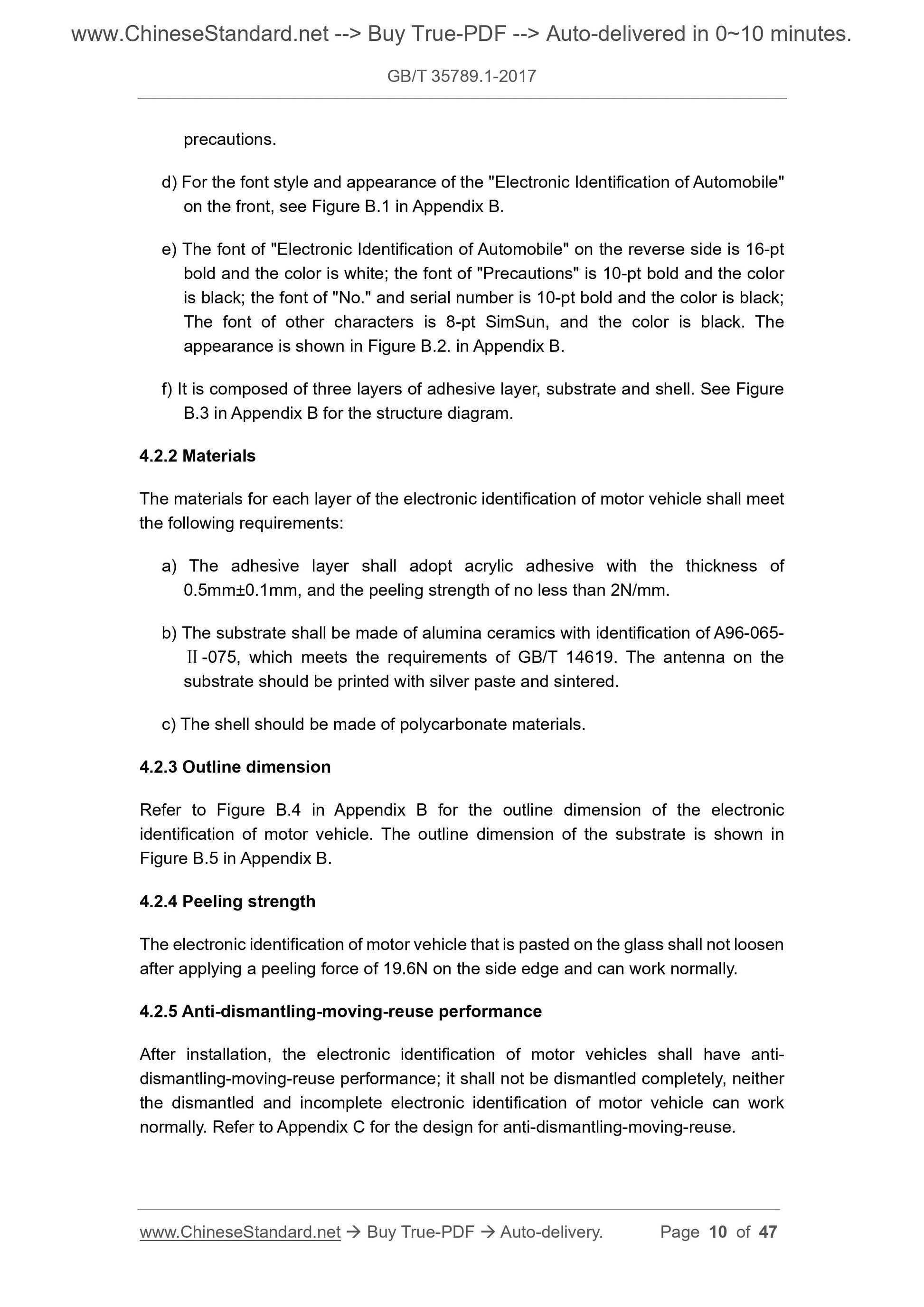

d) For the font style and appearance of the "Electronic Identification of Automobile" on the front, see Figure B.1 in Appendix B.
e) The font of "Electronic Identification of Automobile" on the reverse side is 16-pt bold and the color is white; the font of "Precautions" is 10-pt bold and the color is black; the font of "No." and serial number is 10-pt bold and the color is black; The font of other characters is 8-pt SimSun, and the color is black. The appearance is shown in Figure B.2. in Appendix B.
f) It is composed of three layers of adhesive layer, substrate and shell. See Figure B.3 in Appendix B for the structure diagram.
4.2.2 Materials
The materials for each layer of the electronic identification of motor vehicle shall meet the following requirements:
a) The adhesive layer shall adopt acrylic adhesive with the thickness of 0.5mm??0.1mm, and the peeling strength of no less than 2N/mm.
b) The substrate shall be made of alumina ceramics with identification of A96-065- ???-075, which meets the requirements of GB/T 14619. The antenna on the
substrate should be printed with silver paste and sintered.
c) The shell should be made of polycarbonate materials.
4.2.3 Outline dimension
Refer to Figure B.4 in Appendix B for the outline dimension of the electronic identification of motor vehicle. The outline dimension of the substrate is shown in Figure B.5 in Appendix B.
4.2.4 Peeling strength
The electronic identification of motor vehicle that is pasted on the glass shall not loosen after applying a peeling force of 19.6N on the side edge and can work normally. 4.2.5 Anti-dismantling-moving-reuse performance
After installation, the electronic identification of motor vehicles shall have anti- dismantling-moving-reuse performance; it shall not be dismantled completely, neither the dismantled and incomplete electronic identification of motor vehicle can work normally. Refer to Appendix C for the design for anti-dismantling-moving-reuse. 5.3.3 Storage capacity and partition

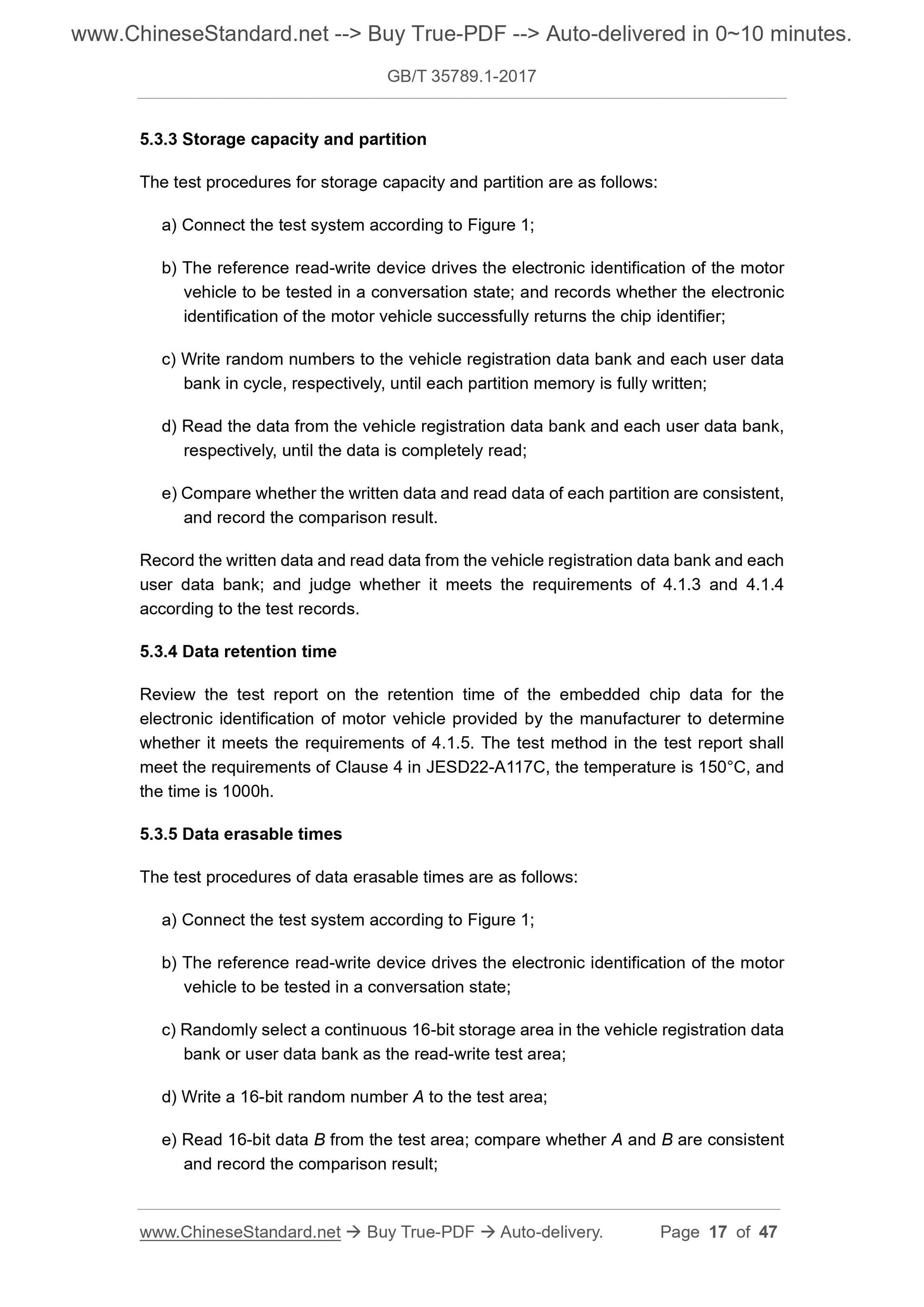

The test procedures for storage capacity and partition are as follows:
a) Connect the test system according to Figure 1;
b) The reference read-write device drives the electronic identification of the motor vehicle to be tested in a conversation state; and records whether the electronic identification of the motor vehicle successfully returns the chip identifier; c) Write random numbers to the vehicle registration data bank and each user data bank in cycle, respectively, until each partition memory is fully written; d) Read the data from the vehicle registration data bank and each user data bank, respectively, until the data is completely read;
e) Compare whether the written data and read data of each partition are consistent, and record the comparison result.
Record the written data and read data from the vehicle registration data bank and each user data bank; and judge whether it meets the requirements of 4.1.3 and 4.1.4 according to the test records.
5.3.4 Data retention time
Review the test report on the retention time of the embedded chip data for the electronic identification of motor vehicle provided by the manufacturer to determine whether it meets the requirements of 4.1.5. The test method in the test report shall meet the requirements of Clause 4 in JESD22-A117C, the temperature is 150??C, and the time is 1000h.
5.3.5 Data erasable times
The test procedures of data erasable times are as follows:
a) Connect the test system according to Figure 1;
b) The reference read-write device drives the electronic identification of the motor vehicle to be tested in a conversation state;
c) Randomly select a continuous 16-bit storage area in the vehicle registration data bank or user data bank as the read-write test area;
d) Write a 16-bit random number A to the test area;
e) Read 16-bit data B from the test area; compare whether A and B are consistent and record the comparison result;
e) Read the 16-bit data B from the test partition; compare whether A and B are consistent, and record the comparison result and the L1 value;
f) Repeat procedures c), d), and e) until the horizontal distance L1 from the electronic identification of the motor vehicle to the antenna unit is 6m; g) Repeat steps c) ~ f) for three times.
According to the test record, judge whether it meets the requirements of 4.1.8. 5.3.8 Dynamic read performance

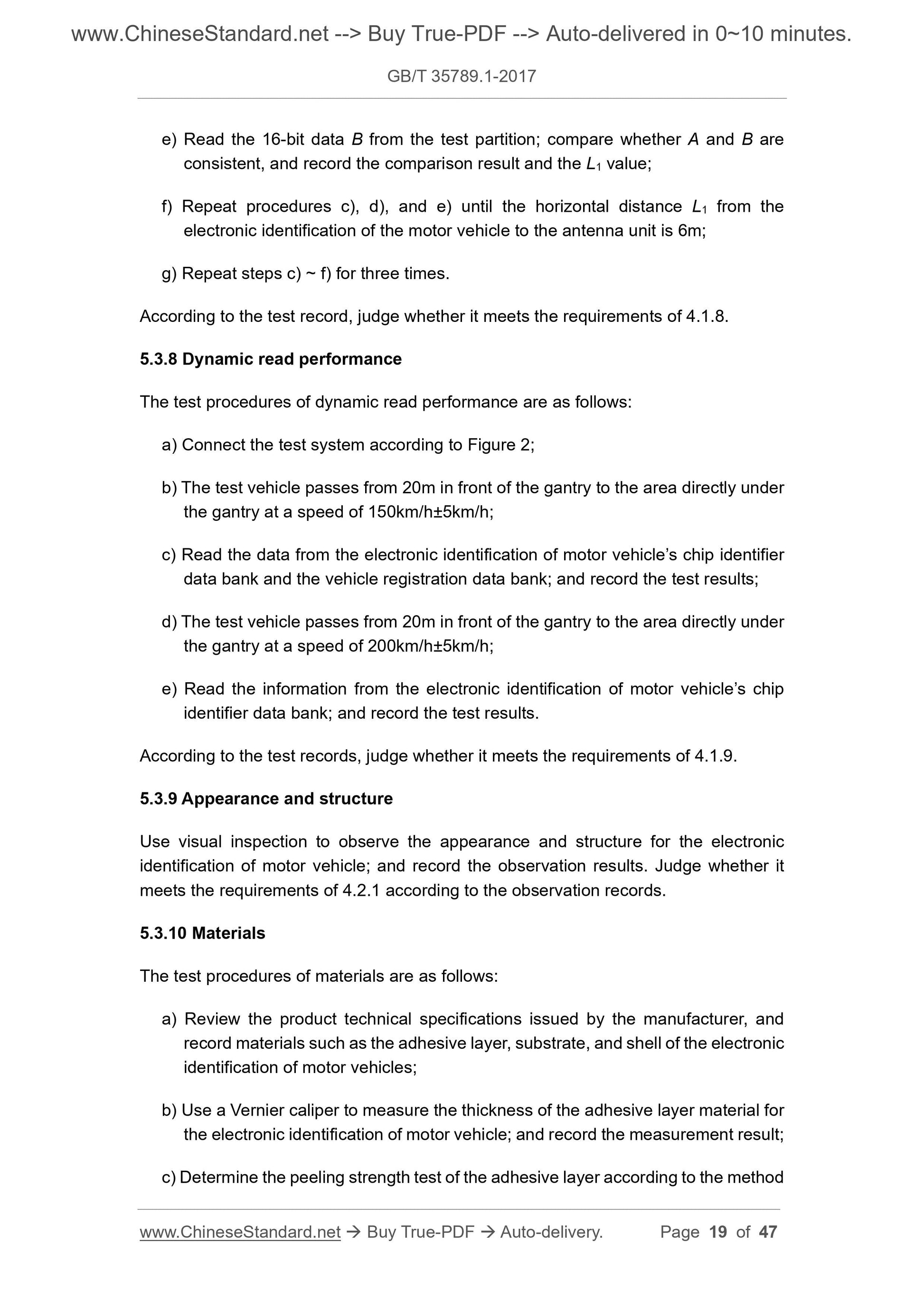

The test procedures of dynamic read performance are as follows:
a) Connect the test system according to Figure 2;
b) The test vehicle passes from 20m in front of the gantry to the area directly under the gantry at a speed of 150km/h??5km/h;
c) Read the data from the electronic identification of motor vehicle?€?s chip identifier data bank and the vehicle registration data bank; and record the test results; d) The test vehicle passes from 20m in front of the gantry to the area directly under the gantry at a speed of 200km/h??5km/h;
e) Read the information from the electronic identification of motor vehicle?€?s chip identifier data bank; and record the test results.
According to the test records, judge whether it meets the requirements of 4.1.9. 5.3.9 Appearance and structure
Use visual inspection to observe the appearance and structure for the electronic identification of motor vehicle; and record the observation results. Judge whether it meets the requirements of 4.2.1 according to the observation records.
5.3.10 Materials
The test procedures of materials are as follows:
a) Review the product technical specifications issued by the manufacturer, and record materials such as the adhesive layer, substrate, and shell of the electronic identification of motor vehicles;
b) Use a Vernier caliper to measure the thickness of the adhesive layer material for the electronic identification of motor vehicle; and record the measurement result; c) Determine the peeling strength test of the adhesive layer according to the method b) Place the reference read-write device and the tested sample in the high and low temperature test chamber according to the requirements of Figure 5.

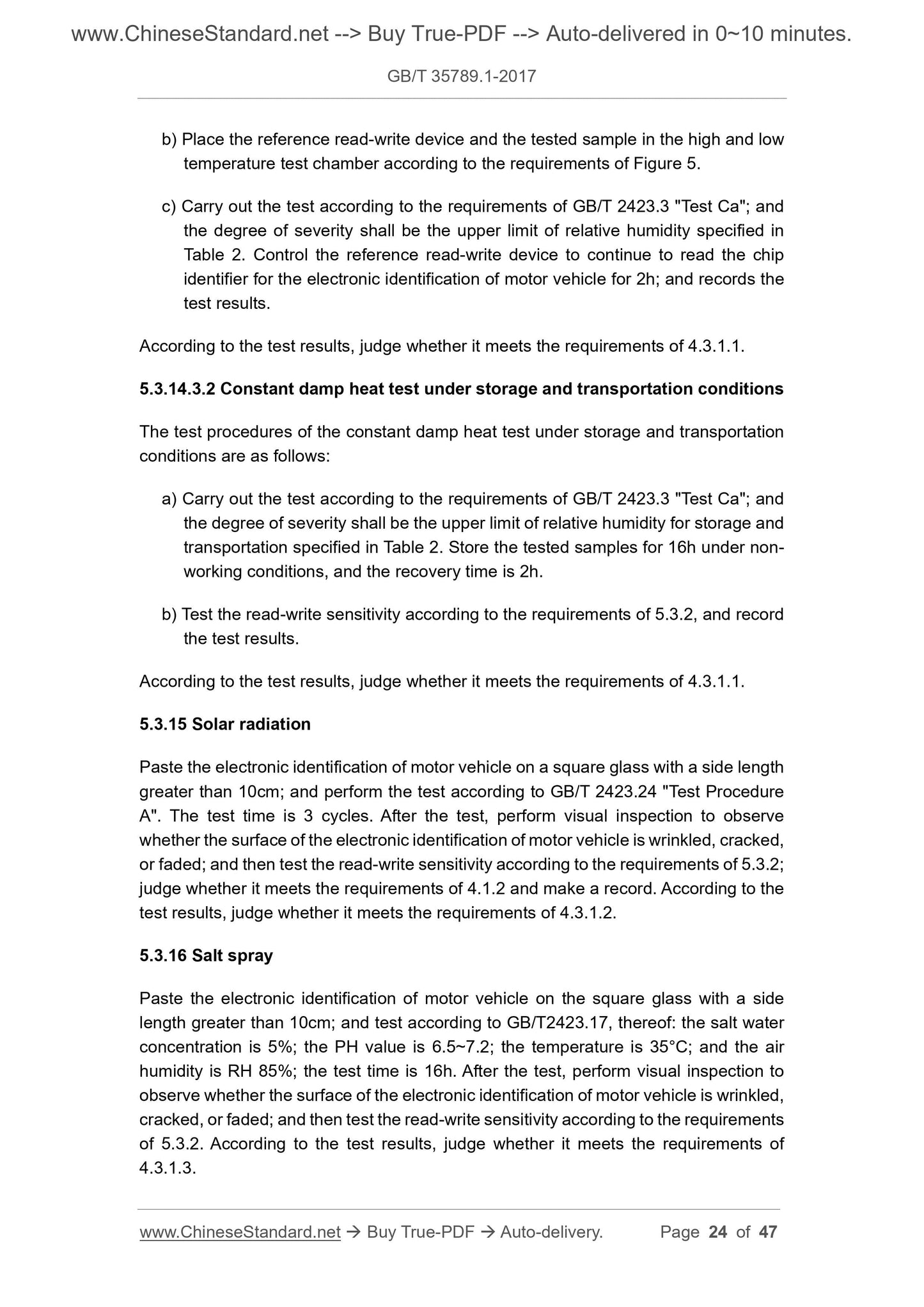

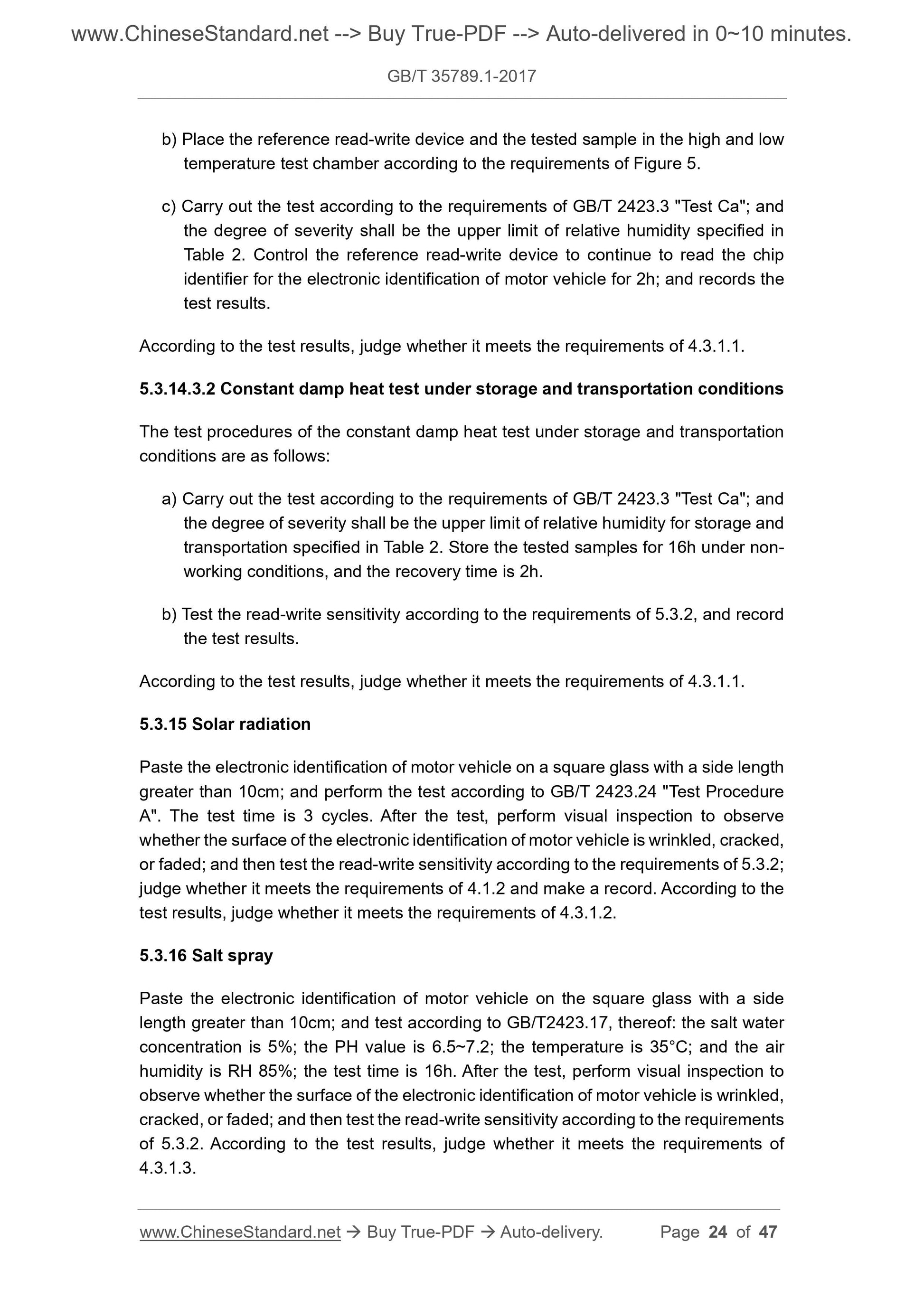

c) Carry out the test according to the requirements of GB/T 2423.3 "Test Ca"; and the degree of severity shall be the upper limit of relative humidity specified in Table 2. Control the reference read-write device to continue to read the chip identifier for the electronic identification of motor vehicle for 2h; and records the test results.
According to the test results, judge whether it meets the requirements of 4.3.1.1. 5.3.14.3.2 Constant damp heat test under storage and transportation conditions The test procedures of the constant damp heat test under storage and transportation conditions are as follows:
a) Carry out the test according to the requirements of GB/T 2423.3 "Test Ca"; and the degree of severity shall be the upper limit of relative humidity for storage and transportation specified in Table 2. Store the tested samples for 16h under non- working conditions, and the recovery time is 2h.
b) Test the read-write sensitivity according to the requirements of 5.3.2, and record the test results.
According to the test results, judge whether it meets the requirements of 4.3.1.1. 5.3.15 Solar radiation
Paste the electronic identification of motor vehicle on a square glass with a side length greater than 10cm; and perform the test according to GB/T 2423.24 "Test Procedure A". The test time is 3 cycles. After the test, perform visual inspection to observe whether the surface of the electronic identification of motor vehicle is wrinkled, cracked, or faded; and then test the read-write sensitivity according to the requirements of 5.3.2; judge whether it meets the requirements of 4.1.2 and make a record. According to the test results, judge whether it meets the requirements of 4.3.1.2.
5.3.16 Salt spray
Paste the electronic identification of motor vehicle on the square glass with a side length greater than 10cm; and test according to GB/T2423.17, thereof: the salt water concentration is 5%; the PH value is 6.5~7.2; the temperature is 35??C; and the air humidity is RH 85%; the test time is 16h. After the test, perform visual inspection to observe whether the surface of the electronic identification of motor vehicle is wrinkled, cracked, or faded; and then test the read-write sensitivity according to the requirements of 5.3.2. According to the test results, judge whether it meets the requirements of 4.3.1.3.
inspection during delivery. Appearance and structure shall be totally inspected. Other indicators shall be sampled according to GB/T 2828.1. The product standard shall provide sampling methods and treatment methods that cannot be passed according to the requirements of GB/T 2828.1.
c) During the test, if any item fails, the cause shall be analyzed and the test shall be restarted. If any one of the unqualified items occurs again, the batch of products shall be judged to have failed the delivery inspection.
d) If the batch of products fails the delivery inspection, a total inspection can be adopted; thereof, the products that pass the inspection can be judged to pass the delivery inspection.

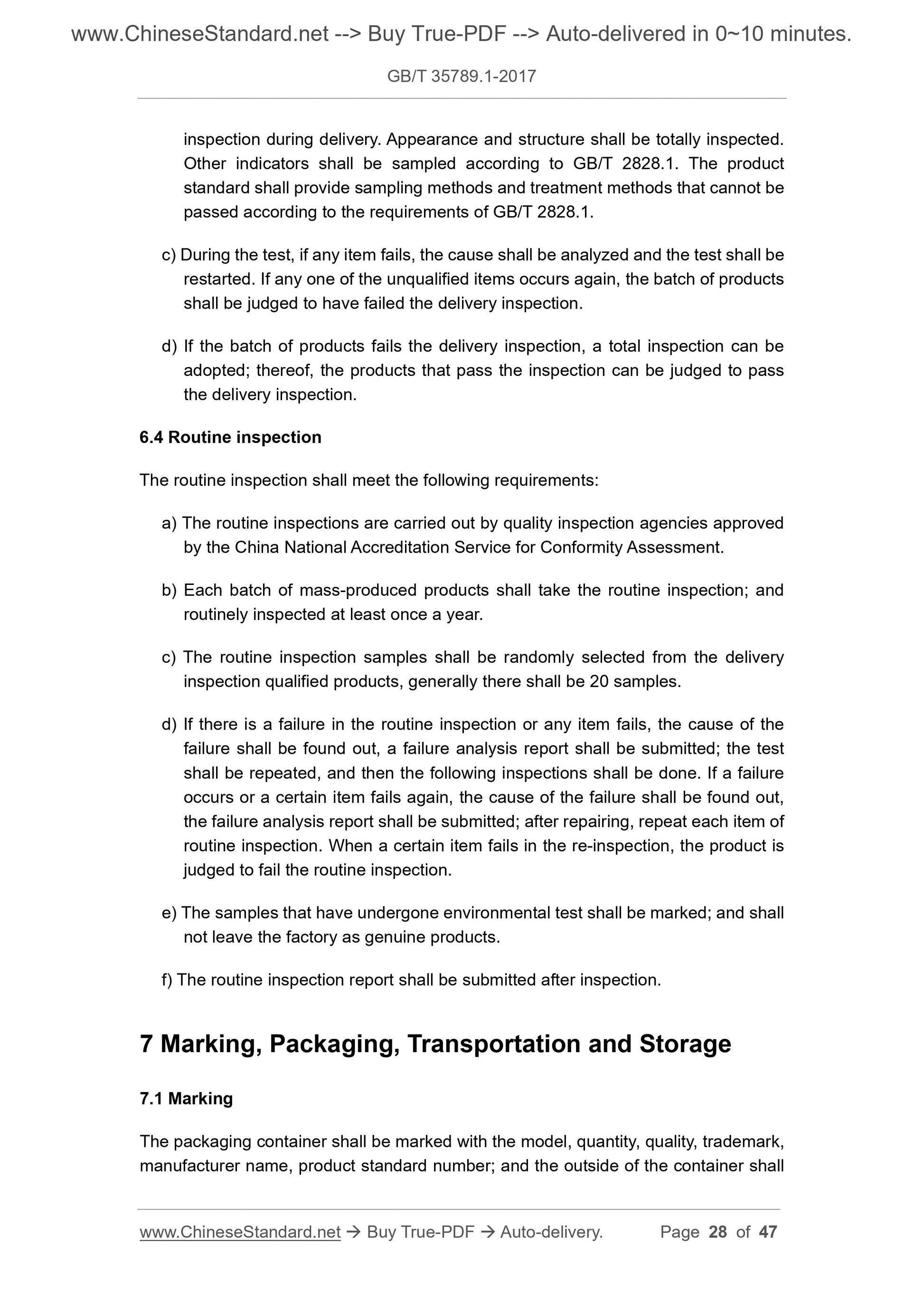

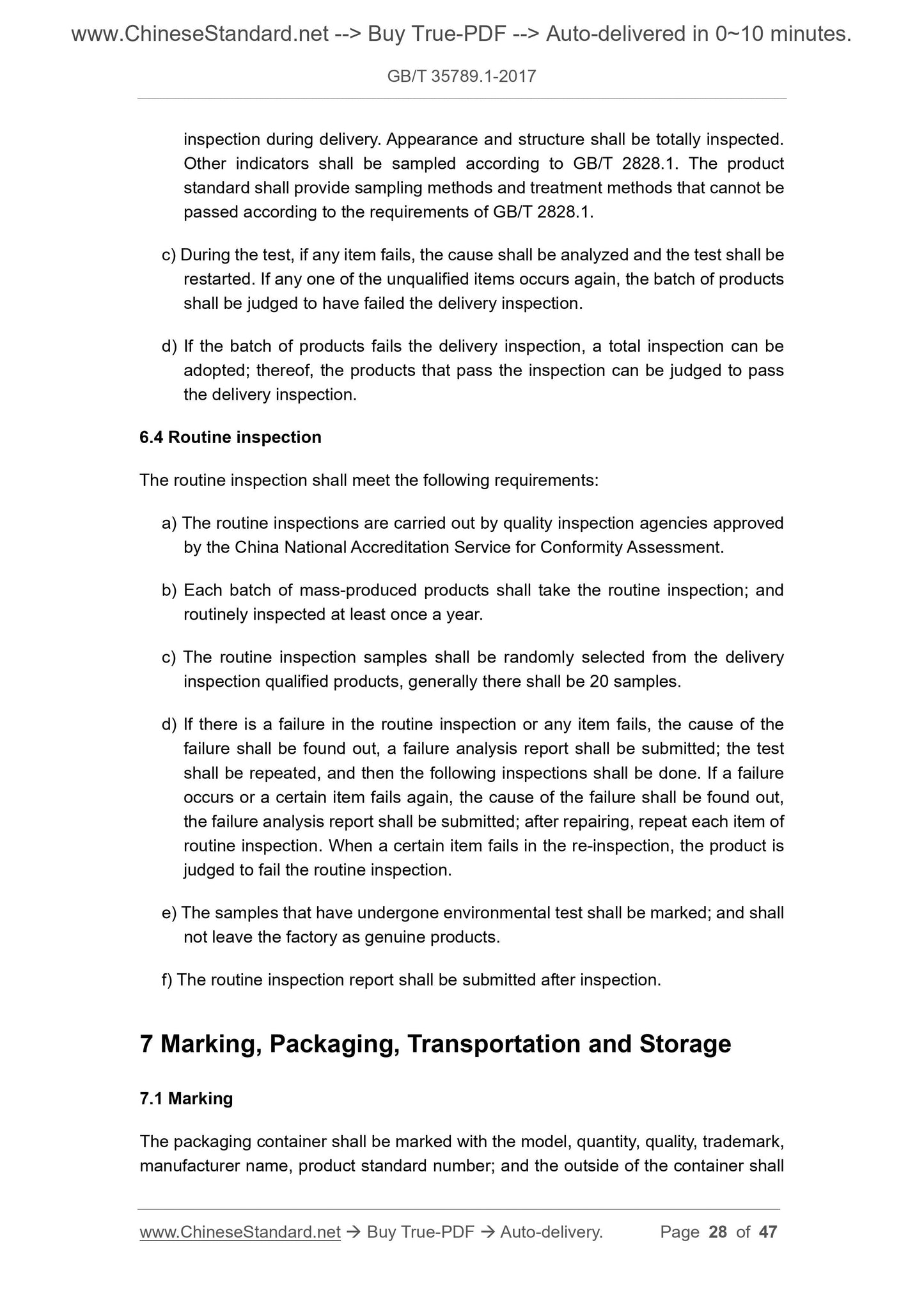

6.4 Routine inspection
The routine inspection shall meet the following requirements:
a) The routine inspections are carried out by quality inspection agencies approved by the China National Accreditation Service for Conformity Assessment.
b) Each batch of mass-produced products shall take the routine inspection; and routinely inspected at least once a year.
c) The routine inspection samples shall be randomly selected from the delivery inspection qualified products, generally there shall be 20 samples.
d) If there is a failure in the routine inspection or any item fails, the cause of the failure shall be found out, a failure analysis report shall be submitted; the test shall be repeated, and then the following inspections shall be done. If a failure occurs or a certain item fails again, the cause of the failure shall be found out, the failure analysis report shall be submitted; after repairing, repeat each item of routine inspection. When a certain item fails in the re-inspection, the product is judged to fail the routine inspection.
e) The samples that have undergone environmental test shall be marked; and shall not leave the factory as genuine products.
f) The routine inspection report shall be submitted after inspection.
7 Marking, Packaging, Transportation and Storage
7.1 Marking
The packaging container shall be marked with the model, quantity, quality, trademark, manufacturer name, product standard number; and the outside of the container shall
