GB/T 34680.4-2018: Evaluation model and general evaluation indicator system for smart cities -- Part 4: Construction management

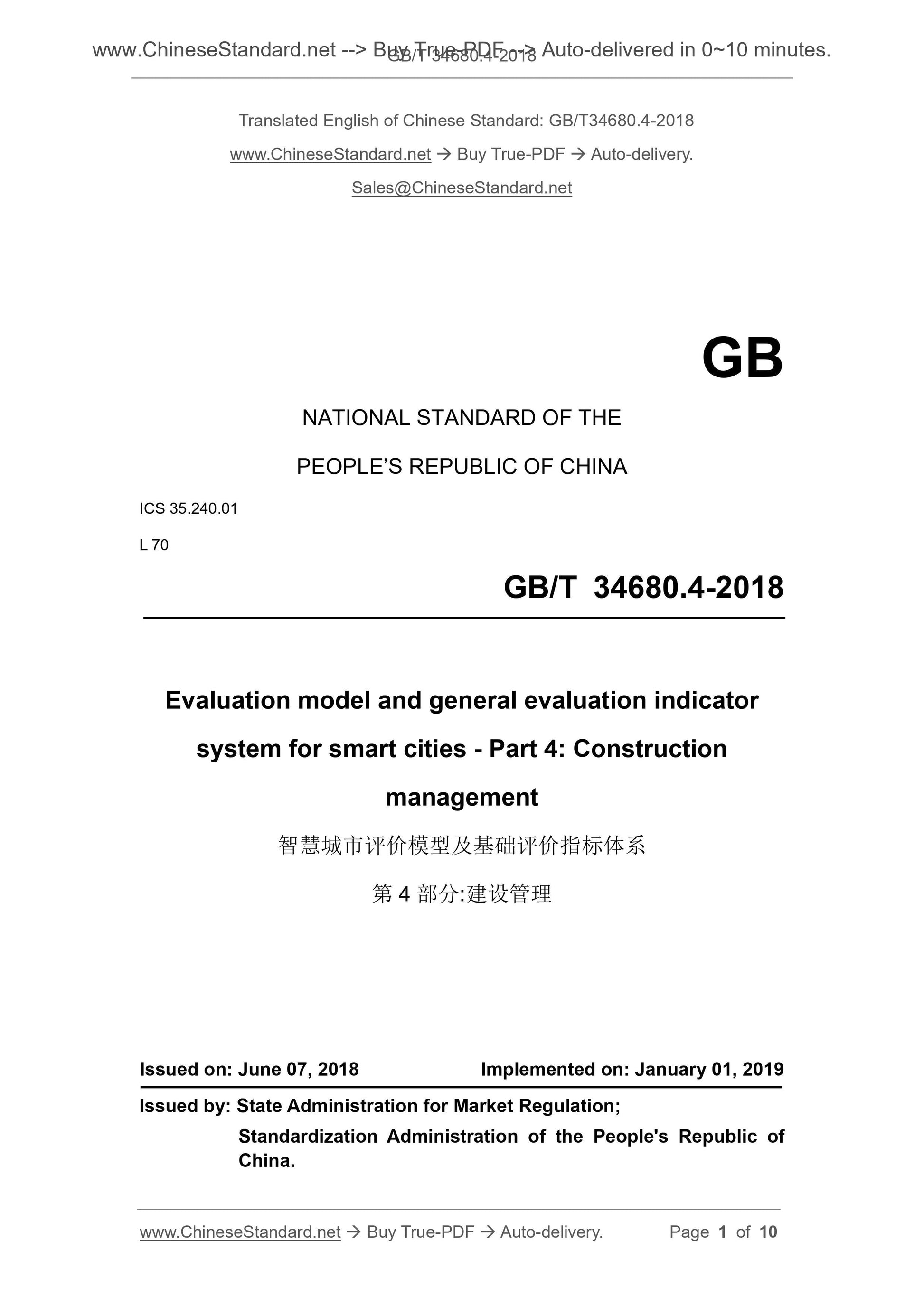

GB/T 34680.4-2018
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 35.240.01
L 70
Evaluation model and general evaluation indicator
system for smart cities - Part 4. Construction
management
ISSUED ON. JUNE 07, 2018
IMPLEMENTED ON. JANUARY 01, 2019
Issued by. State Administration for Market Regulation;
Standardization Administration of the People's Republic of
China.

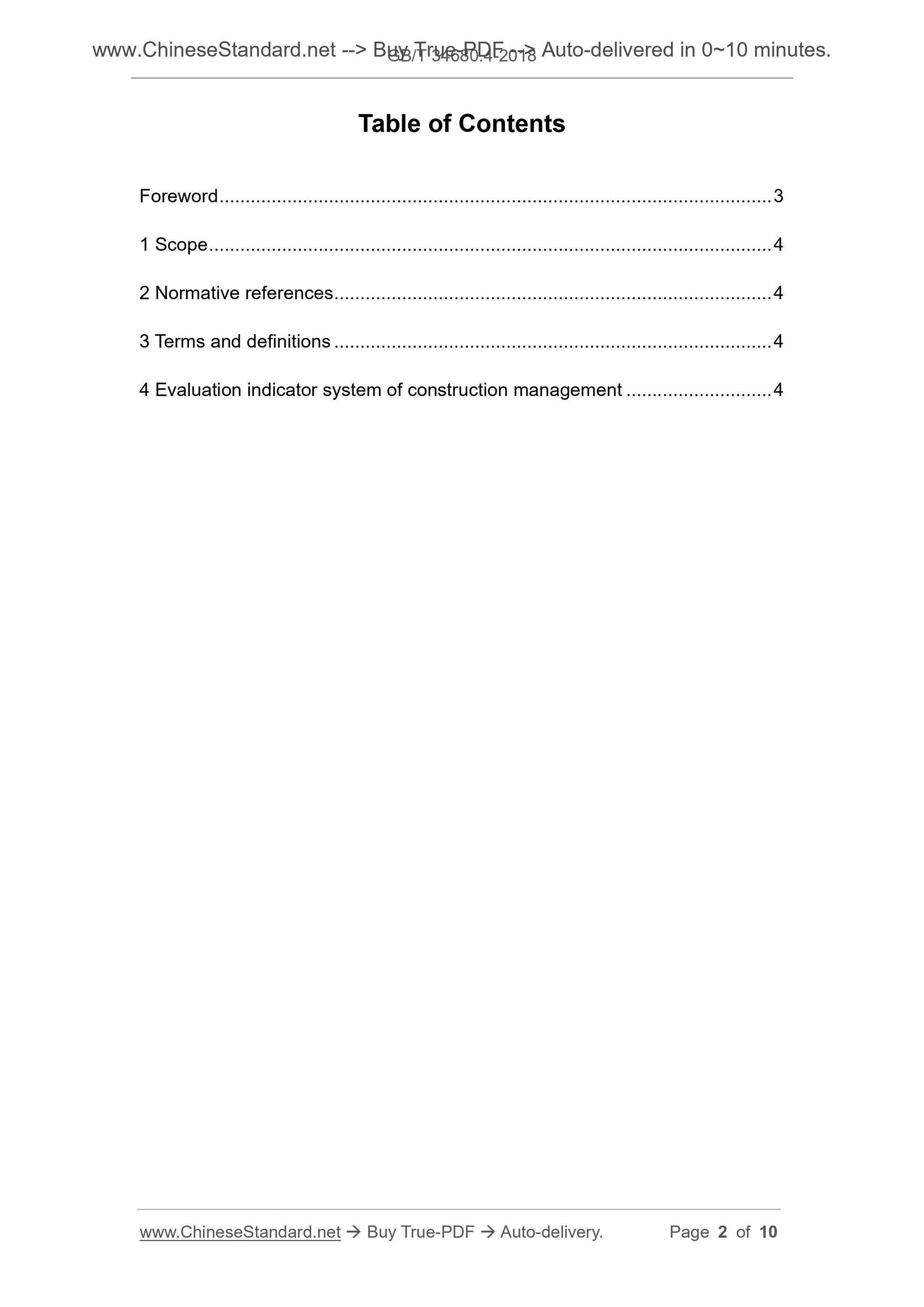

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Evaluation indicator system of construction management ... 4
Foreword
GB/T 34680 “Evaluation model and general evaluation indicator system for
smart cities” consists of 4 parts.
- Part 1. General framework and requirements for developing evaluation sub-
indicators;
- Part 2. Information infrastructure;
- Part 3. Information resources;
- Part 4. Construction management.
This Part is Part 4 of GB/T 34680.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009.
Attention is drawn to the possibility that some of the elements of this document
may be the subject of patent rights. The issuing authority shall not be held
responsible for identifying any or all such patent rights.
This Part was proposed by Ministry of Housing and Urban-Rural Development
of the People’s Republic of China.
This Part shall be under the jurisdiction of National Technical Committee on
Intelligent Building and Residential Area Digitization of Standardization
Administration of China (SAC/TC 426).
The drafting organizations of this Part. IC Card Application Service Center of
Ministry of Housing and Urban-Rural Development, Sino-foreign Construction
Information Co., Ltd., Shenzhen Huaxu Technology Development Co., Ltd.,
Beijing Tsinghua Tongheng Planning and Design Institute Co., Ltd., Sichuan
Jinggong Weida Intelligent Technology Co., Ltd., Smart City System Services
(China) Co., Ltd., China Electronics Technology Standardization Institute,
Beijing E-Smart Data Processing Co. Ltd., Beijing Kawayi Network Technology
Co., Ltd., Beijing Construction Technology Development Co., Ltd., Beijing
Decision Consulting Center, Shanghai Pujiang Smart Card System Co., Ltd.,
Shenzhen Saiwei Intelligent Co., Ltd., Guangdong Provincial Academy of
Building Research Group Co., Ltd., Beijing Zhongke Software Co., Ltd., Tongji
University, Shanghai Fudan Microelectronics Group Co., Ltd.
Main drafters of this Part. Zhang Yonggang, Shang Zhiyu, Yu Tao, Liu Tangli, Li
Gongli, Luo Shuxiang, Liu Jiangbing, Li Yongliang, Ma Bin, Fan Jingjing, Lu
Xian, Wang Zheng, Duan Hongyang, Wang Feifei, Lin Biyi, Jiang Weihuan, Liu
Xi, Hao Tong, Ye Wenli.
Evaluation model and general evaluation indicator
system for smart cities - Part 4. Construction
management

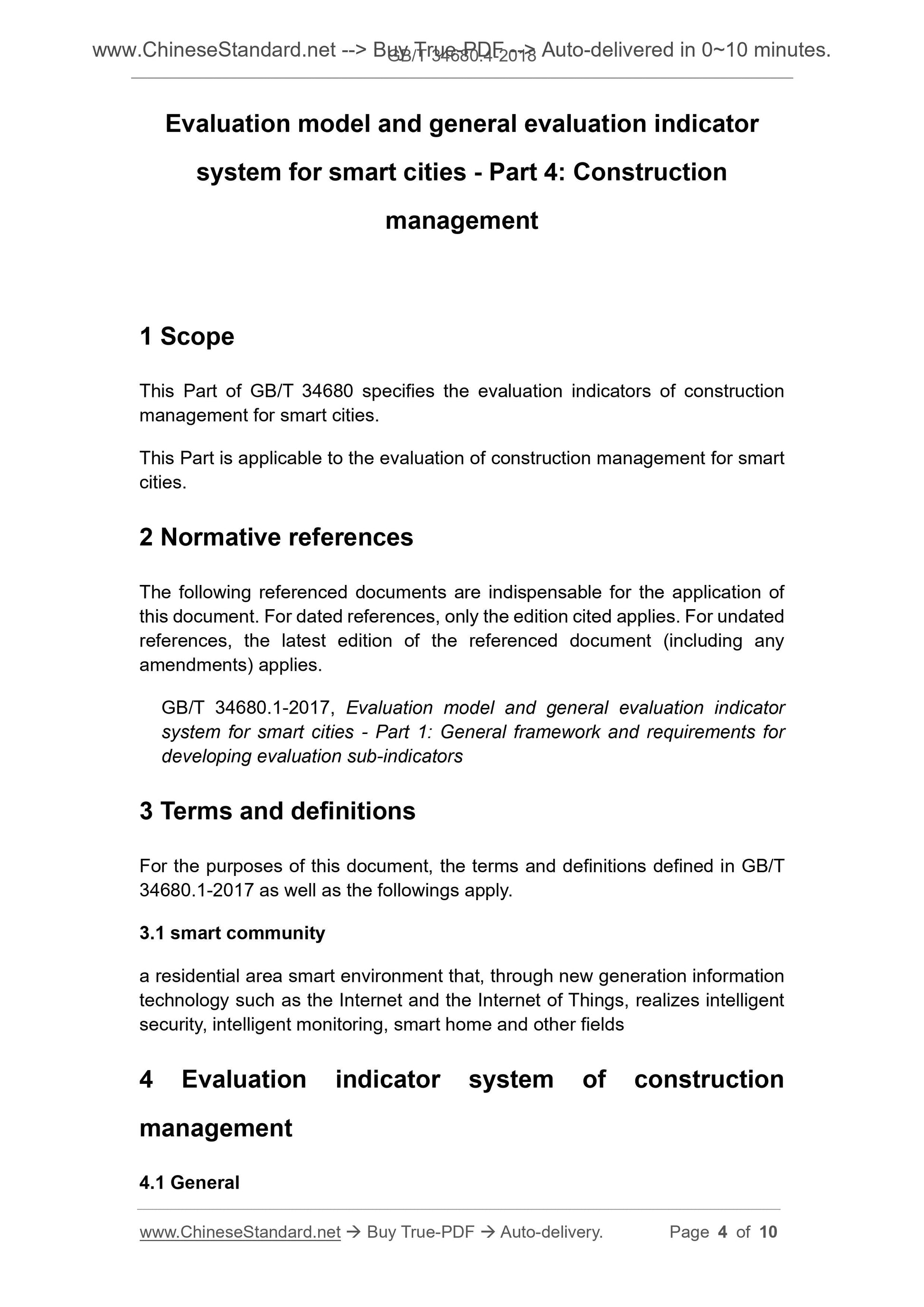

1 Scope
This Part of GB/T 34680 specifies the evaluation indicators of construction
management for smart cities.
This Part is applicable to the evaluation of construction management for smart
cities.
2 Normative references
The following referenced documents are indispensable for the application of
this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any
amendments) applies.
GB/T 34680.1-2017, Evaluation model and general evaluation indicator
system for smart cities - Part 1. General framework and requirements for
developing evaluation sub-indicators
3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T
34680.1-2017 as well as the followings apply.
3.1 smart community
a residential area smart environment that, through new generation information
technology such as the Internet and the Internet of Things, realizes intelligent
security, intelligent monitoring, smart home and other fields
4 Evaluation indicator system of construction
management
4.1 General
4.1.1 According to the requirements of GB/T 34680.1-2017, the evaluation
indicator system of construction management is part of the primary indicators
“mechanism guarantee”, “infrastructure”, “social management” and “ecological
livability” in the overall framework of the evaluation indicator system for smart
cities. It uses secondary indicator structure. The overall framework of the
evaluation indicator system for smart cities is shown in Figure 1.
Overall framework of the evaluation indicator system for smart cities
Indicators for capabilities Indicators for effectiveness
Information resources
Network security
Innovation ability
Mechanism guarantee
Information resources open
Information resourcessharing
Network security management
Monitor, alarm and emergency
Information resourcesare
development and use
Information system security
controllable
Key data security
New generation information
technolo gy application
Mode innovation
Technology R and D, innovation
Transformation of scientific
research achievement
Planning and construction plan
Standard system
Policies and regulations
Investment and financing
mechanism
Organizing and managing
mechanism
Infrastructure
Public surface
Social management
Ecological livable
Industry system
Information infrastructure
Public infrastructure
Efficiency convenience
Management openness
Management accuracy
Inter-department synergy
Public security management level
Credit environment construction
level
Ecological environment
im provement
Environment monitor prevention-
control ability
Community information service
level
Life digitalization degree
Service convenience
Service richness
Service coverage
Service integration
Service satisfaction
Agricultural management
information level
Integration level of two levels
Providing ability of new information
service
Informatization level of particular
industry
E-commerce development and
application effectiveness
Indicator
classification
Primary indicator
Secondary indicator evaluation element
Figure 1 -- Overall framework of the evaluation indicator system for smart cities
4.1.2 The evaluation indicators of construction management are shown as
Table 1. According to the requirements of GB/T 34680.1-2017, the indicators
are divided into core indicators and extended indicators. The evaluation
indicators of construction management correspond to 4 primary indicators, 6
secondary indicator evaluation elements, including 11 secondary indicators that
contain 5 core indicators, 6 extended indicators.
Table 1 -- Evaluation indicators of construction management
Primary
indicator
Secondary indicator
evaluation element Secondary indicator
Indicator attribute
(core / extended)
Mechanism
guarantee
Planning and
construction plan
Multi-integration information
platform business integration Core
Planning data business
support Extended
Infrastructure Public infrastructure
Green building coverage Core
Public building operating
energy consumption rate Extended
Building intelligent design
utilization rate Extended
Smart engineering
management penetration rate Extended
Management rate of intelligent
monitoring of municipal pipe
network pipeline
Core
Social
management Management accuracy
Closing rate of digita...
