GB/T 34668-2017: Safety requirements and test methods for electrical self-balancing vehicles

This Standard specifies the terms and definitions, test conditions, general safety requirements, electrical safety, mechanical safety, environmental reliability, test methods, marking and description of the electrical self-balancing vehicles.

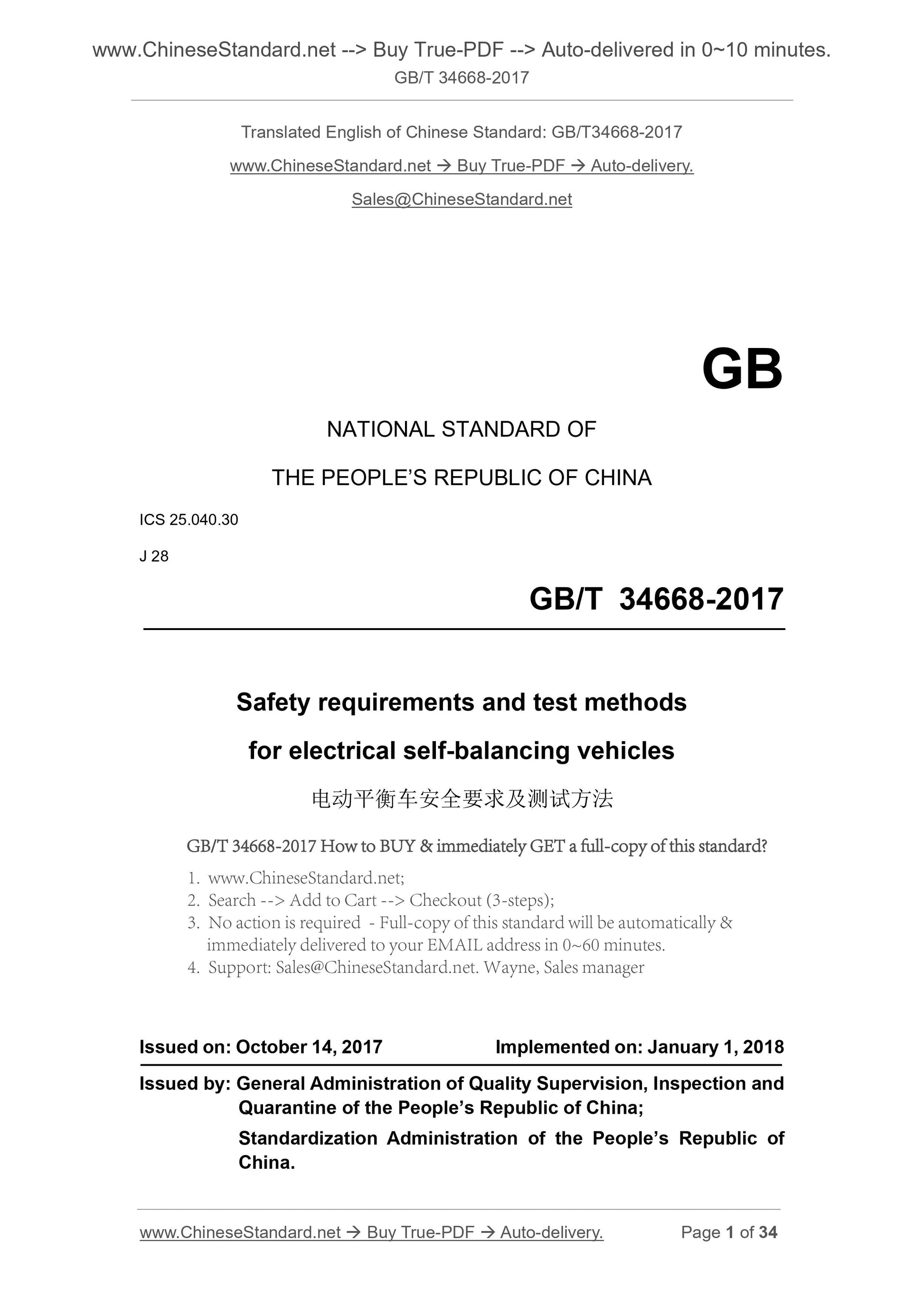

GB/T 34668-2017
GB
NATIONAL STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 25.040.30
J 28
Safety requirements and test methods
for electrical self-balancing vehicles
ISSUED ON. OCTOBER 14, 2017
IMPLEMENTED ON. JANUARY 1, 2018
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.

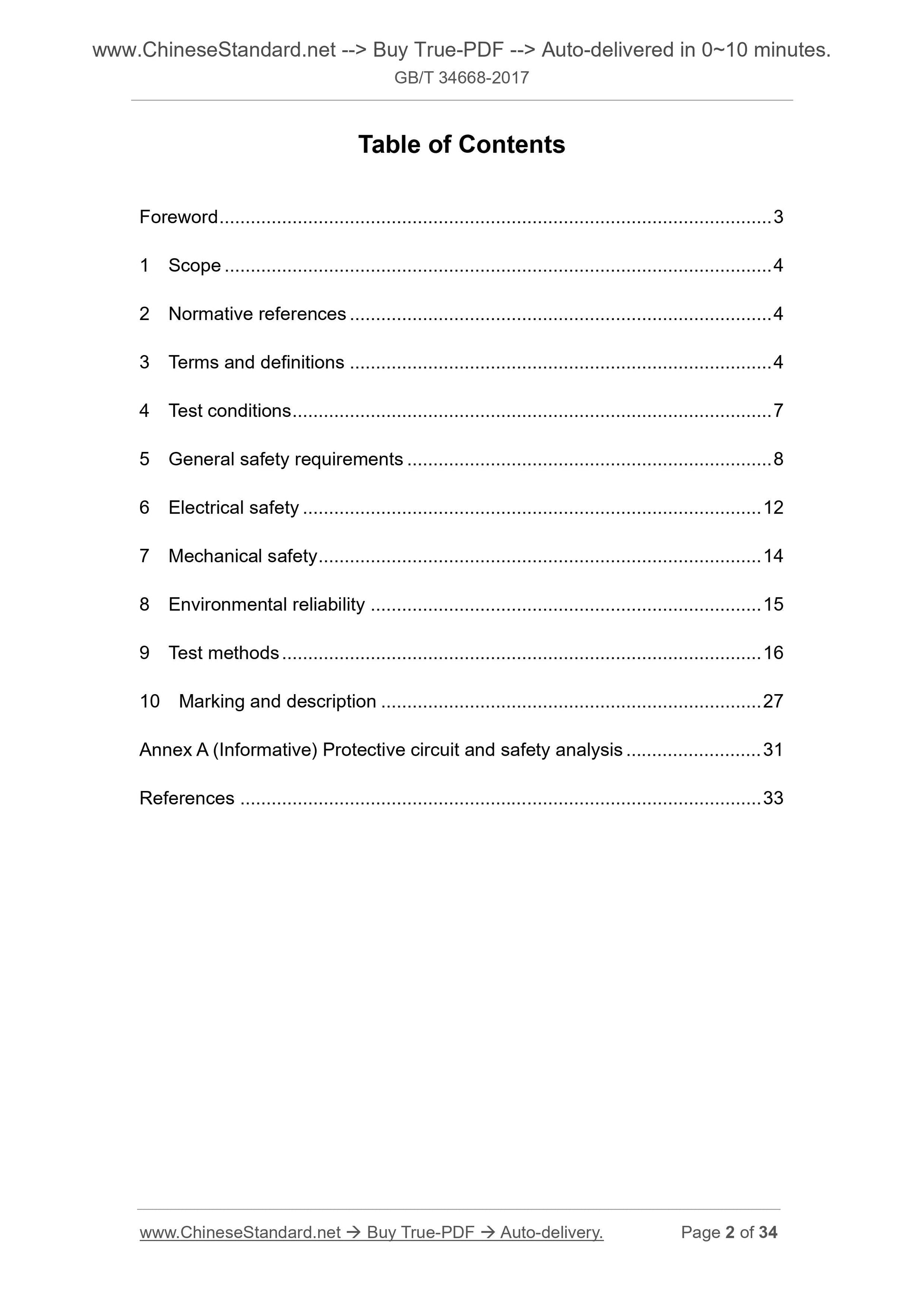

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Test conditions ... 7
5 General safety requirements ... 8
6 Electrical safety ... 12
7 Mechanical safety ... 14
8 Environmental reliability ... 15
9 Test methods ... 16
10 Marking and description ... 27
Annex A (Informative) Protective circuit and safety analysis ... 31
References ... 33

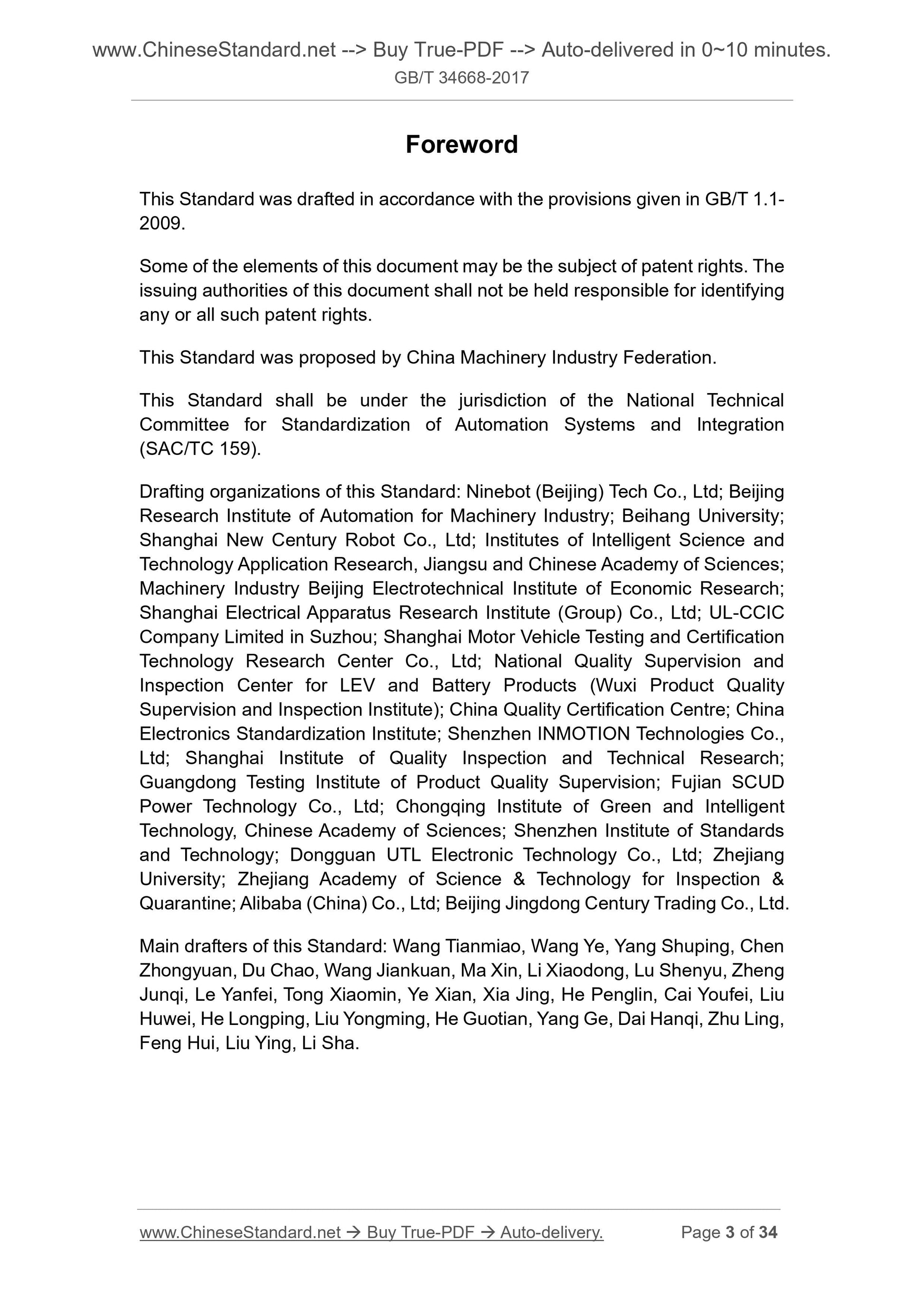

Foreword
This Standard was drafted in accordance with the provisions given in GB/T 1.1- 2009.
Some of the elements of this document may be the subject of patent rights. The issuing authorities of this document shall not be held responsible for identifying any or all such patent rights.
This Standard was proposed by China Machinery Industry Federation.
This Standard shall be under the jurisdiction of the National Technical Committee for Standardization of Automation Systems and Integration
(SAC/TC 159).
Drafting organizations of this Standard. Ninebot (Beijing) Tech Co., Ltd; Beijing Research Institute of Automation for Machinery Industry; Beihang University; Shanghai New Century Robot Co., Ltd; Institutes of Intelligent Science and Technology Application Research, Jiangsu and Chinese Academy of Sciences; Machinery Industry Beijing Electrotechnical Institute of Economic Research; Shanghai Electrical Apparatus Research Institute (Group) Co., Ltd; UL-CCIC Company Limited in Suzhou; Shanghai Motor Vehicle Testing and Certification Technology Research Center Co., Ltd; National Quality Supervision and
Inspection Center for LEV and Battery Products (Wuxi Product Quality
Supervision and Inspection Institute); China Quality Certification Centre; China Electronics Standardization Institute; Shenzhen INMOTION Technologies Co., Ltd; Shanghai Institute of Quality Inspection and Technical Research;
Guangdong Testing Institute of Product Quality Supervision; Fujian SCUD Power Technology Co., Ltd; Chongqing Institute of Green and Intelligent Technology, Chinese Academy of Sciences; Shenzhen Institute of Standards and Technology; Dongguan UTL Electronic Technology Co., Ltd; Zhejiang
University; Zhejiang Academy of Science and Technology for Inspection and
Quarantine; Alibaba (China) Co., Ltd; Beijing Jingdong Century Trading Co., Ltd. Main drafters of this Standard. Wang Tianmiao, Wang Ye, Yang Shuping, Chen Zhongyuan, Du Chao, Wang Jiankuan, Ma Xin, Li Xiaodong, Lu Shenyu, Zheng Junqi, Le Yanfei, Tong Xiaomin, Ye Xian, Xia Jing, He Penglin, Cai Youfei, Liu Huwei, He Longping, Liu Yongming, He Guotian, Yang Ge, Dai Hanqi, Zhu Ling, Feng Hui, Liu Ying, Li Sha.

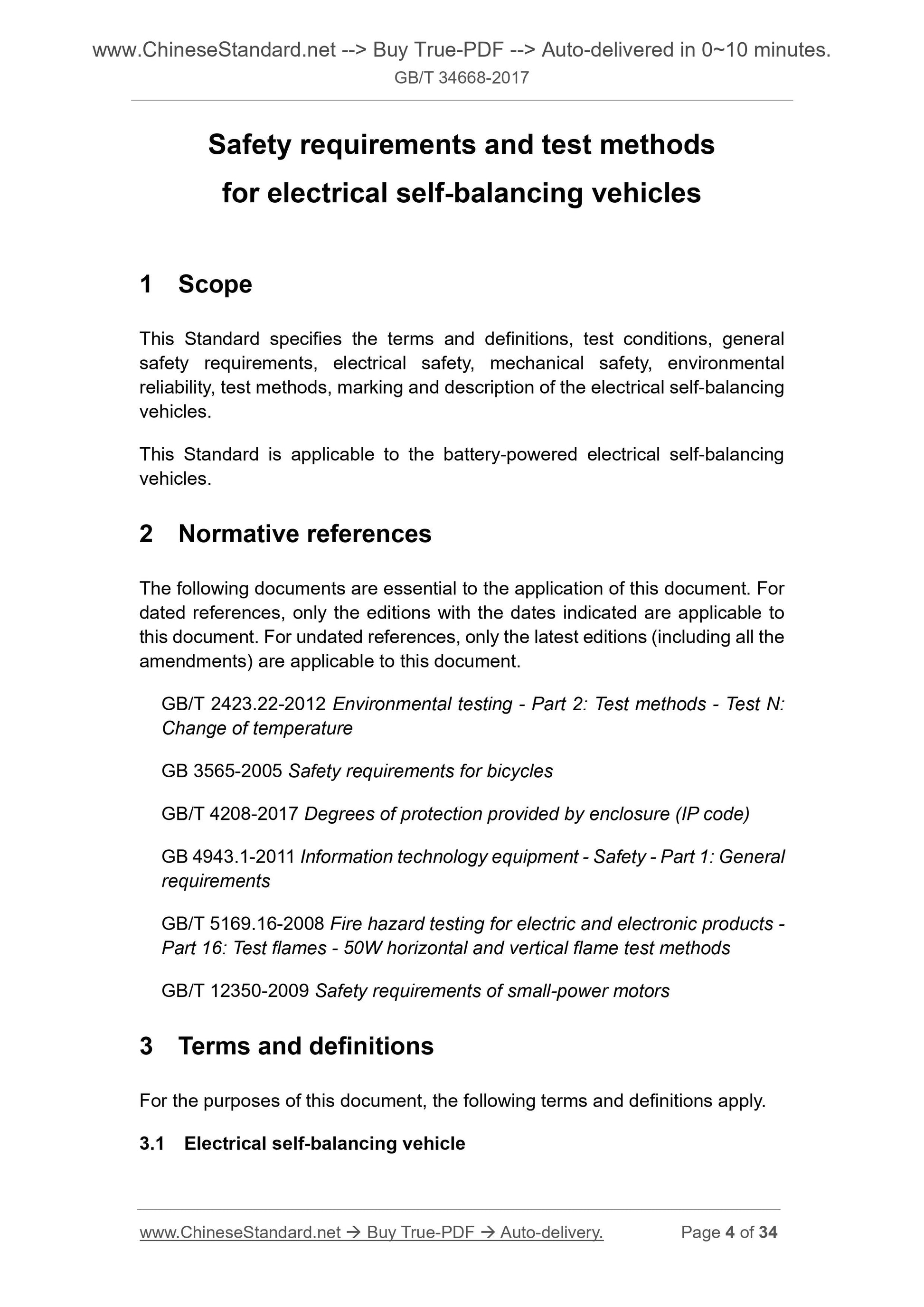

Safety requirements and test methods
for electrical self-balancing vehicles
1 Scope
This Standard specifies the terms and definitions, test conditions, general safety requirements, electrical safety, mechanical safety, environmental reliability, test methods, marking and description of the electrical self-balancing vehicles.
This Standard is applicable to the battery-powered electrical self-balancing vehicles.
2 Normative references
The following documents are essential to the application of this document. For dated references, only the editions with the dates indicated are applicable to this document. For undated references, only the latest editions (including all the amendments) are applicable to this document.
GB/T 2423.22-2012 Environmental testing - Part 2. Test methods - Test N. Change of temperature
GB 3565-2005 Safety requirements for bicycles
GB/T 4208-2017 Degrees of protection provided by enclosure (IP code)
GB 4943.1-2011 Information technology equipment - Safety - Part 1. General requirements
GB/T 5169.16-2008 Fire hazard testing for electric and electronic products - Part 16. Test flames - 50W horizontal and vertical flame test methods
GB/T 12350-2009 Safety requirements of small-power motors
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply. 3.1 Electrical self-balancing vehicle

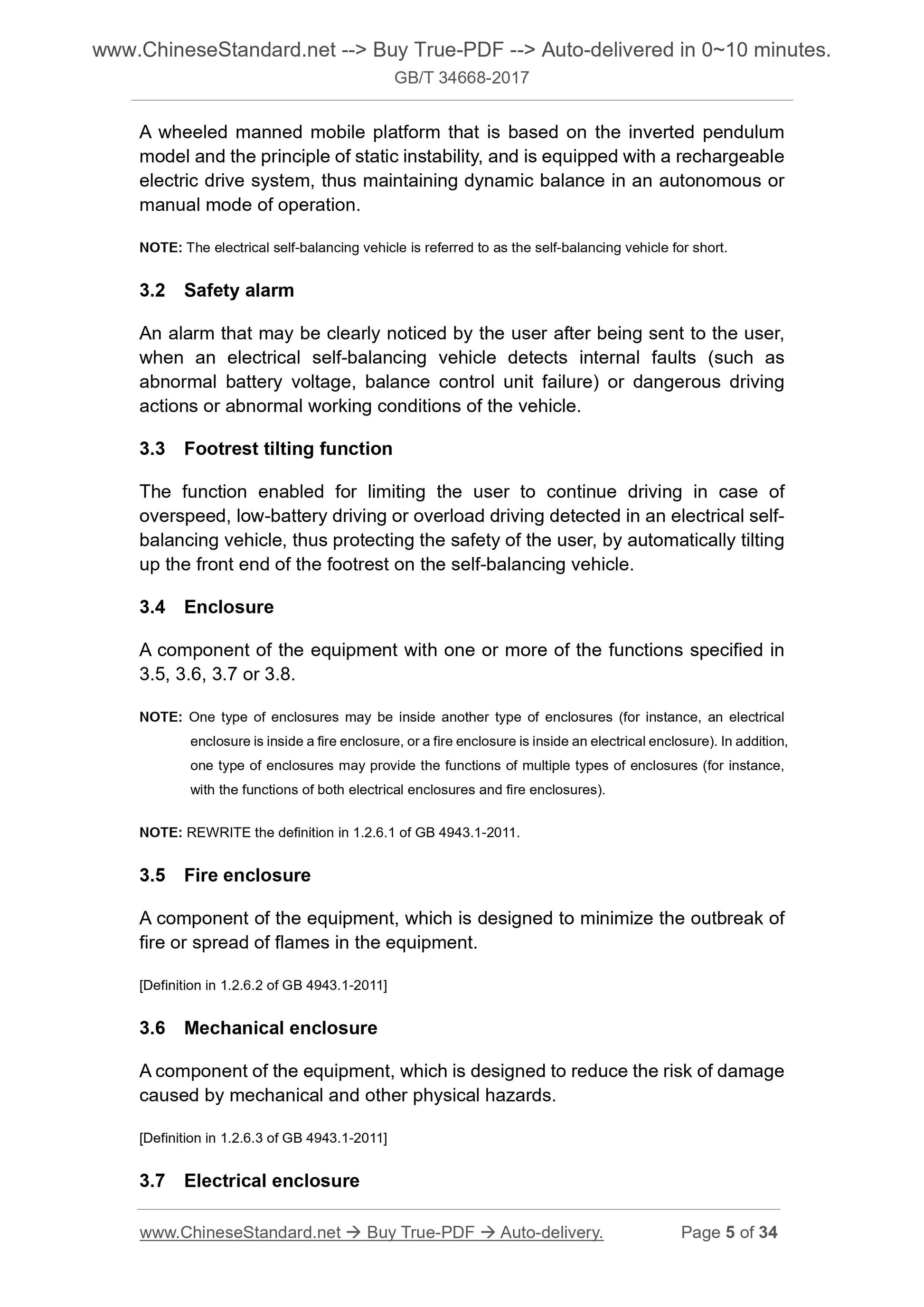

A wheeled manned mobile platform that is based on the inverted pendulum model and the principle of static instability, and is equipped with a rechargeable electric drive system, thus maintaining dynamic balance in an autonomous or manual mode of operation.
NOTE. The electrical self-balancing vehicle is referred to as the self-balancing vehicle for short. 3.2 Safety alarm
An alarm that may be clearly noticed by the user after being sent to the user, when an electrical self-balancing vehicle detects internal faults (such as abnormal battery voltage, balance control unit failure) or dangerous driving actions or abnormal working conditions of the vehicle.
3.3 Footrest tilting function
The function enabled for limiting the user to continue driving in case of overspeed, low-battery driving or overload driving detected in an electrical self- balancing vehicle, thus protecting the safety of the user, by automatically tilting up the front end of the footrest on the self-balancing vehicle.
3.4 Enclosure
A component of the equipment with one or more of the functions specified in 3.5, 3.6, 3.7 or 3.8.
NOTE. One type of enclosures may be inside another type of enclosures (for instance, an electrical enclosure is inside a fire enclosure, or a fire enclosure is inside an electrical enclosure). In addition, one type of enclosures may provide the functions of multiple types of enclosures (for instance, with the functions of both electrical enclosures and fire enclosures).
NOTE. REWRITE the definition in 1.2.6.1 of GB 4943.1-2011.
3.5 Fire enclosure
A component of the equipment, which is designed to minimize the outbreak of fire or spread of flames in the equipment.
[Definition in 1.2.6.2 of GB 4943.1-2011]
3.6 Mechanical enclosure
A component of the equipment, which is designed to reduce the risk of damage caused by mechanical and other physical hazards.
[Definition in 1.2.6.3 of GB 4943.1-2011]
3.7 Electrical enclosure

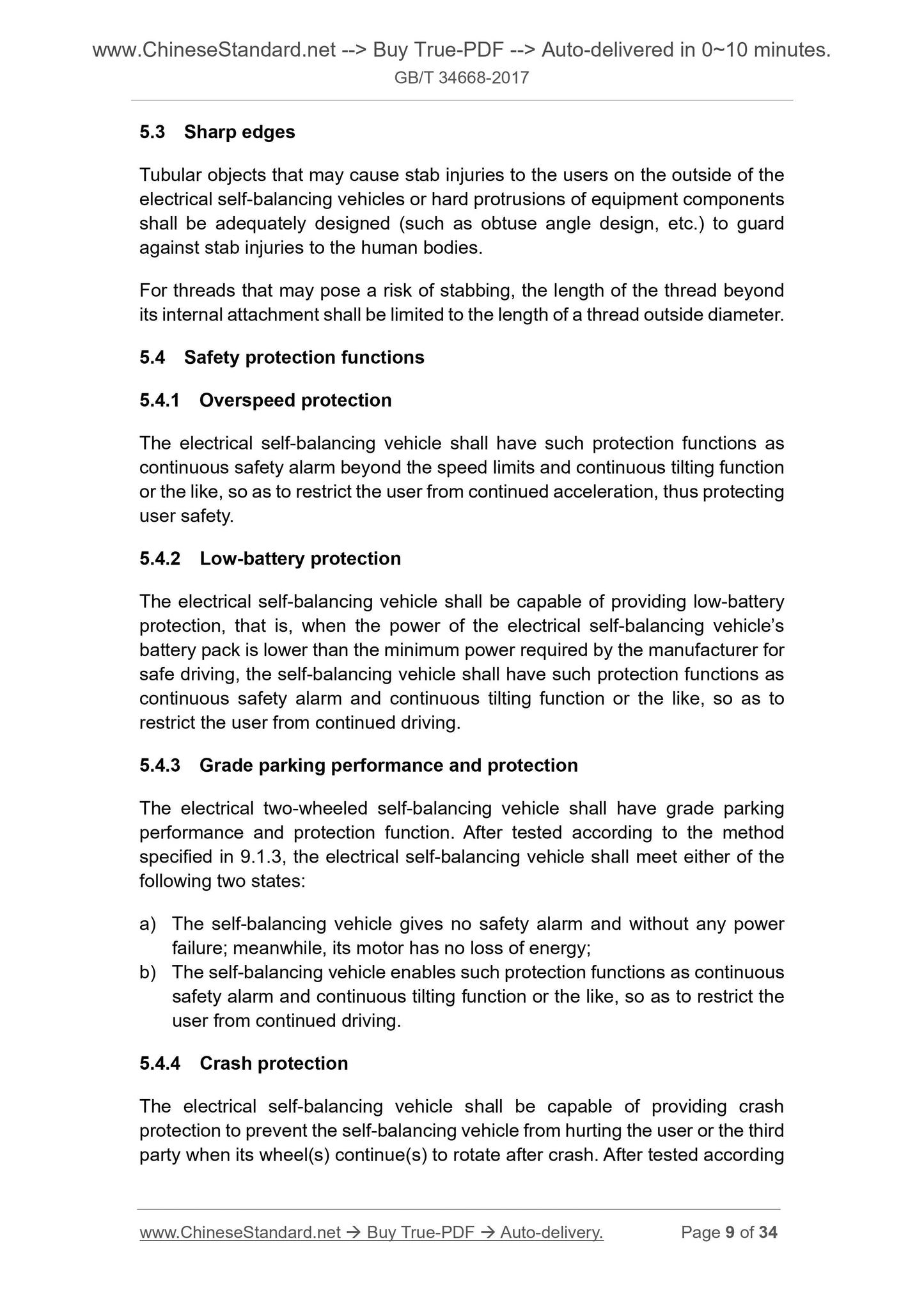

5.3 Sharp edges
Tubular objects that may cause stab injuries to the users on the outside of the electrical self-balancing vehicles or hard protrusions of equipment components shall be adequately designed (such as obtuse angle design, etc.) to guard against stab injuries to the human bodies.
For threads that may pose a risk of stabbing, the length of the thread beyond its internal attachment shall be limited to the length of a thread outside diameter. 5.4 Safety protection functions
5.4.1 Overspeed protection
The electrical self-balancing vehicle shall have such protection functions as continuous safety alarm beyond the speed limits and continuous tilting function or the like, so as to restrict the user from continued acceleration, thus protecting user safety.
5.4.2 Low-battery protection
The electrical self-balancing vehicle shall be capable of providing low-battery protection, that is, when the power of the electrical self-balancing vehicle?€?s battery pack is lower than the minimum power required by the manufacturer for safe driving, the self-balancing vehicle shall have such protection functions as continuous safety alarm and continuous tilting function or the like, so as to restrict the user from continued driving.
5.4.3 Grade parking performance and protection
The electrical two-wheeled self-balancing vehicle shall have grade parking performance and protection function. After tested ...
