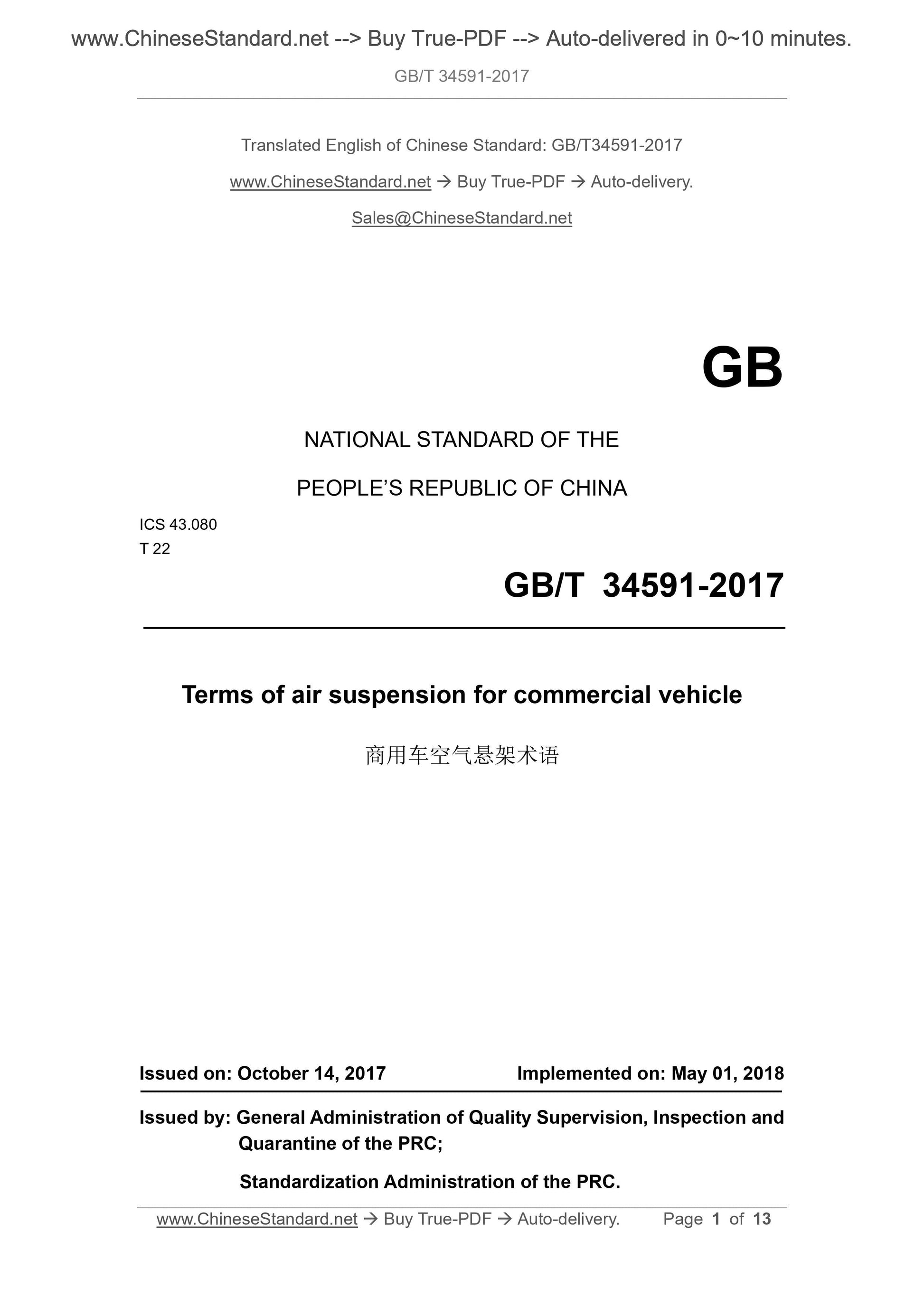

GB/T 34591-2017
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 43.080
T 22
Terms of air suspension for commercial vehicle
ISSUED ON. OCTOBER 14, 2017
IMPLEMENTED ON. MAY 01, 2018
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the PRC;
Standardization Administration of the PRC.

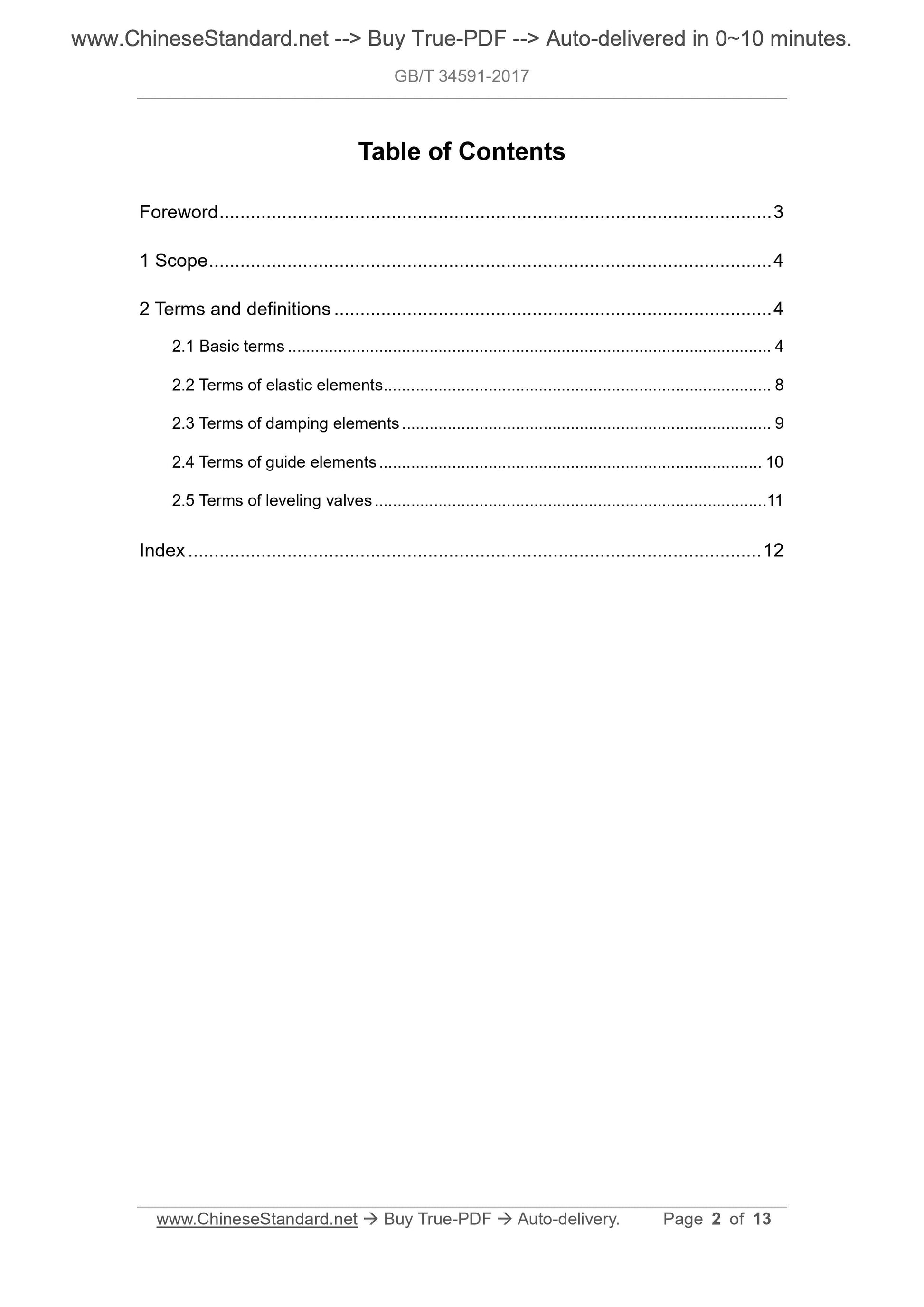

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Terms and definitions ... 4
2.1 Basic terms ... 4
2.2 Terms of elastic elements ... 8
2.3 Terms of damping elements ... 9
2.4 Terms of guide elements ... 10
2.5 Terms of leveling valves ... 11
Index ... 12

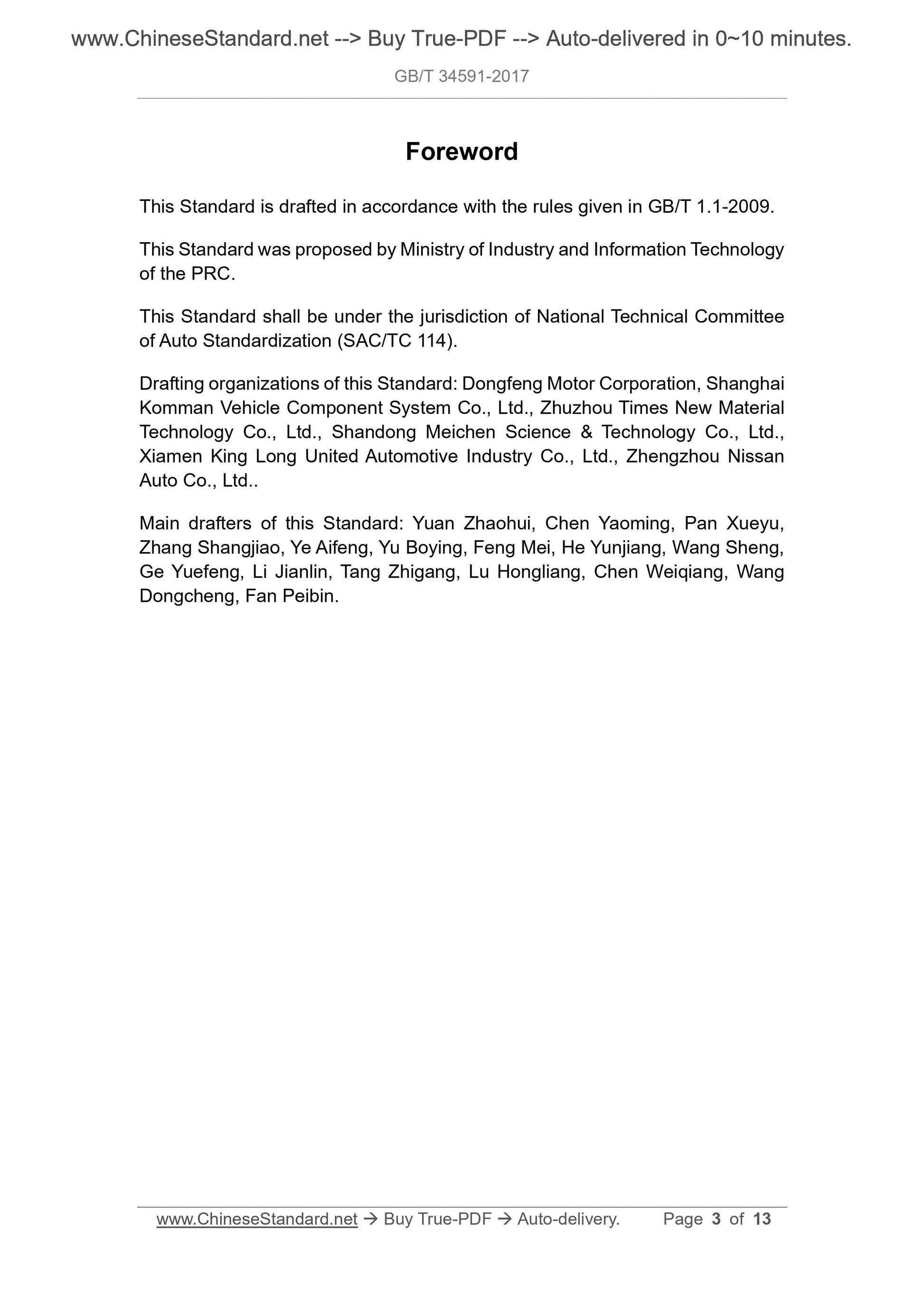

Foreword
This Standard is drafted in accordance with the rules given in GB/T 1.1-2009.
This Standard was proposed by Ministry of Industry and Information Technology
of the PRC.
This Standard shall be under the jurisdiction of National Technical Committee
of Auto Standardization (SAC/TC 114).
Drafting organizations of this Standard. Dongfeng Motor Corporation, Shanghai
Komman Vehicle Component System Co., Ltd., Zhuzhou Times New Material
Technology Co., Ltd., Shandong Meichen Science and Technology Co., Ltd.,
Xiamen King Long United Automotive Industry Co., Ltd., Zhengzhou Nissan
Auto Co., Ltd..
Main drafters of this Standard. Yuan Zhaohui, Chen Yaoming, Pan Xueyu,
Zhang Shangjiao, Ye Aifeng, Yu Boying, Feng Mei, He Yunjiang, Wang Sheng,
Ge Yuefeng, Li Jianlin, Tang Zhigang, Lu Hongliang, Chen Weiqiang, Wang
Dongcheng, Fan Peibin.

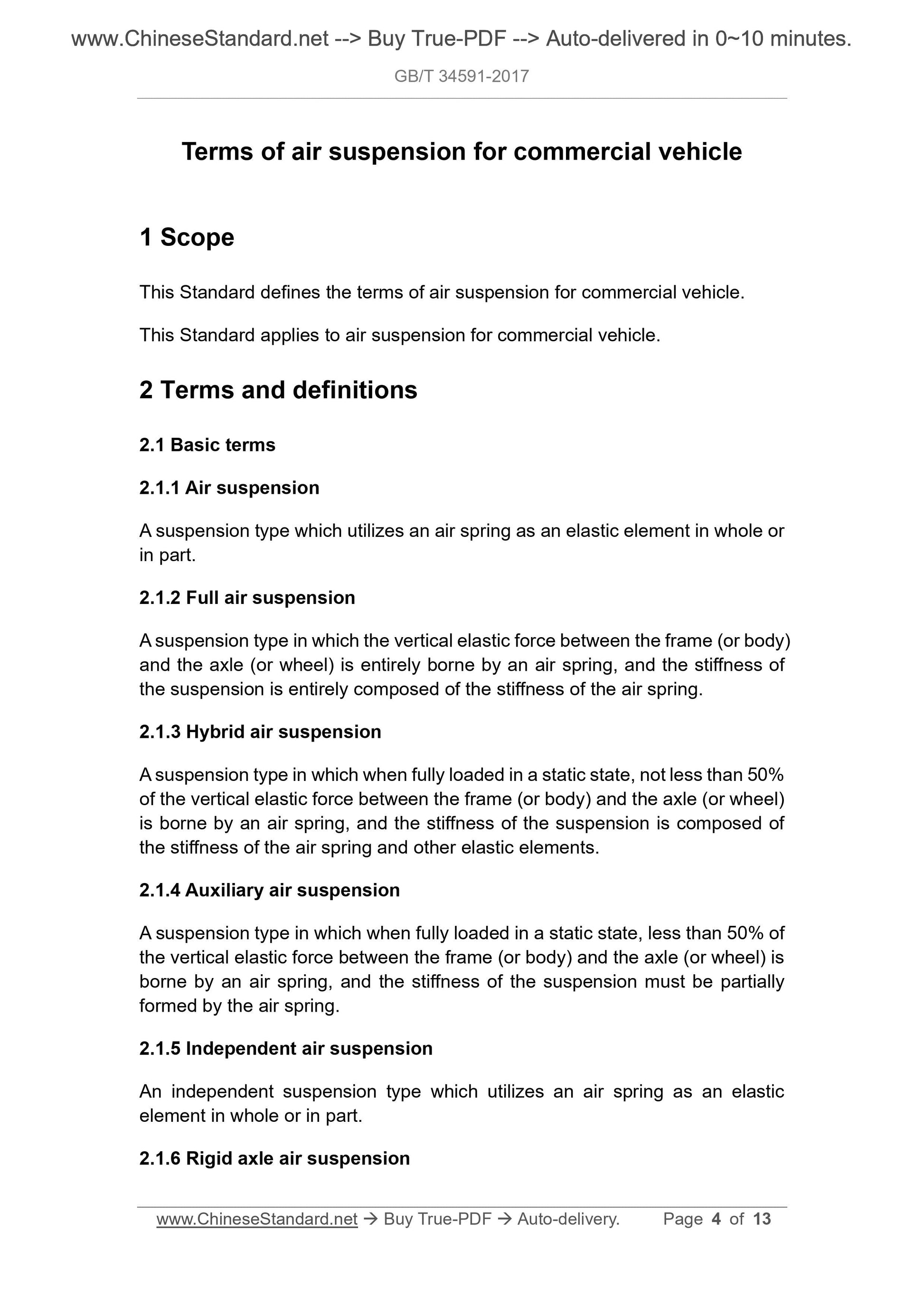

Terms of air suspension for commercial vehicle
1 Scope
This Standard defines the terms of air suspension for commercial vehicle.
This Standard applies to air suspension for commercial vehicle.
2 Terms and definitions
2.1 Basic terms
2.1.1 Air suspension
A suspension type which utilizes an air spring as an elastic element in whole or
in part.
2.1.2 Full air suspension
A suspension type in which the vertical elastic force between the frame (or body)
and the axle (or wheel) is entirely borne by an air spring, and the stiffness of
the suspension is entirely composed of the stiffness of the air spring.
2.1.3 Hybrid air suspension
A suspension type in which when fully loaded in a static state, not less than 50%
of the vertical elastic force between the frame (or body) and the axle (or wheel)
is borne by an air spring, and the stiffness of the suspension is composed of
the stiffness of the air spring and other elastic elements.
2.1.4 Auxiliary air suspension
A suspension type in which when fully loaded in a static state, less than 50% of
the vertical elastic force between the frame (or body) and the axle (or wheel) is
borne by an air spring, and the stiffness of the suspension must be partially
formed by the air spring.
2.1.5 Independent air suspension
An independent suspension type which utilizes an air spring as an elastic
element in whole or in part.
2.1.6 Rigid axle air suspension

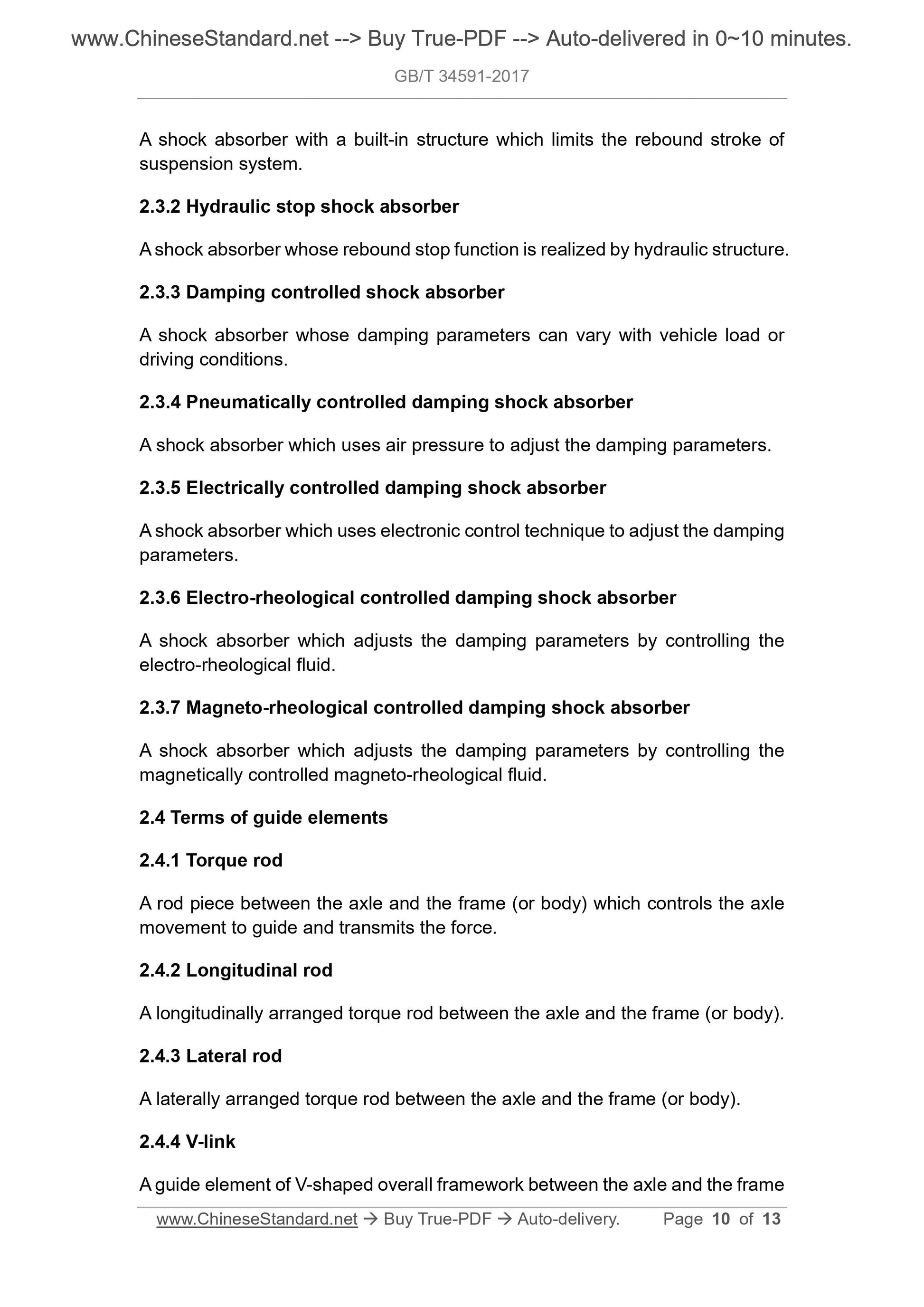

A shock absorber with a built-in structure which limits the rebound stroke of
suspension system.
2.3.2 Hydraulic stop shock absorber
A shock absorber whose rebound stop function is realized by hydraulic structure.
2.3.3 Damping controlled shock absorber
A shock absorber whose damping parameters can vary with vehicle load or
driving conditions.
2.3.4 Pneumatically controlled damping shock absorber
A shock absorber which uses air pressure to adjust the damping parameters.
2.3.5 Electrically controlled damping shock absorber
A shock absorber which uses electronic control technique to adjust the damping
parameters.
2.3.6 Electro-rheological controlled damping shock absorber
A shock absorber which adjusts the damping parameters by controlling the
electro-rheological fluid.
2.3.7 Magneto-rheological controlled damping shock absorber
A shock absorber which adjusts the damping parameters by controlling the
magnetically controlled magneto-rheological fluid.
2.4 Terms of guide elements
2.4.1 Torque rod
A rod piece between the axle and the frame (or body) which controls the axle
movement to guide and transmits the force.
2.4.2 Longitudinal rod
A longitudinally arranged torque rod between the axle and the frame (or body).
2.4.3 Lateral rod
A laterally arranged torque rod between the axle and the frame (or body).
2.4.4 V-link
A guide element of V-shaped overall framework between the axle and the frame
