GB/T 34590.9-2017: Road vehicles -- Functional safety -- Part 9: Automotive Safety Integrity Level (ASIL) -oriented and safety-oriented analyses

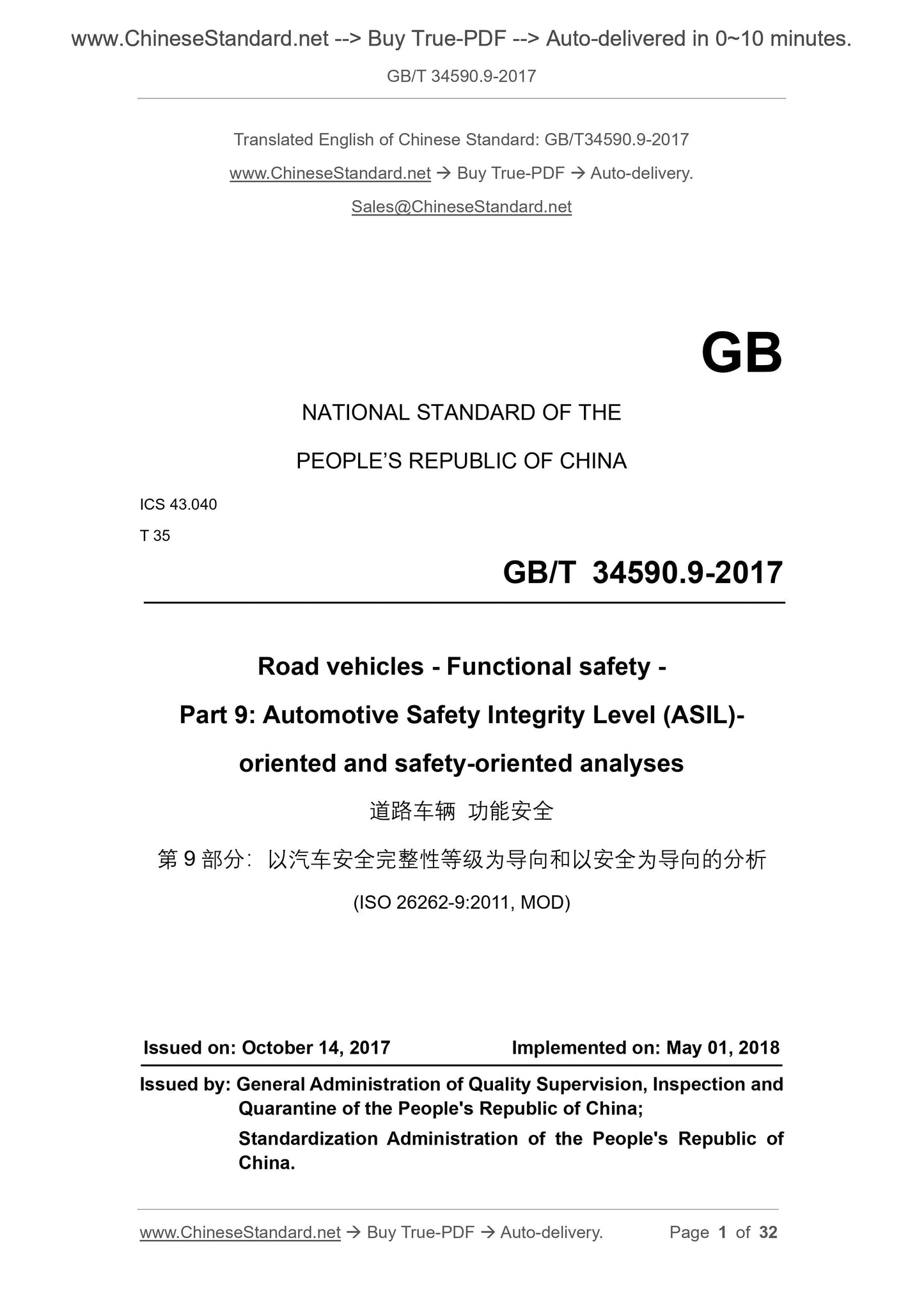

GB/T 34590.9-2017
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 43.040
T 35
Road vehicles - Functional safety -
Part 9: Automotive Safety Integrity Level (ASIL)-
oriented and safety-oriented analyses
(ISO 26262-9:2011, MOD)
ISSUED ON: OCTOBER 14, 2017
IMPLEMENTED ON: MAY 01, 2018
Issued by: General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

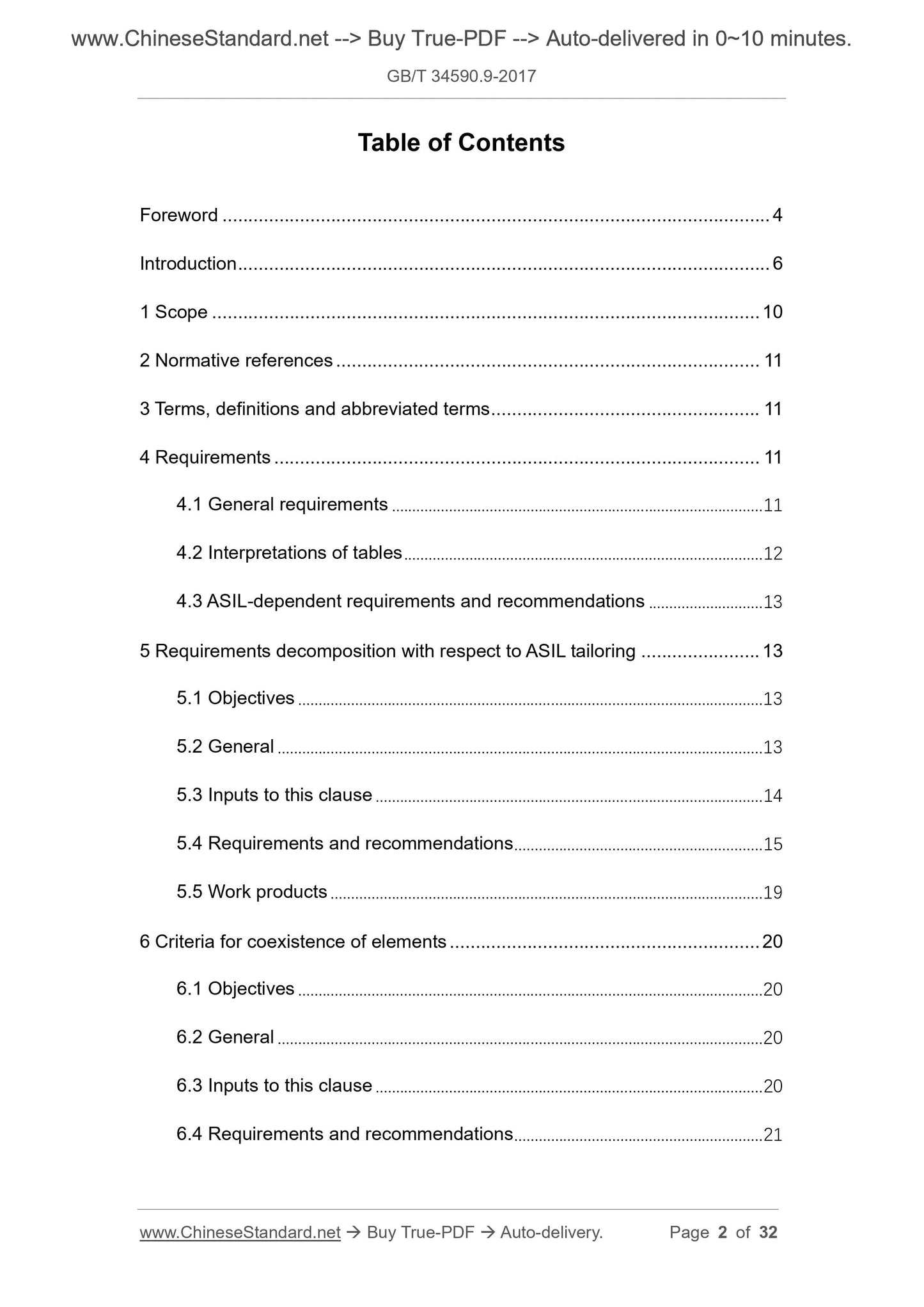

Table of Contents
Foreword ... 4
Introduction ... 6
1 Scope ... 10
2 Normative references ... 11
3 Terms, definitions and abbreviated terms ... 11
4 Requirements ... 11
4.1 General requirements ... 11
4.2 Interpretations of tables ... 12
4.3 ASIL-dependent requirements and recommendations ... 13
5 Requirements decomposition with respect to ASIL tailoring ... 13
5.1 Objectives ... 13
5.2 General ... 13
5.3 Inputs to this clause ... 14
5.4 Requirements and recommendations ... 15
5.5 Work products ... 19
6 Criteria for coexistence of elements ... 20
6.1 Objectives ... 20
6.2 General ... 20
6.3 Inputs to this clause ... 20
6.4 Requirements and recommendations ... 21
6.5 Work products ... 22

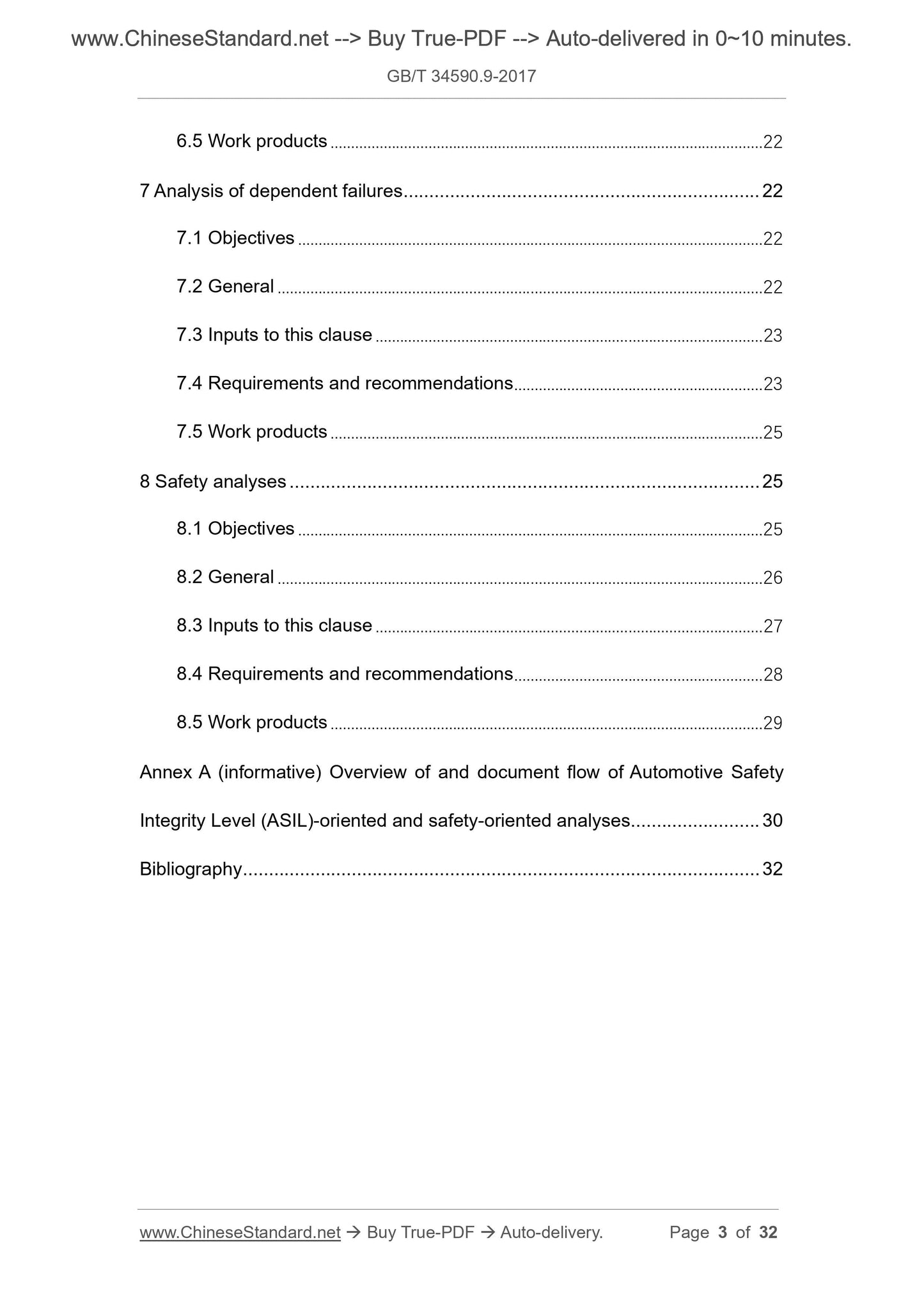

7 Analysis of dependent failures ... 22
7.1 Objectives ... 22
7.2 General ... 22
7.3 Inputs to this clause ... 23
7.4 Requirements and recommendations ... 23
7.5 Work products ... 25
8 Safety analyses ... 25
8.1 Objectives ... 25
8.2 General ... 26
8.3 Inputs to this clause ... 27
8.4 Requirements and recommendations ... 28
8.5 Work products ... 29
Annex A (informative) Overview of and document flow of Automotive Safety Integrity Level (ASIL)-oriented and safety-oriented analyses ... 30
Bibliography ... 32

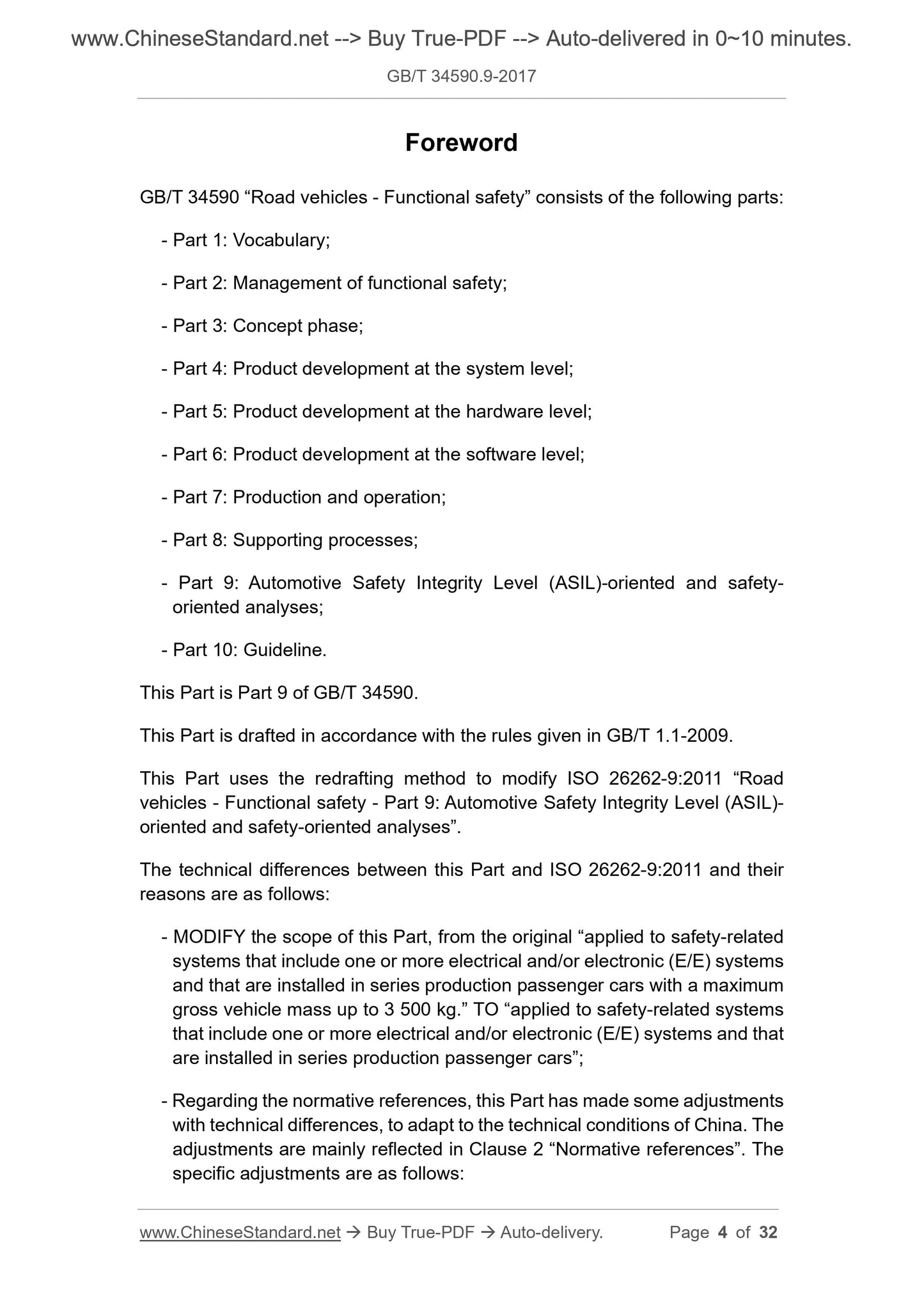

Foreword
GB/T 34590 “Road vehicles - Functional safety” consists of the following parts: - Part 1: Vocabulary;
- Part 2: Management of functional safety;
- Part 3: Concept phase;
- Part 4: Product development at the system level;
- Part 5: Product development at the hardware level;
- Part 6: Product development at the software level;
- Part 7: Production and operation;
- Part 8: Supporting processes;
- Part 9: Automotive Safety Integrity Level (ASIL)-oriented and safety- oriented analyses;
- Part 10: Guideline.
This Part is Part 9 of GB/T 34590.
This Part is drafted in accordance with the rules given in GB/T 1.1-2009. This Part uses the redrafting method to modify ISO 26262-9:2011 “Road
vehicles - Functional safety - Part 9: Automotive Safety Integrity Level (ASIL)- oriented and safety-oriented analyses”.
The technical differences between this Part and ISO 26262-9:2011 and their reasons are as follows:
- MODIFY the scope of this Part, from the original “applied to safety-related systems that include one or more electrical and/or electronic (E/E) systems and that are installed in series production passenger cars with a maximum gross vehicle mass up to 3 500 kg.” TO “applied to safety-related systems that include one or more electrical and/or electronic (E/E) systems and that are installed in series production passenger cars”;
- Regarding the normative references, this Part has made some adjustments with technical differences, to adapt to the technical conditions of China. The adjustments are mainly reflected in Clause 2 “Normative references”. The specific adjustments are as follows:
● Replace ISO 26262-1:2011 with GB/T 34590.1-2017 that modifies the
international standard;
● Replace ISO 26262-2:2011 with GB/T 34590.2-2017 that modifies the
international standard;
● Replace ISO 26262-3:2011 with GB/T 34590.3-2017 that modifies the
international standard;
● Replace ISO 26262-4:2011 with GB/T 34590.4-2017 that modifies the
international standard;
● Replace ISO 26262-5:2011 with GB/T 34590.5-2017 that modifies the
international standard;
● Replace ISO 26262-6:2011 with GB/T 34590.6-2017 that modifies the
international standard;
● Replace ISO 26262-8:2011 with GB/T 34590.8-2017 that modifies the
international standard.

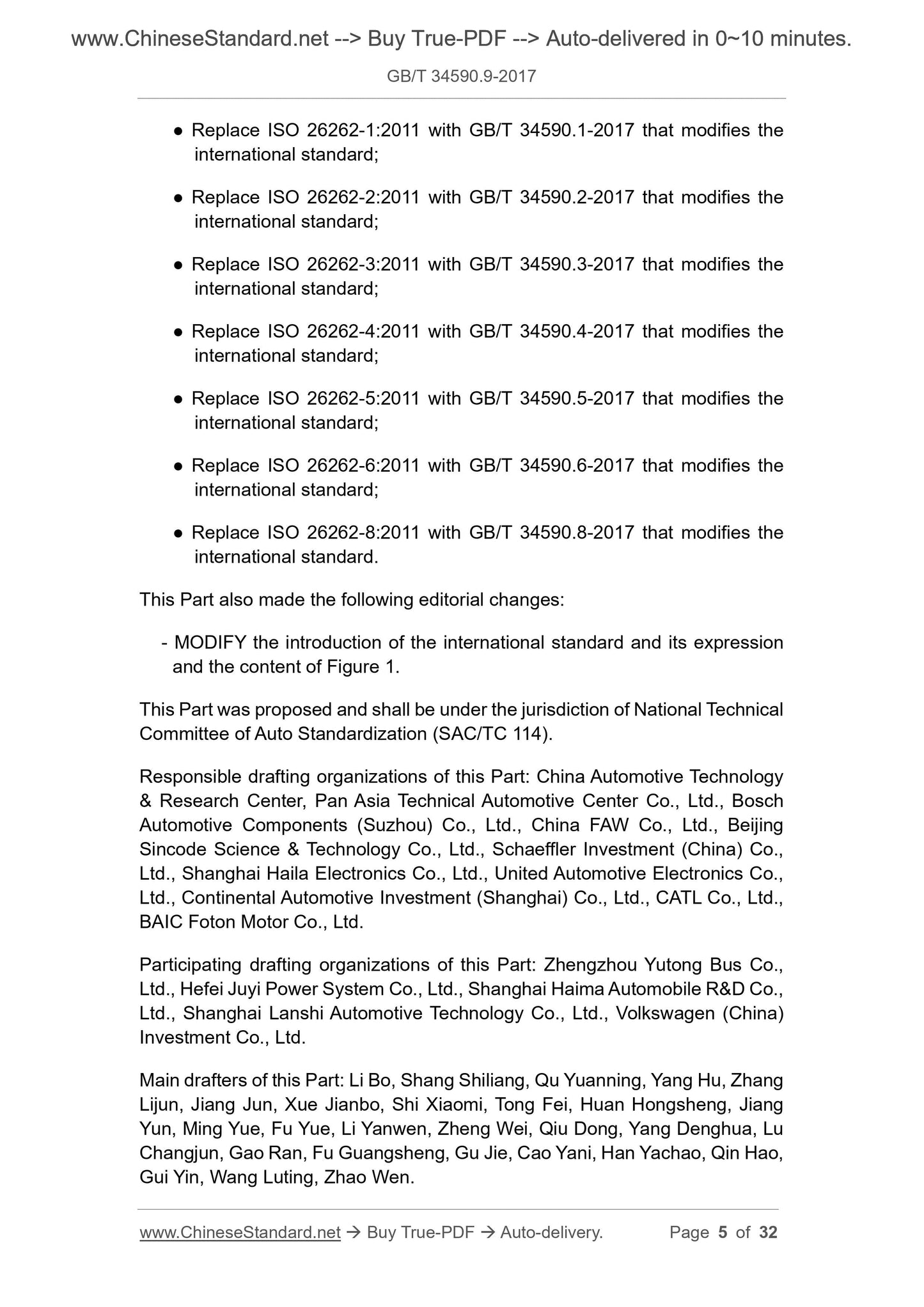

This Part also made the following editorial changes:
- MODIFY the introduction of the international standard and its expression and the content of Figure 1.
This Part was proposed and shall be under the jurisdiction of National Technical Committee of Auto Standardization (SAC/TC 114).
Responsible drafting organizations of this Part: China Automotive Technology and Research Center, Pan Asia Technical Automotive Center Co., Ltd., Bosch Automotive Components (Suzhou) Co., Ltd., China FAW Co., Ltd., Beijing
Sincode Science and Technology Co., Ltd., Schaeffler Investment (China) Co., Ltd., Shanghai Haila Electronics Co., Ltd., United Automotive Electronics Co., Ltd., Continental Automotive Investment (Shanghai) Co., Ltd., CATL Co., Ltd., BAIC Foton Motor Co., Ltd.
Participating drafting organizations of this Part: Zhengzhou Yutong Bus Co., Ltd., Hefei Juyi Power System Co., Ltd., Shanghai Haima Automobile R and D Co., Ltd., Shanghai Lanshi Automotive Technology Co., Ltd., Volkswagen (China) Investment Co., Ltd.
Main drafters of this Part: Li Bo, Shang Shiliang, Qu Yuanning, Yang Hu, Zhang Lijun, Jiang Jun, Xue Jianbo, Shi Xiaomi, Tong Fei, Huan Hongsheng, Jiang Yun, Ming Yue, Fu Yue, Li Yanwen, Zheng Wei, Qiu Dong, Yang Denghua, Lu Changjun, Gao Ran, Fu Guangsheng, Gu Jie, Cao Yani, Han Yachao, Qin Hao, Gui Yin, Wang Luting, Zhao Wen.
Road vehicles - Functional safety - Part 9: Automotive
Safety Integrity Level (ASIL)-oriented and safety-
oriented analyses

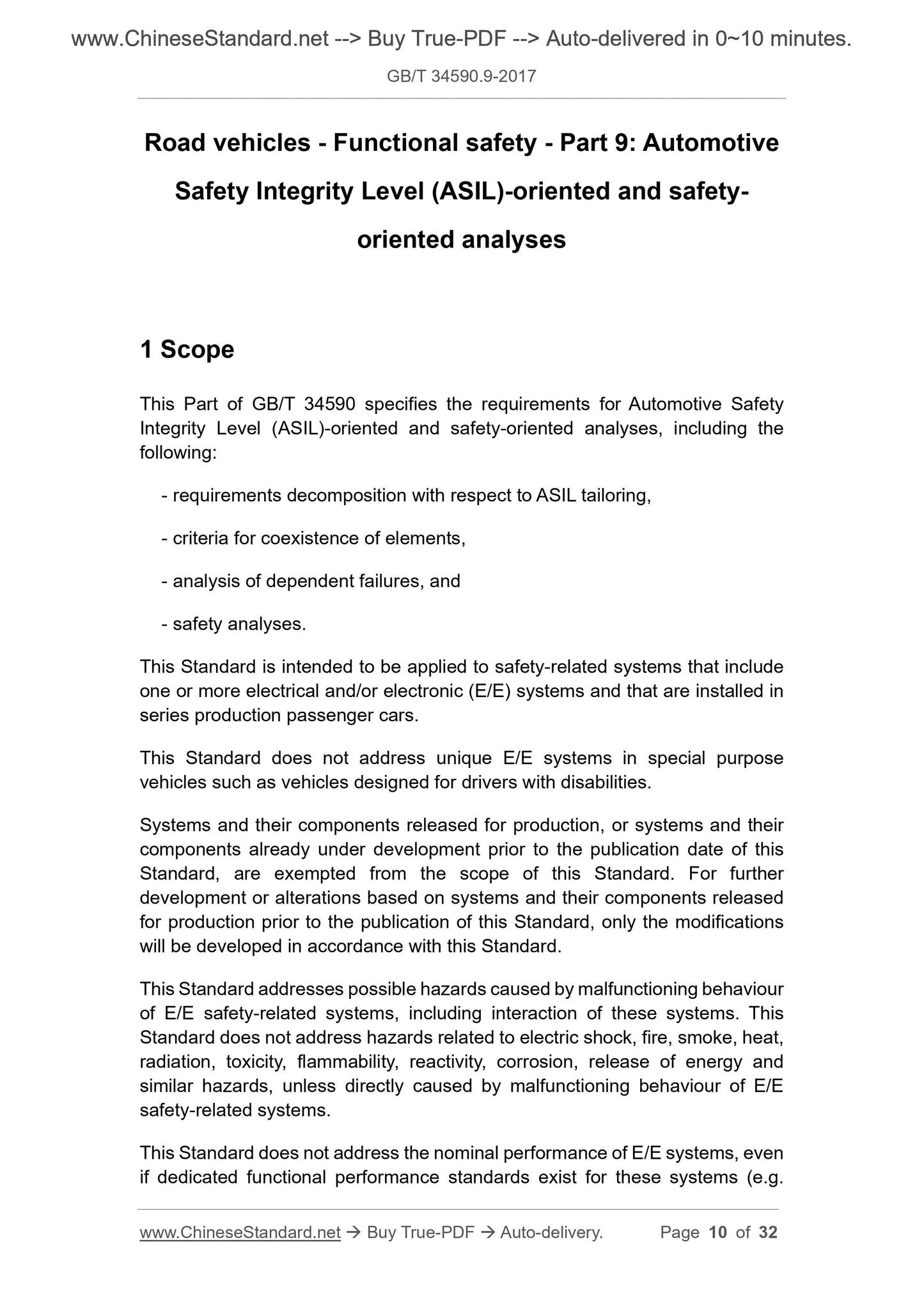

1 Scope
This Part of GB/T 34590 specifies the requirements for Automotive Safety Integrity Level (ASIL)-oriented and safety-oriented analyses, including the following:
- requirements decomposition with respect to ASIL tailoring,
- criteria for coexistence of elements,
- analysis of dependent failures, and
- safety analyses.
This Standard is intended to be applied to safety-related systems that include one or more electrical and/or electronic (E/E) systems and that are installed in series production passenger cars.
This Standard does not address unique E/E systems in special purpose
vehicles such as vehicles designed for drivers with disabilities.
Systems and their components released for production, or systems and their components already under development prior to the publication date of this Standard, are exempted from the scope of this Standard. For further
development or alterations based on systems and their components released for production prior to the publication of this Standard, only the modifications will be developed in accordance with this Standard.
This Standard addresses possible hazards caused by malfunctioning behaviour of E/E safety-related systems, including interaction of these systems. This Standard does not address hazards related to electric shock, fire, smoke, heat, radiation, toxicity, flammability, reactivity, corrosion, release of energy and similar hazards, unless directly caused by malfunctioning behaviour of E/E safety-related systems.
This Standard does not address the nominal performance of E/E systems, even if dedicated functional performance standards exist for these systems (e.g. active and passive safety systems, brake systems, Adaptive Cruise Control). 2 Normative references

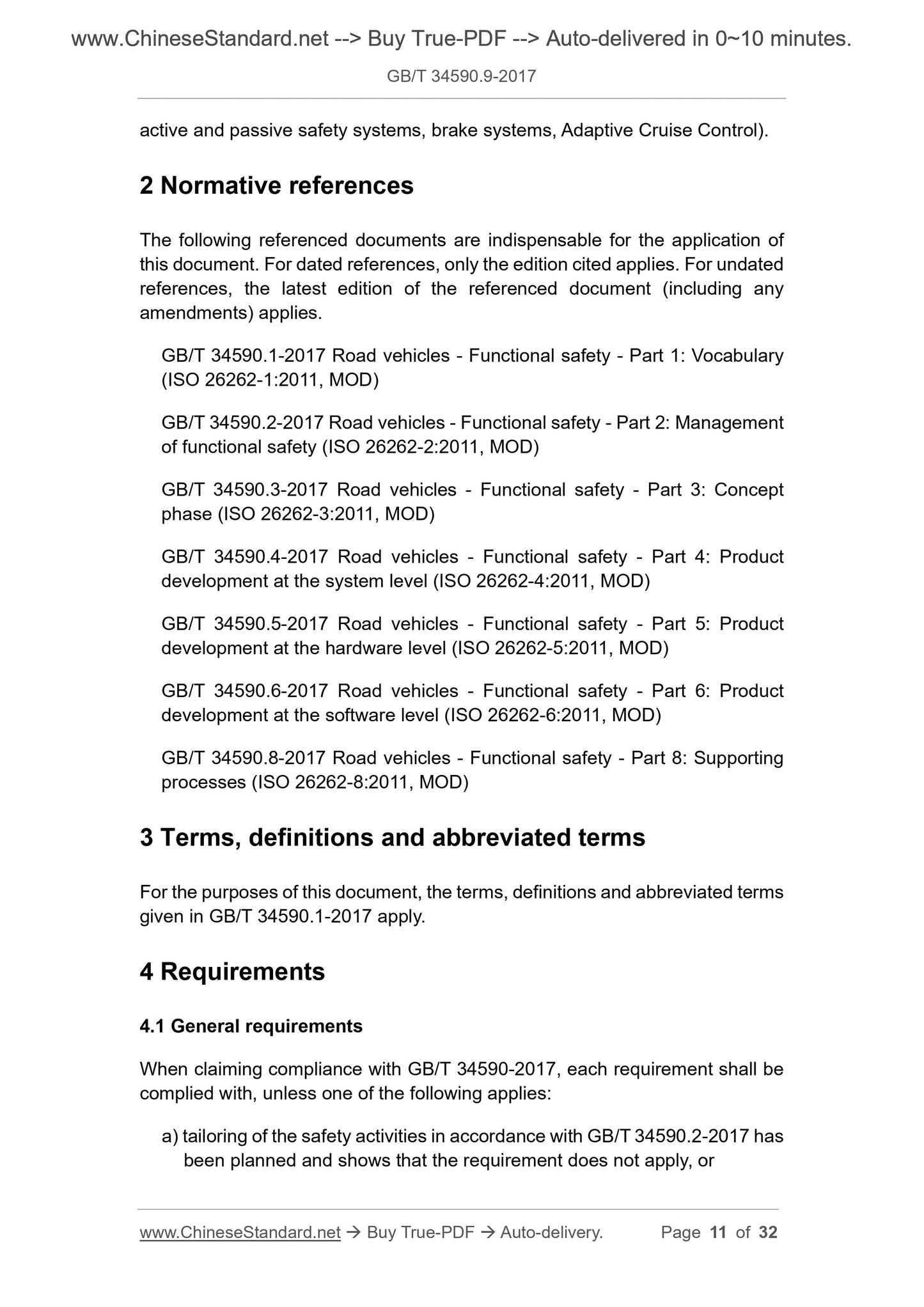

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 34590.1-2017 Road vehicles - Functional safety - Part 1: Vocabulary (ISO 26262-1:2011, MOD)
GB/T 34590.2-2017 Road vehicles - Functional safety - Part 2: Management of functional safety (ISO 26262-2:2011, MOD)
GB/T 34590.3-2017 Road vehicles - Functional safety - Part 3: Concept
phase (ISO 26262-3:2011, MOD)
GB/T 34590.4-2017 Road vehicles - Functional safety - Part 4: Product
development at the system level (ISO 26262-4:2011, MOD)
GB/T 34590.5-2017 Road vehicles - Functional safety - Part 5: Product
development at the hardware level (ISO 26262-5:2011, MOD)
GB/T 34590.6-2017 Road vehicles - Functional safety - Part 6: Product
development at the software level (ISO 26262-6:2011, MOD)
GB/T 34590.8-2017 Road vehicles - Functional safety - Part 8: Supporting processes (ISO 26262-8:2011, MOD)
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms, definitions and abbreviated terms given in GB/T 34590.1-2017 apply.
4 Requirements
4.1 General requirements
When claiming compliance with GB/T 34590-2017, each requirement shall be complied with, unless one of the following applies:
a) tailoring of the safety activities in accordance with GB/T 34590.2-2017 has been planned and shows that the requirement does not apply, or

View full details
