GB/T 34590.10-2017: Road vehicles -- Functional safety -- Part 10: Guideline

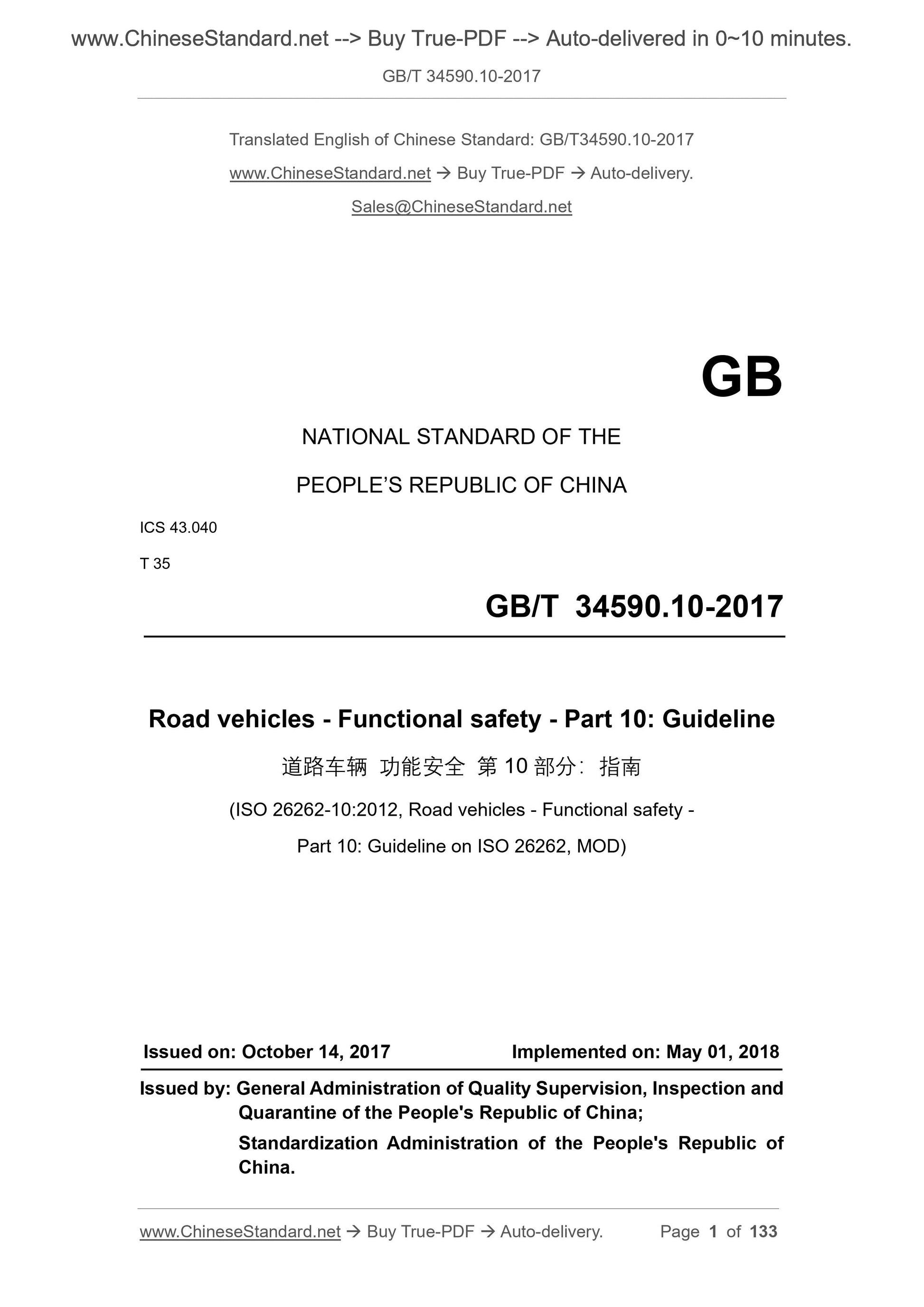

GB/T 34590.10-2017
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 43.040
T 35
Road vehicles - Functional safety - Part 10. Guideline
(ISO 26262-10.2012, Road vehicles - Functional safety -
Part 10. Guideline on ISO 26262, MOD)
ISSUED ON. OCTOBER 14, 2017
IMPLEMENTED ON. MAY 01, 2018
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

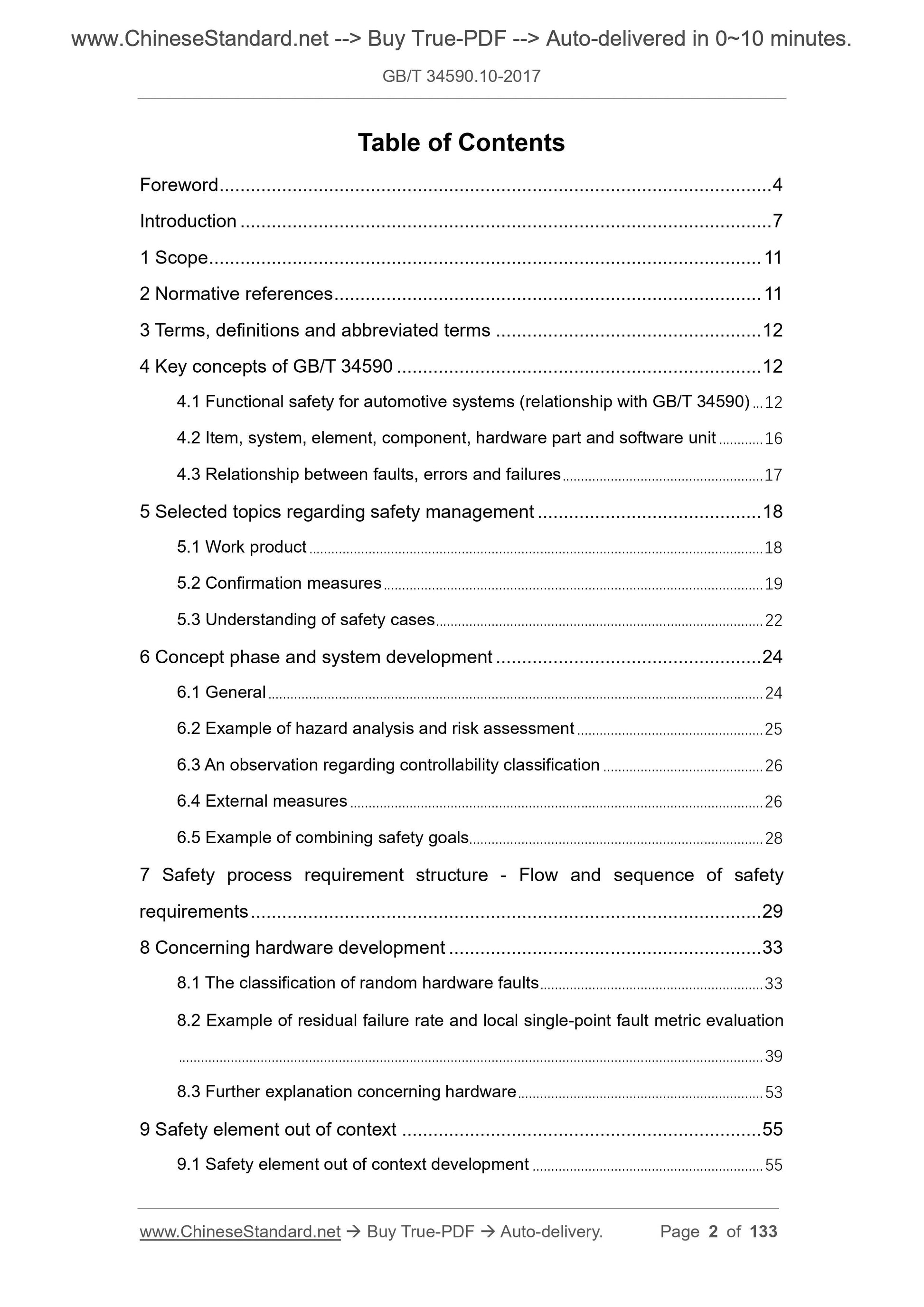

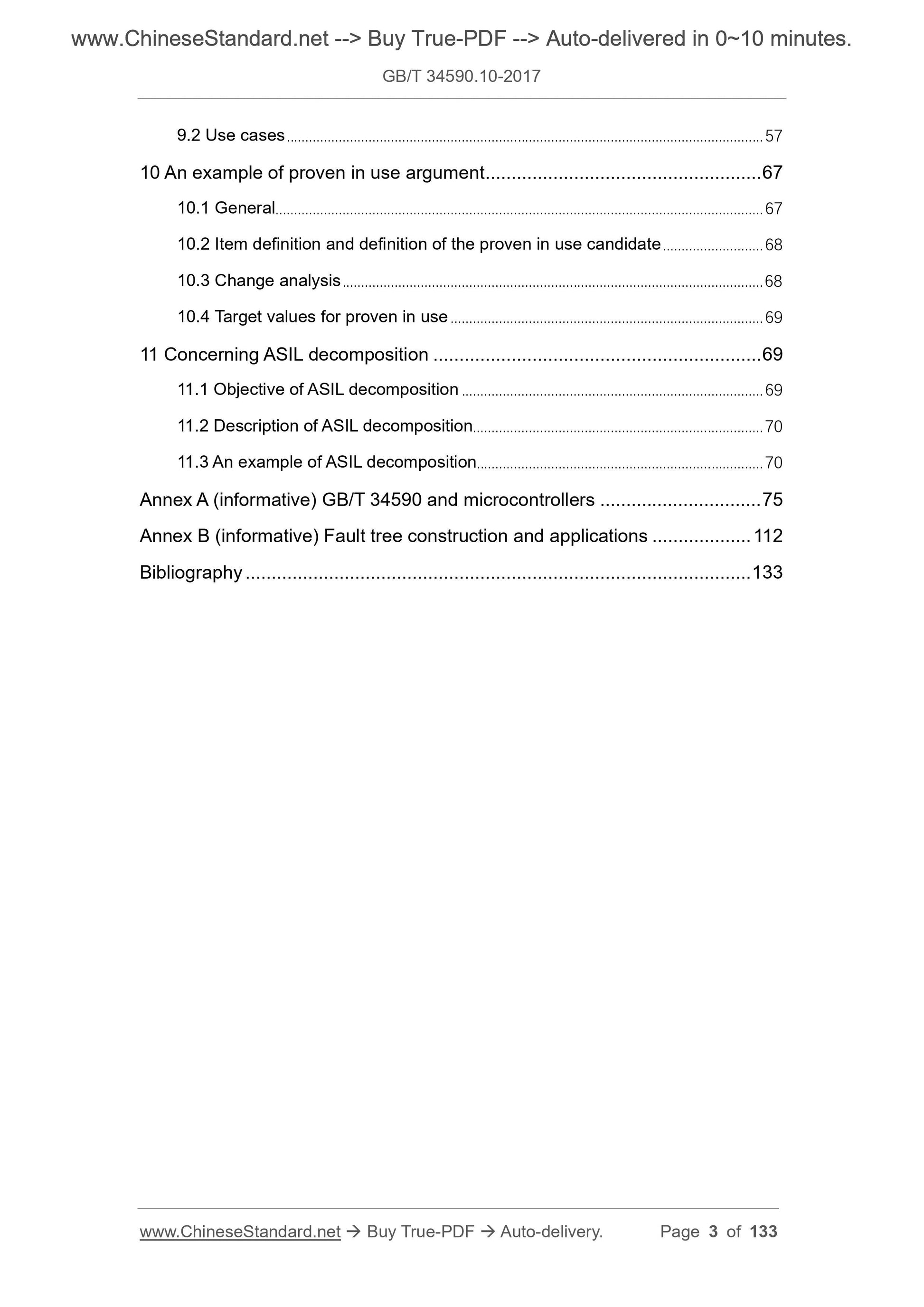

Table of Contents
Foreword ... 4
Introduction ... 7
1 Scope ... 11
2 Normative references ... 11
3 Terms, definitions and abbreviated terms ... 12
4 Key concepts of GB/T 34590 ... 12
4.1 Functional safety for automotive systems (relationship with GB/T 34590) ... 12 4.2 Item, system, element, component, hardware part and software unit ... 16 4.3 Relationship between faults, errors and failures ... 17
5 Selected topics regarding safety management ... 18
5.1 Work product ... 18
5.2 Confirmation measures ... 19
5.3 Understanding of safety cases ... 22
6 Concept phase and system development ... 24
6.1 General ... 24
6.2 Example of hazard analysis and risk assessment ... 25
6.3 An observation regarding controllability classification ... 26
6.4 External measures ... 26
6.5 Example of combining safety goals ... 28
7 Safety process requirement structure - Flow and sequence of safety
requirements ... 29
8 Concerning hardware development ... 33
8.1 The classification of random hardware faults ... 33
8.2 Example of residual failure rate and local single-point fault metric evaluation ... 39
8.3 Further explanation concerning hardware ... 53
9 Safety element out of context ... 55
9.1 Safety element out of context development ... 55
9.2 Use cases ... 57
10 An example of proven in use argument ... 67
10.1 General... 67
10.2 Item definition and definition of the proven in use candidate ... 68 10.3 Change analysis ... 68
10.4 Target values for proven in use ... 69
11 Concerning ASIL decomposition ... 69
11.1 Objective of ASIL decomposition ... 69
11.2 Description of ASIL decomposition... 70
11.3 An example of ASIL decomposition... 70
Annex A (informative) GB/T 34590 and microcontrollers ... 75
Annex B (informative) Fault tree construction and applications ... 112
Bibliography ... 133

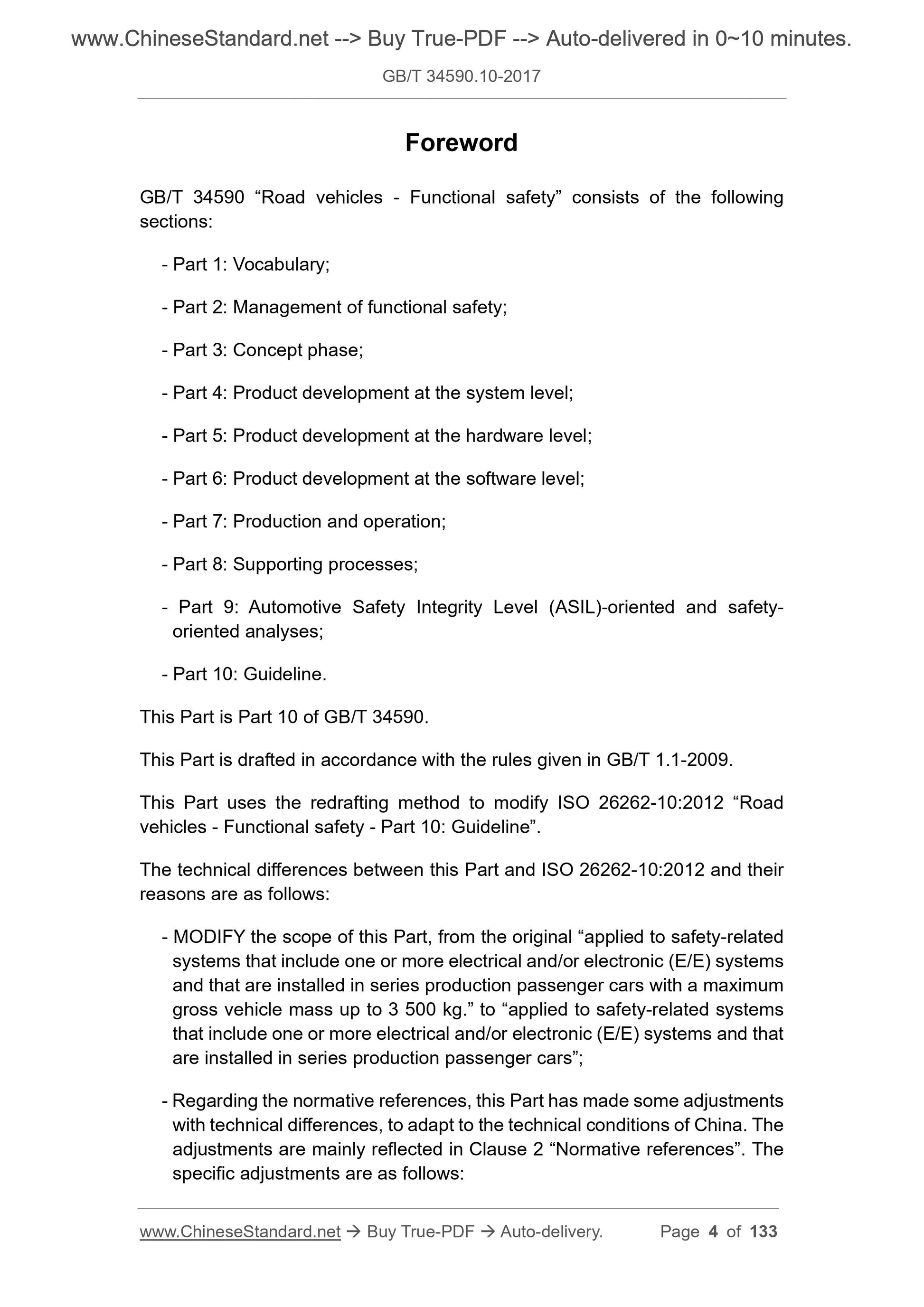

Foreword
GB/T 34590 “Road vehicles - Functional safety” consists of the following sections.
- Part 1. Vocabulary;
- Part 2. Management of functional safety;
- Part 3. Concept phase;
- Part 4. Product development at the system level;
- Part 5. Product development at the hardware level;
- Part 6. Product development at the software level;
- Part 7. Production and operation;
- Part 8. Supporting processes;
- Part 9. Automotive Safety Integrity Level (ASIL)-oriented and safety- oriented analyses;
- Part 10. Guideline.
This Part is Part 10 of GB/T 34590.
This Part is drafted in accordance with the rules given in GB/T 1.1-2009. This Part uses the redrafting method to modify ISO 26262-10.2012 “Road
vehicles - Functional safety - Part 10. Guideline”.
The technical differences between this Part and ISO 26262-10.2012 and their reasons are as follows.
- MODIFY the scope of this Part, from the original “applied to safety-related systems that include one or more electrical and/or electronic (E/E) systems and that are installed in series production passenger cars with a maximum gross vehicle mass up to 3 500 kg.” to “applied to safety-related systems that include one or more electrical and/or electronic (E/E) systems and that are installed in series production passenger cars”;
- Regarding the normative references, this Part has made some adjustments with technical differences, to adapt to the technical conditions of China. The adjustments are mainly reflected in Clause 2 “Normative references”. The specific adjustments are as follows.

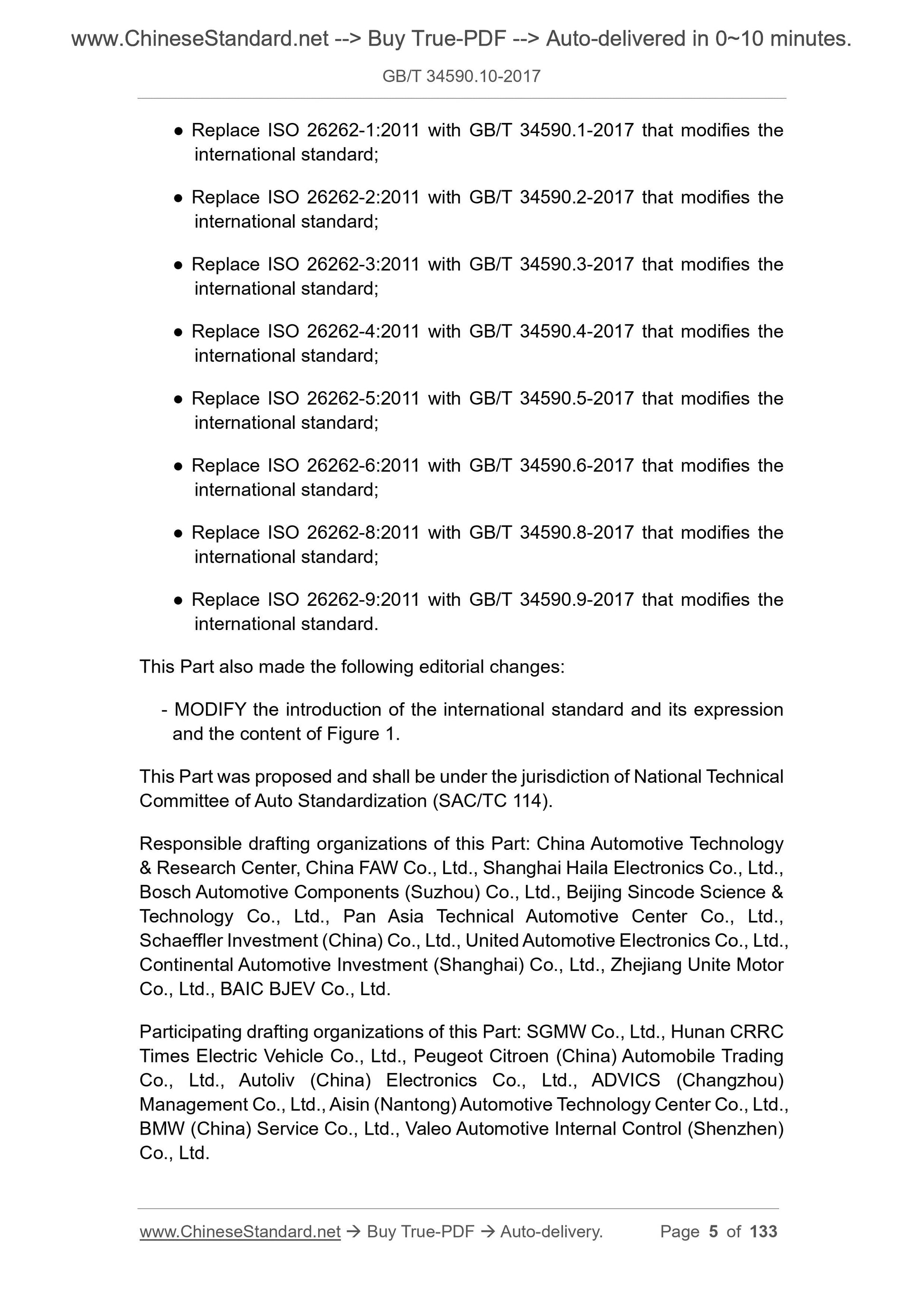

● Replace ISO 26262-1.2011 with GB/T 34590.1-2017 that modifies the
international standard;
● Replace ISO 26262-2.2011 with GB/T 34590.2-2017 that modifies the
international standard;
● Replace ISO 26262-3.2011 with GB/T 34590.3-2017 that modifies the
international standard;
● Replace ISO 26262-4.2011 with GB/T 34590.4-2017 that modifies the
international standard;
● Replace ISO 26262-5.2011 with GB/T 34590.5-2017 that modifies the
international standard;
● Replace ISO 26262-6.2011 with GB/T 34590.6-2017 that modifies the
international standard;
● Replace ISO 26262-8.2011 with GB/T 34590.8-2017 that modifies the
international standard;
● Replace ISO 26262-9.2011 with GB/T 34590.9-2017 that modifies the
international standard.
This Part also made the following editorial changes.
- MODIFY the introduction of the international standard and its expression and the content of Figure 1.
This Part was proposed and shall be under the jurisdiction of National Technical Committee of Auto Standardization (SAC/TC 114).
Responsible drafting organizations of this Part. China Automotive Technology and Research Center, China FAW Co., Ltd., Shanghai Haila Electronics Co., Ltd., Bosch Automotive Components (Suzhou) Co., Ltd., Beijing Sincode Science and Technology Co., Ltd., Pan Asia Technical Automotive Center Co., Ltd.,
Schaeffler Investment (China) Co., Ltd., United Automotive Electronics Co., Ltd., Continental Automotive Investment (Shanghai) Co., Ltd., Zhejiang Unite Motor Co., Ltd., BAIC BJEV Co., Ltd.
Participating drafting organizations of this Part. SGMW Co., Ltd., Hunan CRRC Times Electric Vehicle Co., Ltd., Peugeot Citroen (China) Automobile Trading Co., Ltd., Autoliv (China) Electronics Co., Ltd., ADVICS (Changzhou)
Management Co., Ltd., Aisin (Nantong) Automotive Technology Center Co., Ltd., BMW (China) Service Co., Ltd., Valeo Automotive Internal Control (Shenzhen) Co., Ltd.
Road vehicles - Functional safety - Part 10. Guideline

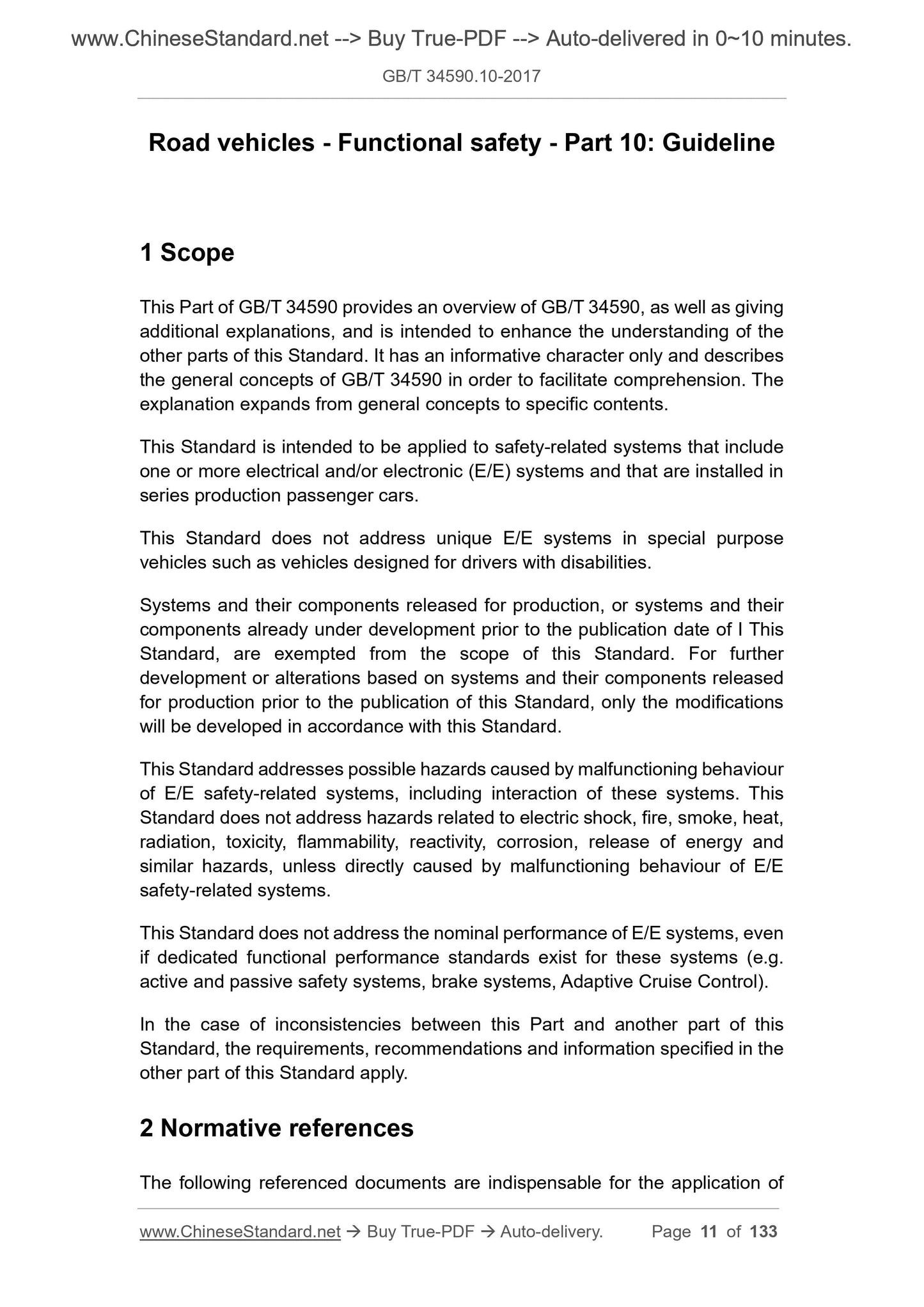

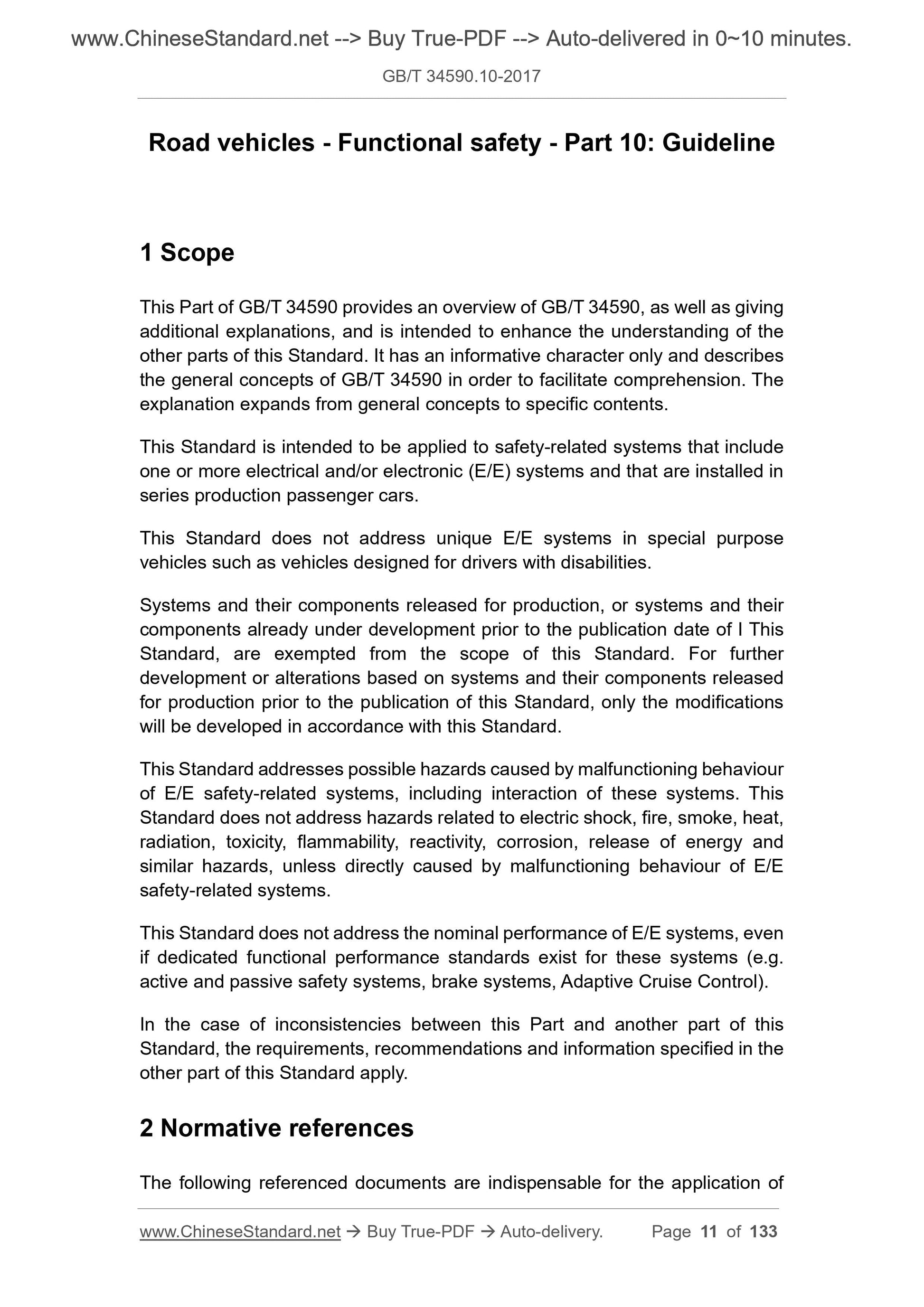

1 Scope
This Part of GB/T 34590 provides an overview of GB/T 34590, as well as giving additional explanations, and is intended to enhance the understanding of the other parts of this Standard. It has an informative character only and describes the general concepts of GB/T 34590 in order to facilitate comprehension. The explanation expands from general concepts to specific contents.
This Standard is intended to be applied to safety-related systems that include one or more electrical and/or electronic (E/E) systems and that are installed in series production passenger cars.
This Standard does not address unique E/E systems in special purpose
vehicles such as vehicles designed for drivers with disabilities.
Systems and their components released for production, or systems and their components already under development prior to the publication date of I This Standard, are exempted from the scope of this Standard. For further
development or alterations based on systems and their components released for production prior to the publication of this Standard, only the modifications will be developed in accordance with this Standard.
This Standard addresses possible hazards caused by malfunctioning behaviour of E/E safety-related systems, including interaction of these systems. This Standard does not address hazards related to electric shock, fire, smoke, heat, radiation, toxicity, flammability, reactivity, corrosion, release of energy and similar hazards, unless directly caused by malfunctioning behaviour of E/E safety-related systems.
This Standard does not address the nominal performance of E/E systems, even if dedicated functional performance standards exist for these systems (e.g. active and passive safety systems, brake systems, Adaptive Cruise Control). In the case of inconsistencies between this Part and another part of this Standard, the requirements, recommendations and information specified in the other part of this Standard apply.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

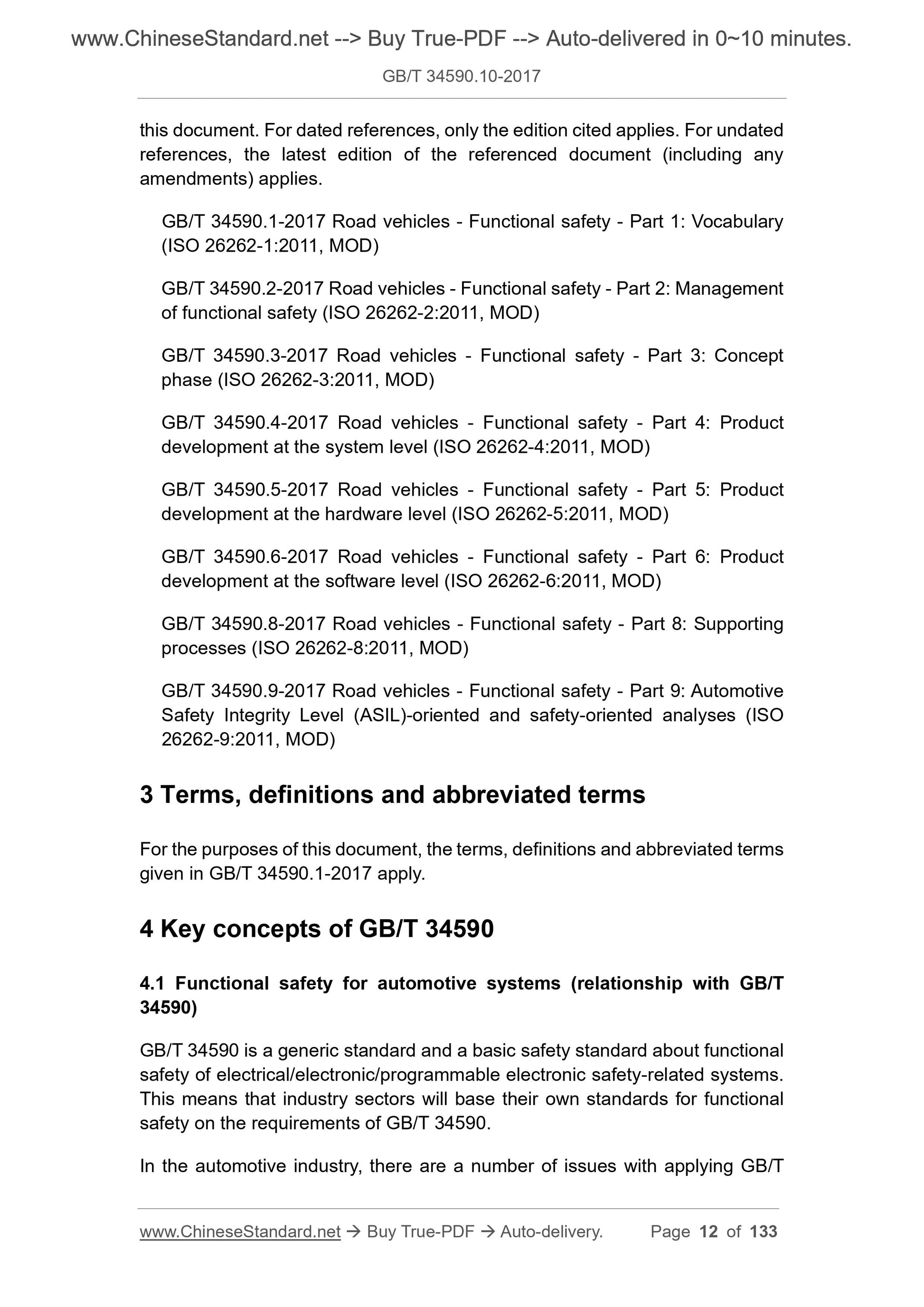

GB/T 34590.1-2017 Road vehicles - Functional safety - Part 1. Vocabulary (ISO 26262-1.2011, MOD)
GB/T 34590.2-2017 Road vehicles - Functional safety - Part 2. Management of functional safety (ISO 26262-2.2011, MOD)
GB/T 34590.3-2017 Road vehicles - Functional safety - Part 3. Concept
phase (ISO 26262-3.2011, MOD)
GB/T 34590.4-2017 Road vehicles - Functional safety - Part 4. Product
development at the system level (ISO 26262-4.2011, MOD)
GB/T 34590.5-2017 Road vehicles - Functional safety - Part 5. Product
development at the hardware level (ISO 26262-5.2011, MOD)
GB/T 34590.6-2017 Road vehicles - Functional safety - Part 6. Product
development at the software level (ISO 26262-6.2011, MOD)
GB/T 34590.8-2017 Road vehicles - Functional safety - Part 8. Supporting processes (ISO 26262-8.2011, MOD)
GB/T 34590.9-2017 Road vehicles - Functional safety - Part 9. Automotive Safety Integrity Level (ASIL)-oriented and safety-oriented analyses (ISO 26262-9.2011, MOD)
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms, definitions and abbreviated terms given in GB/T 34590.1-2017 apply.
4 Key concepts of GB/T 34590
4.1 Functional safety for automotive systems (relationship with GB/T
34590)
GB/T 34590 is a generic standard and a basic safety standard about functional safety of electrical/electronic/programmable electronic safety-related systems. This means that industry sectors will base their own standards for functional safety on the requirements of GB/T 34590.
In the automotive industry, there are a number of issues with applying GB/T

View full details
