GB/T 34393-2017: Specification for logistic mark of export finished vehicle

This Standard specifies the general requirements and the content of making and posting of logistic mark of export finished vehicle. This Standard is applicable to the logistic mark of export finished vehicle.

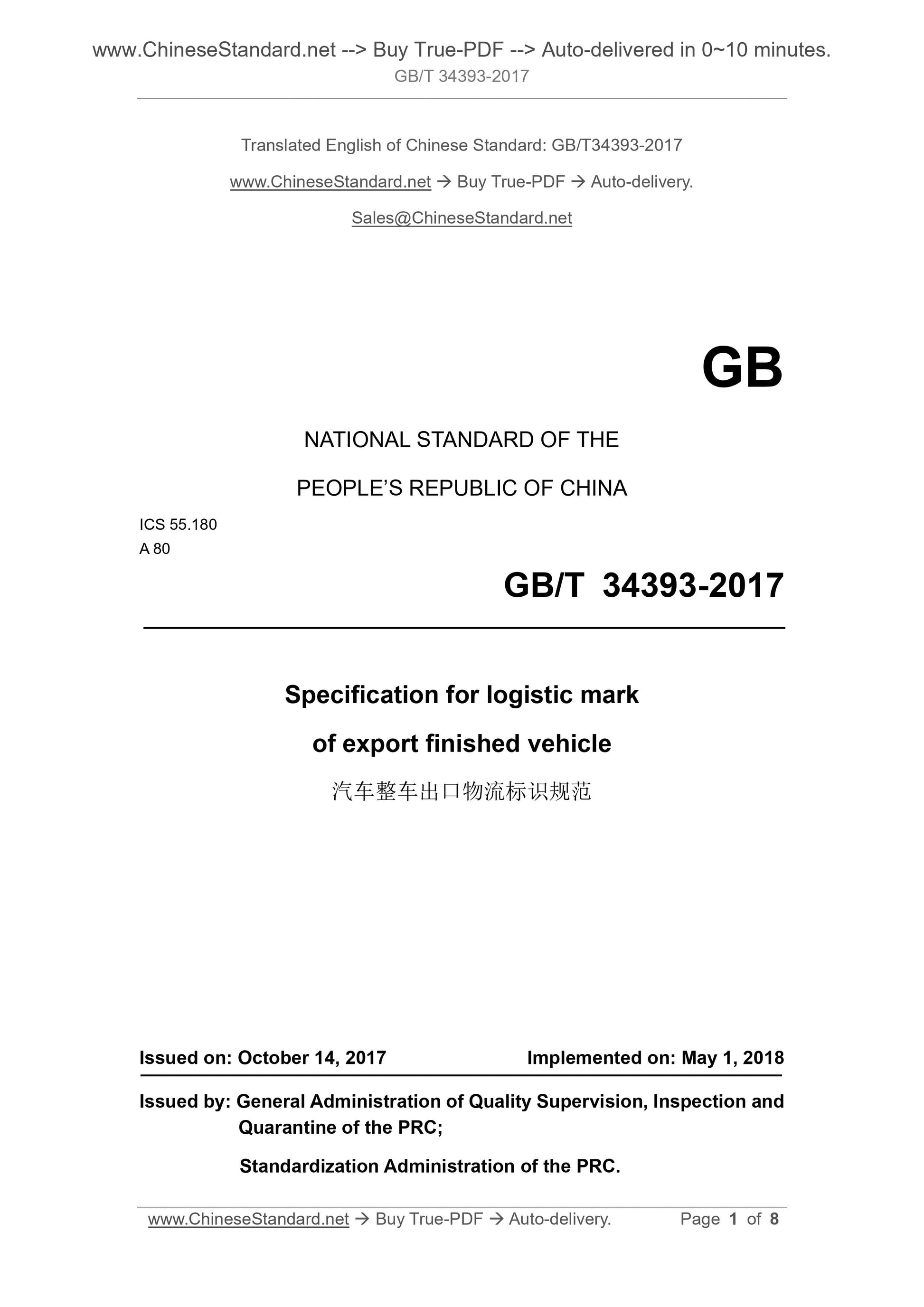

GB/T 34393-2017
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 55.180
A 80
Specification for logistic mark
of export finished vehicle
ISSUED ON. OCTOBER 14, 2017
IMPLEMENTED ON. MAY 1, 2018
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PRC;
Standardization Administration of the PRC.

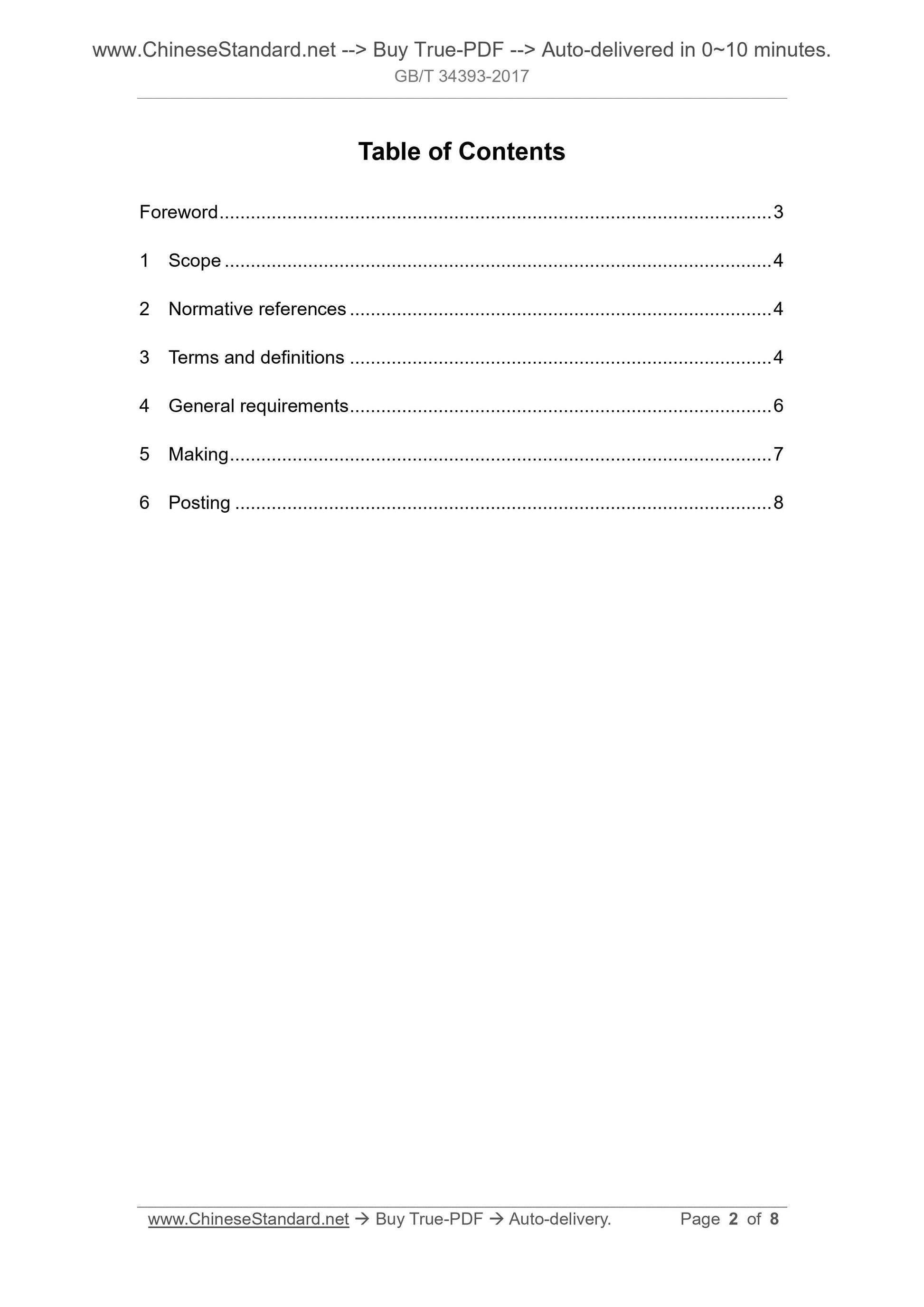

Table of Contents
Foreword . 3
1 Scope .. 4
2 Normative references .. 4
3 Terms and definitions .. 4
4 General requirements .. 6
5 Making .. 7
6 Posting . 8

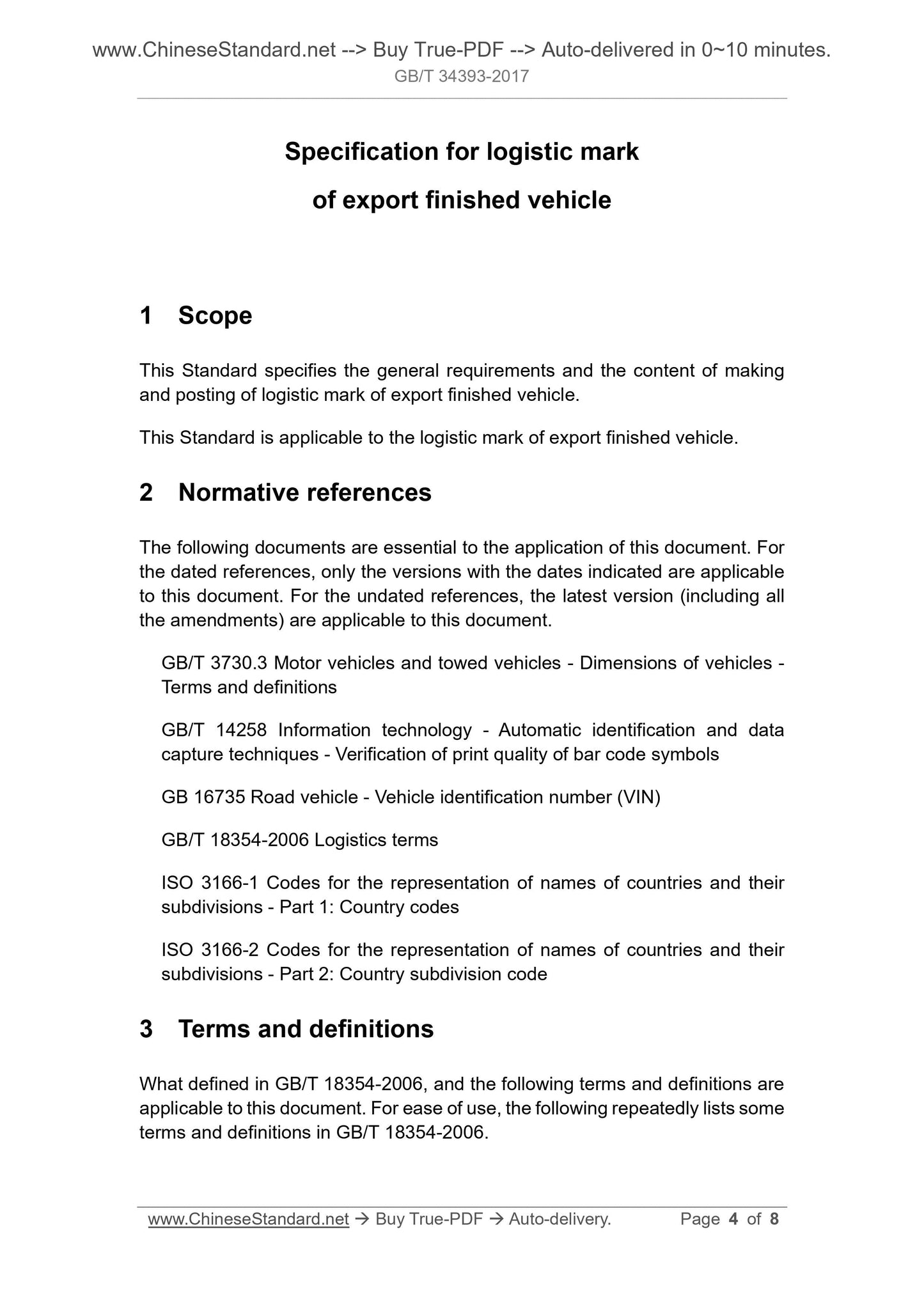

Specification for logistic mark
of export finished vehicle
1 Scope
This Standard specifies the general requirements and the content of making and posting of logistic mark of export finished vehicle.
This Standard is applicable to the logistic mark of export finished vehicle. 2 Normative references
The following documents are essential to the application of this document. For the dated references, only the versions with the dates indicated are applicable to this document. For the undated references, the latest version (including all the amendments) are applicable to this document.
GB/T 3730.3 Motor vehicles and towed vehicles - Dimensions of vehicles - Terms and definitions
GB/T 14258 Information technology - Automatic identification and data
capture techniques - Verification of print quality of bar code symbols
GB 16735 Road vehicle - Vehicle identification number (VIN)
GB/T 18354-2006 Logistics terms
ISO 3166-1 Codes for the representation of names of countries and their subdivisions - Part 1. Country codes
ISO 3166-2 Codes for the representation of names of countries and their subdivisions - Part 2. Country subdivision code
3 Terms and definitions
What defined in GB/T 18354-2006, and the following terms and definitions are applicable to this document. For ease of use, the following repeatedly lists some terms and definitions in GB/T 18354-2006.

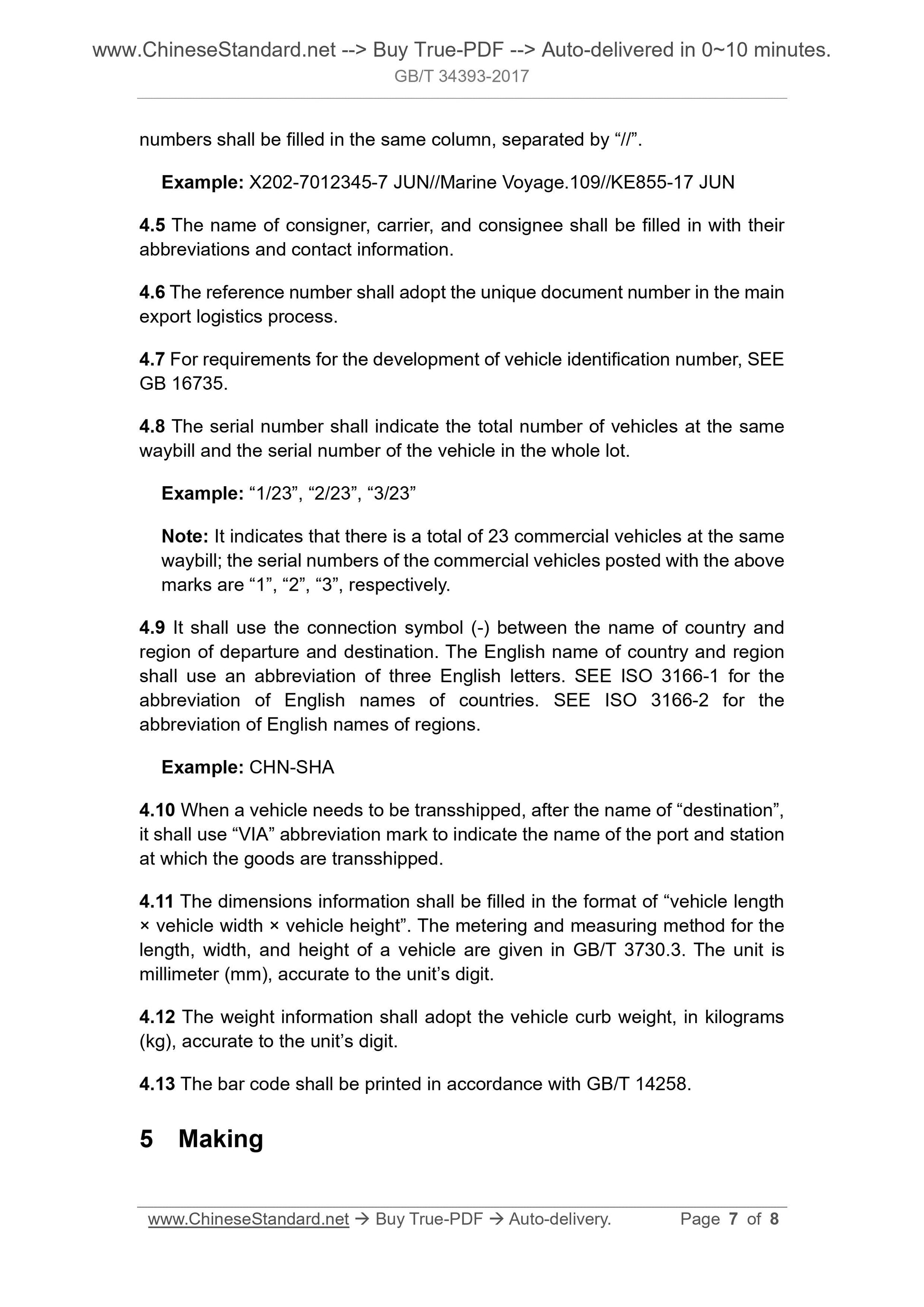

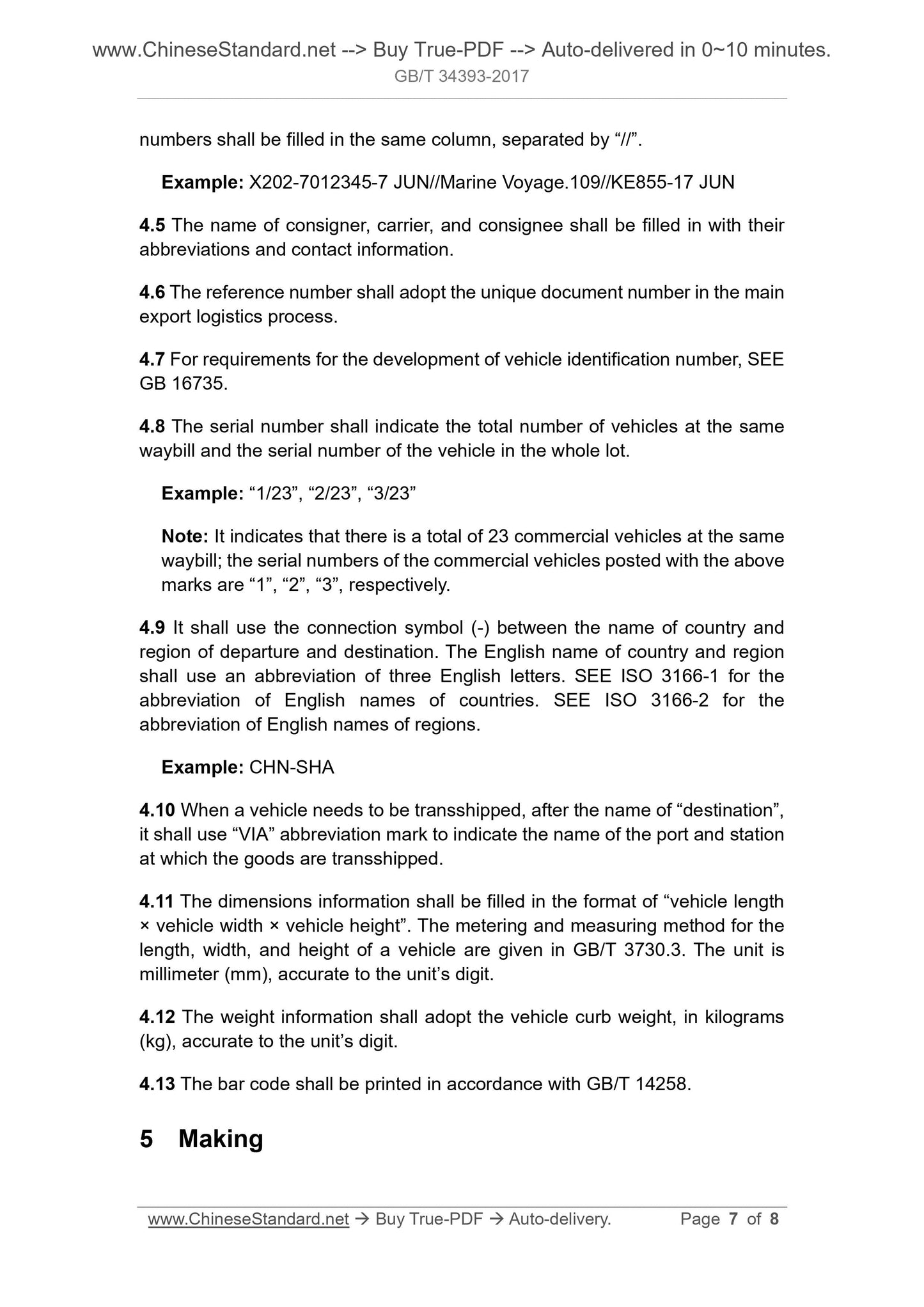

numbers shall be filled in the same column, separated by ?€?//?€?.
Example. X202-7012345-7 JUN//Marine Voyage.109//KE855-17 JUN
4.5 The name of consigner, carrier, and consignee shall be filled in with their abbreviations and contact information.
4.6 The reference number shall adopt the unique document number in the main export logistics process.
4.7 For requirements for the development of vehicle identification number, SEE GB 16735.
4.8 The serial number shall indicate the total number of vehicles at the same waybill and the serial number of the vehicle in the whole lot.
Example. ?€?1/23?€?, ?€?2/23?€?, ?€?3/23?€?
Note. It indicates that there is a total of 23 commercial vehicles at the same waybill; the serial numbers of the commercial vehicles posted with the above marks are ?€?1?€?, ?€?2?€?, ?€?3?€?, respectively.
4.9 It shall use the connection symbol (-) between the name of country and region of departure and destination. The English name of country and region shall use an abbreviation of three English letters. SEE ISO 3166-1 for the abbreviation of English names of countries. SEE ISO 3166-2 for the
abbreviation of English names of regions.
Example. CHN-SHA
4.10 When a vehicle needs to be transshipped, after the name of ?€?destination?€?, it shall use ?€?VIA?€? abbreviation mark to indicate the name of the port and station at which the goods are transshipped.
4.11 The dimensions information shall be filled in the format of ?€?vehicle length ?? vehicle width ?? vehicle height?€?. The metering and measuring method for the length, width, and height of a vehicle are given in GB/T 3730.3. The unit is millimeter (mm), accurate to the unit?€?s digit.
4.12 The weight information shall adopt the vehicle curb weight, in kilograms (kg), accurate to the unit?€?s digit.
4.13 The bar code shall be printed in accordance with GB/T 14258.
5 Making
